WMX1 MK3
The ADJ WMX1 MK3, powered by WOLFMIX, is a powerful standalone DMX lighting controller designed to simplify professional lighting control without the need for a computer. Compatible with virtually any DMX fixture, it offers intuitive touchscreen operation, dynamic effects generation, music synchronization, fixture grouping, and support for up to four DMX universes. Advanced Fixture Clusters allow complex multi-element fixtures to be divided into defined sections, such as pixel arrays, RGB rings, and strobes, for more intuitive individual control and enhanced integration with the WMX1 MK3’s FX engines. Whether controlling intelligent moving heads, LED fixtures, or effects lighting, the WMX1 MK3 delivers fast, creative, and reliable show control for DJs, entertainers, venues, and production professionals.
Building on the foundation established by the WMX1 and WMX1 MK2, the WMX1 MK3 introduces a refined industrial design and an all-new button mechanism, delivering enhanced responsiveness and a more satisfying tactile experience.
Featuring upgraded USB-C connectivity and a sleeker enclosure, the WMX1 MK3 incorporates a precision-molded housing engineered to align seamlessly with the new WING expansion controller (coming Q4 2026). Together, they create a unified control ecosystem designed to work perfectly side by side, expanding creative possibilities while maintaining the intuitive workflow that has made Wolfmix controllers a favorite among lighting professionals.
WMX1 MK3
The ADJ WMX1 MK3 brings professional-grade DMX lighting control to users who demand power, flexibility, and simplicity. Designed as a completely standalone solution, the WMX1 MK3 eliminates the need for a computer while providing intuitive control over complex lighting systems through its responsive 4.3-inch capacitive touchscreen interface.
Compatible with virtually any DMX fixture, the controller supports up to four DMX universes and 2,048 channels (additional universes available via optional add-ons), allowing control of up to 680 fixtures across 50 device types. With access to more than 15,000 fixture profiles and support for fixture grouping, addressing, sequencing, and project management, the WMX1 MK3 is equally at home in mobile entertainment, clubs, houses of worship, event production, and installation environments.
Create dynamic lighting shows with dedicated Color, Move, and Beam FX engines, each offering eight effect types and extensive customization options including speed, phase, size, fade, fan, sequence, and flicker controls. Built-in music synchronization can be driven by the onboard microphone, line input, Ableton Link, OS2L integration, or manual BPM tapping for perfectly timed effects.
For sophisticated multi-element fixtures, the WMX1 MK3 features Fixture Clusters, allowing a fixture to be divided according to its defined, named sections rather than simply splitting it into equal beams. This makes it easier to control fixtures that incorporate multiple functional lighting elements, such as pixel arrays, RGB rings, strobes, or other independently controllable sections. Each cluster can be recognized as a logical section of the fixture, providing more intuitive control and allowing complex multi-element fixtures to integrate more effectively with the WMX1 MK3’s FX engines.
The WMX1 MK3 also features 100 preset slots for storing and instantly recalling lighting snapshots, advanced fixture tools such as FLIP and SPLIT functions, automatic gobo alignment across different fixture models, DMX channel testing, and time-controlled triggering of presets and flash buttons.
Additional expansion capabilities include DMX input mapping, WLINK synchronization between multiple Wolfmix controllers, offline 3D visualization with Easy View, and project backup and management through the WTOOLS application. Automatic project recovery ensures your show is always ready to go without the need for manual saving.
With versatile DMX connectivity, MIDI support, USB integration, and a rugged design featuring an ABS enclosure and steel base plate with VESA mounting capability, the ADJ WMX1 Mk3 provides an innovative and efficient solution for modern lighting control.
Specifications
Control & Performance
Standalone DMX lighting controller
No computer required
Compatible with virtually any DMX fixture
Supports up to 4 DMX universes (2,048 channels total)*
Controls up to 680 fixtures
Supports up to 50 device types
8 fixture groups
6 project memories
15,000+ fixture profiles available (3,500+ stored on controller)
Fixture addressing, sequencing, and grouping tools
DMX splitter functionality with universe mapping
Automatic active-project restoration
Import multiple fixture setups into a single project
*Additional universes require optional add-ons. Certain advanced functions require additional purchases through the WTOOLS app.
Effects & Programming
Color FX engine with 8 effect types
Move FX engine with 8 effect types
Beam FX engine with 8 effect types
200 preset slots with hold and fade timing control
Live Move FX registration point control
Global FX speed and freeze functions
Effect parameters:
Speed
Phase
Sequence
Size
Fade
Fan
Flicker
Synchronization
Music synchronization:
Built-in microphone
3.5 mm line input
BPM synchronization:
Ableton Link
OS2L
Manual BPM Tap
MIDI Clock via USB MIDI port
Advanced Features
DMX input mapping with group dimmer and channel patching*
WLINK synchronization between WMX1 controllers*
MIDI controller support
USB storage device support
DMX channel tester
Time-controlled flash and preset triggering
Fixture FLIP function
Fixture SPLIT function for multi-FX bars
Fixture CLUSTERS function for multi-element fixtures:
Divides fixtures into defined, named sections
Supports pixel arrays, RGB rings, strobes, and other independently controllable elements
Provides enhanced integration with FX engines
Allows more intuitive control of individual fixture sections
Project and fixture backup through WTOOLS
Supports between 1 and 100 projects, depending on project size and available memory
Offline 3D visualization with Easy View and WTOOLS via USB*
*Feature requires optional add-on or additional purchase via WTOOLS app.
Display
4.3-inch color TFT touchscreen
Capacitive touch technology
Tinted glass surface
Audio
Built-in omnidirectional electret microphone
3.5 mm mini-jack line input

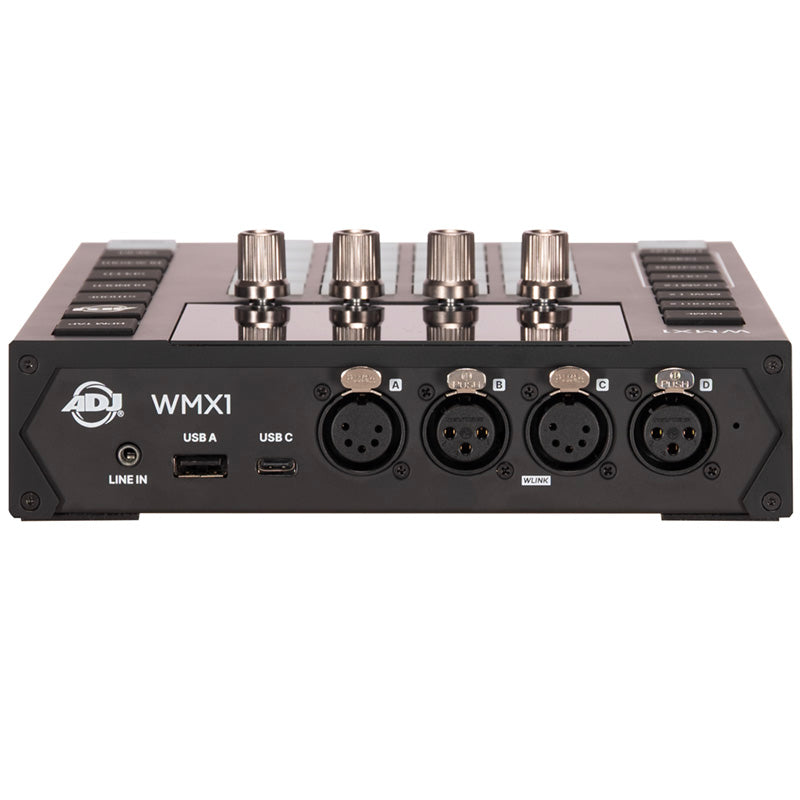

Connections
2 x 3-pin XLR DMX outputs
1 x 5-pin XLR DMX output
1 x 5-pin XLR DMX IN/OUT with WLINK
USB-A port with MIDI, MSD, and WLINK support (5V, 900mA)
USB-C power input (900mA required; 1500mA recommended for MIDI/WLINK operation)
Construction
Housing: ABS plastic
Base plate: Powder-coated steel
Mounting: Integrated 100 mm VESA mounting pattern
Dimensions & Weight
Dimensions (L x W x H): 7.68" x 8.66" x 2.44" (195 x 220 x 62 mm)
Weight: 2.36 lbs. (1.070 kg)
Optional Upgrades
Easy View 3D Visualizer: $99
WLINK (+DMX IN): $49
Additional DMX universes: $99 each (up to 2 additional universes)
Check for product Firmware updates here:
https://wolfmix.com/en/download
Specifications subject to change without notice.
