Expand your control. Expand your show.

The ADJ WMX WING powered by WOLFMIX is the dedicated control expansion for the ADJ WMX1, WMX1 Mk2 and WMX1 Mk3, adding motorized faders, OLED displays, an expanded button matrix and hands-on access to the functions that matter most.

WMX WING is compatible with all ADJ WMX1 generations: WMX1 (equivalent to Wolfmix W1 MK1), WMX1 Mk2 (equivalent to Wolfmix W1 MK2) and WMX1 Mk3 (equivalent to Wolfmix W1 MK3). ADJ WMX WING is the ADJ version of the Wolfmix WING.

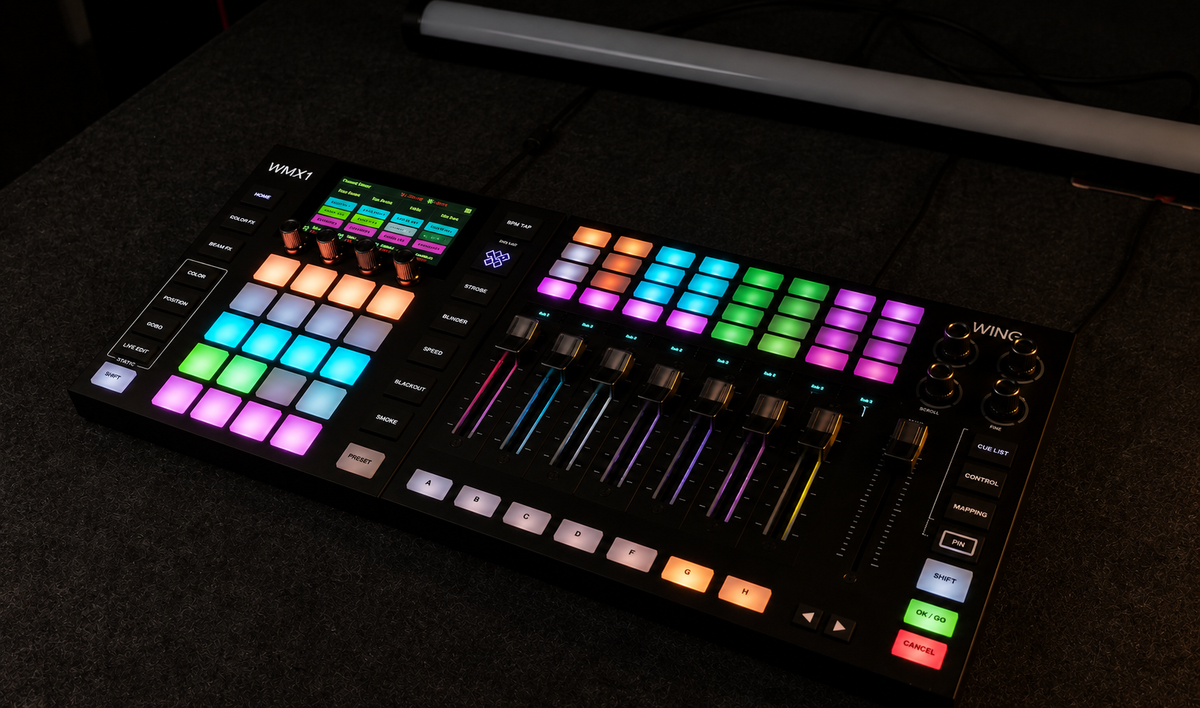

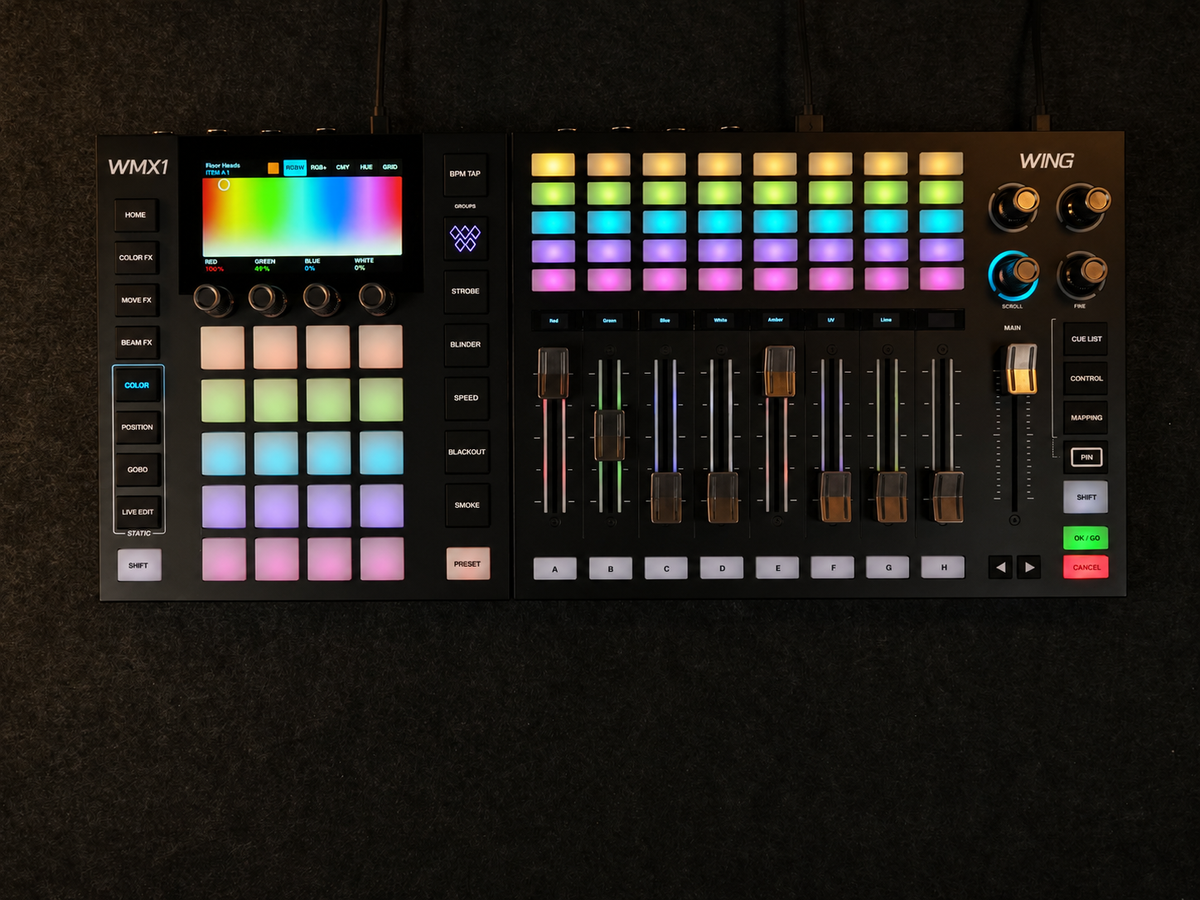

Connect the two and they become a single integrated lighting control system, giving you more space to build, program and perform ambitious shows while retaining the intuitive workflow and standalone operation of WOLFMIX.

UPC: 810087376109SKU: WMX318

WMX WING

The ADJ WMX WING powered by WOLFMIX expands the WMX1, WMX1 Mk2 or WMX1 Mk3 into an expanded hands-on lighting control system built for stages, venues, productions and live performance.

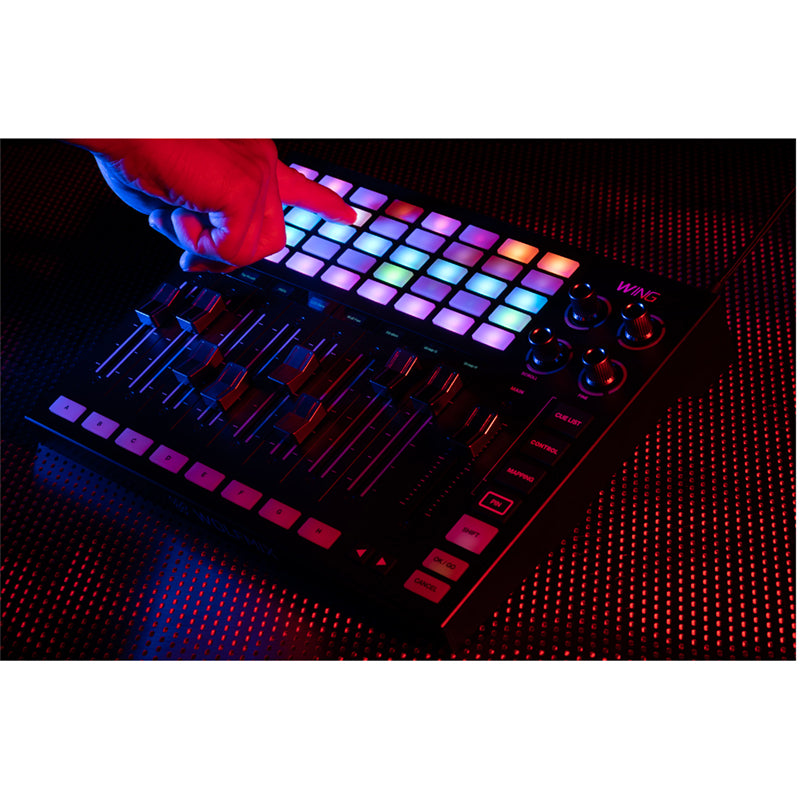

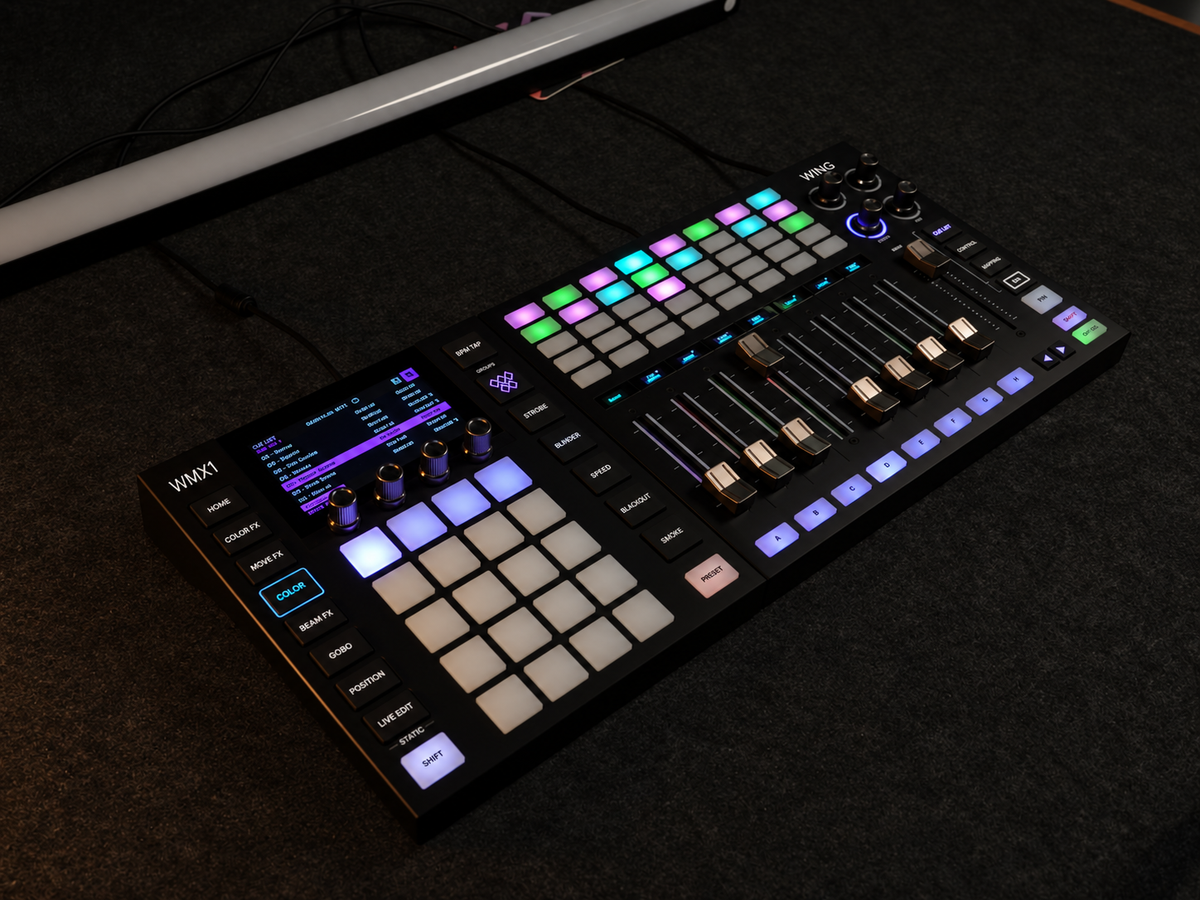

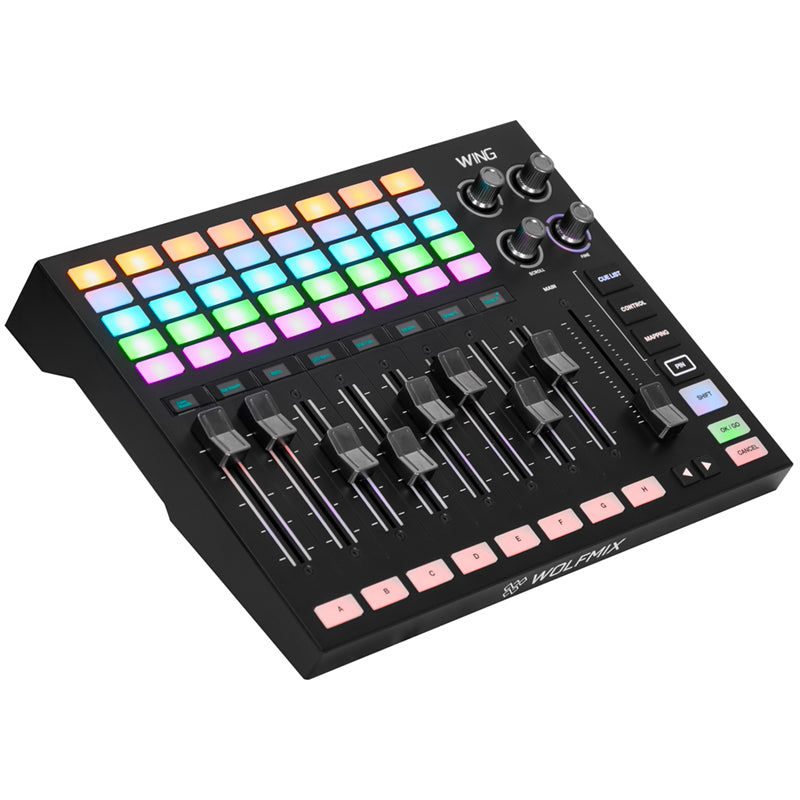

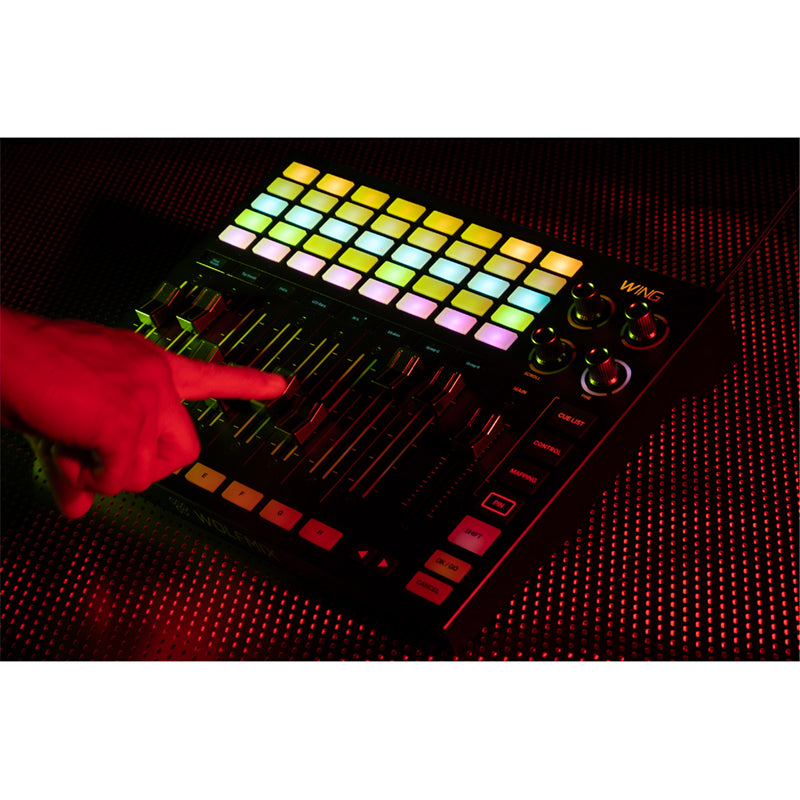

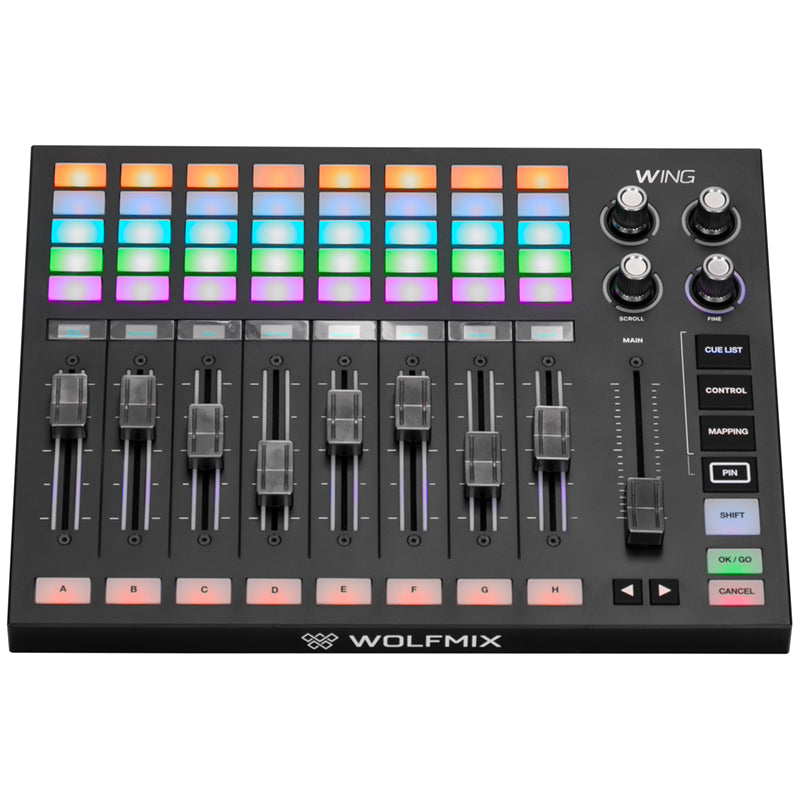

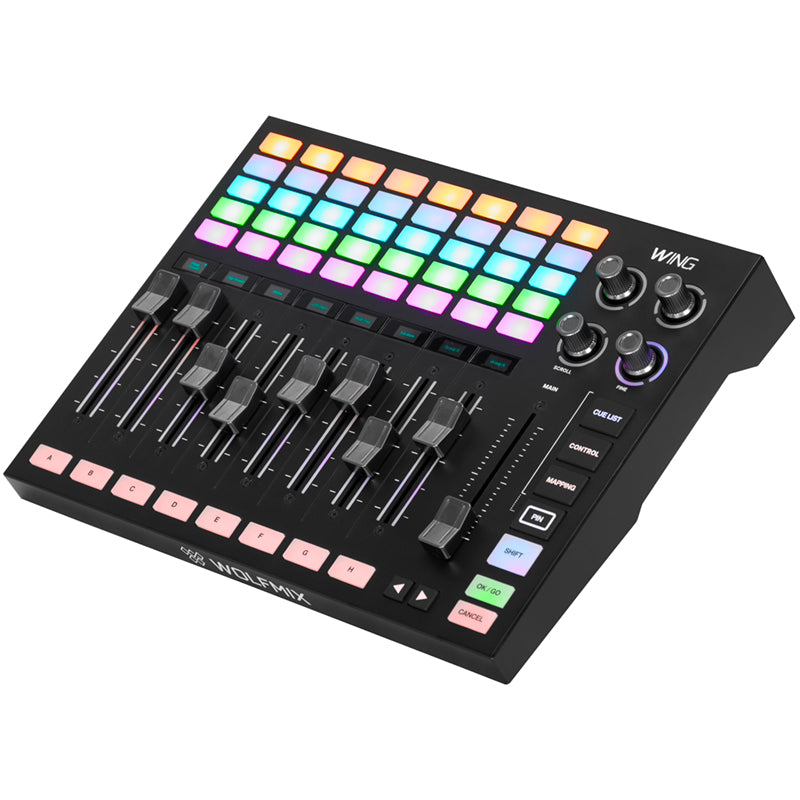

Designed as a control expansion for the WMX1, WMX1 Mk2 and WMX1 Mk3, WMX WING adds eight motorized touch-sensitive faders, eight OLED strip displays, an 8 x 5 RGB button matrix, dedicated group controls, four rotary encoders and physical GO and CANCEL controls. The result is a larger creative workspace that keeps important functions immediately accessible without sacrificing the streamlined workflow that makes the WOLFMIX control platform so intuitive.Connect WMX WING to a compatible WMX1 controller and the two operate as one integrated system — two devices, one instrument. Projects automatically synchronize between the controllers, while WING intelligently expands the controls available for the current WMX1 operating mode. All eight fixture groups can be placed directly in front of you, making it faster to dim, flash, solo, select and manipulate effects without repeatedly navigating between pages.

Specifications

Control Surface

  • Motorized Faders: 8
  • Fader Caps: Electroplated capacitive touch
  • Fader Lightguides: 8
  • Lightguide LED's: 4 RGB LEDs per fader; single or dual-color operation
  • Main Fader: 1
  • OLED Displays: 8
  • OLED Resolution: 64 x 32 pixels each
  • RGB Backlit Silicone Buttons: 57
  • Main Matrix: 8 x 5
  • Group Select Buttons: 8
  • Mode Buttons: Cue List, Control, Mapping
  • Paging Buttons: 2
  • Dedicated Controls: OK/GO, CANCEL, SHIFT, PIN
  • Rotary Encoders: 4 total
  • Detented Encoders: 1
  • Non-detented Encoders: 3
  • Dedicated Encoder Functions: SCROLL and FINE


DMX

  • Included Universes: 2
  • Maximum Universes: 4 with add-on

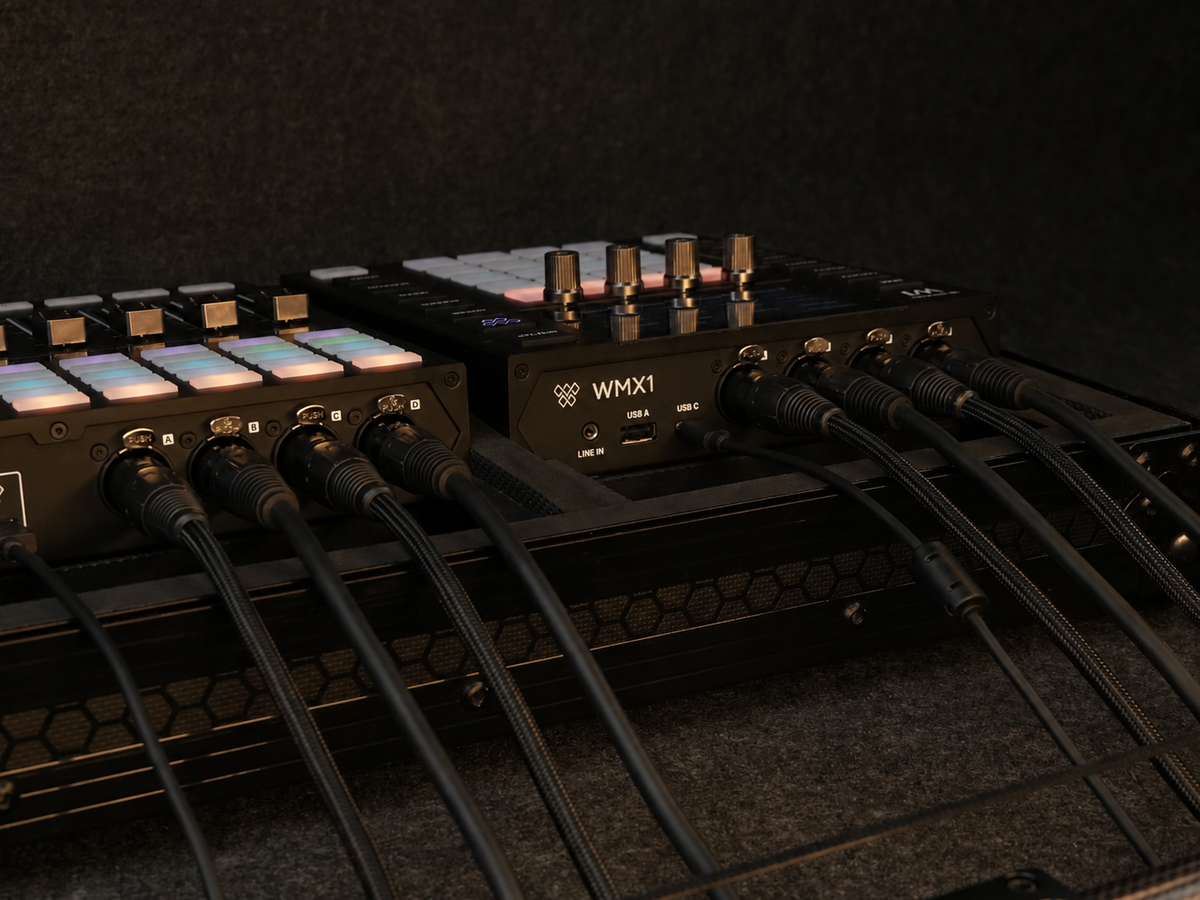

  • Maximum Fused System: Up to 8 universes with WMX1
  • Maximum Fused DMX Channels: 4,096

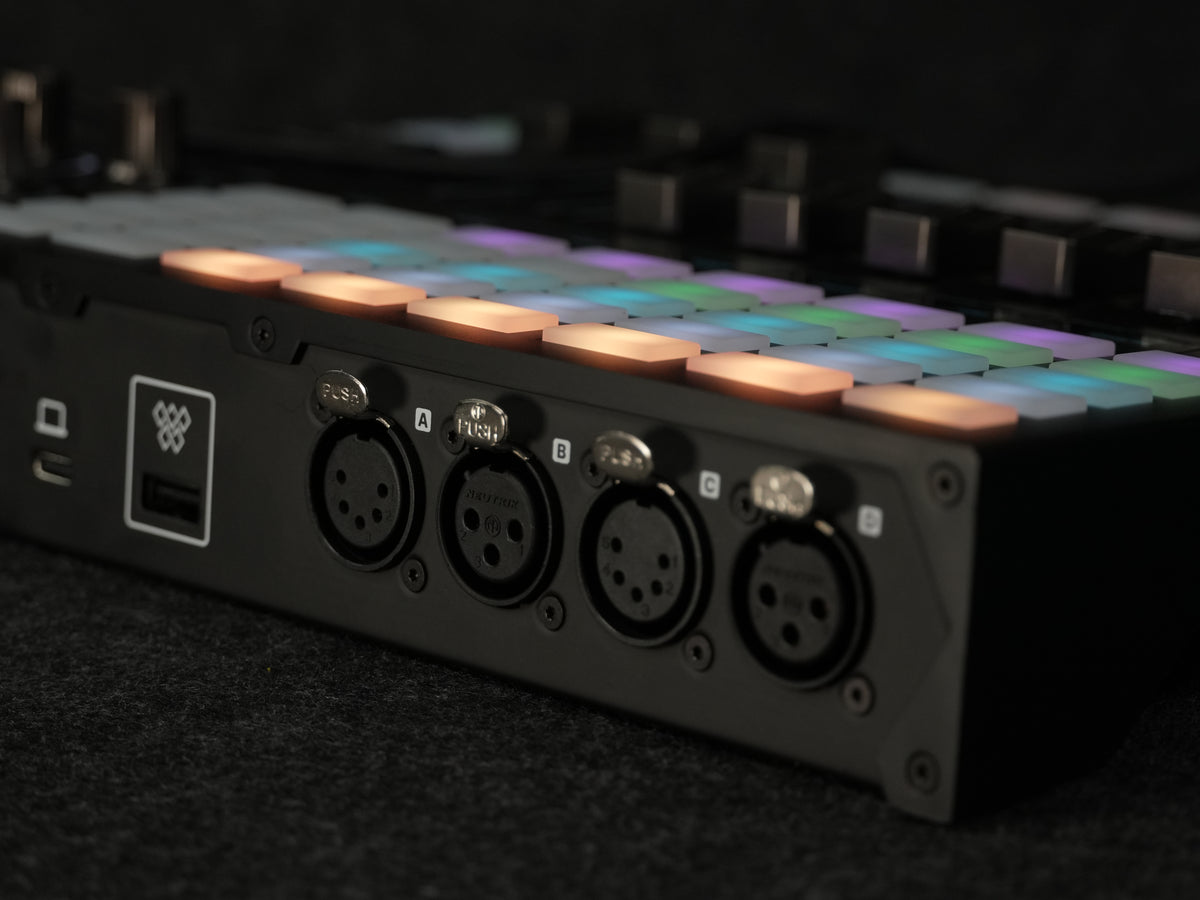

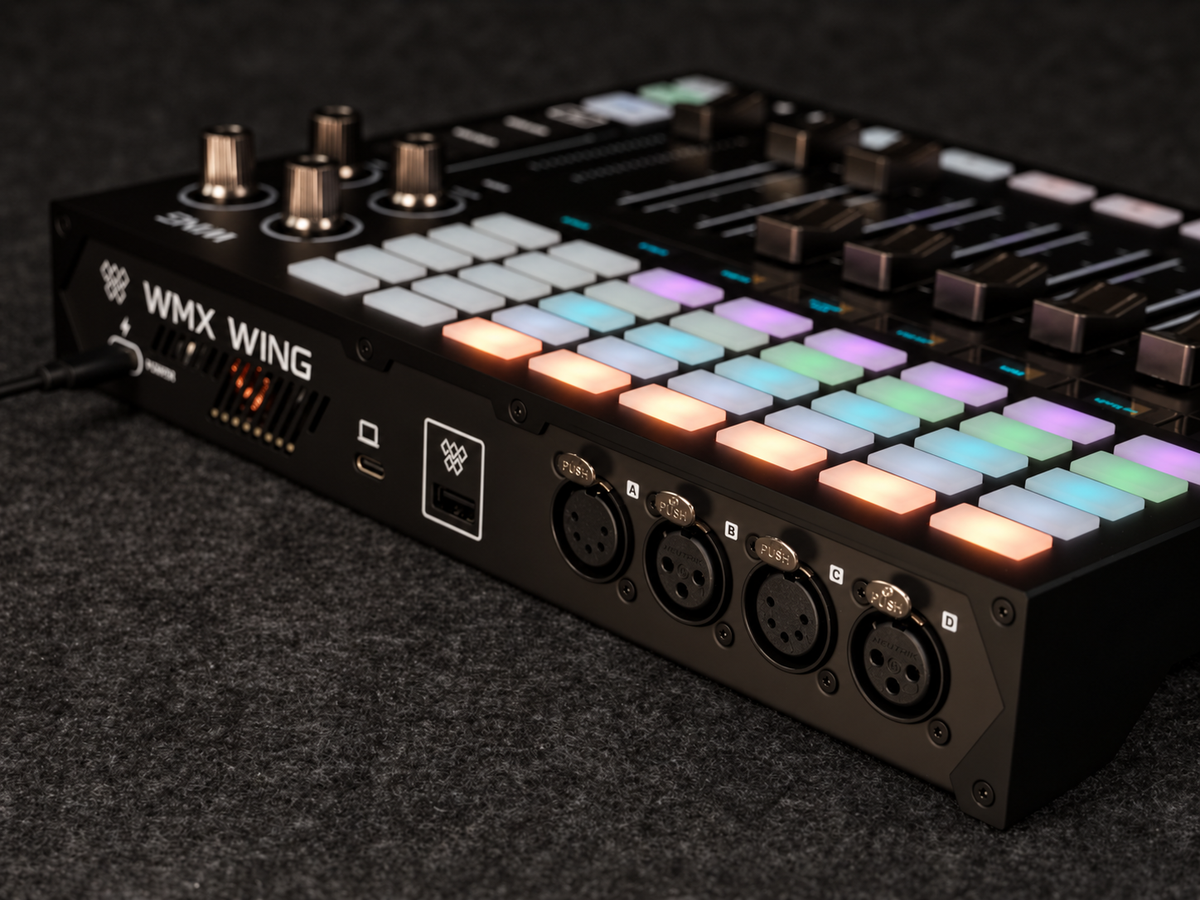

  • DMX Outputs: 4
  • 3-Pin DMX OUT: 2
  • 5-Pin DMX OUT: 2
  • Output Assignment: Each port freely assignable to any available universe


Fixture / Project Capacity

  • Fixtures: Up to 680
  • Beams: Up to 1,500
  • Fixture Types: Up to 50
  • Fixture Features: Up to 5,000
  • Fixture Groups: 8
  • Subgroups: 8 per group
  • Projects: Up to 100 or 3.5 MB of project data, whichever is reached first
  • Fixture Library: 30,000+ available fixtures; 3,000+ stored on the controller


Cue List

  • Maximum Cues: 5,000
  • Maximum Cues Per Cue List: 1,000
  • Maximum Cue Lists: 100
  • Preset Stacking: Up to 5 presets per cue when they control different parts
  • Hold Time: Yes
  • Fade Time: Yes
  • Automatic Cue Jump: Yes
  • Manual Cue Jump: Via dedicated OK/GO button
  • Manual Cue Fade: Via motorized faders
  • Pause / Resume Running Fade: Via CANCEL button or by grabbing the active cue fader
  • Cue List Looping: Yes
  • MIDI Time Code (MTC): Yes


Control Mode

  • Select up to 680 fixtures across the matrix
  • Selection macros for All, None, Evens, Group, Subgroup, and Invert
  • Group filtering via dedicated group buttons
  • Direct fader control of:
    • Dimmer
    • Red, Green, Blue, White, Amber, UV, and Lime
    • Pan / Tilt with 16-bit control
    • Zoom
    • Iris
    • Focus
    • Gobo Rotation
    • Prism Rotation
  • Store control edits directly into presets
  • Up to 32 edits per preset
  • Customizable parameter layout across 2 pages

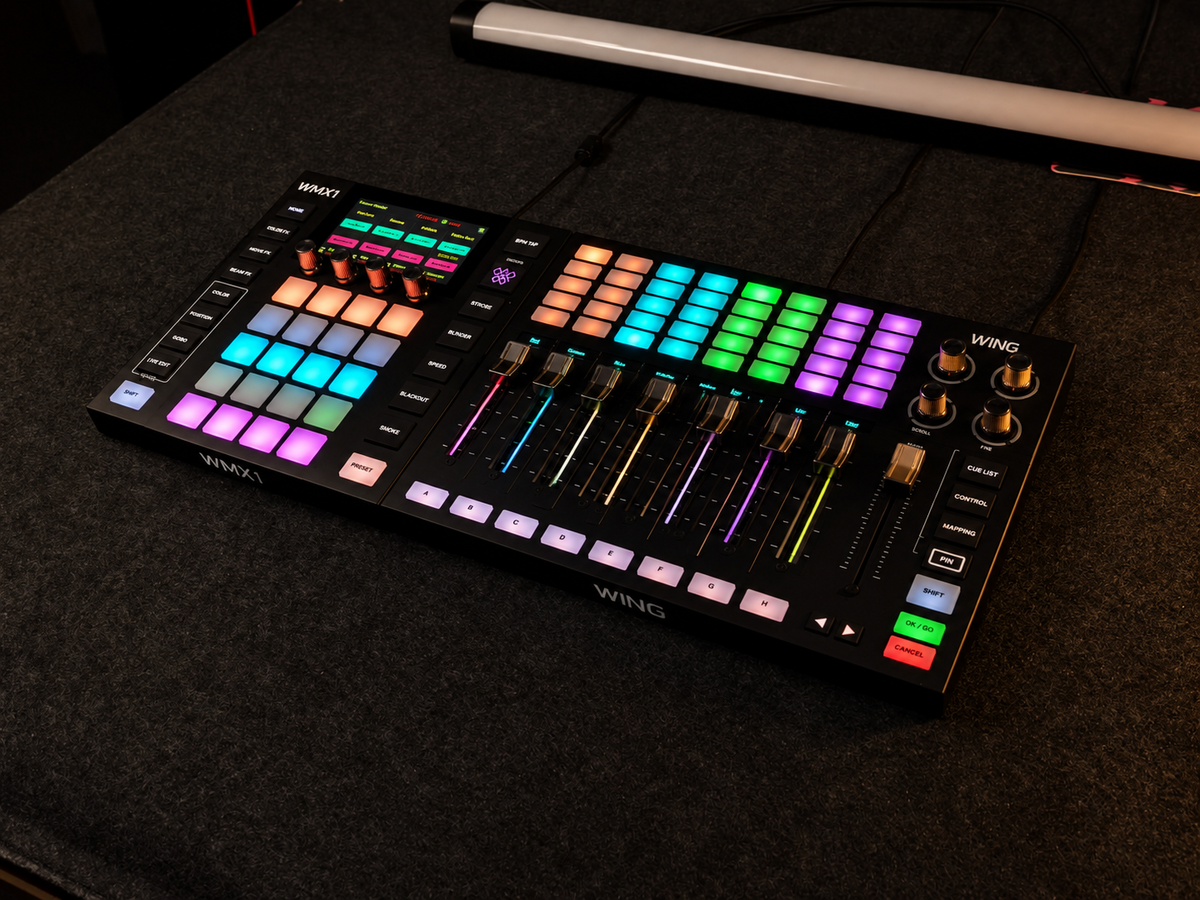

Mapping Mode

  • Matrix Mapping: 4 assignable pages of 8 x 5 matrix buttons
  • Fader Mapping: 4 assignable pages of 8 motorized faders
  • Assignable Encoders: 2
  • Faders and matrix change pages together
  • Mix WMX1 parameter assignments with generic MIDI output
  • Mapping options include group dimmers, solo, flash, presets, Live Edit, macros, manual DMX, FX parameters, and Cue Lists
  • Unassigned controls can send and receive generic MIDI
  • Strip names and colors configurable using WTools
  • With no project loaded, WMX WING can operate as a generic MIDI control device

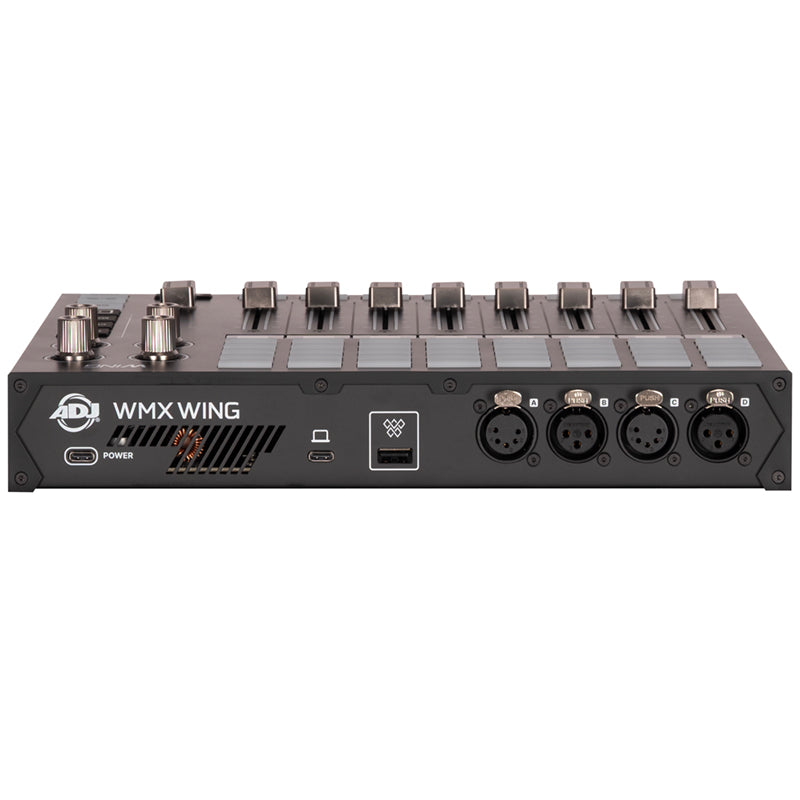

Connectivity

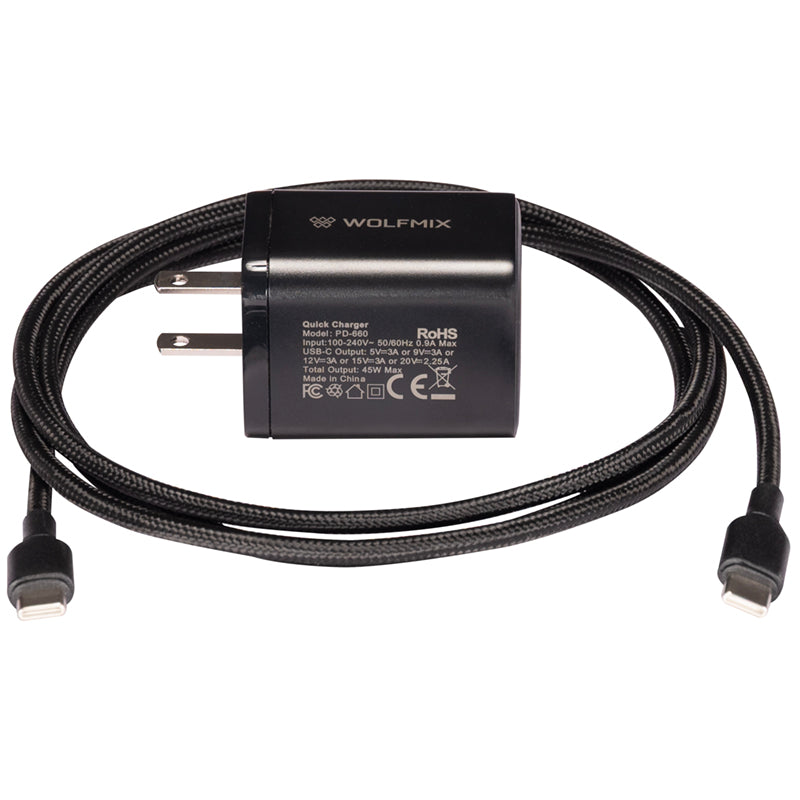

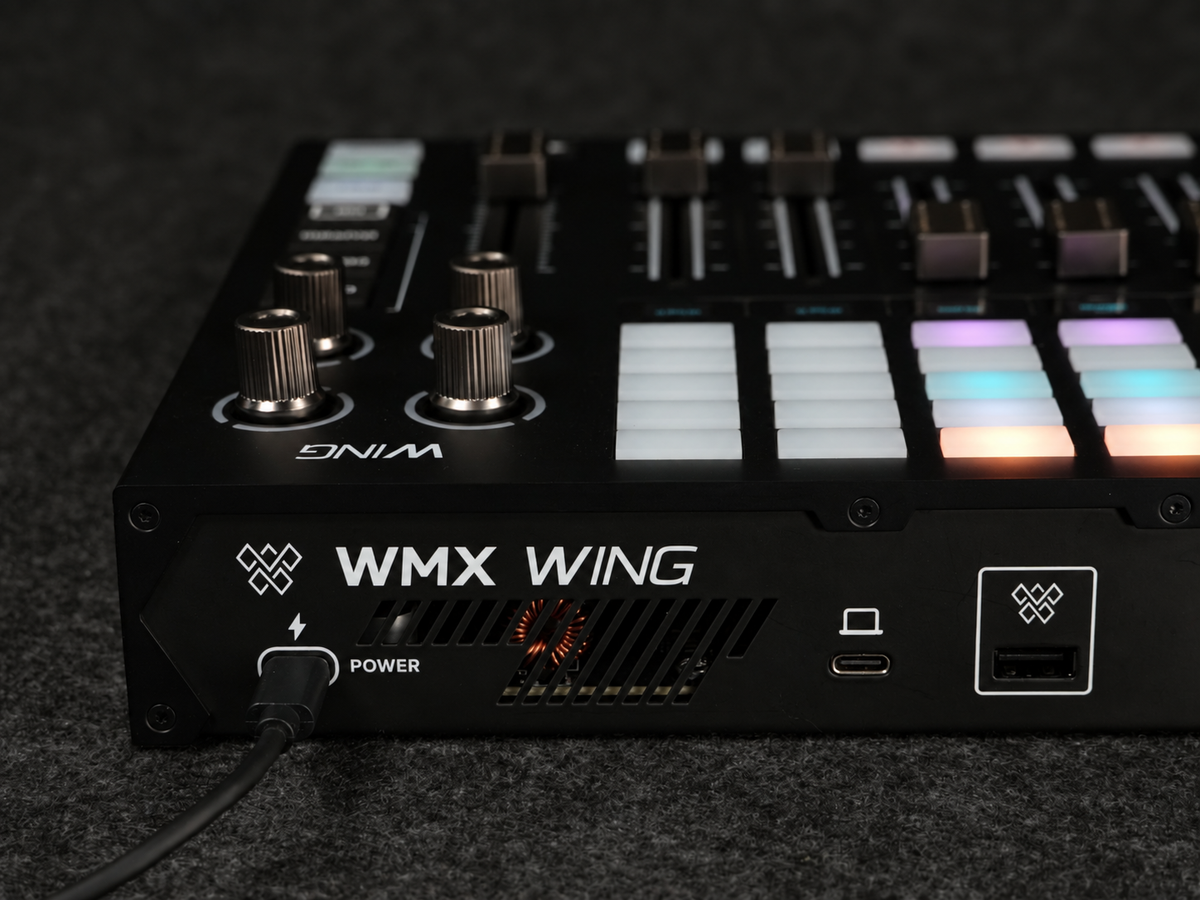

  • USB-C Power: 15V, 3A
  • USB-C Data: Yes
  • USB-A: Connects and powers WMX1
  • DMX: 2 x 3-pin XLR + 2 x 5-pin XLR


Processing

  • CPU: 220 MHz ARM-core processor
  • RAM: 8 MB
  • Flash Memory: 16 MB
  • Motorized Fader Processing: Dedicated secondary processor


Construction

  • Housing: ABS plastic
  • Base Plate: Powder-coated steel
  • Mounting: 100 mm VESA
  • VESA Hardware: M4, 6 mm maximum


Dimensions & Weight

  • Dimensions: 8.7 x 11.4 x 2.25 in. / 220 x 290 x 57 mm
  • Weight: 3.4 lbs. / 1.54 kg


Specifications are subject to change without notice.
