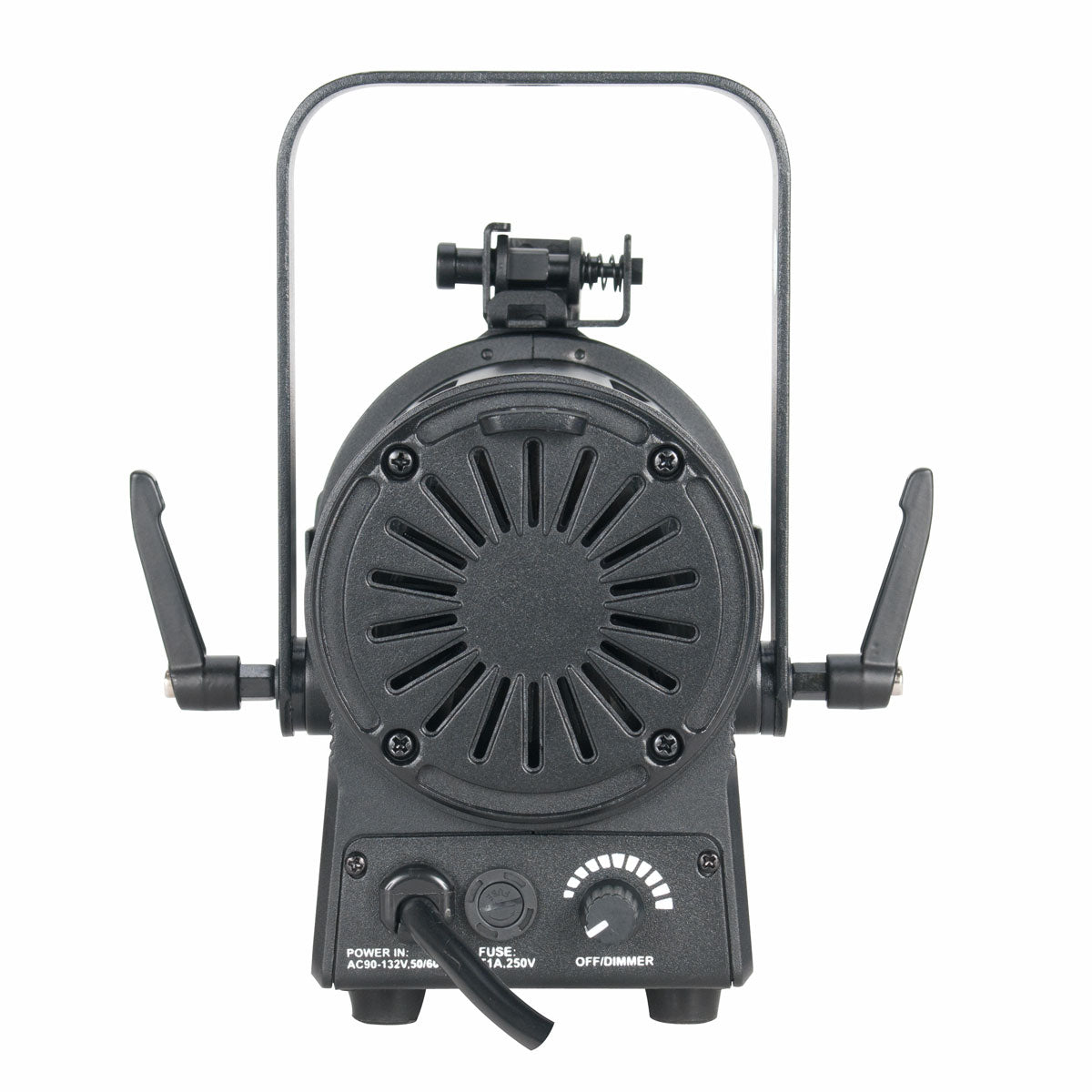

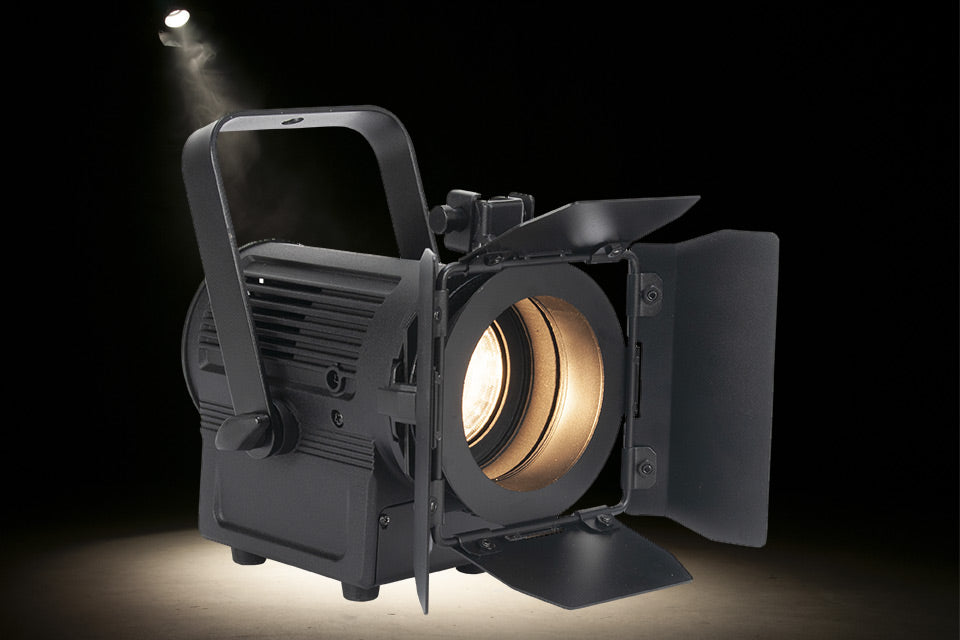

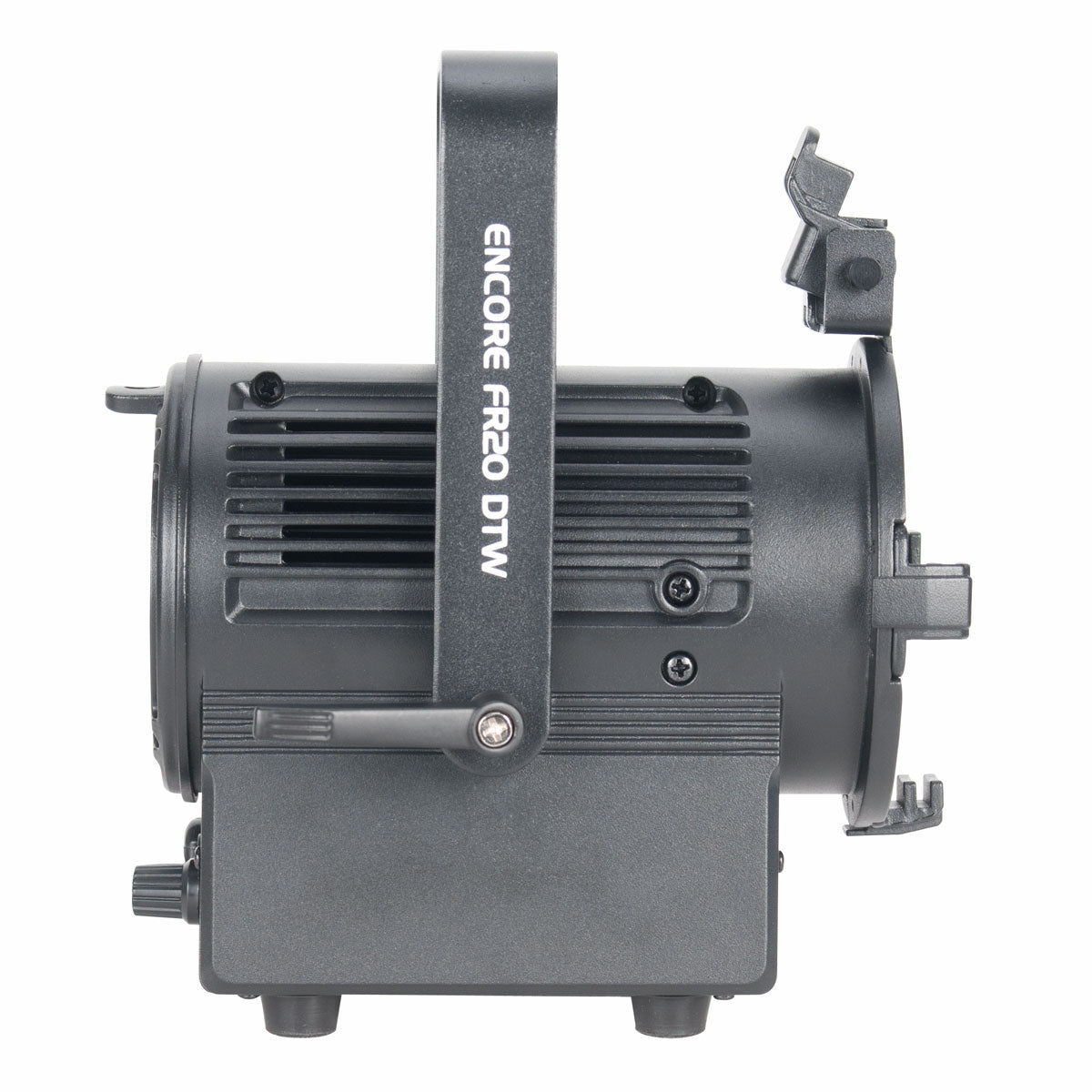

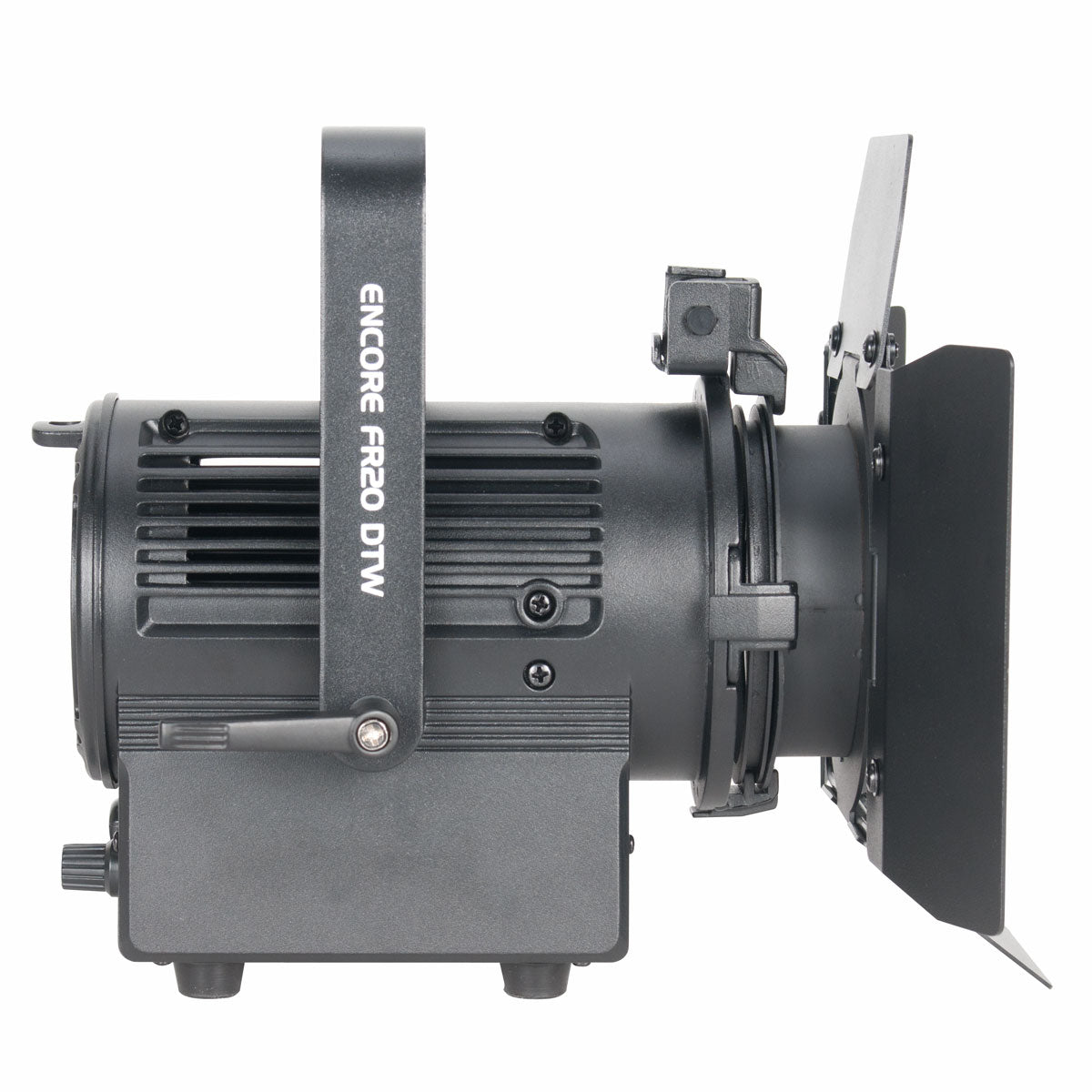

Encore FR20 DTW
Available now from ADJ USAPart of the Encore stage lighting series, the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers.

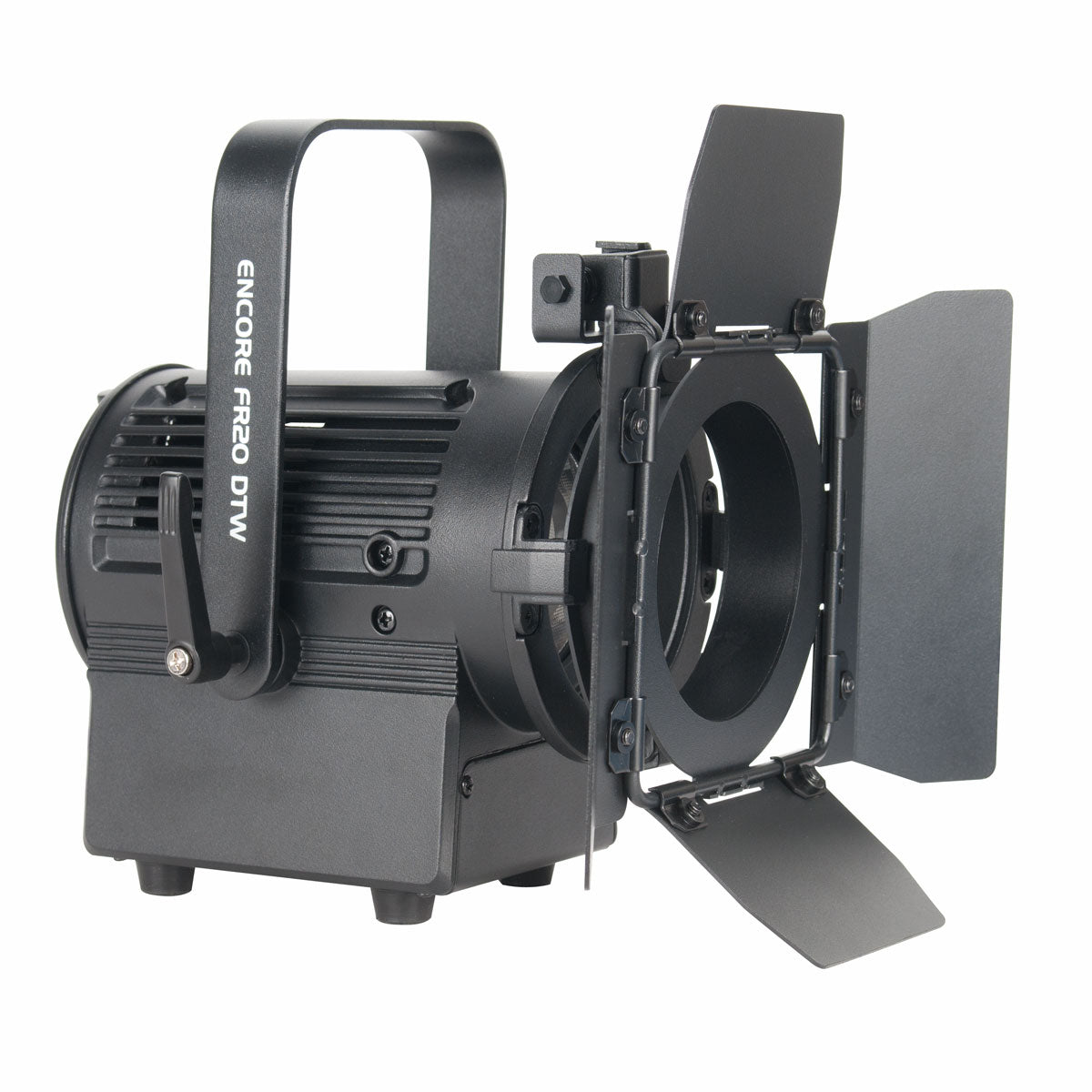

The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light, a frost filter to change the beam angle from 19-degrees to 45-degrees, gel frame to add a color gel (sold separately) and a safety cable.

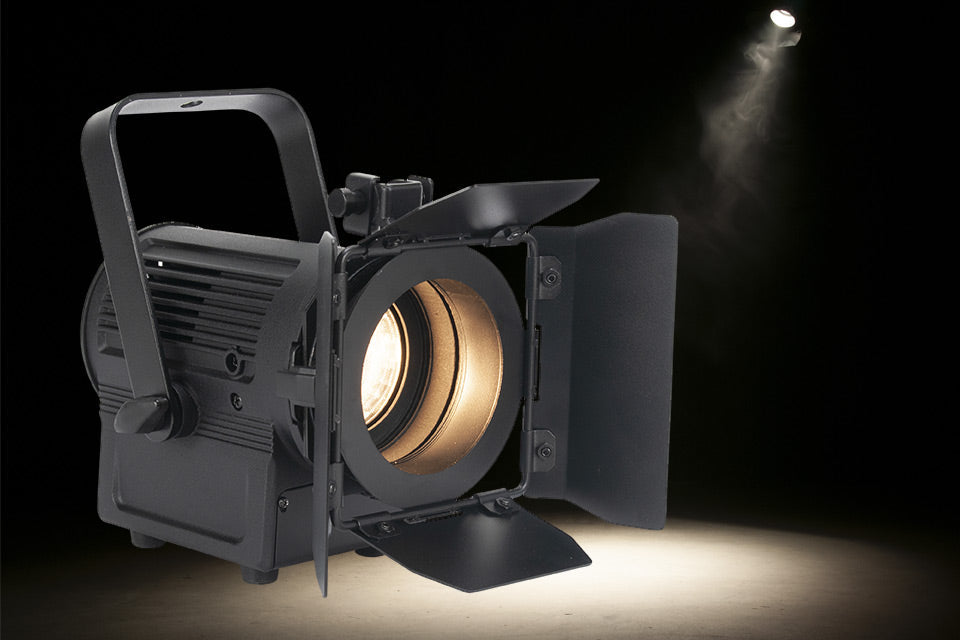

Learn more about the Encore FR20 DTW from this product spotlight article: CLICK HERE
Specifications

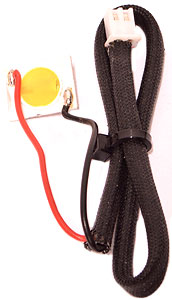

• 17W warm white LED engine
• 2-inch Fresnel lens
• Dimming potentiometer: 0-100%
• Dim to warm feature

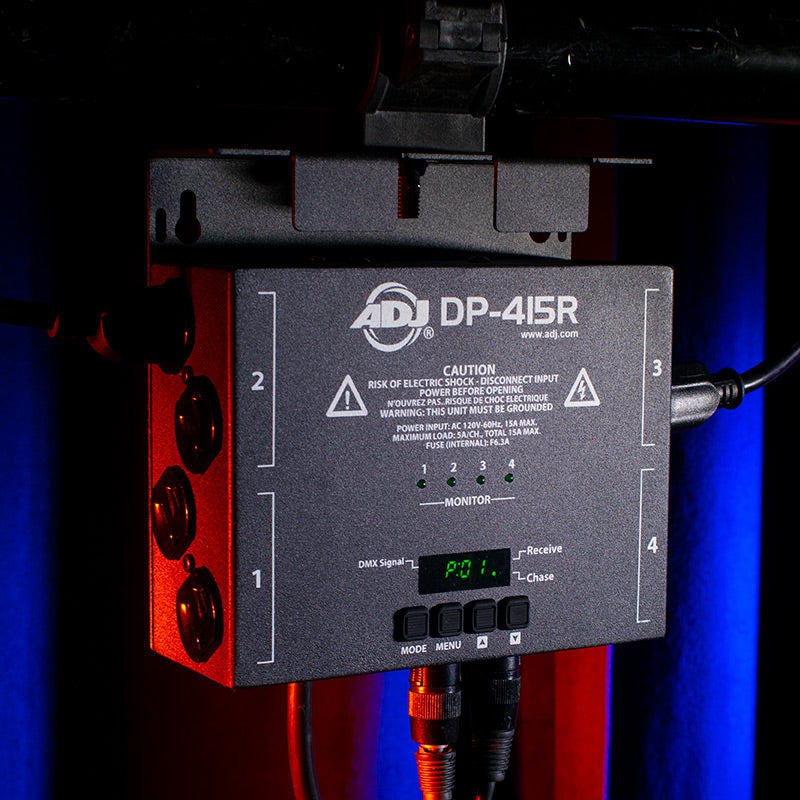

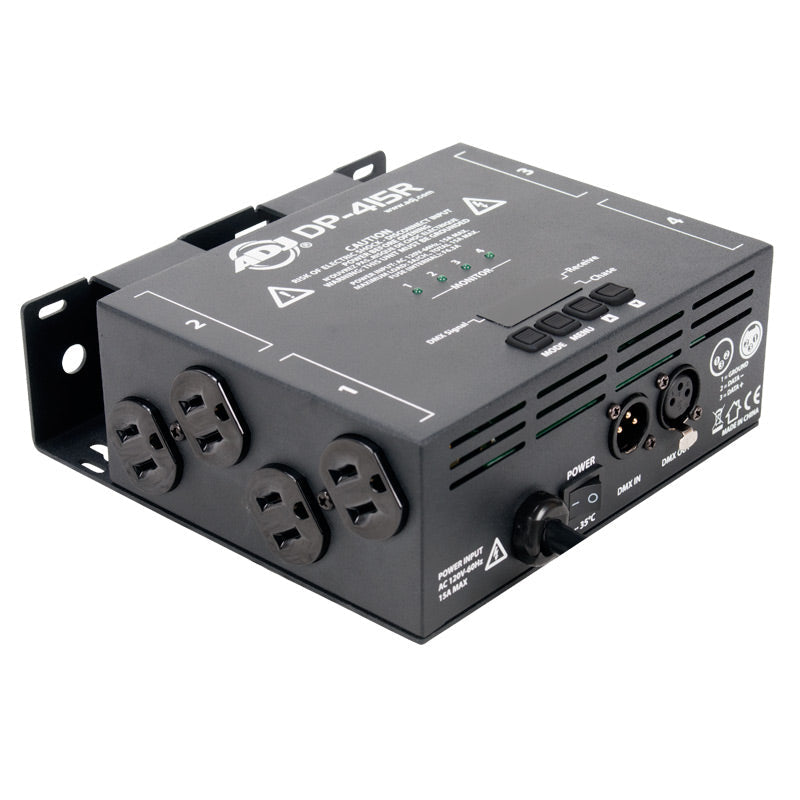

• Triac dimmable - compatible with Lutron Leviton wall dimmers or ADJ Dimmer Packs (DP-415R, DP-DMX20L, Uni Pak II)
• CRI 92
• Color Temperature: 3000K
• Beam angle: 19-degrees
• LUX @ 3M: 600
• LED Life: 50,000 hours
• Includes hanging bracket
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Dimensions (LxWxH): 10.25” x 5.25” x 8.25” / 259x133x210mm
• Weight: 5 lbs. / 2 kg.

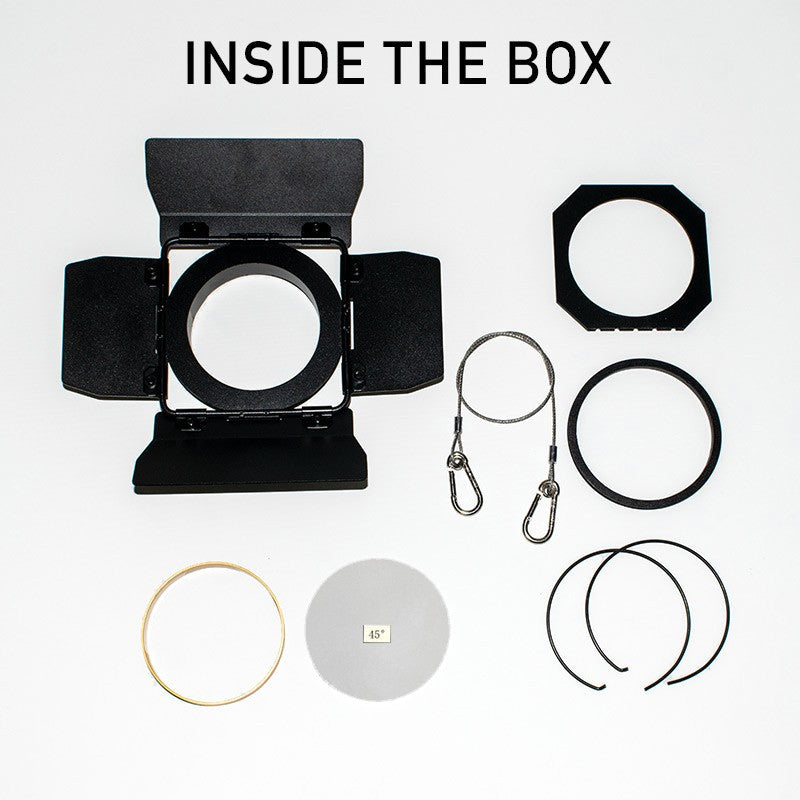

Inside the Box:
• Removable Barn Doors
• Safely Cable
• Gel Frame (to add a color gel - sold separately)
• Frost Filter to change beam angle to 45-degrees
• 2 Retainer Rings
• Gold Snoot
• Metal Spacer

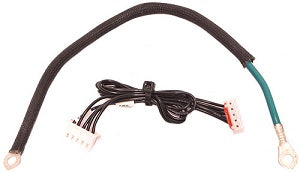

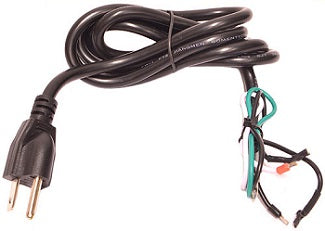

Encore FR20 DTW Parts & Service
Our Encore FR20 DTW Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Encore FR20 DTW. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
