Encore FR50Z

Name: Encore FR50Z
Brand: ADJ
SKU: ENC846
Availability: InStock

The ADJ Encore FR50Z lighting fixture is equipped with a 6-inch Fresnel lens and powered by a 50W LED engine.

UPC: 818651020960

SKU: ENC846

Encore FR50Z

$0.00

Key features

Feature	Value
Color Temperature	3000K
CRI	95
LED Source	50W LED
Manual Zoom	14° ~ 30°
Lens	6-inch Fresnel

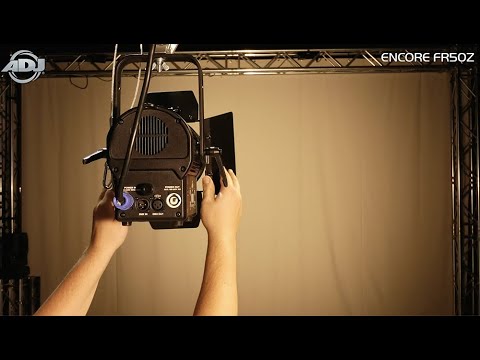

Video

Encore FR50Z

Available now from ADJ USA

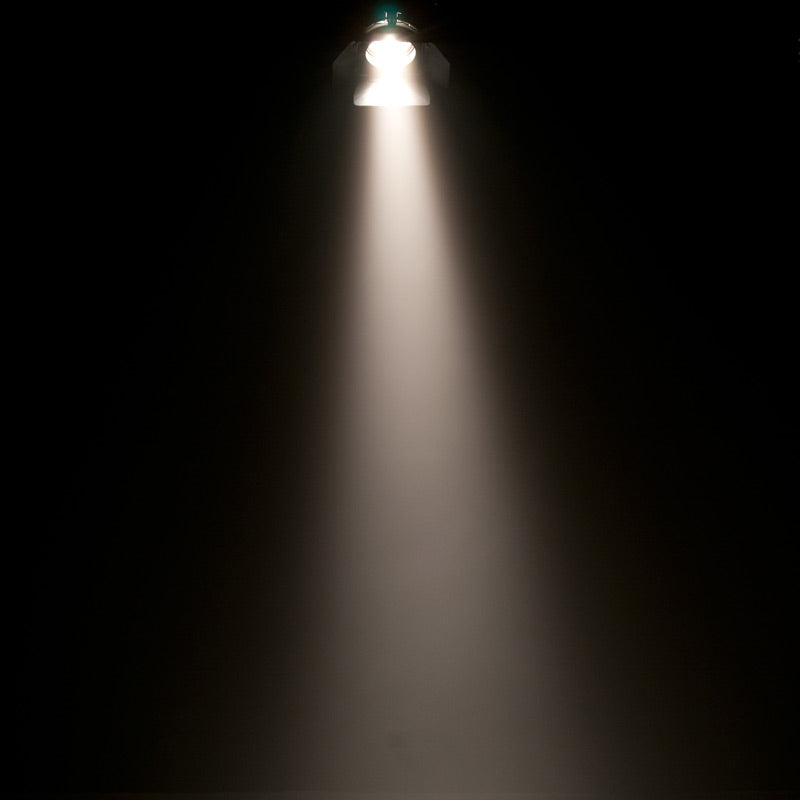

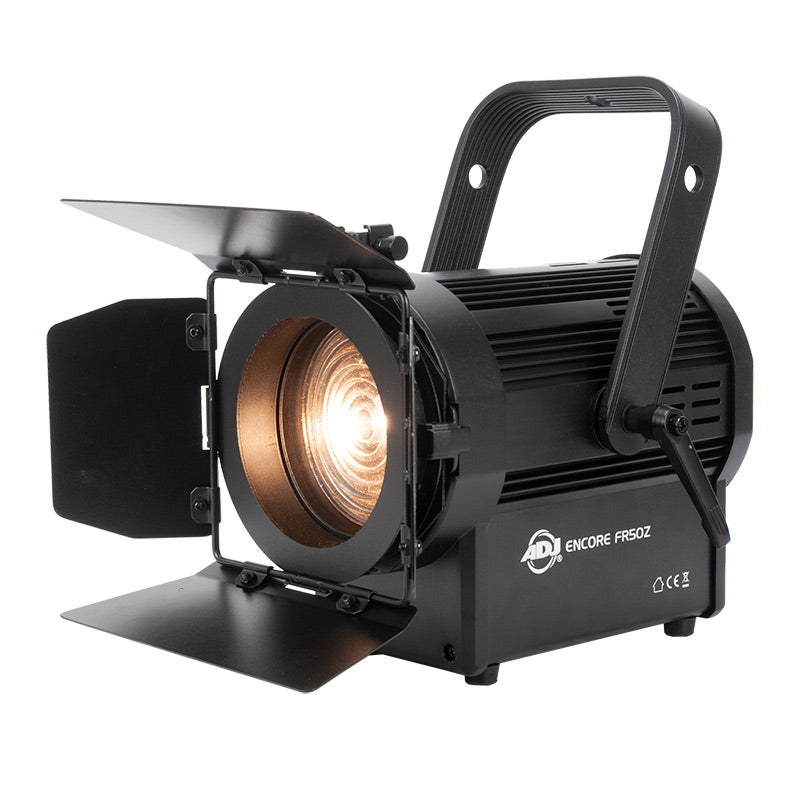

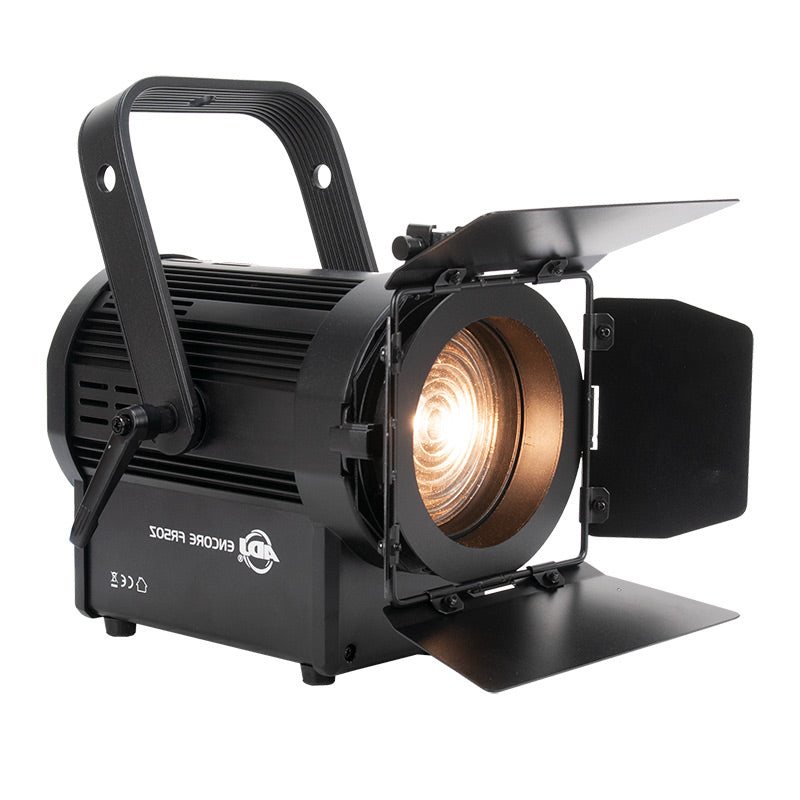

Part of the Encore stage lighting series, the Encore FR50Z lighting fixture is equipped with a 6-inch Fresnel lens and powered by a 50W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the beam angle from 14 to 30-degrees.

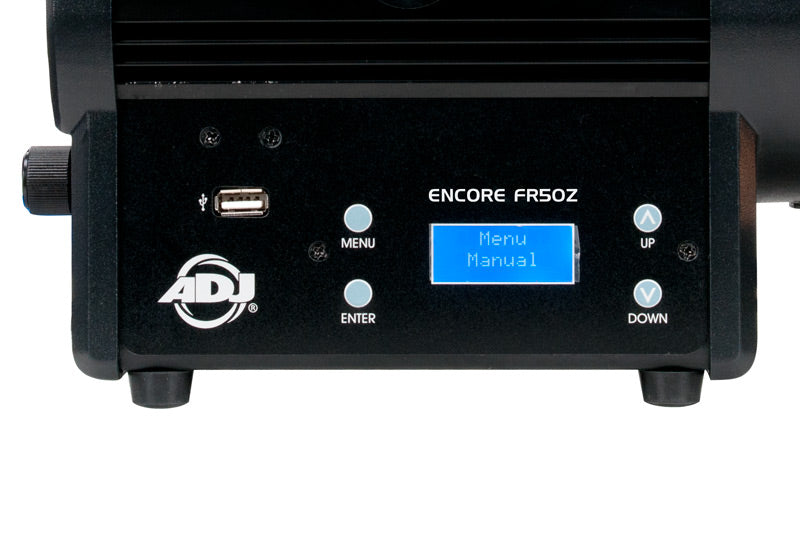

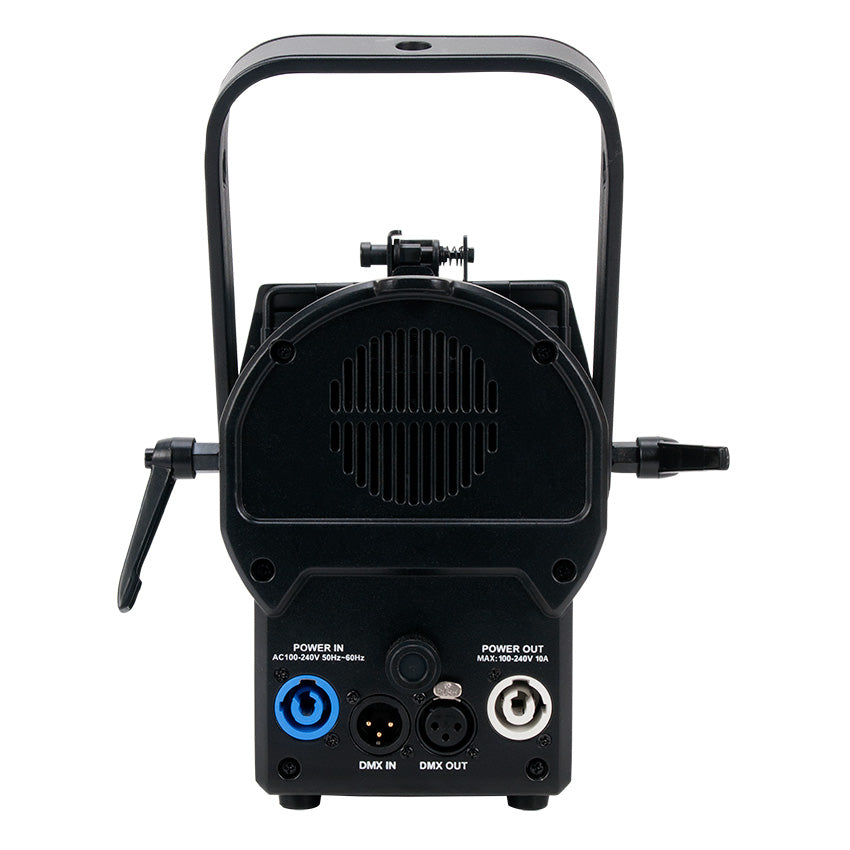

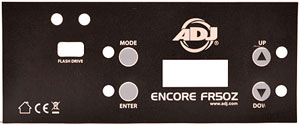

The Encore FR50Z has a 4-button LCD operational menu, 3-pin DMX In/Out and locking power In/Out connections to daisy chain the power from one fixture to another.

Learn more about ADJ’s LED Encore Fresnels from our product spotlight article CLICK HERE

Specifications

• 50W LED engine

• 6-inch Fresnel lens

• CRI 95

• Color Temperature: 3000K

• Manual Zoom control: 14 ~ 30-degrees

• 4-button LCD menu

• 3-pin DMX In/out

• With Wired Digital Communication Network

• RDM (Remote Device Management)

• Locking Power In/Out connections to daisy chain power

• Dimming 0-100%

• Robust extruded aluminum case

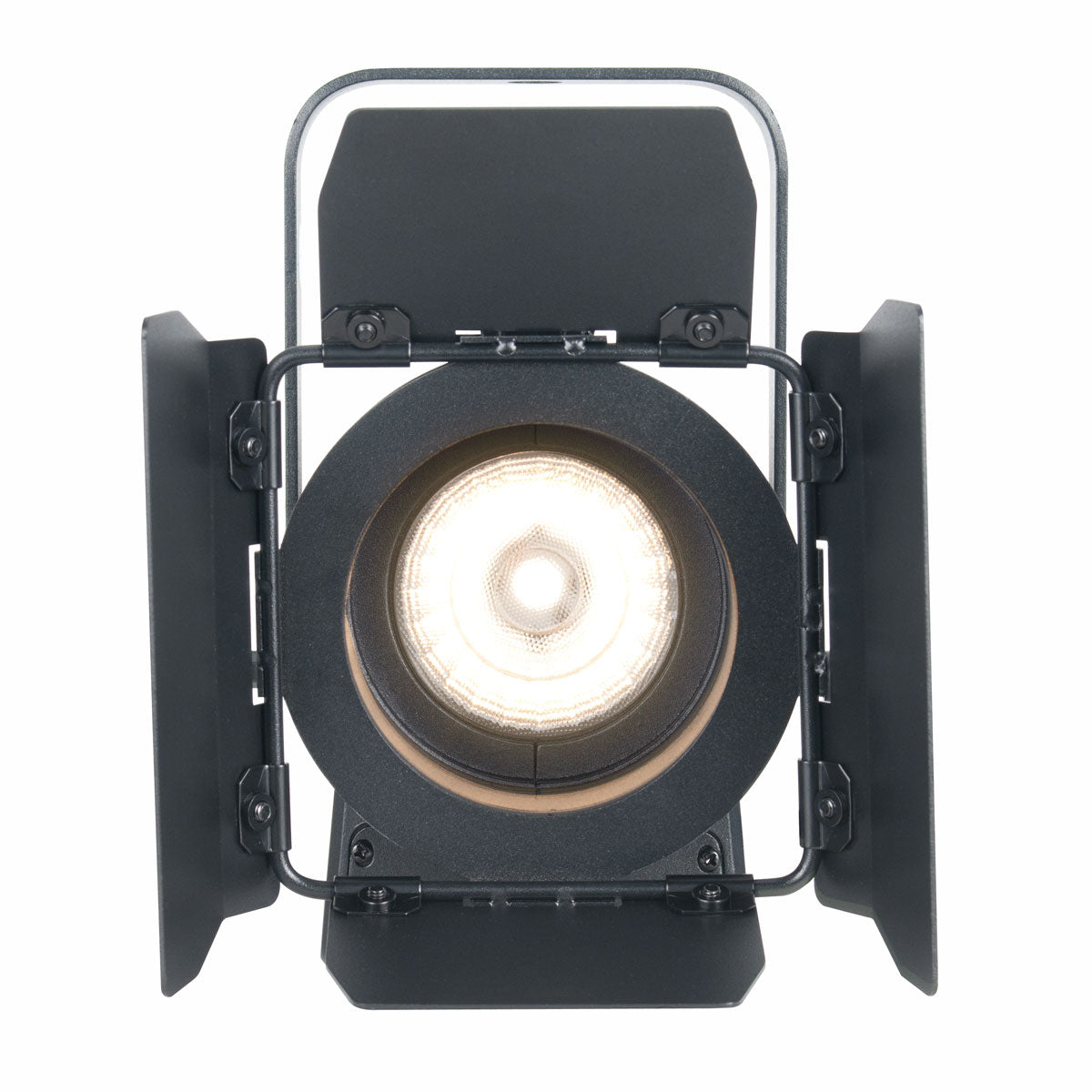

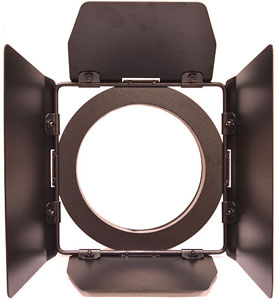

• Includes barn doors (bar doors do not come attached to the fixture - they need to be attached)

• Multi-voltage operation: AC 100-240V, 50/60Hz

• Dimensions (LxWxH) With Barn Door: 13.38" x 9.4" x 11.7" / 339.8mm x 238.1mm x 298.3mm.

• Dimensions (LxWxH) Without Barn Door: 9.8" x 9.4" x 11.7 / 247.8mm x 238.1mm x 298.3mm

• Weight With Barn Door: 9.5 lbs / 4.3 kgs

• Weight Without Barn Door: 8.5 lbs / 3.8 kgs

• cETLus approved (Control #4010765)

Downloads

Cad drawing

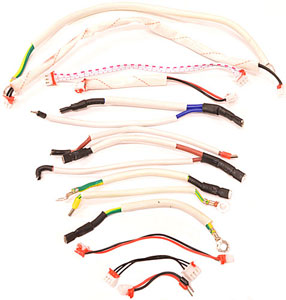

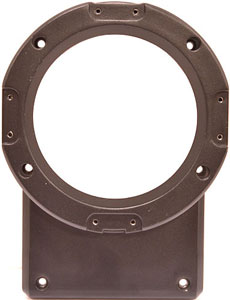

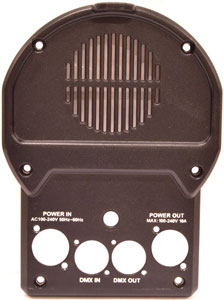

Encore FR50Z Parts & Service

Our Encore FR50Z Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Encore FR50Z. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
