DP 415R
DP 415R
Available now from ADJ USA The ADJ DP-415R is a compact, portable 4-channel DMX dimmer/switch pack that has eight 3-prong 15 Amp Edison socket (2 for each channel) allowing you to be able to control up to 8 fixtures. The pack has a 4-button digital display menu and is RDM (Remote Device Management) compliant.
The hanging bracket is reversible to give you flexibility when installing this product to either a hanging bracket or on a truss and it can also be used with a clamp. It is also wall mountable. Also to make this product easier to use we incorporated LED "ON" indicators and a DMX signal indicator LED is also incorporated so that when DMX signal is present, the LED illuminates.
Learn more about the DP-415R from this product spotlight article CLICK HERE
Specifications
OUTPUTS:
- 4 Independent Output Channels
- 2 × 3-prong Edison Outlets per Channel (8 Total)
CONTROL / CONNECTIONS:
- DMX512
- RDM (Remote Device Management)
- 4 DMX Channels
- 3-pin XLR DMX In/Out
- Digital Display
- 4 Menu Control Buttons
- Power On/Off Switch
FUNCTIONS:
- Selectable Dimmer Pack or Switch Pack Operation
- LED Channel Status Indicators
INSTALLATION:

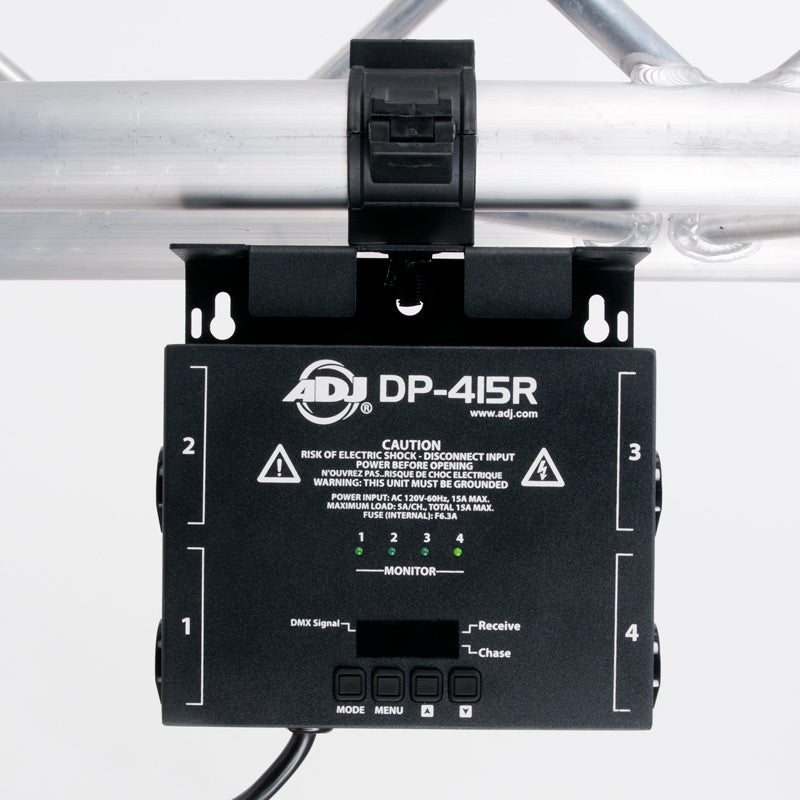

- Adjustable Hanging Bracket for Truss Mounting
- Wall Mountable
ELECTRICAL:
- 120V Operation
- Maximum Total Load: 15A
- Maximum Load per Channel: 5A
SIZE / WEIGHT:
- Length: 10.25" (260mm)
- Width: 8.25" (209mm)
- Height: 3.0" (76mm)
- Weight: 6 lbs. (2.72kg)
CERTIFICATIONS AND IP RATING:
- CE
- cETLus (Control # 5014475)
- IP20
Specifications are subject to change without notice.
