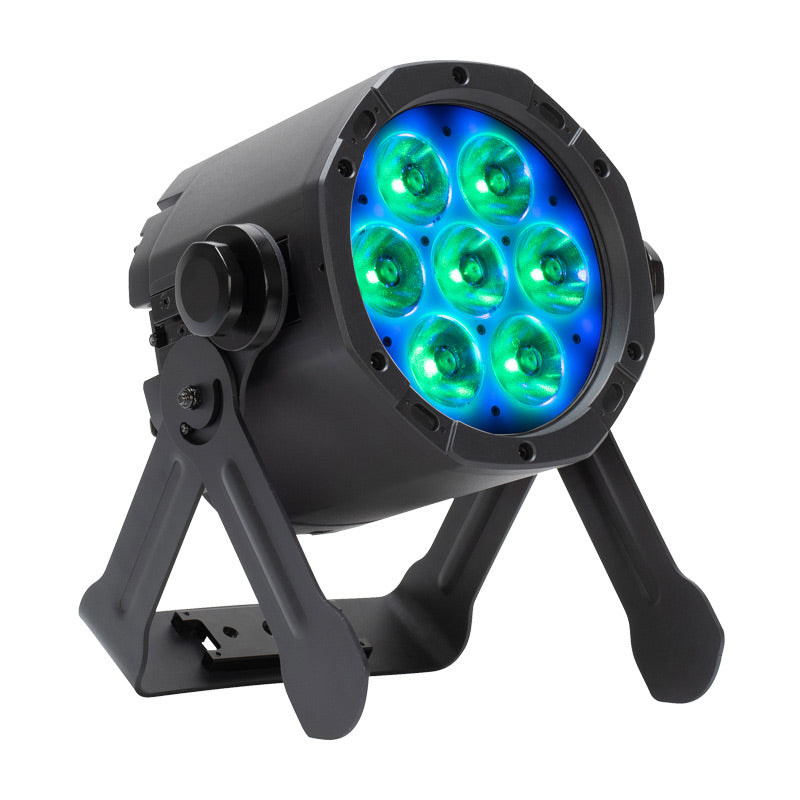

ElectraPix Par 7

Features:

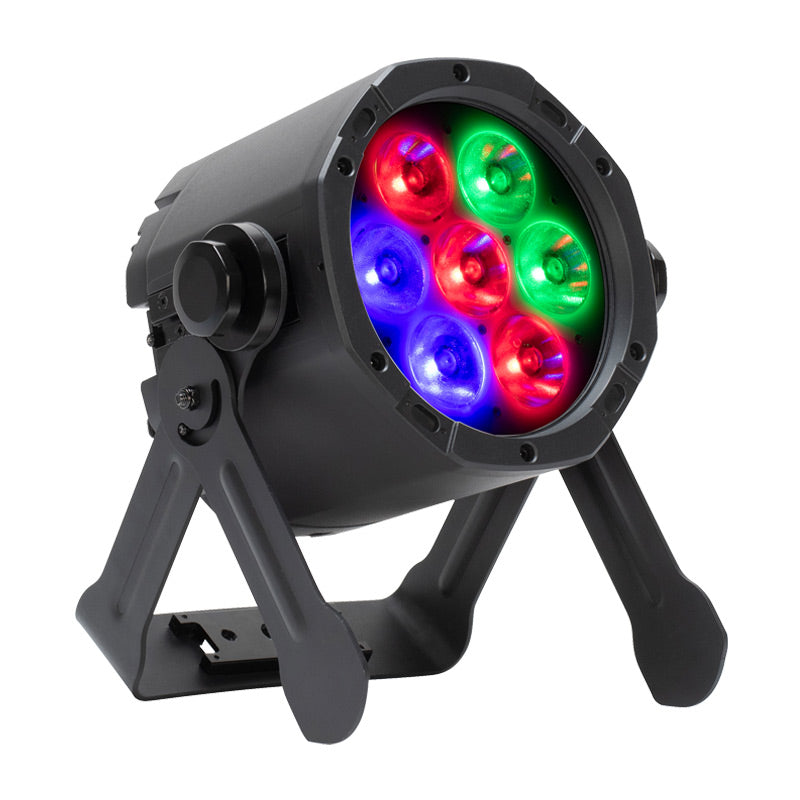

• 7-Pixel Hex Color LED (RGBAL+UV) LED Par
• Built-In Lithium-Ion Rechargeable Battery or Wall Powered
• User-Selectable Battery Operation from 5 to 20 Hours
• Individual Pixel Control
• Built-In Foreground LED Programs
• Built-In Background LED Programs

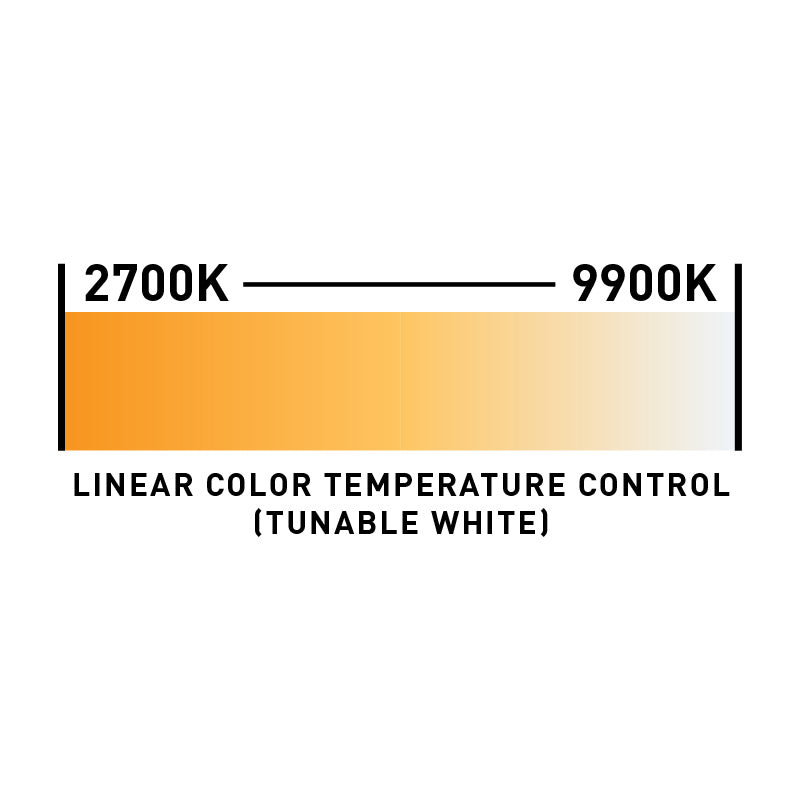

• Variable White Color Temperature Control (2,300K–9,900K)
• English/Spanish User Menu
• Built-In Alarm
• Color-Calibrated LEDs
• User-Selectable LED Refresh Rates (900Hz–25kHz)
• 6 User-Selectable Dim Modes
• 4 User-Selectable Dim Curves
• Electronic Strobe (0.3Hz–11Hz)
• Electronic Dimming

Source:

• (7) 20W Hex Color RGBAL+UV Foreground LEDs
• (29) 0.2W RGB Background LEDs
• 50,000-Hour Average LED Life*

May vary depending on several factors including, but not limited to, environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Optical:

• White Color Temperature Range: 2,300K–9,900K
• Beam Angle: 17°

Physical:

• IP65-Rated Housing
• OLED Digital Display

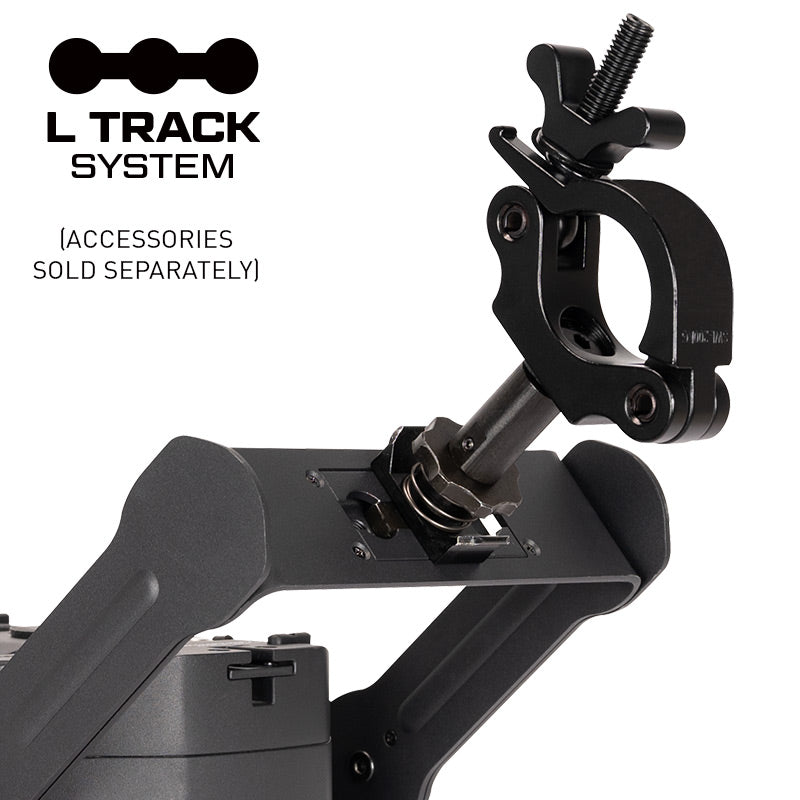

• L-Track System for Locking Accessories/Rigging

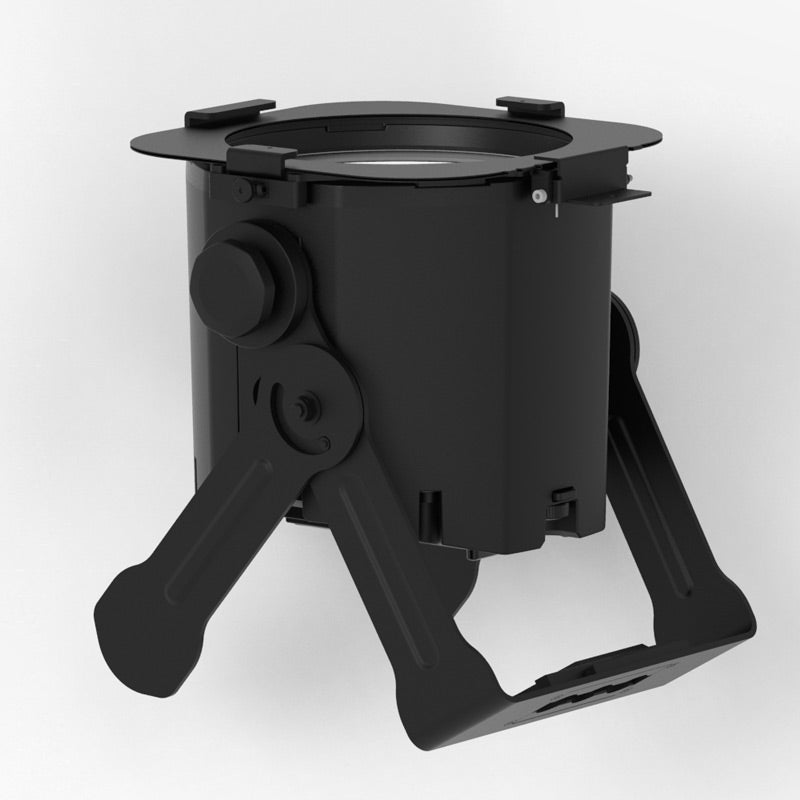

• Gel Frame Holder

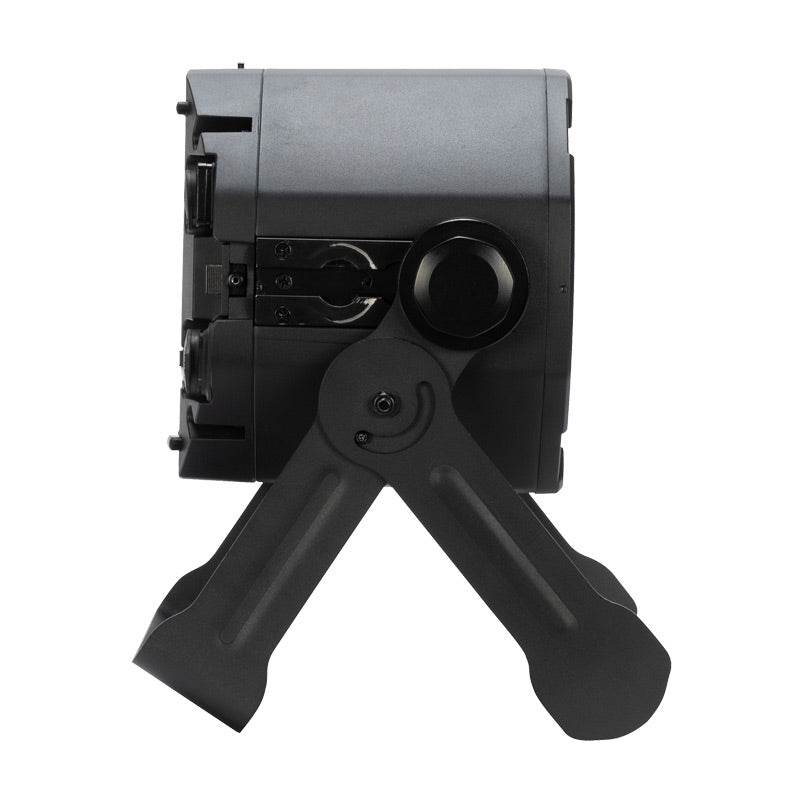

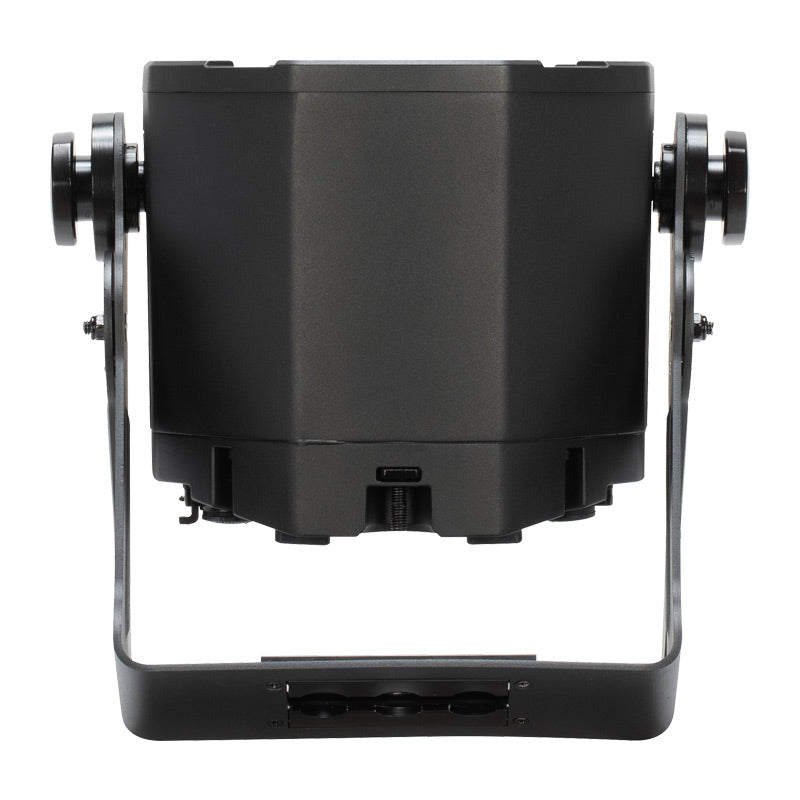

• Adjustable Hanging/Kickstand Bracket

Control:

• DMX512
• Aria X2 Wireless Management/DMX System
• Bluetooth
• RDM
• IR Control (Includes UCIR24 Wireless Remote)
• (11) DMX Channel Modes: 5, 6, 7, 9, 12, 13, 22, 24, 42, 45 & 60 Channels
• On-Board Manual Control Mode
• Primary/Secondary Mode

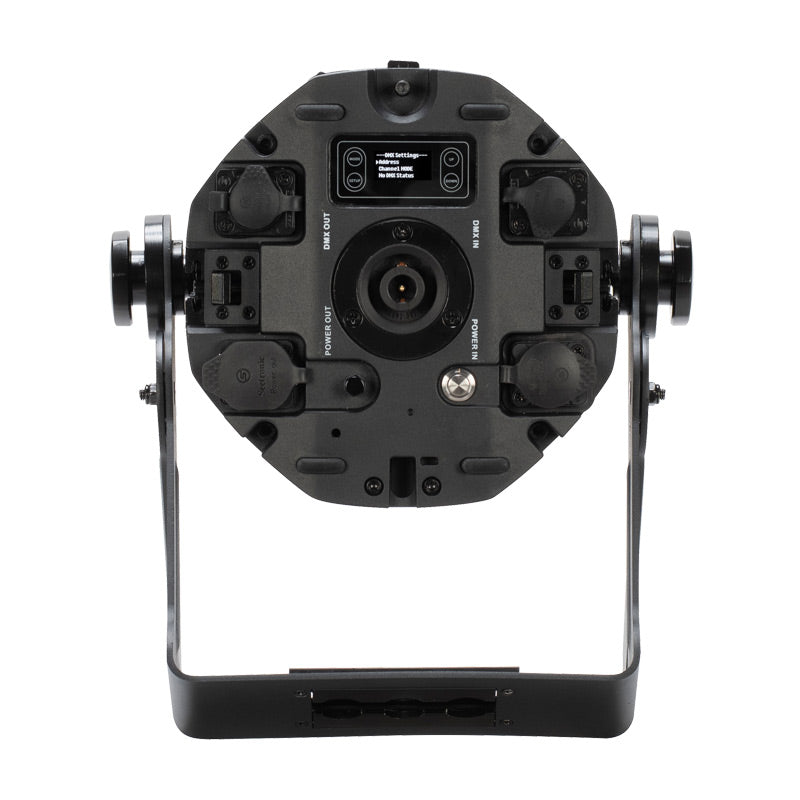

Connections:

• 5-Pin XLR Outdoor DMX In/Out Sockets (Must Be Used with STRxxx 5-Pin DMX Cables to Create an IP65 Seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket

Dimensions & Weight:

• Length: 12.1" (308mm)
• Width: 10.0" (255mm)
• Height: 7.5" (190mm)
• Weight: 15.9 lbs. (7.2 kg)

Power:

• AC Input: 100–240V, 50/60Hz
• Power Consumption: 60W
• Power Linking: 15 Units @ 120VAC / 28 Units @ 230VAC

Battery:

• Rechargeable Lithium-Ion Battery
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time: 6 Hours (Full Charge)
• User-Selectable Battery Operation: 5–20 Hours
• 5-Hour Battery Setting Operates at Full Output When Battery Is Fully Charged
• Battery Cycles: 500

Thermal:

• Ambient Operating Temperature: -4°F to 113°F (-20°C to 45°C)
• Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

• CE
• cETLus (Control #4002034)
• FCC
• IP65

Included Accessories:

• (1) Outdoor Locking Power Cable
• (1) Floor/Mounting Bracket
• (1) UCIR24 Wireless Remote

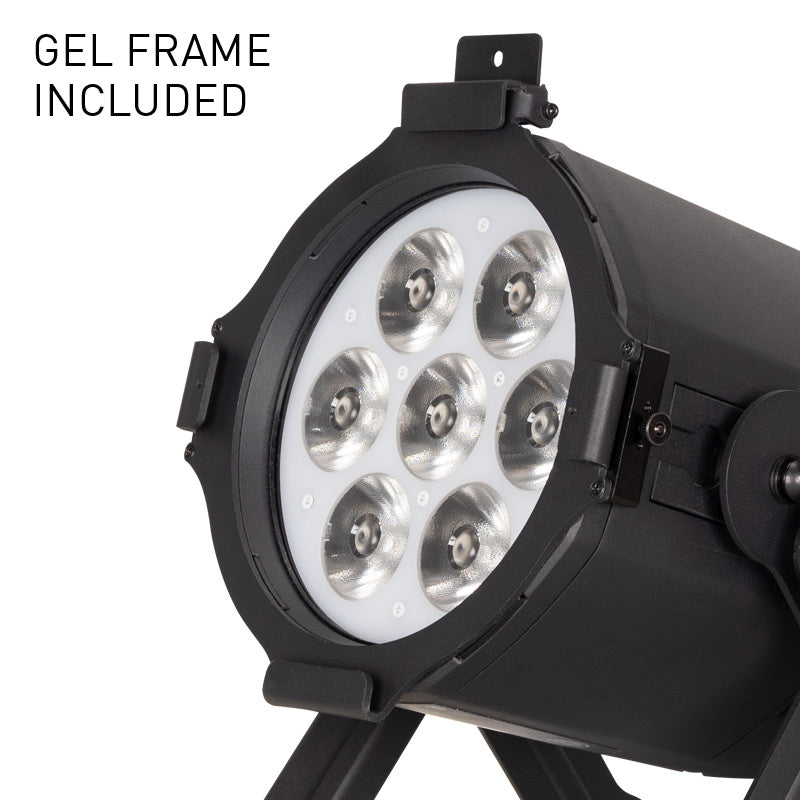

• (1) Gel Frame
• (1) 20° Diffusion Filter

Optional Accessories:

• EPI083 - 9.84" Frosted Dome
• EIP096 - 10" Frosted Cylinder
• EPI109 - 20" Frosted Cylinder
• EPI122 - 30" Frosted Cylinder
• EPI135 - 40" Frosted Cylinder
• EPI070 – EPIXP7 FX SNOOT
• EPI148 – White Cover
• LTrack A2 – LTrack Adapter Only
• LTrack CA2 – LTrack Adapter with Narrow Clamp

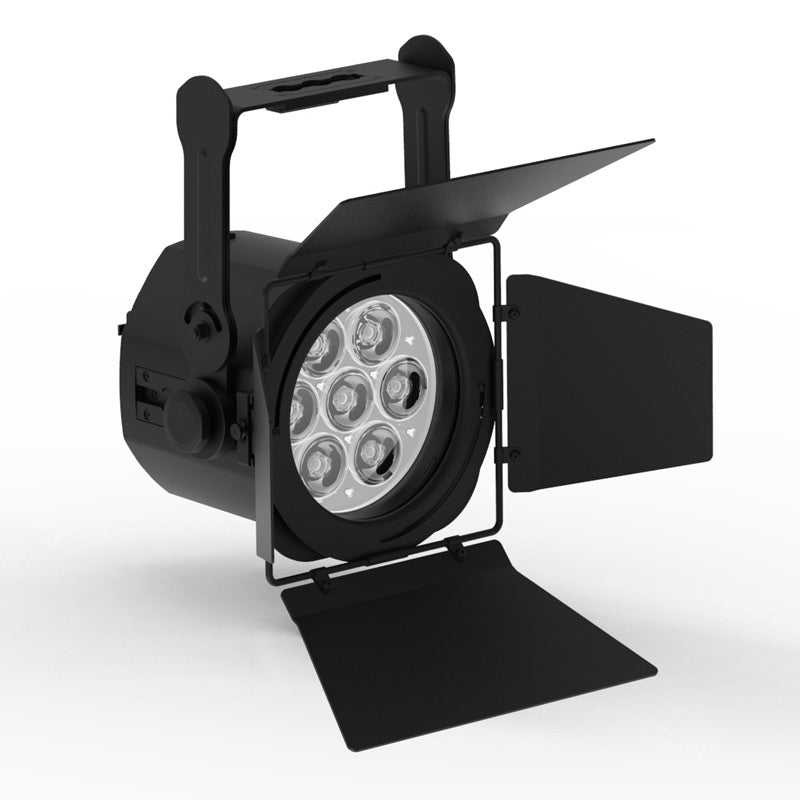

• ELP404 – ELP12IPBDA – Barn Door and Gel Frame Assembly
• ELPIX7L55 – 55° Diffusion Filter for ElectraPix Par 7
• ELPIX7L40 – 40° Diffusion Filter for ElectraPix Par 7
• ELPIX7L30 – 30° Diffusion Filter for ElectraPix Par 7
• ELPIX7L20 – 20° Diffusion Filter for ElectraPix Par 7
• ELPIX7L30X60 – 30x60° Linear Filter for ElectraPix Par 7
• ELPIX7L15X60 – 15x60° Linear Filter for ElectraPix Par 7
• ELPIX7L10X60 – 10x60° Linear Filter for ElectraPix Par 7
• ELPIX7L10X40 – 10x40° Linear Filter for ElectraPix Par 7
• EPIX P7 IPCB – Replacement Charging Base and Power Supply

Specifications and documentation subject to change without notice.
