SIP65MPC
This product is CE certified.

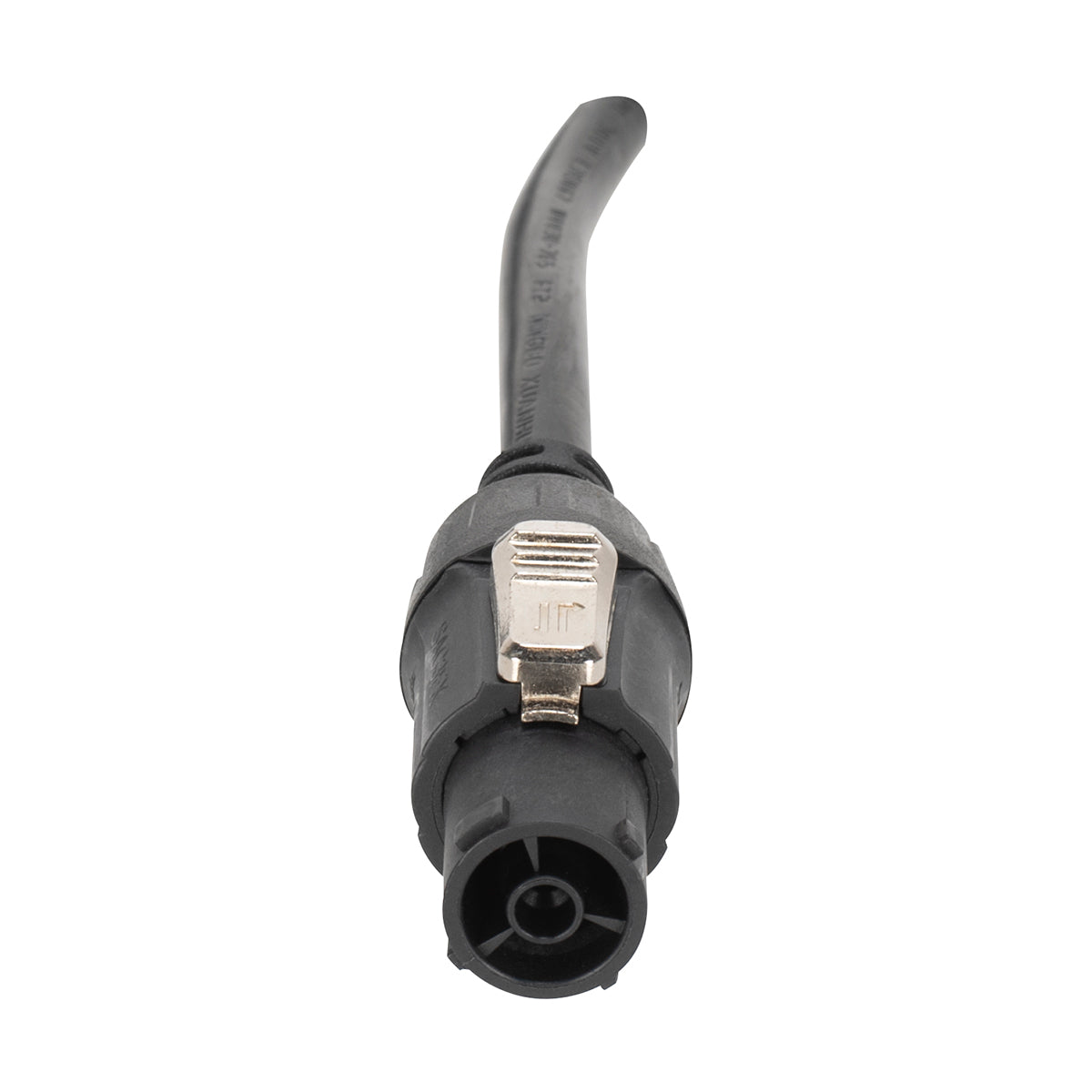

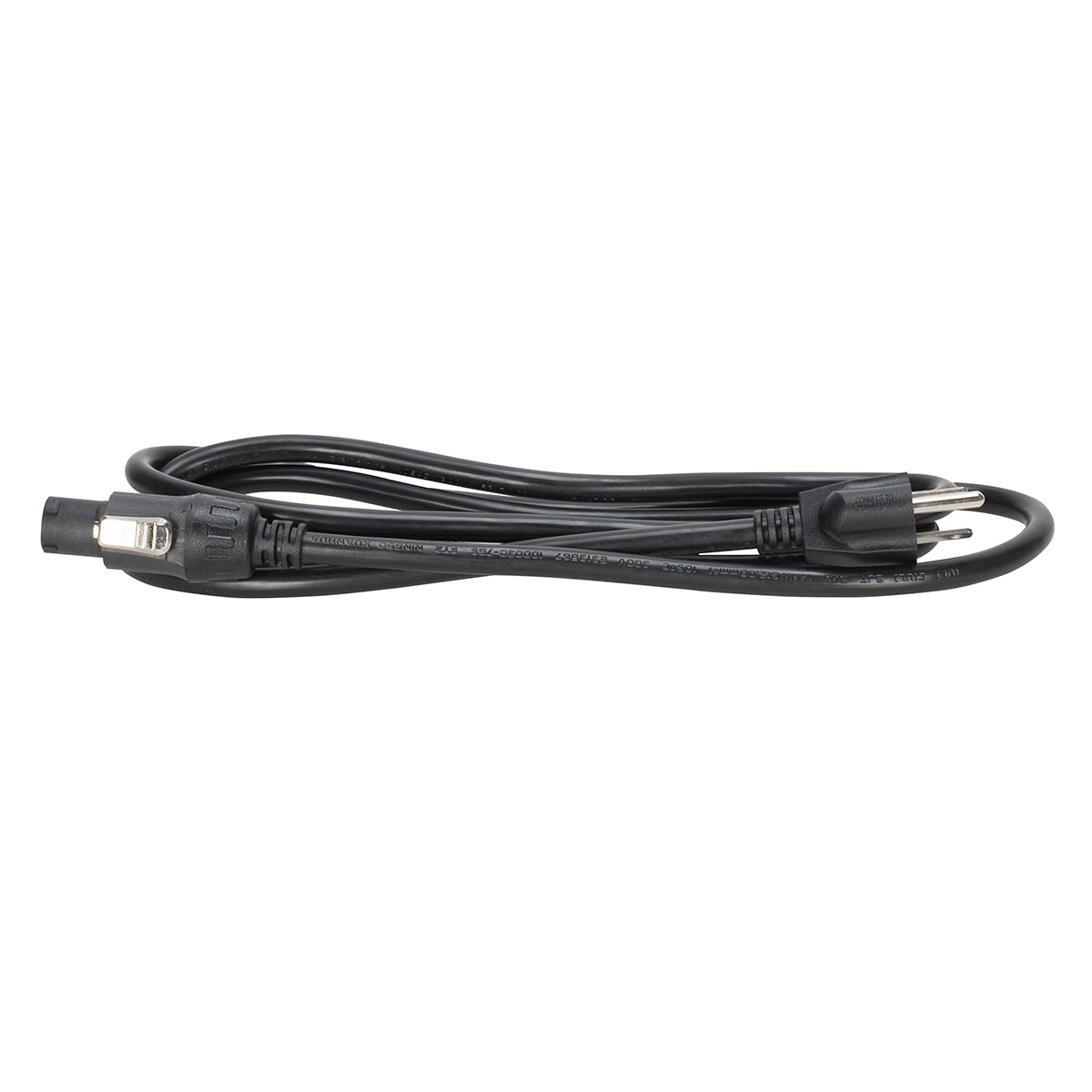

Moulded Locking IP65 fixture side connector to 120V, IP20 male Edison plug.

SIP65MPC
Sale price$0.00
SIP65MPC
Moulded Locking IP65 fixture side connector to 120V, IP20 male Edison plug.
Specifications
- Contacts: 2+PE
- Rated Current: 15A
- Rated Voltage: 250V AC VDE (300V AC UL)
- Contact Resistance: ≤5mΩ
- Dielectric Strength: 4000V DC (1600V/min AC UL)
- Insulation Resistance: gt;1000MΩ
- Sevice Life: gt;1000 Mating Cycles
- Shell: PA
- Contacts: Cu Alloy
- Contact Surface Ag
- Ingress Protection: IP65
- Flame-retardant Grade" UL94-V0
- Temperature Range: -22F to 176F (-30C to +80C)
- Standard: IEC61984/UL98
