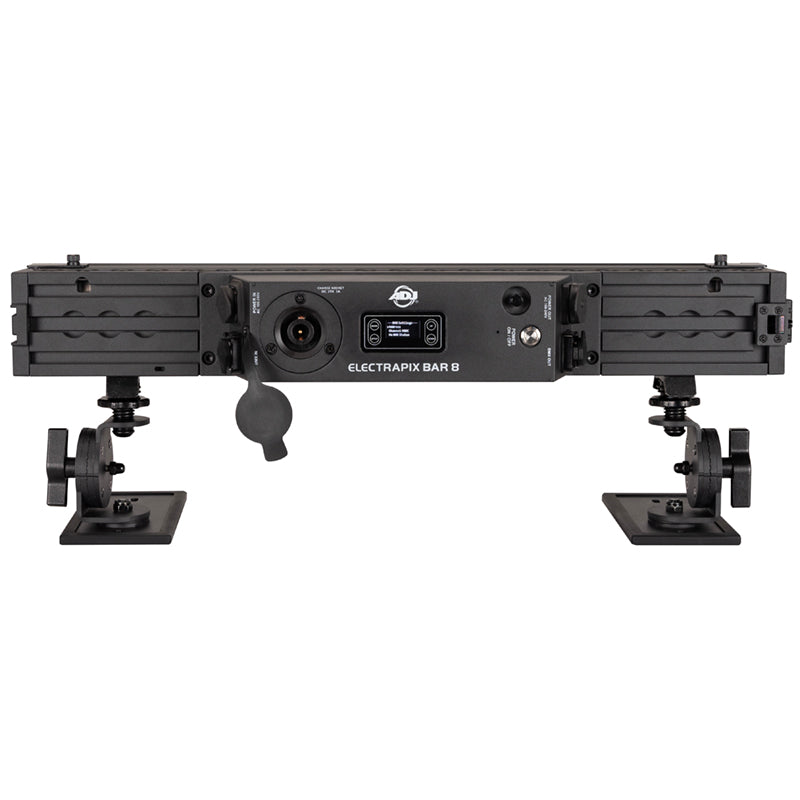

ElectraPix Bar 8
This product is CE certified.

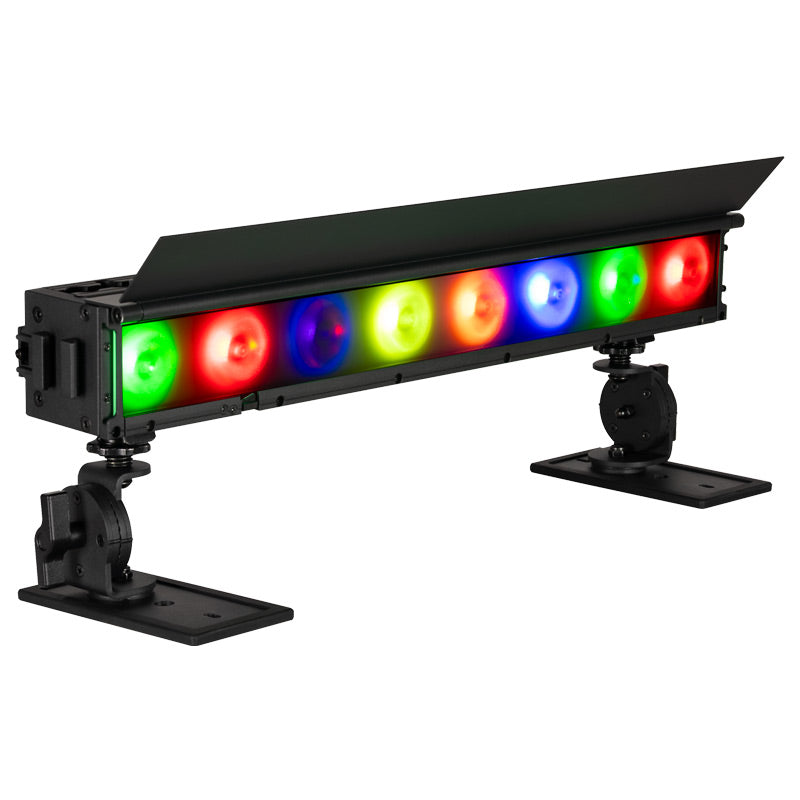

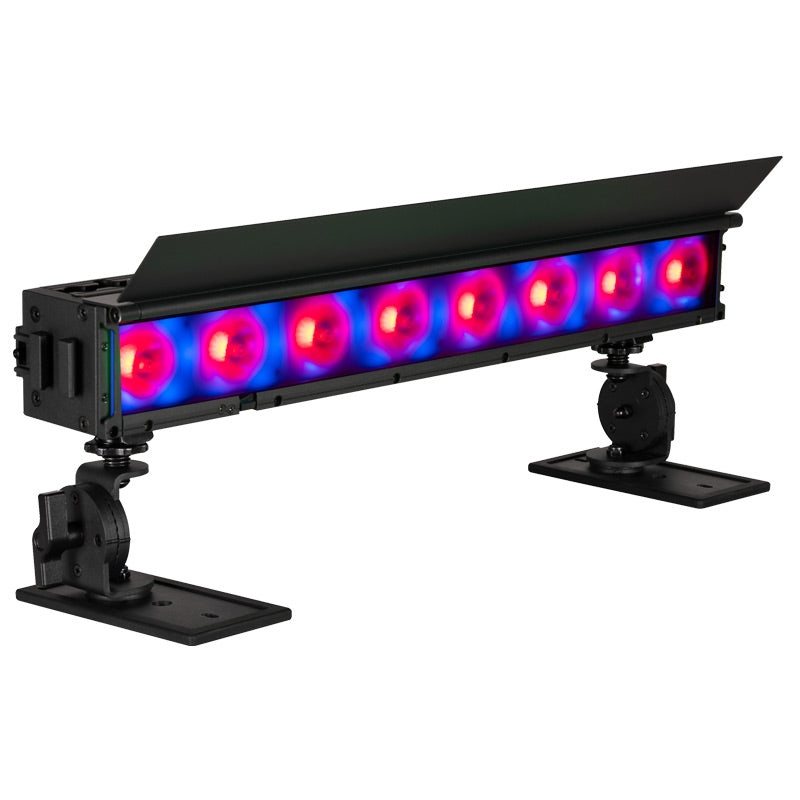

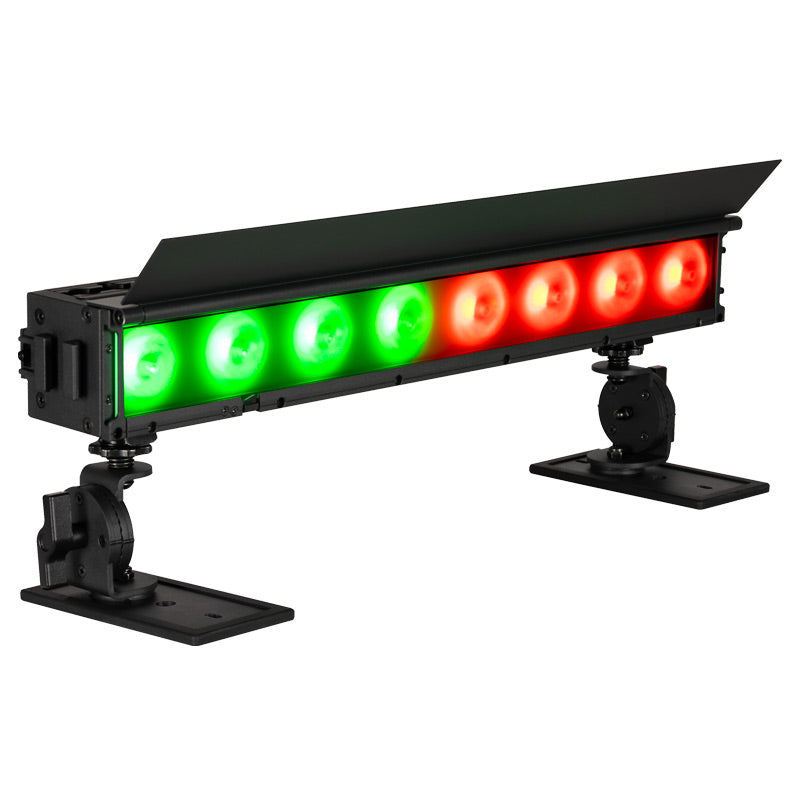

The ADJ Lighting ElectraPix Bar 8 is a cutting-edge IP65-rated, battery powered, wireless DMX .5-meter linear fixture. It features eight 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX / Management System and has a battery life up to 20 hours.
ElectraPix Bar 8
Sale price$1,099.99
Regular price$1,519.95
Key features
| Feature | Value |
|---|---|
| Battery | Rechargeable Lithium-ion |
| Color Temperature | 2300K ~ 9900K |
| LED Source | 8x 20W RGBAL+UV LEDs |
| Outdoor Rating | IP65 |
| Wireless DMX | Aria X2 |
Video
ElectraPix Bar 8
AVAILABLE NOW FROM ADJ USA

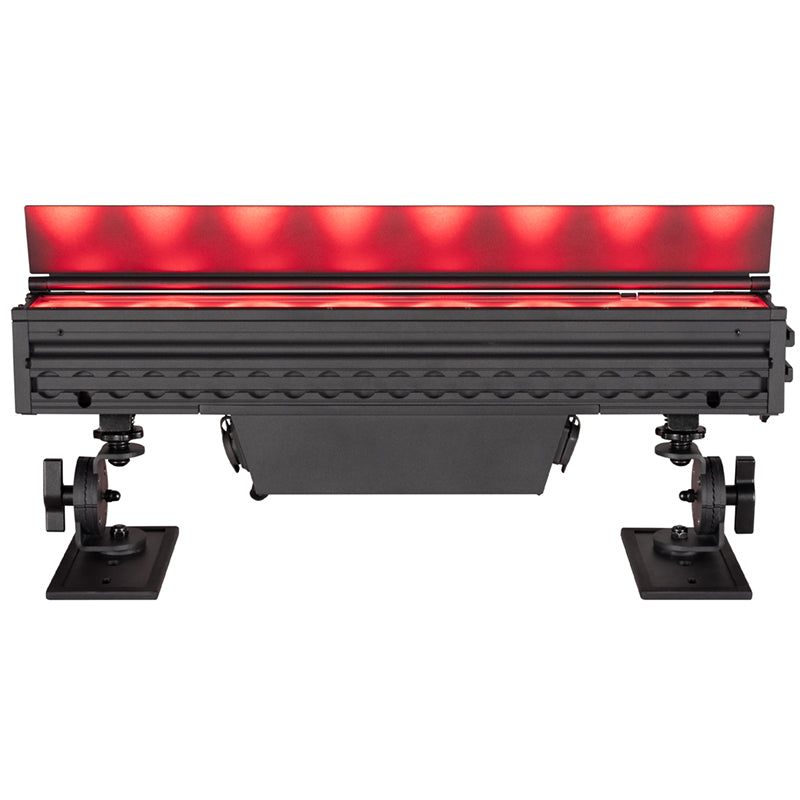

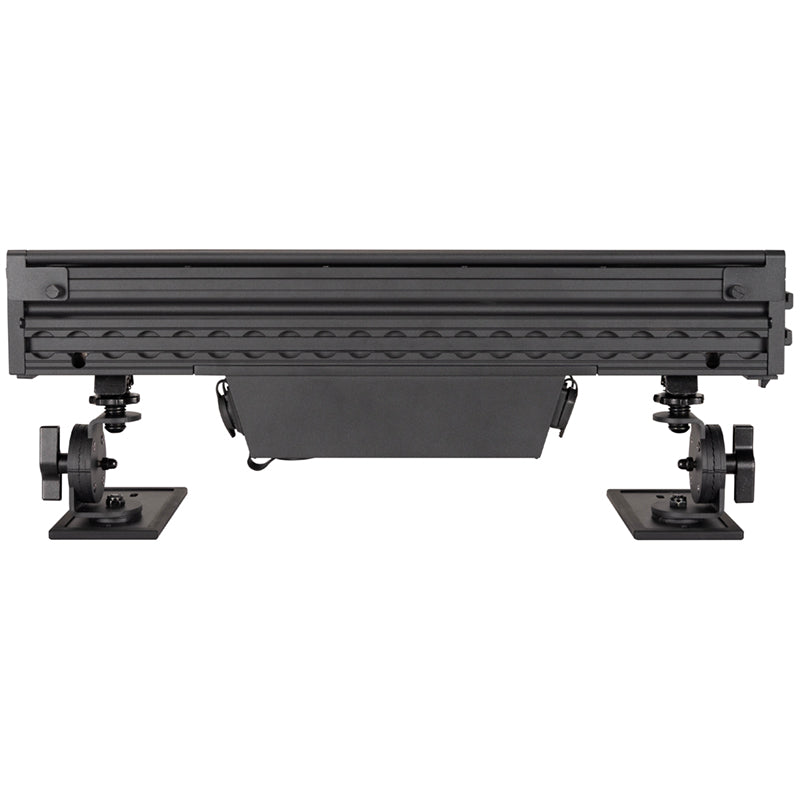

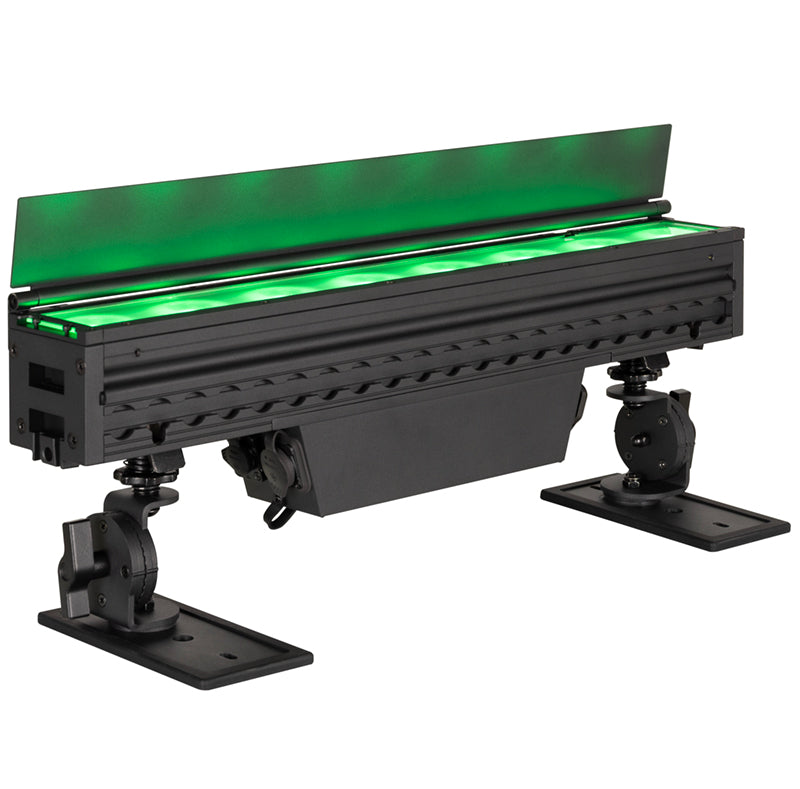

The ADJ Lighting ElectraPix Bar 8 is a cutting-edge, .5-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers up to 20 hours of battery operation.With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 8 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.
Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additional, up to four ElectraPix Bar 8 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.
The ElectraPix Bar 8 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 8, where innovation meets performance.
Specifications
Features:
- 8-Pixel Hex Color LED (RGBAL+UV) LED Bar
- Battery or Wall Powered
- Up to 20-Hour Battery Operation
- Battery Operation (Menu Option)
- Individual Pixel Control
- Built-In Foreground LED Programs
- Built-In Background LED Programs
- Variable White Color Temperature Control (2,300K–9,900K)
- English/Spanish User Menu
- Built-In Alarm
- Color-Calibrated LEDs
- User-Selectable LED Refresh Rates (900Hz–25kHz)
- 6 User-Selectable Dim Modes
- 4 User-Selectable Dim Curves
- Electronic Strobe (0.3Hz–11Hz)
- Electronic Dimming

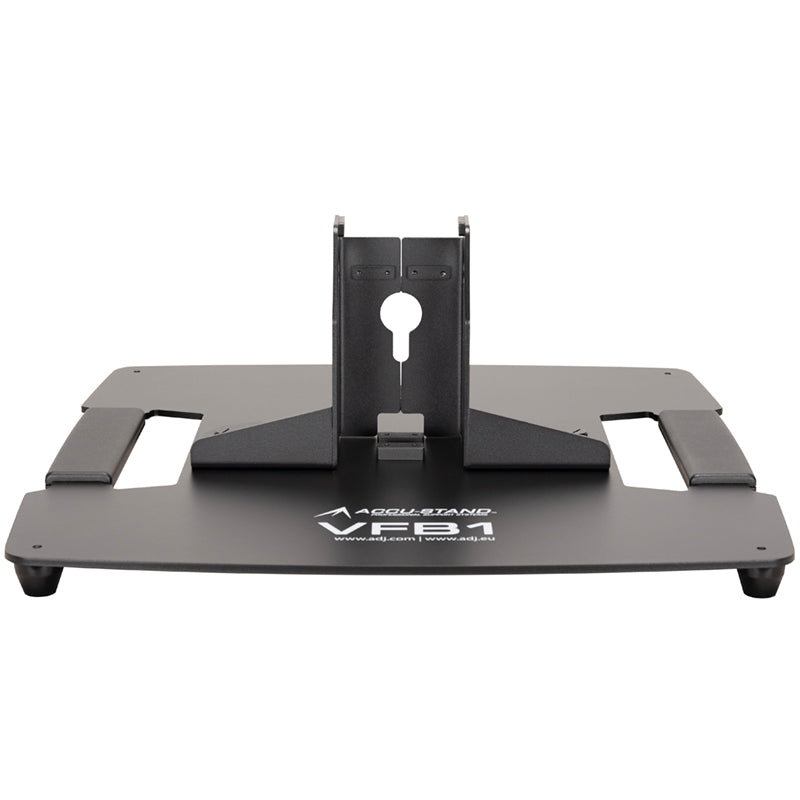

- Attach Up to Four (4) ElectraPix Bar 8 Fixtures to the Accu Stand VFB1 Vertical Floor Base
Source:
- (8) 20W Hex Color RGBAL+UV Foreground LEDs
- (32) 0.2W RGB Background LEDs
- 50,000-Hour Average LED Life*
*May vary depending on several factors including, but not limited to, environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
Optical:
- White Color Temperature Range: 2,300K–9,900K
- Beam Angle: 17°
- Lens Diameter: 45mm x8
Physical:

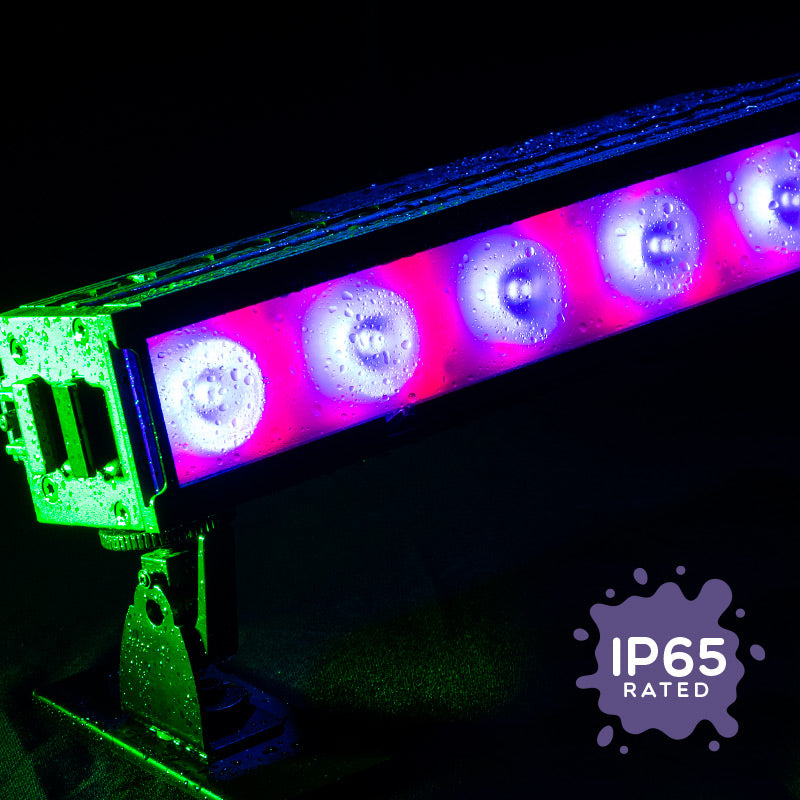

- IP65-Rated Housing

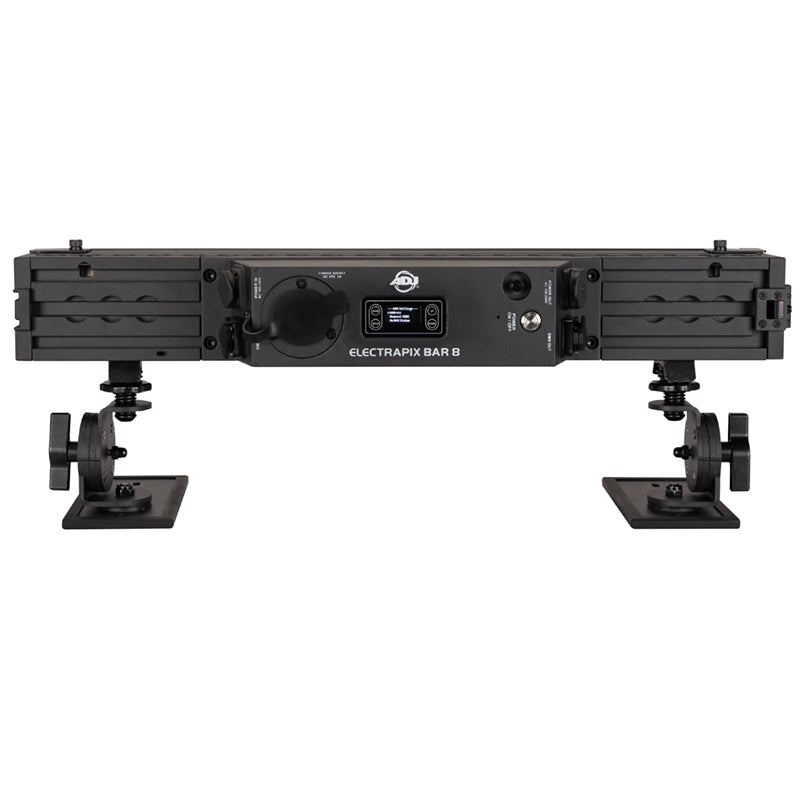

- OLED Digital Display

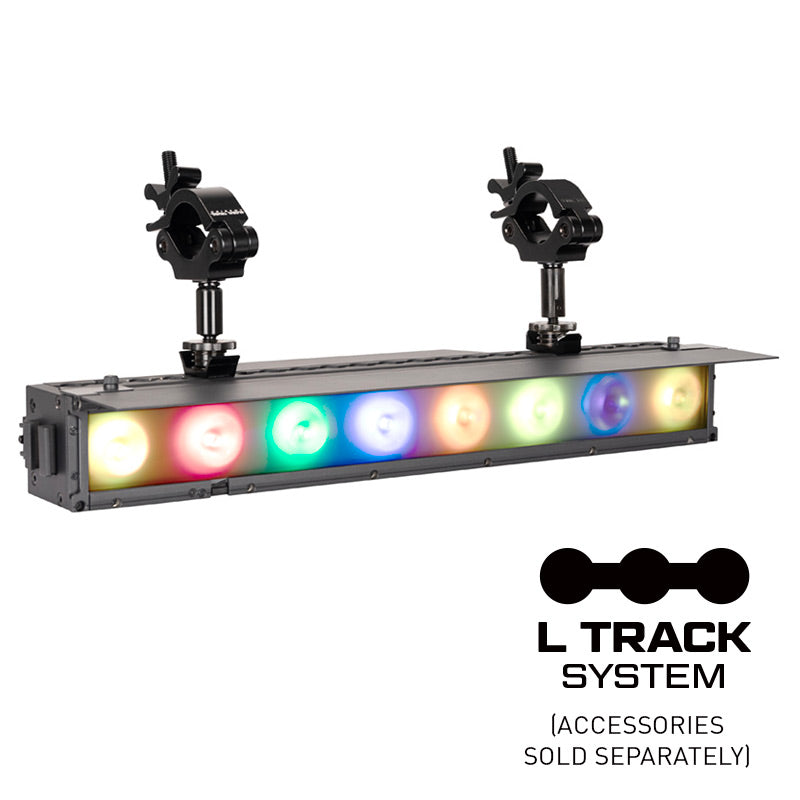

- L-Track System for Locking Accessories/Rigging
- Glare Shield
- Diffusion Filter Slot

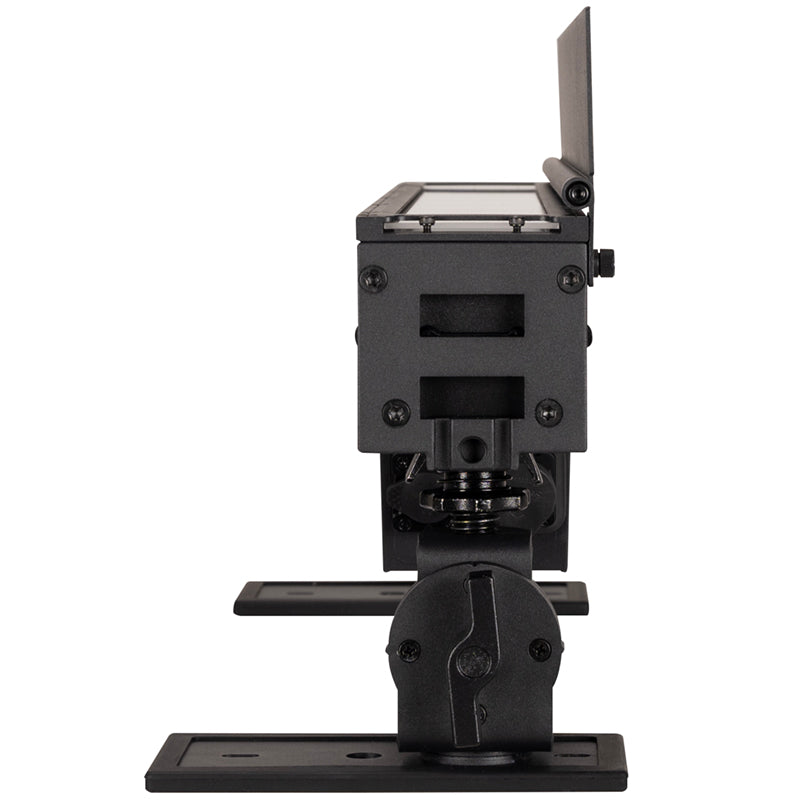

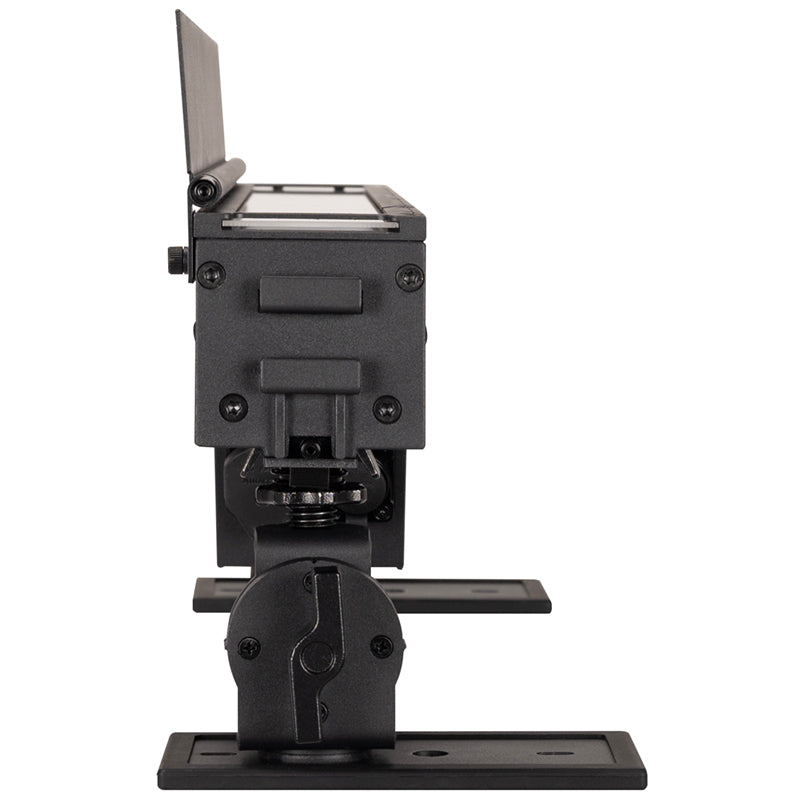

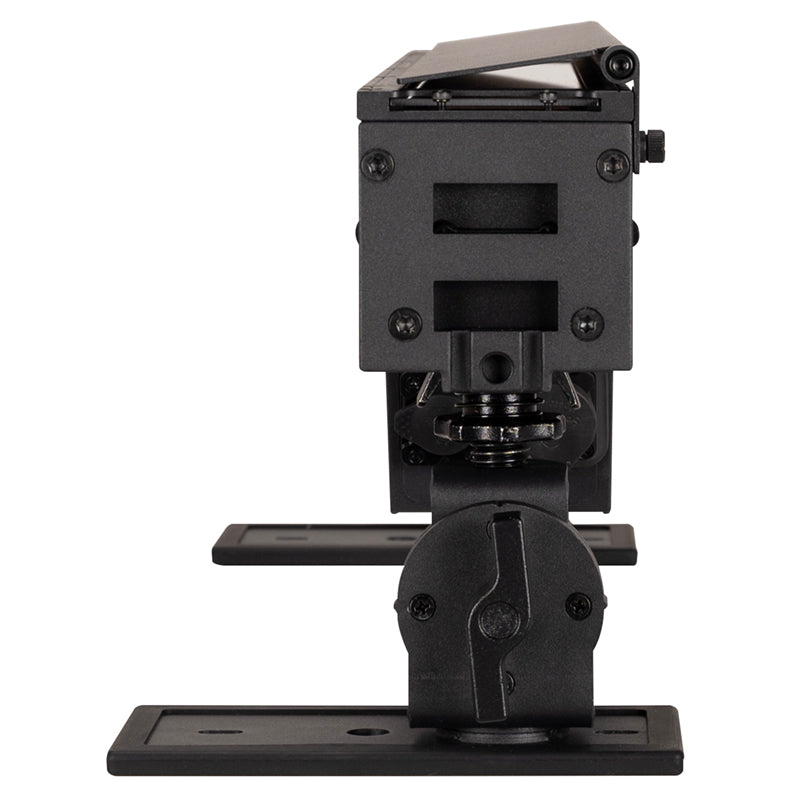

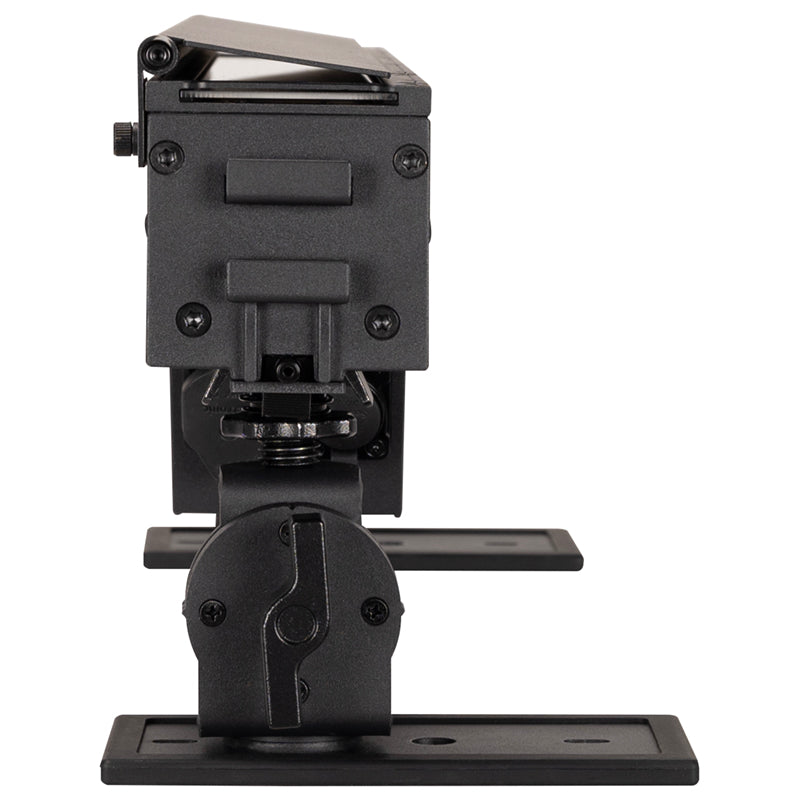

- Angle-Adjustable Feet
- Horizontal Slide Lock for Attaching Additional ElectraPix Bar 8 or ElectraPix Bar 16 Fixtures
Control:
- DMX512
- Aria X2 Wireless Management/DMX System
- Bluetooth
- RDM and RDMnet Compatible
- IR Control (Includes UCIR24 Wireless Remote)
- (11) DMX Channel Modes: 5, 6, 7, 9, 12, 13, 22, 24, 48, 52 & 66 Channels
- On-Board Manual Control Mode
- Primary/Secondary Mode

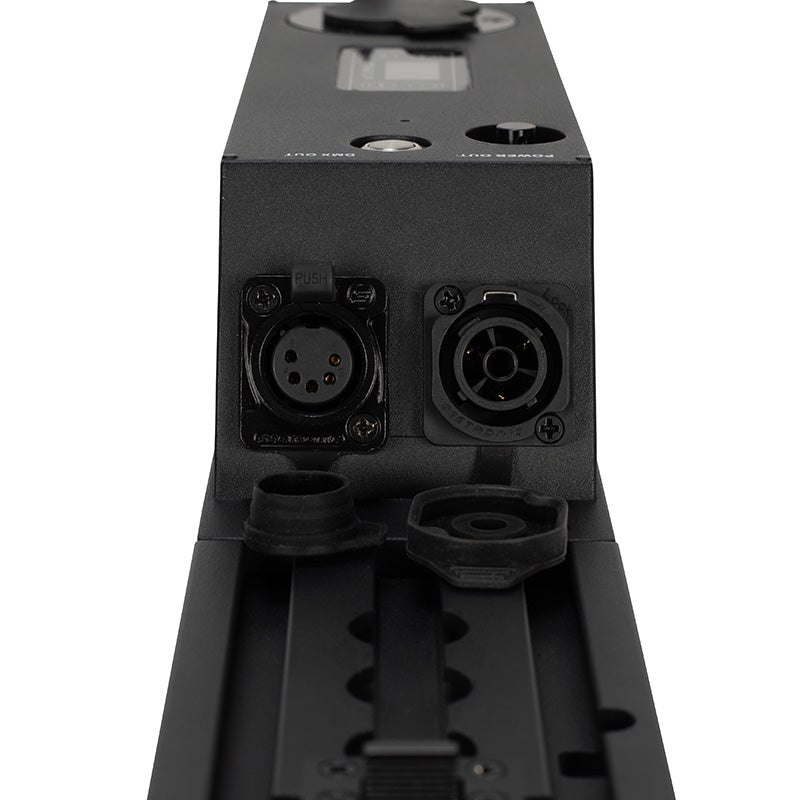

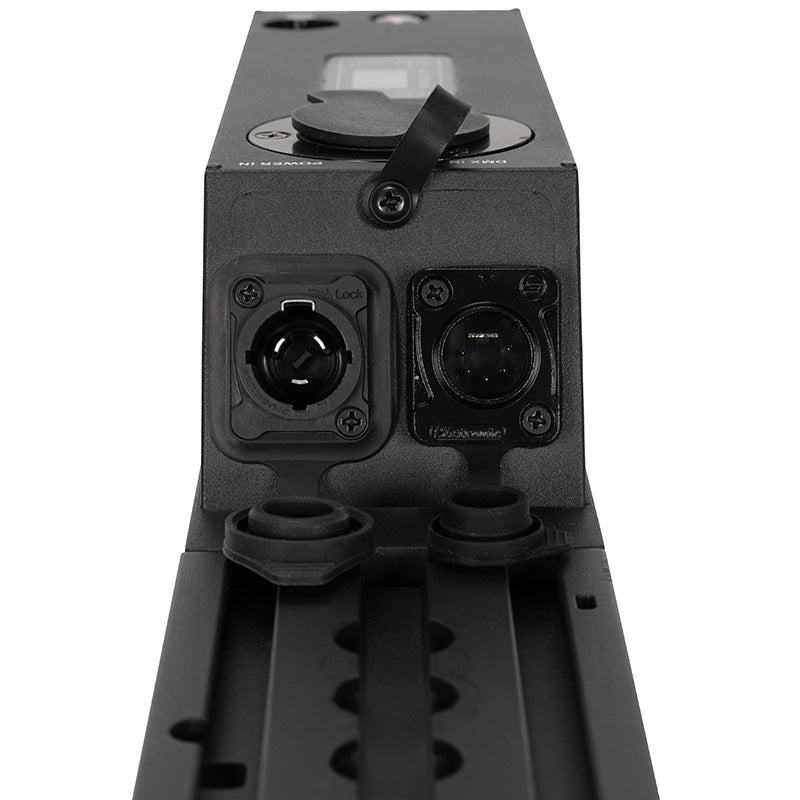

Connections:
- 5-Pin XLR Outdoor DMX In/Out Sockets (Must Be Used with STRxxx 5-Pin DMX Cables to Create an IP65 Seal)
- Outdoor Locking Power In/Out Sockets
- Battery Charging Socket
Dimensions & Weight:
- Length: 23.1" (587mm)
- Width: 6.5" (166mm)
- Height: 10.6" (269mm)
- Weight: 17.2 lbs. (7.8 kg)
Power:
- AC Input: 100–240V, 50/60Hz
- Power Consumption: 60W
- Power Linking: 15 Units @ 120VAC / 28 Units @ 230VAC
Battery:
- Rechargeable Lithium-Ion Battery
- Battery Capacity: 7,000mAh
- Battery Voltage: 22.2V
- Charge Time via AC Power: 5 Hours (Full Charge)
- Charge Time via Flight Case: 5 Hours (Full Charge)
- Up to 20-Hour Battery Operation
- Battery Cycles: 500
Thermal:
- Ambient Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
- CE
- cETLus (Control #4002034)
- FCC
- IP65
Included Accessories:
- (1) Outdoor Locking Power Cable
- (1) UCIR24 Wireless Remote
- (1) 20° Diffusion Filter
Optional Accessories:
- LTR008 – LTrack A2 – LTrack Adapter Only
- LTR112 – LTrack CA2 – LTrack Adapter with Narrow Clamp

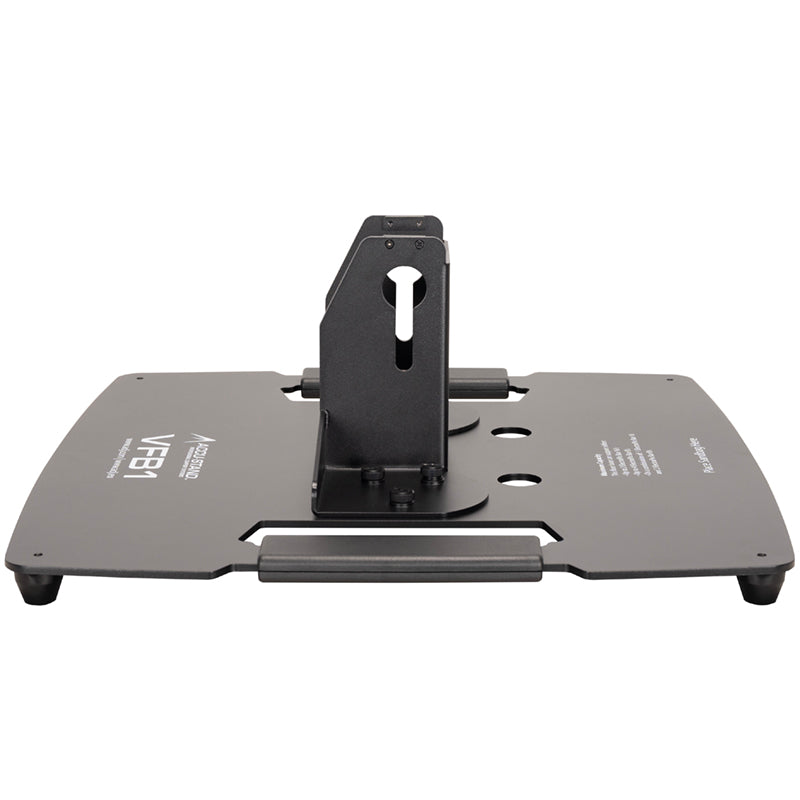

- ACC111 – Accu Stand VFB1 Floor Base
- ELE213 – Replacement Battery Pack
- EPIX B816 IPCB – Replacement Charging Base and Power Supply
- ELP853 – 10x40° Linear Diffusion Filter
- ELP814 – 10x60° Linear Diffusion Filter
- ELP827 – 15x60° Linear Diffusion Filter
- ELP866 – 20° Diffusion Filter
- ELP879 – 30° Diffusion Filter
- ELP840 – 30x60° Linear Diffusion Filter
- ELP892 – 40° Diffusion Filter
- ELP900 – 55° Diffusion Filter
Specifications and documentation subject to change without notice.
