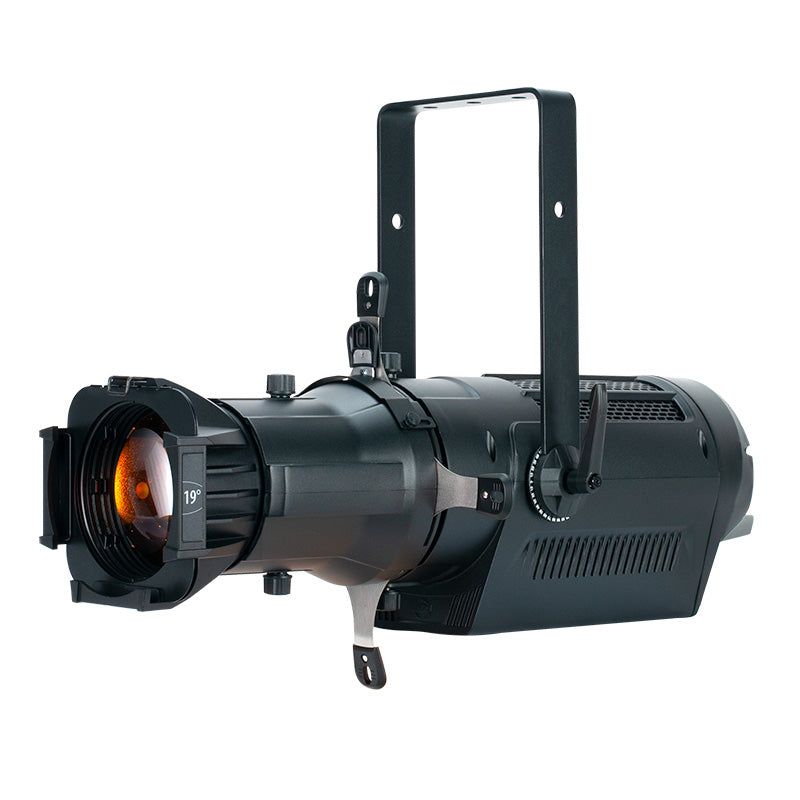

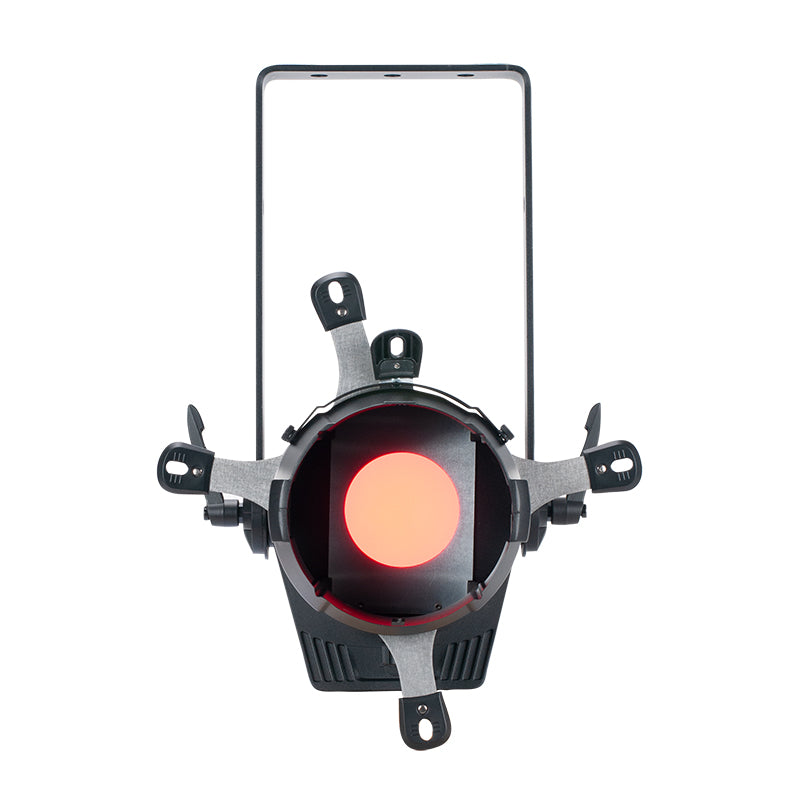

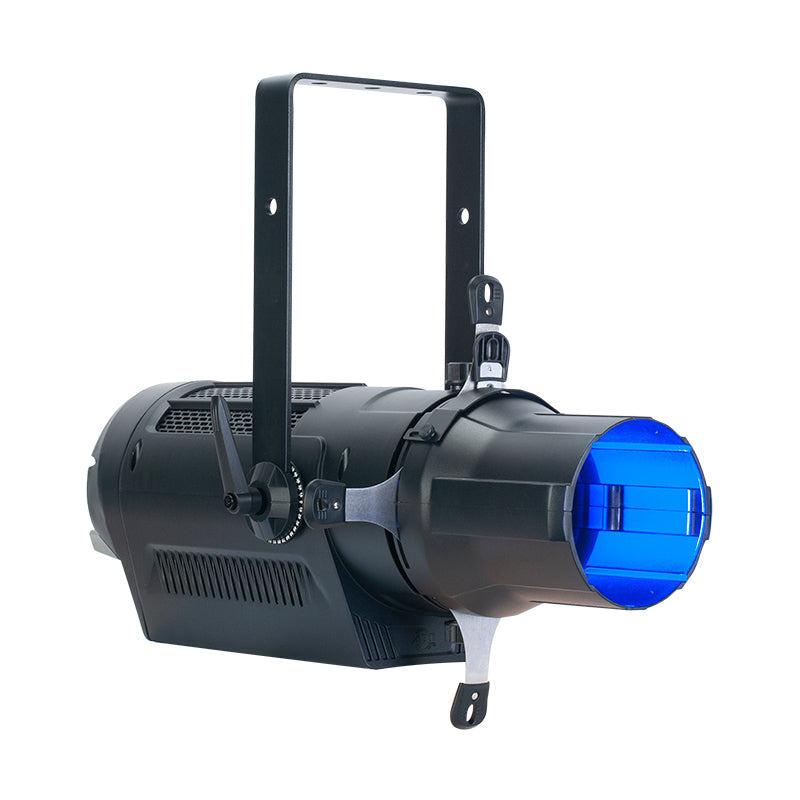

Encore Profile Pro Color
This product is CE certified.
This product is ETL certified.

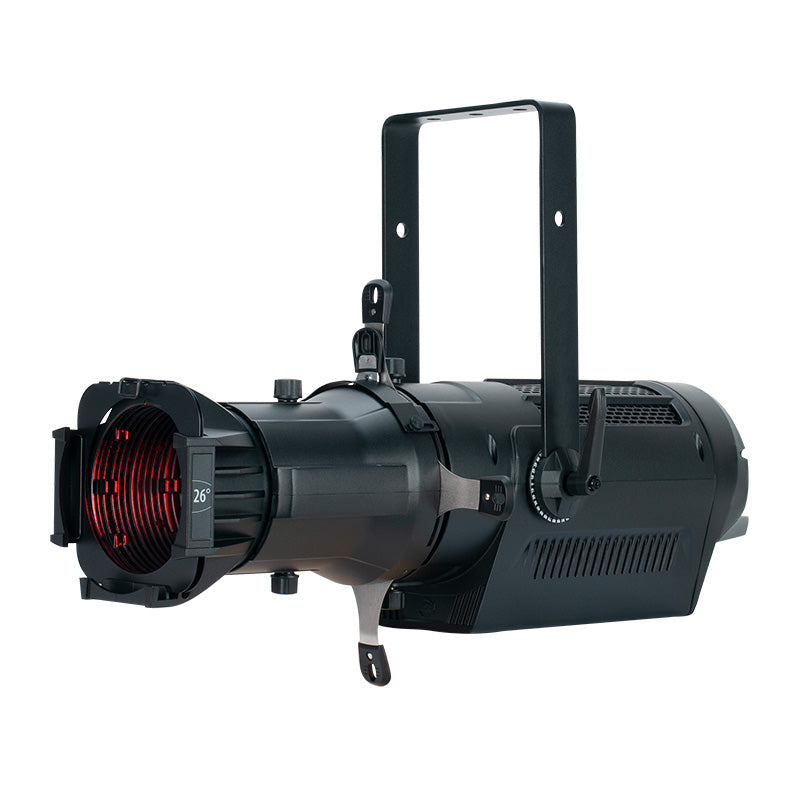

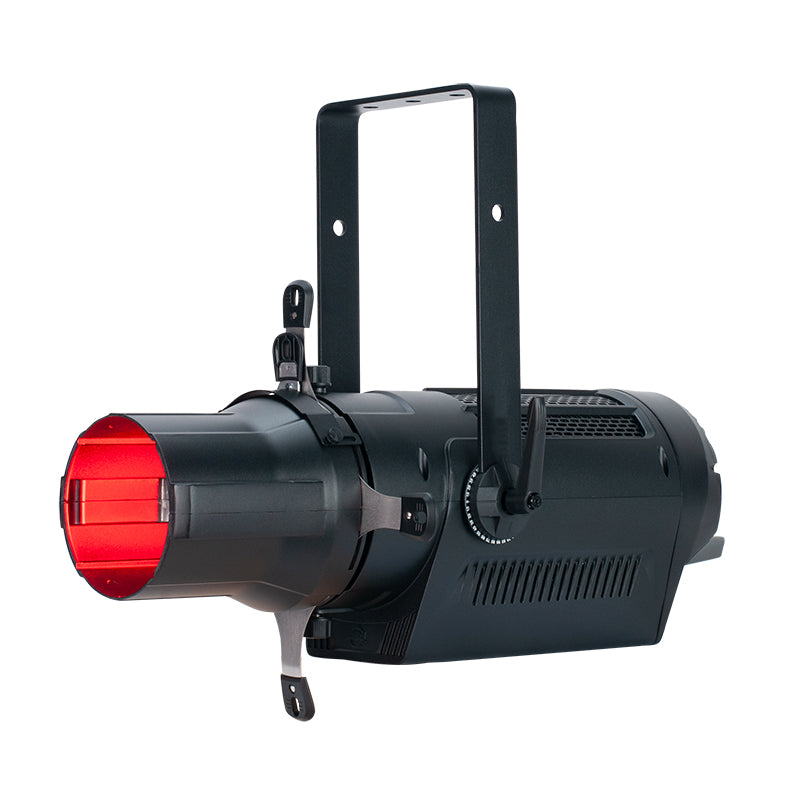

The Encore Profile Pro Color Ellipsoidal features a 250W RGBWAL (Red, Green, Blue, White, Amber, Lime) LED engine. With the lime-infused LED, this fixture produces a hugh gamut of colors with a high CRI, plus it has tunable white color temperature control from 2400K to 9000K. A variety of high definition lens are available to customize output and create precision designed optics that deliver excellent sharpness and an even field of light.
Encore Profile Pro Color
Sale price$0.00
Key features
| Feature | Value |
|---|---|
| Color Temperature | 2400K ~ 9000K |
| CRI | 90 |
| GOBO Holder | B Size Metal |
| LED Source | 250W RGBWAL LED |
| Output | 6,000 Lumens |
Video
Encore Profile Pro Color
Available now from ADJ USA

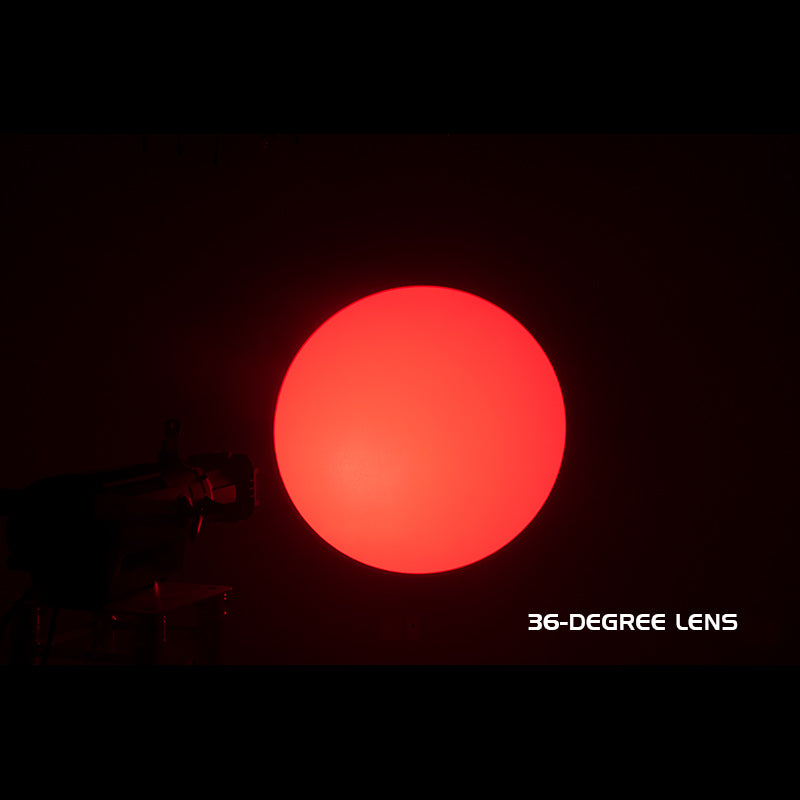

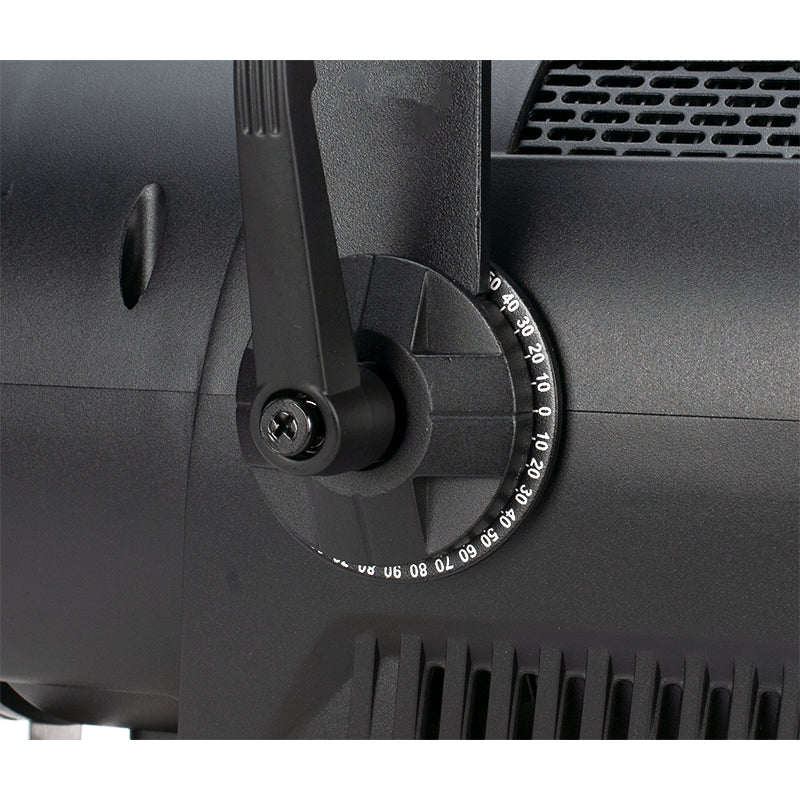

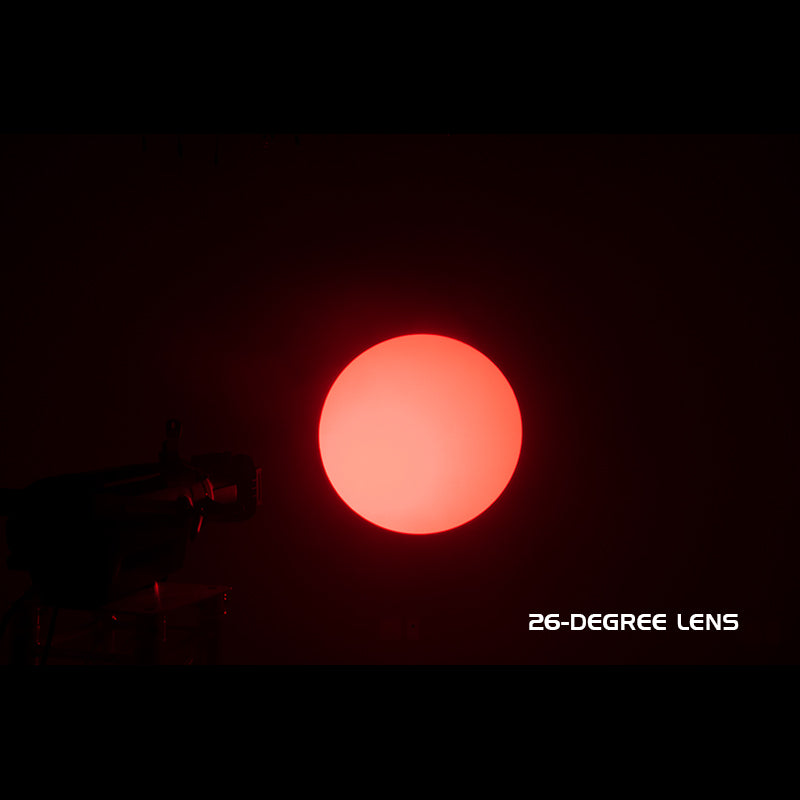

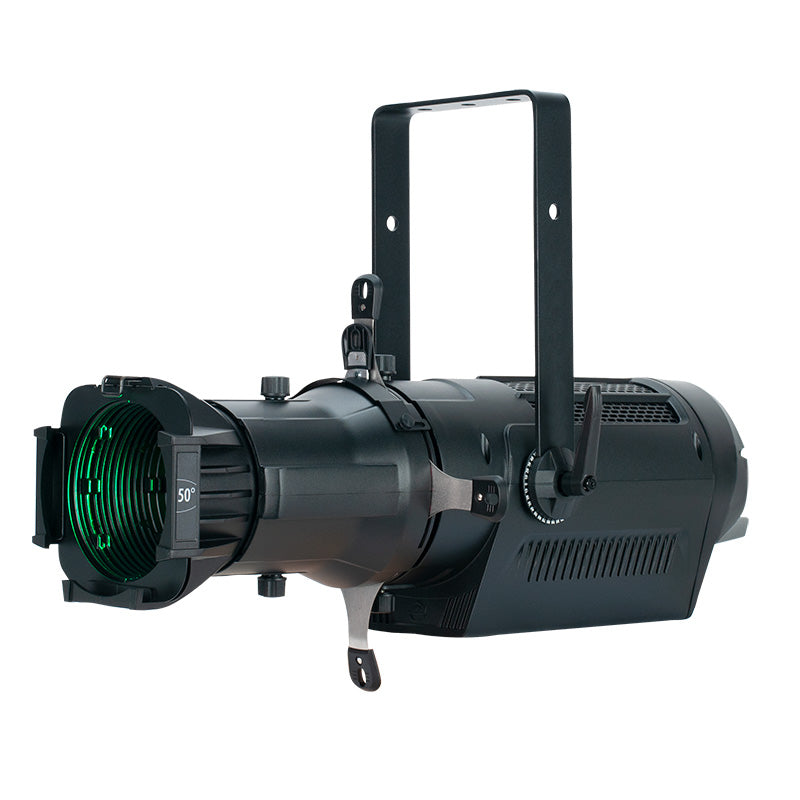

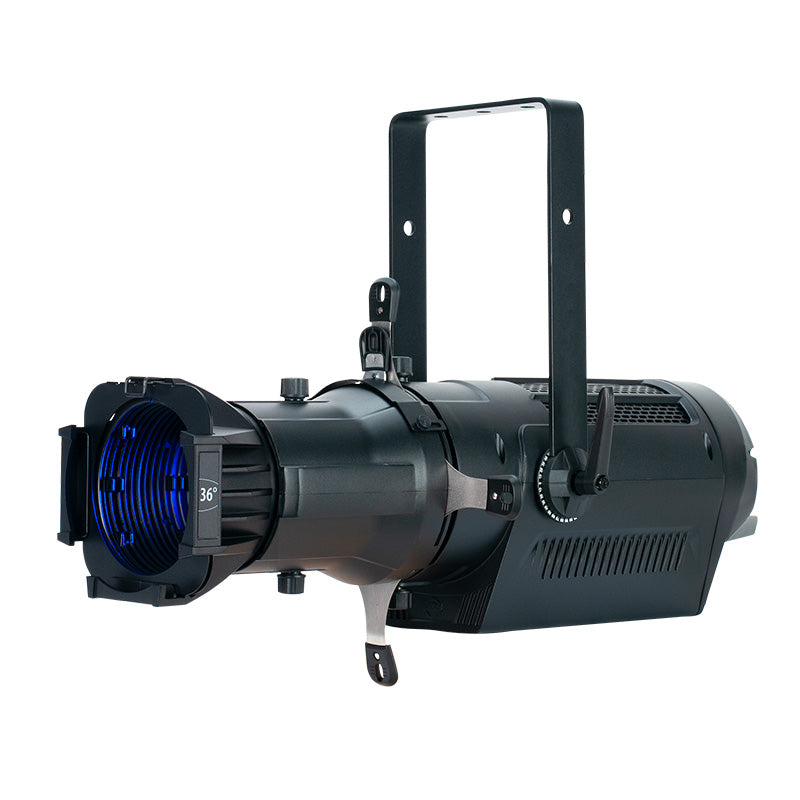

The Encore Profile Pro Color Ellipsoidal features a 250W RGBWAL (Red, Green, Blue, White, Amber, Lime) LED engine, >90CRI with 14°, 19°, 26°, 36°, and 50° interchangeable high definition lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, dimming curves and dimming modes, flicker free operation for TV and FILM, adjustable refresh rate frequency, locking 5-pin XLR In/Out connectors and Locking Power Input, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).The Encore Profile Pro Color has an independent dynamic white fader feature that achieves white color temperatures from 2400K to 9000K.
Specifications
SOURCE

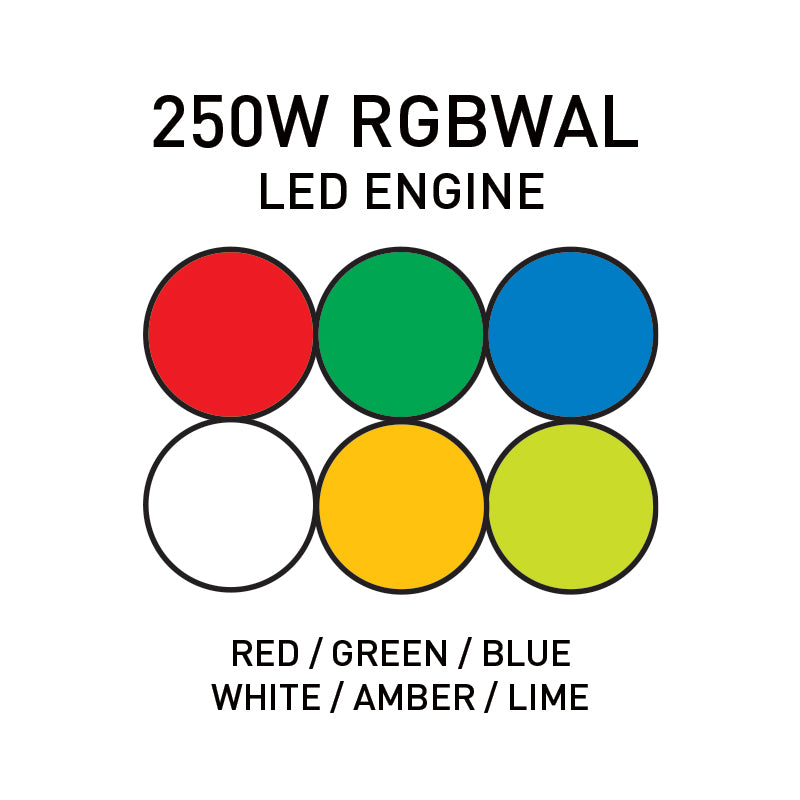

250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>90CRI 6,000 Total Lumens*
(*with 26° lens)
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curves and Dimming Modes

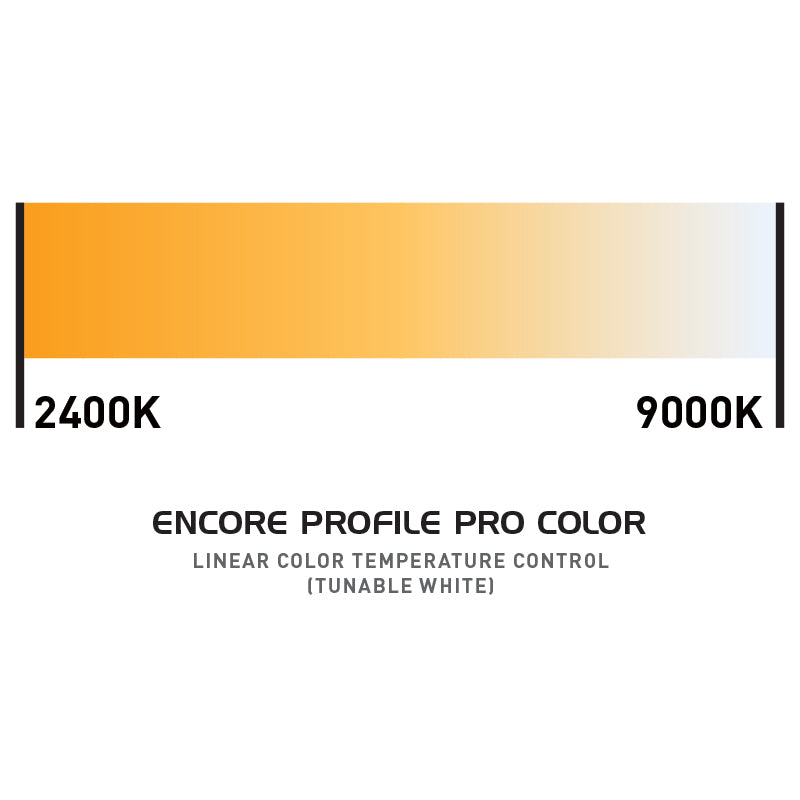

Independent dynamic white fader feature that creates tunable white color temperatures from 2400K to 9000K
GOBOS
Supports “B” Size Metal, HT Transparency Gobos
GOBO Holder is included (See compatible Gobo Dimensions in Downloads section)
GOBOs are sold separately

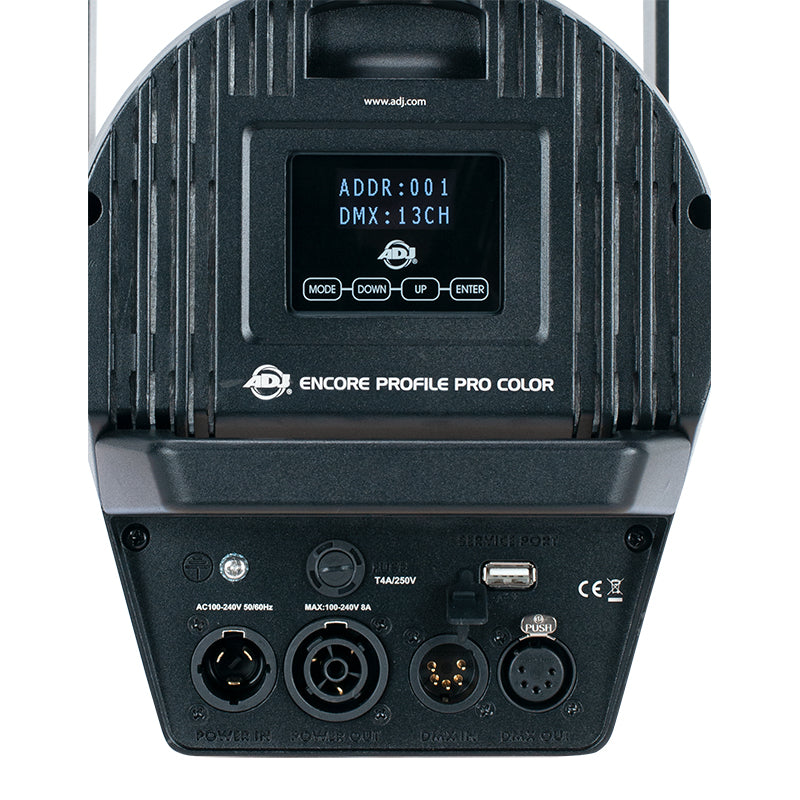

CONTROL / CONNECTIONS
6 DMX Channel Modes (2/4/6/13/14/16)
Adjustable Refresh Rate (900-1500, 25,000 Hz)

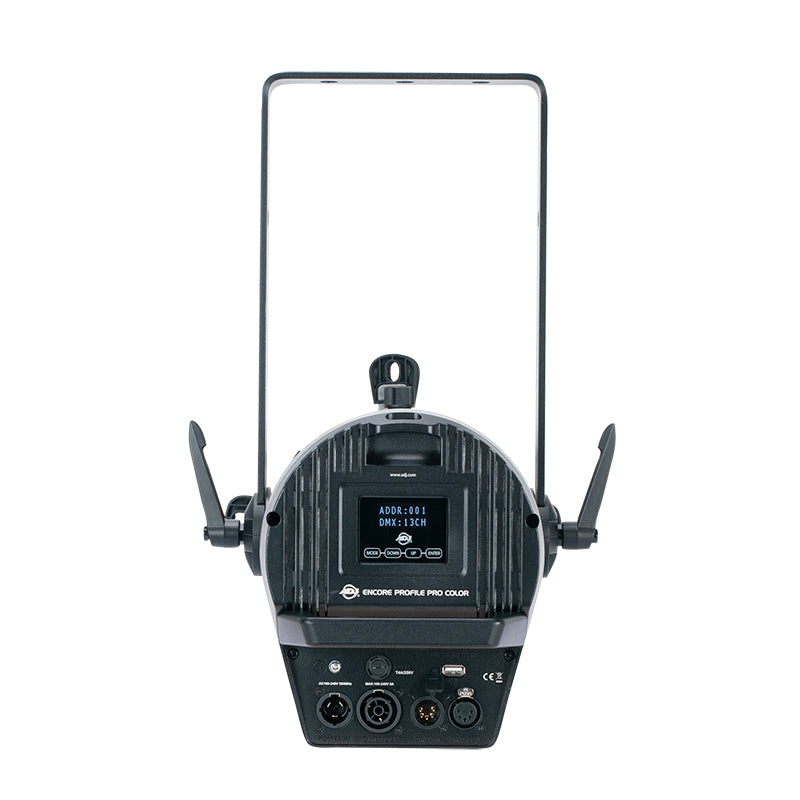

4 Button Control Panel
LED Menu Display
Locking 5pin XLR Connector In/Out
Locking Power Connector In/Out
With Wired Digital Communication Network
RDM (Remote Device Management)
SIZE / WEIGHT
Length: 26.9” (688mm) (Lens In)
Width: 11.375” (289mm)
Vertical Height: 17.7” (450mm)
Weight: 20.0 lbs. (9.1 kg)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 47/63Hz
250W Max Power Consumption
Power Linking: 3pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE
cETLus
IP20
INCLUDED ITEMS
(1) Locking Power Cable
OPTIONAL ACCESSORIES:
EPP IRIS (EPP001)
EP Lens 10 (10° High Definition Lens)
EP Lens 14 (14° High Definition Lens)
EP Lens 19 (19° High Definition Lens)
EP Lens 26 (26° High Definition Lens)
EP Lens 36 (36° High Definition Lens)
EP Lens 50 (50° High Definition Lens)
EP Lens 15-30Z (15° to 00° High Definition, Manual Zoom Lens)
EP Lens 25-50Z (25° to 50° High Definition, Manual Zoom Lens)
SIP064: 1.64ft. IP65 male to female twist lock power link cable
SIP113: 3ft. IP65 male to female twist lock power link cable
SIP126: 5ft. IP65 male to female twist lock power link cable
SIP139: 10ft. IP65 male to female twist lock power link cable
SIP152: 16ft. IP65 male to female twist lock power link cable
SIP165: 25ft. IP65 male to female twist lock power link cable
SIP178: 50ft. IP65 male to female twist lock power link cable
SIP191: 100ft. IP65 male to female twist lock power link cable
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Cut sheet
Dimensional drawings
Dmx traits
Photometrics
- Encore Profile Pro Color Full On 19 Degree Photometrics Test Report
- Encore Profile Pro Color - Photometrics IES Files - Full On 14Deg
- Encore Profile Pro Color - Photometrics IES Files - Full On 26Deg
- Encore Profile Pro Color - Photometrics IES Files - Full On 36Deg
- Encore Profile Pro Color - Photometrics IES Files - Full On 50Deg
User manual
Generic
Encore Profile Pro Color Parts & Service
Our Encore Profile Pro Color Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Encore Profile Pro Color. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
Encore Profile Pro Color Parts & Service
ADJ To Showcase Best-in-class Solutions For Today’s AVL Professional At InfoComm 2024
ADJ To Showcase Lighting, Video and Atmospheric Products To The Attraction Industry At The 2023 IAAPA Expo

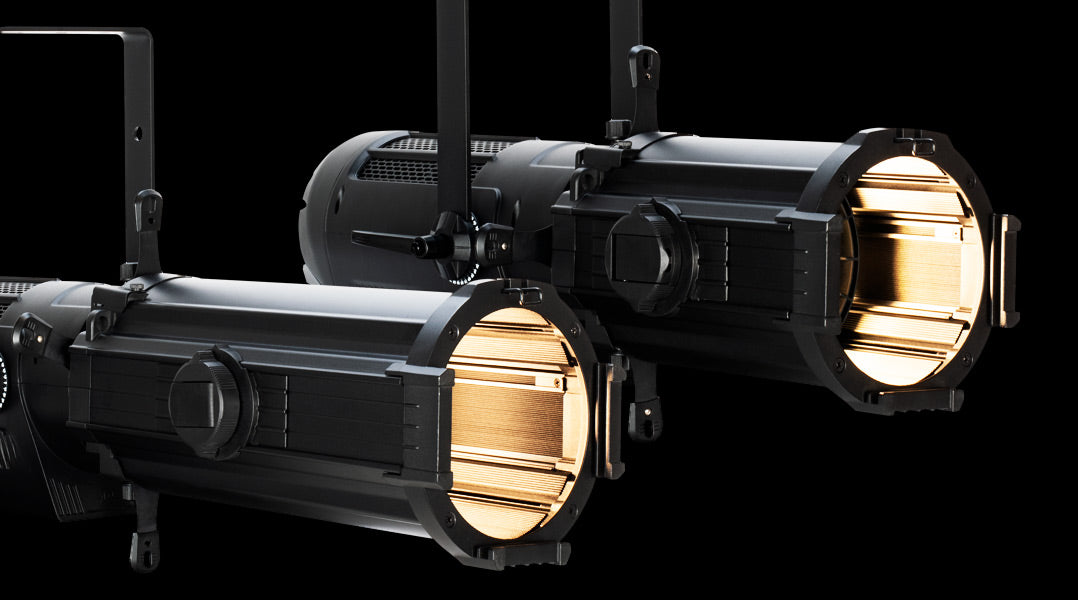

ADJ Expands Encore Profile Pro Series With Two New Zoom Lens Options
