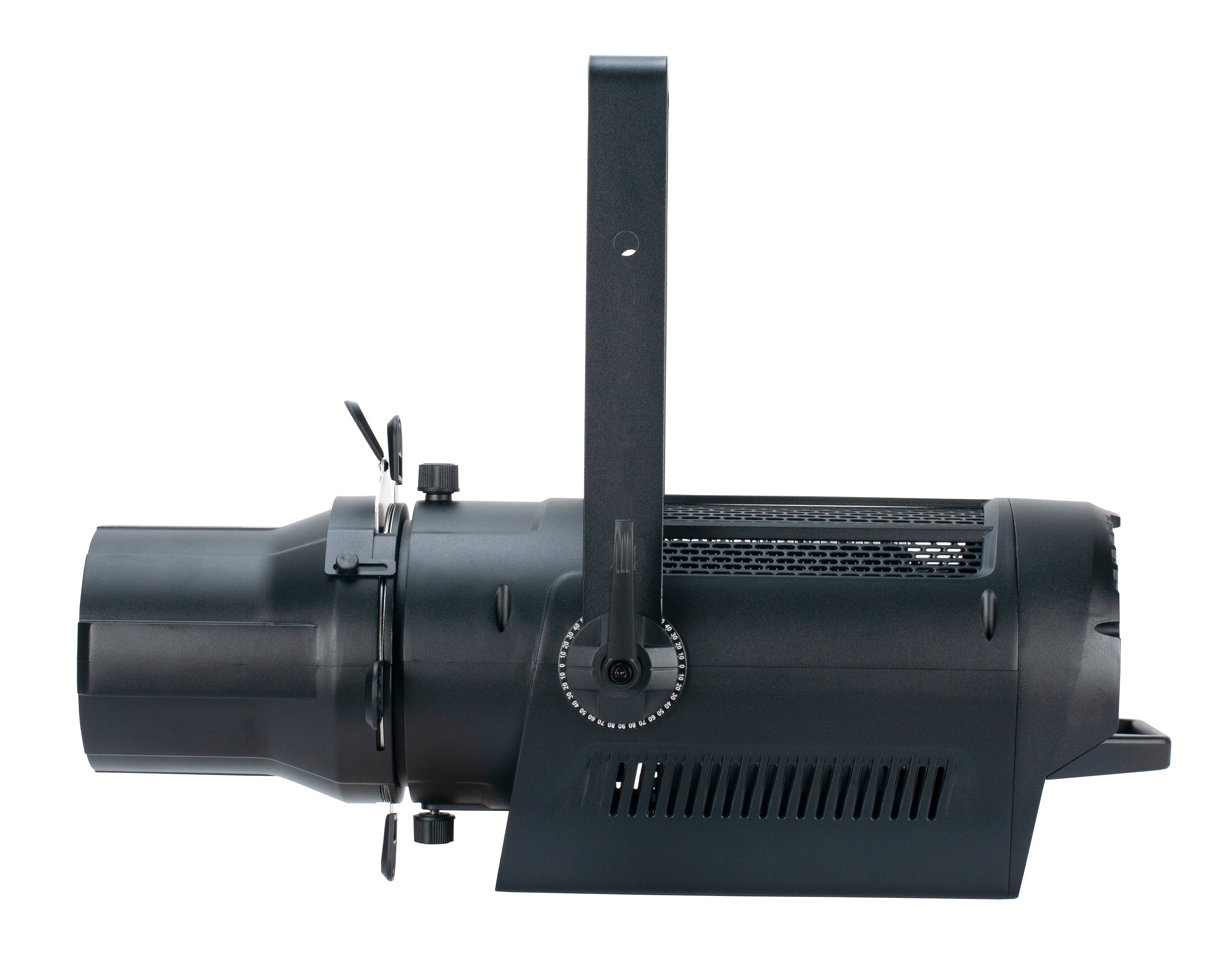

Encore Profile Pro WW

Name: Encore Profile Pro WW
Brand: ADJ
SKU: ENC273
Availability: InStock

The ADJ Encore Profile Pro WW ellipsoidal features a high powered 260W Warm White (3200K) LED engine.

UPC: 818651028362

SKU: ENC273

$0.00

Key features

Feature	Value
Color Temperature	3200K
CRI	97
GOBO Holder	B Size Metal
LED Source	260W Warm White LED
Output	10,000 Lumens

Video

Encore Profile Pro WW

Available now from ADJ USA

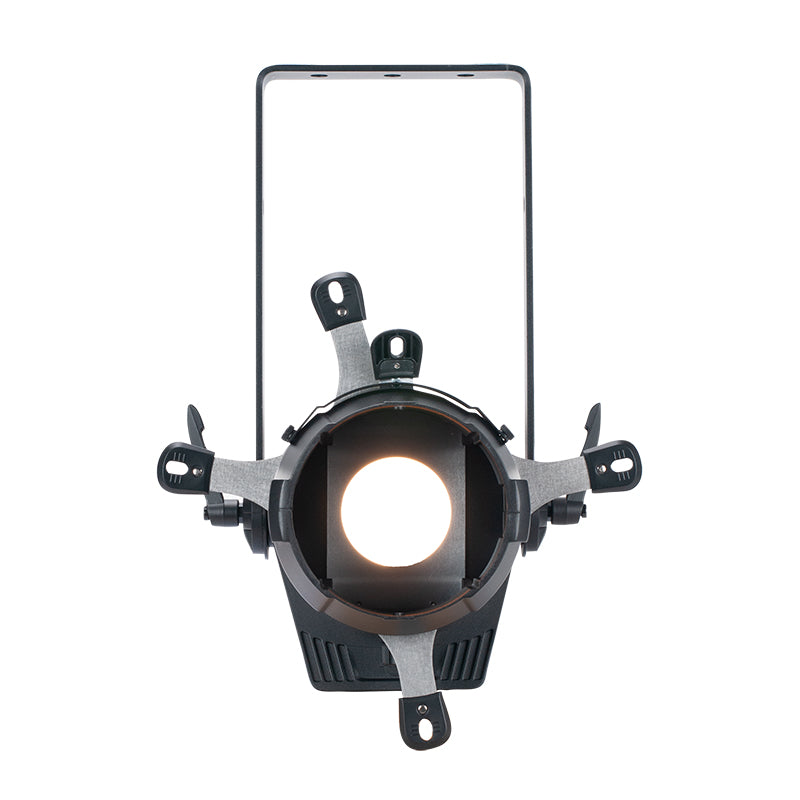

The Encore Profile Pro WW™ ellipsoidal features a high powered 260W Warm White >97CRI 3,200K LED engine producing 10,000+ total lumens, 14°, 19°, 26°, 36°, and 50° interchangeable high definition lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curves and dimming modes, adjustable refresh frequency for flicker free operation for TV and FILM, locking 5-pin XLR In/Out and Locking Power In/Out, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).

Click here to read the Encore Profile Pro Series press release.

Specifications

SOURCE

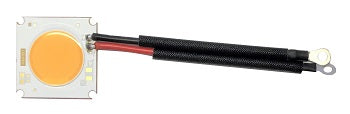

260W Warm White LED Engine

50,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

>97CRI 10,000 Total Lumens* (*with 26° lens)

3200K Color Temperature

EFFECTS

Electronic Strobe and Dimming

Variable Dimming Curves and Dimming Modes

GOBOS

Supports “B” Size Metal, HT Transparency Gobos

GOBO Holder is included (See compatible Gobo Dimensions in Downloads section)

GOBOs are sold separately

CONTROL / CONNECTIONS

(3) DMX Channel Modes (2, 3, 6)

Adjustable Refresh Rates (900-1500, 25,000 Hz)

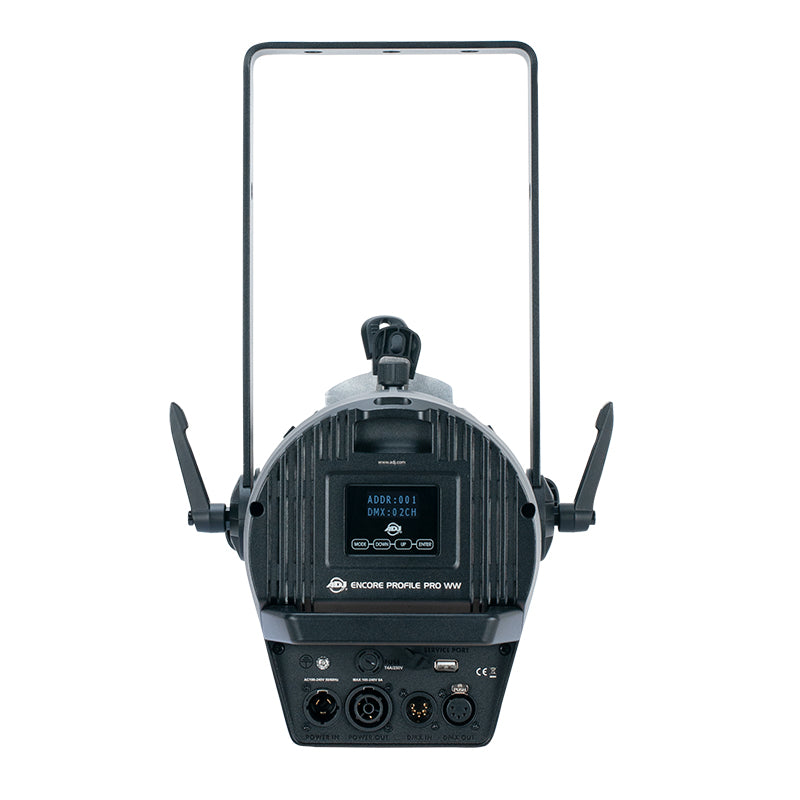

4 Button Control Panel

LED Menu Display

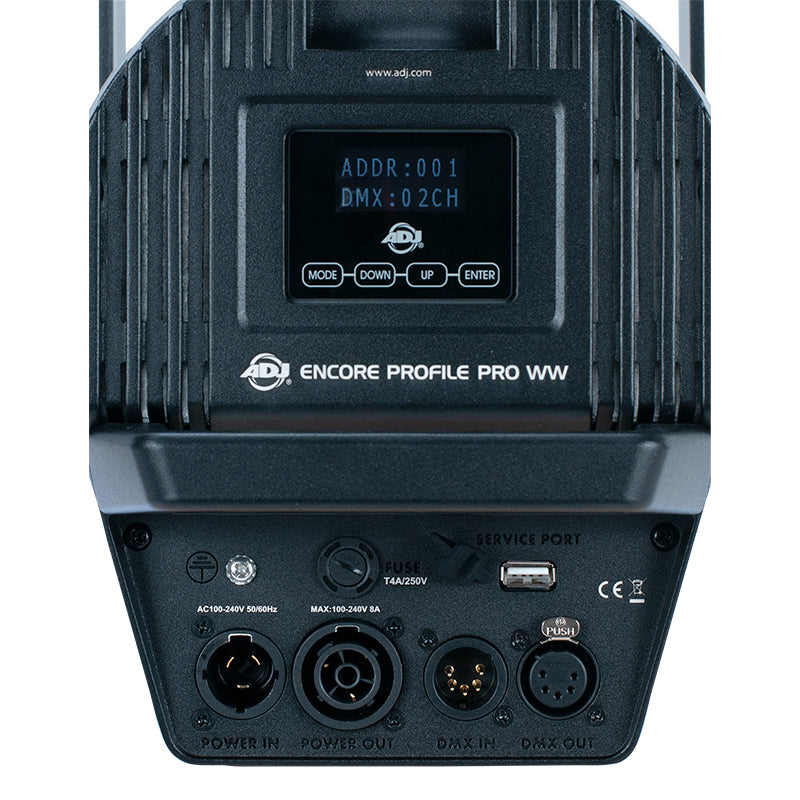

Locking 5pin XLR Connector In/Out

Locking Power Connector In/Out

With Wired Digital Communication Network

RDM (Remote Device Management)

SIZE / WEIGHT

Length: 26.9” (688mm) (Lens In)

Width: 11.375” (287mm)

Vertical Height: 17.7” (450mm)

Weight: 20.0 lbs. (9.1 kg)

ELECTRICAL / THERMAL

Quiet Fan Cooling

AC 100-240V - 47/63Hz

260W Max Power Consumption

Power Linking: 3pcs Max @120V / 8pcs Max @240V

14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS

CE

cETLus

IP20

INCLUDED ITEMS

(1) Locking Power Cable

OPTIONAL ACCESSORIES:

EPP IRIS (EPP001)

EP Lens 10 (10° High Definition Lens)

EP Lens 14 (14° High Definition Lens)

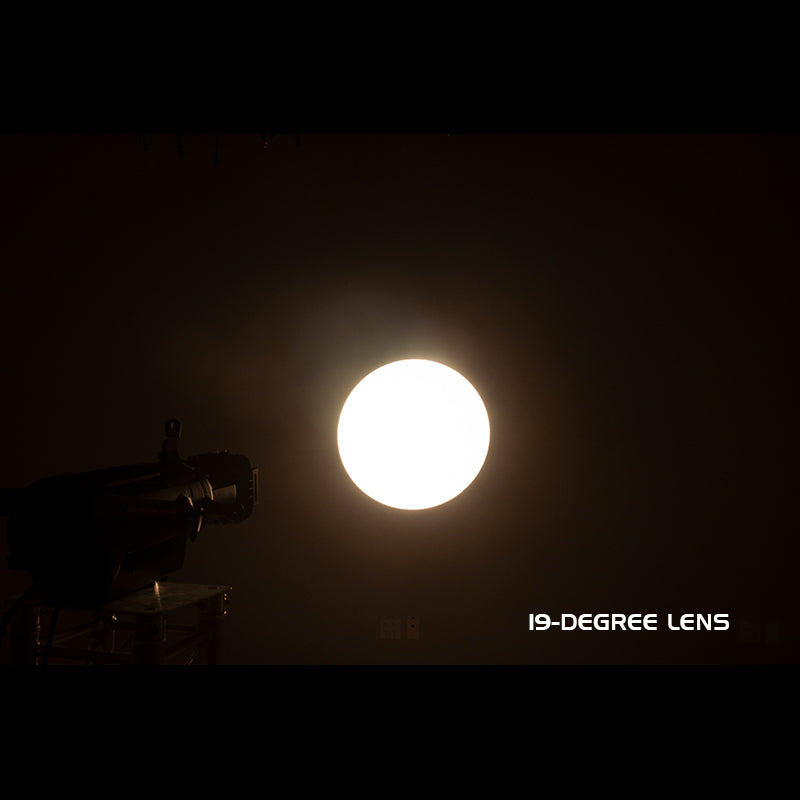

EP Lens 19 (19° High Definition Lens)

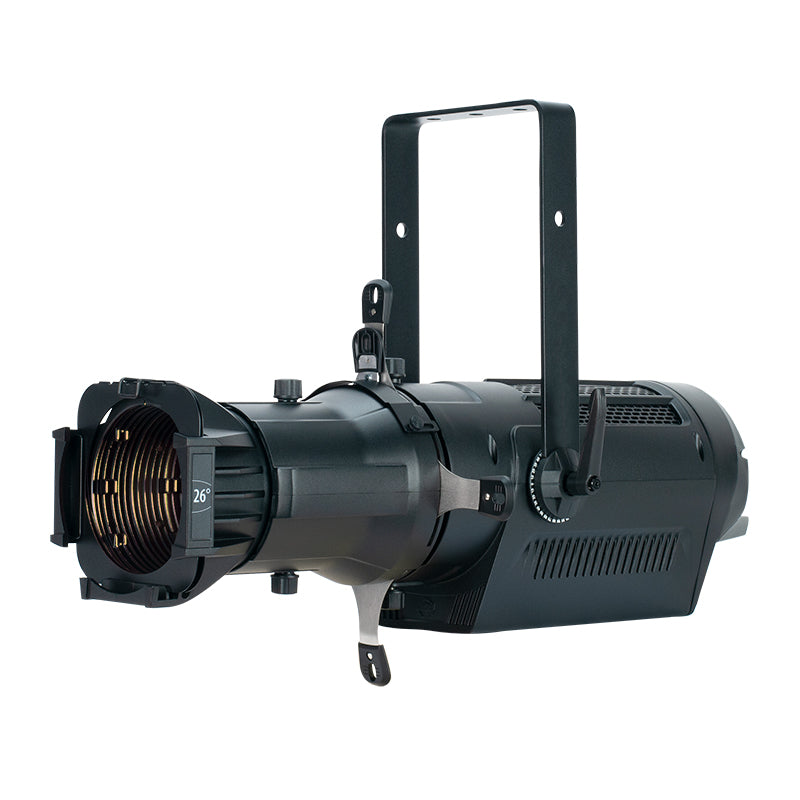

EP Lens 26 (26° High Definition Lens)

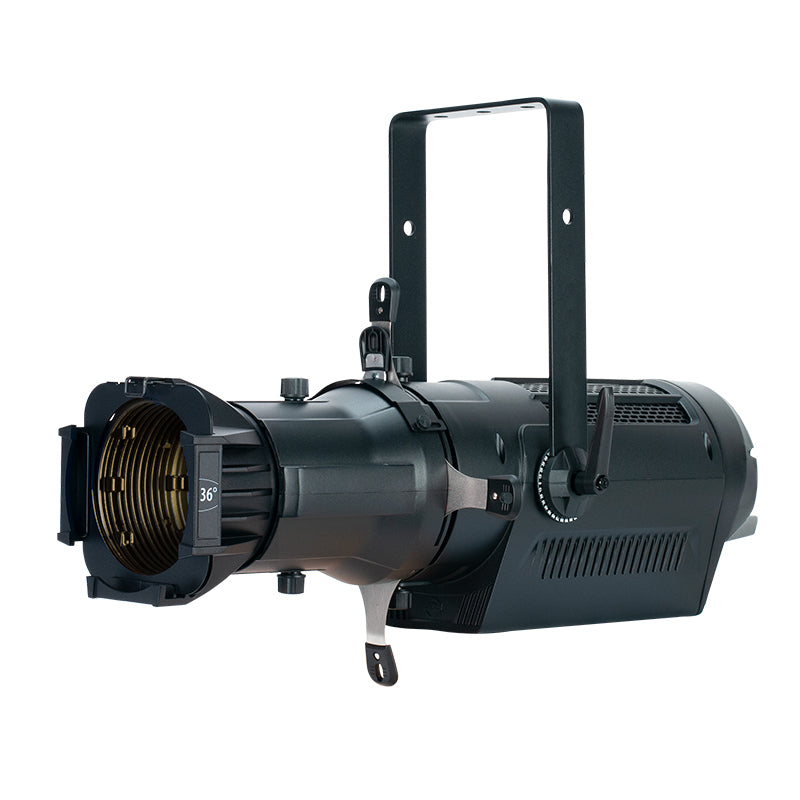

EP Lens 36 (36° High Definition Lens)

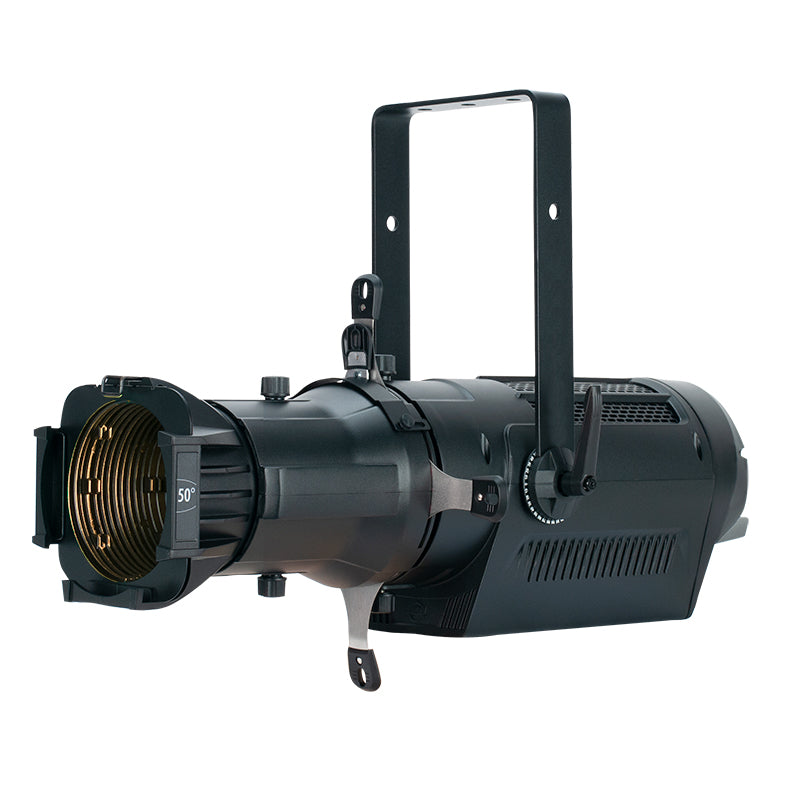

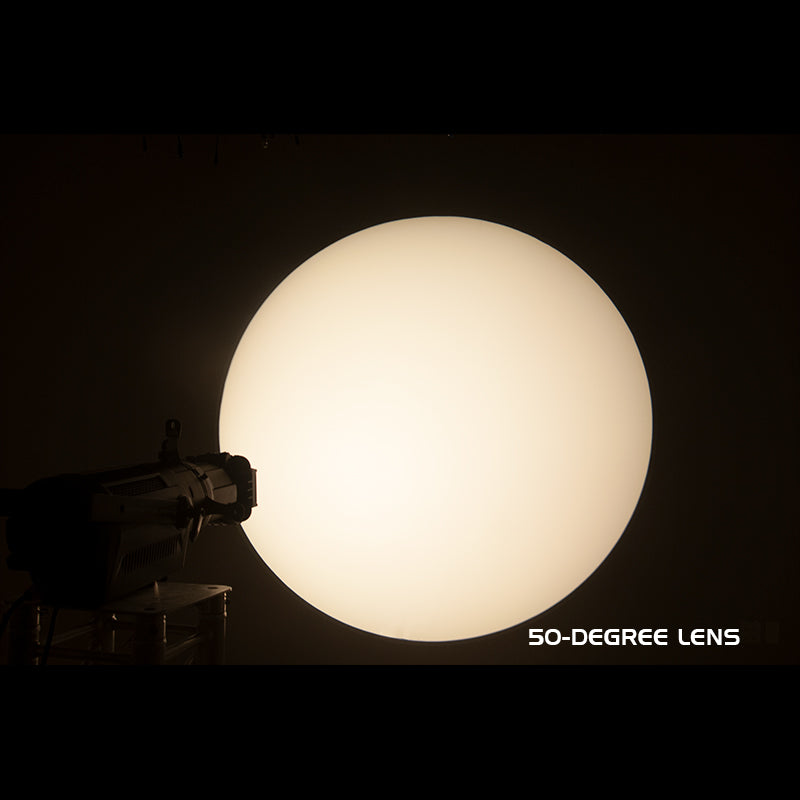

EP Lens 50 (50° High Definition Lens)

EP Lens 15-30Z (15° to 00° High Definition, Manual Zoom Lens)

EP Lens 25-50Z (25° to 50° High Definition, Manual Zoom Lens)

SIP064: 1.64ft. IP65 male to female twist lock power link cable

SIP113: 3ft. IP65 male to female twist lock power link cable

SIP126: 5ft. IP65 male to female twist lock power link cable

SIP139: 10ft. IP65 male to female twist lock power link cable

SIP152: 16ft. IP65 male to female twist lock power link cable

SIP165: 25ft. IP65 male to female twist lock power link cable

SIP178: 50ft. IP65 male to female twist lock power link cable

SIP191: 100ft. IP65 male to female twist lock power link cable

Specifications and documentation subject to change without notice.
