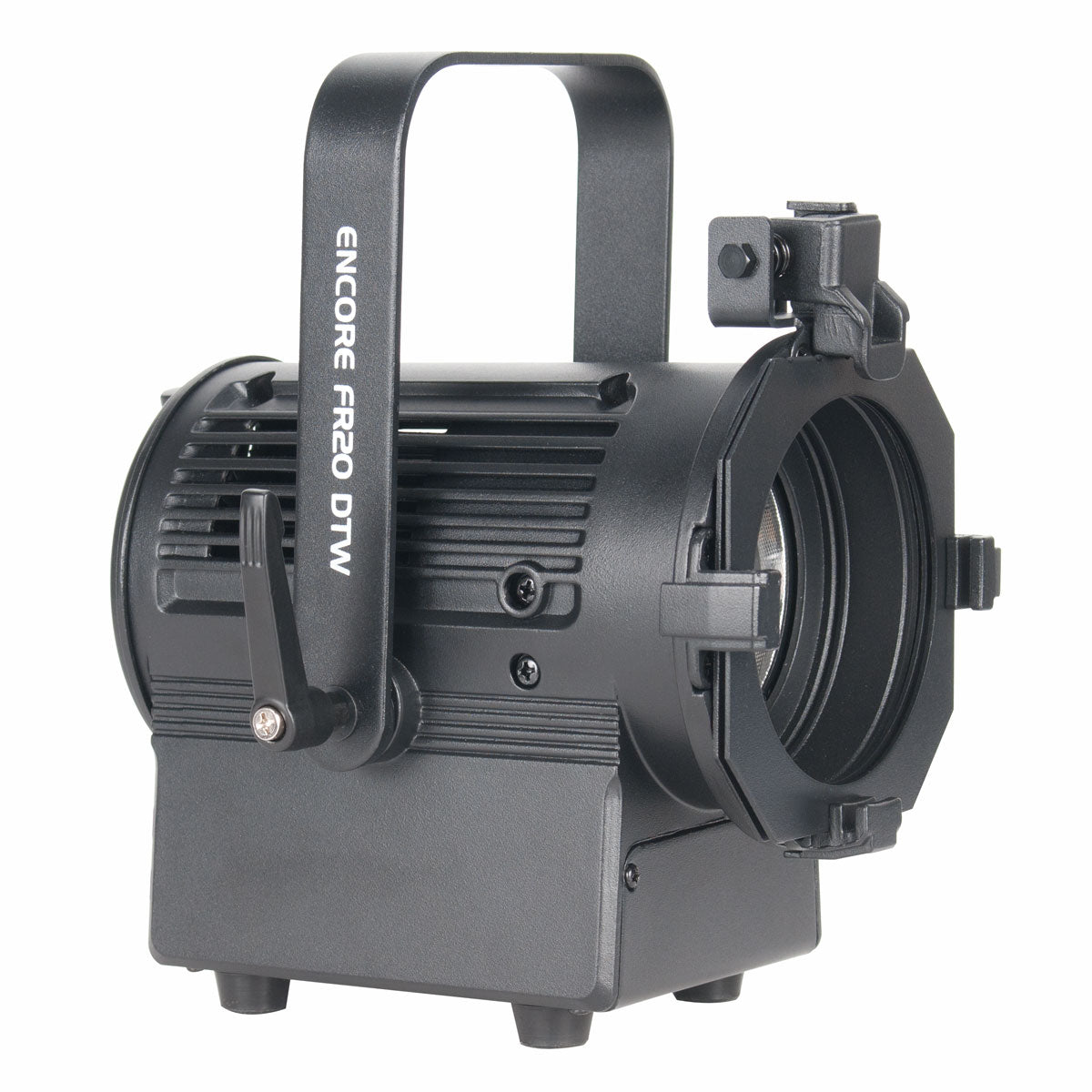

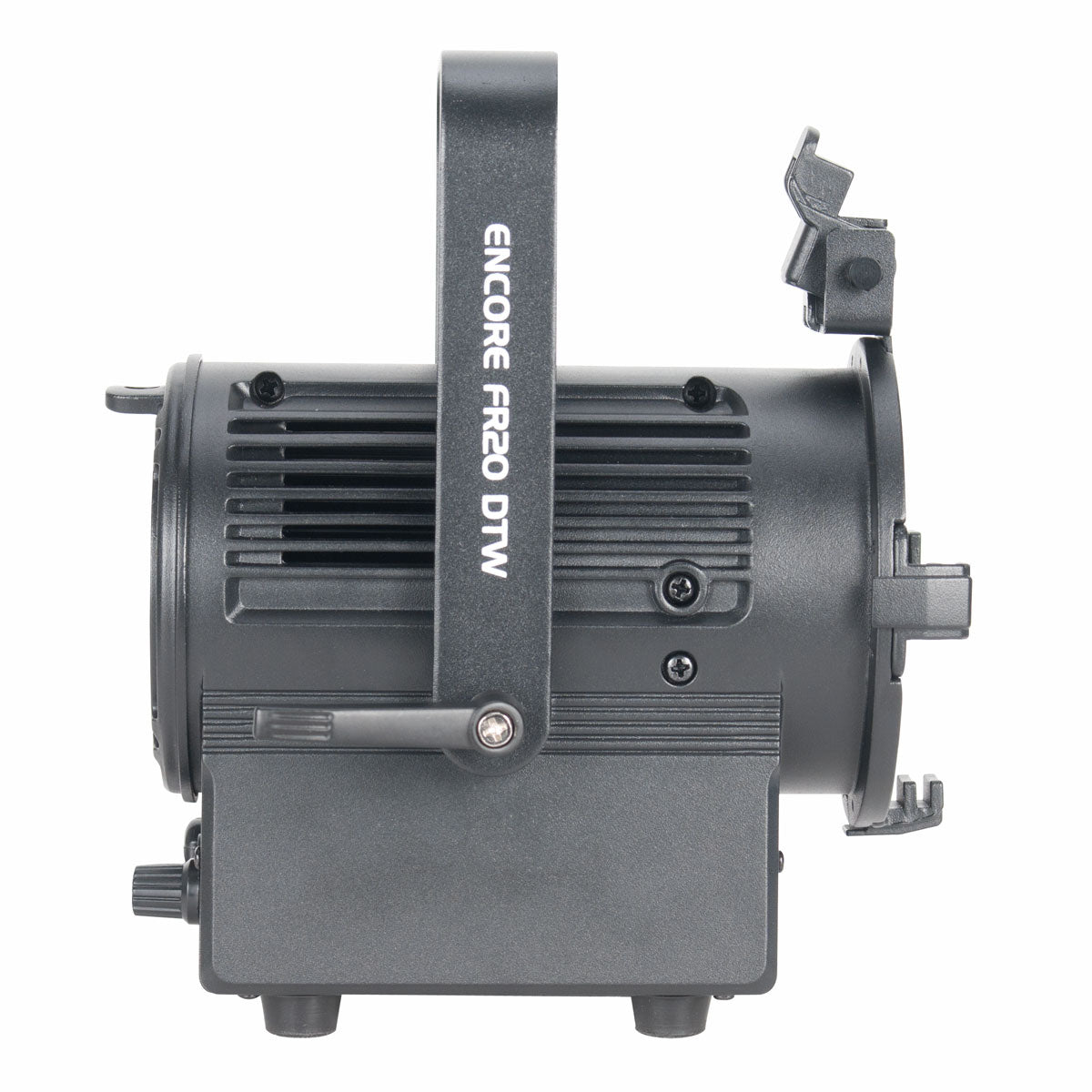

Encore FR20 DTW

New Product
SKU: ENC475 | UPC: 818651025453

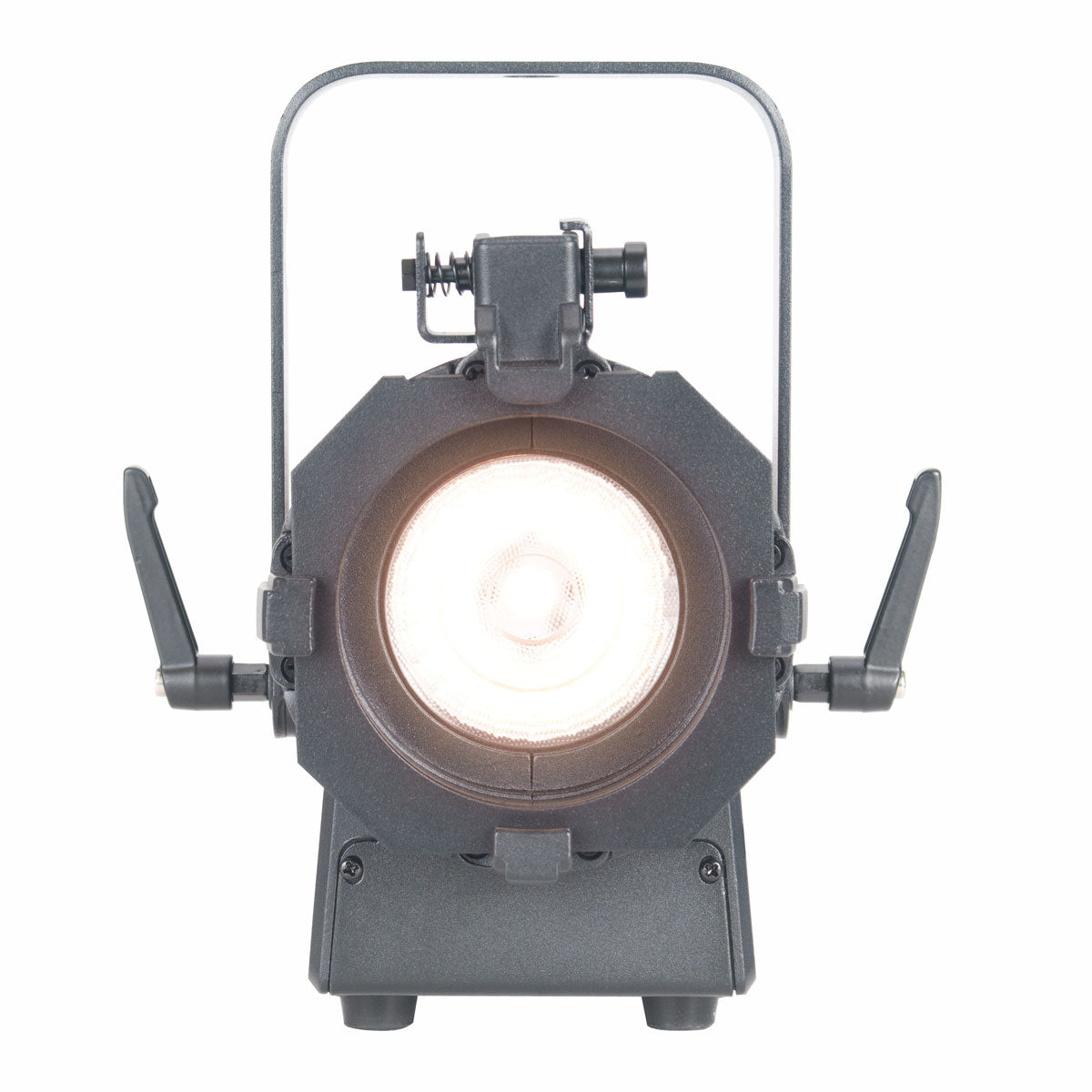

The Encore FR20 DTW is a compact 2-inch Fresnel lens fixture with Dim to Warm feature and is equipped with barn doors to sharp the beam of light.
Advantage Points: 160

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $149.99

Part of the Encore stage lighting series, the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers.

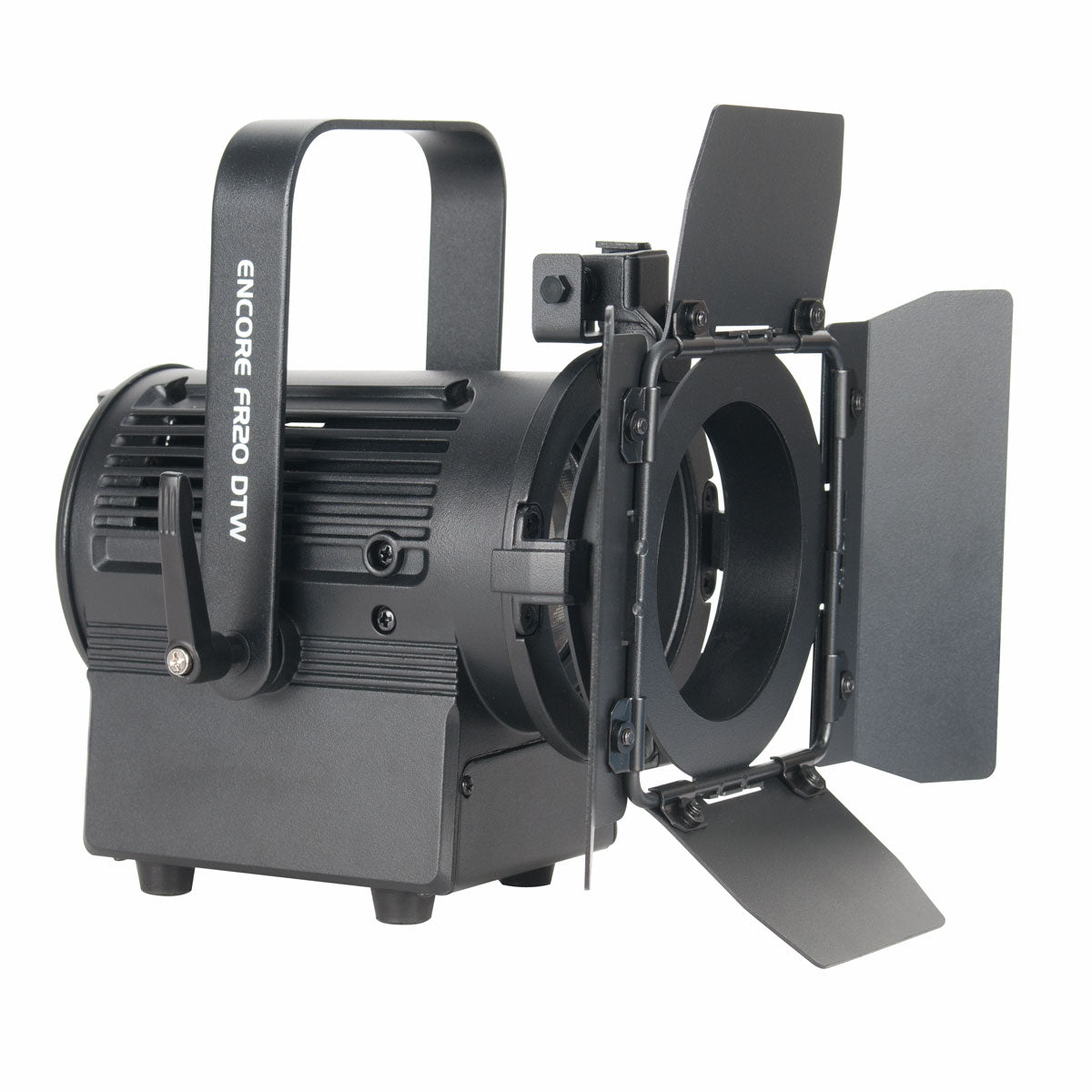

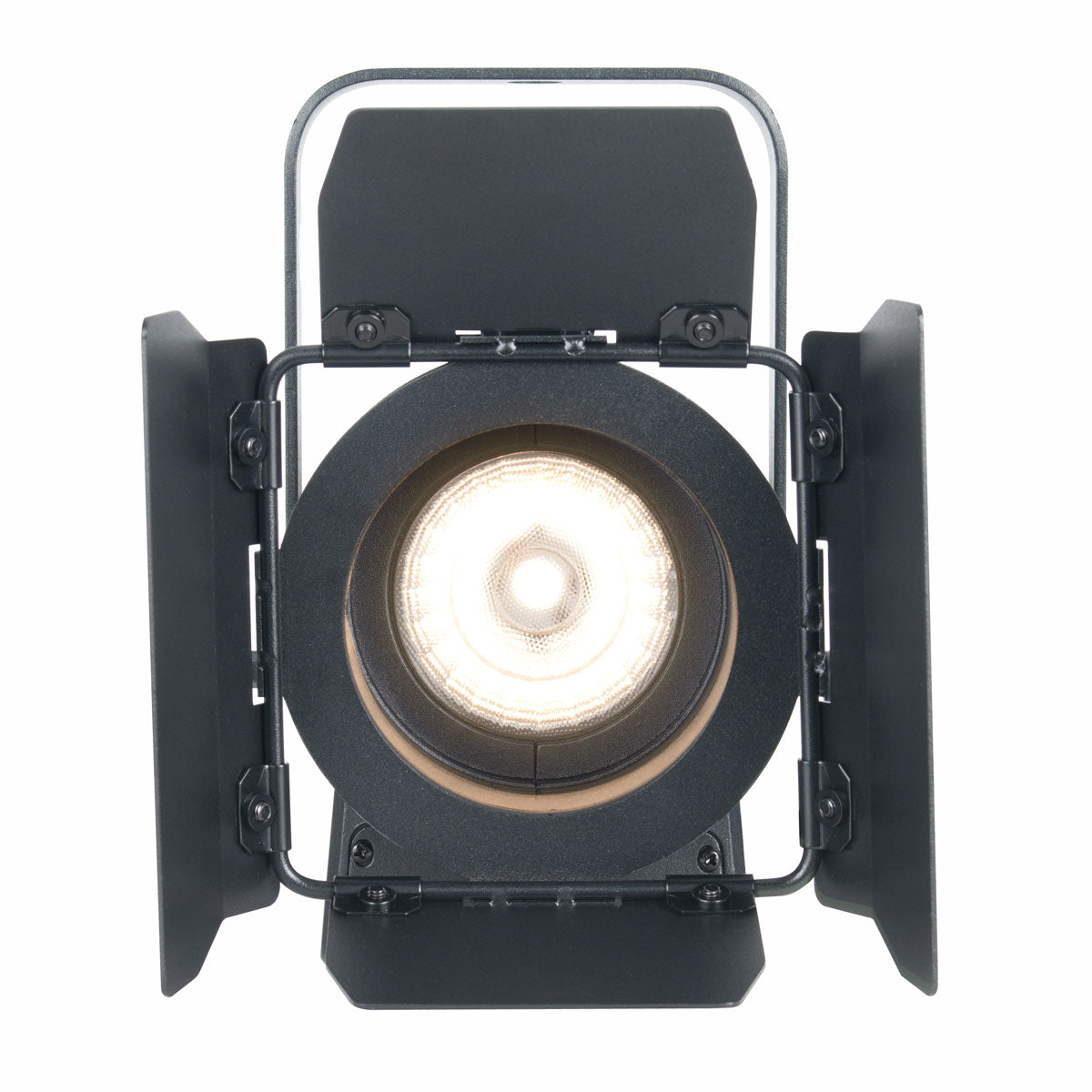

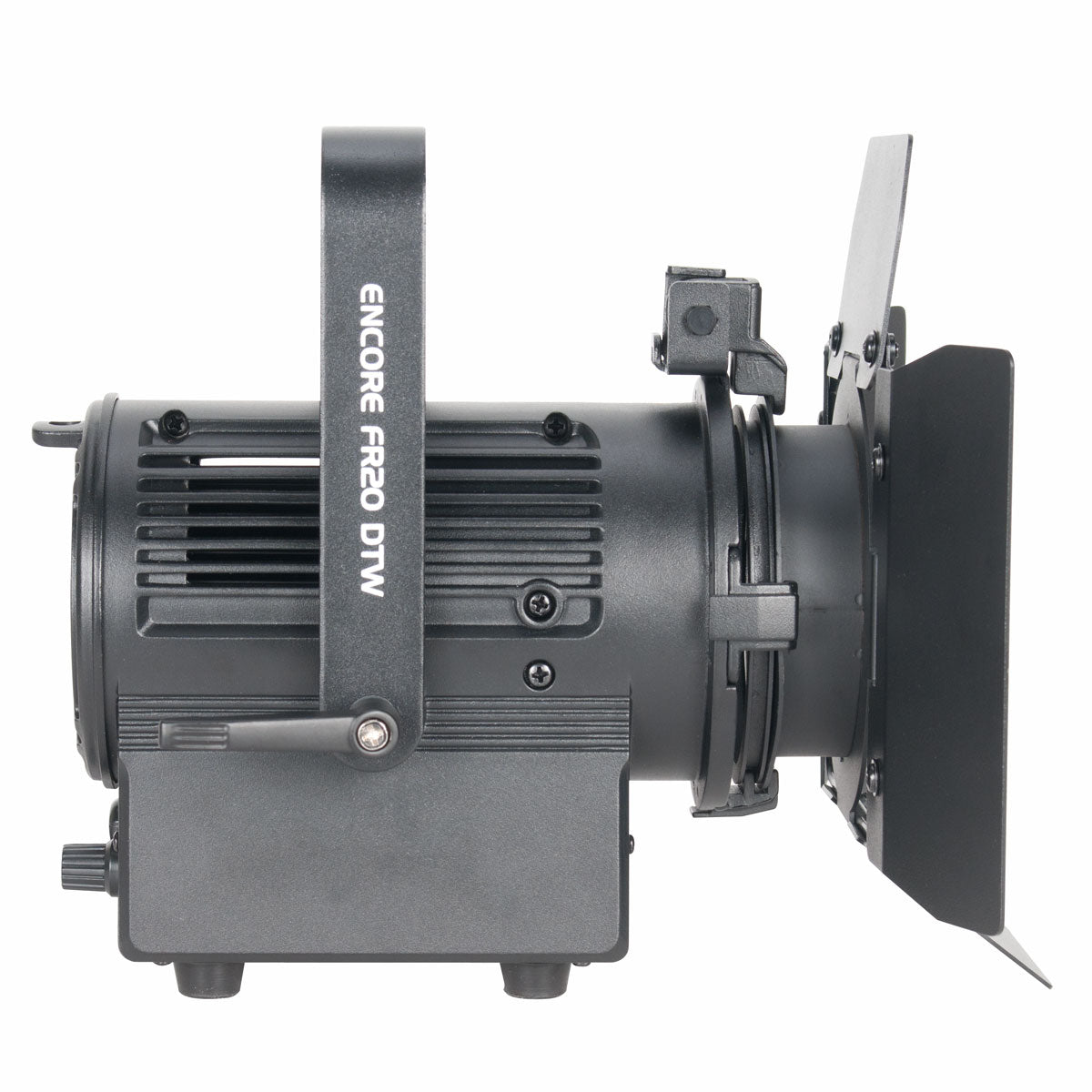

The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light, a frost filter to change the beam angle from 19-degress to 45-degrees, gel frame to add a color gel (sold separately) and a safety cable.




Specifications

Specifications

• 17W warm white LED engine
• 2-inch Fresnel lens

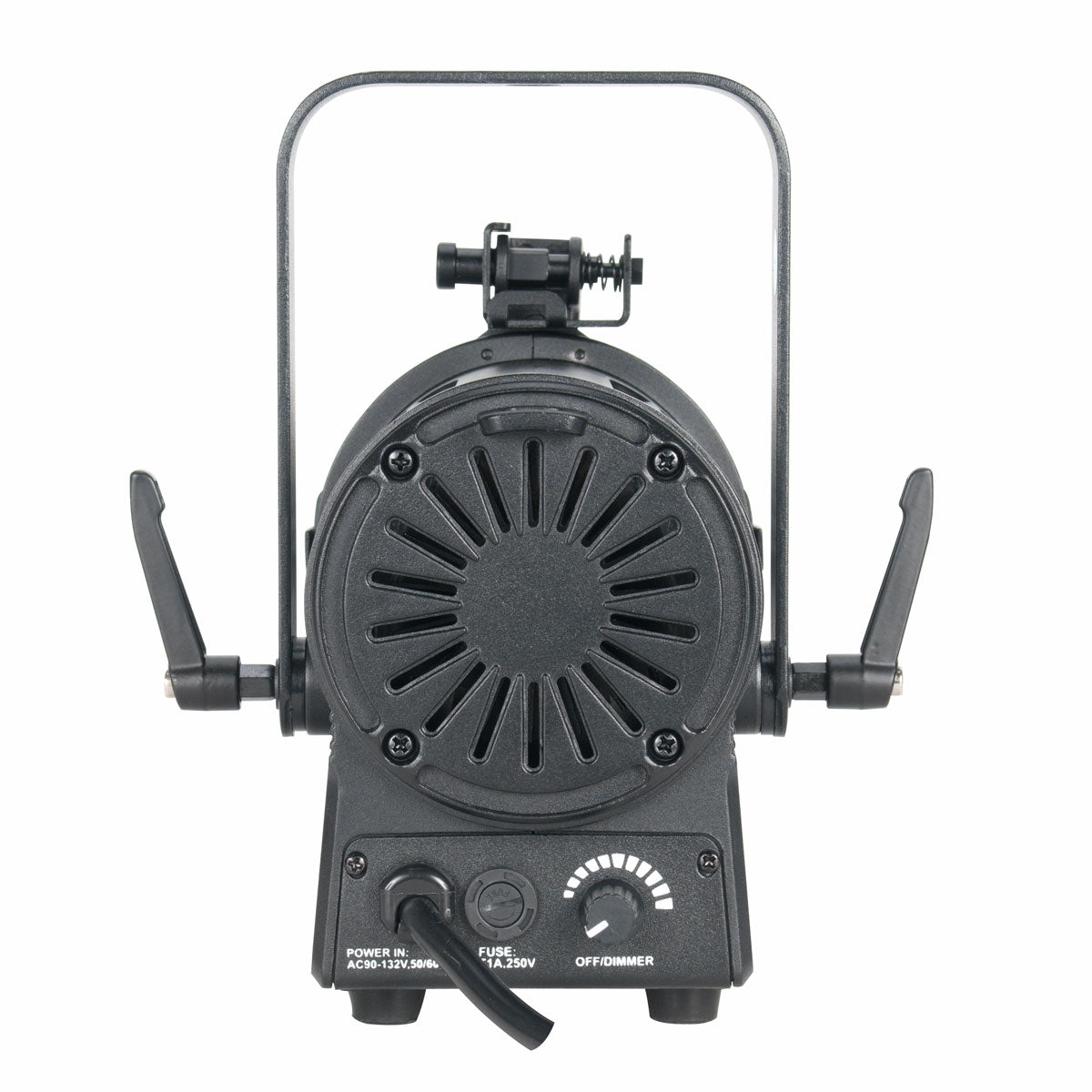

• Dimming potentiometer: 0-100%

• Dim to warm feature

• Triac dimmable - compatible with Lutron & Leviton wall dimmers  or ADJ Dimmer Packs (DP-415R, DP-DMX20L, Uni Pak II)
• CRI 92
• Color Temperature: 3000K
• Beam angle: 19-degrees

• LUX @ 3M: 600

• LED Life: 50,000 hours
• Includes hanging bracket
• Multi-voltage operation: AC 100-240V, 50/60Hz

• Dimensions (LxWxH): 10.25” x 5.25” x 8.25” / 259x133x210mm
• Weight: 5 lbs. / 2 kg.

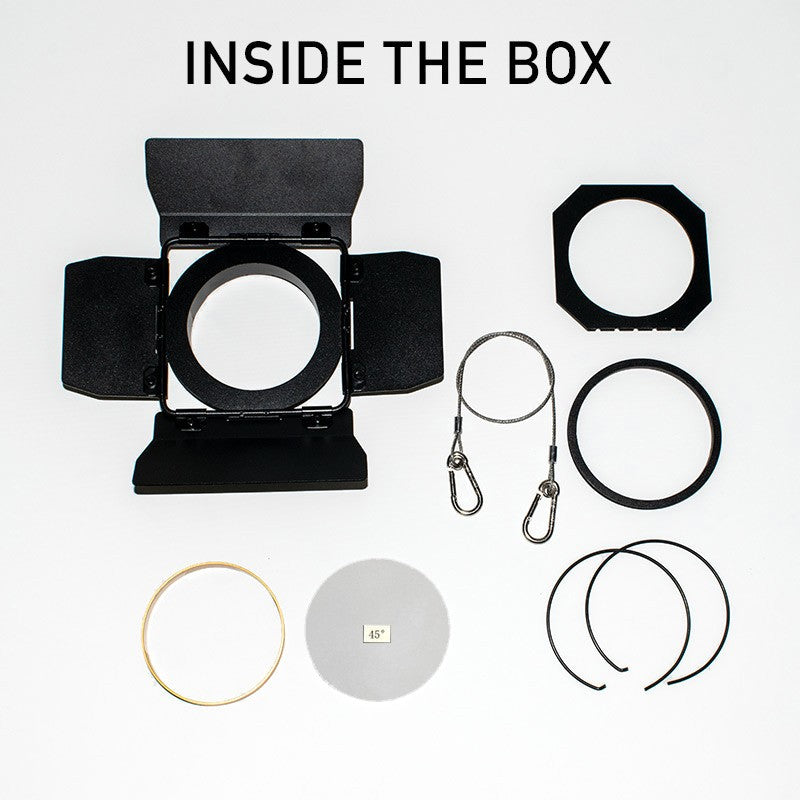

Inside the Box:

• Removable Barn Doors

• Safely Cable

• Gel Frame (to add a color gel - sold separately)

• Frost Filter to change beam angle to 45-degrees

• 2 Retainer Rings

• Gold Snoot

• Metal Spacer

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Encore FR20 DTW Cut Sheet Cut Sheet Download
Encore RF20 DTW User Manual User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Encore FR20 DTW
