ElectraPix Par 7

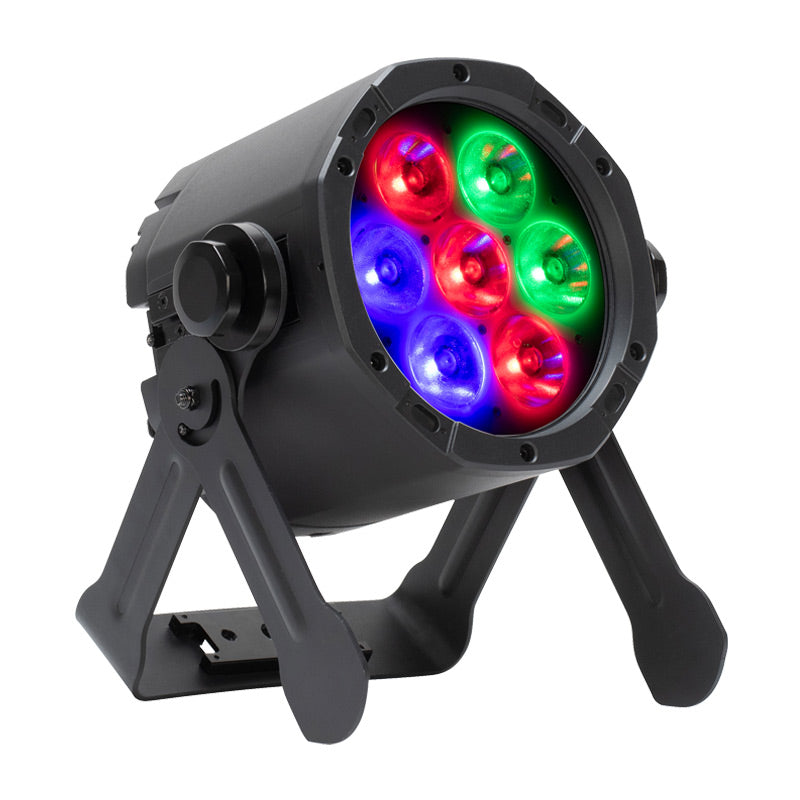

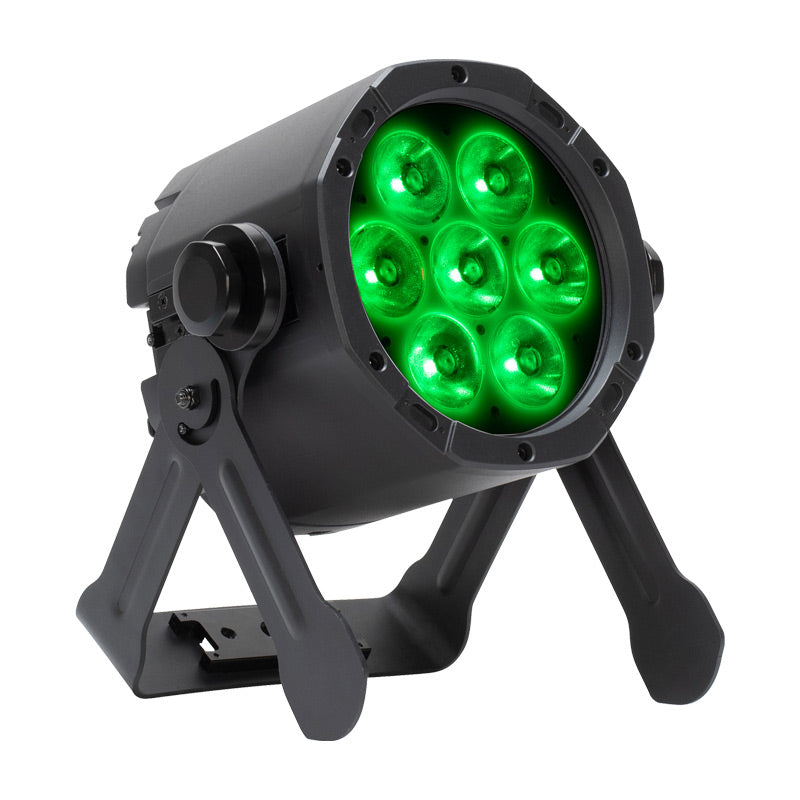

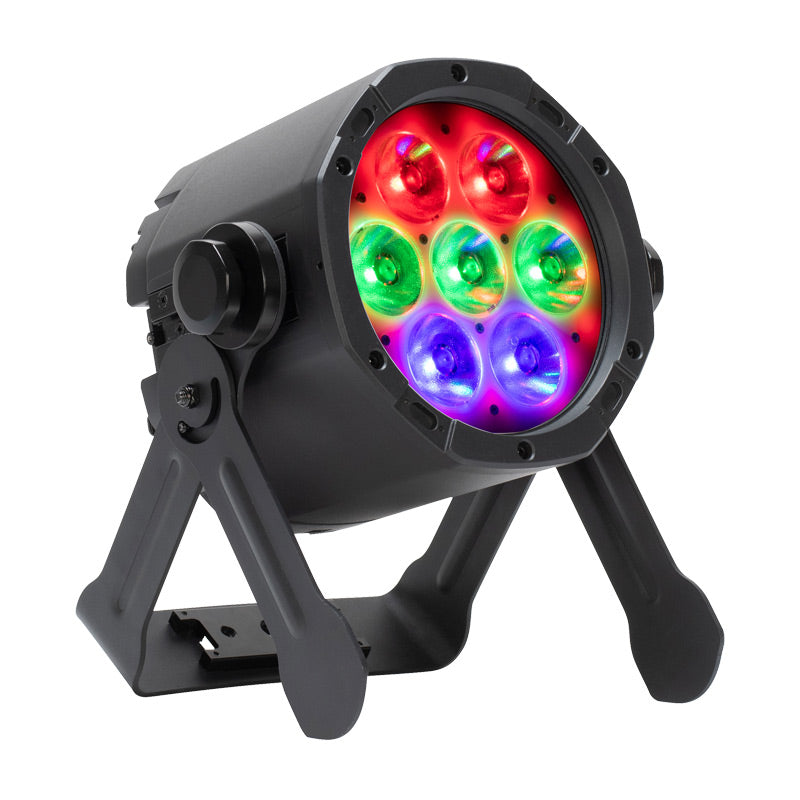

7 Pixel, Hex Color LED (RGBAL+UV) LED Par
Built-in Lithium-ion rechargeable battery or Wall Powered
Battery operation can be selected by the user for durations ranging from 5 to 20 hours
Individual Pixel Control
Built-In Foreground LED Programs
Built-In Background LED Programs
Variable White Color Temperature Control (2,700K ~ 9,900K)
English Spanish User Menu
Built-In Alarm
Color Calibrated LED's
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.3Hz ~ 11Hz)
Electronic Dimming

Source:

(7) 20W Hex Color RGBAL+UV Foreground LEDs

(29) 0.2W RGB Background LEDs

50,000 Hour Average Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

2,300K ~ 9,900K White Color Temperature Range

17° Beam Angle

Physical:

IP65 Housing

OLED Digital display

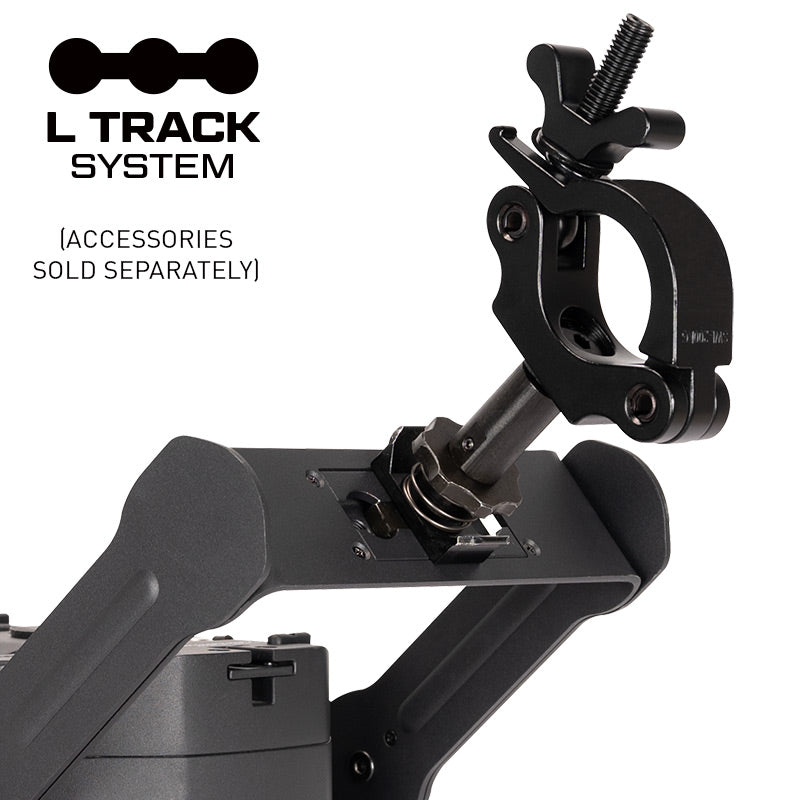

L Track system for locking accessories / rigging

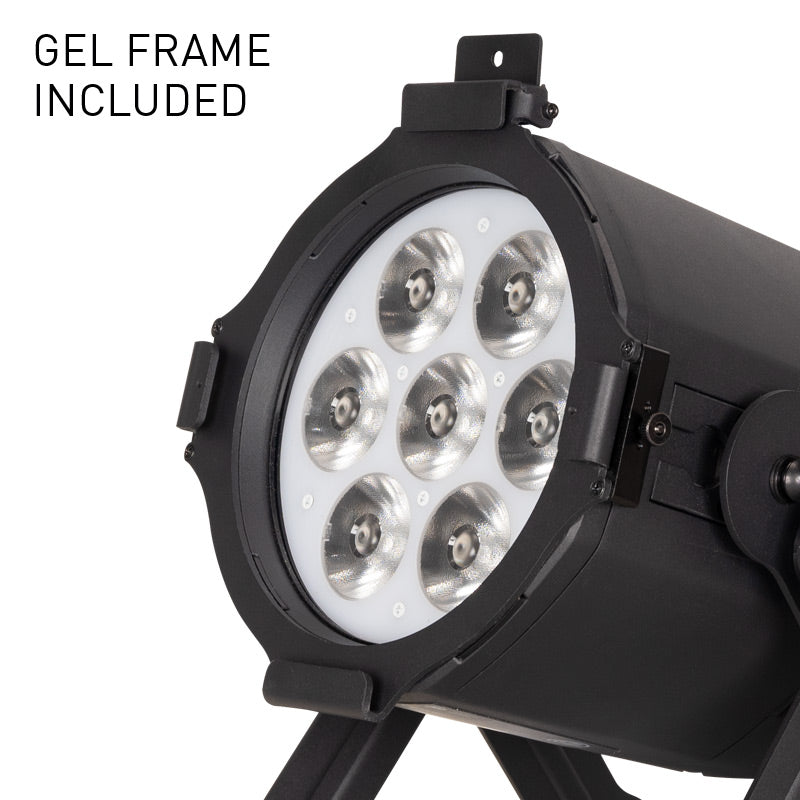

Gel Frame Holder

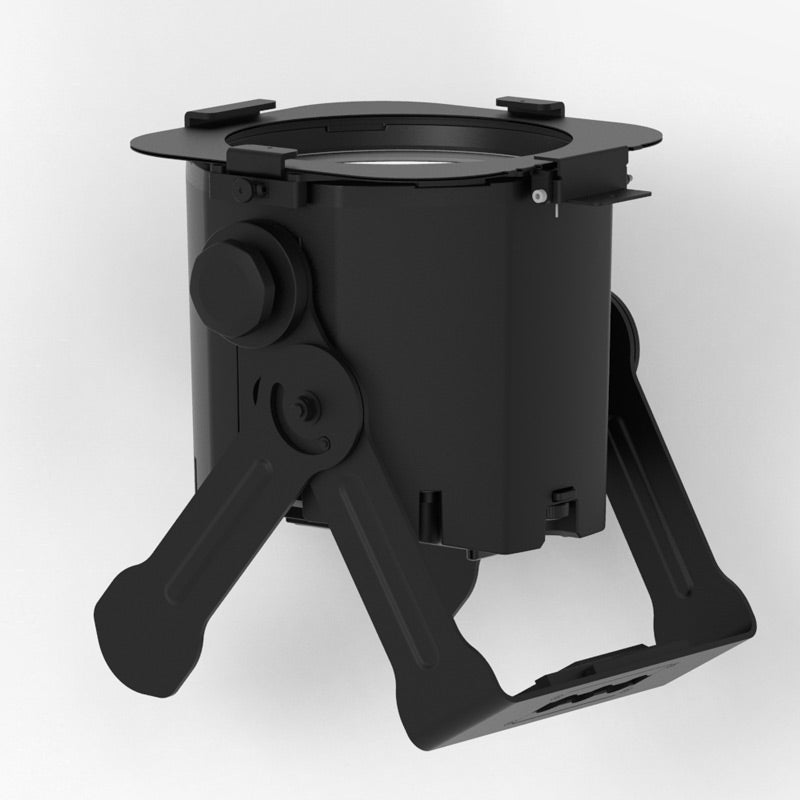

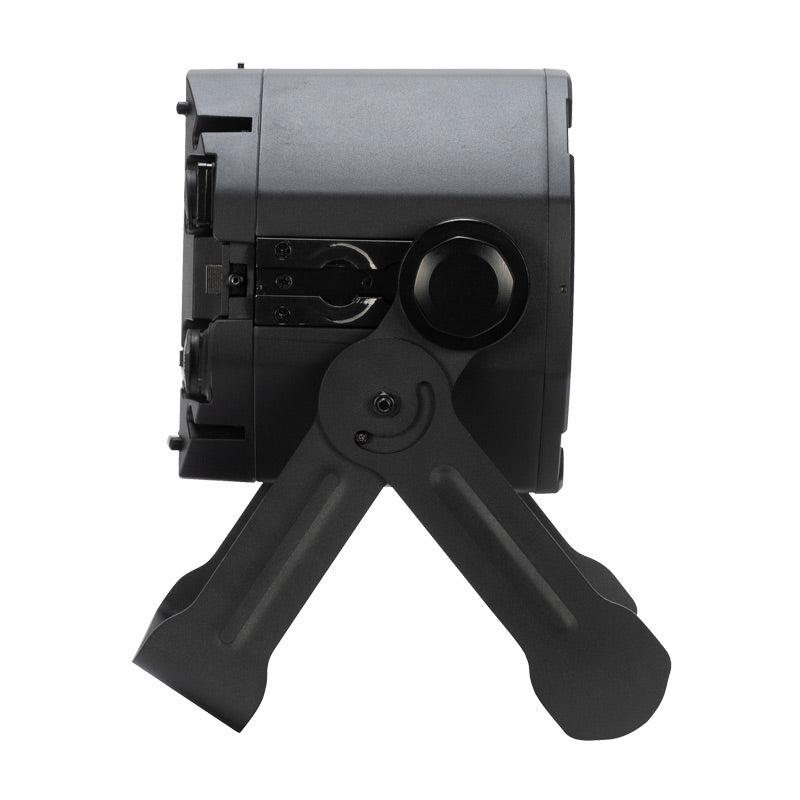

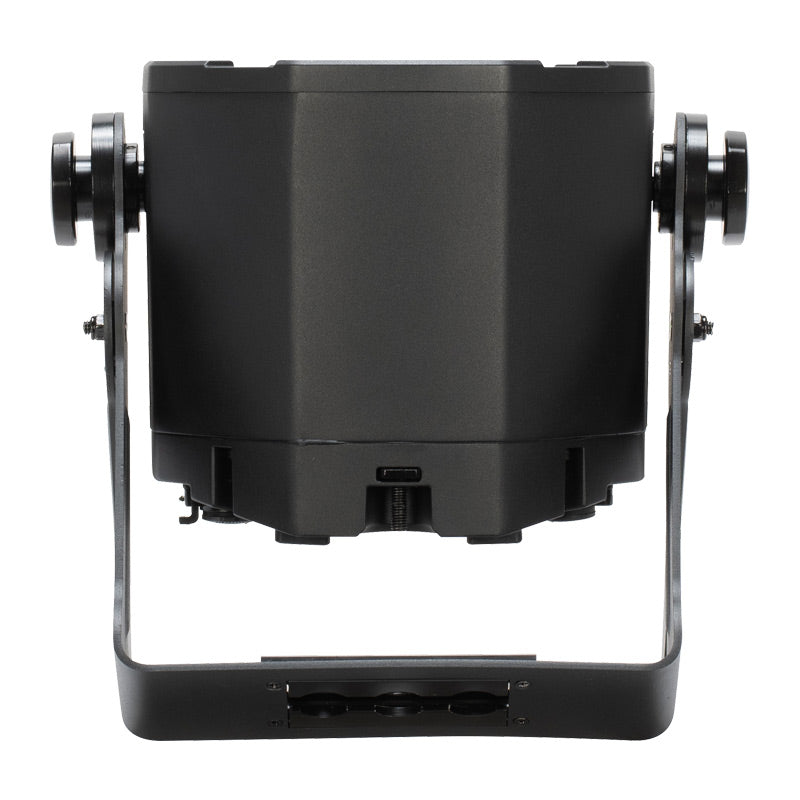

Adjustable, hanging / kick stand bracket

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

IR (Includes UCIR24 wireless remote)

(9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 54 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

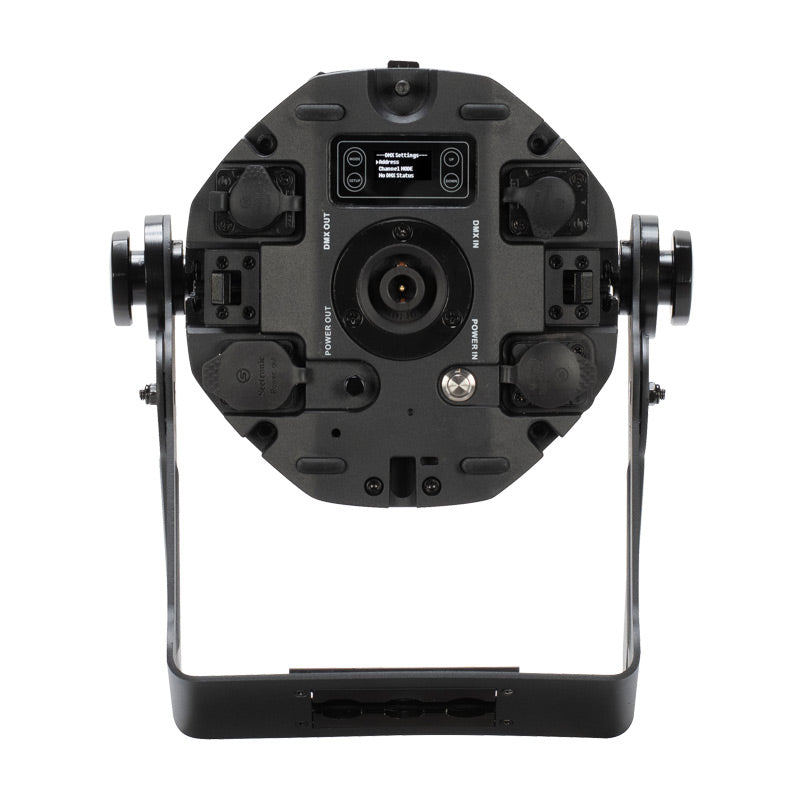

Connections:

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

Outdoor Locking Power Sockets

Battery Charging Socket

Dimensions Weight:

Length: 11.11” (282.1mm) Width: 9.77” (590.3mm) Height: 7.46” (189.5mm)

Weight: 15.4 lbs. (7 kg)

Power:

AC100-240V/50Hz-60Hz Input

60W Power Consumption

Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

Rechargeable Lithium-ion

Battery Capacity: 7,000mAh

Battery Voltage: 22.2V

Charge Time: 6 Hours (To Full)

Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged

Battery Cycles: 500

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications IP Rating:

CE

cETLus (Pending)

FCC

IP65

Included Accessories:

(1) Outdoor Locking Power Cable

(1) Floor / Mounting Bracket

(1) UCIR24 Remote

(1) Gel Frame

(1) 20° Diffusion Filter

Optional Accessories:

LTrack A2 (LTrack Adapter Only)

LTrack CA2 (LTrack Adapter with Narrow Clamp)

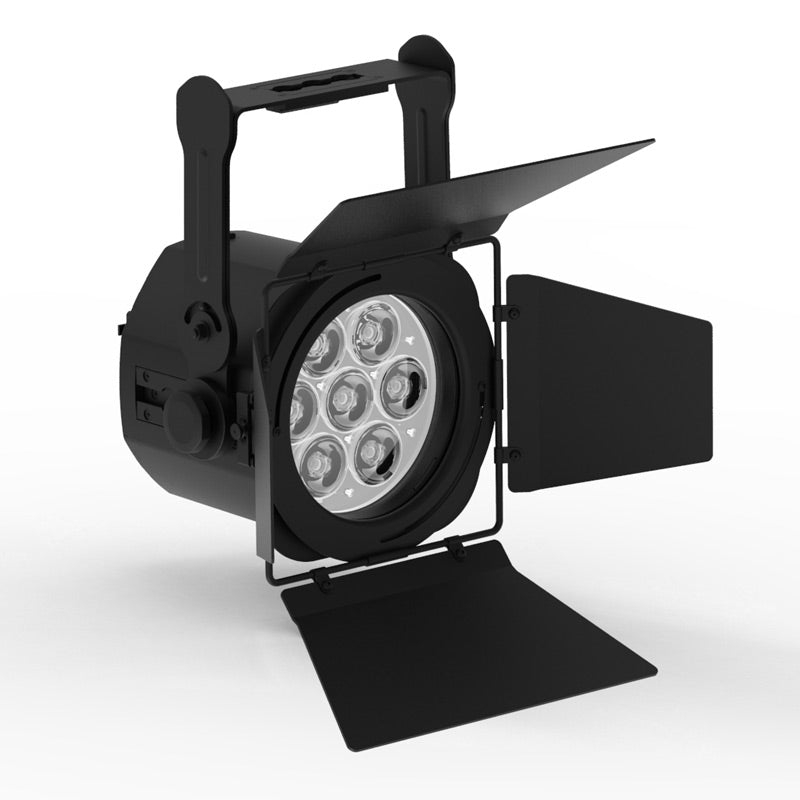

ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)

ELPIX7L55: 55° diffusion filter for the ElectraPix Par 7

ELPIX7L40: 40° diffusion filter for the ElectraPix Par 7

ELPIX7L30: 30° diffusion filter for the ElectraPix Par 7

ELPIX7L20: 20° diffusion filter for the ElectraPix Par 7

ELPIX7L30X60: 30x60° linear filter for the ElectraPix Par 7

ELPIX7L15X60: 15x60° linear filter for the ElectraPix Par 7

ELPIX7L10X60: 10x60° linear filter for the ElectraPix Par 7

ELPIX7L10X40: 10x40° linear filter for the ElectraPix Par 7

EPIX P7 IPCB: replacement charging base and power supply

Specifications and documentation subject to change without notice.
