UV LED BAR20 IR

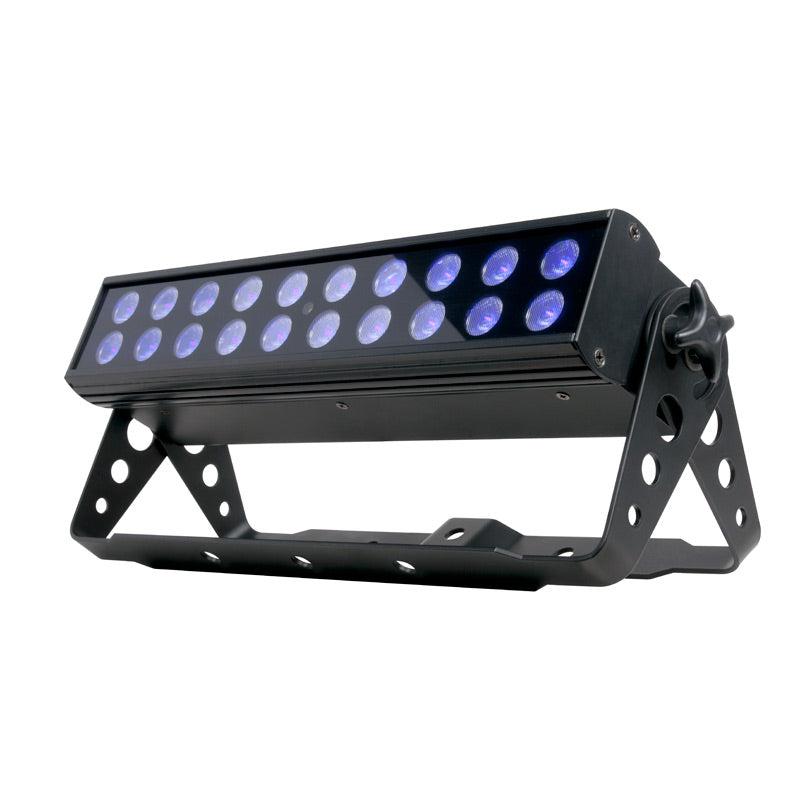

Available now from ADJ USA The UV LED BAR20 IR is a high output ultraviolet LED blacklight that comes with the UC IR wireless remote for easy control of On/Off and strobe speed. It’s powered by 20x 1-Watt UV LEDs with a maximum power draw of only 30W. The beam angle of 10-degrees x 40-degrees. With a LED life of approximately 50,000 hours, the UV LED 20 IR is a near maintenance free solution for washing stages, nightclubs, Bowling Centers, Roller Rinks and Fun Centers with ultraviolet light.
Users can control the fixture from the built-in 3-button LCD menu, DMX control, from the UC IR wireless remote or the Airstream IR APP.
Specifications
• Bright, high output Ultraviolet Bar with 20x 1-Watt UV LEDs

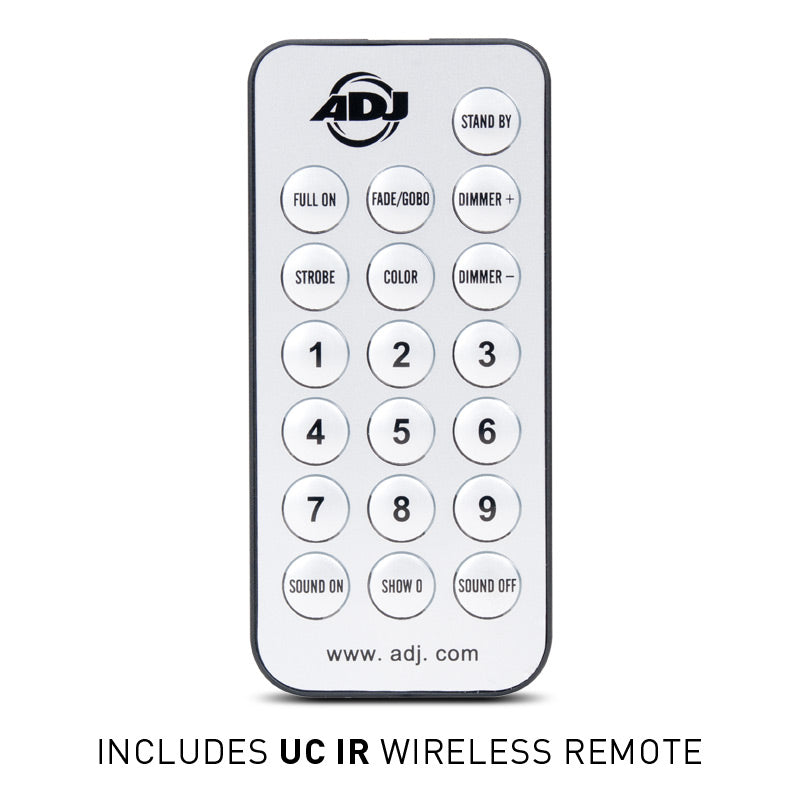

• Includes UC IR wireless remote control (control On/Off and strobe speed)
• Great for performance stages, theatrical productions and special effects installations - requires almost no maintenance - long life LED, low heat output, low power consumption no moving parts
• Long Life LEDs (50,000 hrs.)
• Low power consumption, low heat
• 4 Operational Modes: Sound Active, DMX-512, Primary/Secondary or Manual
• 3 DMX Channel Modes: 1/2/3
• UV strobe effect
• Electronic Dimming: 0 - 100%
• Flicker Free
• Refresh Rate: 1KHz
• Beam angle: 10 degrees vertical x 40 degrees horizontal linear beam angle - great for wall washing
• Linkable via 3-pin XLR cable

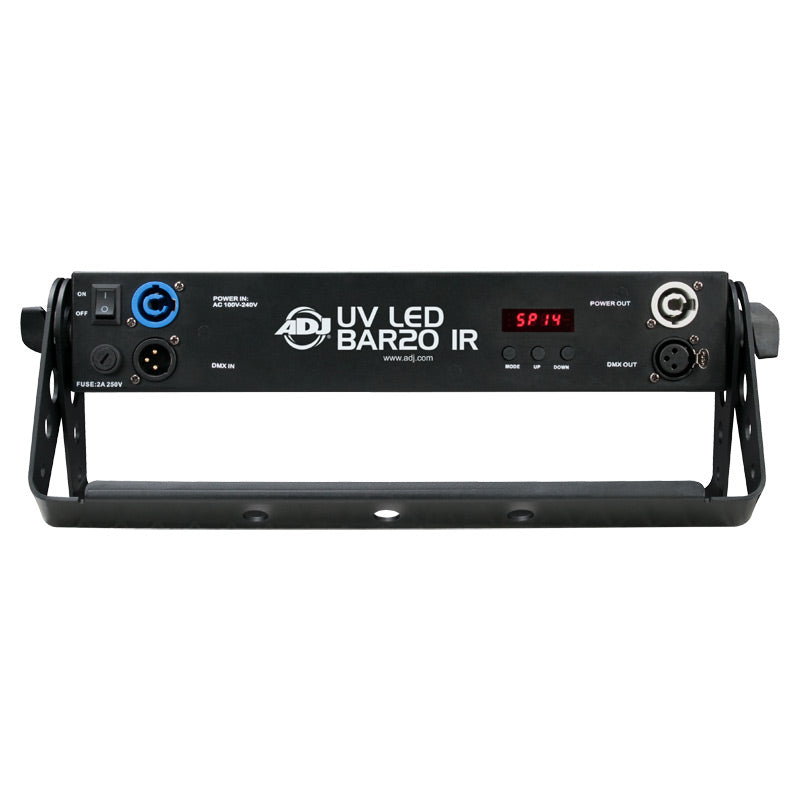

• 3-button LED DMX display on rear panel
• Locking power connections In/Out to daisy chain power (10 fixtures @ 120V; 20 fixtures at 230V)
• Scissor yoke allows fixture to be hung or set on the ground
• Airstream IR APP compatible with iOS device
• Power Draw: 30W
• On/Off switch on rear panel
• Wavelength: 390-410 nanometers
• Multi-voltage Operation: AC 100-240V, 47/63Hz
• Dimensions (LxWxH): 13.25” x 2.5” x 7”/ 334x61x175mm
• Weight: 5 lbs. /2.45 kgs.

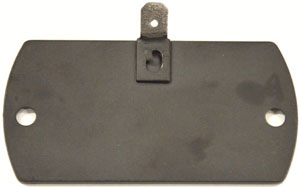

UV LED BAR20 IR Parts & Service
Our UV LED BAR20 IR Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your UV LED BAR20 IR. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
