AC3PDMX10
AC3PDMX10

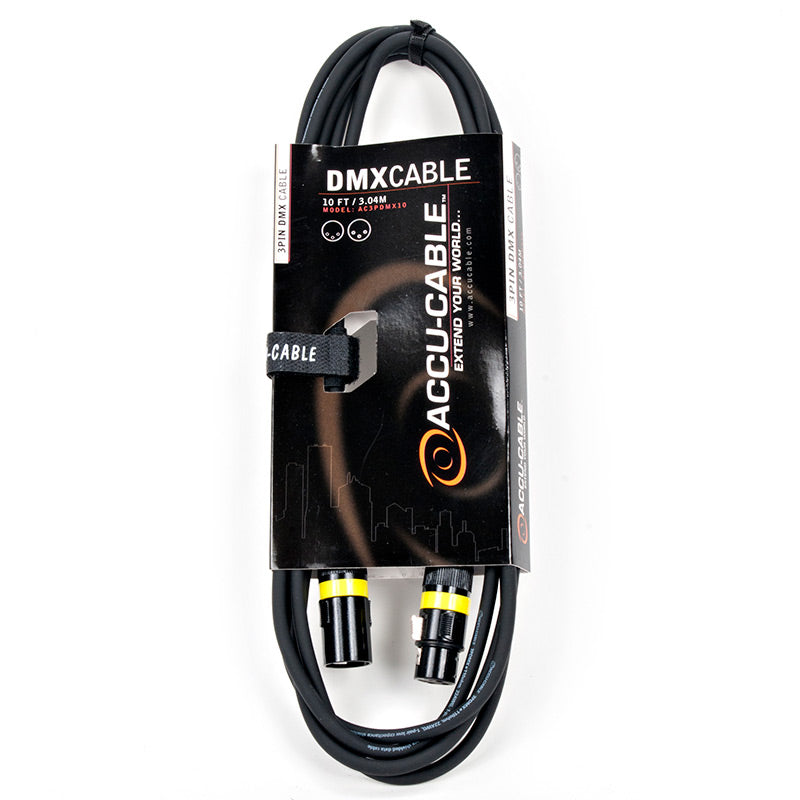

The Accu Cable AC3PDMX10 10-foot 3-pin DMX cable delivers dependable signal transmission for professional lighting applications. Ideal for linking lighting effects in DMX or Primary/Secondary operation modes, this cable is built to perform in demanding stage, event, and installation environments.
Constructed with 22 AWG stranded (0.15 x 19) tinned copper conductors and polyethylene insulation, the twisted pair design ensures stable, consistent data transfer. A polyethylene inner jacket, Duofoil shield with 100% coverage, cotton wrap, and an 85% coverage tinned copper braid shield provide superior protection against interference and signal loss.

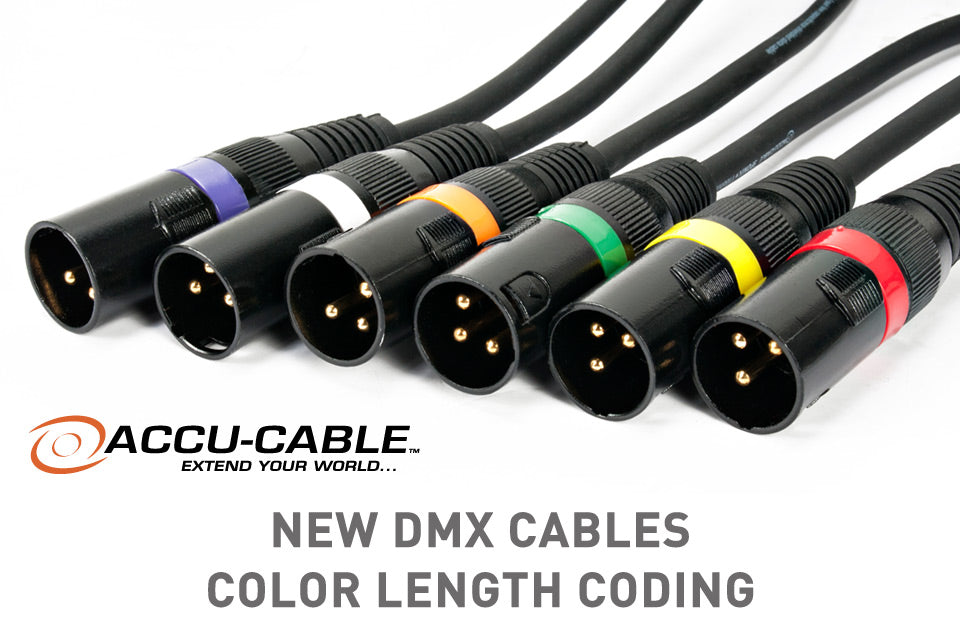

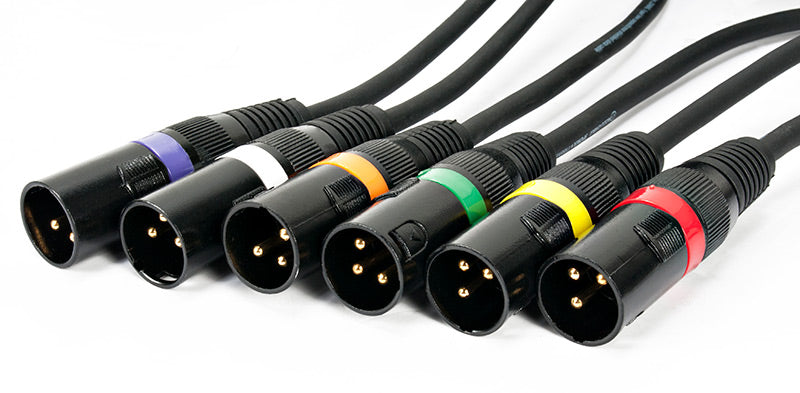

Engineered with rugged, no-memory construction, the AC3PDMX10 lays flat without retaining coil memory, making setup and teardown quick and efficient. The durable PVC outer jacket helps prevent kinking while maintaining flexibility. A color ring on each connector tip allows for easy length identification at a glance, improving cable management on any production.
Specifications
- Length: 10 feet (3M)

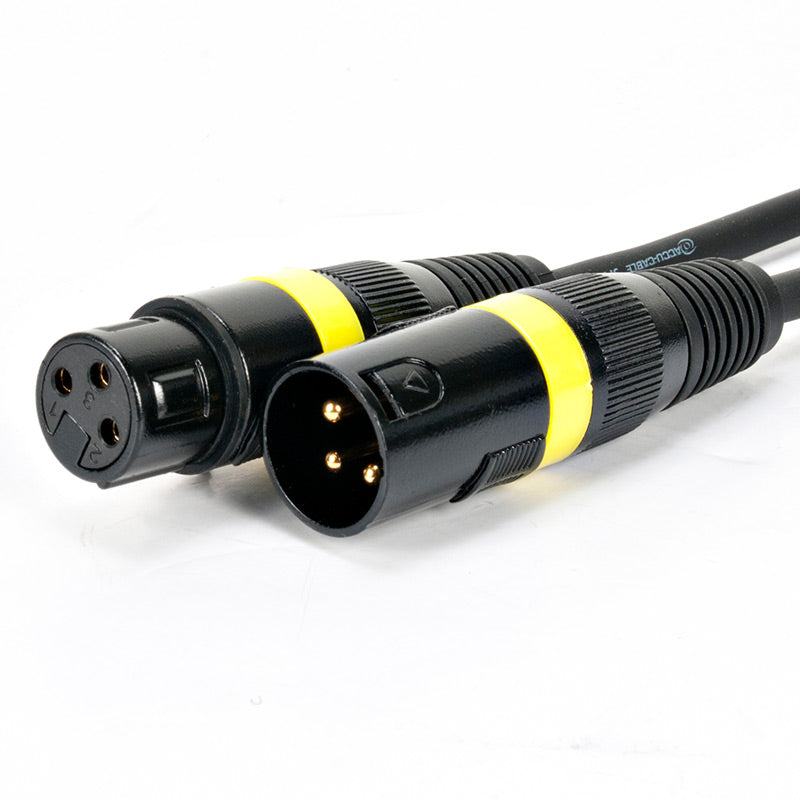

- Connector Type: 3-pin male to 3-pin female
- Application: DMX signal linking / Primary-Secondary lighting control
- Conductors: 22 AWG stranded (0.15 x 19) tinned copper
- Insulation: Polyethylene
- Pairing: Twisted pair construction
- Inner Jacket: Polyethylene
- Shielding: Duofoil (100% coverage) with cotton wrap
- Braid Shield: Tinned copper braid (85% coverage)
- Outer Jacket: PVC, kink-resistant
- Cable Type: Rugged, no-memory design

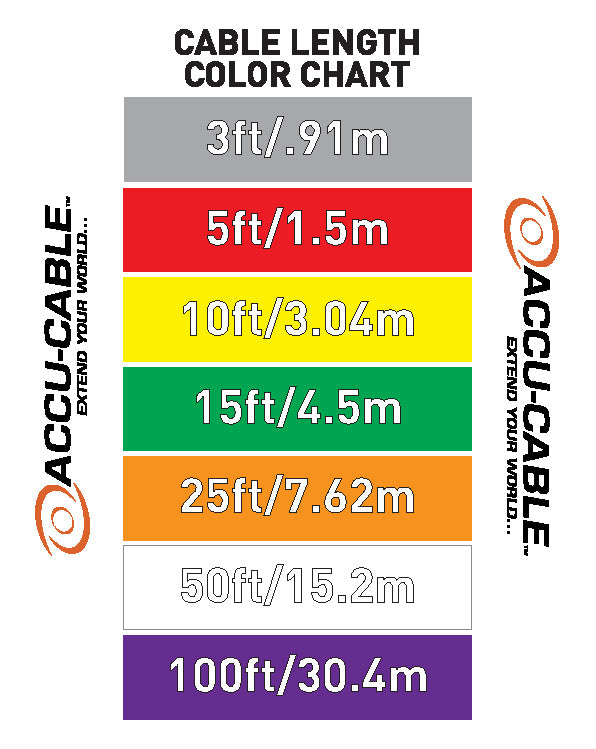

- Identification: Color ring on connector tips indicates length
