SENSE8
This item is discontinued

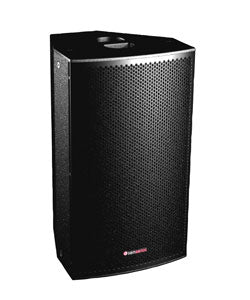

American Audio's Sense8 Speaker has a 8-inch woofer and a 50mm voice coil. It was designed with a multi-functional speaker in a compact and lightweight speaker system to handle the demand of even the most ambitious sound systems. It is ideal for mobile and installed applications.
SENSE8
Sale price$0.00
SENSE8
American Audio's Sense8 Speaker has a 8-inch woofer and a 50mm voice coil. It was designed with a multi-functional speaker in a compact and lightweight speaker system to handle the demand of even the most ambitious sound systems. It is ideal for mobile and installed applications.
Specifications

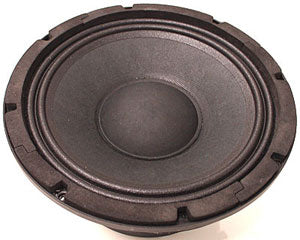

- Woofer: 8” AA PA850, Aluminium basket, 50mm voicecoil
- High Driver: 1” compression driver with 44mm voicecoil mounted on a 90°x60° CD horn
- Power Handling: 175W continuous, 350W program, 700W peak
- Recommended input power: 100-250W @ 8Ohm
- Sensitivity: 3dB SPL, 121dB Peak
- Freq. response: (-3dB) 88Hz - 20kHz
- Freq. range: (-10dB) 75 Hz - 21kHz
- Nom. dispersion h x v: (-6dB) 90°x60°
- Impedance: 8Ohm
- X-Over: 2800 Hz 12dB/18dB
- Finish: black structure paint
- Protective Grid: powder coated steel grill with acoustic foam
- Connector: 2x locking power connectors
- Handle: 1 handle on the top
- Monitor angle: 45°
- Pole mount: integrated M8 Screws for rigging eyes in all corners
- Cabinet: plywood
- Dimensions (LxWxH): 250x436x230mm
- Weight: 10kg
- Perfect matched components and case details
- Passive full range system for medium size applications
- Multifunctional case design
- Quadratic horn (rotatable)
- 90° x 60° dispersion
- First class mechanical manufacture for day-to-day operations
- Equipped with optimized 8” MF/LF driver
- Large optional accessory range
- Ideal for mobile and install applications
SENSE8 Parts & Service
Our SENSE8 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your SENSE8. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
SENSE8 Parts & Service
