SENSE12
This item is discontinued

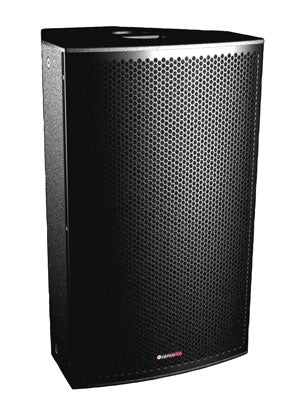

The American Audio Sense 12 Speaker has a 12 inch woofer and a 75mm voicecoil. It was designed with a multi-functional speaker in a compact and lightweight speaker system to handle the demand of even the most ambitious sound systems. It is ideal for mobile and installed applications.
SENSE12
Sale price$0.00
SENSE12
The American Audio Sense 12 Speaker has a 12 inch woofer and a 75mm voicecoil. It was designed with a multi-functional speaker in a compact and lightweight speaker system to handle the demand of even the most ambitious sound systems. It is ideal for mobile and installed applications.
Specifications
- Woofer: 12” AA PA1575, aluminium basket, 75mm voicecoil
- High Driver: 1” compression driver with 44mm (1.75”) voicecoil mounted on a 75°x50° CD Horn
- Power Handling: 350W continuous, 700W program, 1400W peak
- Recommended input power: 250-500W @ 8Ohm
- Sensitivity: 98dB SPLmax., 128dB Peak
- Freq. response (-3dB): 59Hz - 20kHz
- Freq. range(-10dB): 51 Hz - 21kHz
- Nom. dispersion h x v (-6dB): 75°x50°
- Impedance: 8Ohm
- X-Over: 1800 Hz 12dB/18dB
- Finish: black structure paint
- Protective Grid: powder coated steel grill with acoustic foam
- Connector: 2x locking power connectors
- Handle: 1 handle on the top
- Monitor angle: 45°
- Pole mount: integrated
- M10 Screws for rigging eyes in all corners
- Cabinet: plywood
- Dimensions (LxWxH): 360x640x325mm
- Weight: 18kg
- Perfect matched components and case details
- Passive full range system for medium size applications
- Multifunctional case design
- Rotatable horn
- 75° x 50° dispersion
- First class mechanical manufacture for day-to-day operations
- Equipped with optimized 12” MF/LF driver
- Large optional accessory range
- Ideal for mobile and installed applications
