Saber Spot RGBW
This product has been discontinued. Click here to see the current model: https://www.adj.com/saber-spot-rgbl

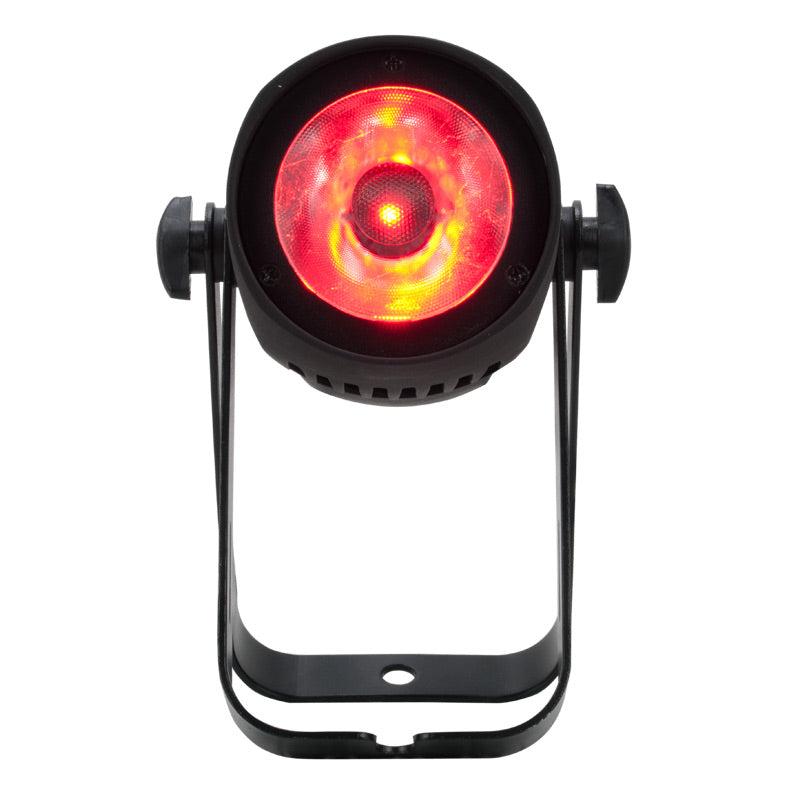

The Saber Spot RGBW is a compact Pinspot with smooth RGBW color mixing from one 15W 4-in-1 Quad LED, and features DMX-512, flicker-free operation, 64 built-in color macros, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle.

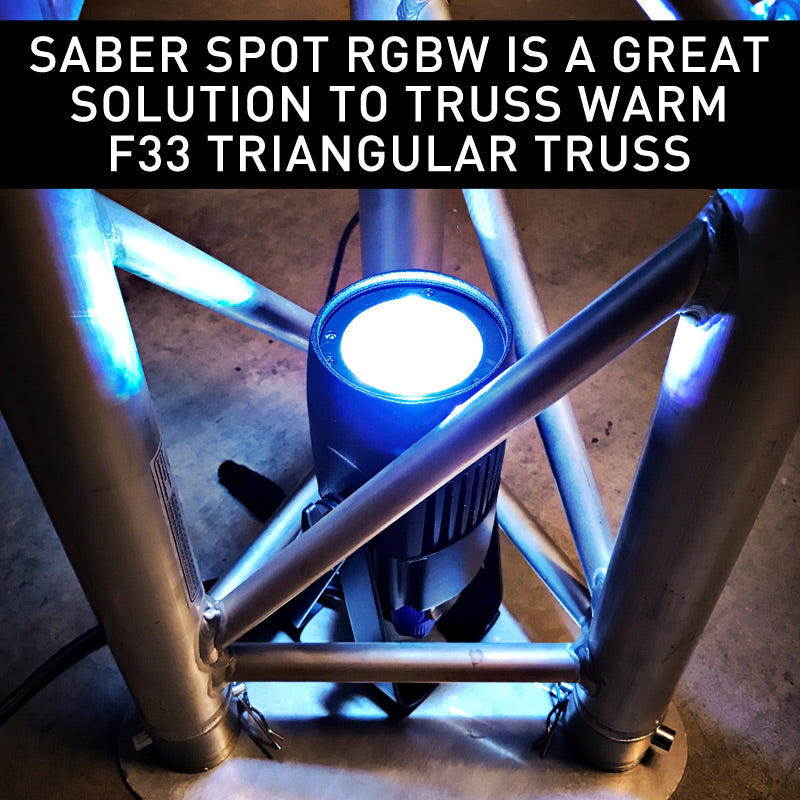

The Saber Spot RGBW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.Learn more about the Saber Spot Series in this product spotlight blog: http://tinyurl.com/jphslm3
Specifications
Optical
• Light Source: 15-Watt Quad (RGBW) LED
• LED Life Expectancy: 10,000 Hrs
• Beam Angle: 4-degrees
• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
• Refresh Rate: 3.6KHz
Technical Features
• 9 Built-in Color Macros
• 6 Operational Modes: Static Color mode; Color Change Mode
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Flicker Free
• Includes a scissor yoke to be hung, or set on the ground

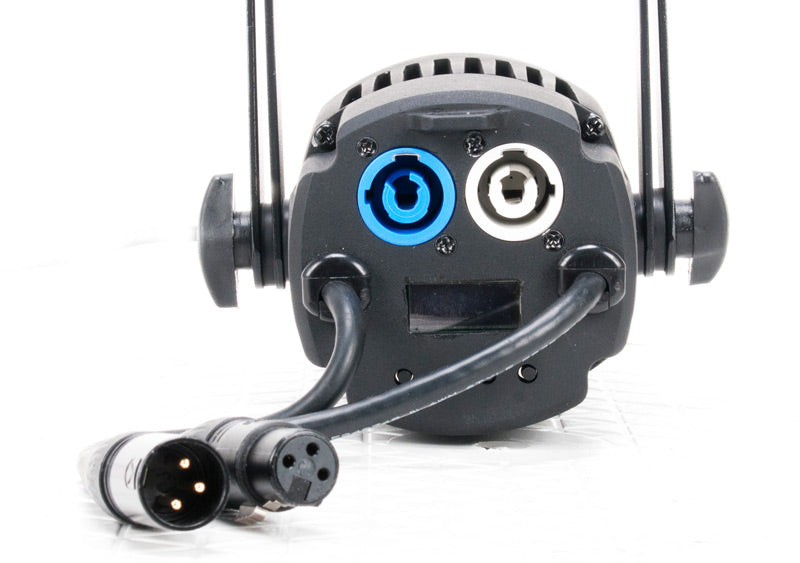

Connections
• Power Input: Power locking
• Power Pass through: Power locking
• Control: 3-pin DMX In/Out pigtails
• With Wired Digital Communication Network
Control
• 11 DMX Channel Modes: 3/4/4/5/6/6/7/8/8/9/11/12
• RDM (Remote Device Management)
Electrical
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 14W, 0.12 Amps
• Power draw 220V 50Hz: 14W, 0.06 Amps
Physical
• Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm
• Weight: 2.6 lbs / 1.2 kg.
• Black Housing
Certifications
• ETL Approved, UL, CE
• IP 20: Dry area, No liquids

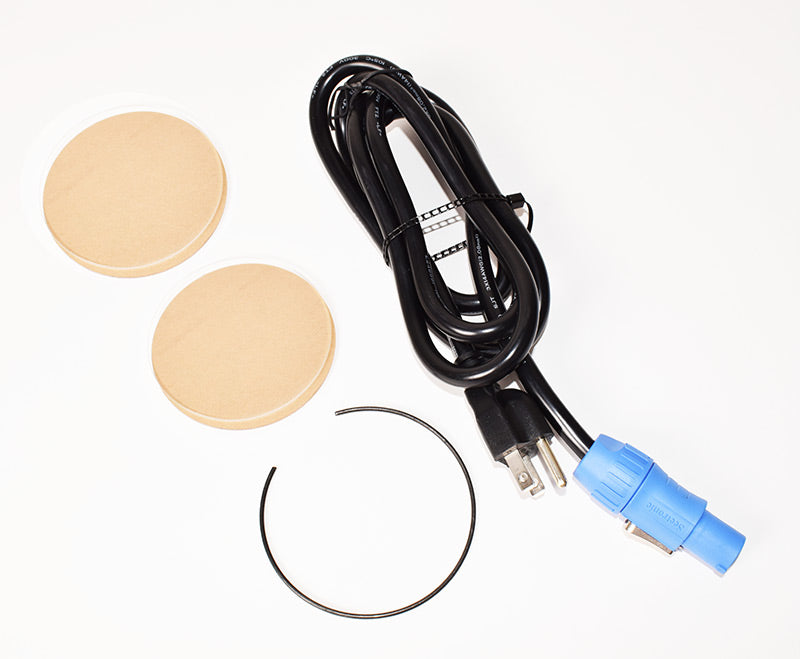

What’s Included
• Manual
• Power locking power cord

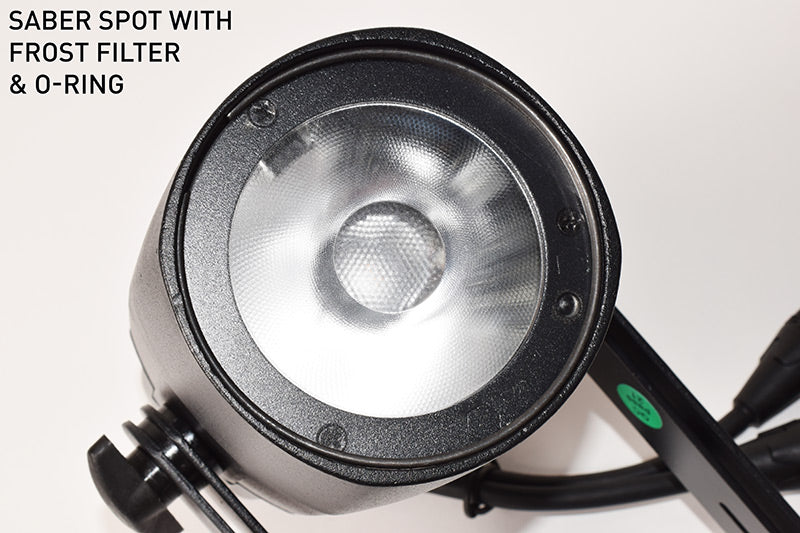

•2 frost filter lens (10-degree & 45-degree)
• O-ring for frost filter lens
Optional Accessories
• PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)
• UC IR (IR Remote Controller)
Specifications are subject to change without notice.
