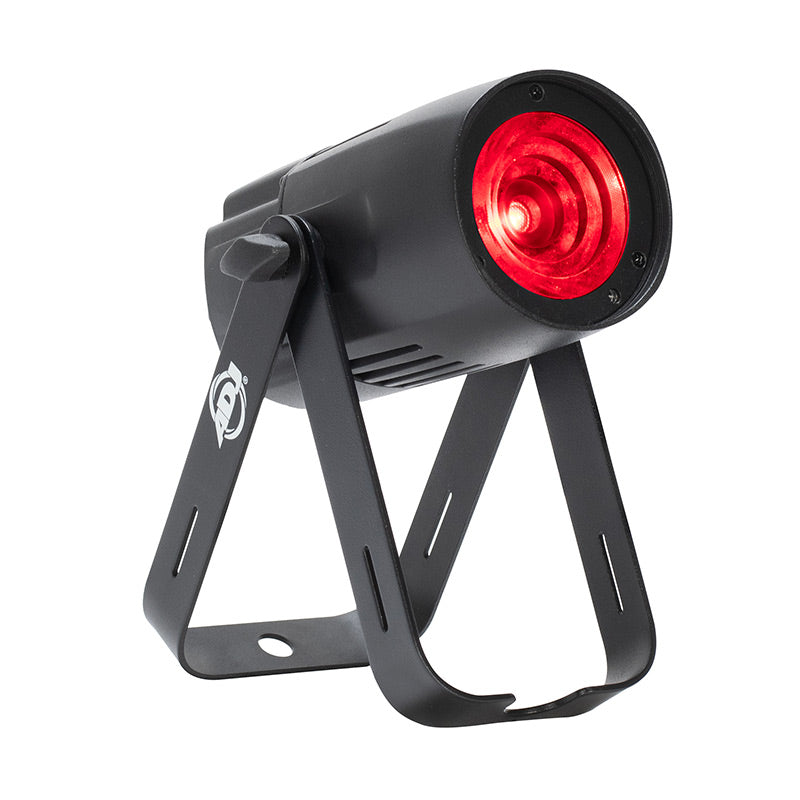

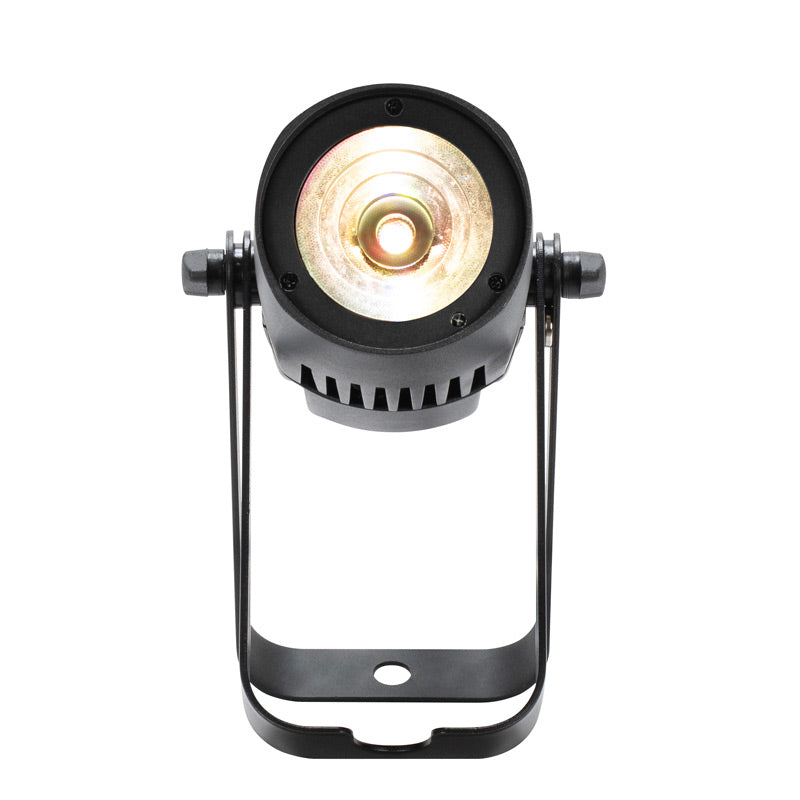

Saber Spot RGBL
UPC#: 810087372828
Advantage Points: 180
Redemption Points: 3600
SKU
SAB673

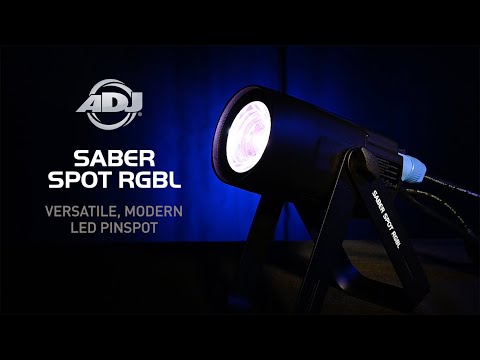

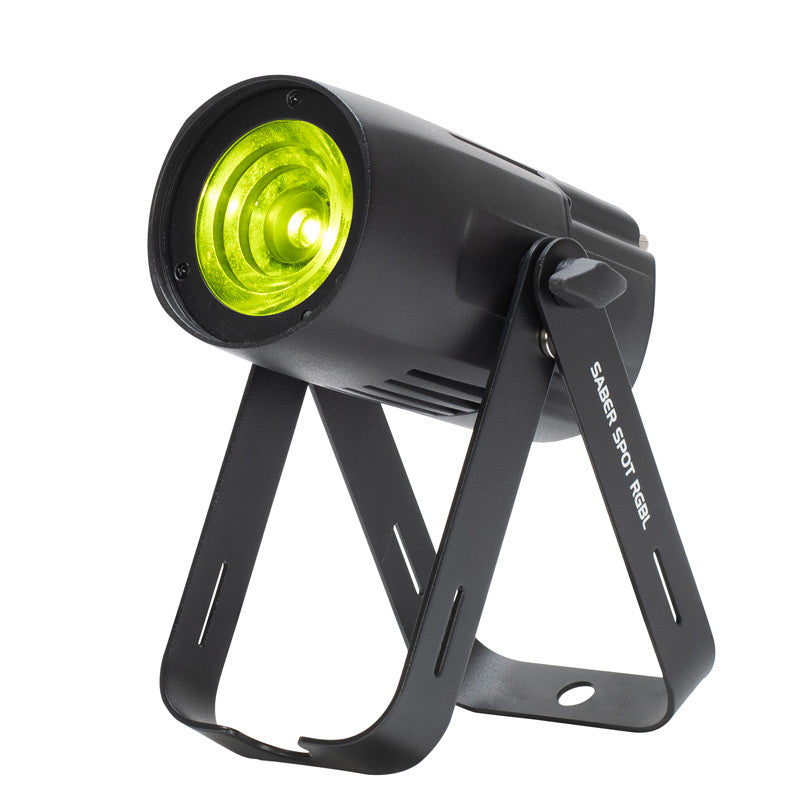

The ADJ Saber Spot RGBL is ADJ Lighting next generation LED pinspot with a 20-Watt RGBL LED source, ACL lens for a tight 5.7-degree beam, is DMX and RDM complaint and features bullt-in color macros, color changing programs and has white color temperature presets ranging from 2000K to 9900K.
Optical:
• Light Source: 20 Watt, RGBL LED
• LED Life Expectancy: 30,000 Hrs
• Beam Angle: 5.7°
• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
• LED Refresh Rate: 3.6KHz
Technical Features:
• DMX and RDM Compliant
• Color Temperature Presets
• 63 Built-in Color Macros
• 13 Built-in Color Changing Programs
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%

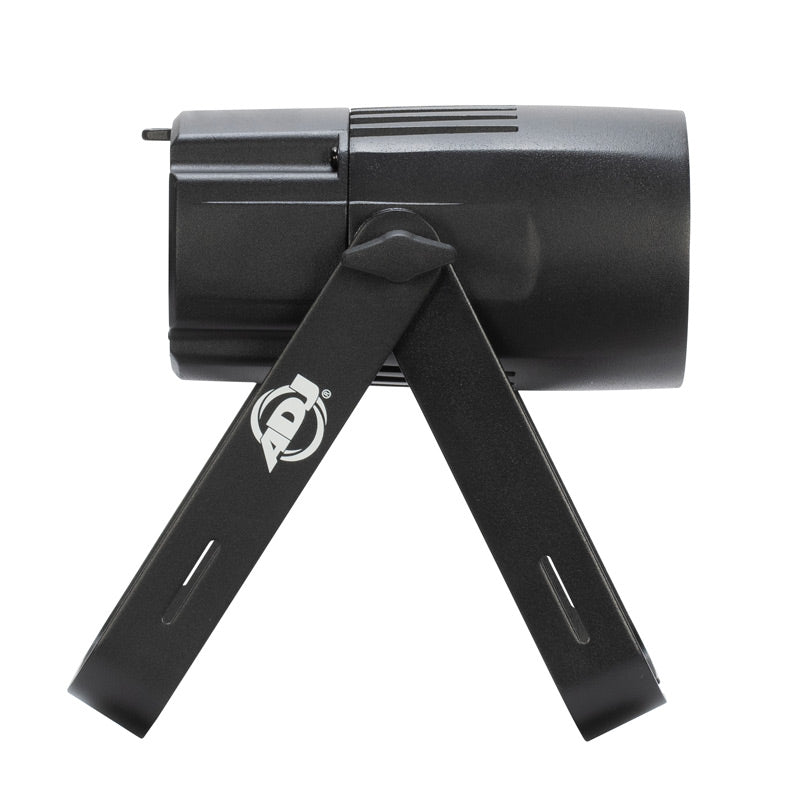

• Includes a scissor yoke to be hung, or set on the ground
Connections:
• Power Input: Indoor power locking
• Power Pass through: Indoor power locking

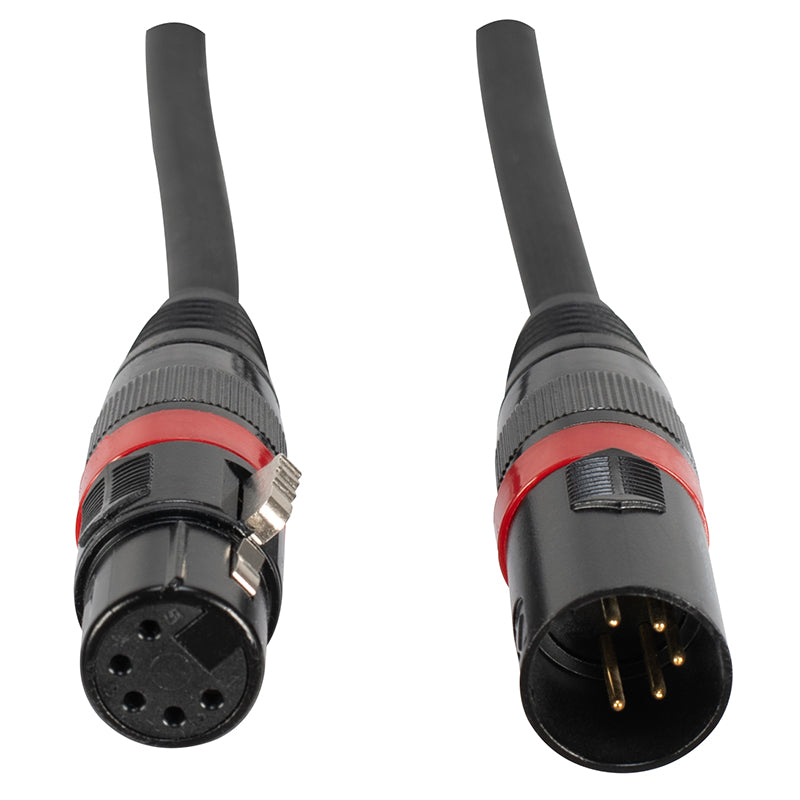

• Control: 5-pin DMX In/Out pigtails
• With Wired Digital Communication Network
Control:
• 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
• RDM Compliant
Electrical:
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 16.7W, 0.243 Amps
• Power draw 230V 50Hz: 16.7W, 0.147 Amps
• Power Output Current: 1.2A (14W)
• Power Linking: 57pcs @120V, 95pcs @230V
Physical:
• Dimensions (LxWxH): 6.69” x 5.31” x 8.46" (170 x 135 x 215mm)
• Weight: 3.2 lbs / 1.45 kg.
• Black Housing
Certifications & Ratings:
• CE
• ETL (Pending)
• IP20

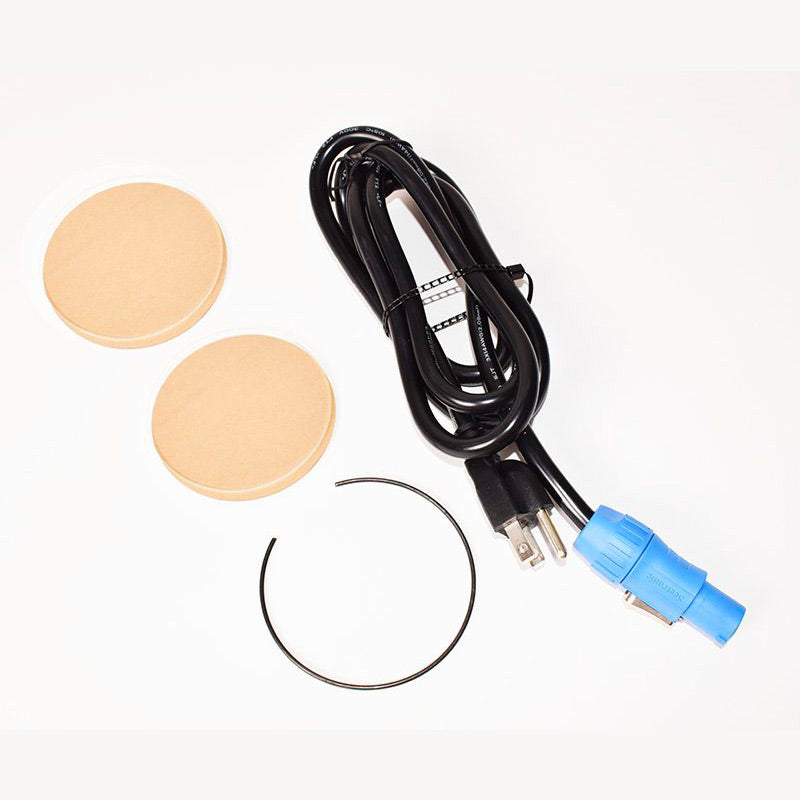

What’s Included:
• 1.83m Indoor locking power cord
• 2 frost filter lens (10-degree & 45-degree)
• Metal clip ring for frost filter lens
Optional Accessories:
• PLC 3, PLC 6, PLC 10 (Indoor locking power link cables)
Specifications are subject to change without notice.
Videos
There are currently no videos available for this product.
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| Saber Spot RGBL - Cut Sheet | Saber Spot RGBL - Cut Sheet | Download |
| Saber Spot RGBL - DMX Traits | DMX Traits | Download |
| Saber Spot RGBL - User Manual | User Manual | Download |
Arriving April 2024 at ADJ USA
This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has white color temperature presets ranging from 2000K to 9900K.
A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

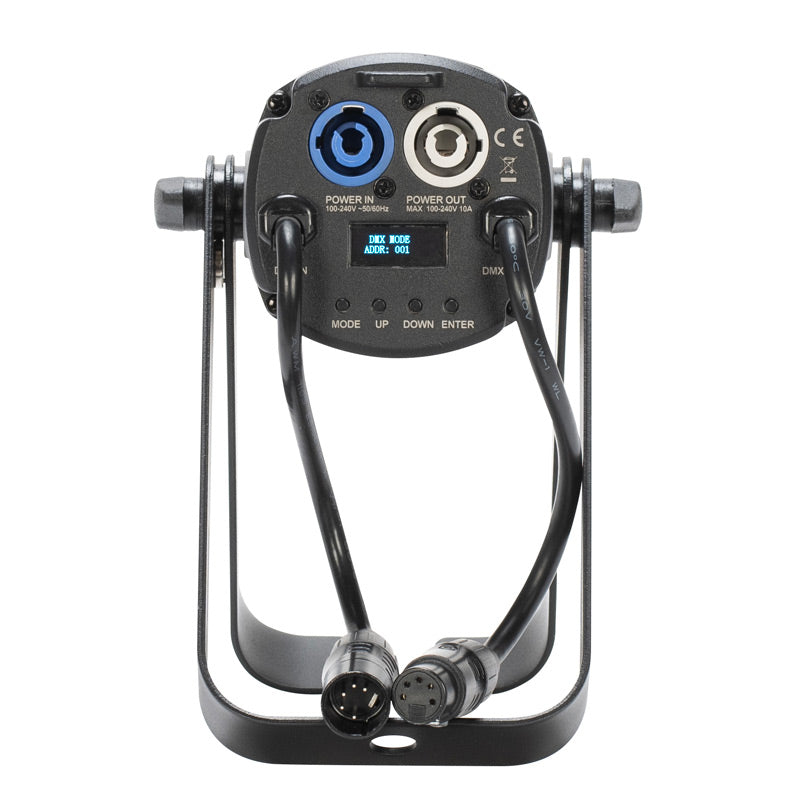

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.
