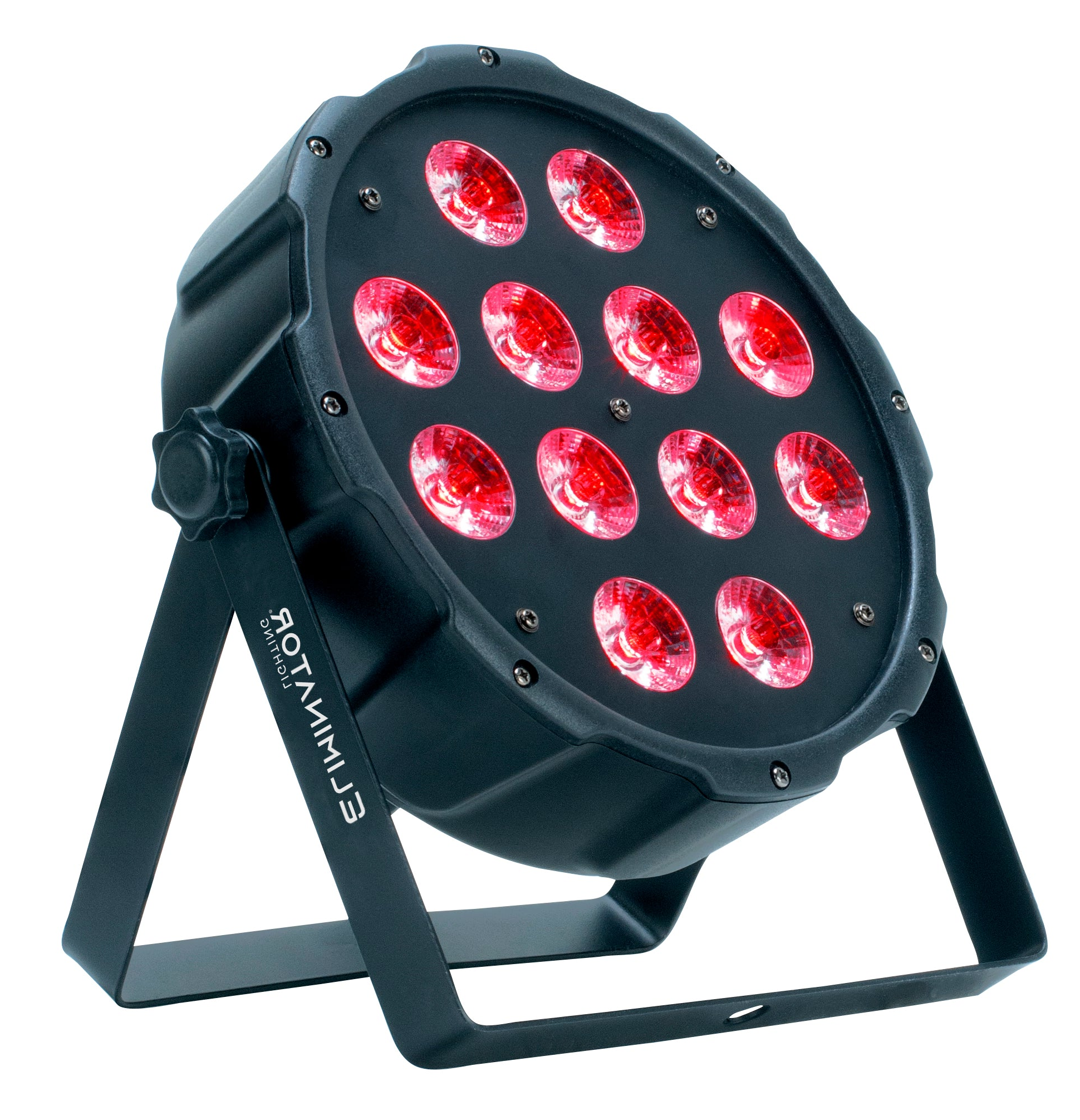

LP 12 HEX
Lightweight LED Par powered by twelve 5W HEX (6-IN-1) LED's. 25-degree beam angle. Includes scissor yoke. Designed for portable use or permanent installation.
LP 12 HEX

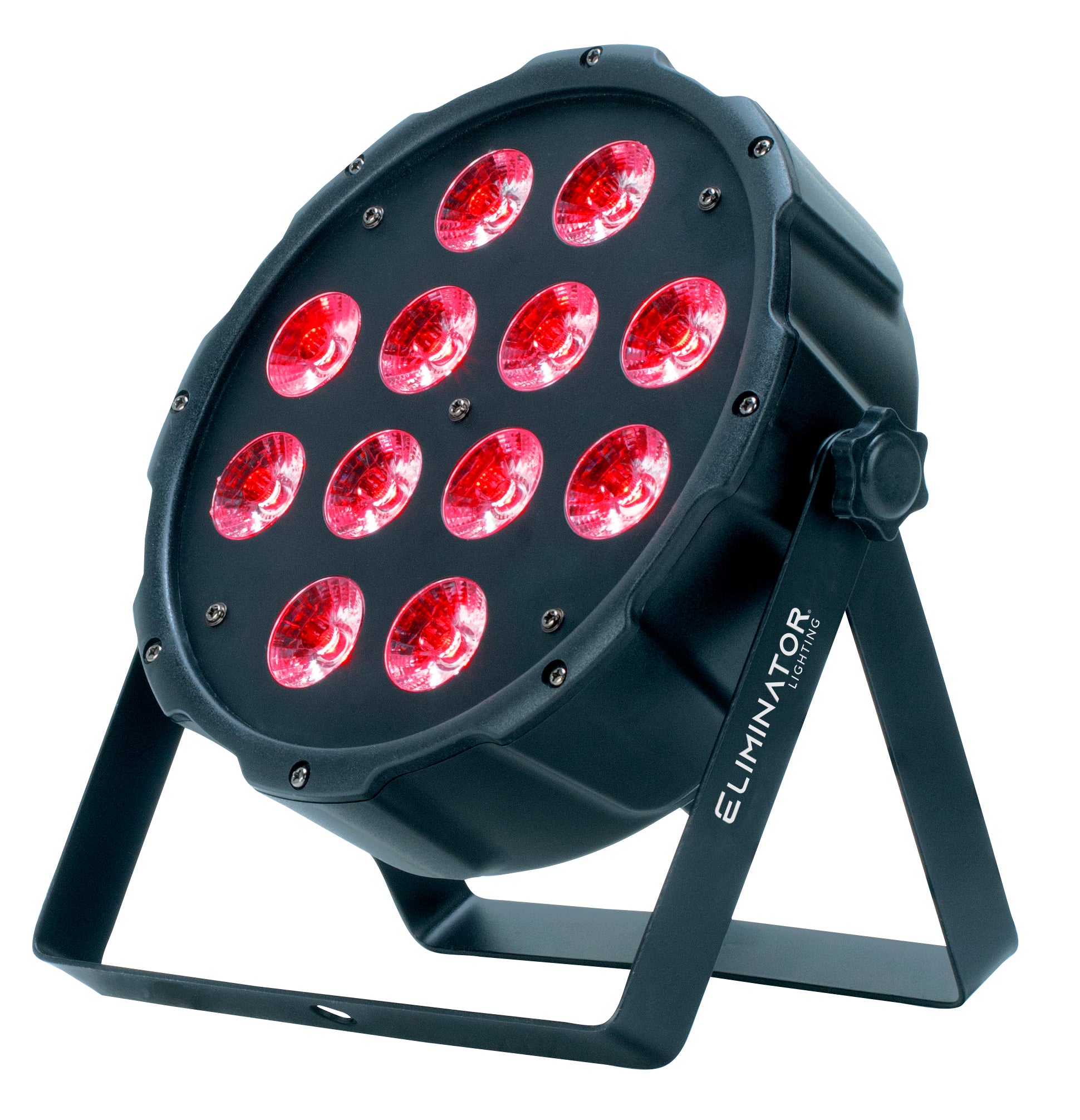

The LP 12 HEX is part of the LP “Lightweight Par” Series from Eliminator Lighting. Its powered by twelve 5-watt HEX (RGBWA+UV) LED's with a 25-degree beam angle. It is made from durable plastic with a metal scissor yoke. The LP 12 HEX is designed for permanent of portable use. It’s great for installation in small stages, lounges, bars and fun centers, or one-off use for events, mobile DJs, and its small enough to fit inside square truss for a ‘truss warming’ effect.

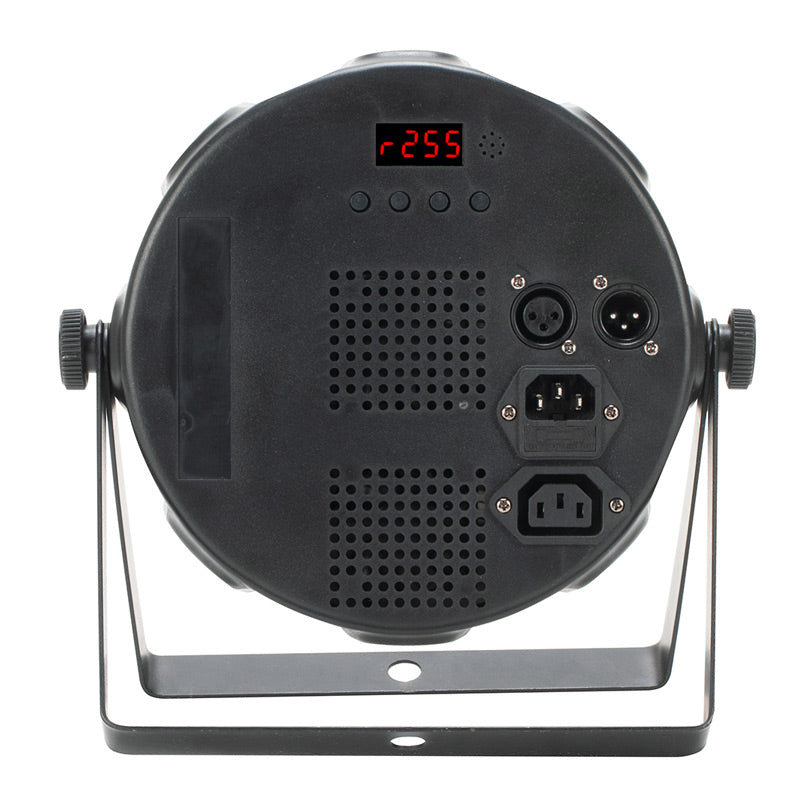

The LP 12 HEX may be used in sound active mode or connected with DMX cables to use the built-in programs and link-able features. It has 3-pin DMX in/out, as well as, IEC in/out connections to daisy chain the power from one fixture to another. There is also a 4-button function menu with and LED display to help navigate though the different features.
Specifications

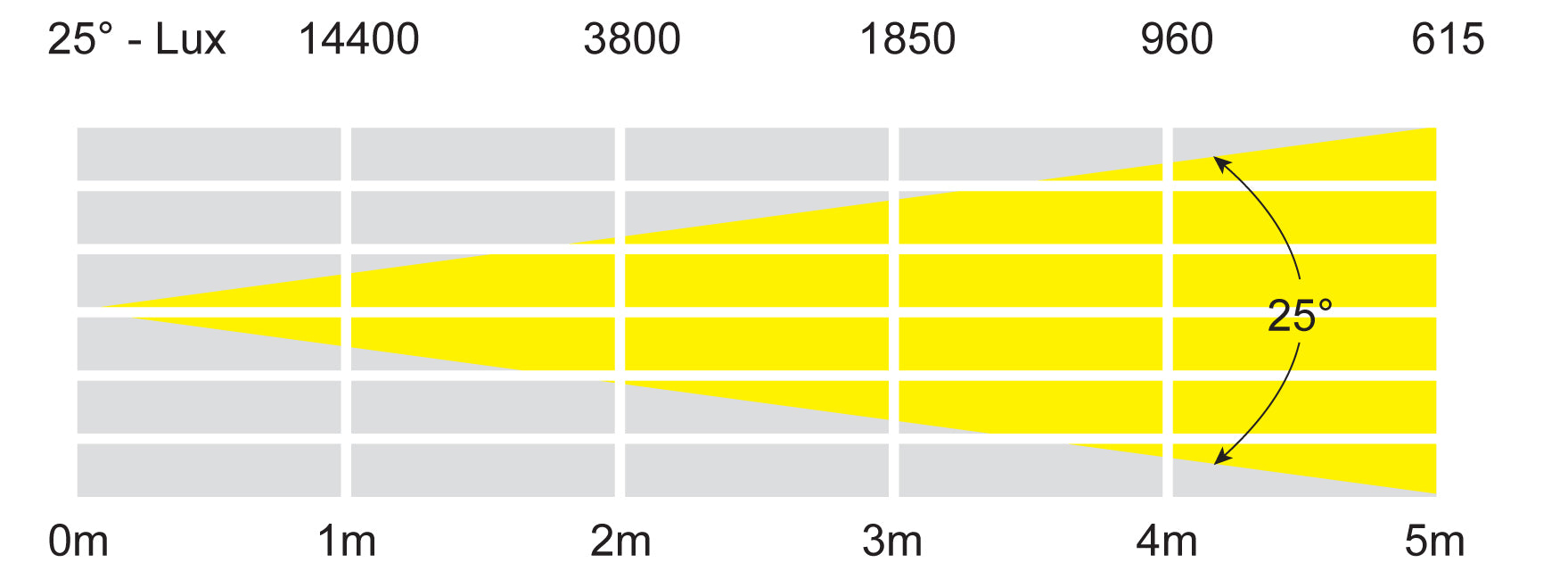

• Beam angle: 25-degrees
• Ultra violet wavelength: 395-400nm
• DMX channel Modes: 6, 8 & 10
• Auto, sound active and Primary/Secondary modes
• 0-100% dimming and variable strobe
• 4 push button menu with LED display
• Scissor yoke included
• 3-pin DMX In/Out
• IEC In/Out connections to daisy chain power up to 8 units @ 120V
• Power consumption: 54W max
• Multi-voltage power: 100~240V, 50/60Hz
• Fuse: F2A 250V
• Dimensions (LxWxH): 10"x10"x4.25" / 250 x 250 x 105mm
• Weight: 3 lbs. / 1.2kg
Specifications are subject to change without notice.
Downloads
Cut sheet
Ies files
Photometrics
- Full On No UV - Blue (463nm)
- White - 7342K CRI 77
- CRI - 8844K CRI 91.7
- Red - 623nm
- Blue - 458nm
- Green - 528nm
- Amber - 592nm
- Full On - Blue (464nm) 49.2W
- UV - 417nm
- LP 12 Hex - Photometric Test Report
User manual

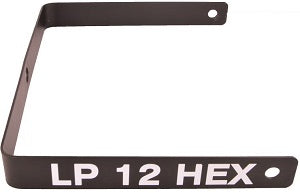

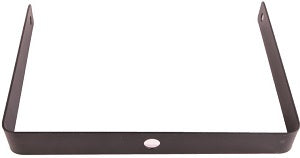

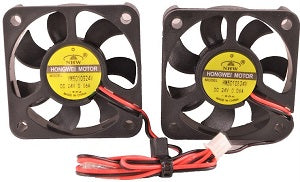

LP 12 HEX Parts & Service
Our LP 12 HEX Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your LP 12 HEX. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
