Focus Wash 400
This product is CE certified.
This product is ETL certified.
This product is FCC certified.

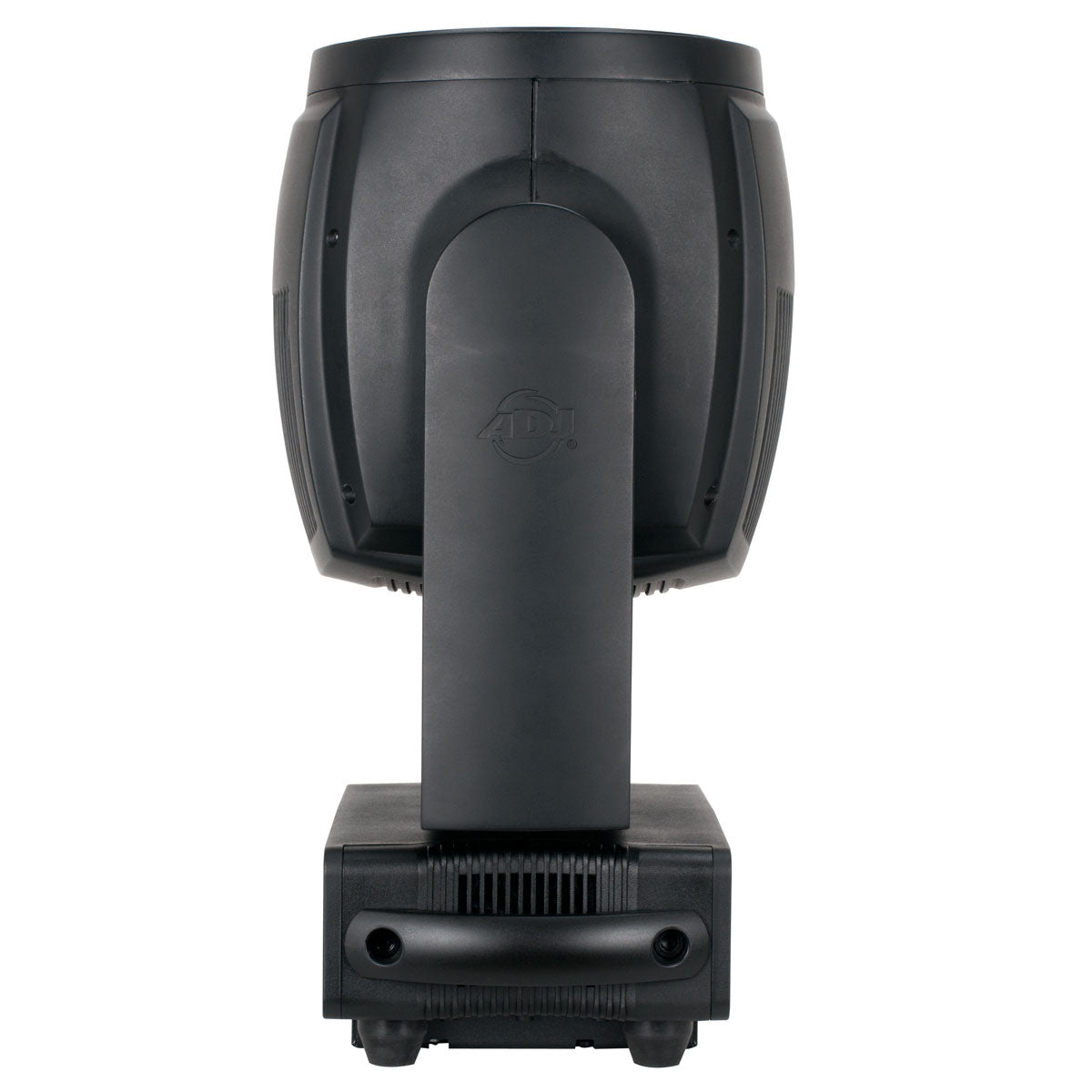

The FOCUS WASH 400 is a 400W, RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED moving head wash with a 10 to 41 degree motorized zoom, with flicker free operation for TV and film, linear white color temperature control from 2700K - 6500K, and virtual CMY color mixing.
Focus Wash 400
Sale price$0.00
Key features
| Feature | Value |
|---|---|
| Color Temperature | 2700K ~ 10,000K |
| Feature | Quiet Fan Mode |
| LED Source | 400W RGBAC+L LED |
| Motorized Zoom | 9° ~ 42° |
| Color | Virtual CMY Color Mixing |
Video
Focus Wash 400
AVAILABLE NOW FROM ADJ USA

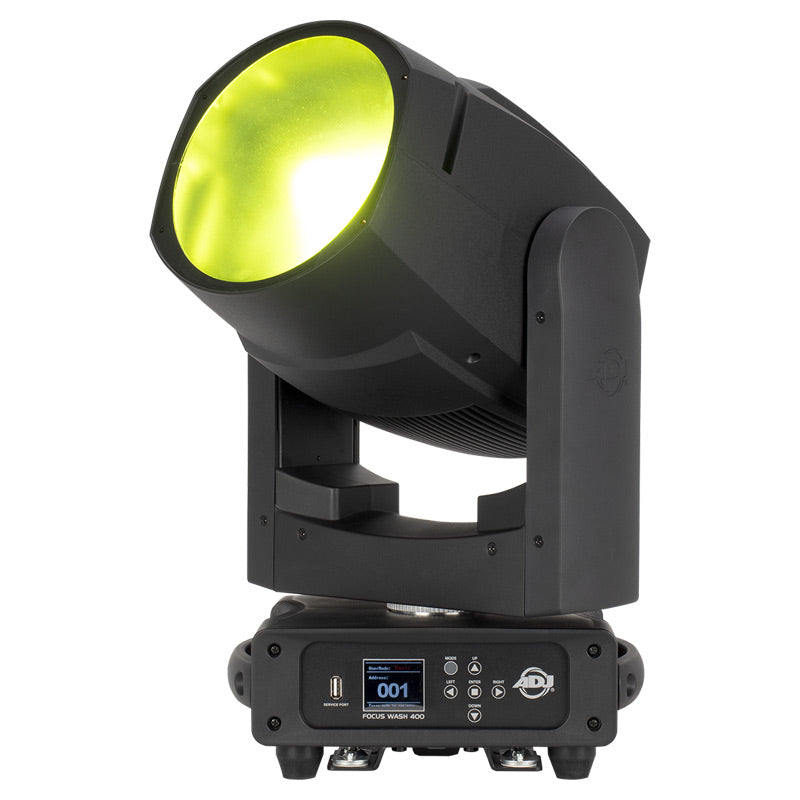

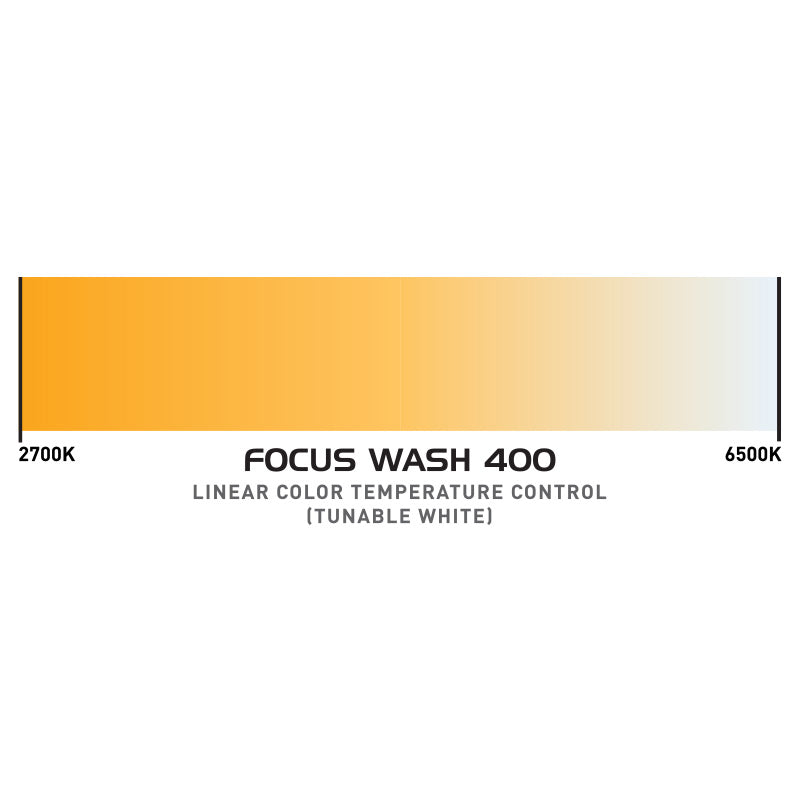

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBALC Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 10 to 41 degree motorized zoom produces an even field light output.Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 6500K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.
The FOCUS WASH 400’s unique color engine produces a high CRI of 90+ for bright whites and a CRI R9 of 88 to help make red tones more vibrant. The fixture also includes, 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.
The fixture comes standard with locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.
Specifications
SOURCE:
• 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)
• 50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
• 7139 Total Stable Lumen Output (Full ON, Zoomed Out to Full)
• 11072 LUX, 1029 FC @ 9.8’ (3m) (Zoomed In / Full ON)
• 1858 LUX, 173 FC @ 9.8’ (3m) (Zoom Out / Full ON)
• Beam Angle: 9.1° to 42.9°
• Max Field Angle: 54.5°
• Color Temperature: Tunable, 2400K to 8500K
CRI: 95.2
COLOR:

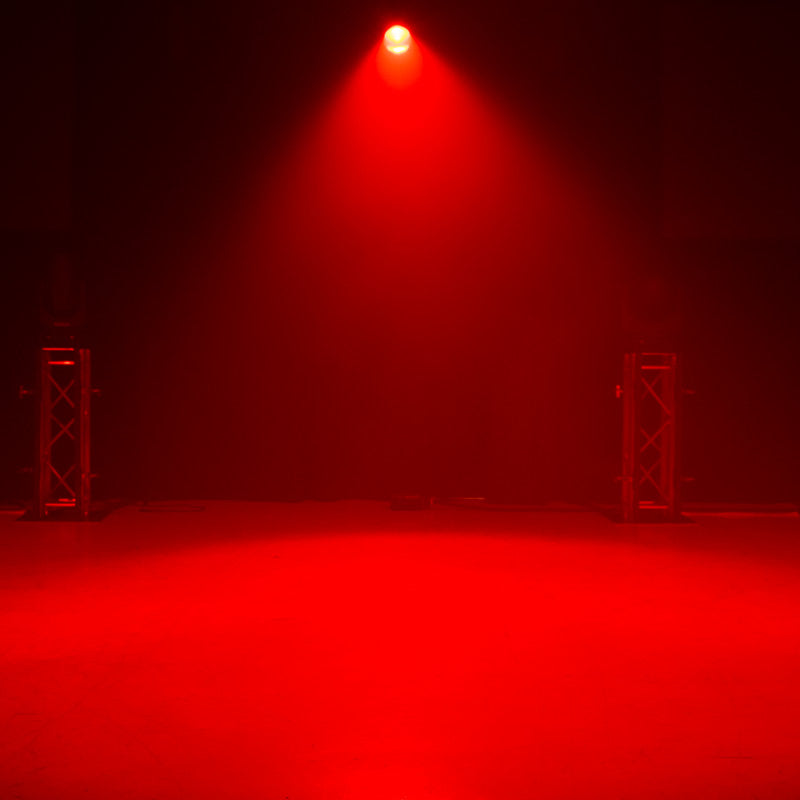

• Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control
• Virtual Color Wheel Control
• Virtual CMY Control
EFFECTS:
• RGBACL Color Mixing
• Virtual CMY Color Mixing

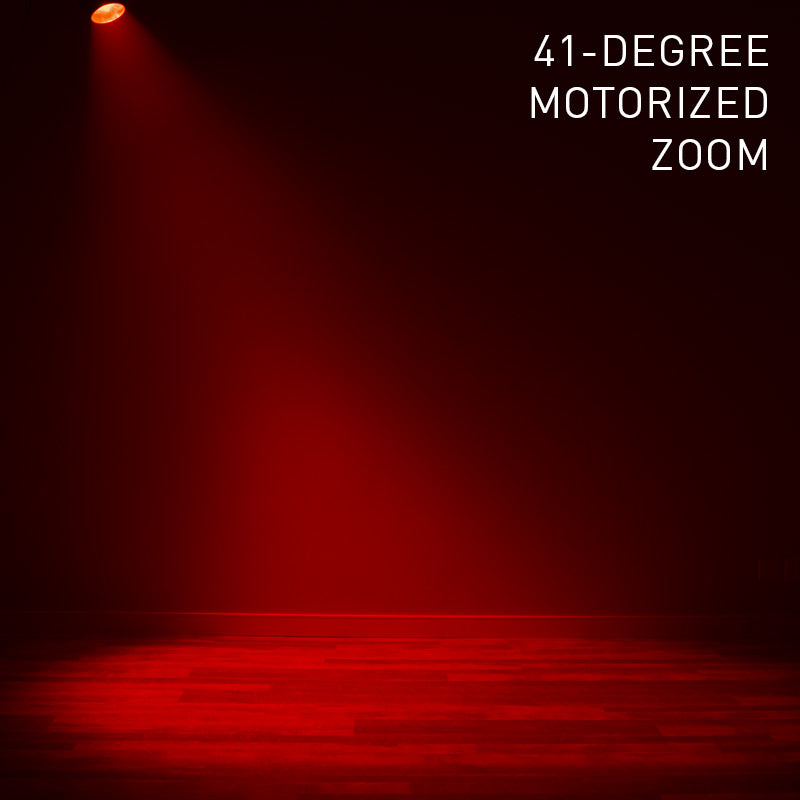

• 9° - 42° degree Motorized Zoom
• Electronic Strobe and Dimmer
• Color Temperature Red to Green control via DMX

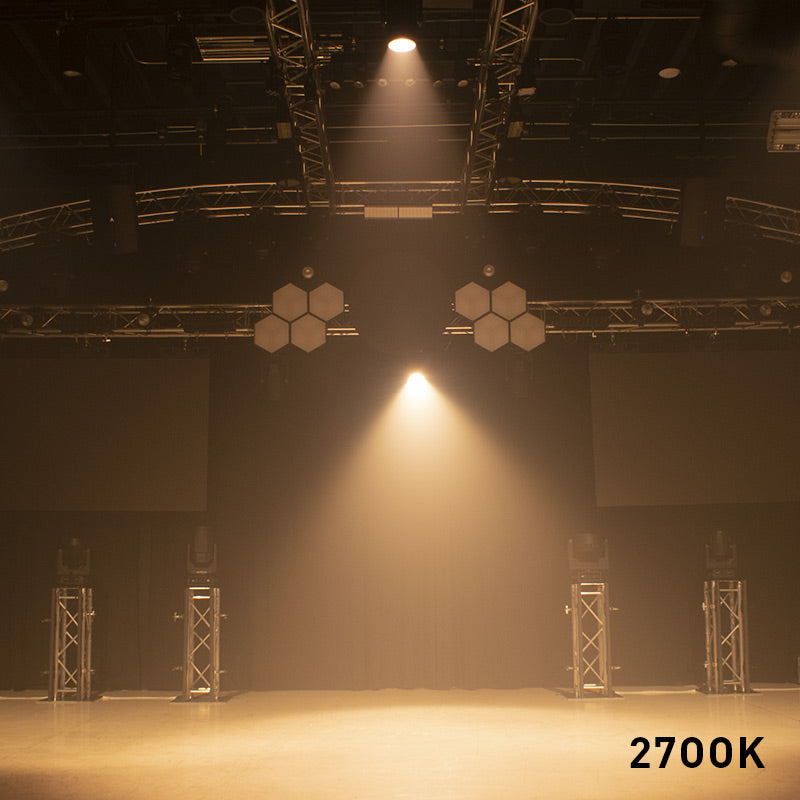

• Linear Color Temperature control, 2700K to 10,000K

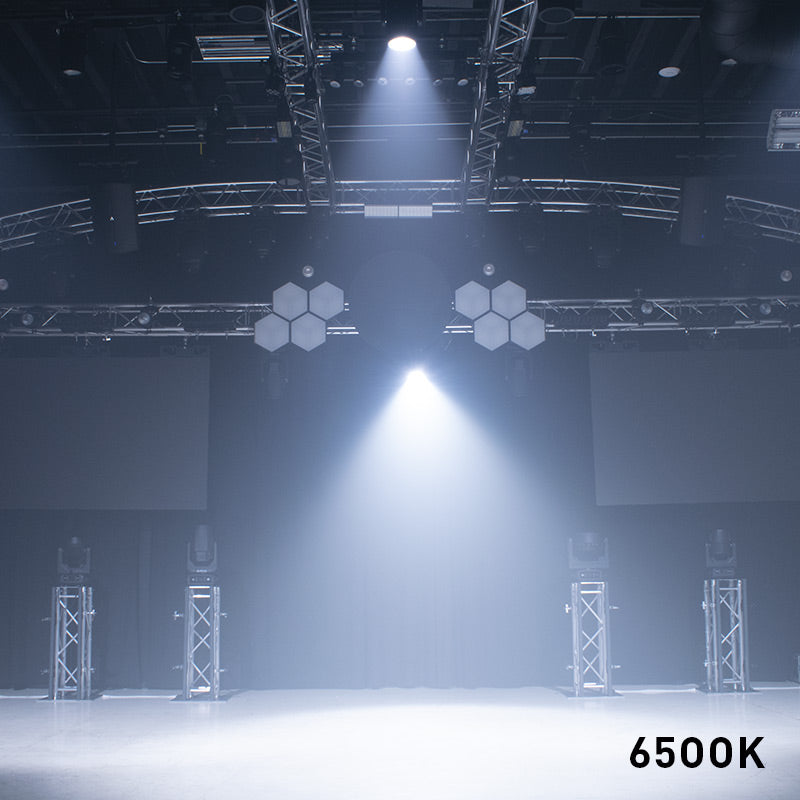

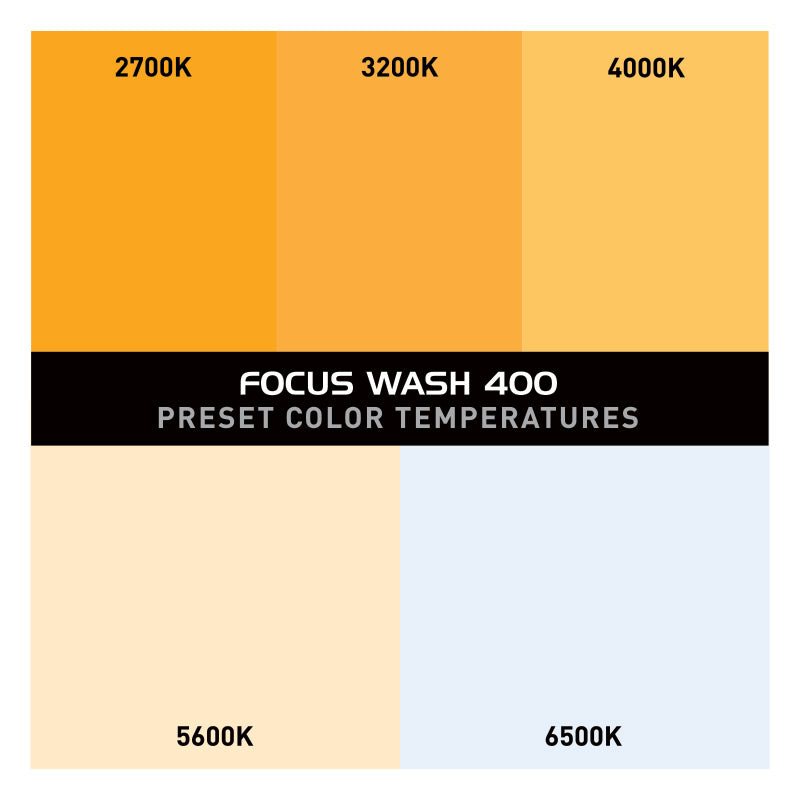

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
CONTROL / CONNECTIONS:
• 5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]
• Selectable LED Refresh Rates, 900Hz to 25kHz.
• Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds
• 6-button Control Panel and LCD Menu Display
• USB Firmware Update Port
• RDM (Remote Device Management)
• Quiet Fan Mode

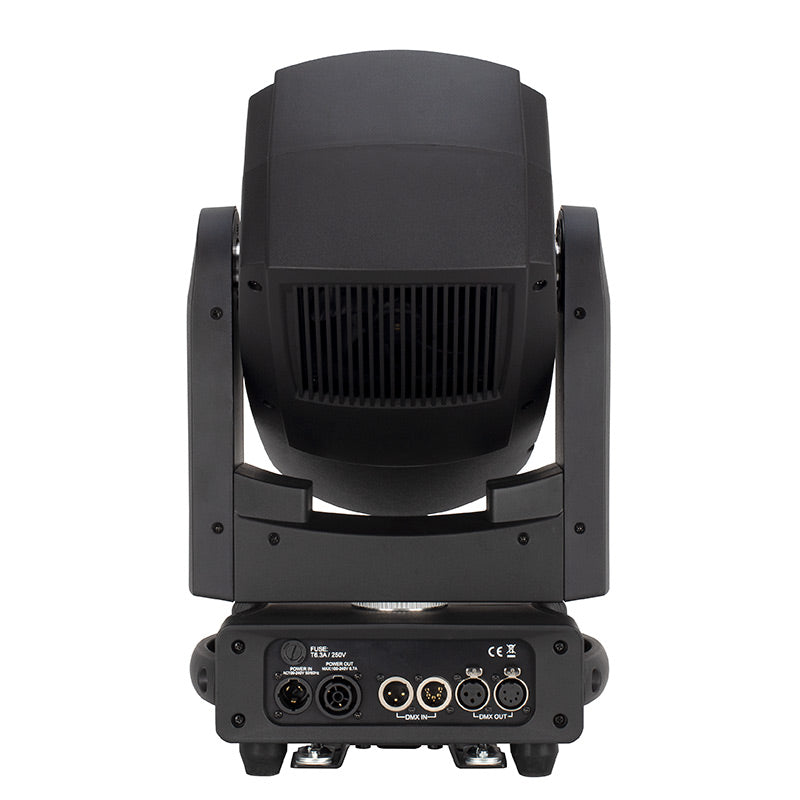

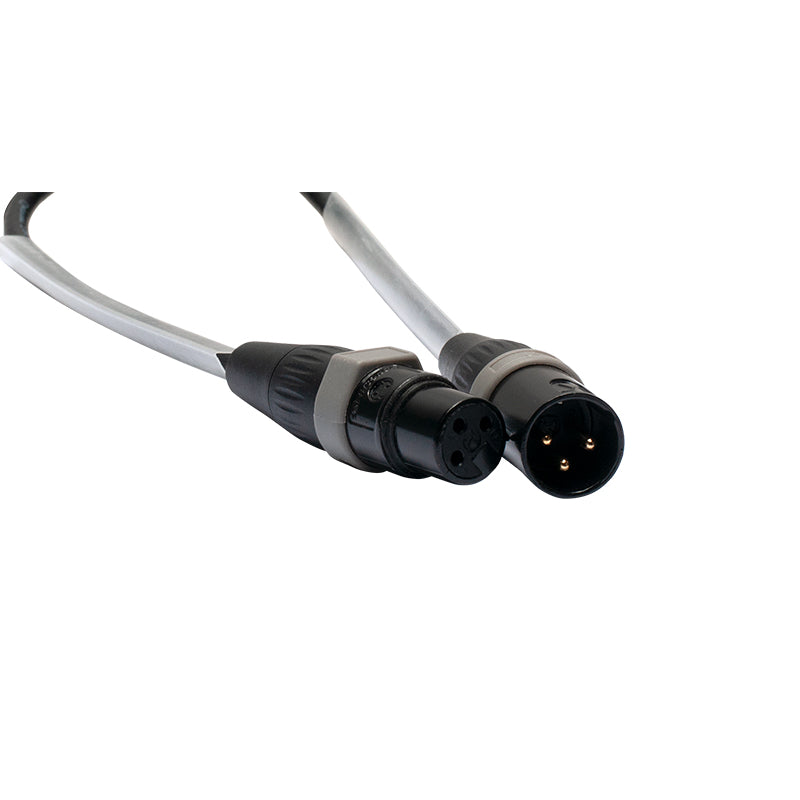

• Locking 3-pin and 5-pin XLR Connector In/Out
• IP65 Locking Power Connector In/Out
• With Wired Digital Communication Network
SIZE / WEIGHT:
• Length: 10.96" (278.43mm)
• Width: 8.4" (213.33mm)
• Vertical Height: (Without Snoot)19.6" (498.1mm)
• Vertical Height (With Snoot) 22.37" (568.1mm)
• Weight: 23.5 lbs. (10.7 kg)
ELECTRICAL / THERMAL:
• Multi-voltage: AC 100-240V / 47/63Hz
• 460W Power Consumption @ 120V
• 430W Power Consumption @ 240V
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS:
• CE Compliant
• cETLus (Control #4010765)
• IP20
• dB Rating: 46dB @ 3'

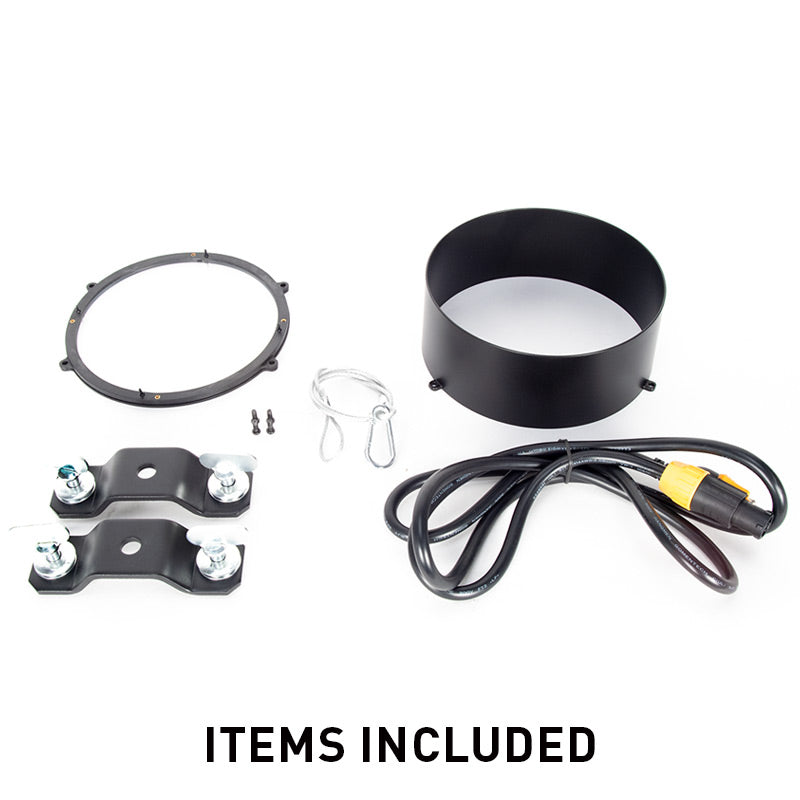

INCLUDED ACCESSORIES:

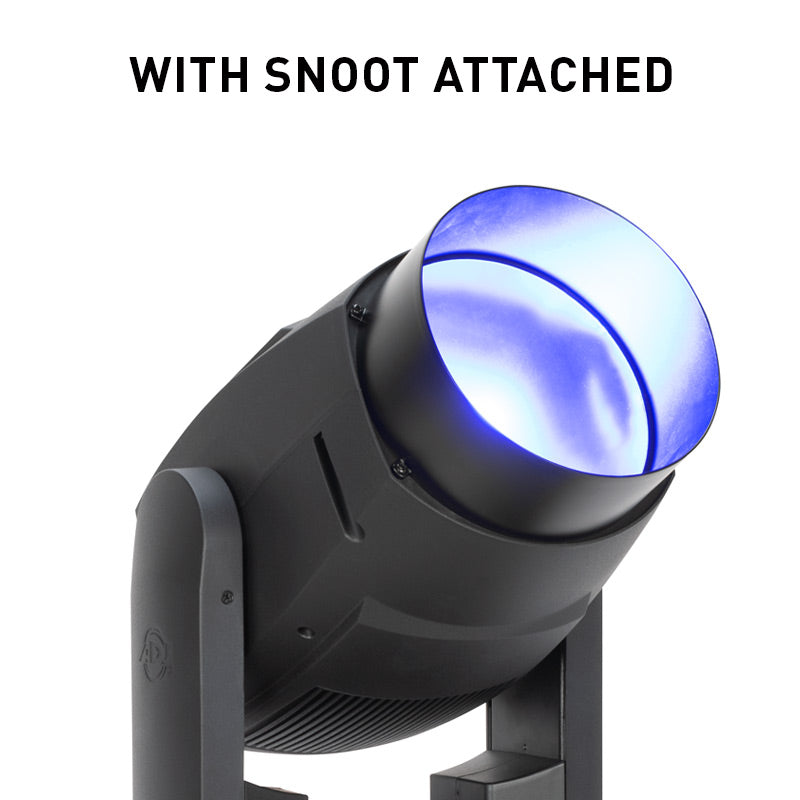

• Snoot

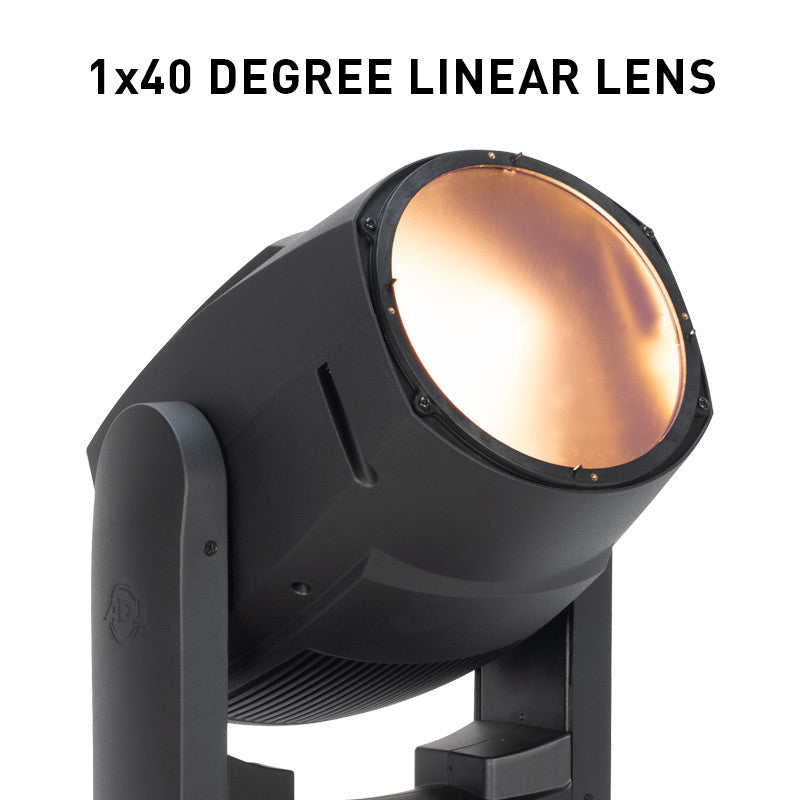

• 1x40 Degree Linear Lens

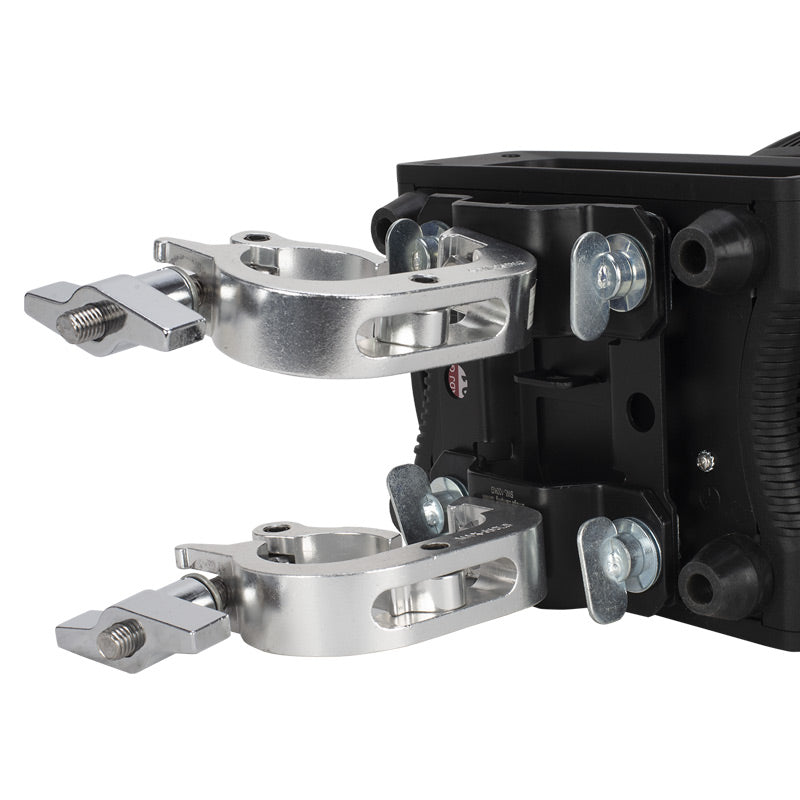

• 2 Omega Brackets
• Safety Cable
• IP65 Locking Power Cable
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Cut sheet
Dimensional drawings
Dmx traits
Ies files
Photometrics
User manual
Vectorworks symbol
Generic
ADJ Snow Machines and LED Lighting Fixtures Create Stunning Backdrop To Paramount Tree Lighting
ADJ Lighting Fixtures & Snow Machines Create Holiday Magic At 25th Annual Paramount Tree Lighting

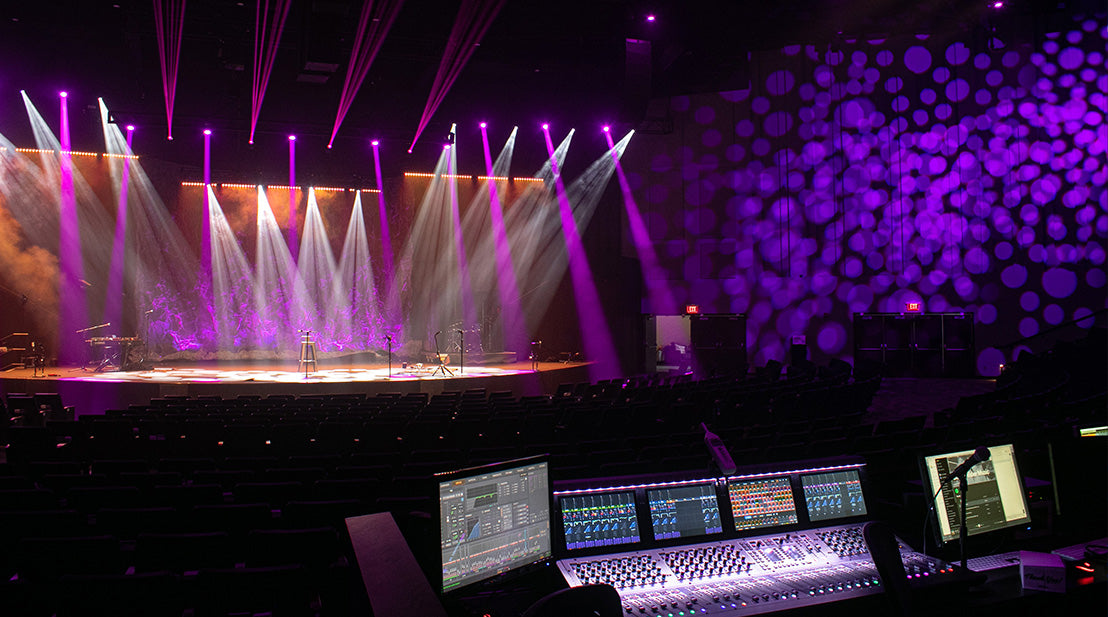

MET Church Upgrades Lighting With Complete Rig Of ADJ LED-Powered Fixtures

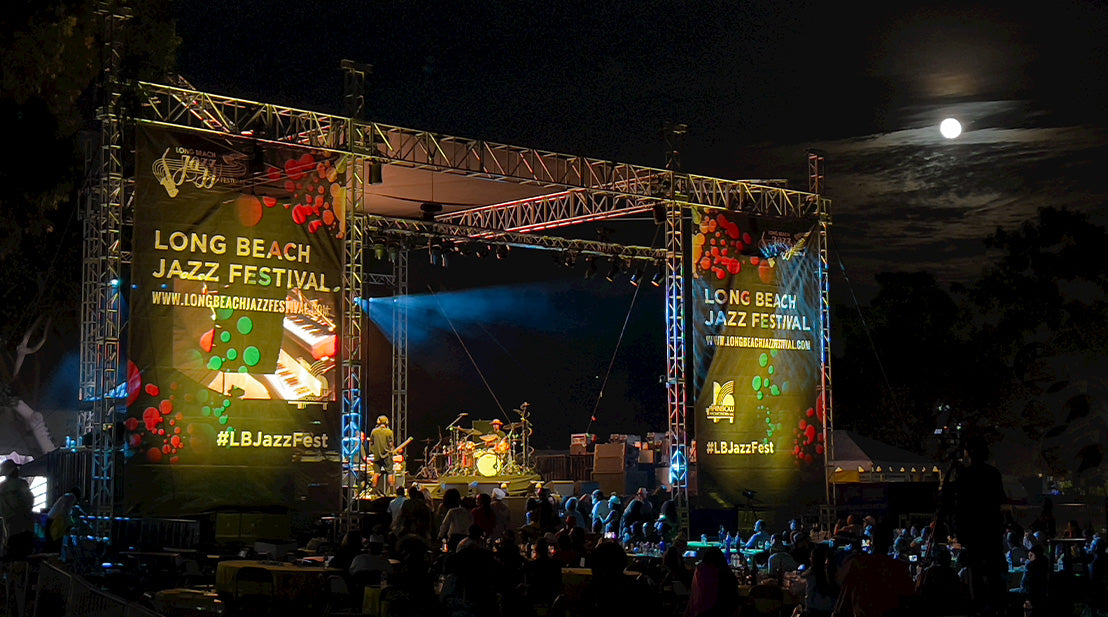

100% ADJ Rig Illuminates 33rd Annual Long Beach Jazz Festival
