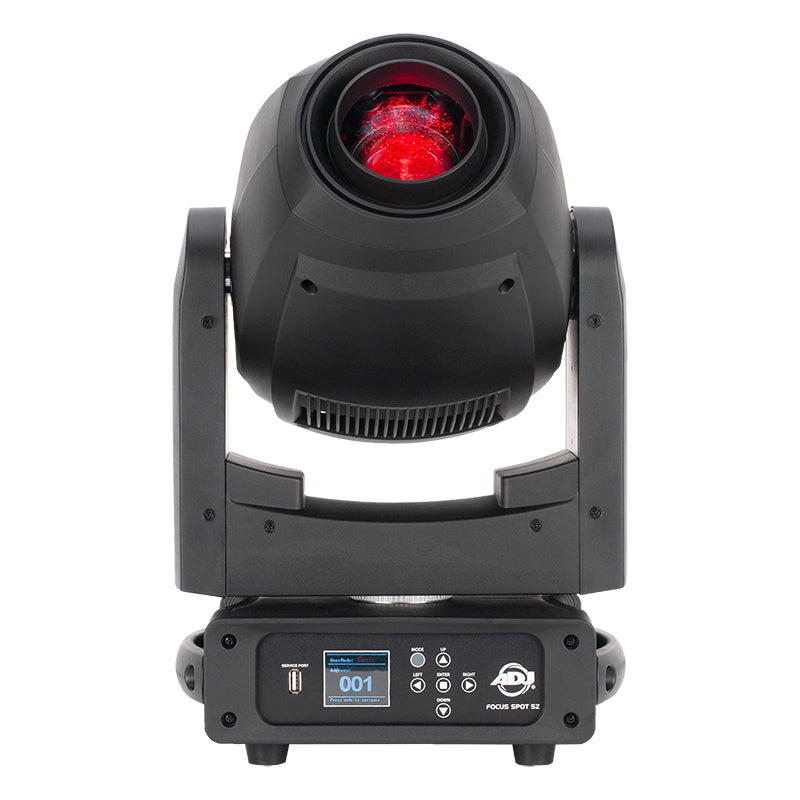

Focus Spot 5Z

Name: Focus Spot 5Z
Brand: ADJ
SKU: FOC520
Availability: InStock

Powered by a 200W cool white LED engine, the Focus Spot 5Z is feature packed with motorized focus and zoom, 2 prism effects, 2 color wheels (each with 8 colors), a GOBO wheel with 7 GOBOs + open, and two frost filters to create soft edge wash looks.

UPC: 818651028201

SKU: FOC520

Focus Spot 5Z

$0.00

Key features

Feature	Value
Color Wheel	2 Separate Color Wheels
Frost	2 Frost Filters
LED Source	200W Cool White LED
Motorized Zoom	11° ~ 22°
Prism	2 Prism Wheels

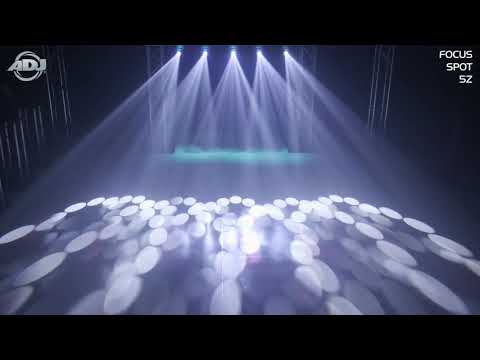

Video

Focus Spot 5Z

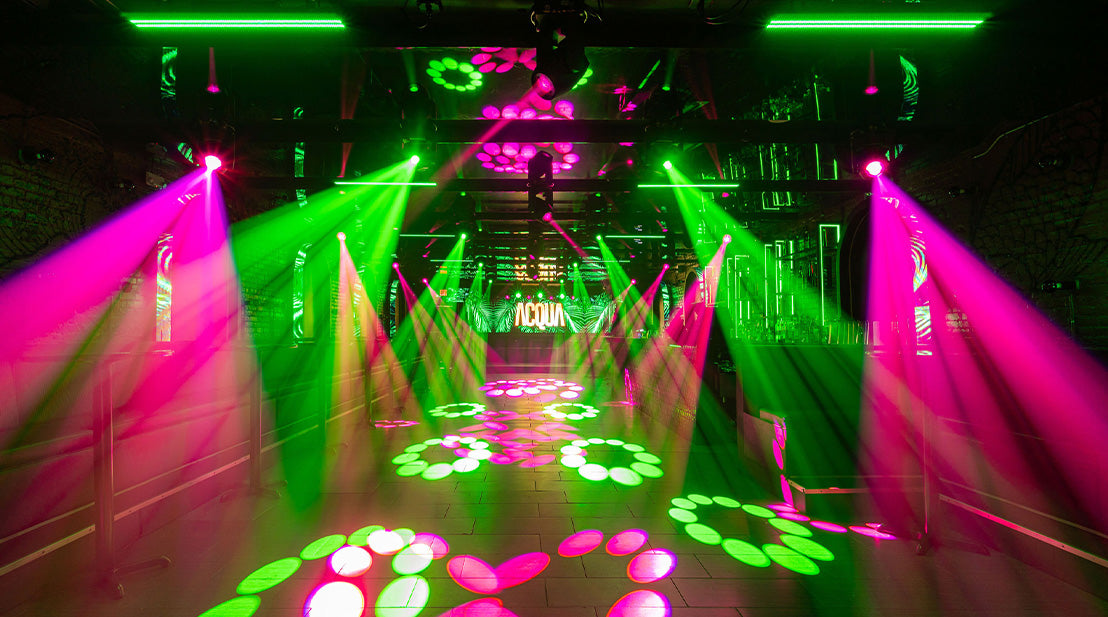

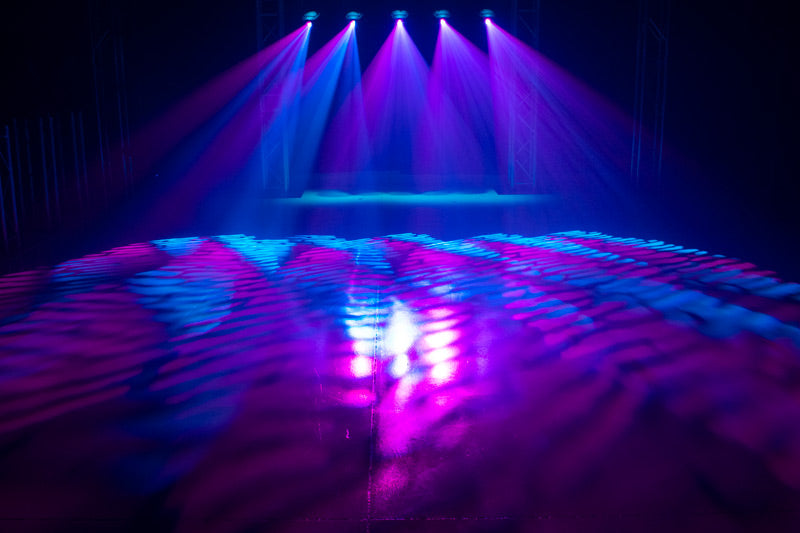

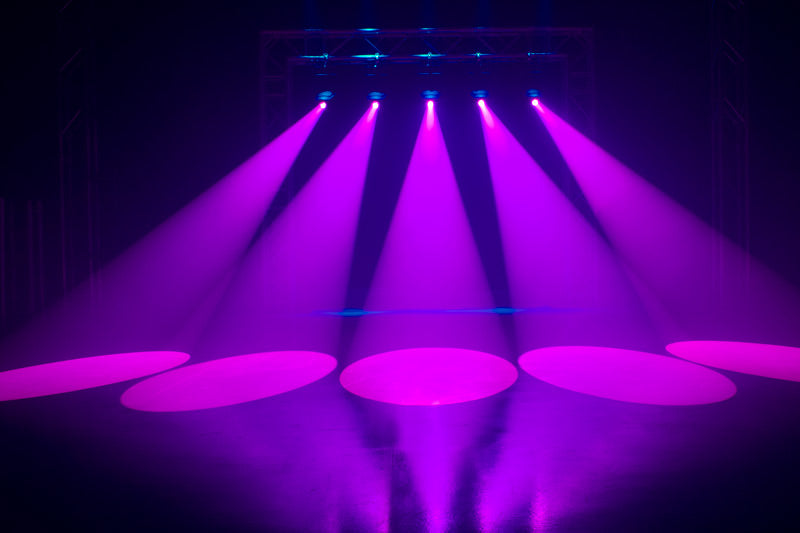

The Focus Spot 5Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom), and two Frost filters. It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS (5 aluminum and 1 glass GOBO), two COLOR wheels, each with 8 vibrant colors plus white, and 2 rotating/indexable prisms, (one 5-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).

The Focus Spot 5Z has locking power In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

The Focus Spot 5Z fits in the ADJ DRC MH and QRC MH road cases.

Click here to read the Focus Spot 5Z press release.

Specifications

Light Source:

• 200W Cool White LED Engine (50,000 hr.)

Features:

• Motorized Focus

• 2 Frost Filters to create wash effects

• Motorized Zoom: 11 ~ 22-degrees

• 2 Prism FX: Rotating 5-facet Linear rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• 2 cooling fans

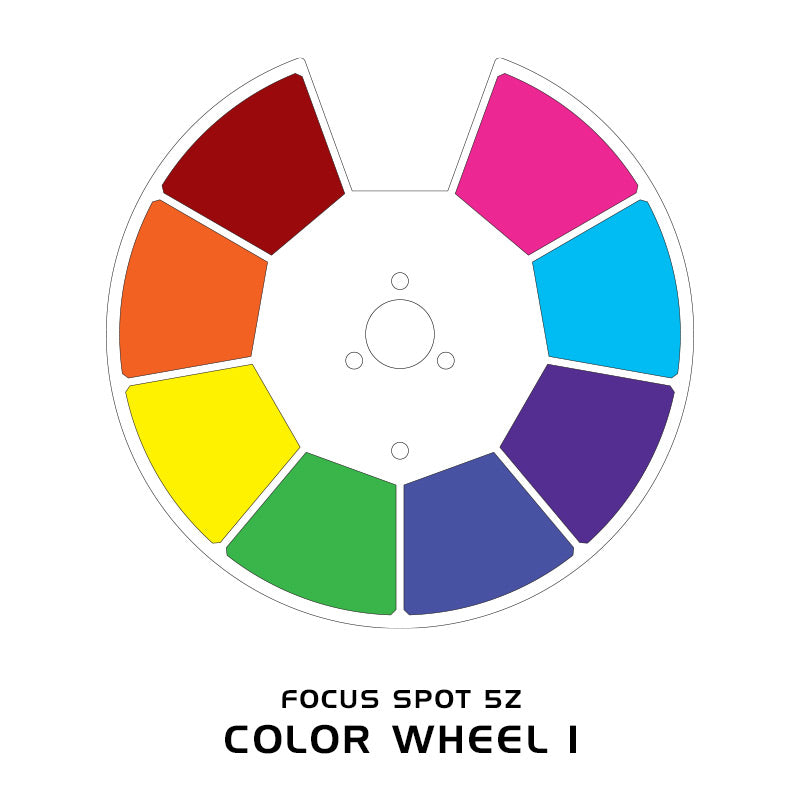

Color Wheels:

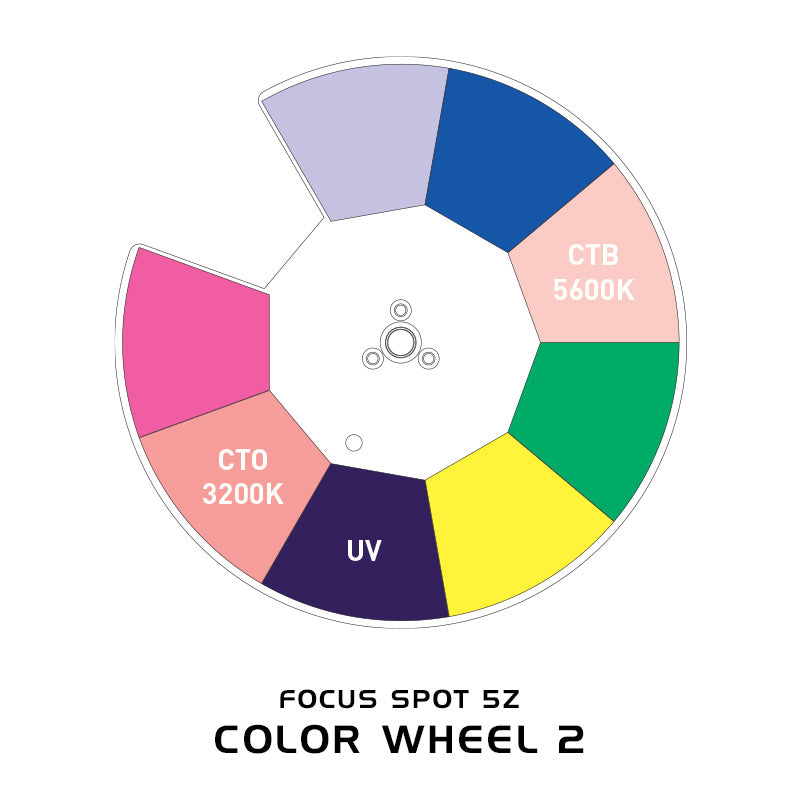

• 8 dichroic colors + white on two separate wheels (includes CTO, CTB and UV filters)

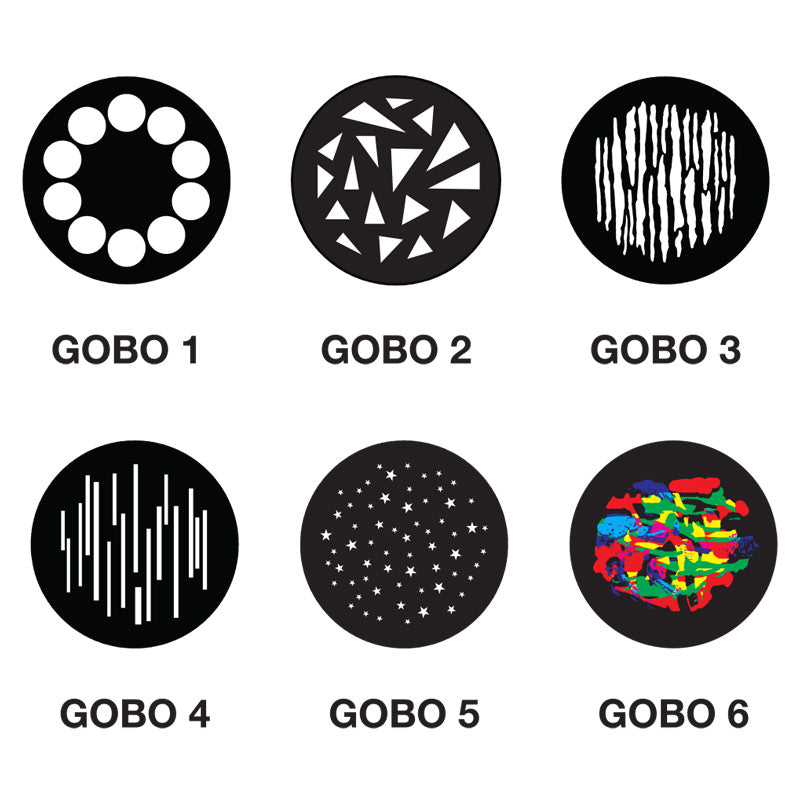

GOBO Wheels:

• 6 Gobos (5 aluminum GOBOs, 1 glass GOBO) + open

• All GOBOs are removable rotatable

• GOBO Shake Effect

• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

• Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:

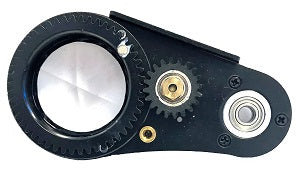

• Prism Wheel 1: Rotatable 6-facet Circular

• Prism Wheel 2: Rotatable 5-facet Linear

• Each Prism is indexable

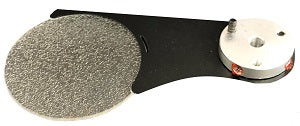

Frost Filters:

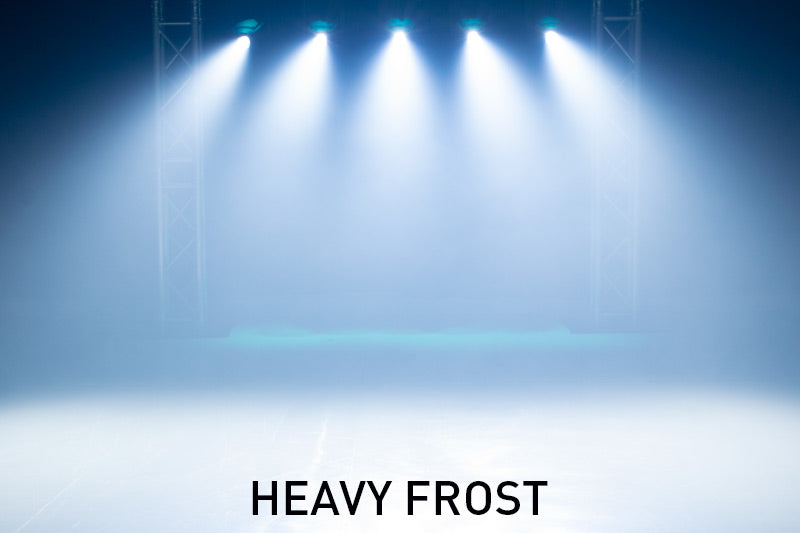

• Frost 1: Heavy frost for wash effect

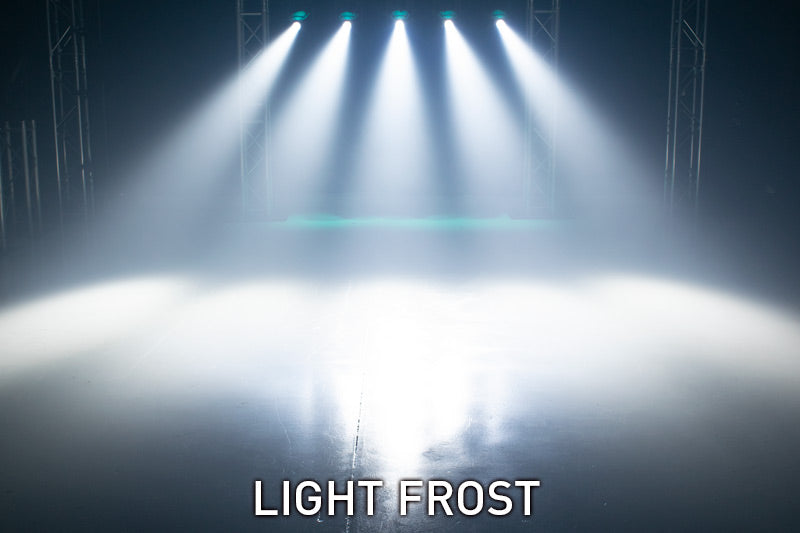

• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX

Control:

• 3 DMX Channel Modes: 19/22/26

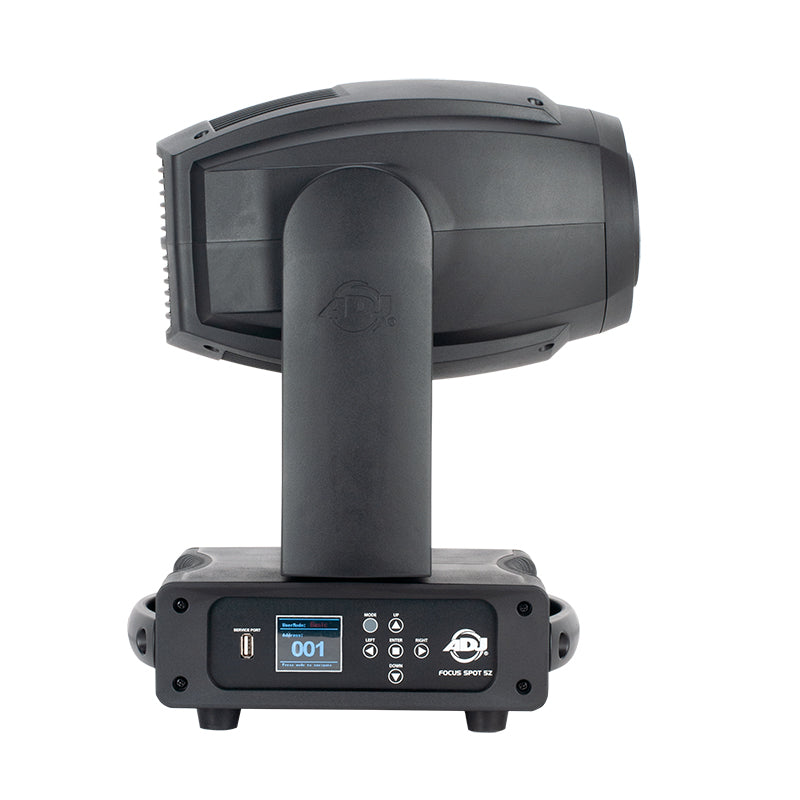

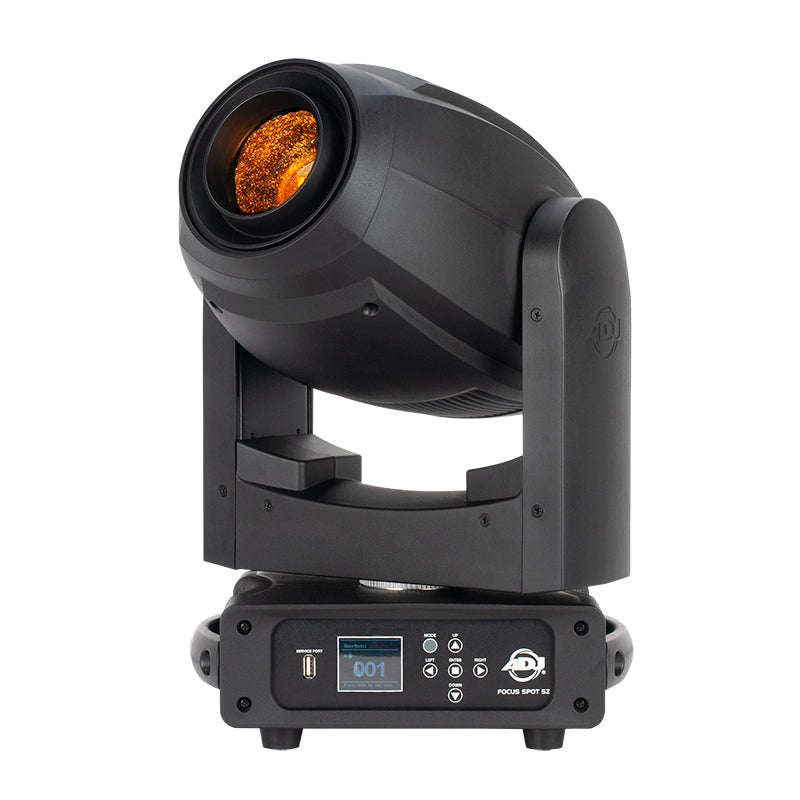

• Color LCD display with 6-button function menu

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)

Pan/Tilt:

• Pan: 630 degrees

• Tilt: 270 degrees

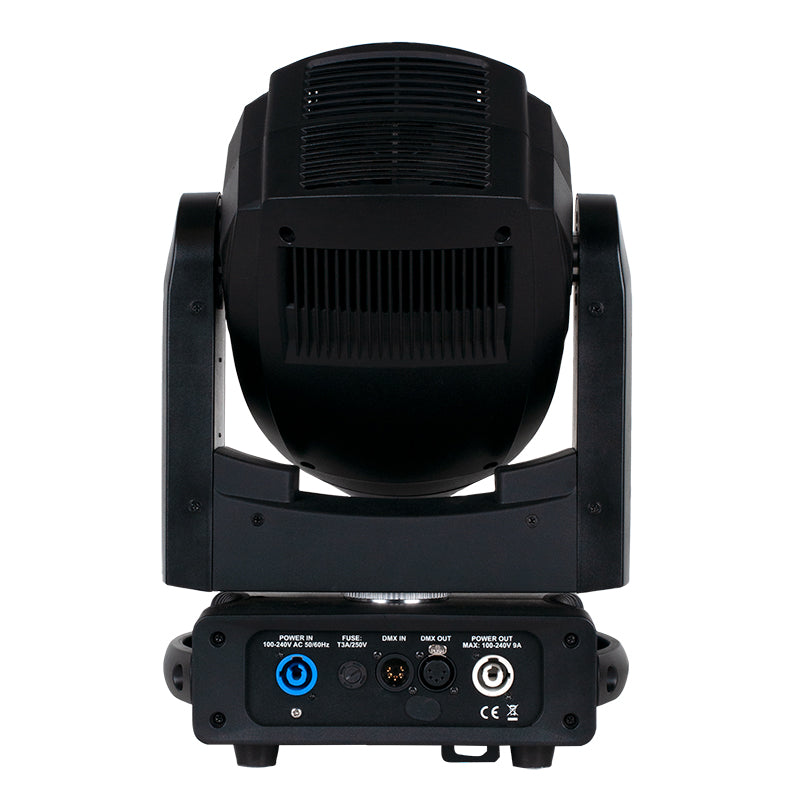

Connections:

• DMX Connections: 5-pin XLR In/Out

• Power Connections: PowerLock In/Out to daisy chain power

Electrical:

• Multi-voltage operation: 90-240V, 50/60Hz

• Max power consumption: 280W

Dimensions Weight:

• Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)

• Weight: 23 lbs. / 10 kg.

What’s Included:

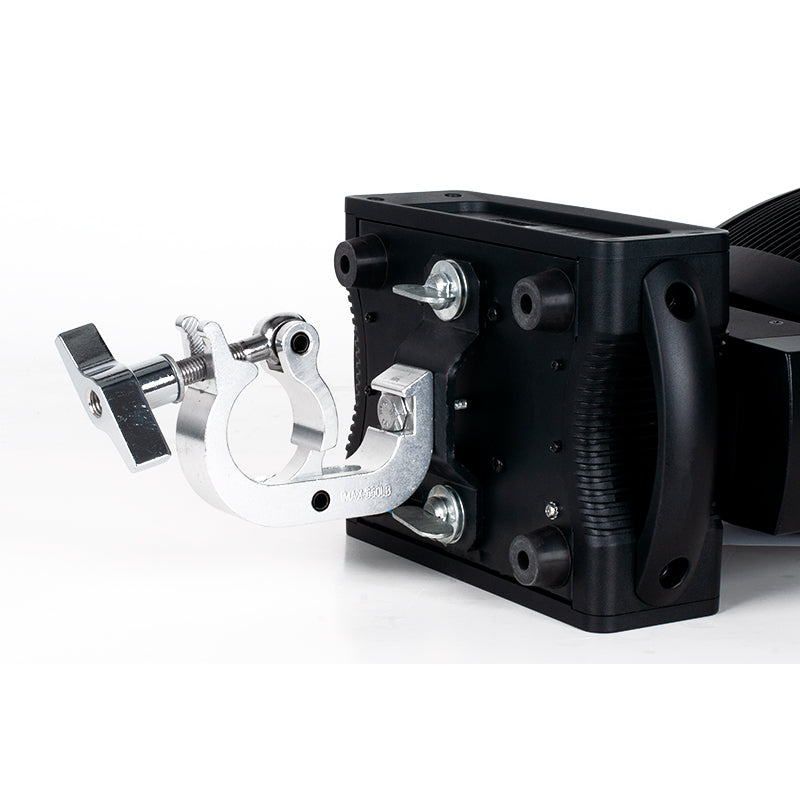

• Omega Bracket

• 1.83M locking power cable

Optional Road Cases:

• DRC MH: 2 Focus Spot 5Z fit in the DRC MH Road Case

• QRC MH: 4 Focus Spot 5Z fit in the QRC MH Road Case

Approvals / Rating:

ETL Approved / CE Certified

Downloads

Ies files

Photometrics

Focus Spot 5Z Photometric Test Reports

User manual

Focus Spot 5Z User Manual

Vectorworks symbol

Focus Spot 5Z Vectorworks Symbol

Focus Spot 5Z Parts & Service

Our Focus Spot 5Z Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Focus Spot 5Z. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.

Focus Spot 5Z Parts & Service
