Focus Beam LED
80W LED Beam moving head with a sharp 2.5-degree beam, motorized focus, two prims wheels and a built-in frost filter for wash effects.
Key features
| Feature | Value |
|---|---|
| Beam Angle | 2.5-Degree |
| Focus | Motorized Focus |
| Frost | Linear Frost (0-100%) |
| LED Source | 80W Cool White LED |
| Prism | 2 Prism Wheels |
Video
Focus Beam LED
Available now from ADJ USA

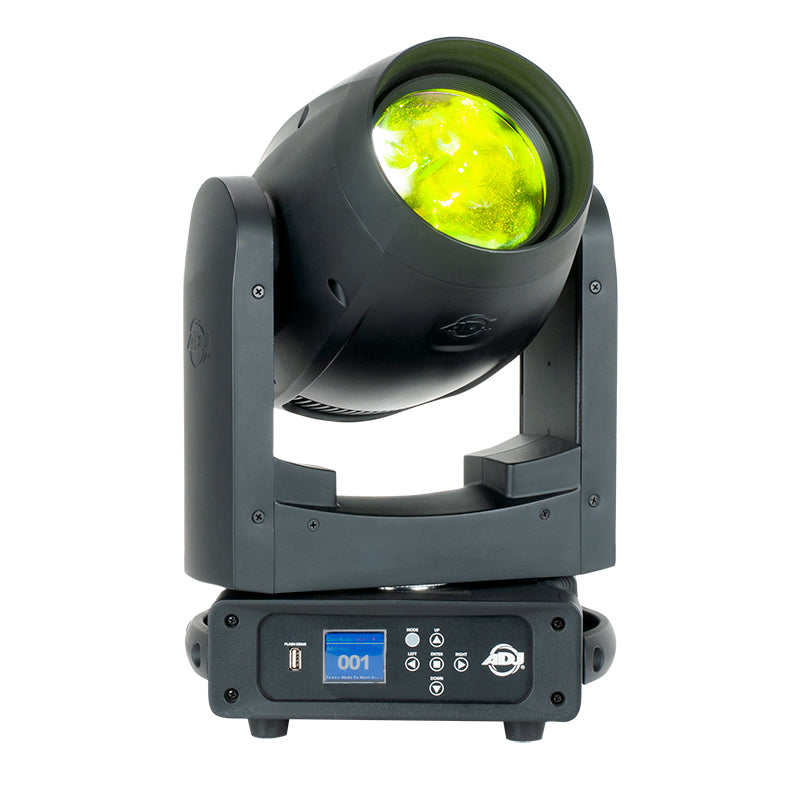

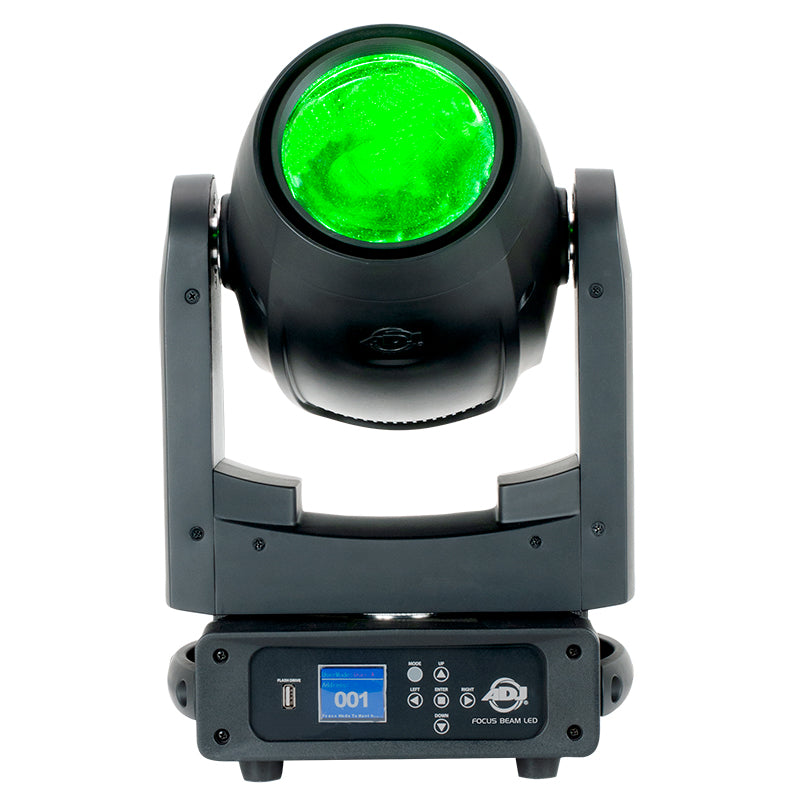

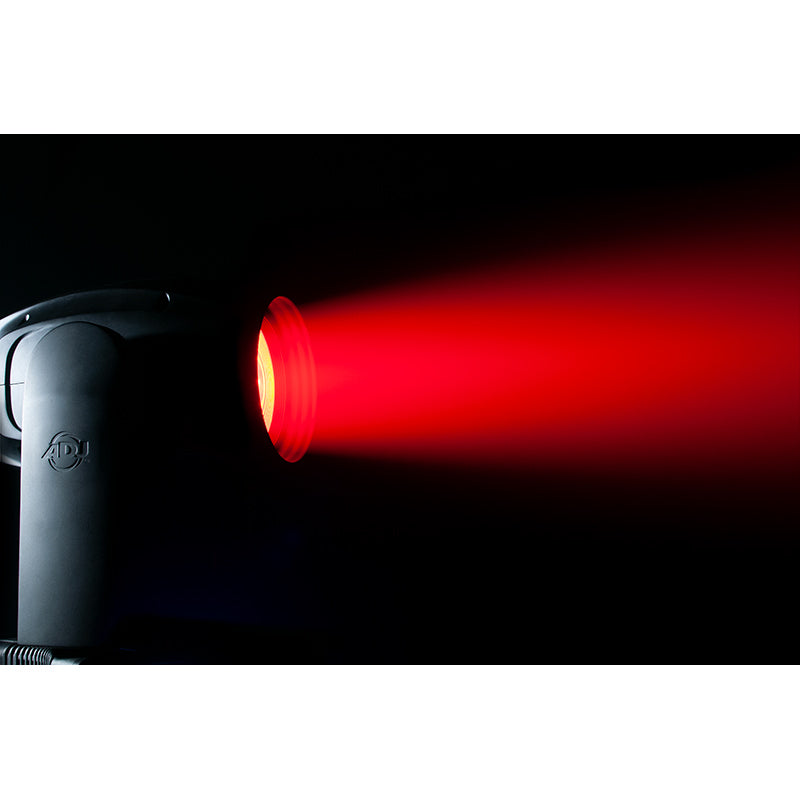

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.
There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.
The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect.
There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 5-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.
The Focus Beam LED fits in the ADJ DRC MH road case.
Specifications
Light Source:
1x 80W Cool White LED Engine
2.5° Beam Angle
Color Temperature: 7400K
50,000 Hour Average LED Life
Features:
Control Protocol: DMX RDM (Remote Device Management)
DMX Modes: 2 (16 18)
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre Stage 2)
Dim Speed control (0.1~10 Seconds)
Dimming: 0 - 100%
Strobe pulse control
Motorized Focus
Linear Frost 0-100% (Wash effect)
2 Prisms: 6 8 Facet, Indexable and Rotatable
USB firmware update port
Adjustable LED Refresh Rates (900~25k Hz)
Adjustable Gamma Settings (1.0-2.8)
With Wired Digital Communication Network
Display: Touch display with 5-button touch menu

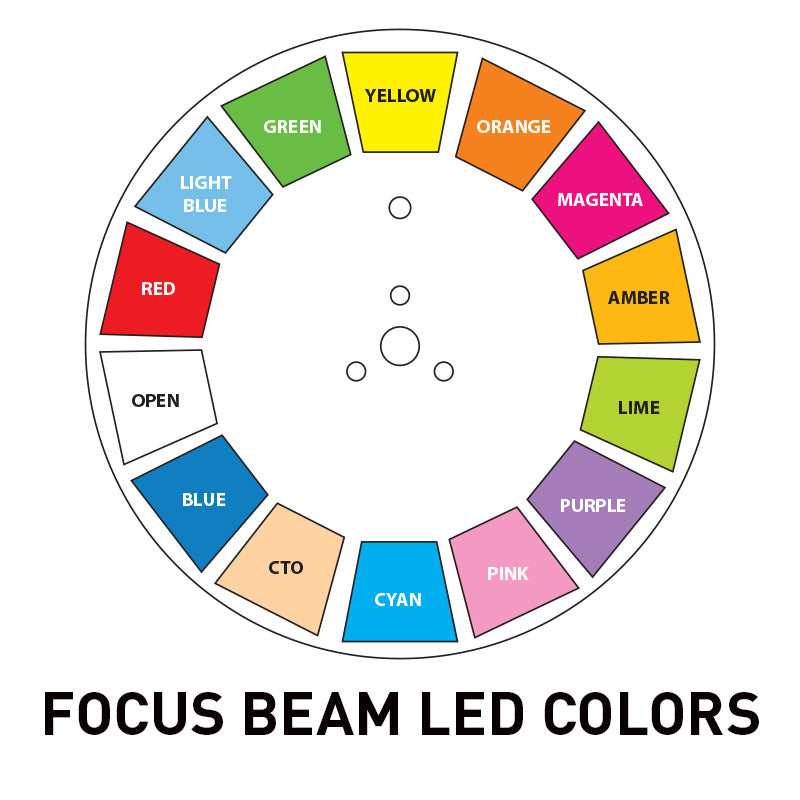

Color Wheel:
13 dichroic colors + white

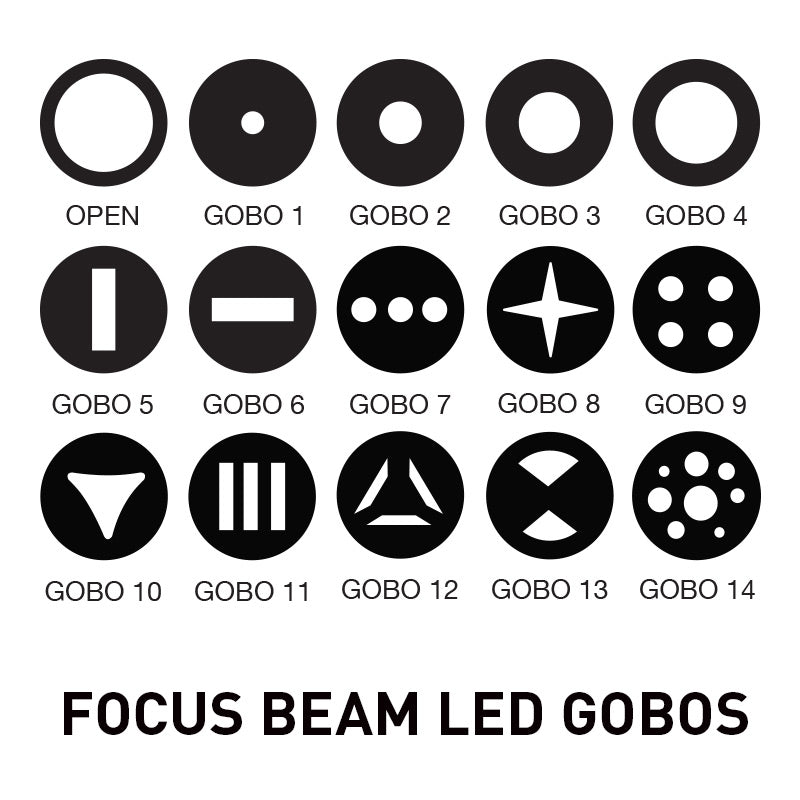

GOBO Wheel:
Metal wheel with 15 fixed GOBOs + Open
GOBO shake effect
Prism Wheel:
Prism Wheel 1: Rotatable 8-facet Circular
Prism Wheel 2: Rotatable 6-facet Linear
Prism Indexing with overlay feature
Control:
Control Modes: DMX512, RDM (Remote Device Management)
Stand Alone Internal Programs
2 DMX Channel Modes: 16 18 channels
16-Bit Pan, Tilt Dimmer control

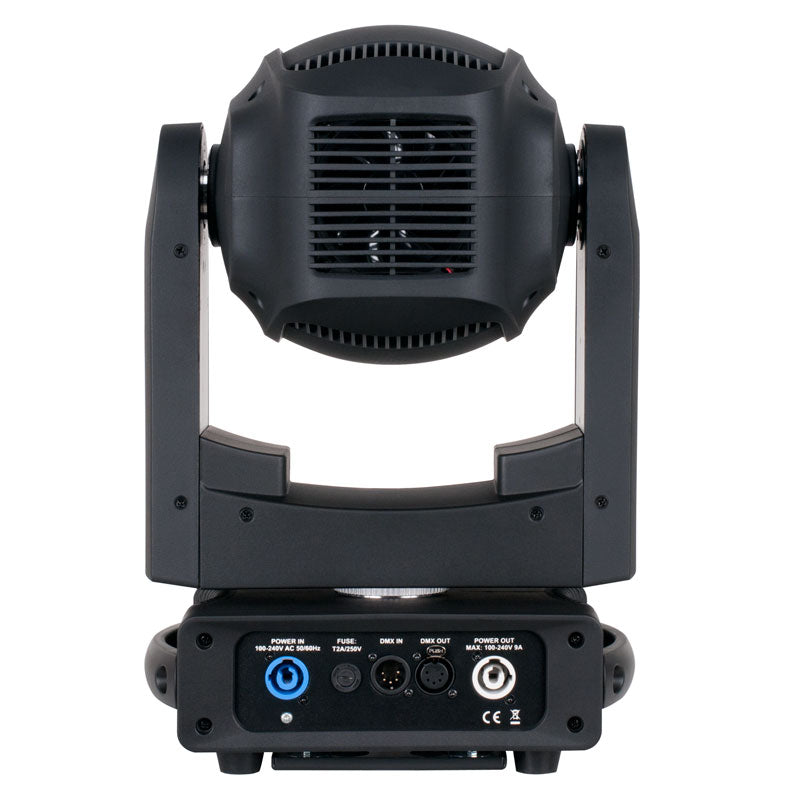

Connections:
DMX Connections: 5-pin Locking XLR In Out
Power Connections: Seetronic Locking Power In Out
Pan/Tilt:
Pan Pan Fine: 630 degrees
Tilt Tilt Fine: 270 degrees
Electrical:
Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
Maximum Power Consumption: 136W @ 120V
Daisy chain: 15 units @ 120V; 30 units @ 230V
Dimensions Weight:
Dimensions (LxWxH): 10.96" x 7.55" x 17.61" / 278x191x447mm
Weight: 27 lbs. (12.25 kg)

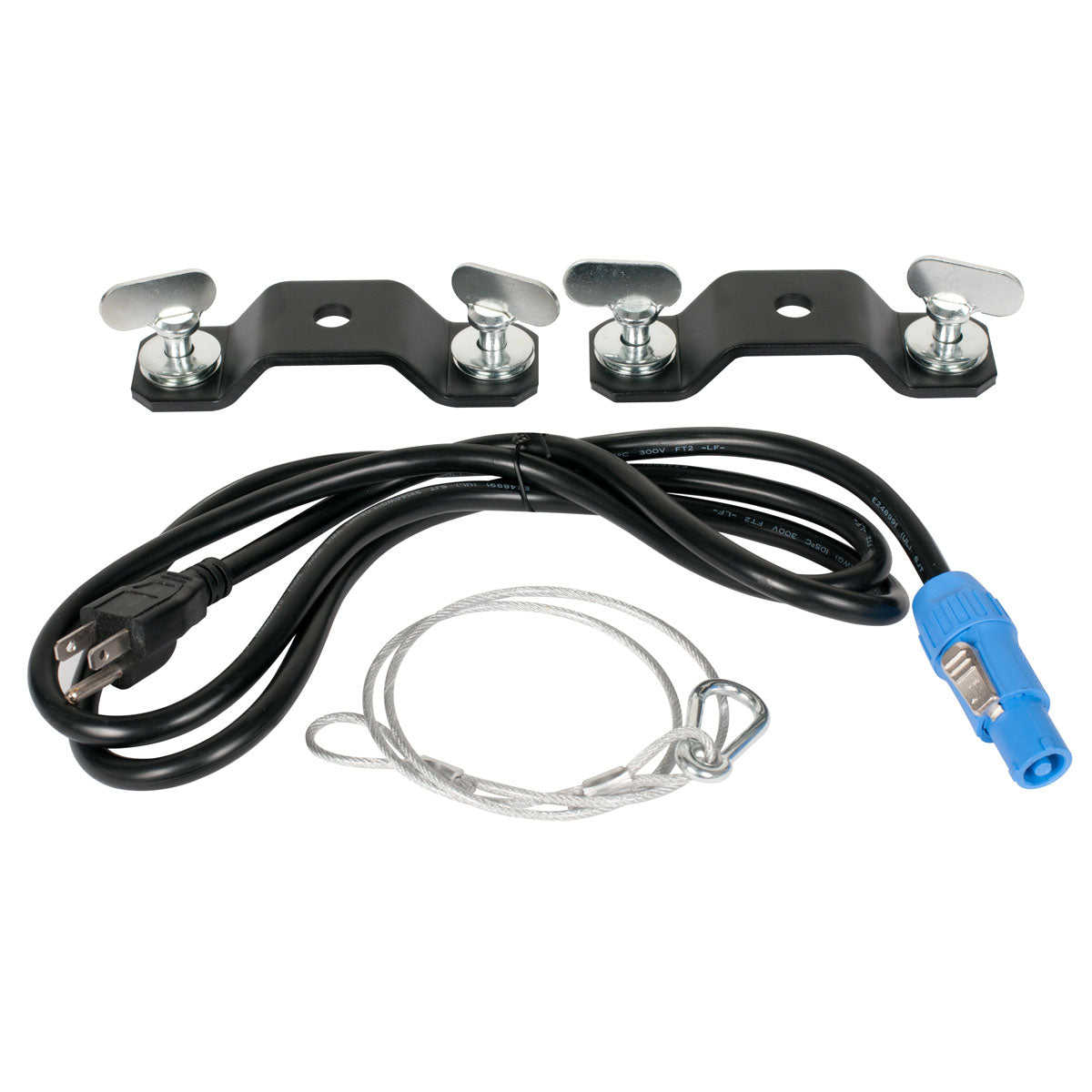

What’s Included:

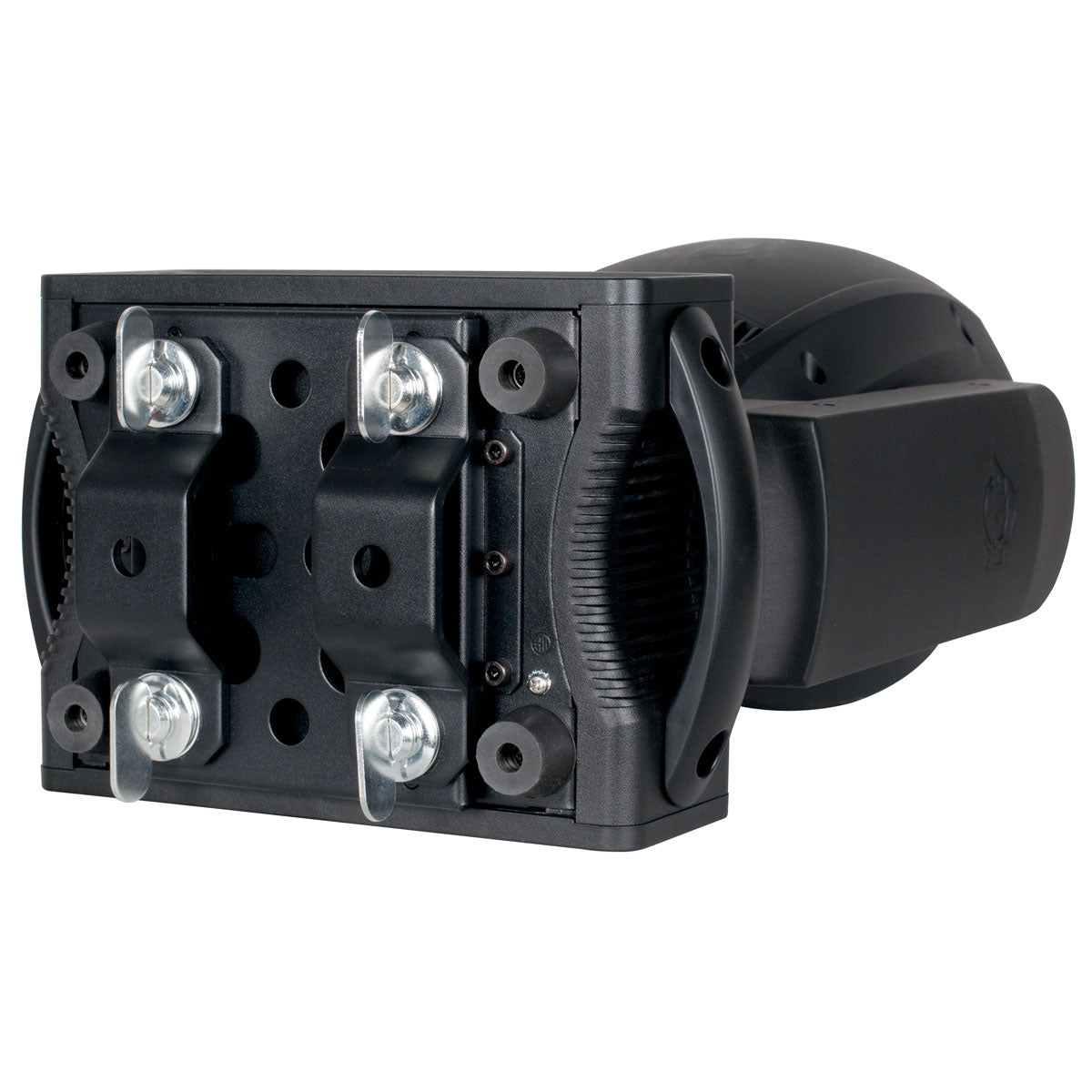

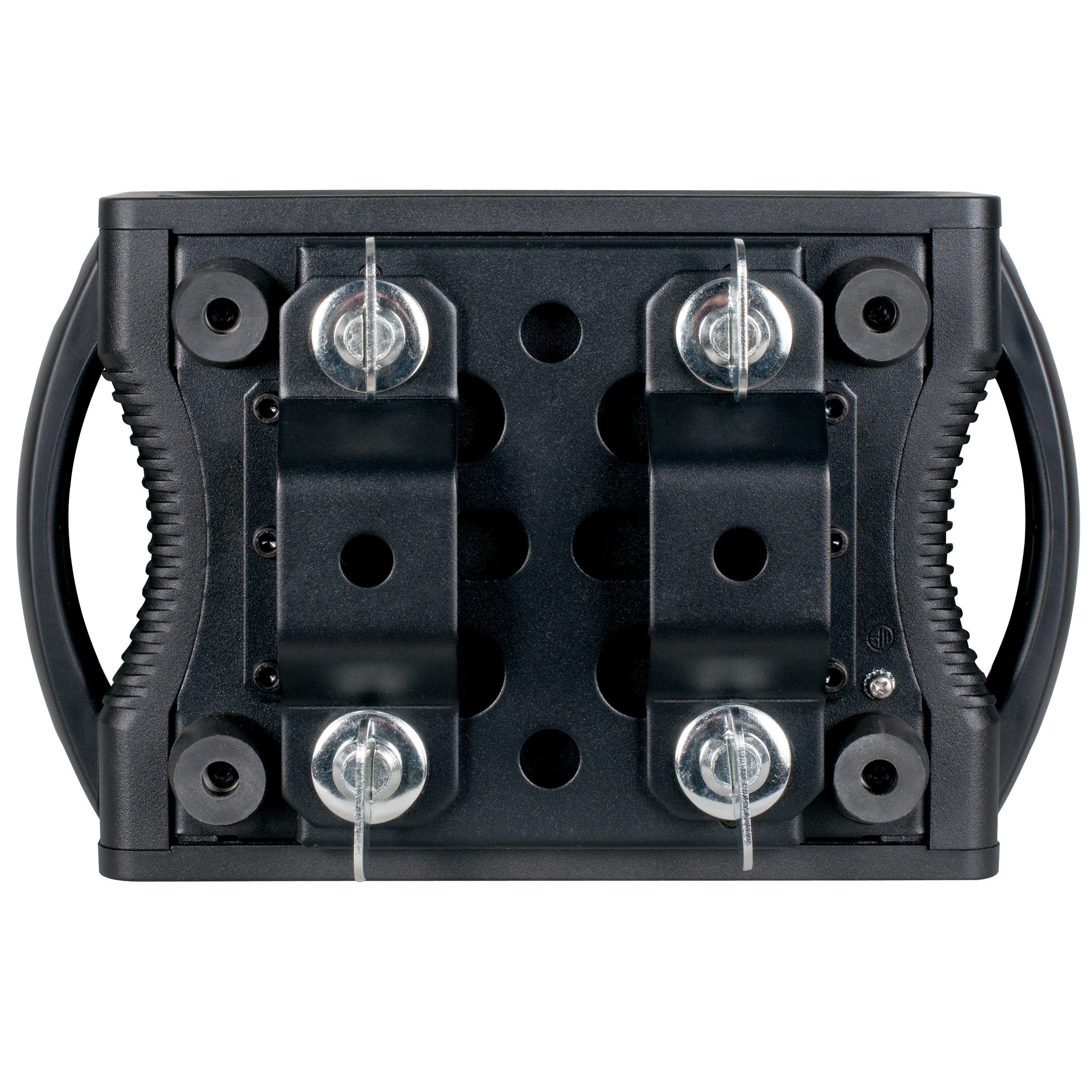

2x Omega Brackets
1x Seetronic Power Locking Power Cable
Optional Road Cases:
DRC MH: 2 Focus Beam LED fit in the DRC MH Road Case
QRC MH: 4 Focus Beam LED Pearl fit in the QRC MH Road Case
Downloads
Cad drawing
Cut sheet
Dimensional drawings
Dmx traits
Ies files
Photometrics
User manual
