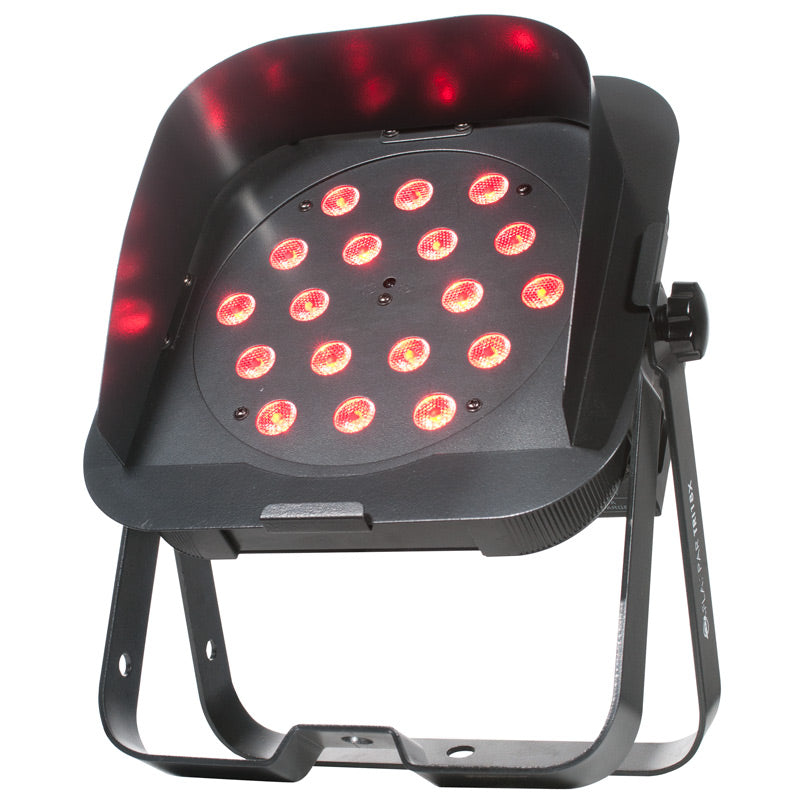

Flat Par TRI18XS
Flat Par TRI18XS
The ADJ Flat Par TRI18XS is a professional “low profile” LED Par Can with extremely bright output. It features eighteen 3-Watt TRI LEDs (3-in-1 RGB) and will not cast any RGB shadows. The units “low profile,” sideways power & DMX Ins/Outs and dual hanging brackets make it ideal for mobile entertainers, permanent installations and for inserting into truss for uplighting. A removable Snoot Frame is included to block out unwanted light exposure.
The Flat Par TRI18XS has 7 different DMX channel modes, and may also run in Sound Active or Primary/Secondary modes. Users can also go “wireless” with the ADJ LED RC wireless remote (sold separately). This LED Par Can also features: 32 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on side to daisy chain power and a 40-degree beam angle. The Flat Par TRI7’s LEDs are rated at 50,000 hours, and only draws 56-Watts of power per fixture.
Specifications
• Ultra bright slim metal Par with 18x 3-Watt TRI LEDs (3-in-1 RGB)

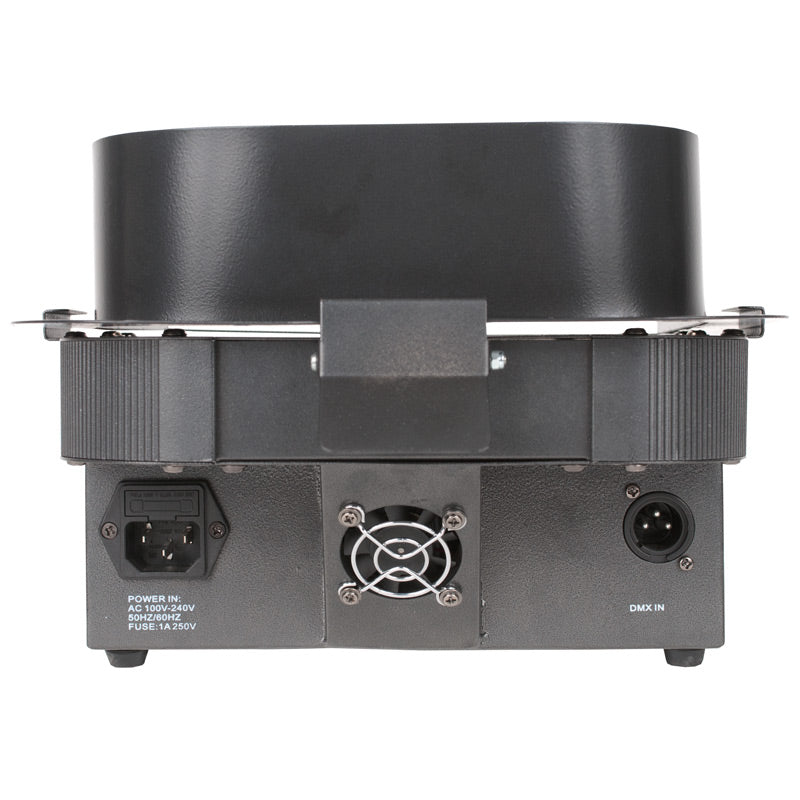

• New Feature – Power DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

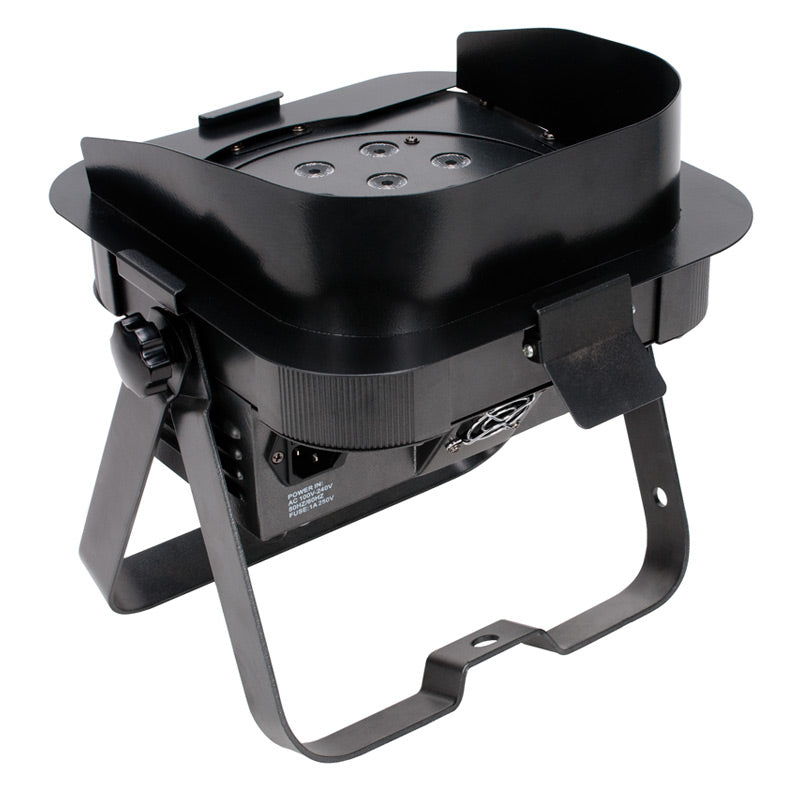

• Snoot Frame included helps limit unwanted light exposure (removable)
• Great for performance stages where traditional par cans emit a lot of heat onto performers
• Low profile case design
• Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC - sold separately)
• 7 DMX Channel modes: 1, 2, 3, 4, 5, 6 or 7 channel modes
• 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
• Smooth RGB color mixing (fast or slow color change operation)
• TRI LED (3-in-1) projects no RGB shadows
• 32 built-in Color Macros
• Color strobe effect
• Electronic Dimming: 0 - 100%

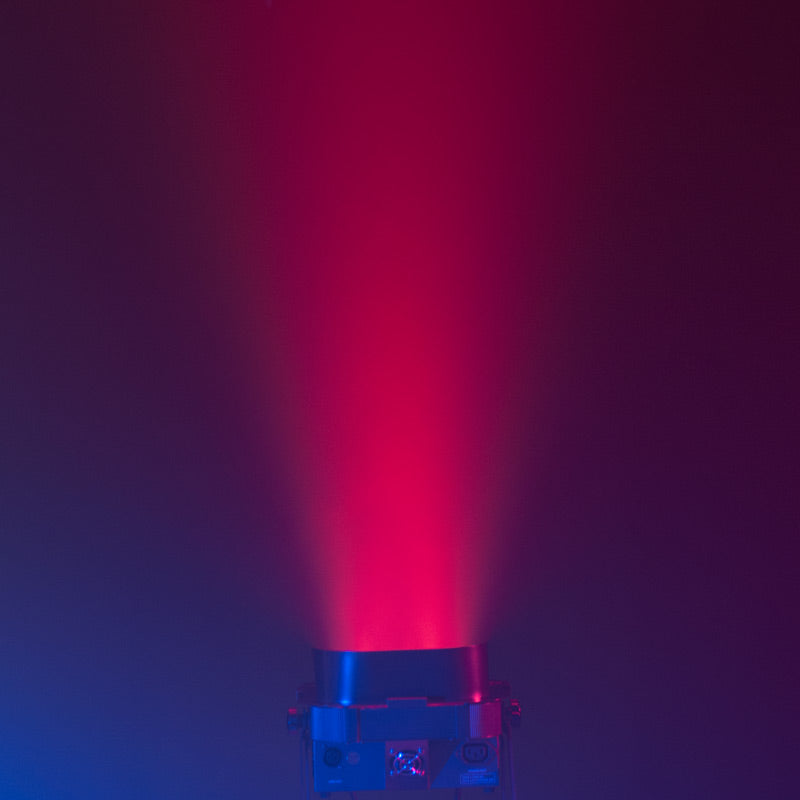

• Beam angle: 40-degree
• Fan cooled
• Linkable via 3-pin XLR cable (In/Out)
• With Wired Digital Communication Network

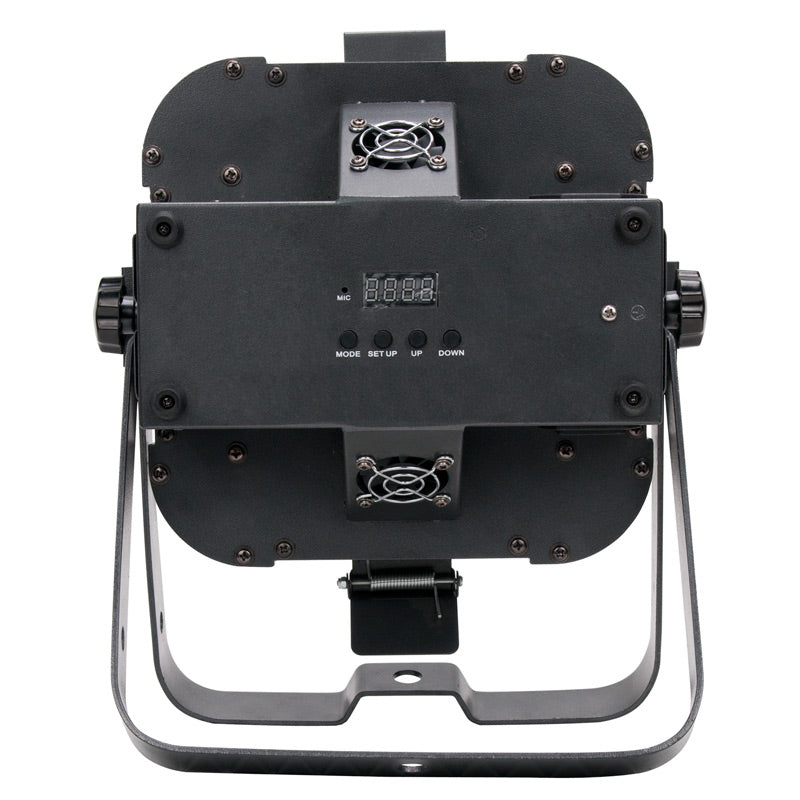

• 4-button LED DMX display on rear panel
• Dual bracket system allows fixture to be hung or set on the ground

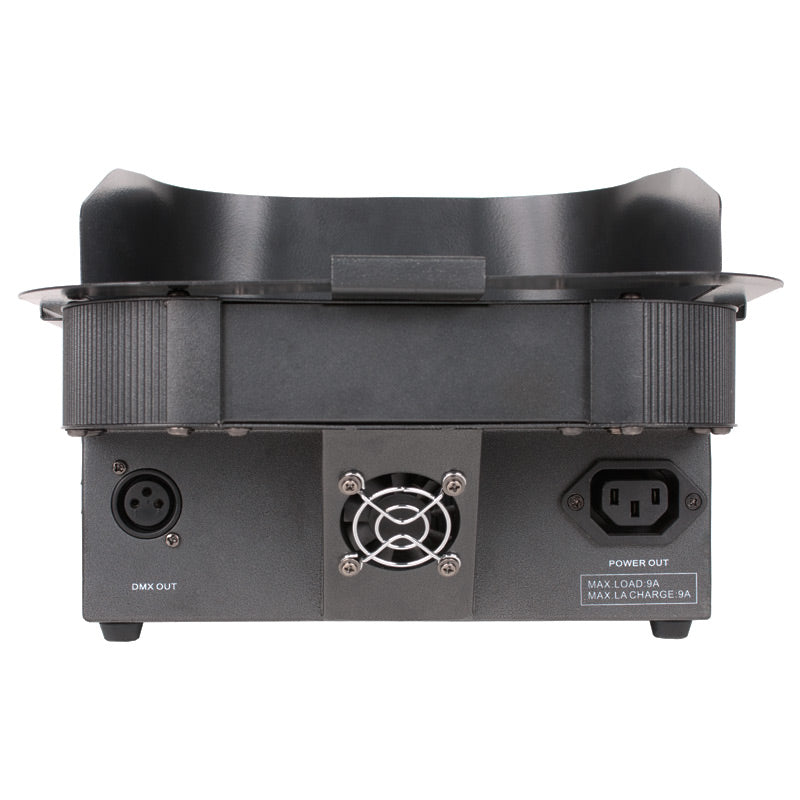

• IEC AC IN/OUT outlets on rear to daisy chain power
• Safety hook on rear panel
• Includes gel frame for optional diffusion filters
• Run all night – No duty cycle
• Long Life LEDs (50,000 hrs.)
• Light output: 791 LUX @ 2M; 193 LUX @ 4M (40-degree beam)
• Power Draw: 56W max
• Power Cable Length: 1.8m (IEC)
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 13”x11”x4.25”/328x280x105mm
• Weight: 8 lbs./3.3 kg.

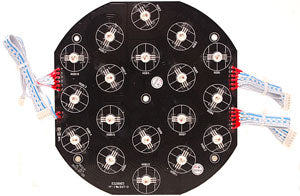

Flat Par TRI18XS Parts & Service
Our Flat Par TRI18XS Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Flat Par TRI18XS. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
