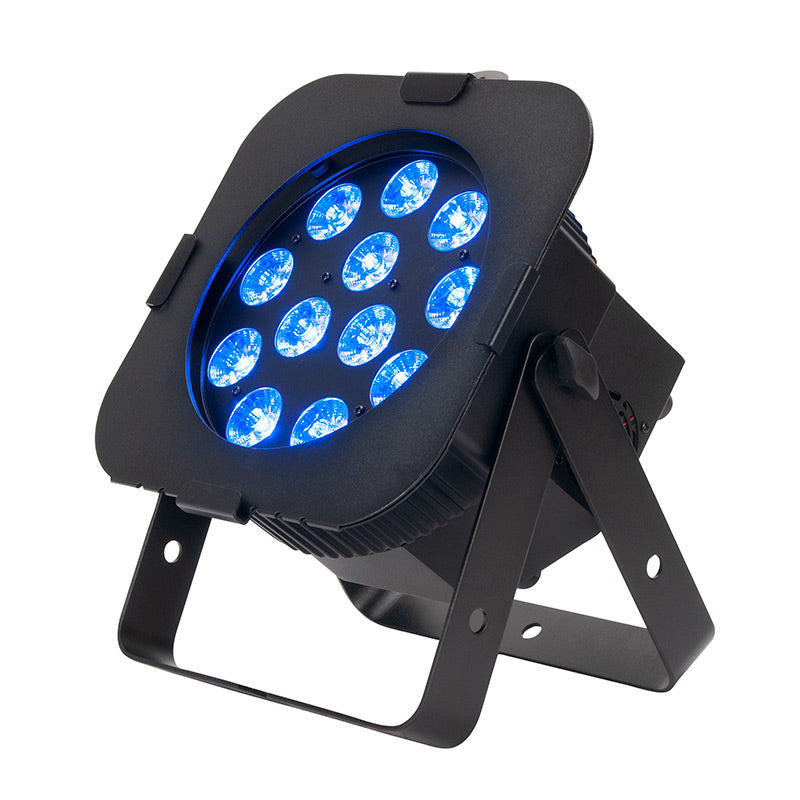

12PX HEX

FEATURES:

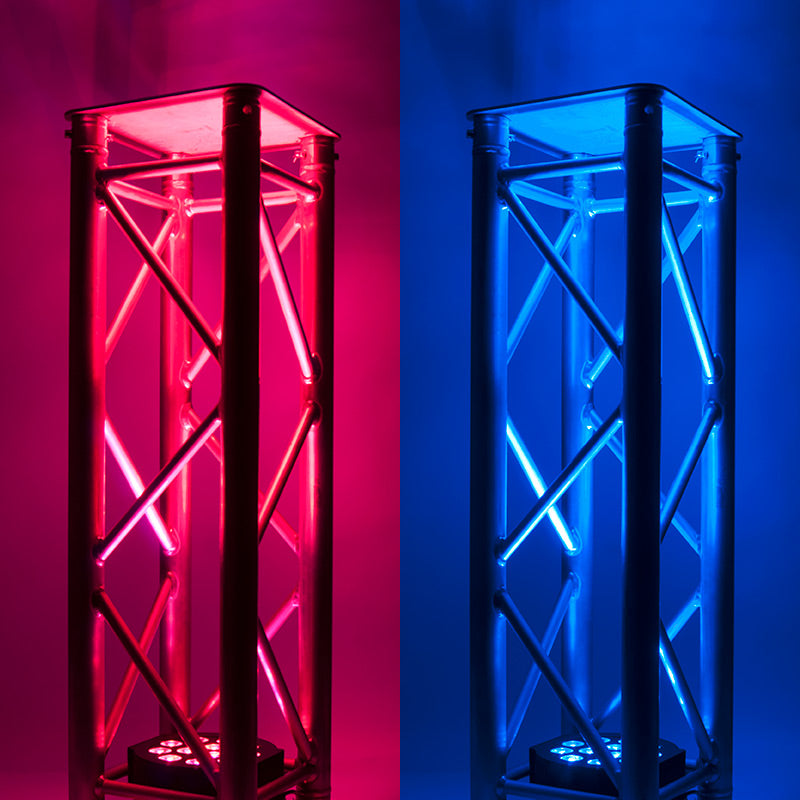

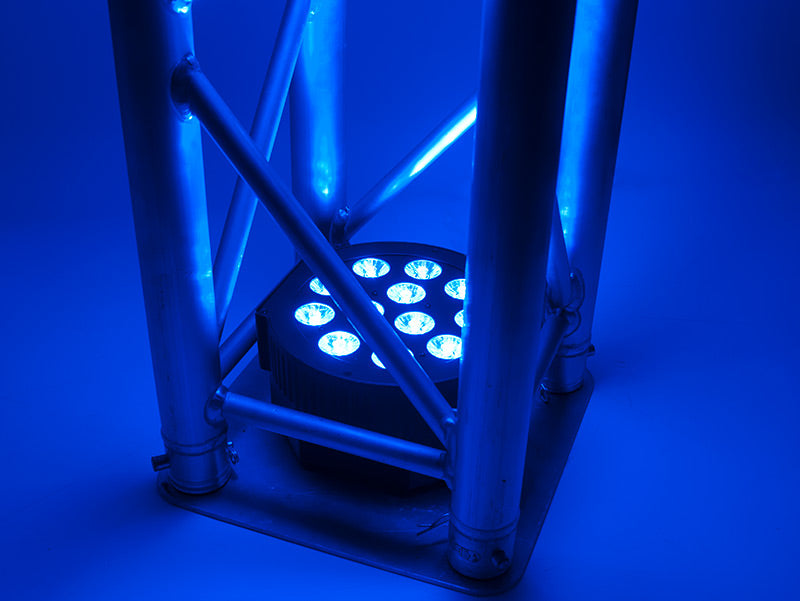

• Intelligently designed, patent pending power DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• Scissor yoke + rubber feet allows fixture to be hung or set on the ground

• Flicker Free operation (No flickering on camera)

• Smooth RGBAW + UV color mixing

• All metal black exterior housing

OPTICAL:

• Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White UV)

• LED life rated at approximately 50,000 hrs.

• Beam angle: 25-degree

CONTROL:

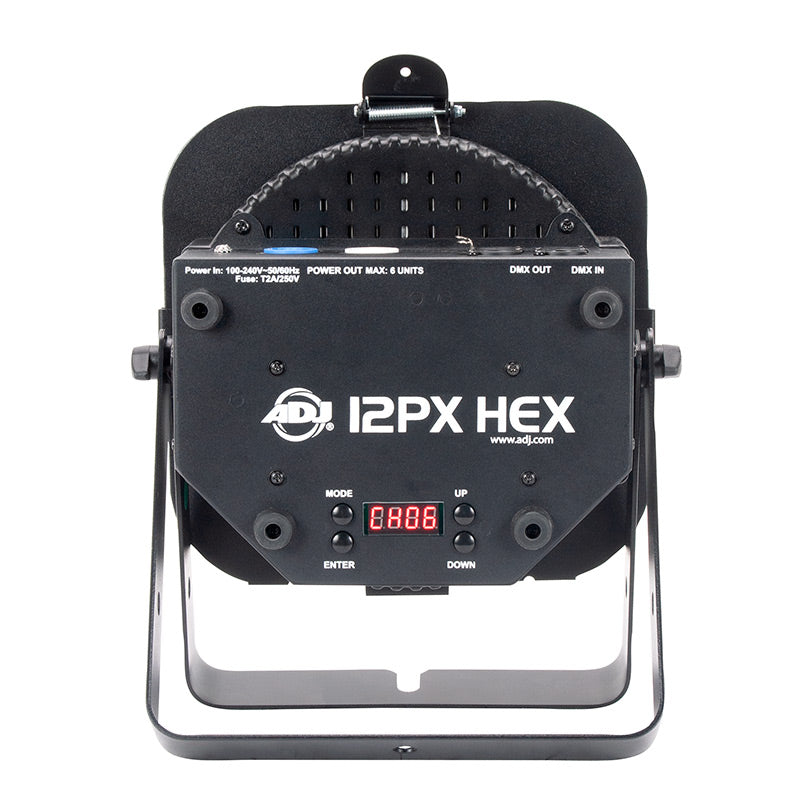

• 4-button, DMX digital display on rear panel

• Compatible with Dotz Par RF wireless remote control (sold separately)

• 7 Built-In Programs

• 63 built-in Color Macros

• 4 DMX Modes: 6, 7, 8, 12 channel

• 5 Operational modes: Static Color Mode, RGBAW UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled, RDM (Remote Device Management)

CONNECTIONS:

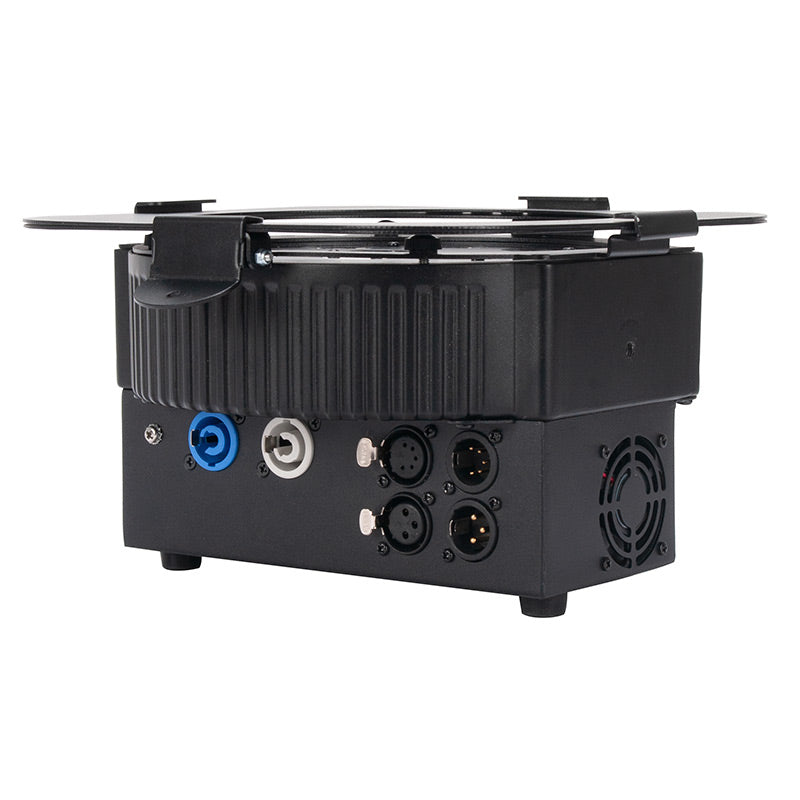

• Data linkable via 3-pin or 5-pin DMX connections

• Daisy chain power from locking power In/Out connections

• With Wired Digital Communication Network

ELECTRICAL:

• Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON power In/Out)

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 5.34” x 9.8” x 11.7”/ 136 x 249 x 297.5mm

• Weight: 8.7 lbs. / 4 kgs

WHAT’S IN THE BOX:

• Power cable

• Scissor yoke

• Gel frame to use with diffusion filters (Diffusion filters sold separately)

APPROVALS:

• cETLus Approved (Control #4010765)

• CE Approved
