5PX HEX

Name: 5PX HEX
Brand: ADJ
SKU: HEX355
Availability: InStock

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 12-Watt, 6-IN-1 HEX LEDs. Now with locking power In/Out connections, plus 3-pin and 5-pin DMX In/Out. The 5PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).

UPC: 818651025217

SKU: HEX355

5PX HEX

$0.00

Video

5PX HEX

Create brilliant wash lighting looks with the ADJ Lighting 5PX HEX LED Par Can! This versatile fixture combines cutting-edge technology with exceptional performance to illuminate your stage or architectural space like never before.

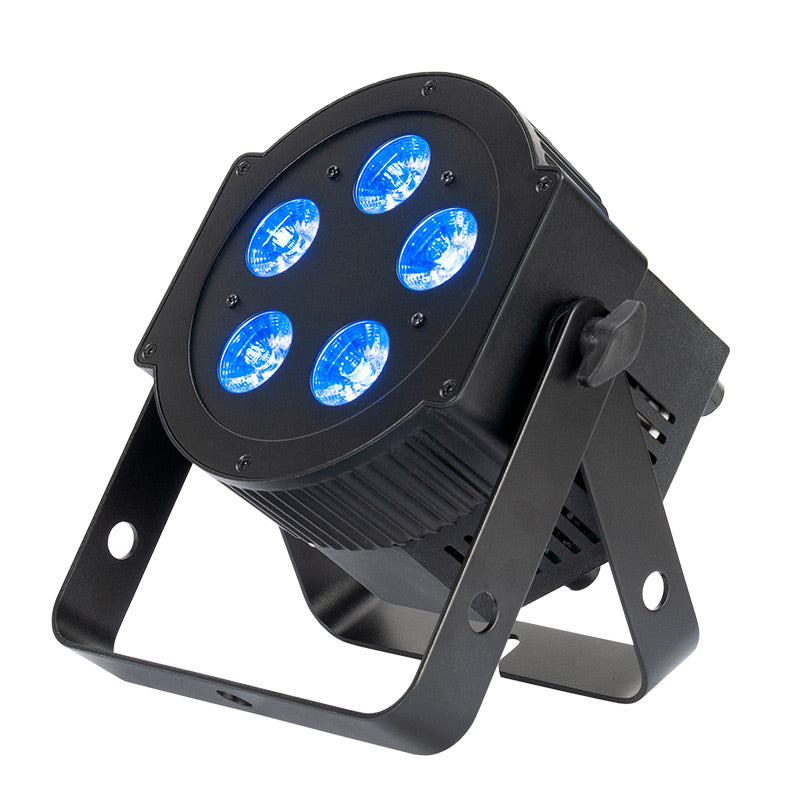

Featuring 5 x 10-Watt, 6-IN-1 HEX LEDs in a black housing, the 5PX HEX unleashes a powerful beam of light with a 25-degree angle, allowing you to create expansive washes and achieve smooth color blending. With 63 built-in color macros utilizing red, green, blue, amber, white, and UV LEDs, your creative possibilities are limitless.

Designed for professionals, this LED Par offers a range of advanced features. Choose from 4 DMX modes and 5 operational modes, and enjoy flicker-free operation with 5 selectable dimming curves. The user-friendly 4-button DMX menu with a digital display ensures effortless control.

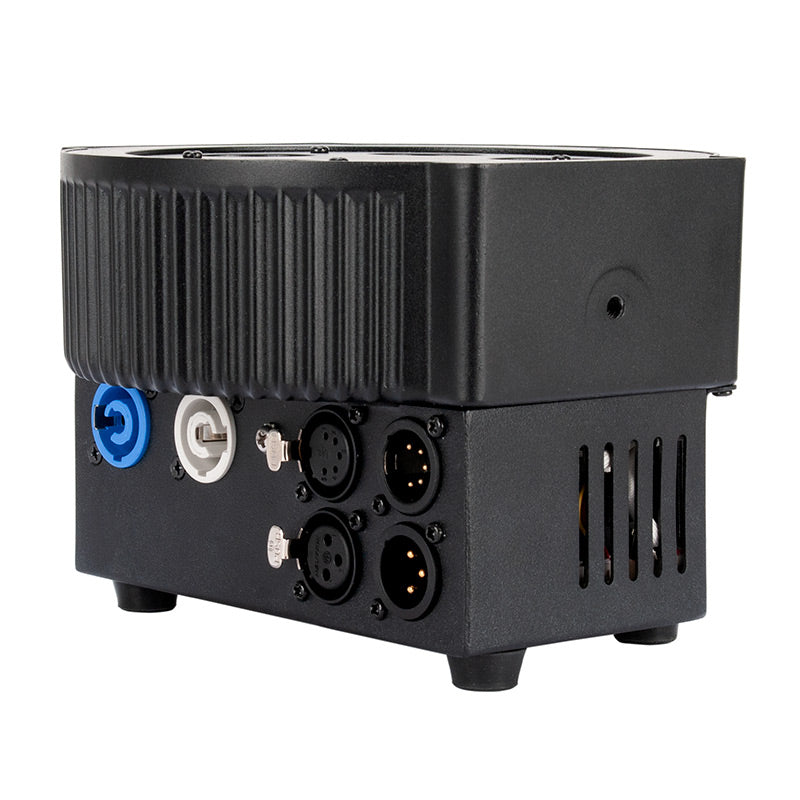

The 5PX HEX is not only versatile but also convenient. Its intelligently designed power and DMX Ins/Outs allow for flat placement on the ground or inside truss systems. The scissor yoke and rubber feet provide flexible mounting options. Plus, the all-metal black exterior ensures durability and style.

With a lifespan of approximately 50,000 hours, the 5PX HEX is built to last. Explore the captivating 7 built-in programs, or effortlessly operate the fixture using the optional Dotz Par RF wireless remote control. Alternatively, unleash your creativity with a DMX controller or utilize the unit's built-in programs.

This lightweight powerhouse weighs only 5.8 lbs. (2.6 kgs) and is easily transportable. The multi-voltage operation and daisy-chain capability make setup a breeze, while the cETLus and CE approvals guarantee its reliability and safety.

Unleash a mesmerizing display of colors, effects, and versatility with the ADJ Lighting 5PX HEX LED Par Can. Illuminate your world and captivate your audience with this extraordinary lighting solution.

Specifications

FEATURES:

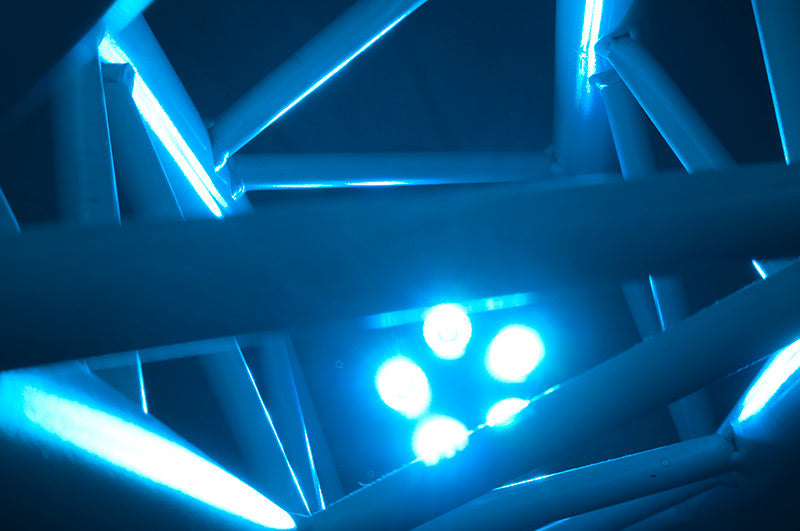

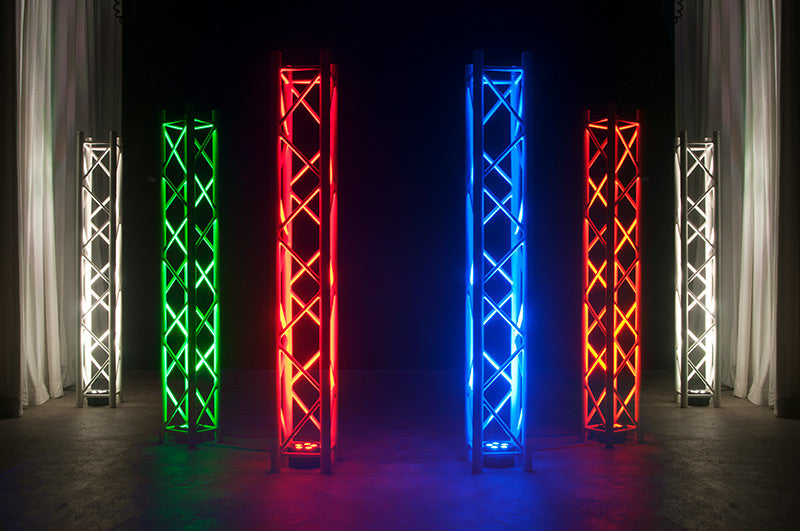

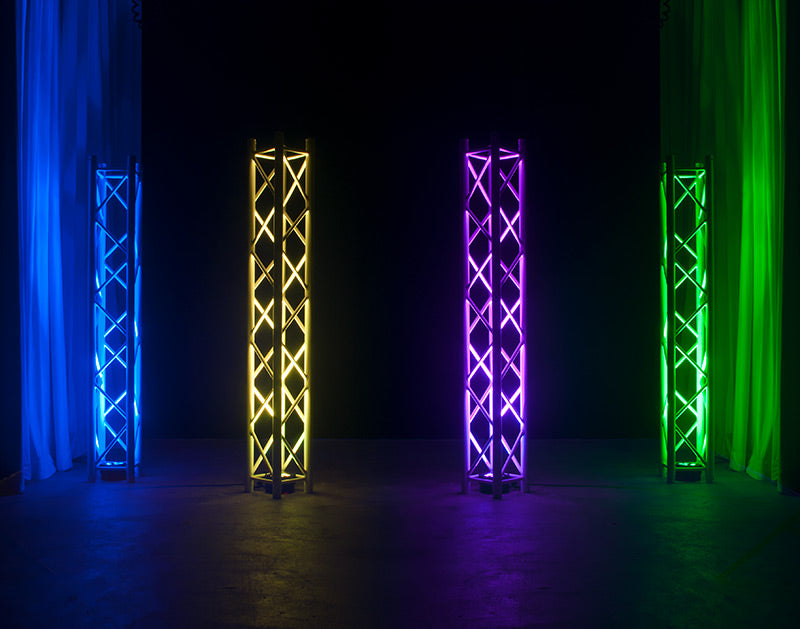

• Intelligently designed, patent pending power DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

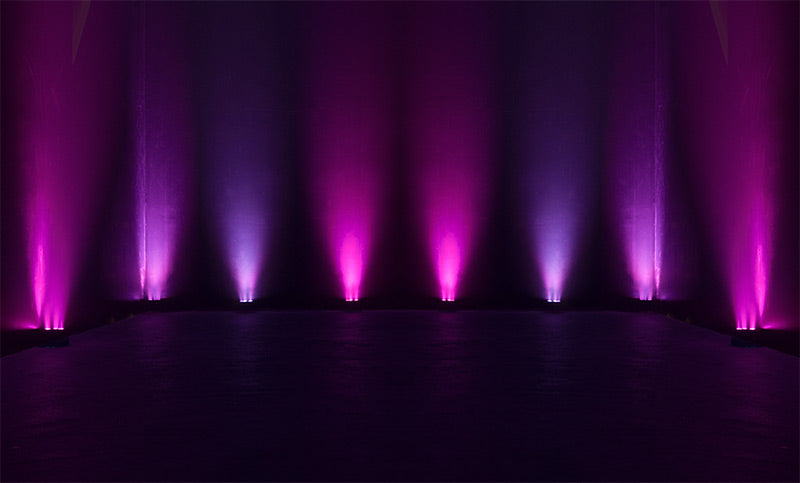

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground
• Flicker Free operation (No flickering on camera)
• Smooth RGBAW + UV color mixing
• All metal black exterior housing

OPTICAL:
• Light Source: 5 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White UV)
• LED life rated at approximately 50,000 hrs.
• Beam angle: 25-degree

CONTROL:

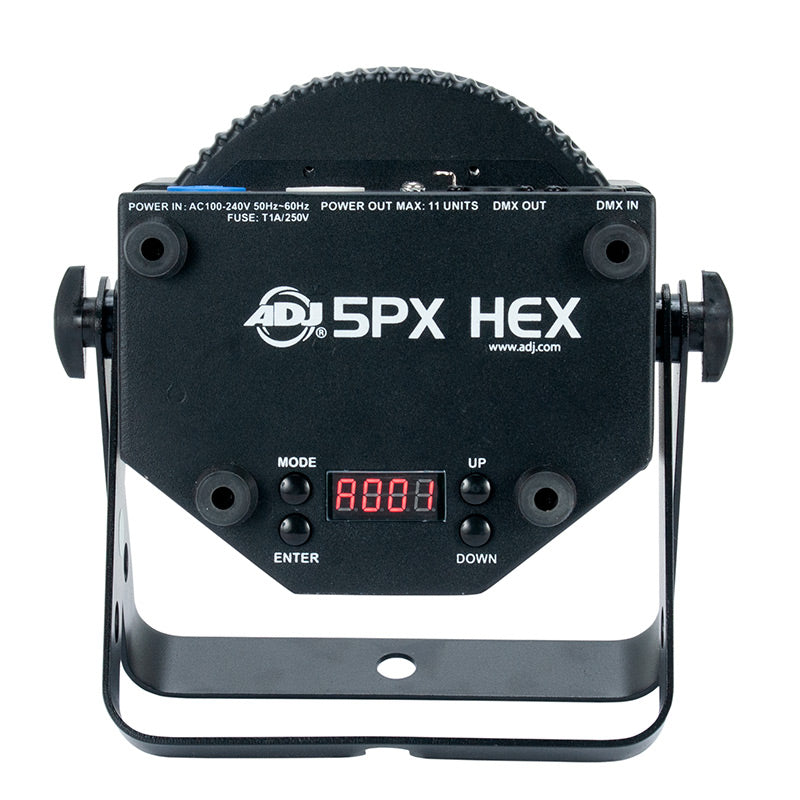

• 4-button, DMX digital display on rear panel
• Compatible with Dotz Par RF wireless remote control (sold separately)
• 7 Built-In Programs
• 63 built-in Color Macros
• 4 DMX Modes: 6, 7, 8, 12 channel
• 5 Operational modes: Static Color Mode, RGBAW UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural Theatre)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%

CONNECTIONS:

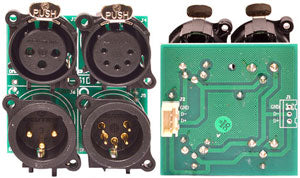

• Data linkable via 3-pin or 5-pin DMX connections
• Daisy chain power from locking power In/Out connections
• With Wired Digital Communication Network

ELECTRICAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz

• Daisy chain up to 11 fixtures

DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): 4.5” x 8.25” x 8.75”/ 114 x 208 x 222mm
• Weight: 5.8 lbs. / 2.6 kgs

WHAT’S IN THE BOX:
• Locking Power to Edison Cable
• Scissor yoke

APPROVALS:
• cETLus Approved (Control #4010765)
• CE Approved
