Encore LP5IP
This product is CE certified.
This product is ETL certified.

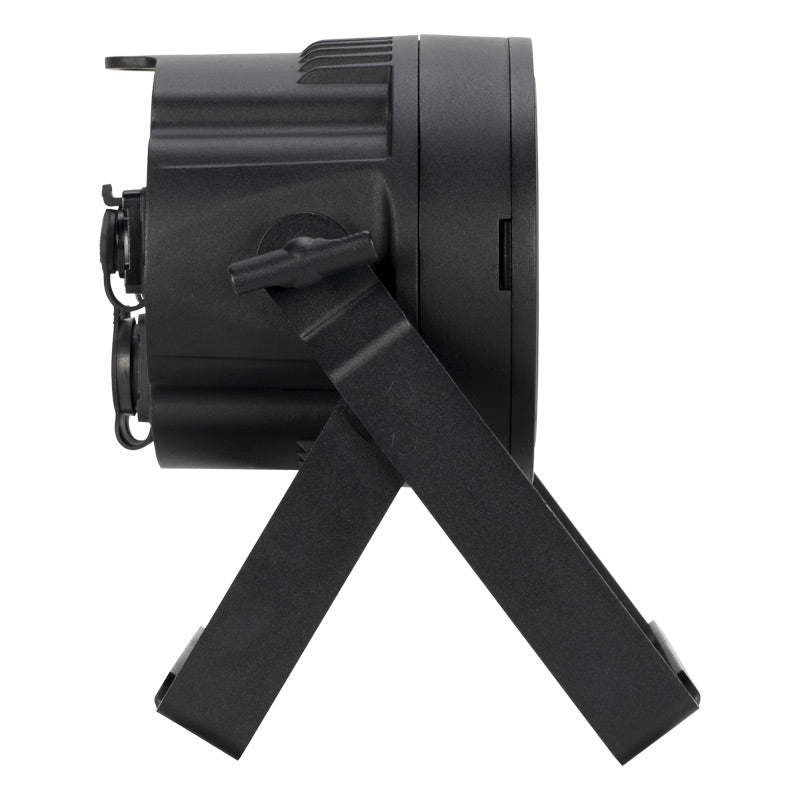

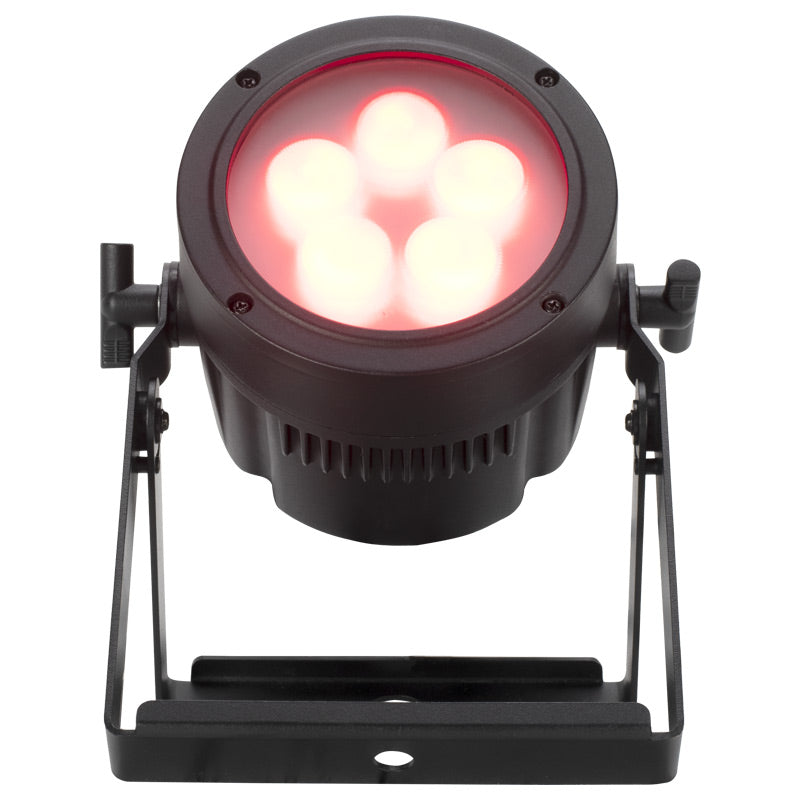

The ADJ Encore LP5IP is a versatile, heavy duty Par with five (5) 20W Quad LEDs (4-IN-1: Red, Green, Blue & Lime), a 10° beam angle, and all metal construction. It is IP65 outdoor rated to protect against, rain, snow and dust for temporary outdoor events. It offers flicker free operation for TV and film and linear white color temperature control from 2700K - 7000K. A removable 25° frost filter is included.
Encore LP5IP
Sale price$0.00
Key features
| Feature | Value |
|---|---|
| Beam Angle | 10 or 25-Degree |
| Color Temperature | 2700K ~ 7000K |
| LED Source | 5x 20-Watt RGBL LEDs |
| Outdoor Rating | IP65 |
| Output | 771 Lumens |
Video
Encore LP5IP
Available now from ADJ USA

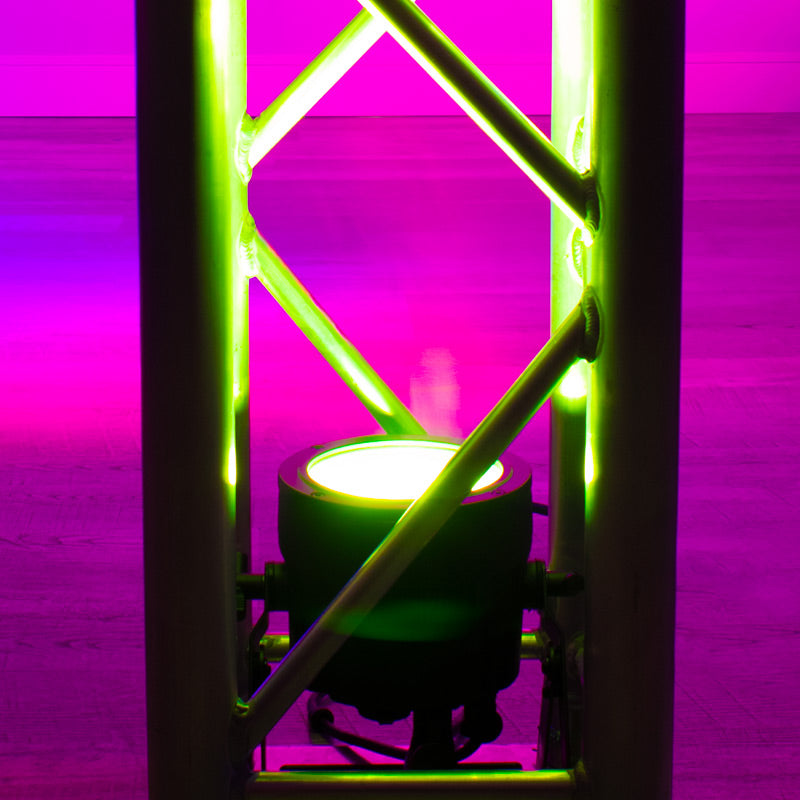

The ADJ Encore LP5IP is a versatile IP65 outdoor rated Par with 5 x 20-Watt (4-IN-1: Red, Green, Blue & Lime) Quad LEDs. With a 10° beam angle, users may produce wide washes with smooth color mixing from 64 built-in color macros utilizing red, green, blue and lime LEDs. Not only is this LED Par great for lighting indoor stages and venues, but with its IP65 rating, it’s a great solution for temporary outdoor lighting of stages or events. The IP65 rating helps protect the fixture from rain, snow and dust.The fixture’s Quad LED engine offers flicker free operation for TV and film and linear white color temperature control from 2700K to 7000K.
The Encore LP5IP professional features include: 6 DMX modes, 5 operational modes, 6 selectable dimming modes, 4 selectable dimming curves, and a 4-Button DMX menu with digital display. The unit is equipped with outdoor Locking Power connectors and IP rated 5-pin DMX rubber covers and connectors. IP rated power linking and DMX cables are available, but standard 5-pin DMX cables may also be used for indoor applications.

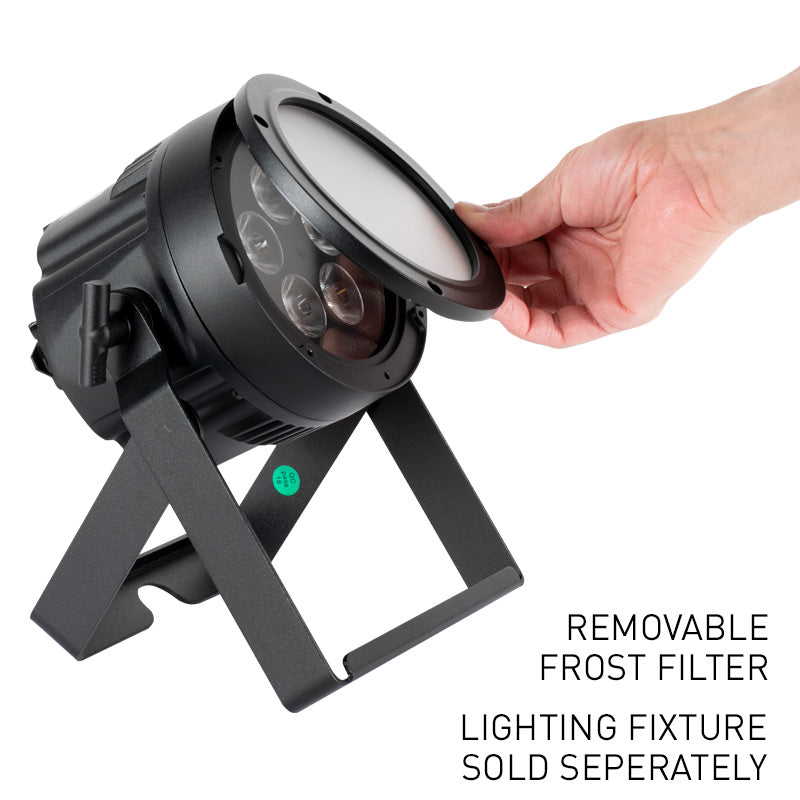

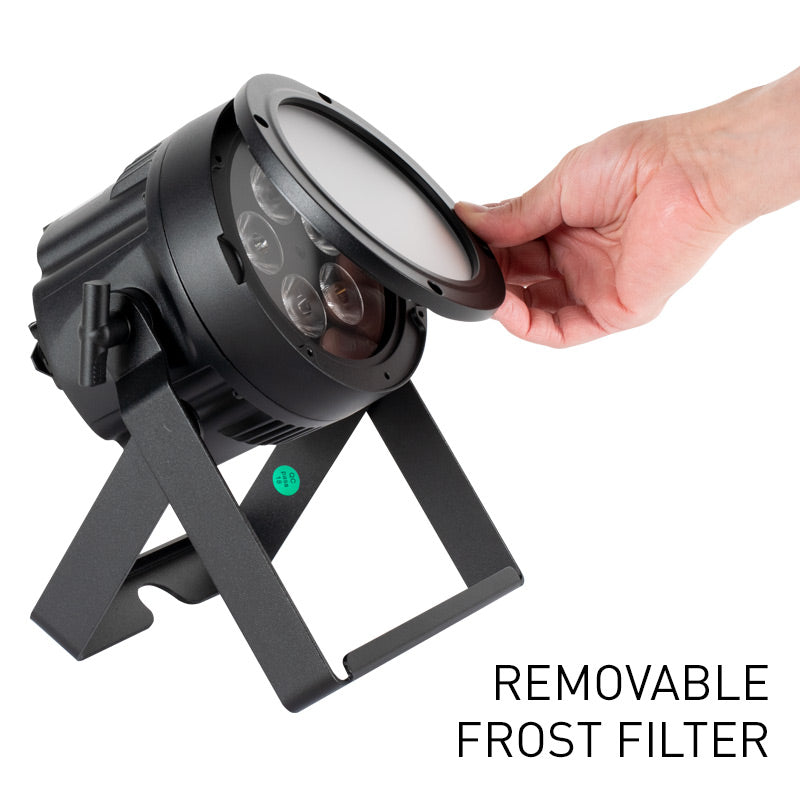

The Encore LP5IP includes a removable 25° frost filter. There are several additional frost filter options (sold separately) that customize the beam angle.
Specifications
SOURCE:
• Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue amp; Lime)
• Rated Life: 50,000 hr.
PHOTMETRIC DATA:
High CRI Data
• Beam Angle: 9.7°
• Field Angle: 18.8°
• CRI: 83
• CRI R9: 54
• Color Temperature: 6942K
• Lux: 2179 @ 3M, 785 @ 5M
• Lumens: 771
Full ON Data
• Beam angle: 9.6°
• Field Angle: 18.8°
• CRI: 67
• CRI R9: -98
• Color Temperature: 21188K
• Lux: 1766 @ 3M, 636 @ 5M
• Lumens: 607
EFFECTS:

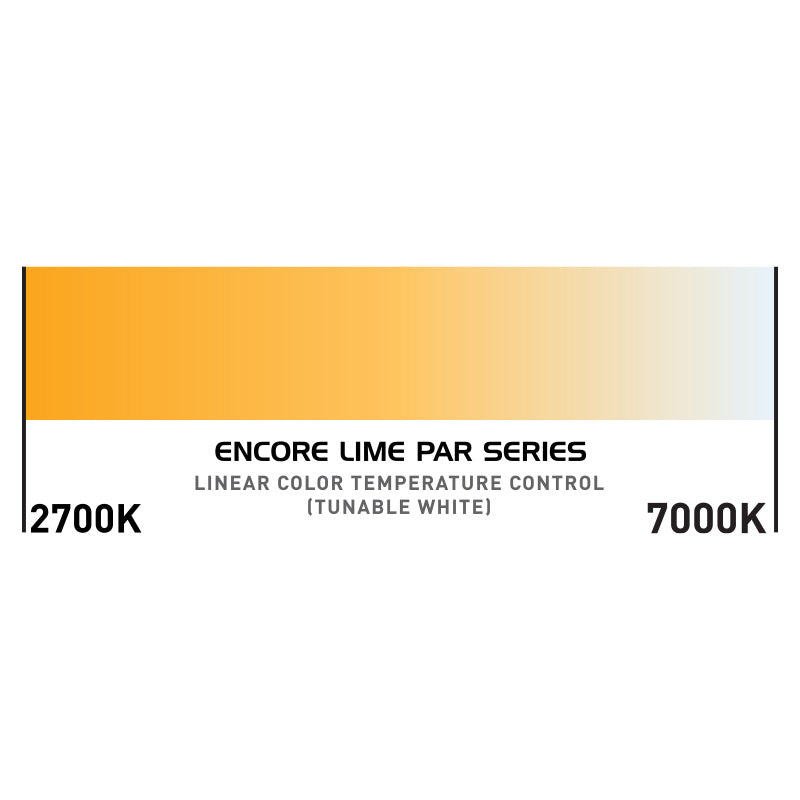

• Linear Color Temperature Control (2700K to 7000K)

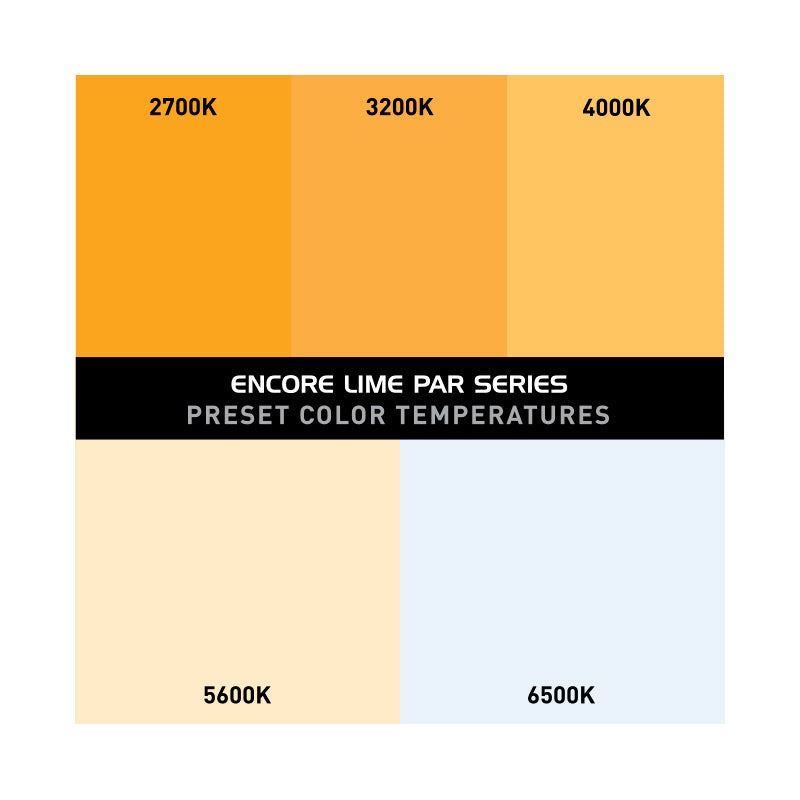

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Color Control (Red, Green, Blue amp; Lime)
• 64 built-in Color Macros
CONTROL / CONNECTIONS:

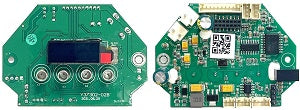

• 4-button, DMX digital display on rear panel
• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre amp; Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 DMX Modes: 4, 7, 8, 10, 13, amp; 16-channel
• Quiet fan mode
CONSTRUCTION:

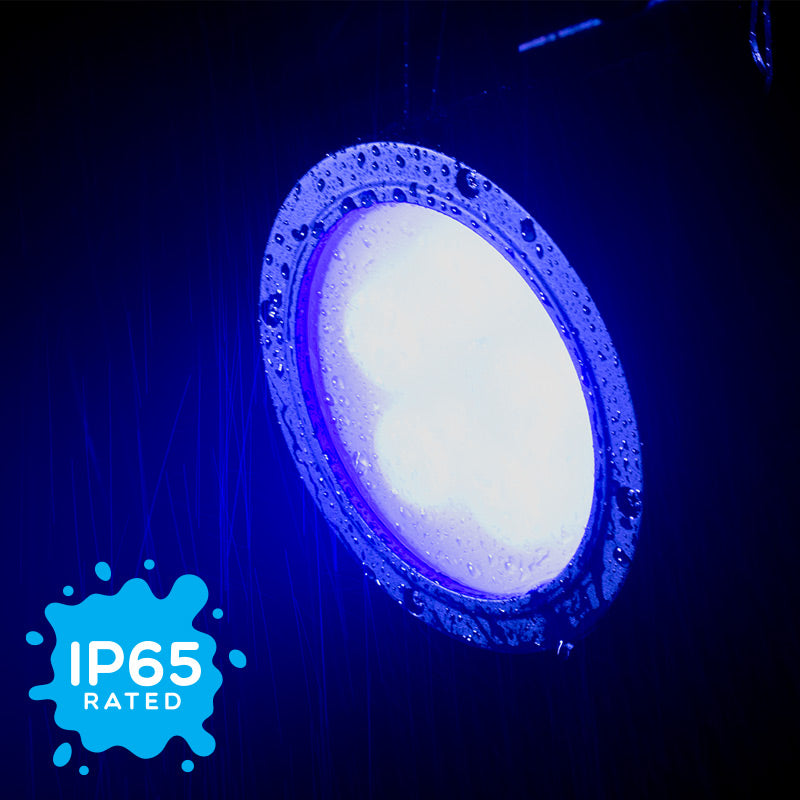

• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction

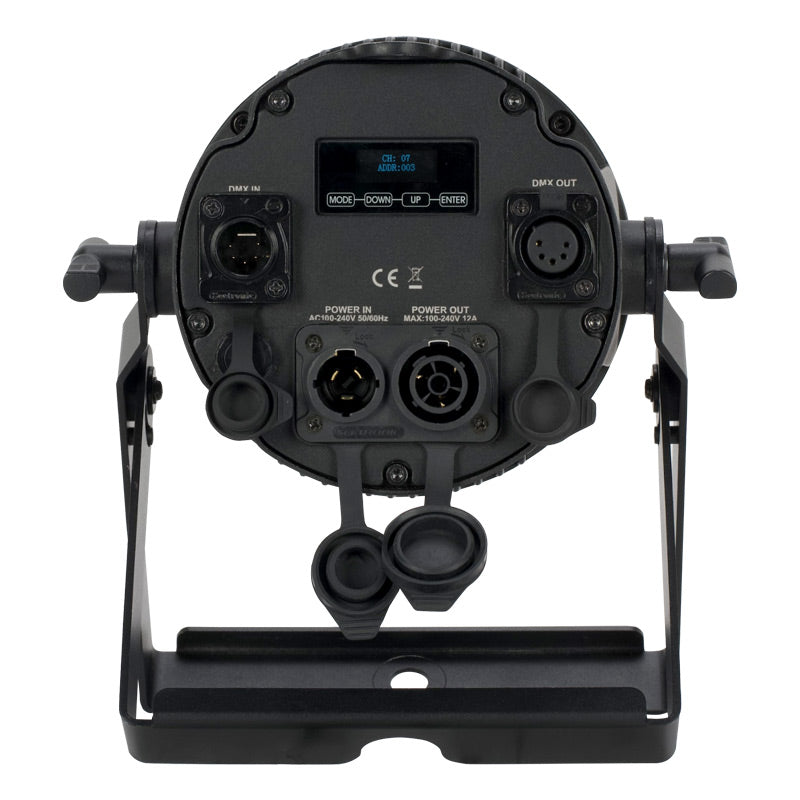

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke amp; safety eye
ELECTRICAL / THERMAL:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 21 units max (110V) / 44 units max (240v)
• Max power: 32W
• Min/Max Ambient Temperature: -20ºC ~ 45ºC
DIMENSIONS / WEIGHT:
• Dimensions (LxWxH): Dimensions (LxWxH): 5.9” x 8.2”x 10.1” / 150.6mm x 209.0mm x 255.0mm
• Weight:5.3 lbs / 2.4 kgs
APPROVALS / RATINGS:
• cETLus (Control #4010765)
• IP65
INCLUDED ACCESSORIES:
(1) 25° Frost Filter
(1) Power Cord

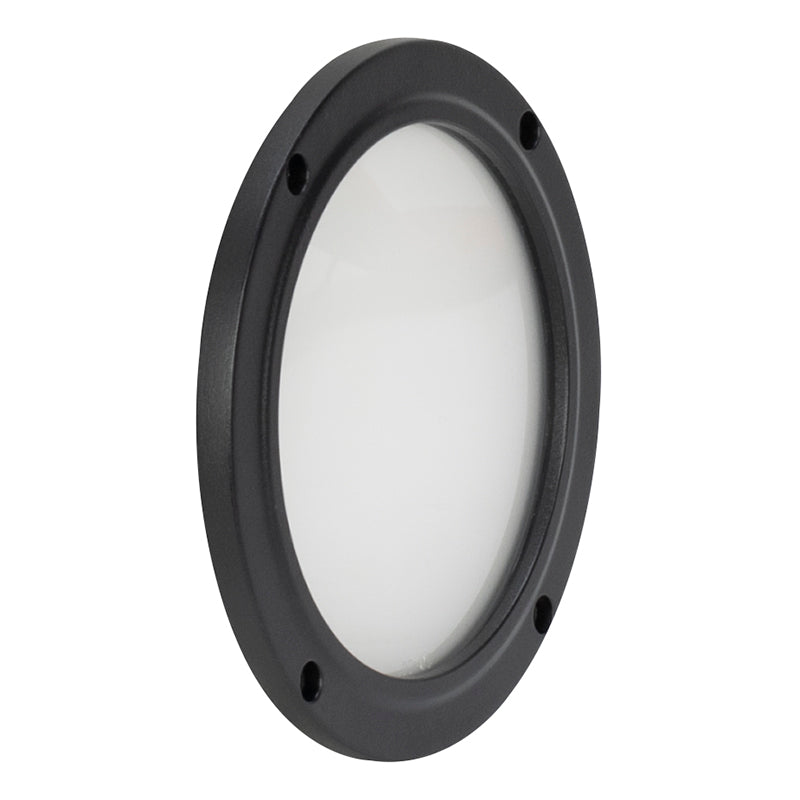

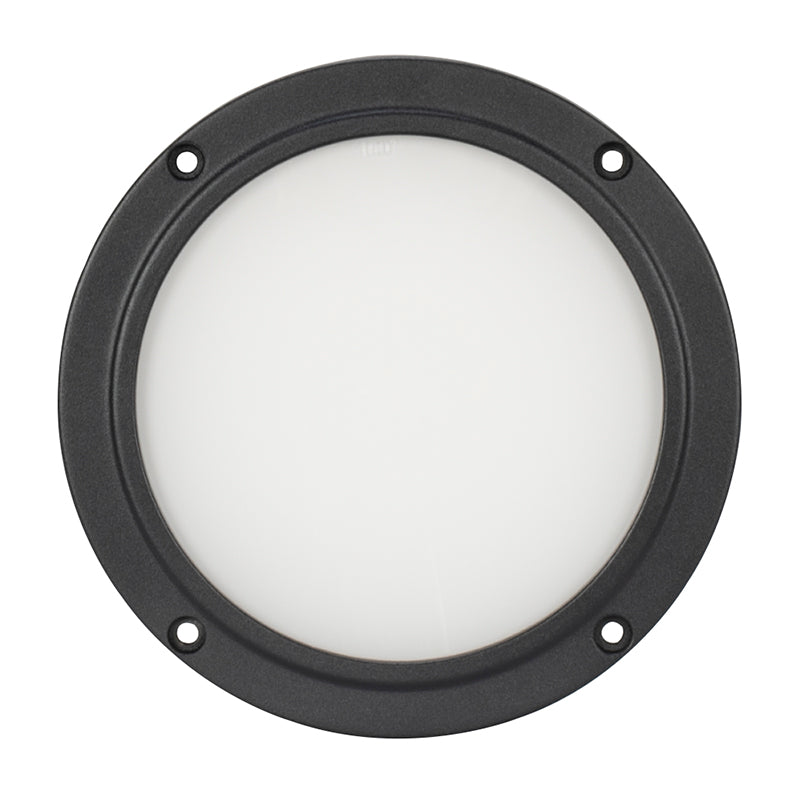

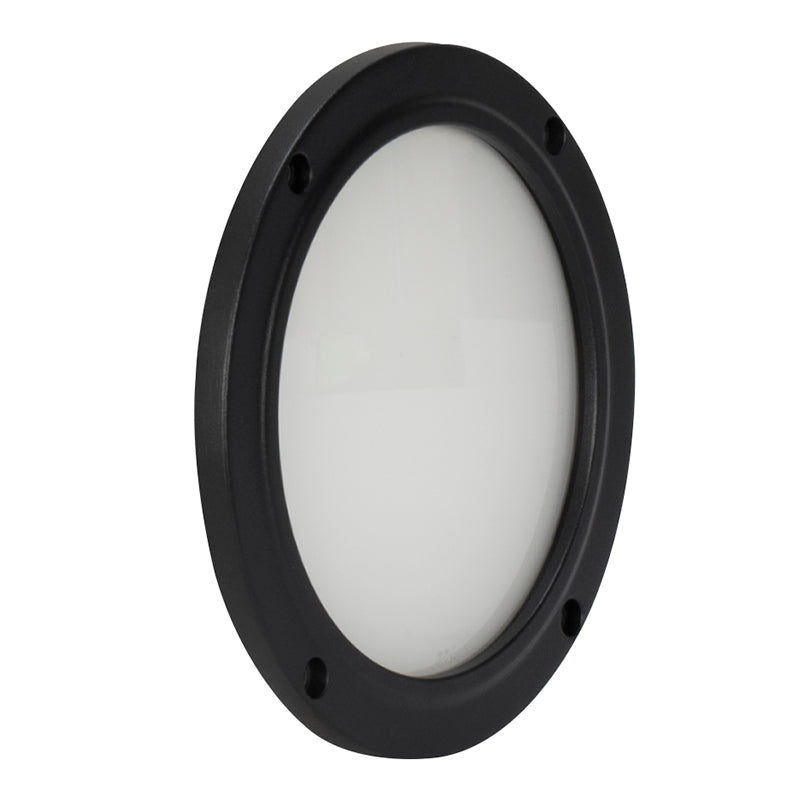

OPTIONAL ACCESSORIES:

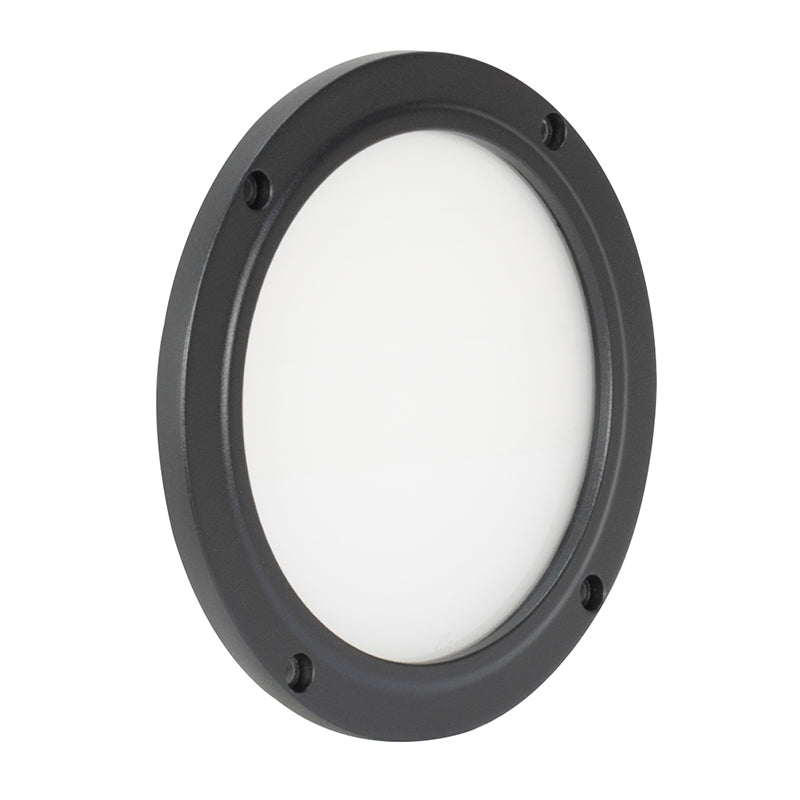

ELP5L100: 100-degree frost filter for the Encore LP5IP

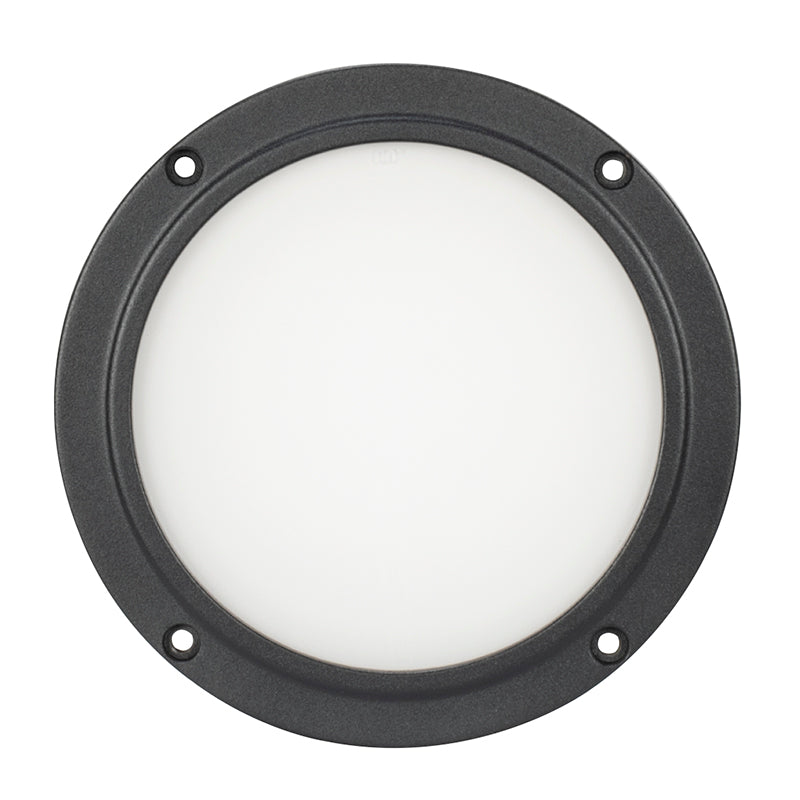

ELP5L60: 60-degree frost filter for the Encore LP5IP
ELP5L30X60: 30x60-degree frost filter for the Encore LP5IP

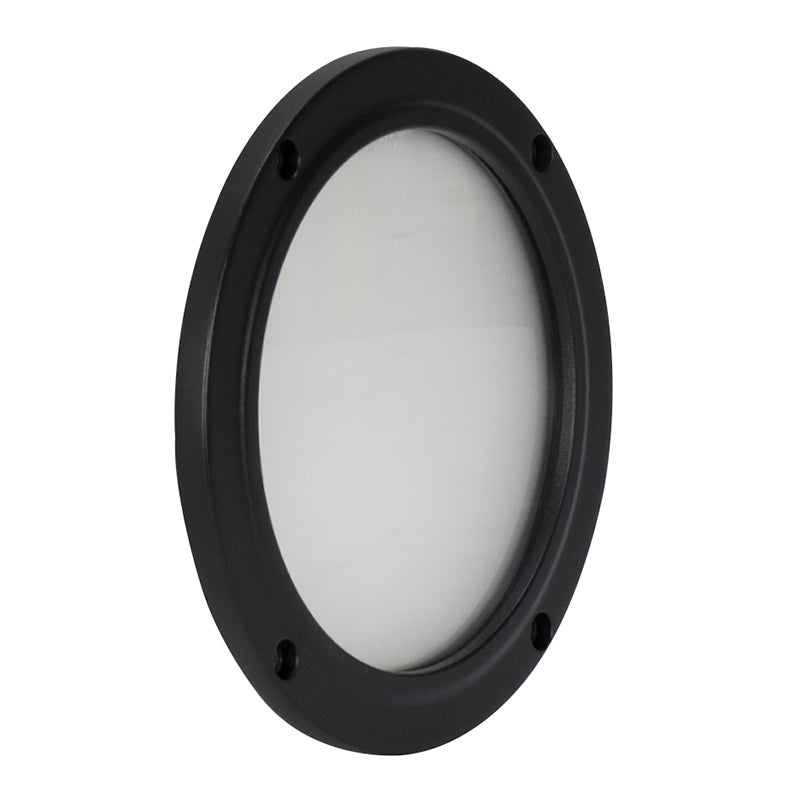

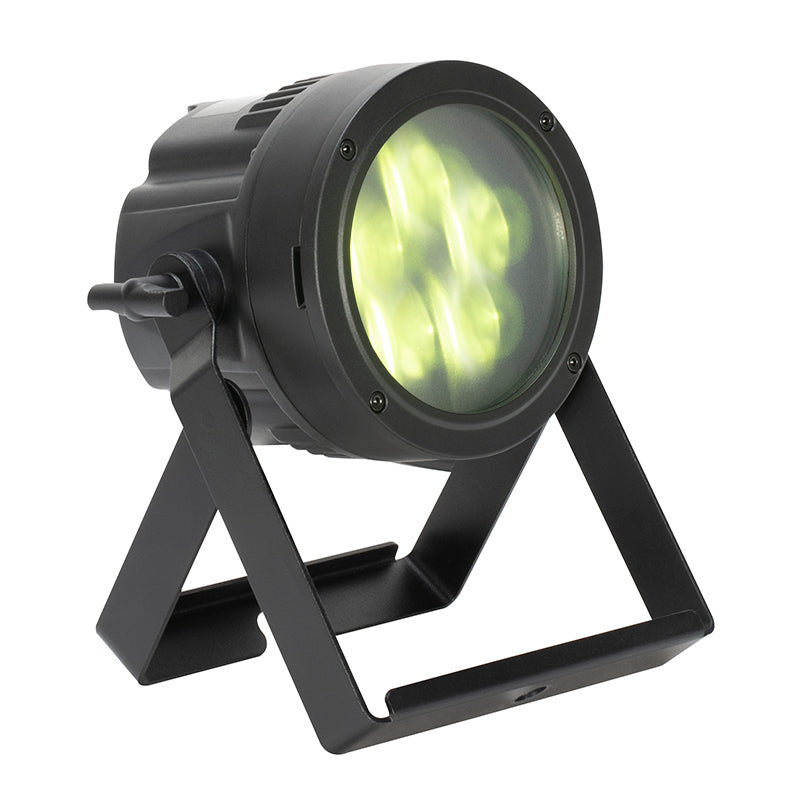

ELP5L1X40: 1x40-degree frost filter for the Encore LP5IP

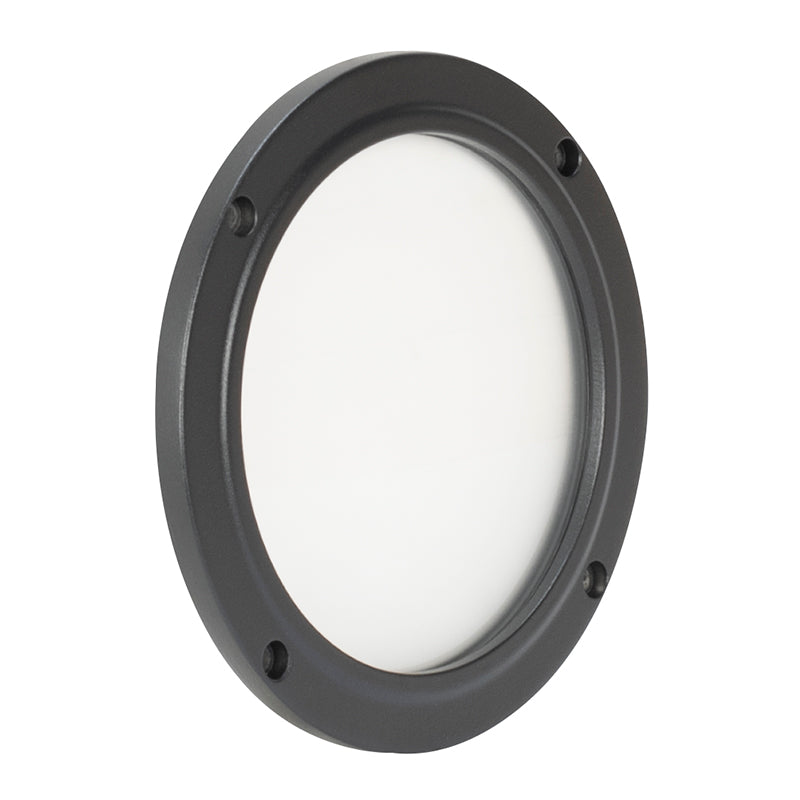

ELP5L20: 20-degree frost filter for the Encore LP5IP
Specifications are subject to change without notice.
