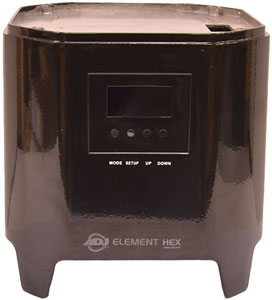

Element Hex

Name: Element Hex
Brand: ADJ
SKU: ELE001
Availability: InStock

This item is discontinued

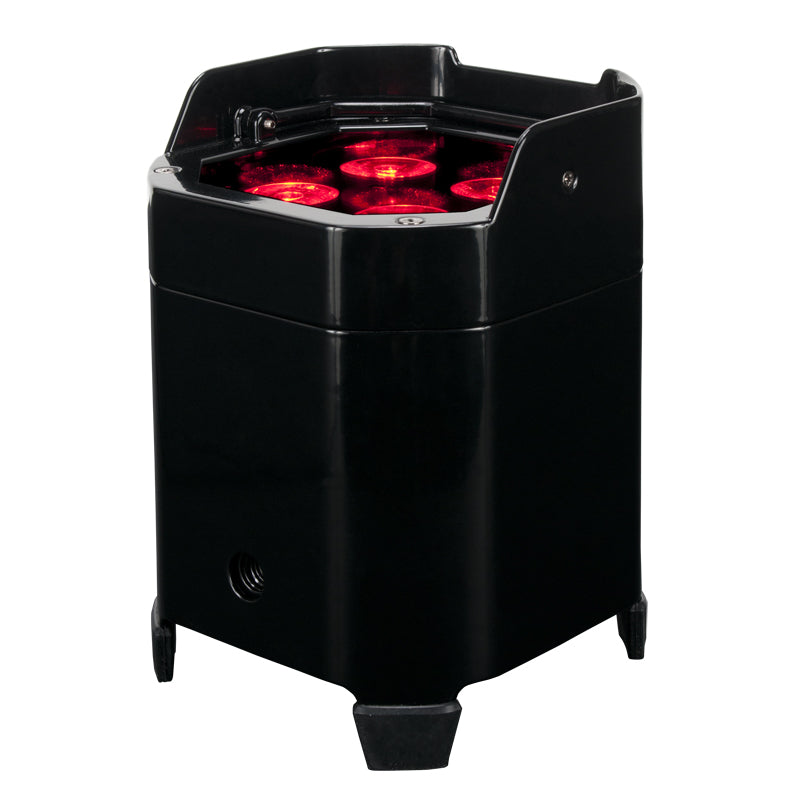

The Element Series is a battery powered, WiFLY wireless DMX LED Par Series from ADJ. The Element Hex features four 10W RGBAW+UV (6-IN-1) LEDs and is intended for indoor use.

UPC: 818651020496

SKU: ELE001

Element Hex

$0.00

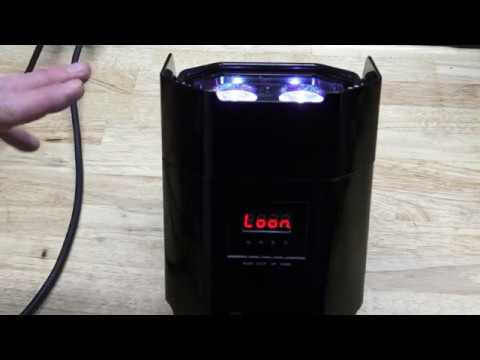

Video

Element Hex

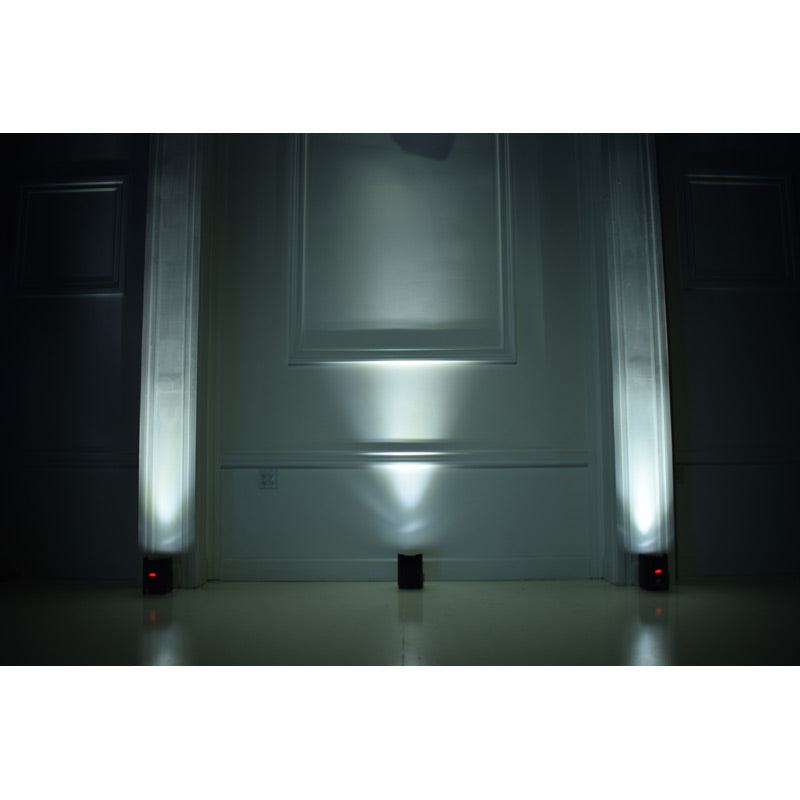

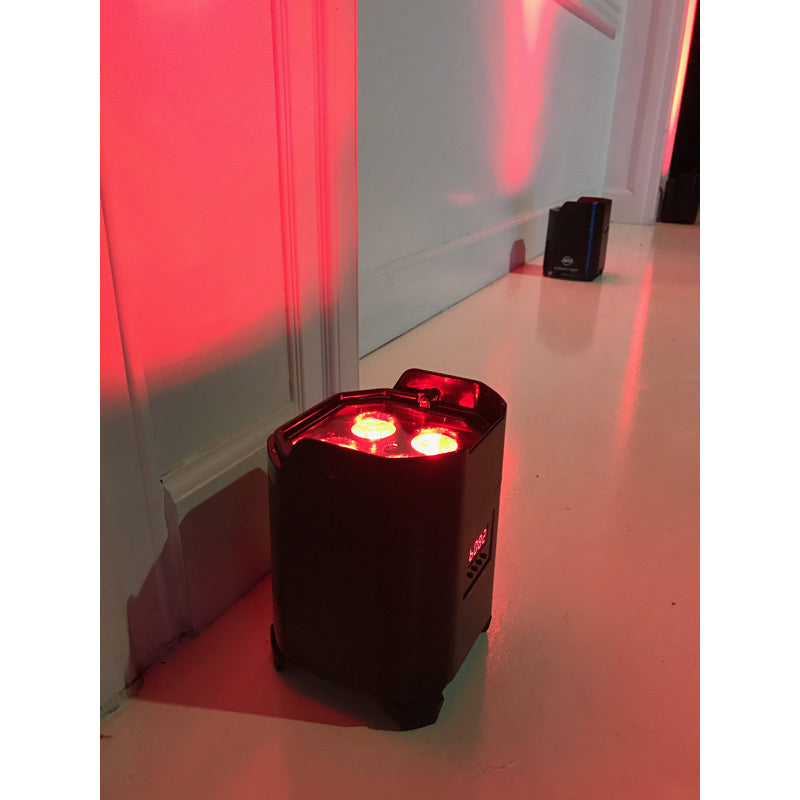

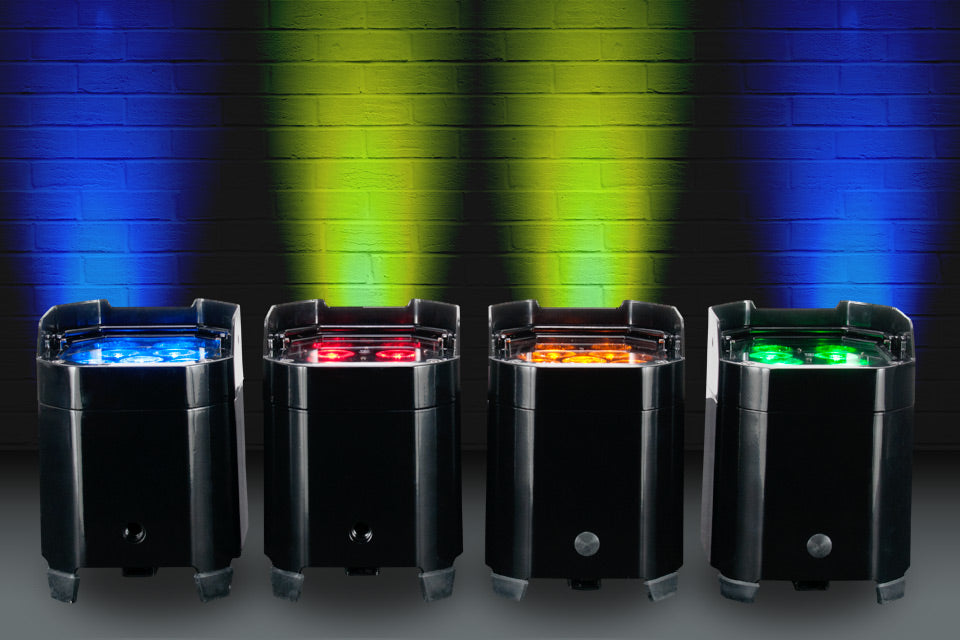

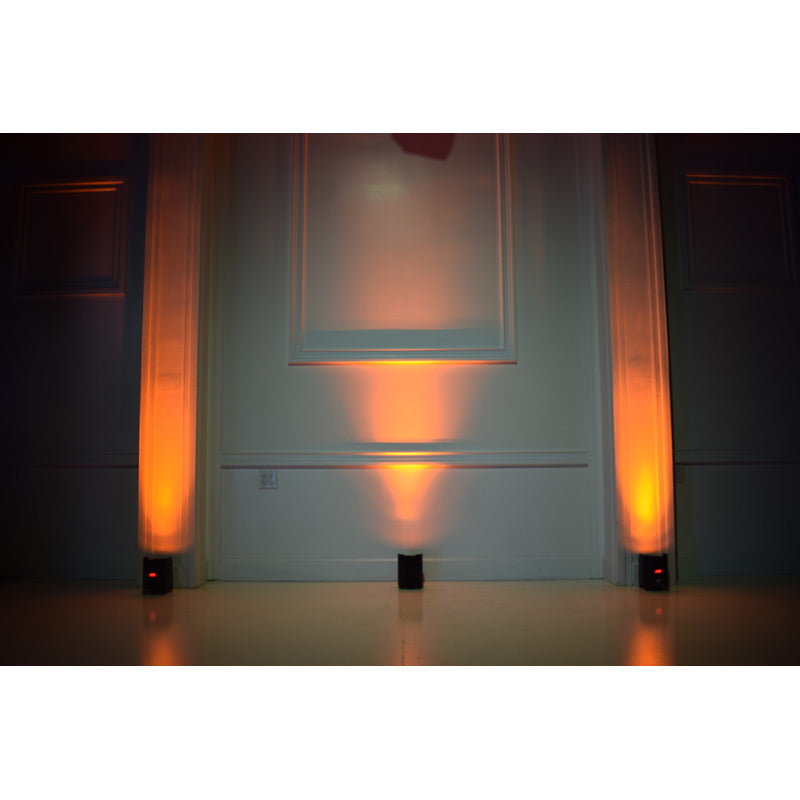

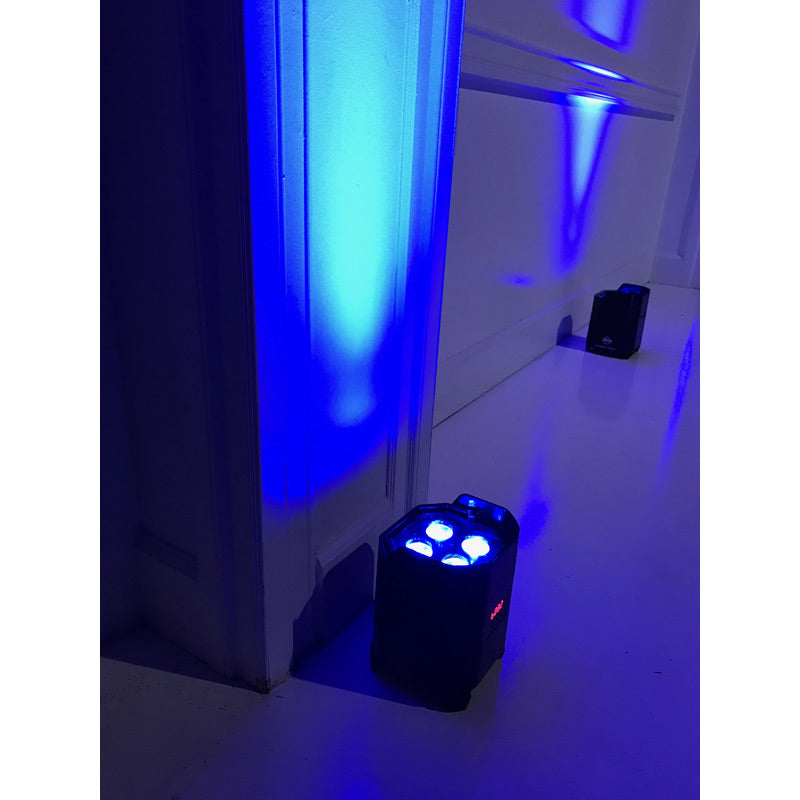

Available now from ADJ USAFrom the Element Par Series, the Element HEX is a battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor use. It’s powered by four 10W RGBAW+UV (6-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

Learn more about the Element Series from this product spotlight article: http://tinyurl.com/y7mdo69e

Read the press release here: http://tinyurl.com/y9mhvp9e

Specifications

Optical:

• 4 x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White UV)

• Life expectancy: rated at 50,000 hrs.

• LUX: 684@ 2M; 171 @ 4M

• Beam angle: 20-degree

• PWM frequency:1000Hz

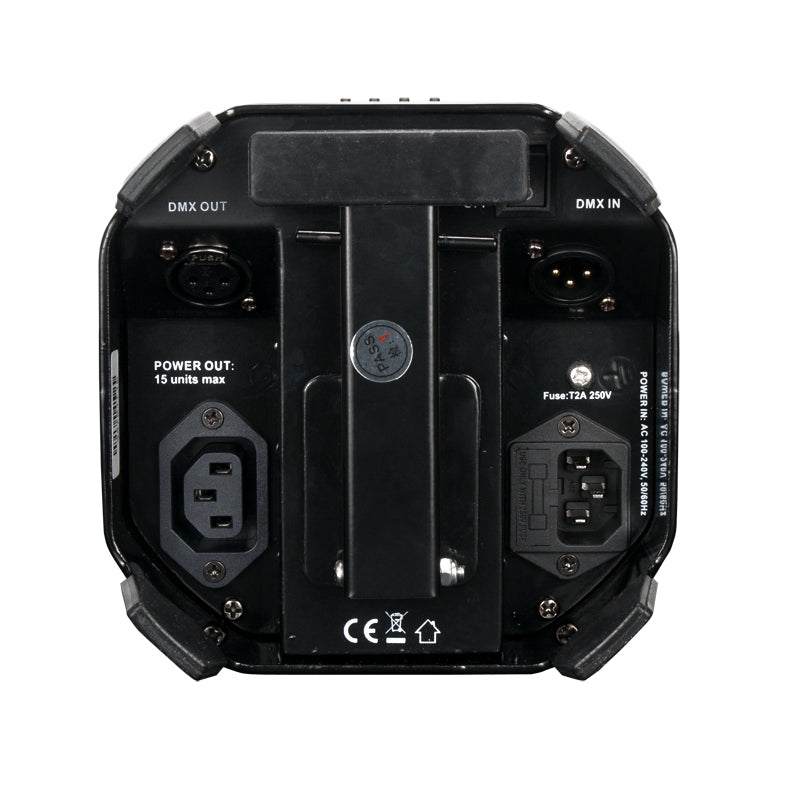

Connection:

• DMX:3-pin DMX In/Out

• With Wired Digital Communication Network

• IEC In/Out to power battery or daisy chain fixture

Control:

• Control protocol: WiFLY EXR DMX, 3-pin DMX

• 5 DMX Channel modes: 6, 7, 8, 11 12

• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR

• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

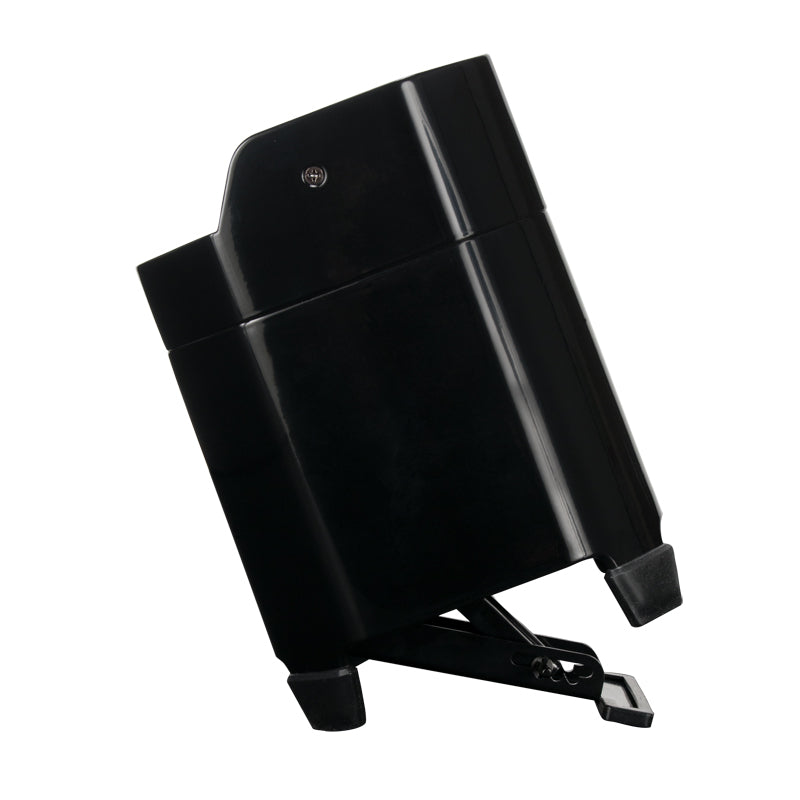

• Built-in kickstand to angle figure while it’s on the floor

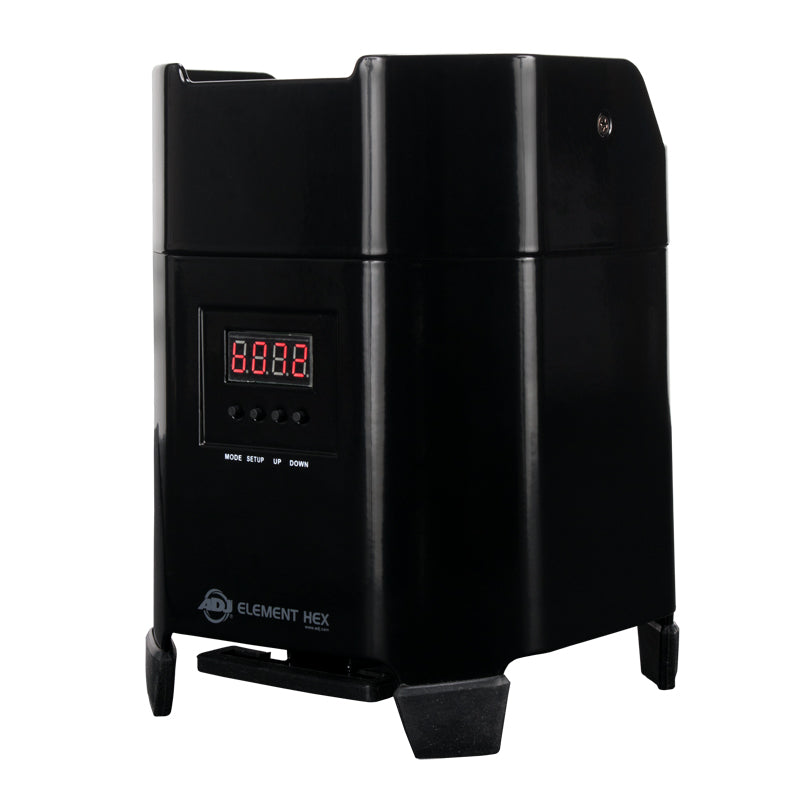

• 4-button DMX menu display on rear panel

• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver

• 63 built-in Color Macros

• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!

• LED pulse and strobe effect (0.2Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 5 dimming curves

• Run all night – No duty cycle

• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery

• Battery Energy: 73.26WH (Watt Hours)

• Battery Weight: 0.42 kg.

• Battery Voltage: 11.1V

• Battery Capacity: 6.6AH

• Total Lithium Ion Cells: 9 pieces

• Battery Wrap Material: PVC sleeving + highland barley paper

• Battery Charge Time: 4.5 Hours (With POWER switch On)

• Battery Life: 16 hours (Full charge, single color, Battery Saving mode ON)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,

• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.67” x 5.67” x 7.66” / 144.06 x 144.06 x 194.5mm

• Weight: 6.5 lbs. / 2.9kg.

Certifications:

• cETLus Approved (Control #4002034)

• CE Approved

• IP20 Indoor rated
