Element ST HEX
This product is CE certified.
This item is discontinued

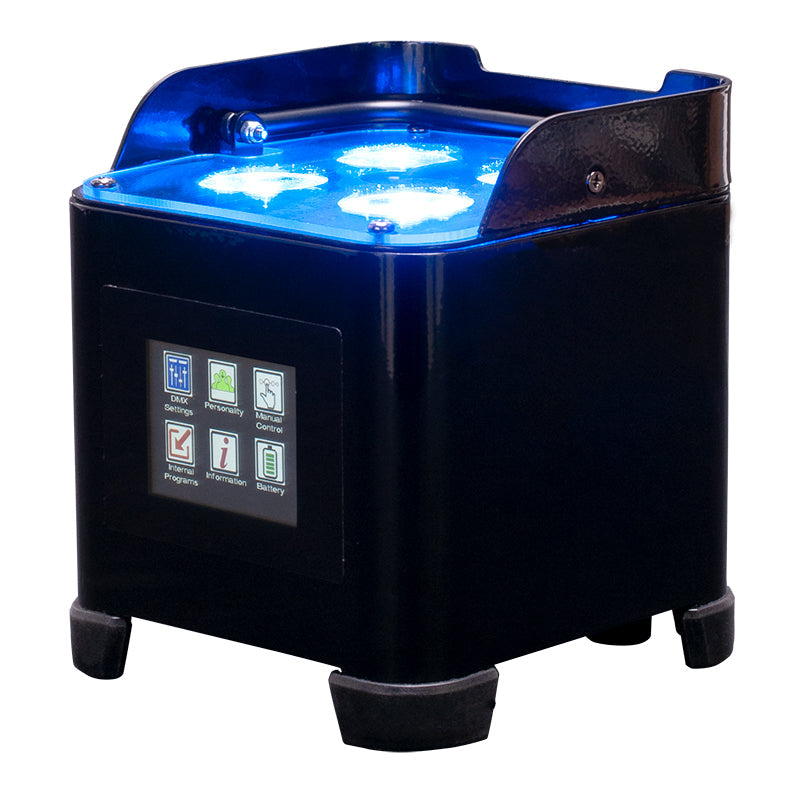

The ADJ Element ST HEX is a battery powered wireless LED up-light powered by four 6W HEX LEDs (RGBWA+UV). It features a compact design, WiFLY wireless DMX connectivity, variable-angle kick-stand and a full-color touch screen.
Element ST HEX
Sale price$0.00
Video
Element ST HEX
Available now from ADJ USA
The ADJ Element ST HEX is the of the latest addition to ADJ’s Element series of battery powered wireless LED up-lighters. Building on the success of ADJ’s popular Element Hex, the new model features an extremely compact design as well as a full-color touch screen display for extremely easy setup and DMX addressing. Utilizing the power of 4 x 6-Watt RGBAW+UV LEDs to generate a powerful wash of color with a 20-degree beam angle, the fixture features a built-in rechargeable battery that offers up to 8 hours of continuous operation as well as ADJ’s WiFLY EXR wireless DMX connectivity. Cleverly designed with a built-in variable-angle kick-stand and convenient carry handle, the unit is ideal for production companies, décor specialists and mobile entertainers.Specifications
Optical:
• 4 x 6-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: >412@3M(9.8 ft.)
• Beam angle: 20-degree
Connection:

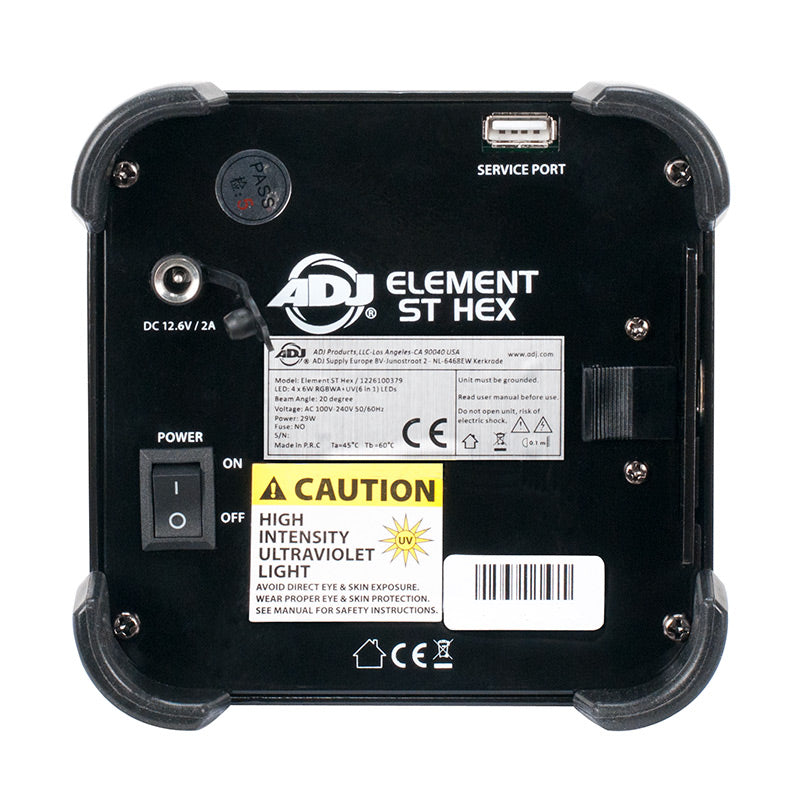

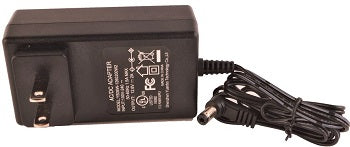

• 12.6VDC Power Input
Control:
• Control protocol: WiFLY EXR wireless DMX
• 5 DMX Channel modes: 6, 7, 8, 11 12
• WiFLY EXR Wireless DMX built-in

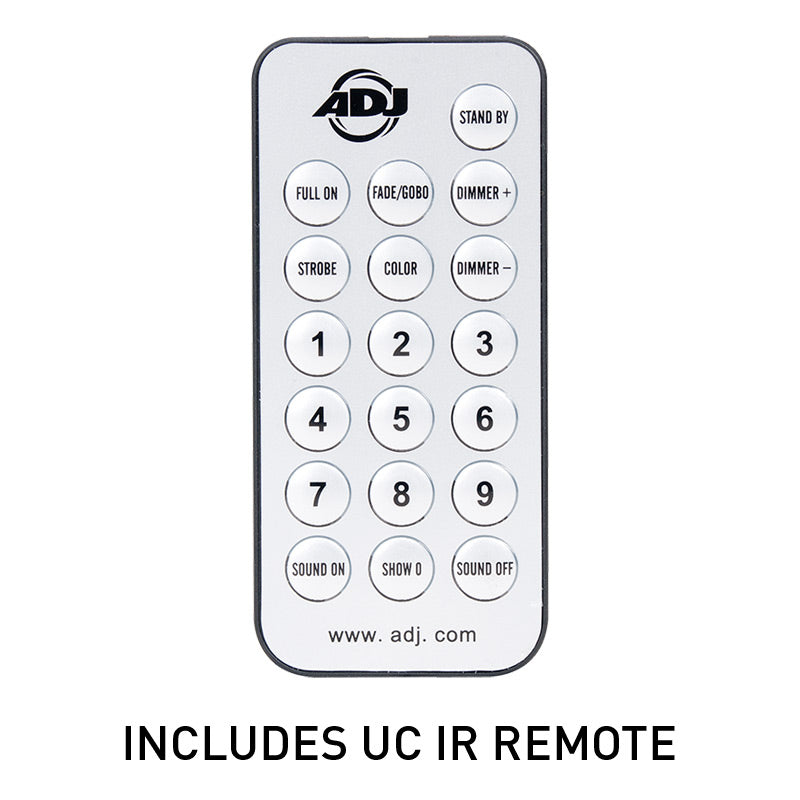

• UC-IR infrared wireless remote (included)
• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Internal program mode; color macro mode; and DMX Controlled

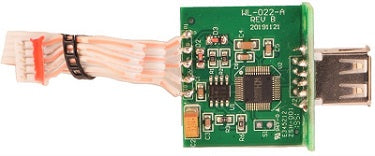

• USB service port
Features:
• Menu selectable languages: English or Spanish

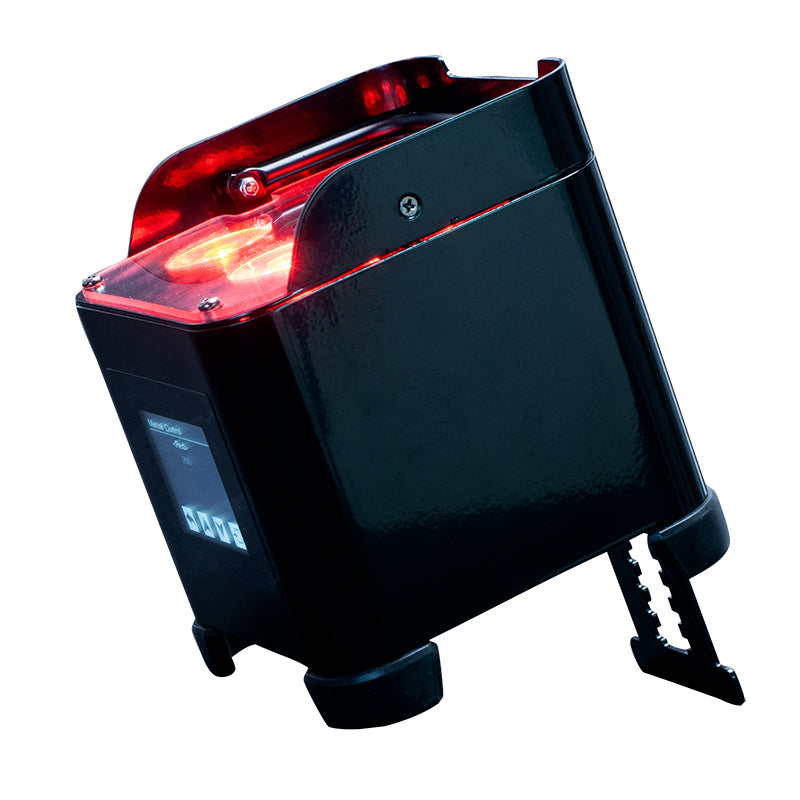

• Built-in tilt adjustment leg to angle figure while it’s on the floor

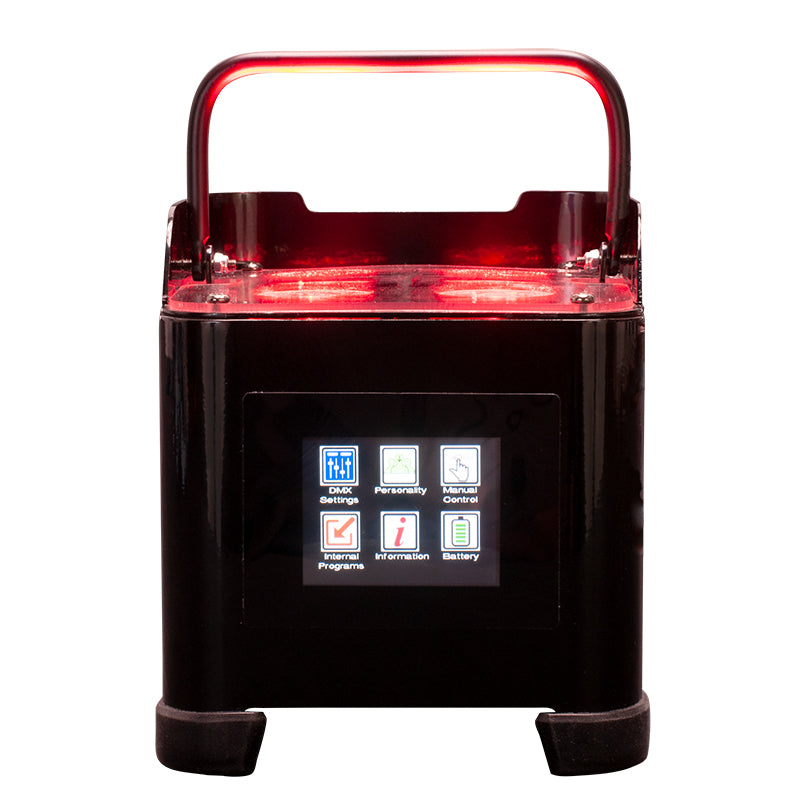

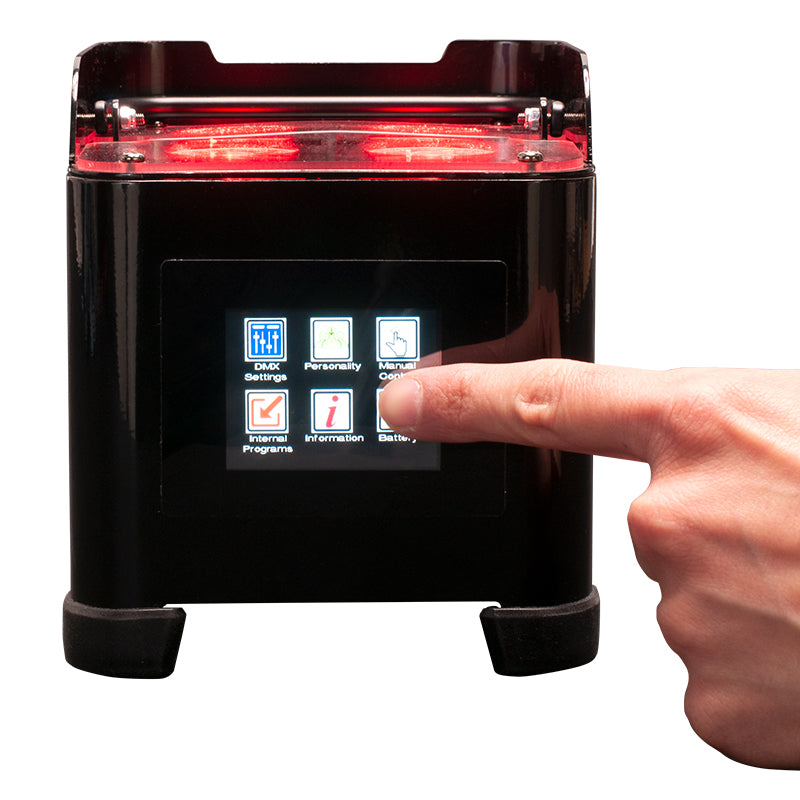

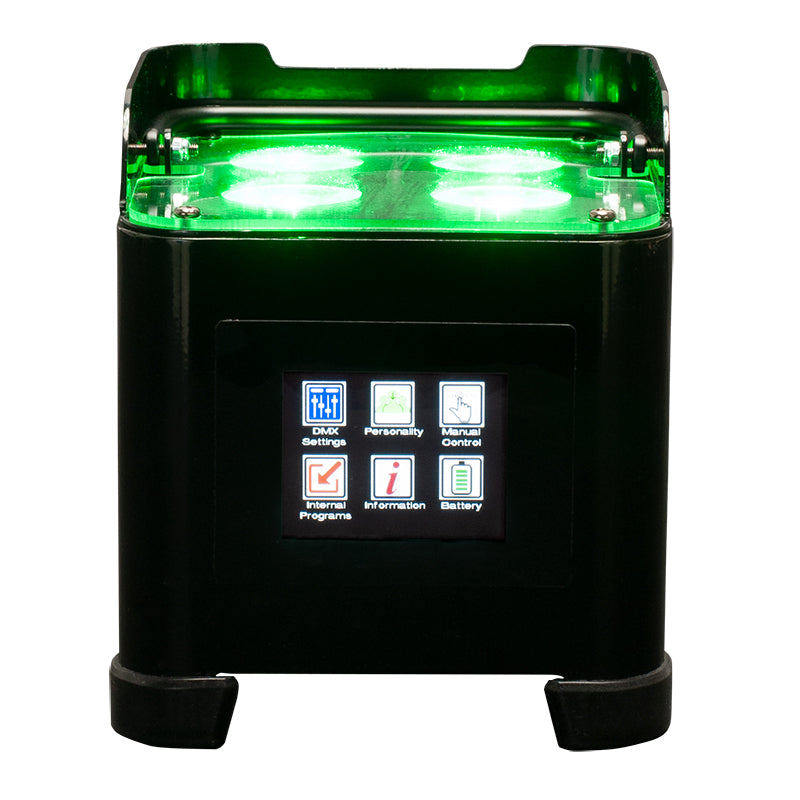

• DMX menu touch screen display
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 63 built-in Color Macros

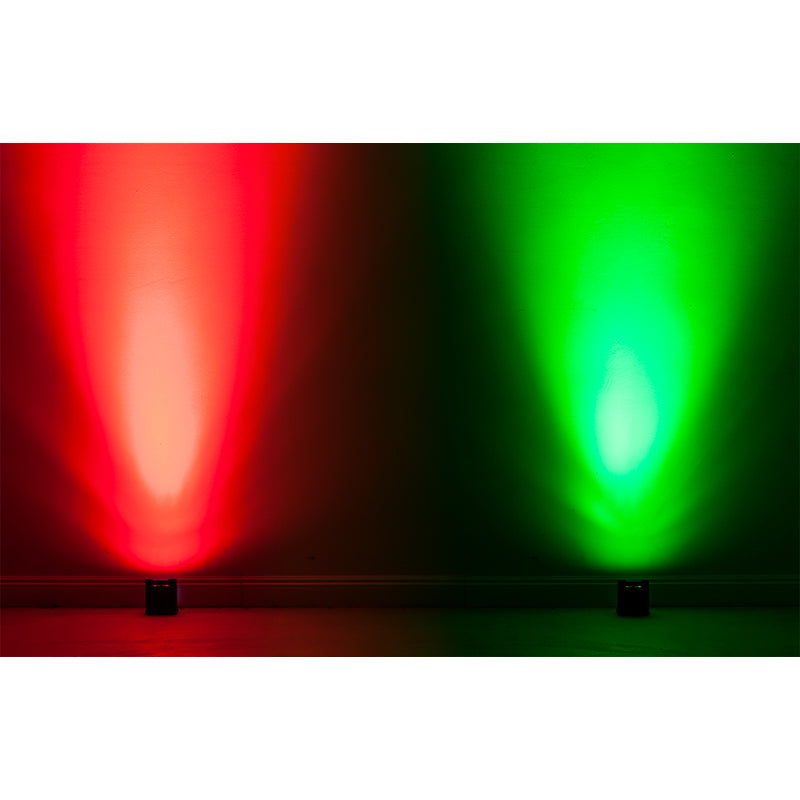

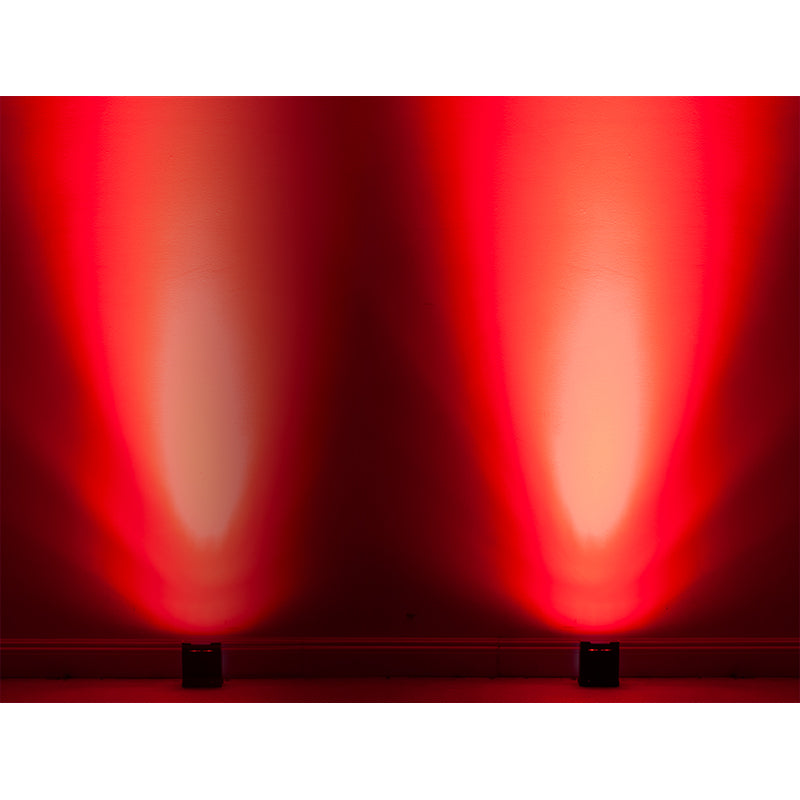

• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.1Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle
• Energy Save Mode to preserve battery life
• Carry handle and snoot to hide handle and LED lenses
Battery:
• Battery Type: Fixed Lithium Battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 5 Hours (With POWER switch On)
• Battery Life (Full Charge): 8 hours (Full On); Up to 12 hours (Static Colors or Chase Mode)
Electrical:
• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz
Dimensions / Weight:
• Dimensions (LxWxH): 5.12” x 5.12” x 5.6” / 130 x 130 x 143mm
• Weight: 4 lbs. / 1.8kg.
Certifications:
• CE Approved
• IP20 Indoor rated
