7PZ IP

This product is CE certified.
This item is discontinued

This product has been discontinued. It has been replaced by this product: https://www.adj.com/encore-z7lp
UPC: 819730019790SKU: 7PZ616

Video

7PZ IP

This product has been discontinued. It has been replaced by this product: https://www.adj.com/encore-z7lp

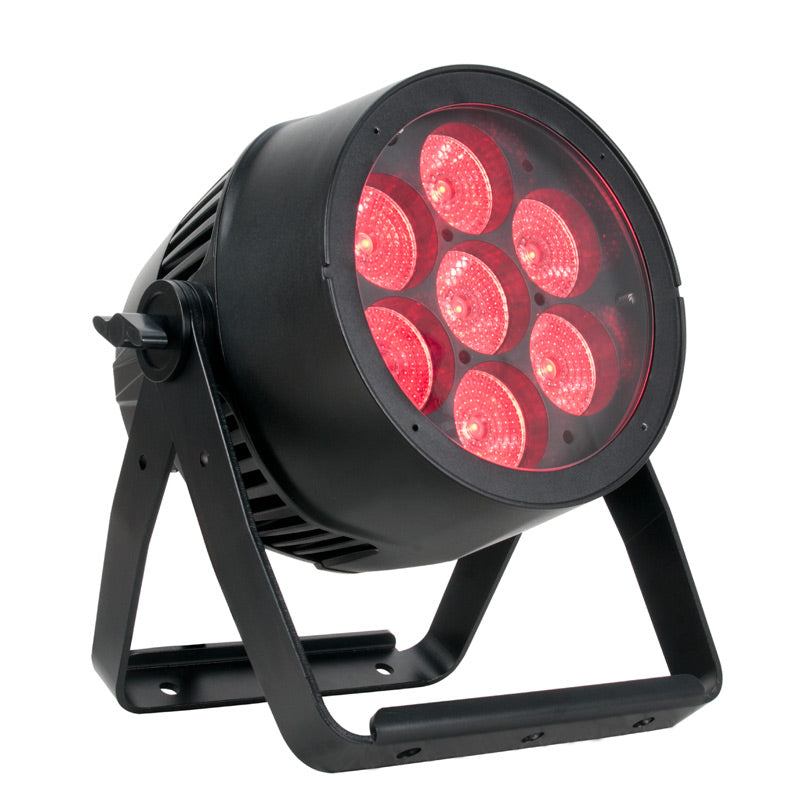

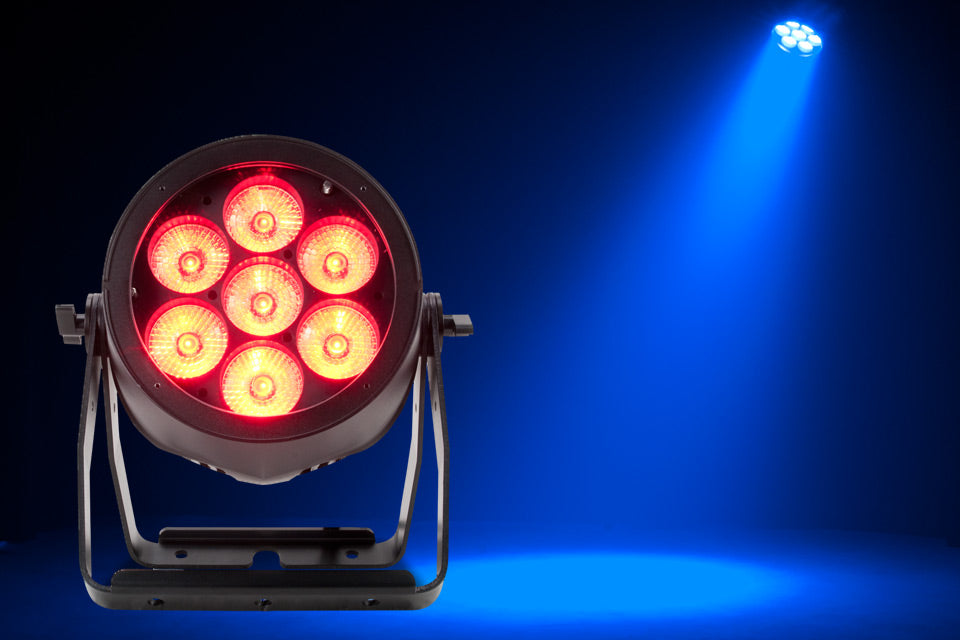

The 7PZ IP is a heavy duty, metal IP65 outdoor rated 105W LED Par with motorized zoom and ADJ's WiFLY EXR and Aria X2 wireless DMX built-in. It features seven 15W quad (4-IN-1 RGBW) LEDs with 64 built-in color macros. There are 5 dimming curves plus smooth 0-100% electronic dimming. With 5 operational modes, 12 DMX channels modes and 4-button menu with function display, the 7PZ IP has a varied of control options. The zoom range is 5 ~ 45-degrees.

A choice of twelve different DMX modes: 4, 5a, 5b, 6, 7a 7b, 8, 9, 10a, 10b, 12 and 13-channel – offer added flexibility. The basic 4 and 5-channel mode are useful in situations where available DMX channels are limited, while the full 13-channel option offers full control over all the fixture’s features including full red, green, blue and white color mixing, master dimmer, strobing and zooming.

Learn more about the 7PZ IP in this product spotlight blog:  http://tinyurl.com/j23eylb



Specifications

Optical
• Light Source: 7 x 15 Watt Quad (RGBW) LEDs

• LED Life Expectancy: 50,000 Hrs

• Beam Angle: (5 to 45-degrees)
• Refresh Rate: 1.8KHz

Technical Features

• Compatible with ADJ’s WiFLY Protocol

• Strobe (electronic)

• 64 built-in Color Macros

• 4 Operational Modes: Color Change Mode; Color Fade Mode; Auto (Program Run) Mode, and DMX Mode

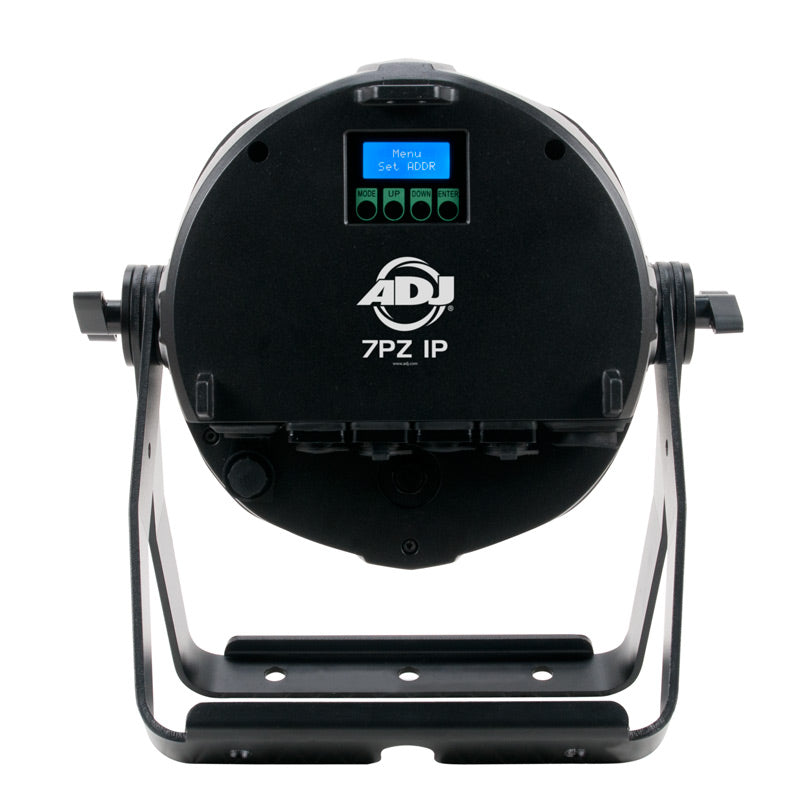

• 4-button LED Display on rear panel

• Electronic Dimming 0 – 100%

• Flicker Free

• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for Wireless DMX control.

• Dual bracket yoke allows fixture to be hung or set on the ground

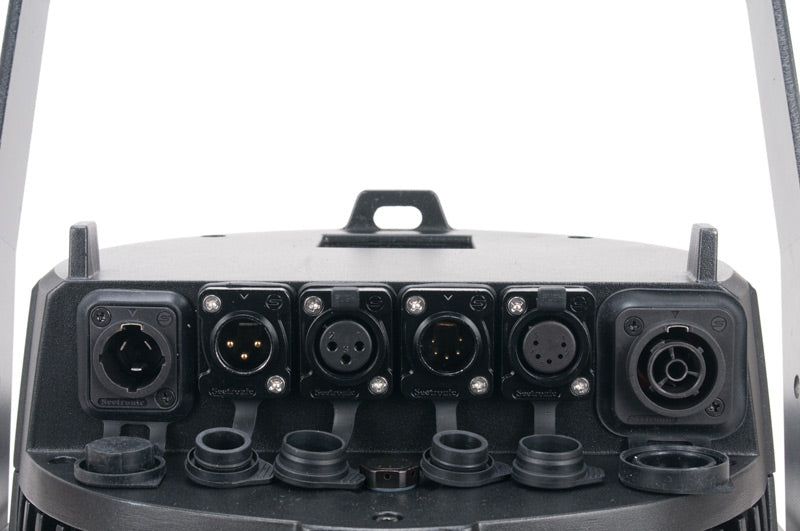

Connections

• Power Input: IP65 rated connection
• Power Pass through: IP65 rated connection
• Data: 3 Seatronic IP connection
• With Wired Digital Communication Network

Control
• 12 DMX Channel Modes (4, 5a, 5b, 6, 7a 7b, 8, 9, 10a, 10b, 12 and 13-channel)

• 16 Selectable WiFLY Address Channels

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 128W
• Power draw 220V 50Hz: 128W

Physical

• Dimensions (LxWxH): 10.5” x 13.75” x 15” / 270 x 350 x 380mm
• Weight: 25 lbs / 11 kg.
• Metal Black Housing
• IP 65

Whats Included

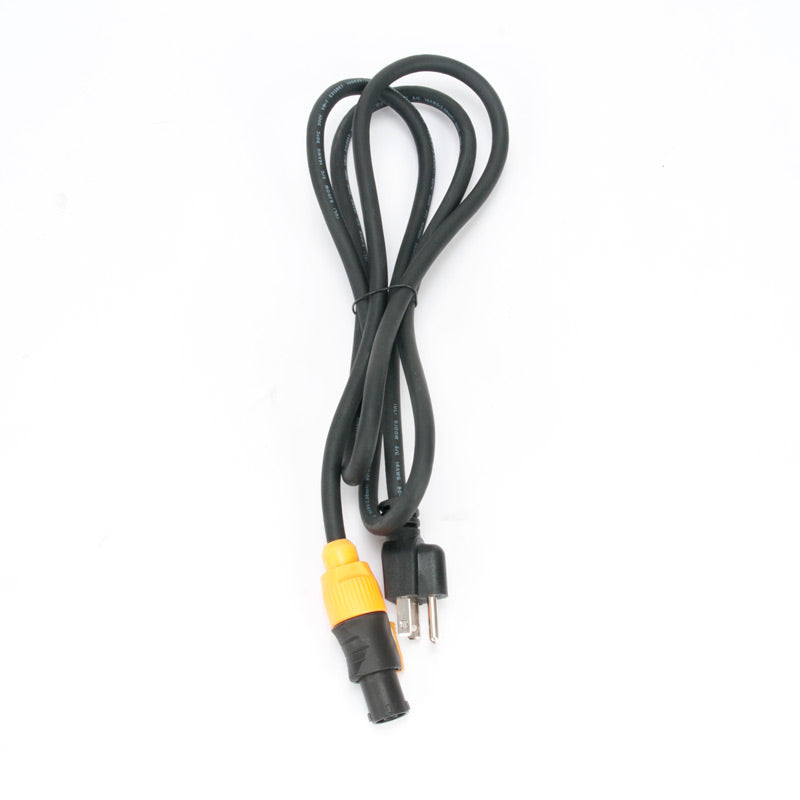

• IP65 connection to Edison Cable (1M)
• Manual


Specifications subject to change without notice.
