Hydro Wash X7

New Product

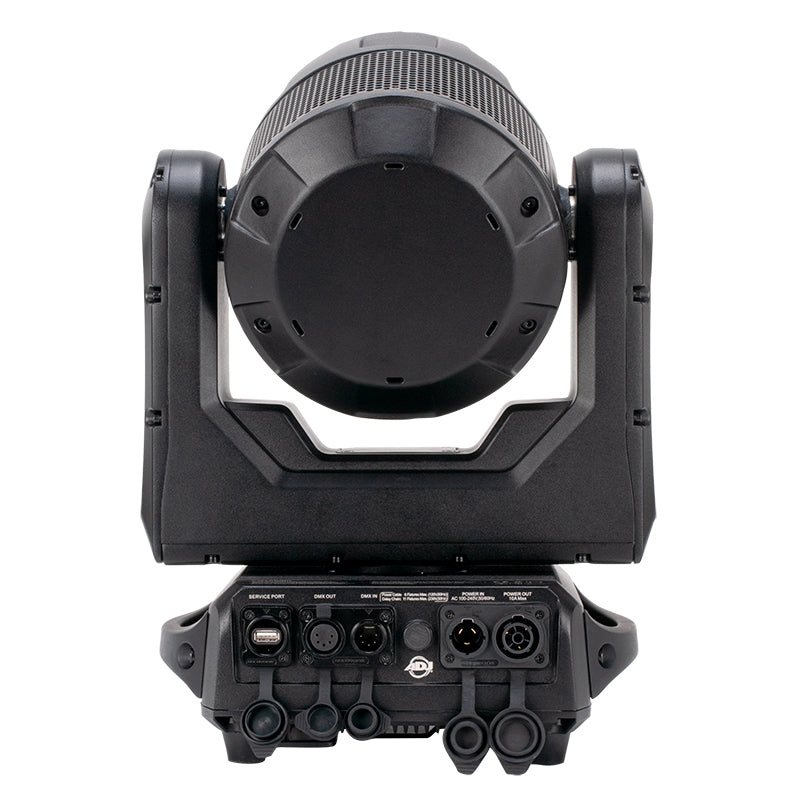

ADJ Hydro Wash X7 unit photo ADJ Hydro Wash X7 front Photo ADJ Hydro Wash X7 Rear Photo ADJ Hydro Wash X7 effects Photo ADJ Hydro Wash X7 effects Photo ADJ Hydro Wash X7 effects Photo
SKU: HYD710 | UPC: 818651026948
280W LED IP65 outdoor rated moving head wash designed for indoor or outdoor use. Its durable metal casing protects it from dust, sand, moisture and liquids. Features: 7x Osram 40W RGBW (4-IN-1) LEDs and WiFLY wireless DMX.
Advantage Points: 2650

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA


The ADJ Hydro Wash X7 is an IP65 rated 280W professional moving head wash fixture with seven 40W RGBW (4-IN-1) LEDs.

With robust construction and IP65-ratings, the Hydro Wash X7 is designed for both indoor or outdoor use. Its durable metal casing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events, as well as installation in open-air clubs and other outside entertainment spaces where wash lighting is a must. This groundbreaking fixture offer an extended operational life and reduced maintenance requirement due to its long-life LED and sealed casing design.

The Hydro Wash X7 has a wealth of features such has motorized focus (6 ~ 40-degrees), WiFLY wireless DMX, fine pan, tilt and dimming, 6 dimmer curve modes and gamma correction.

Its fitted with 5-pin DMX In/Out and electrical In/Out connectors to daisy chain power. It offers a USB port for software updates. All connections are IP65 rated with rubber protective covers.


Specifications

Specifications

Light Source:

• 7x Osram 40W RGBW (4-IN-1) LEDs


Features:

• IP65 outdoor rated – protects fixture from dust, sand, moisture and liquid

• Motorized Zoom: 6 ~ 40-degrees

• Firmware Upgrade: Update via IP65 USB port (with rubber protective covers over connections)


Construction:

• Color display with touch buttons

• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)

• Power In/Out: powerCON IP65 (with rubber protective covers over connections)

• All metal case design


Control:

• WiFLY Wireless DMX built-in (Up to 2,500 ft / 700M line of sight)

• 3 DMX channel modes: 15, 17 & 41 channels

• Control modes: DMX-512, RDM

• Pixel Control

• 0-100% dimming plus 16-bit fine dimming

• 6 dimmer curve modes

• Shutter control

• Strobe & pulse effects

• Gamma correction: 1.0, 2.0, 2.2, 2.4, 2.6 and 2.8

• With Wired Digital Communication Network


Pan/Tilt:

• Pan/Tilt: 540-degrees / 255-degrees

• 16-bit Fine Pan

• 16-bit Fine Tilt


 Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz


Dimensions & Weight:

• Dimensions (LxWxH): 11.89”x10.17”x18” / 302x258.3x457mm

• Weight: 35 lbs. / 16kg.


Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Hydro Wash X7 User Manual User Manual Download
