Hydro Beam X2

New Product

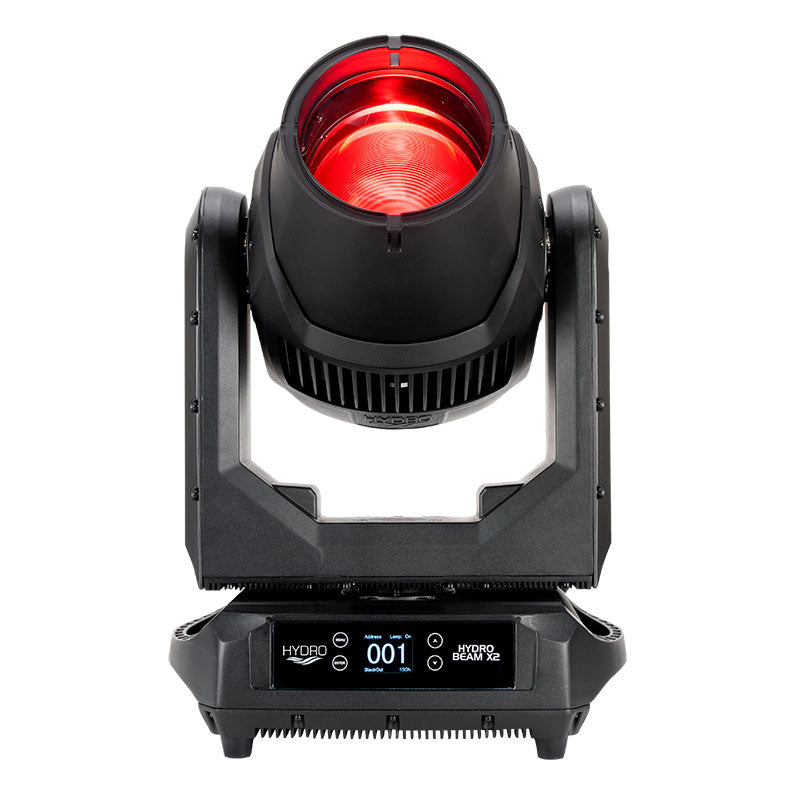

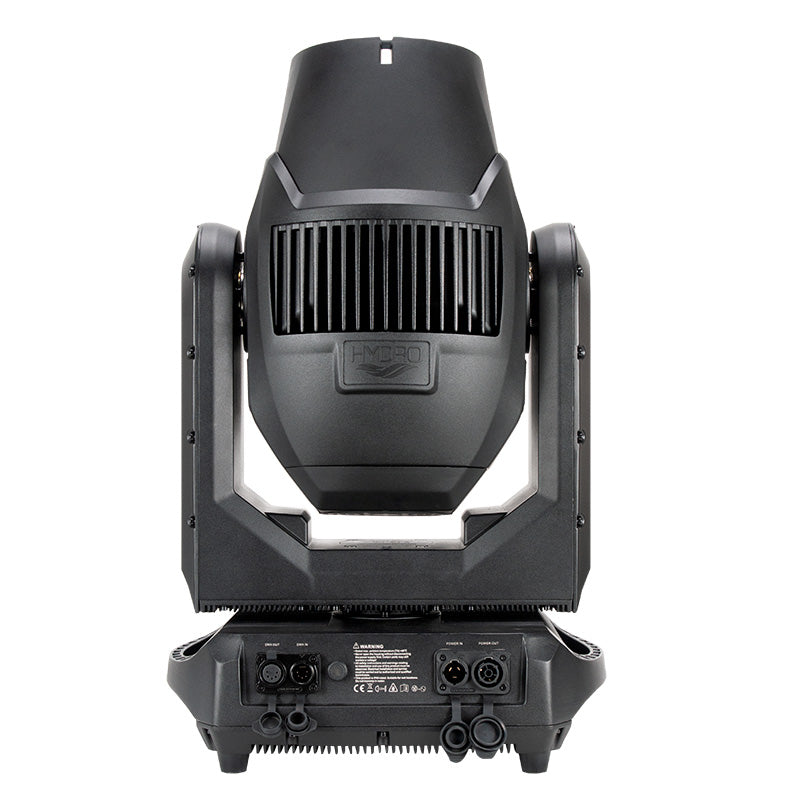

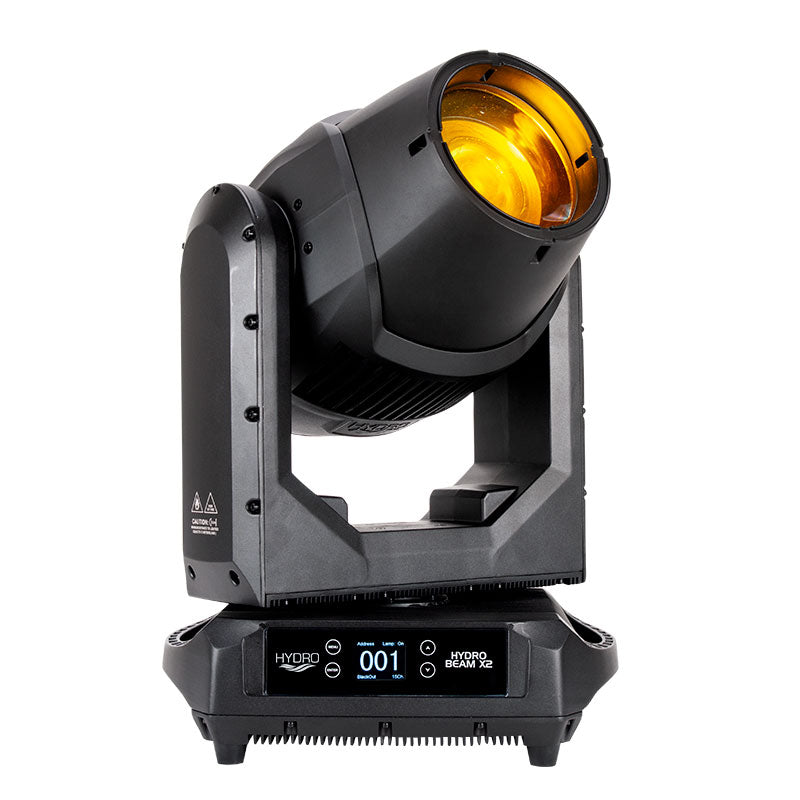

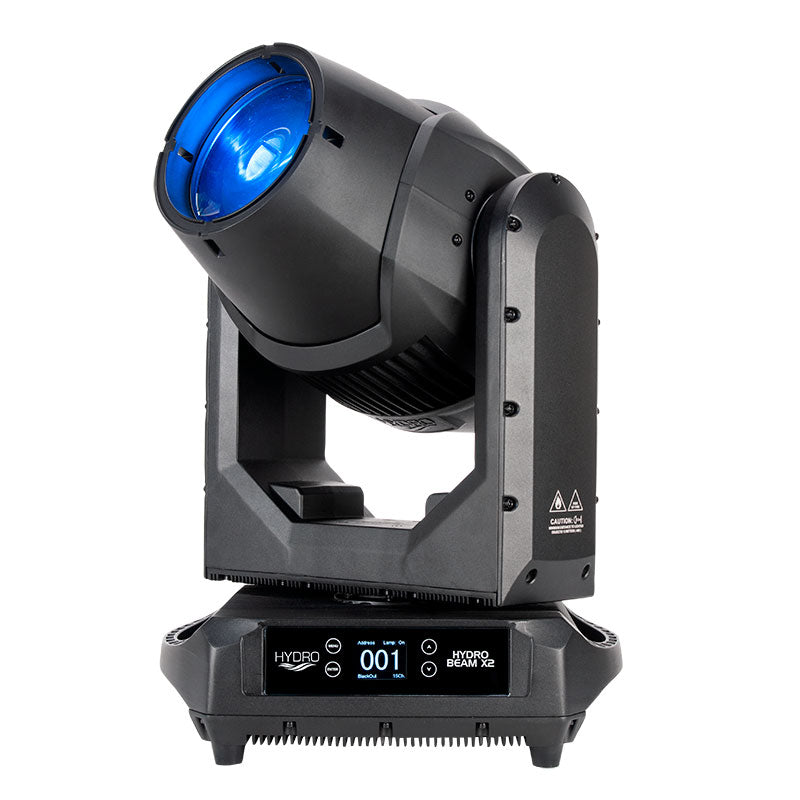

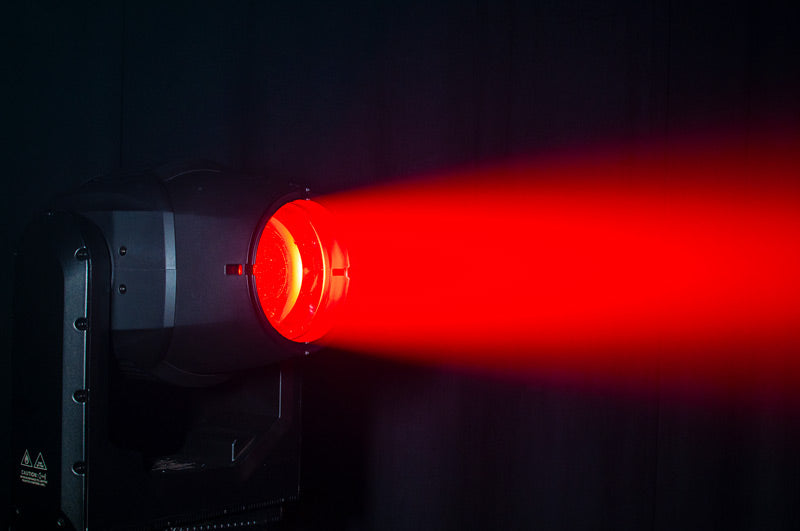

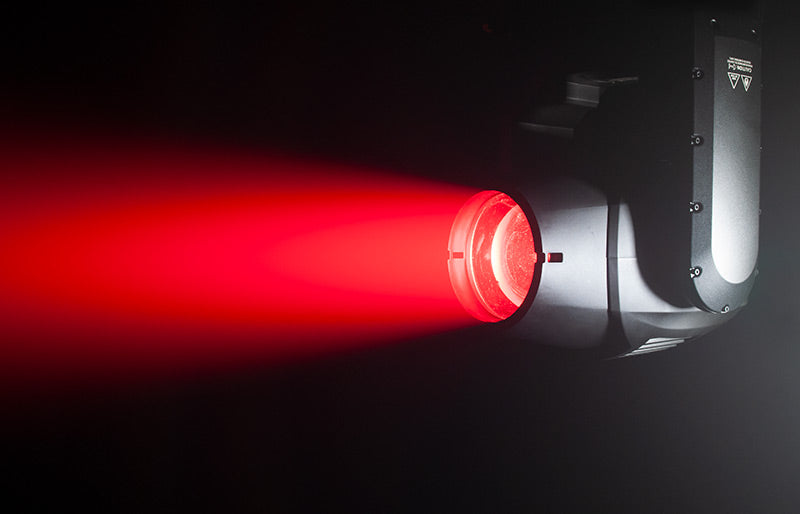

ADJ Hydro Beam X2 main photo straight on ADJ Hydro Beam X2 product photo right angle ADJ Hydro Beam X2 product photo left angle ADJ Hydro Beam X2 rear photo ADJ Hydro Beam X2 effect photo ADJ Hydro Beam X2 effect photo ADJ Hydro Beam X2 effect photo ADJ Hydro Beam X2 GOBO Wheel ADJ Hydro Beam X2 Color Wheel
SKU: HYD210 | UPC: 818651025989
The ADJ Hydro Beam X2 is an IP65 rated professional moving head fixture with a 370W LL Osram Sirius HRI discharge lamp that produces a razor sharp 3-degree beam. Its IP65 outdoor rating protect the fixture from dust, sand, moisture & liquid. Includes a 6-facet linear prism, 8-facet circular prism, frost filter, plus rotating and removable GOBOs.
Advantage Points: 3700

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $3,699.99


The ADJ Hydro Beam X2 is an IP65 rated professional moving head fixture with an Osram Sirius HRI 370W LL (up to 6,000 hours) discharge lamp that produces a razor sharp 3-degree beam.

With robust construction and IP65-ratings, the Hydro Beam X2 is designed for both indoor or outdoor use. Its durable casing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this groundbreaking fixture offer an extended operational life and reduced maintenance requirement due to their sealed casing design.

The Hydro Beam X2 has a wealth of features such has linear motorized focus, 8-facet circular prism with overlay, 6-facet linear prism with overlay, glass and metal GOBOs that rotate and are replaceable, 3 GOBO reducers, and an independent frost filter for wash effects.

Its fitted with 5-pin DMX In/Out and electrical In/Out connectors to daisy chain power. All connections are IP65 rated with rubber protective covers.


The Hydro Beam X2 fits into ADJ DRC MHX road case.


Click here to read the Hydro Beam X2 press release.


Check out the great quotes from the informative Road Test article in the July 2019 issue of PLSN magazine. Read the full article here.

Specifications

Specifications

Light Source:

• Lamp: Osram Sirius HRI 370W LL Long Life Discharge (Up to 6,000 hours)

• Color Temperature : 8000K

• CRI: 70

• Beam Angle: 3-degrees


Features:

• IP65 rated – protects from dust, sand, moisture, liquid

• Linear motorized focus

• Independent frost filter (wash effect)

• 0-100% smooth dimming

• Various strobe speeds

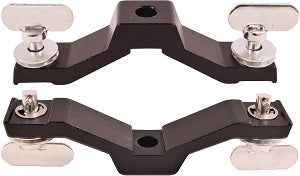

• Includes omega brackets

• Wifly EXR wireless DMX

• 8-facet circular prism

• 6-facet linear prism

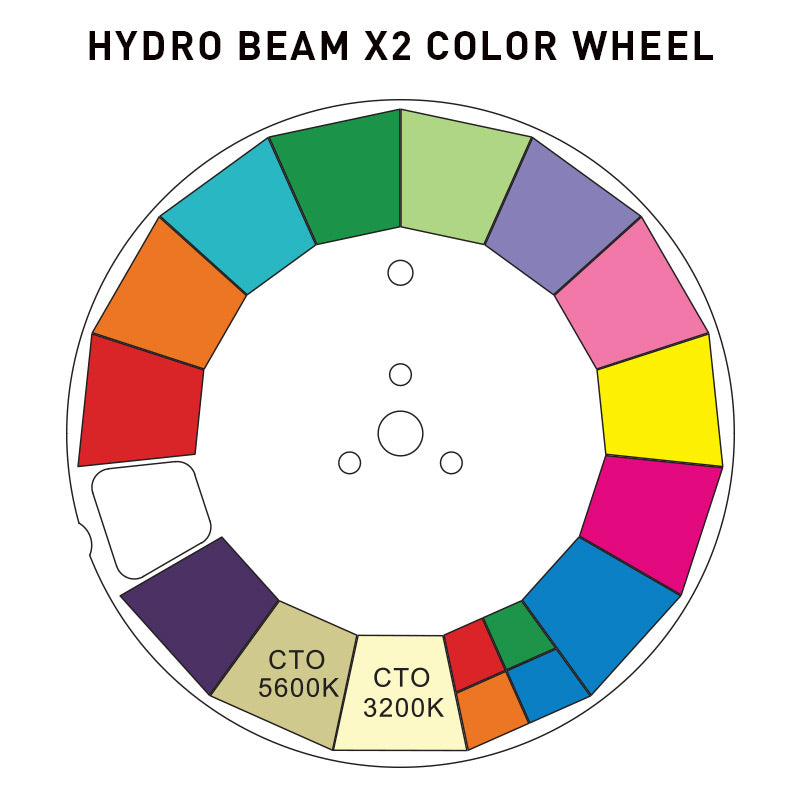

Color Wheel:

• 11 colors + 3200K & 5600K + one Quad Color + open

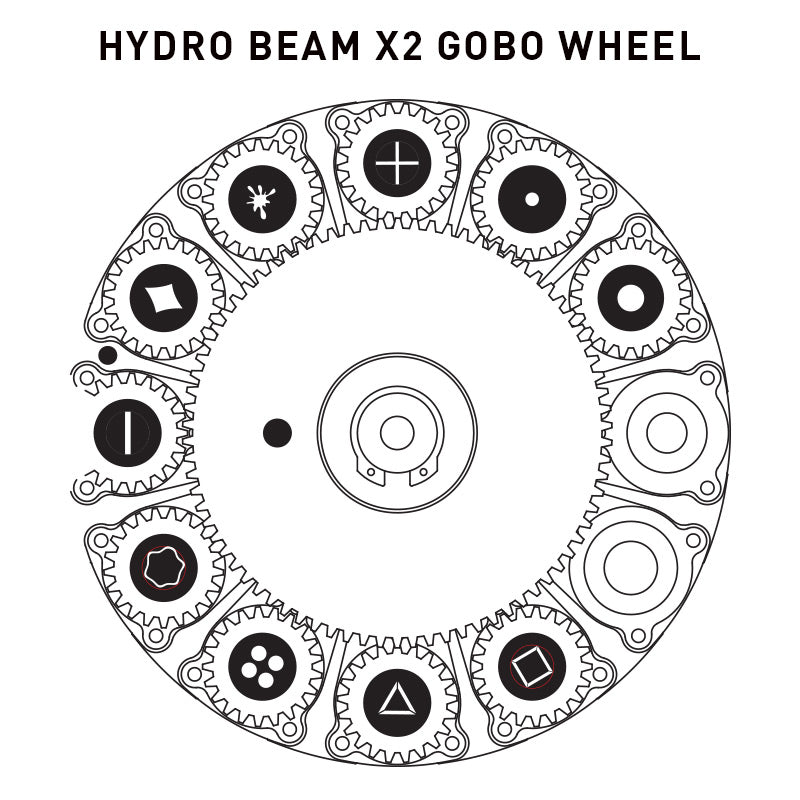

GOBO Wheel:

• 1 GOBO Wheel with 5 glass GOBOs, 3 metal GOBOs and 3 GOBO reducers + open

• All GOBOs rotate and are removable

• GOBOs outside diameter: 9.8mm

• GOBOs image diameter: 6.5mm


Construction:

• Display: OLED display

• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)

• Power In/Out: powerCON IP65 (with rubber protective covers over connections)

• Protection Rating: IP65

• All metal case design


Control:

• 2 DMX Channel Modes: 15/17 Channels

• Control Mode: DMX512, RDM

• With Wired Digital Communication Network


Pan/Tilt:

• Pan/Tilt: 540/270

• Pan/Tilt Resolution; 16-bit


Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 540W


Dimensions & Weight:

• Dimension: 16”x 13” x 25” / 402x330x630mm

• Weight: 64 lbs. / 29kg.

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Hydro Beam X2 Photometric IES Files Photometric IES Files Download
Hydro Beam X2 Photometric Test Report Photometric Test Report Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Hydro Beam X2
