Hydro Beam X1

UPC#: 818651025828
Advantage Points: 2050
Redemption Points: 41000
SKU
HYD100

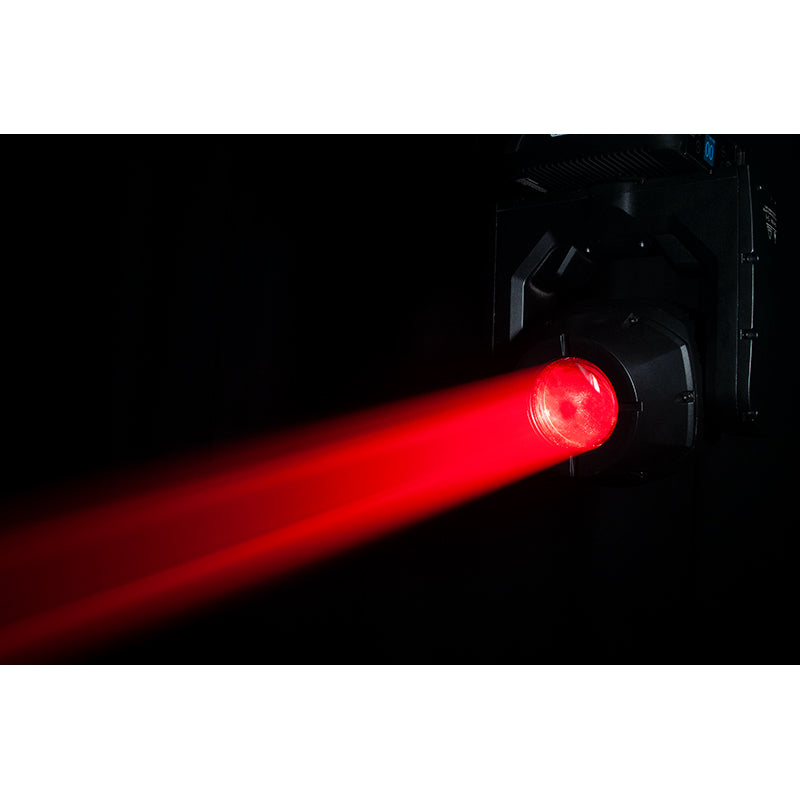

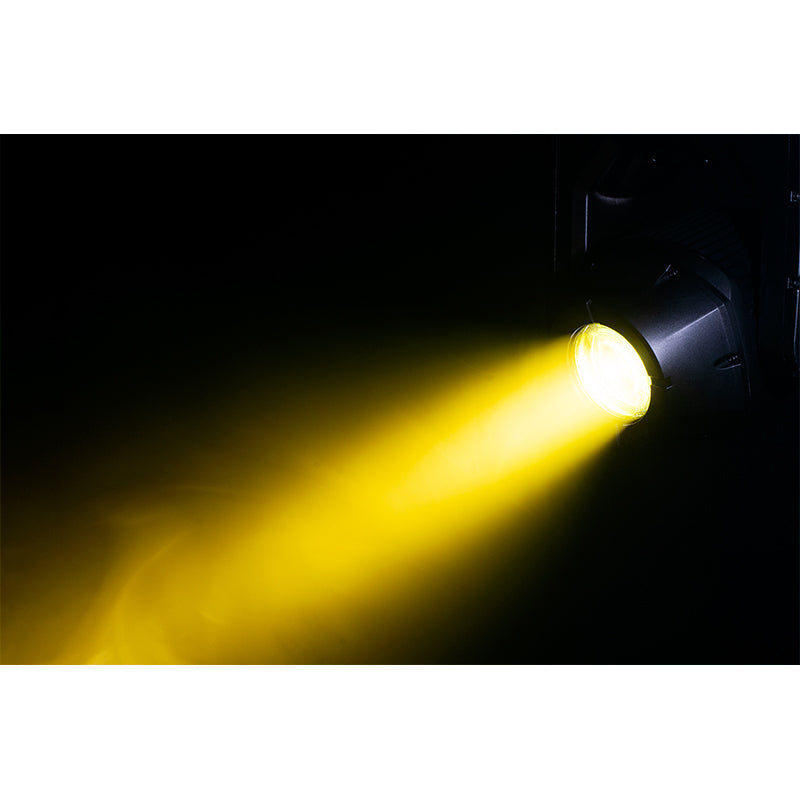

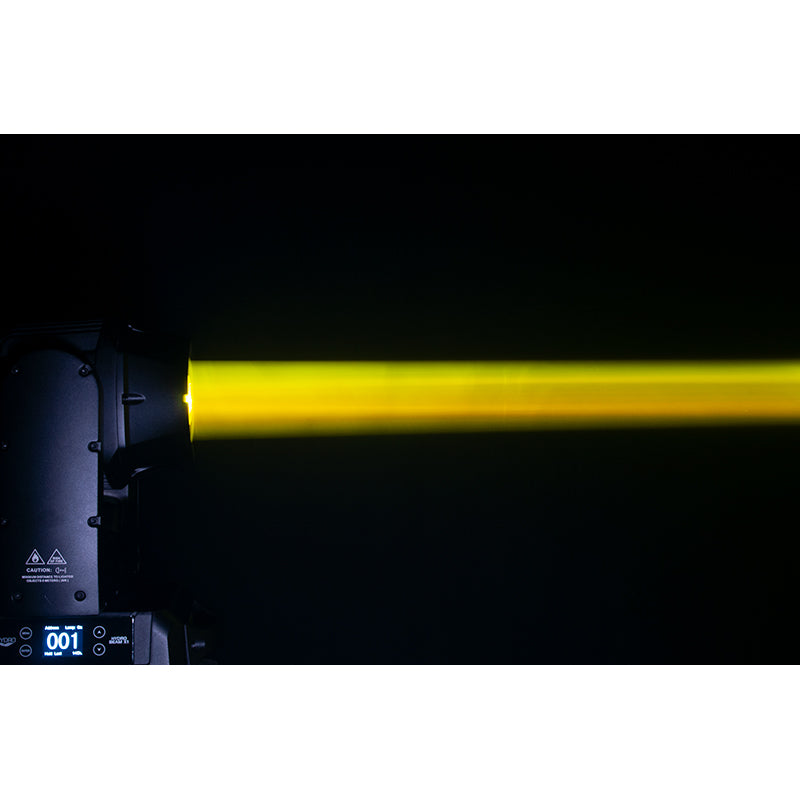

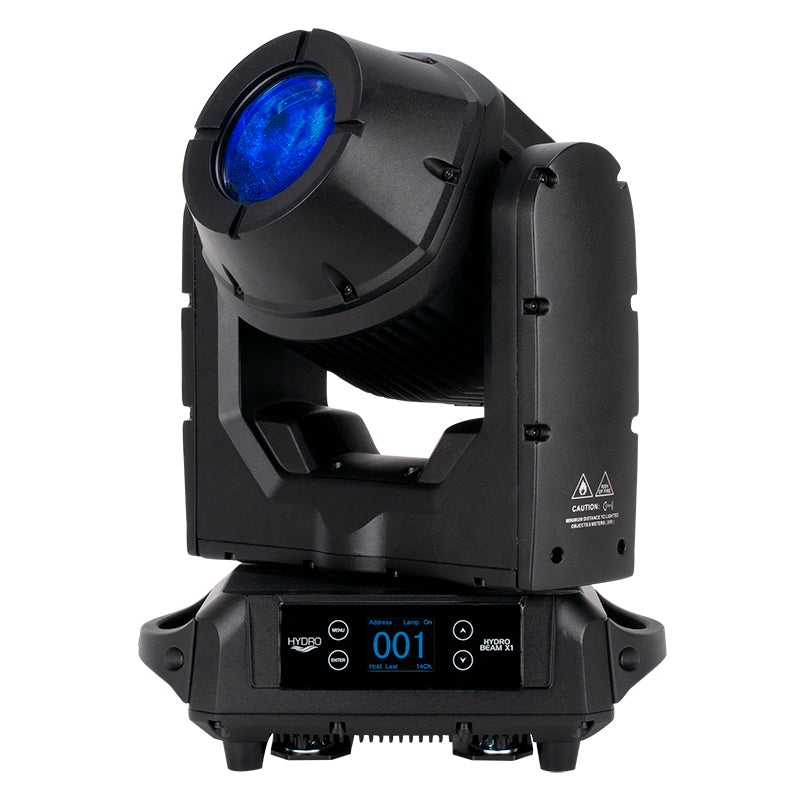

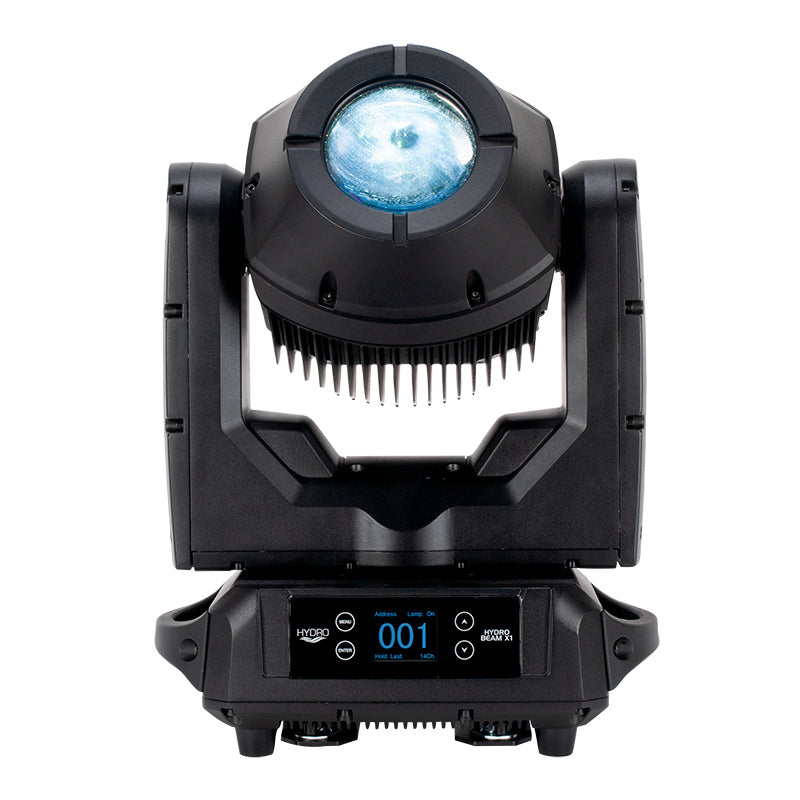

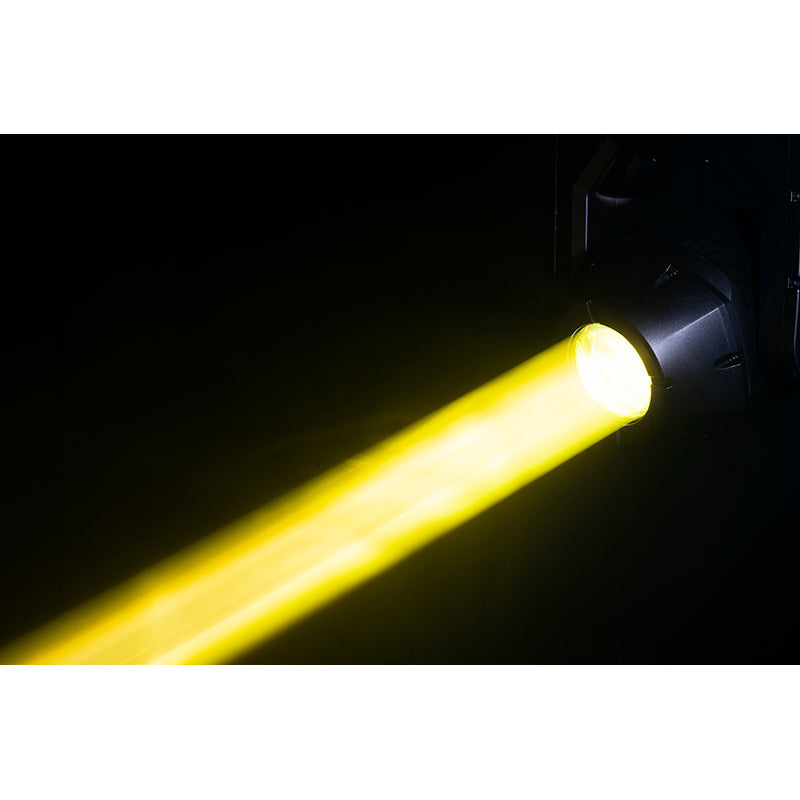

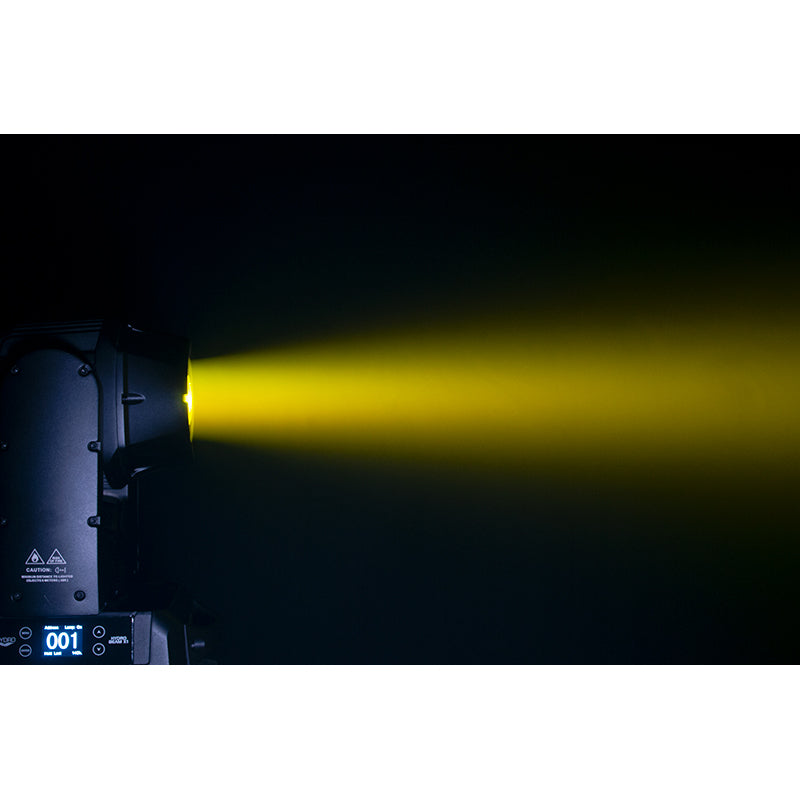

The ADJ Hydro Beam X1 is an IP65 rated professional moving head fixture with a 100W Osram Sirius HRI, 6,000 hour, discharge lamp that produces a razor sharp 3-degree beam. Its IP65 outdoor rating protect the fixture from dust, sand, moisture & liquid. Includes a 16-facet prism and frost filter for a wash effect.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Light Source:

• Lamp: Osram Sirius HRI 100W Long Life (6,000 hrs.) Discharge

• Color Temperature : 9000K

• CRI: 60

• Beam Angle: 3-degrees


Features:

• IP65 rated – protects from dust, sand, moisture, liquid

• Independent frost filter (wash effect)

• 0-100% smooth dimming

• Various strobe speeds

• Includes omega brackets

• Wifly EXR wireless DMX

• Antenna Range: 98.42ft (30m)

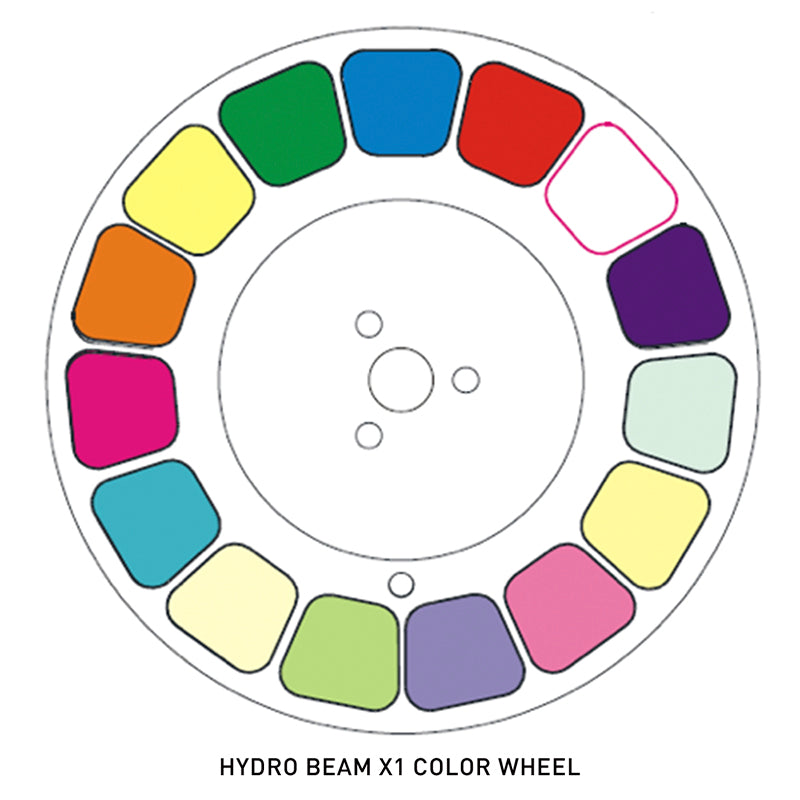

Color Wheel:

• 12 colors + CTB & UV + open

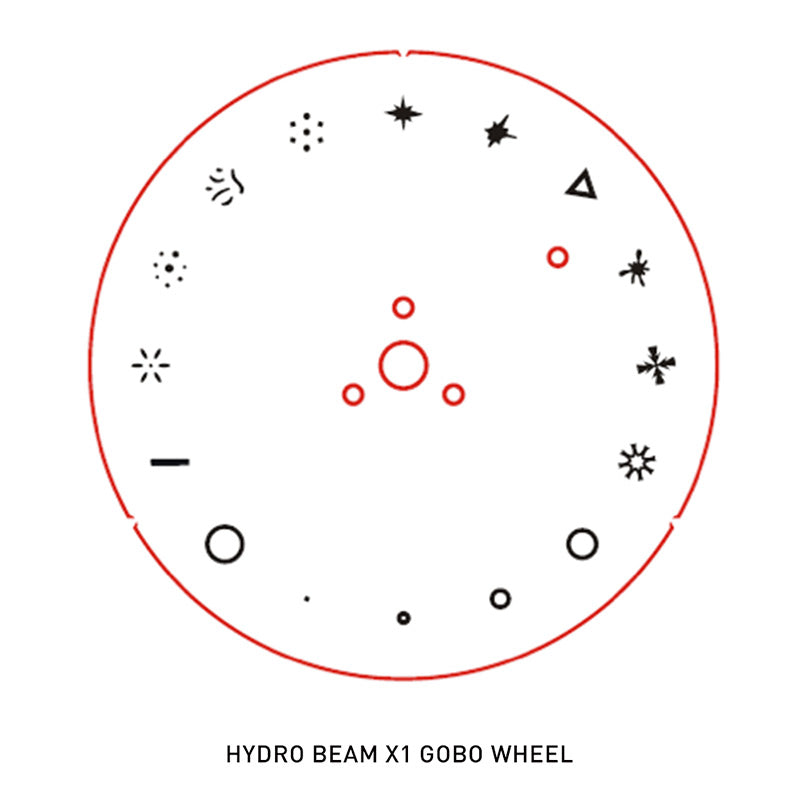

GOBO Wheel:

• 1 metal GOBO Wheel with 11 GOBOs, 4 GOBO reducers + open


Prism Wheel:

• 16-facet circular prism (rotates in either direction)


Construction:

• Display: OLED display

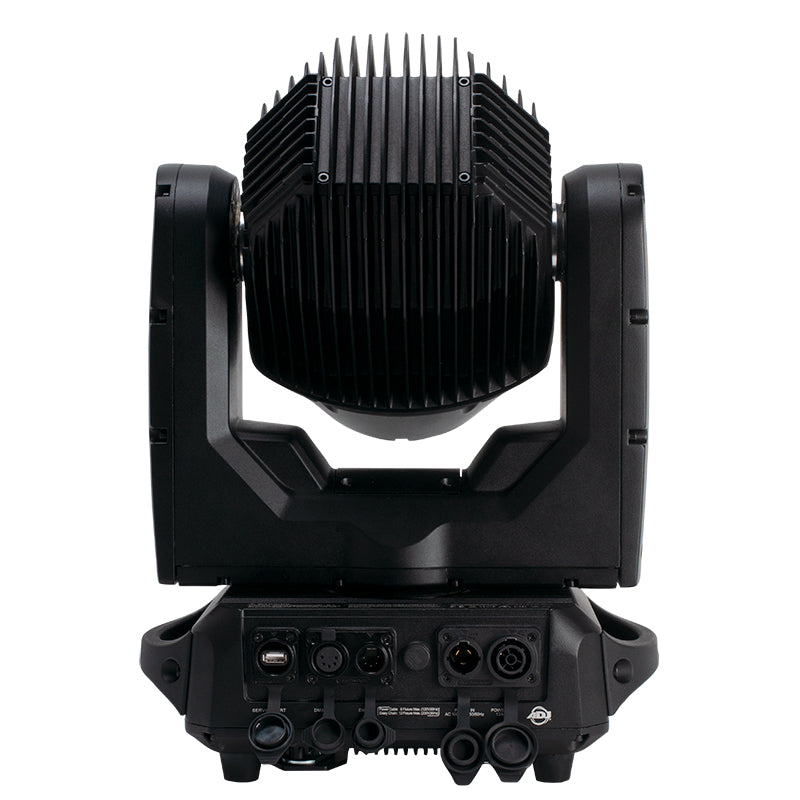

• Data In/Out: 5-pin DMX IP65 (with rubber protective covers over connections)

• Power In/Out: locking IP65 (with rubber protective covers over connections)

• Protection Rating: IP65

• All metal case design


Control:

• 2 DMX Channel Modes: 11/14 Channels

• Control Mode: DMX512, RDM (Remote Device Management)

• Firmware Upgrade: Update via IP65 USB port (with rubber protective covers over connections)

• With Wired Digital Communication Network


Pan/Tilt:

• Pan/Tilt: 540/270


Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power Linking: 6 units @ 120V; 12 units @ 240V

• Power consumption: 235W max


Dimensions & Weight:

• Dimension (LxWxH): 13.2”x 8.3” x 16.9” / 336 x 210 x 430mm

• Weight: 36 lbs. / 16.3kg.


Operating Temperature:

Minimum operating temperature: 14°F (-10C)

Maximum operating temperature: 113°F (45C)


Approvals

cETLus Approved (Control #4000358)

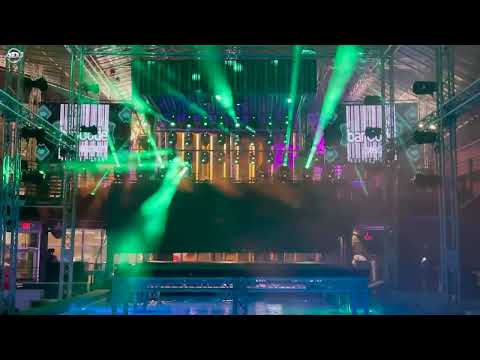

Videos

Downloads

The following downloads are available for this product:

Title Description
Hydro Beam X1 Wash Photometrics Test Report Photometrics Test Report Download
Hydro Beam X1 Photometrics Test Report Photometrics Test Report Download
Hydro Beam X1 DMX Traits DMX Traits Download
Hydro Beam X1 Vectorworks Symbol Vectorworks Symbol Download
Hydro Beam X1 Dimensional Drawing Dimensional Drawing Download
Hydro Beam X1 2D CAD Drawing CAD Drawing Download
Hydro Beam X1 3D Cad Drawing Cad Drawing Download
Hydro Beam X1 - User Manual User Manual Download

Available now from ADJ USA


The ADJ Hydro Beam X1 is an IP65 rated professional moving head fixture with a 100W Osram Sirius HRI, 6,000 hour, discharge lamp that produces a razor sharp 3-degree beam. Its compact sizes offers quick movement.


With robust construction and IP65-ratings, the Hydro Beam X1 is designed for both indoor or outdoor use. Its durable casing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this groundbreaking fixture offer an extended operational life and reduced maintenance requirement due to their sealed casing design.


The Hydro Beam X1 has several high performance features such 16-facet circular prism with overlay and an independent frost filter for wash effects. Its fitted with 5-pin DMX In/Out and locking power In/Out connections. It offers a USB port for software updates. All connections are IP65 rated with rubber protective covers.


Click here to read the Hydro Beam X1 press release.


The ADJ Hydro Series were awarded the 2019 PLSN Gold Star Award for “Best Range of Waterproof Fixtures.” Click here to read press release.
