Focus Wash 400

Name: Focus Wash 400
Brand: ADJ
SKU: FOC615
Availability: InStock

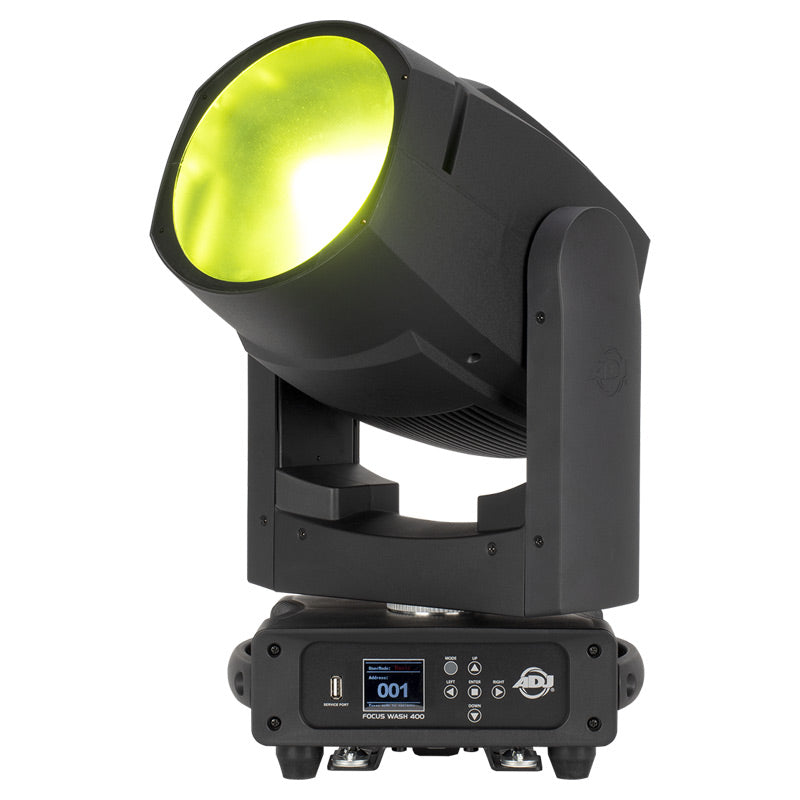

The FOCUS WASH 400 is a 400W, RGBACL (Red, Green, Blue, Amber, Cyan and Lime) LED moving head wash with a 10 to 41 degree motorized zoom, with flicker free operation for TV and film, linear white color temperature control from 2700K - 6500K, and virtual CMY color mixing.

UPC: 818651029130

SKU: FOC615

Focus Wash 400

$0.00

Key features

Feature	Value
Color Temperature	2700K ~ 10,000K
Feature	Quiet Fan Mode
LED Source	400W RGBAC+L LED
Motorized Zoom	9° ~ 42°
Color	Virtual CMY Color Mixing

Video

Focus Wash 400

AVAILABLE NOW FROM ADJ USA

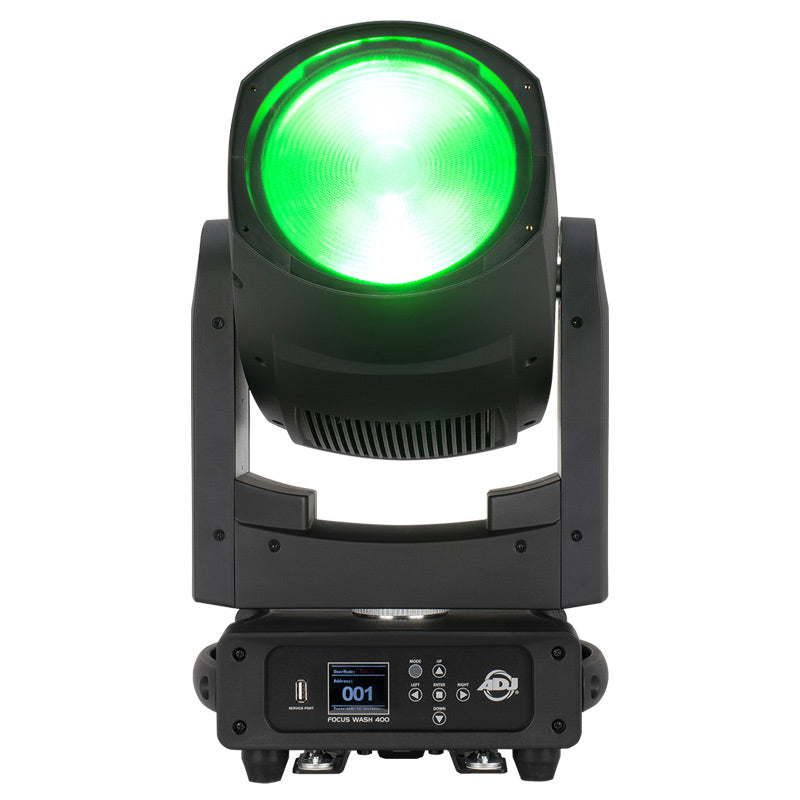

The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBALC Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 9 to 43 degree motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 6500K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.

The FOCUS WASH 400’s unique color engine produces a high CRI of 90+ for bright whites and a CRI R9 of 88 to help make red tones more vibrant. The fixture also includes, 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

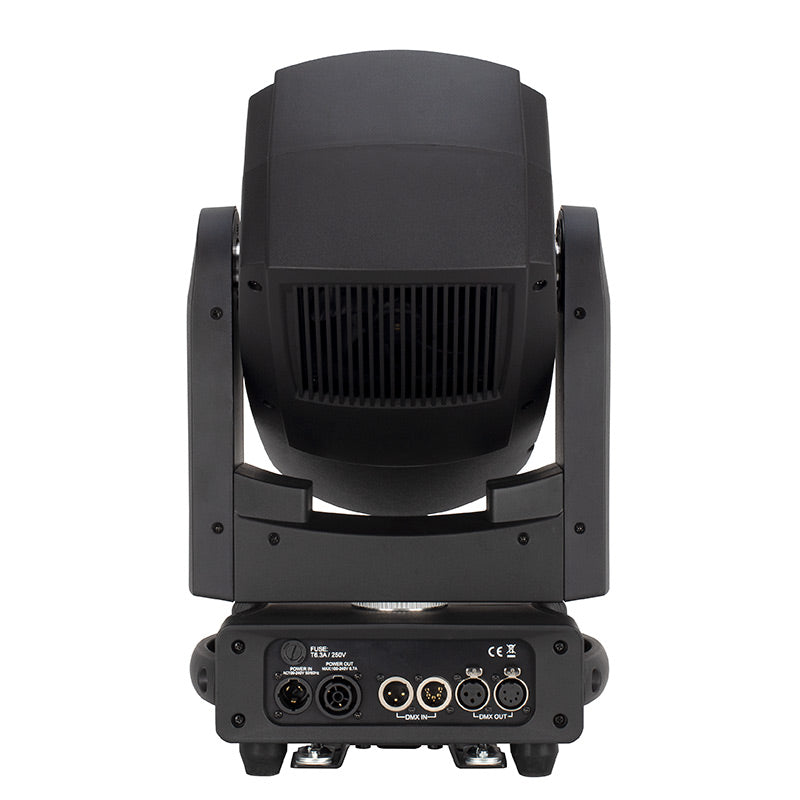

The fixture comes standard with locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.

Click here to read the Focus Wash 400 press release.

Specifications

SOURCE:

• 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)

• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 7139 Total Stable Lumen Output (Full ON, Zoomed Out to Full)

• 11072 LUX, 1029 FC @ 9.8’ (3m) (Zoomed In / Full ON)

• 1858 LUX, 173 FC @ 9.8’ (3m) (Zoom Out / Full ON)

• Beam Angle: 9° to 43°

• Field Angle: 17° to 55°

• Color Temperature: Tunable, 2400K to 8500K

CRI: 95.2

COLOR:

• Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control

• Virtual Color Wheel Control

• Virtual CMY Control

EFFECTS:

• RGBACL Color Mixing

• Virtual CMY Color Mixing

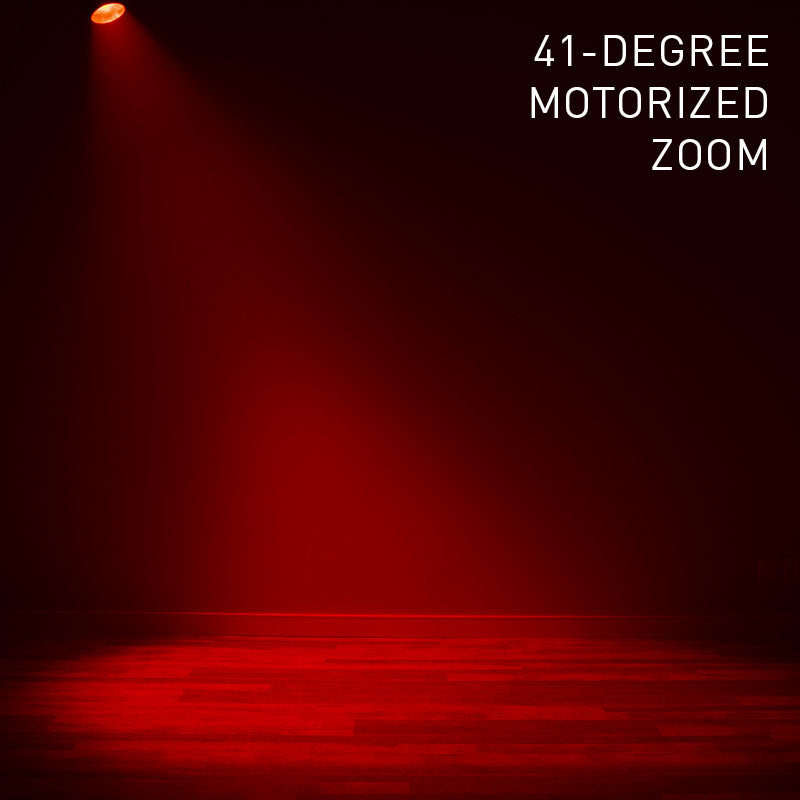

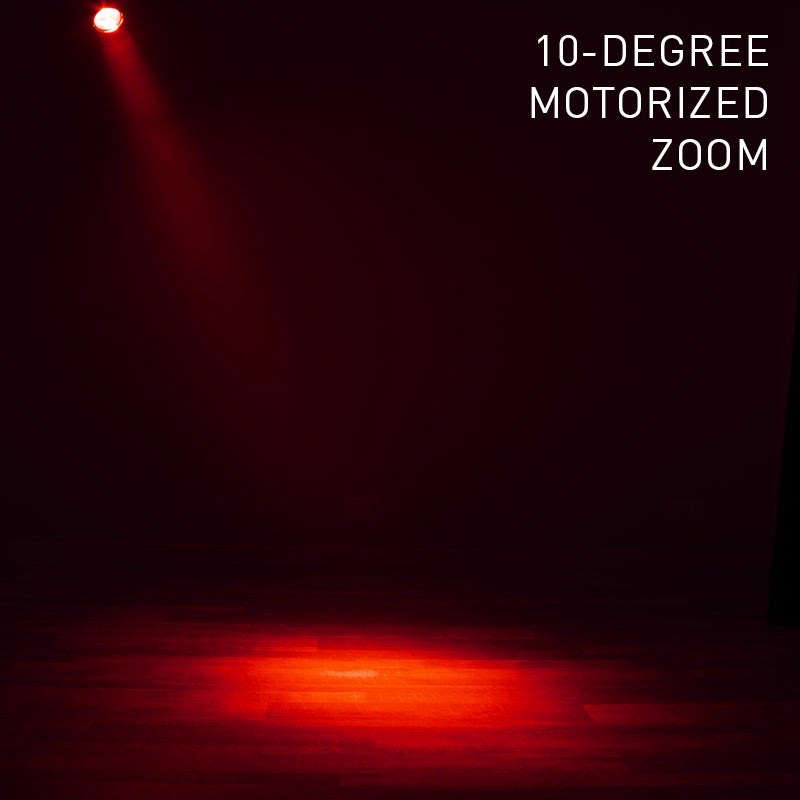

• 9° - 43° degree Motorized Zoom

• Electronic Strobe and Dimmer

• Color Temperature Red to Green control via DMX

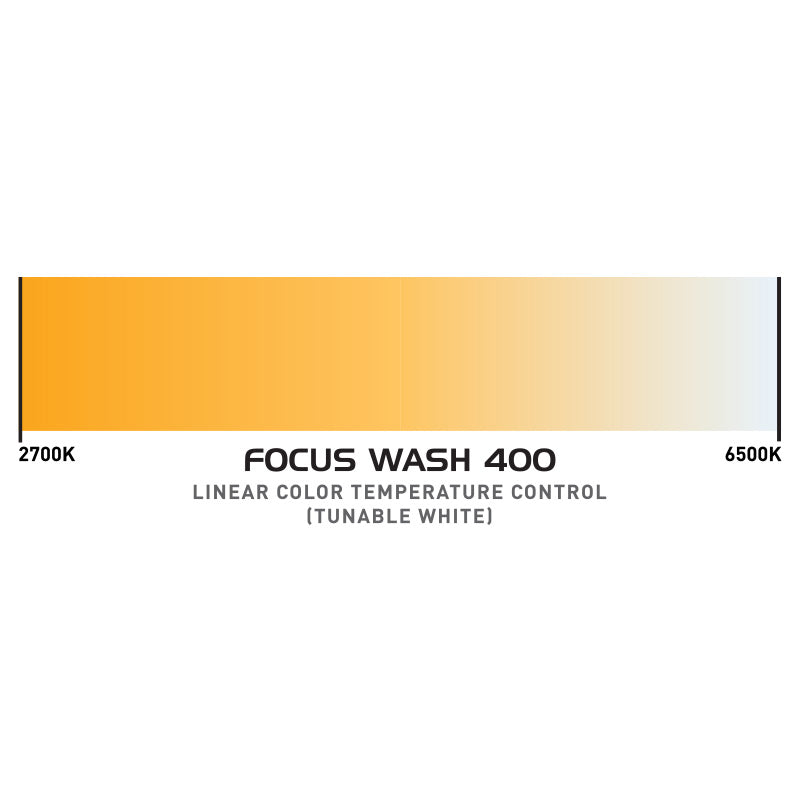

• Linear Color Temperature control, 2700K to 10,000K

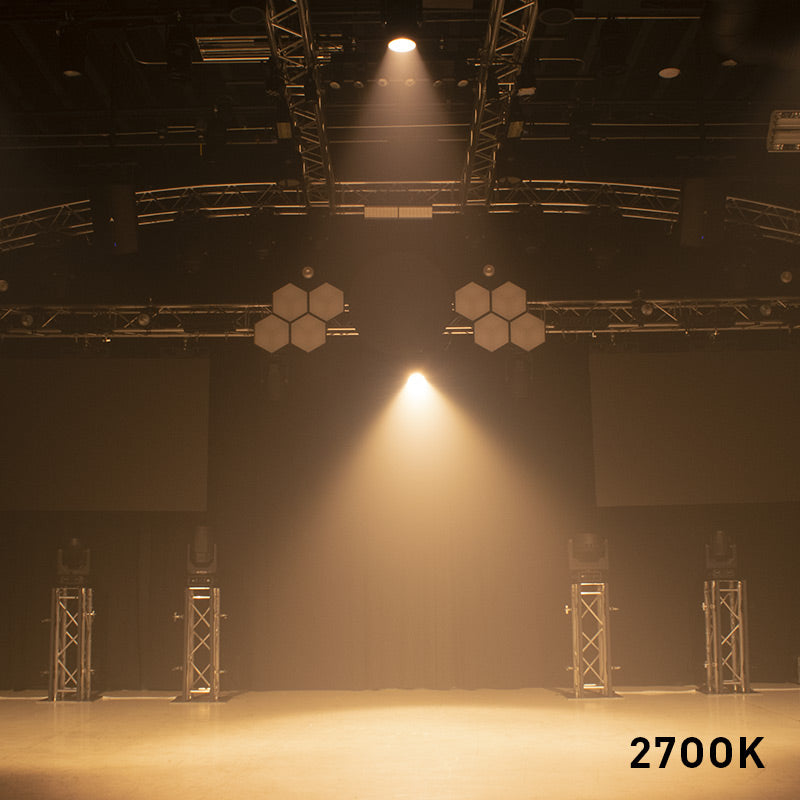

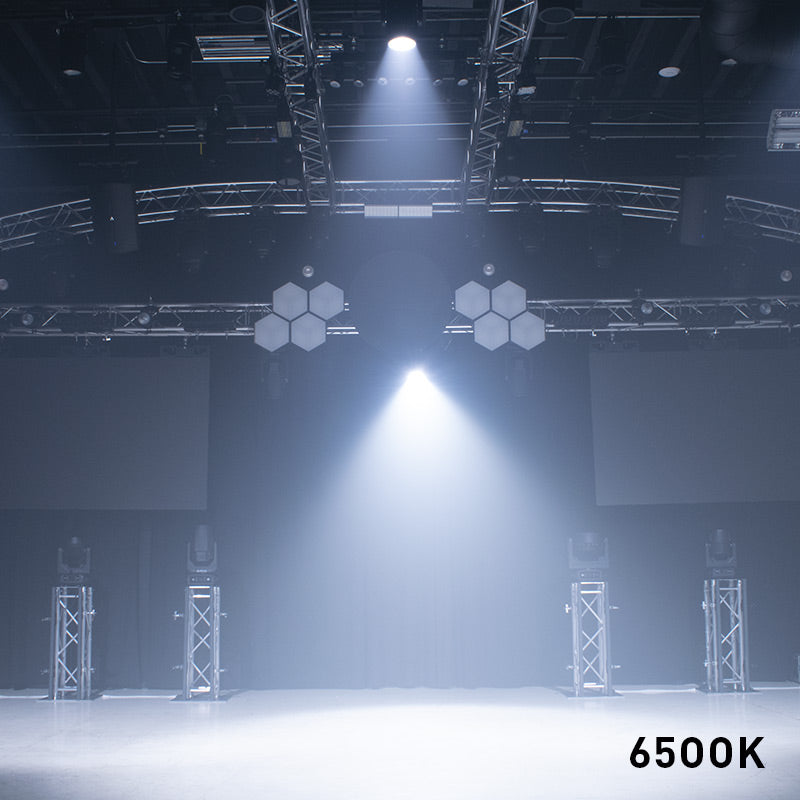

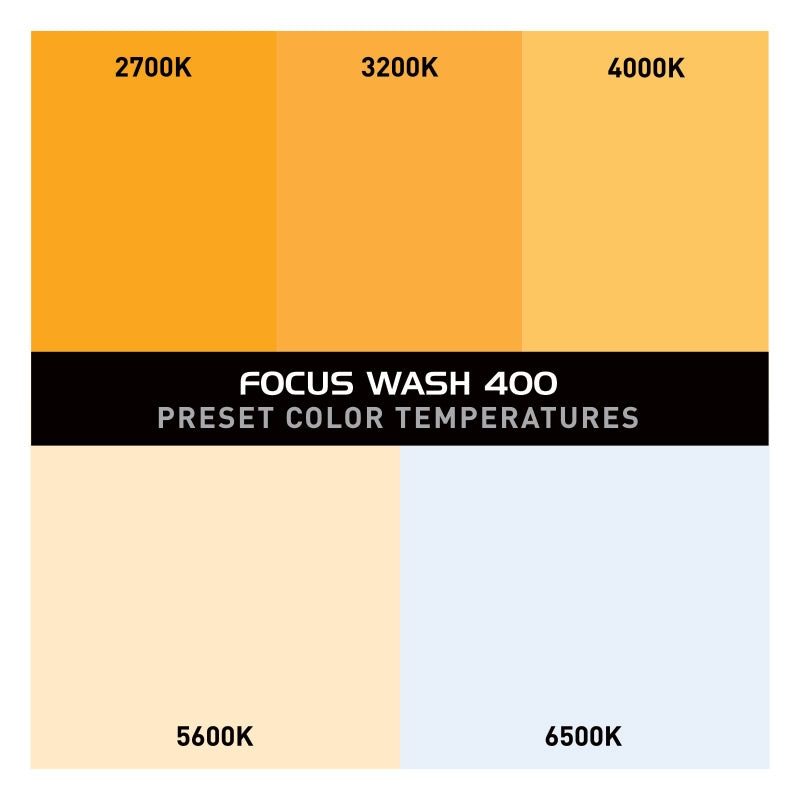

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

CONTROL / CONNECTIONS:

• 5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]

• Selectable LED Refresh Rates, 900Hz to 25kHz.

• Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds

• 6-button Control Panel and LCD Menu Display

• USB Firmware Update Port

• RDM (Remote Device Management)

• Quiet Fan Mode

• Locking 3-pin and 5-pin XLR Connector In/Out

• IP65 Locking Power Connector In/Out

• With Wired Digital Communication Network

SIZE / WEIGHT:

• Length: 10.96" (278.43mm)

• Width: 8.4" (213.33mm)

• Vertical Height: (Without Snoot)19.6" (498.1mm)

• Vertical Height (With Snoot) 22.37" (568.1mm)

• Weight: 23.5 lbs. (10.7 kg)

ELECTRICAL / THERMAL:

• Multi-voltage: AC 100-240V / 47/63Hz

• 460W Power Consumption @ 120V

• 430W Power Consumption @ 240V

• Multiple Unit Power Linking

• 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS:

• CE Compliant

• cETLus (Control #4010765)

• IP20

• dB Rating: 46dB @ 3'

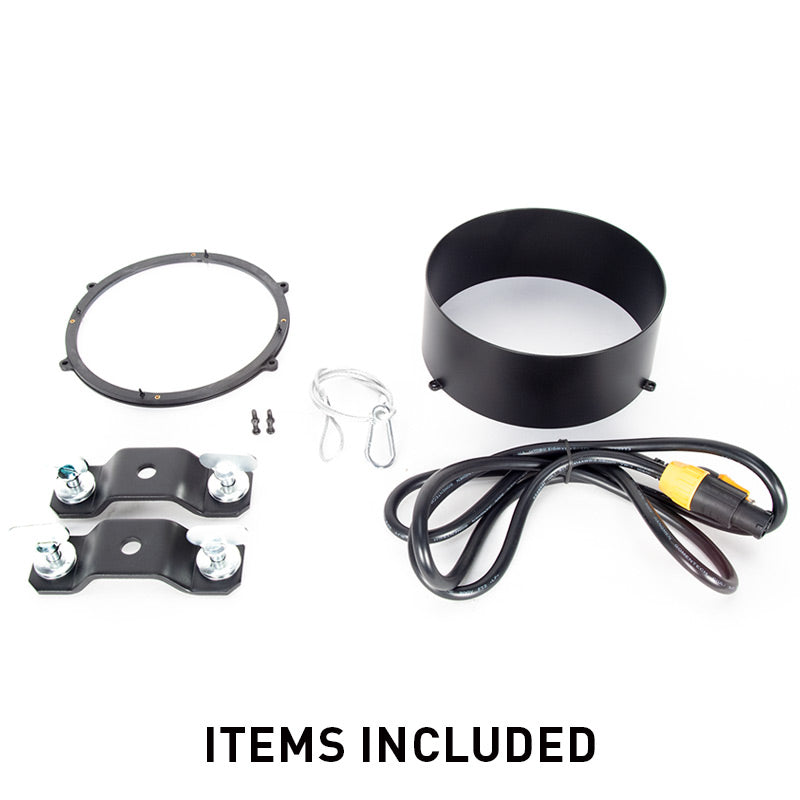

INCLUDED ACCESSORIES:

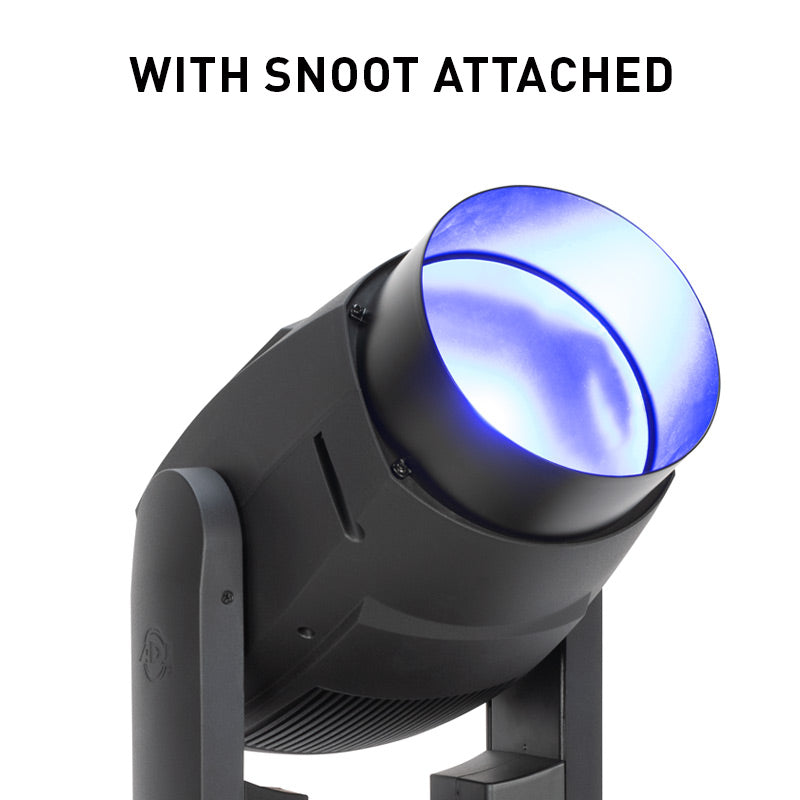

• Snoot

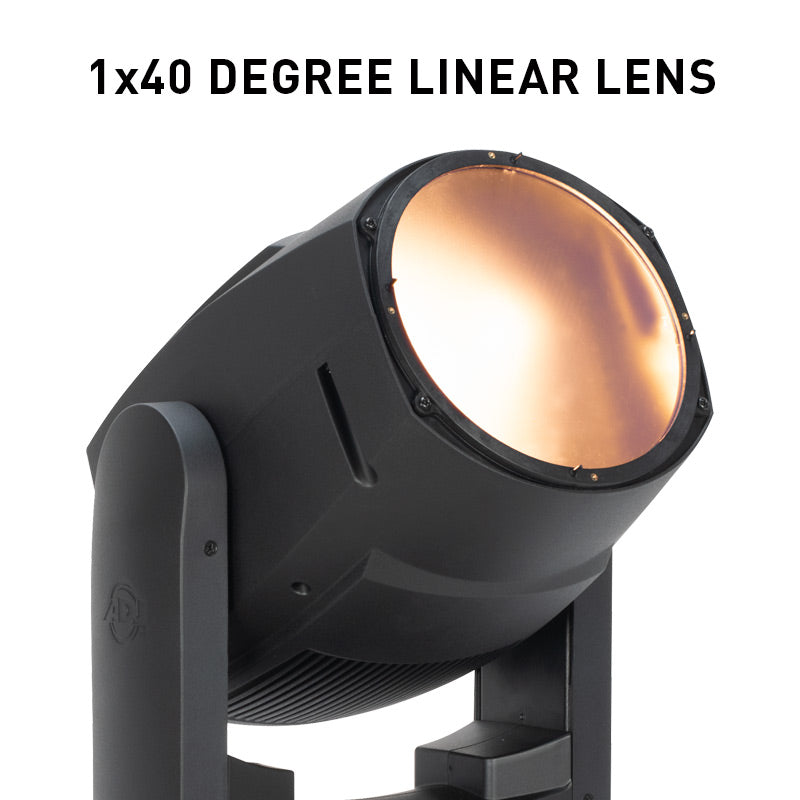

• 1x40 Degree Linear Lens

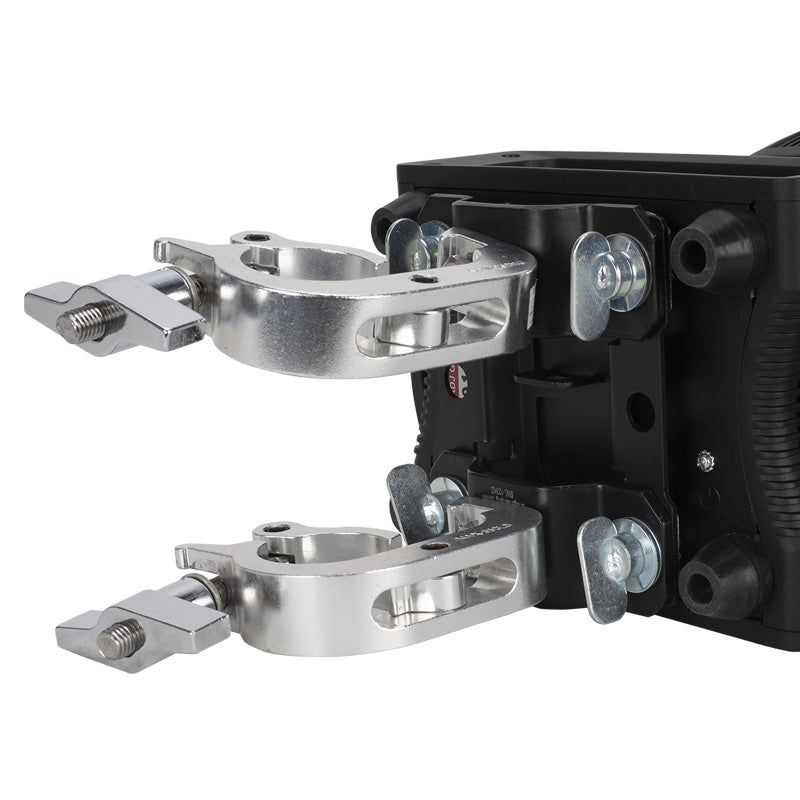

• 2 Omega Brackets

• Safety Cable

• IP65 Locking Power Cable

Specifications and documentation subject to change without notice.

Downloads

Cad drawing

Photometrics

User manual

Focus Wash 400 - User Manual

Generic

dB Test Report

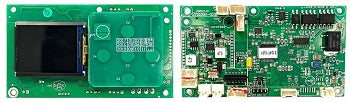

Focus Wash 400 Parts & Service

Our Focus Wash 400 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your Focus Wash 400. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
