Encore Profile Pro WW

UPC#: 818651028362
Advantage Points: 1050
Redemption Points: 21000
SKU
ENC273

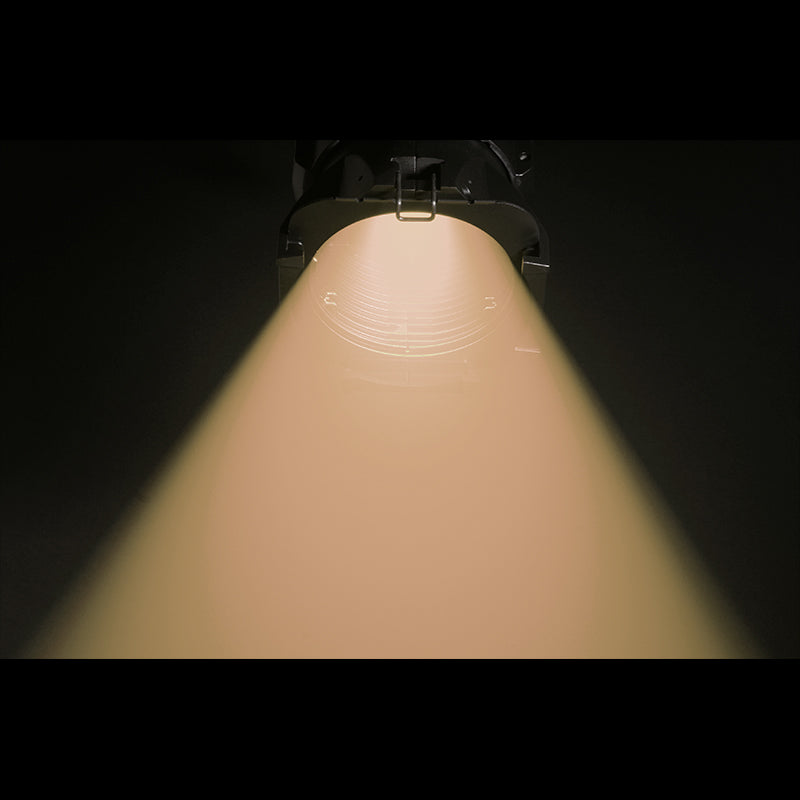

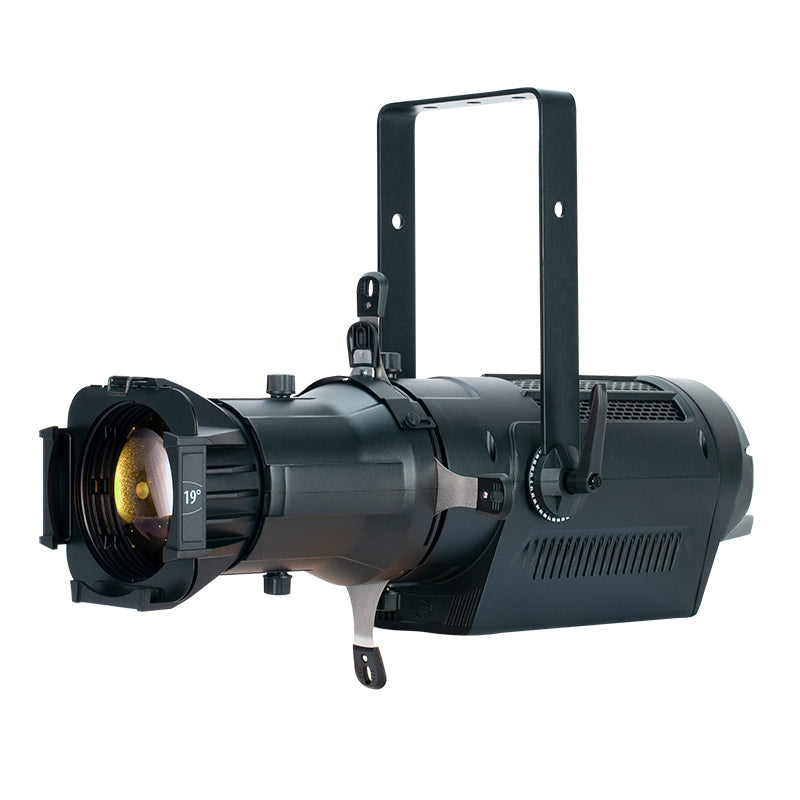

The ADJ Encore Profile Pro WW ellipsoidal features a high powered 260W Warm White (3200K) LED engine.

Where to Buy

Enter your zip code below to find this product at a retailer near you!

SOURCE
260W Warm White LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
>97CRI 10,000 Total Lumens* (*with 26° lens)
 3200K Color Temperature

EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curves and Dimming Modes

GOBOS
Supports “B” Size Metal, HT Transparency Gobos
GOBO Holder is included (See compatible Gobo Dimensions in Downloads section)
GOBOs are sold separately

CONTROL / CONNECTIONS
(3) DMX Channel Modes (2, 3, 6)
Adjustable Refresh Rates (900-1500, 25,000 Hz)

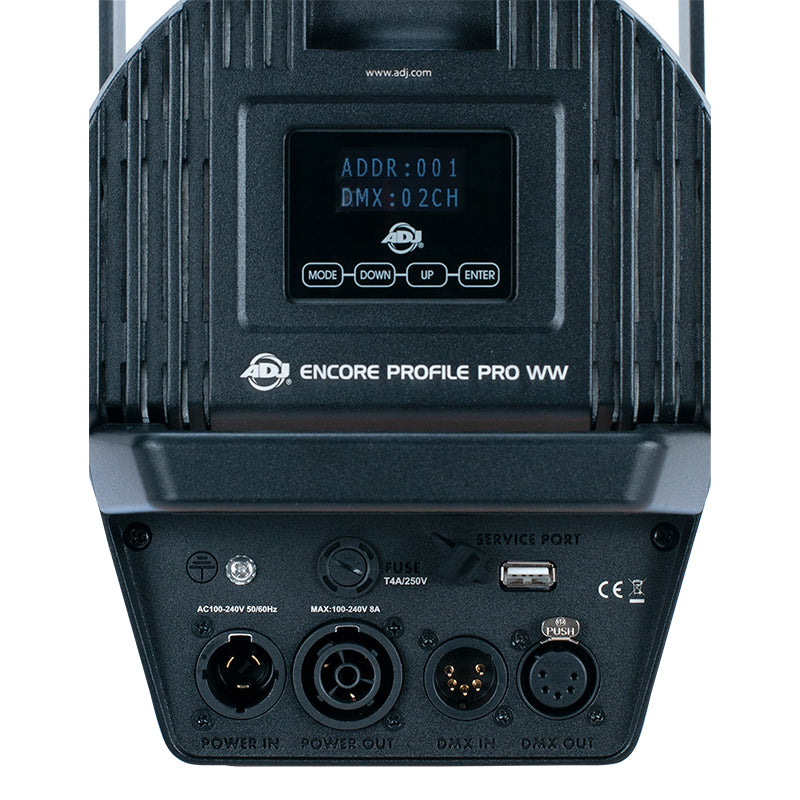

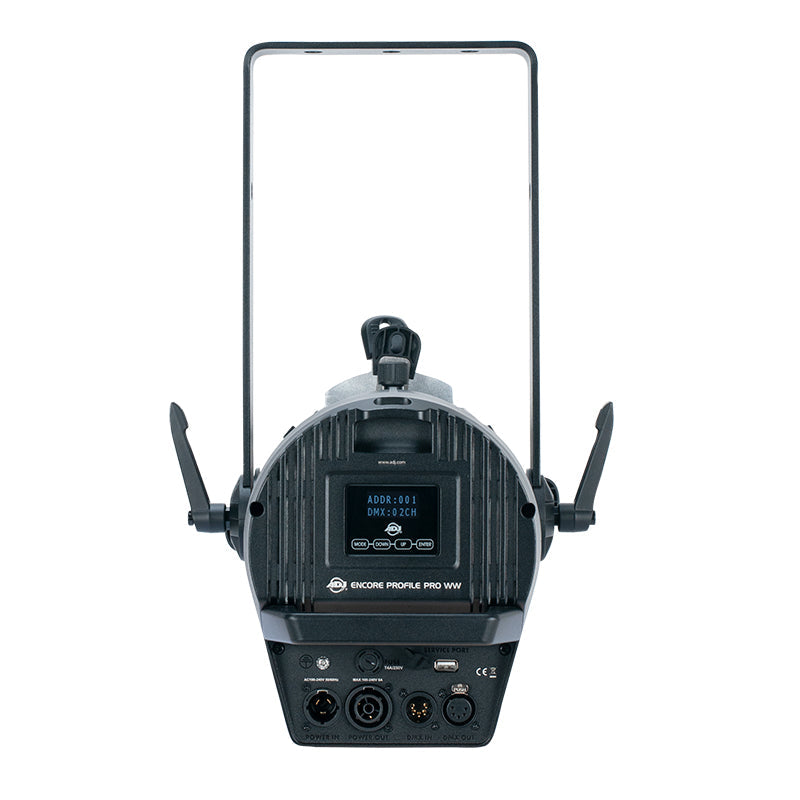

4 Button Control Panel
LED Menu Display
Locking 5pin XLR Connector In/Out
Locking Power Connector In/Out
With Wired Digital Communication Network
RDM (Remote Device Management)

SIZE / WEIGHT
Length: 26.9” (688mm) (Lens In)
Width: 11.375” (287mm)
Vertical Height: 17.7” (450mm)
Weight: 20.0 lbs. (9.1 kg)

ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 47/63Hz
260W Max Power Consumption
Power Linking: 3pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS
CE
cETLus
IP20

INCLUDED ITEMS
(1) Locking Power Cable

OPTIONAL ACCESSORIES:
EPP IRIS (EPP001)

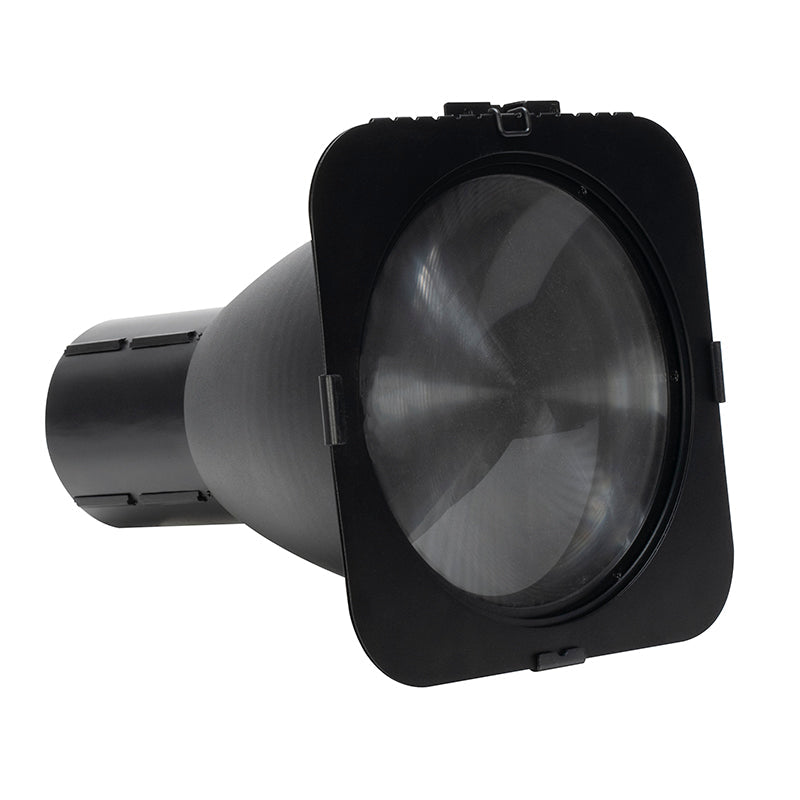

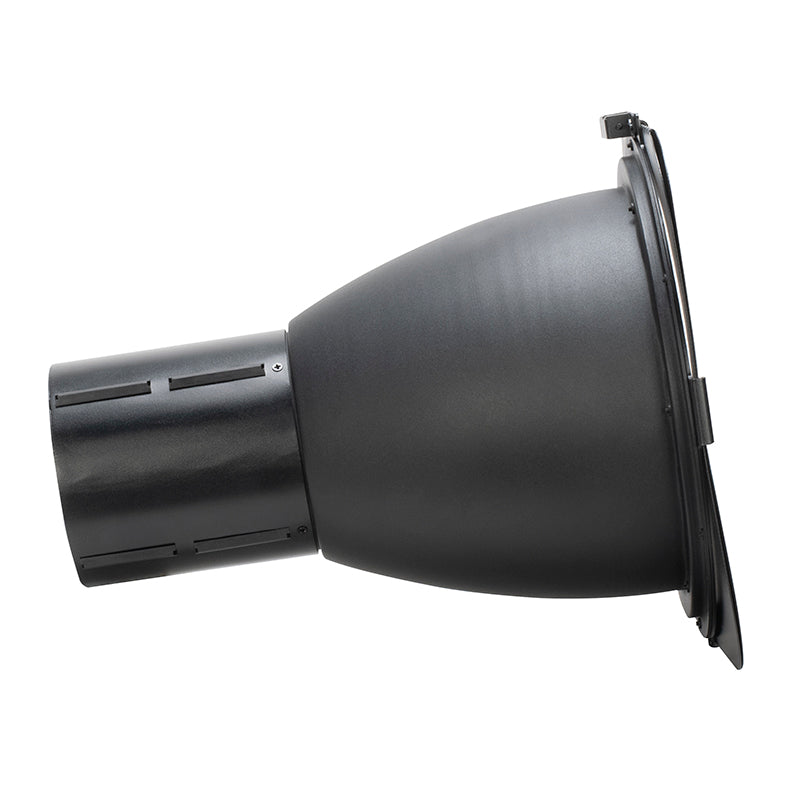

EP Lens 10 (10° High Definition Lens)

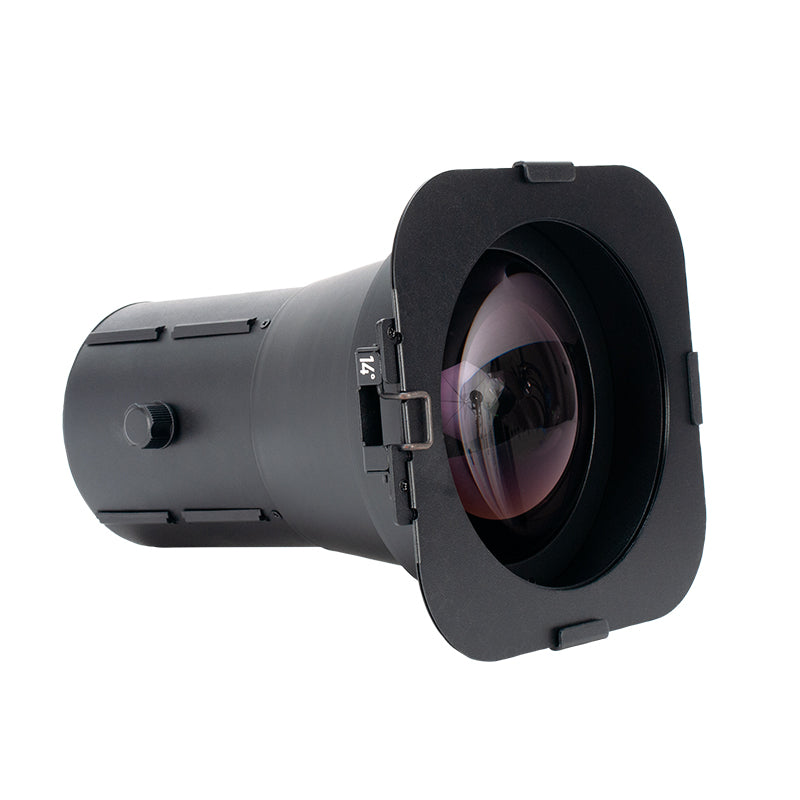

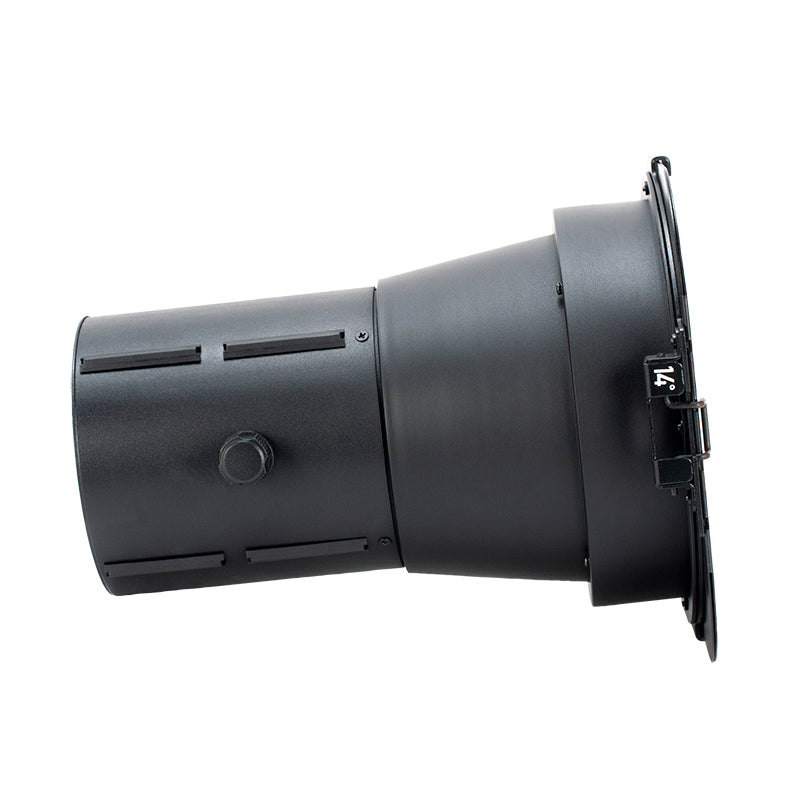

EP Lens 14 (14° High Definition Lens)

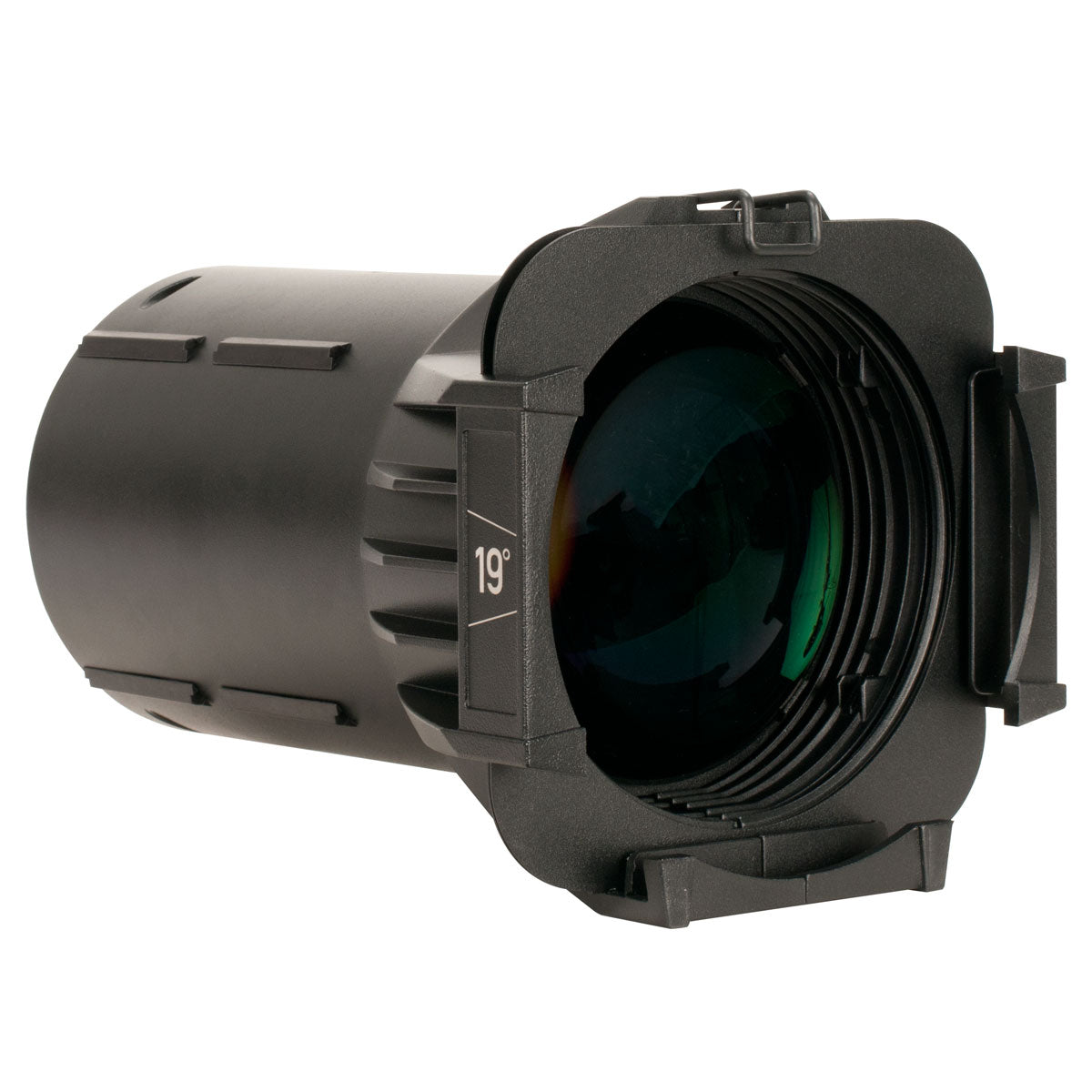

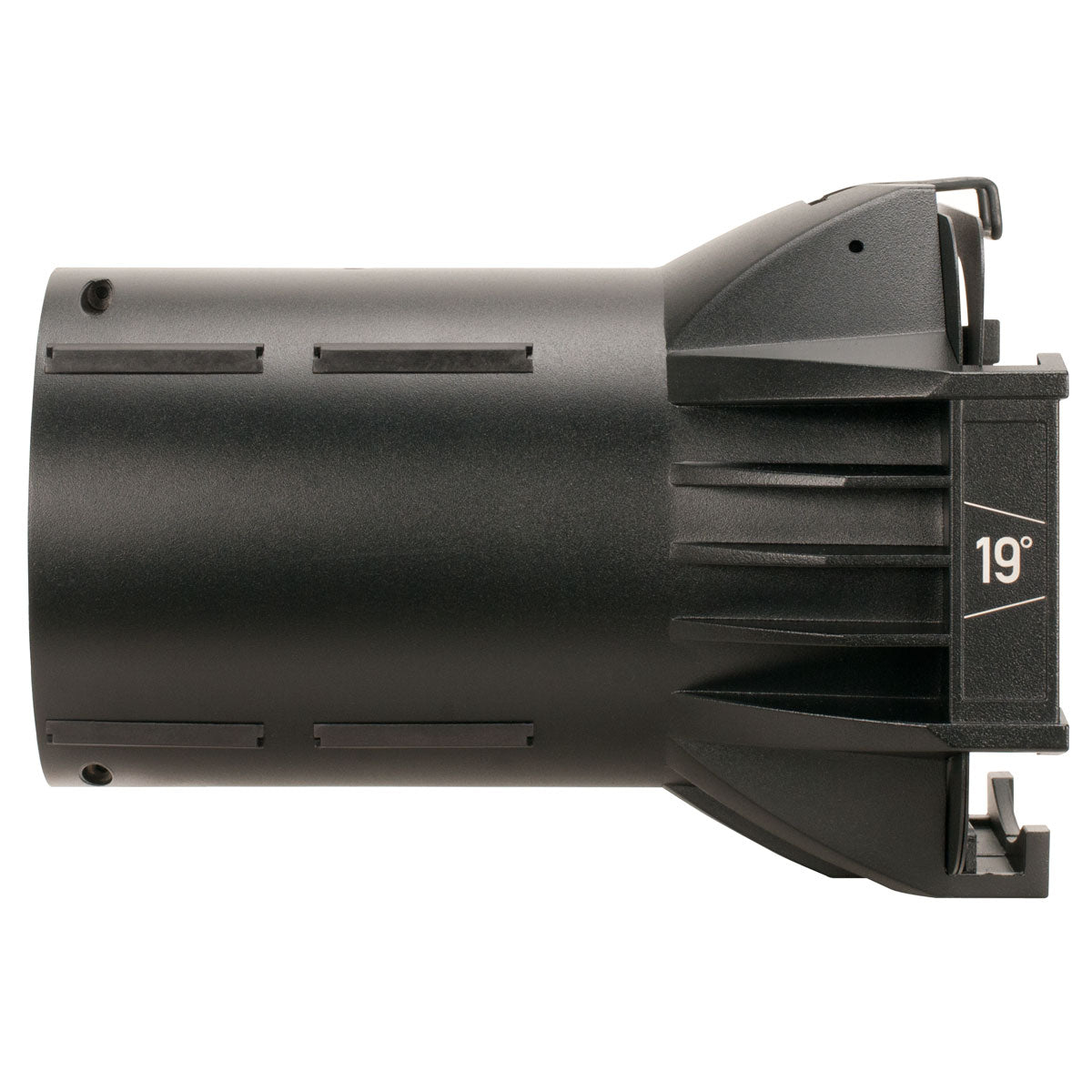

EP Lens 19 (19° High Definition Lens)

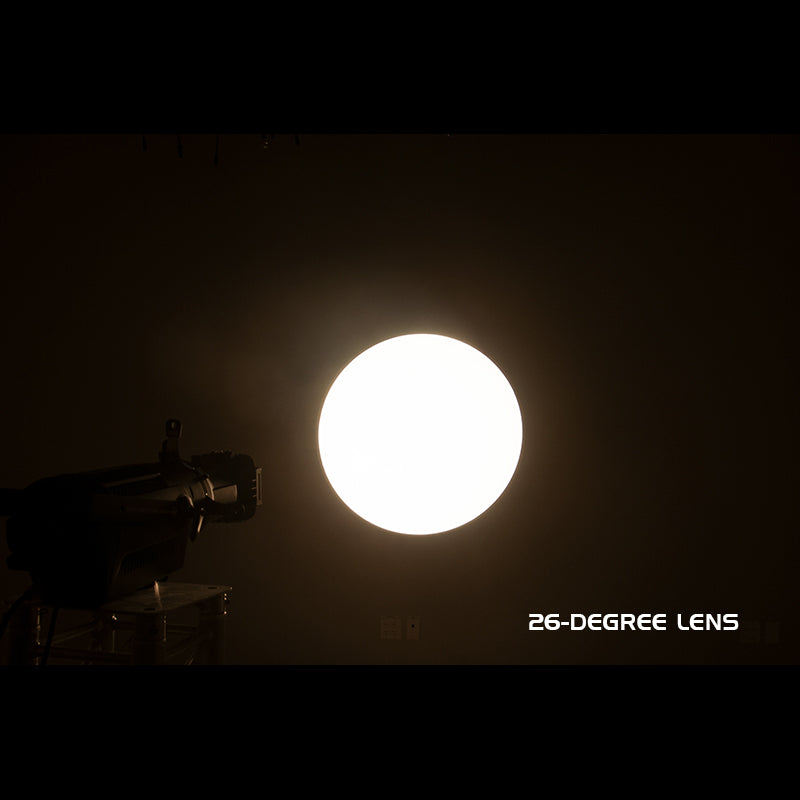

EP Lens 26 (26° High Definition Lens)

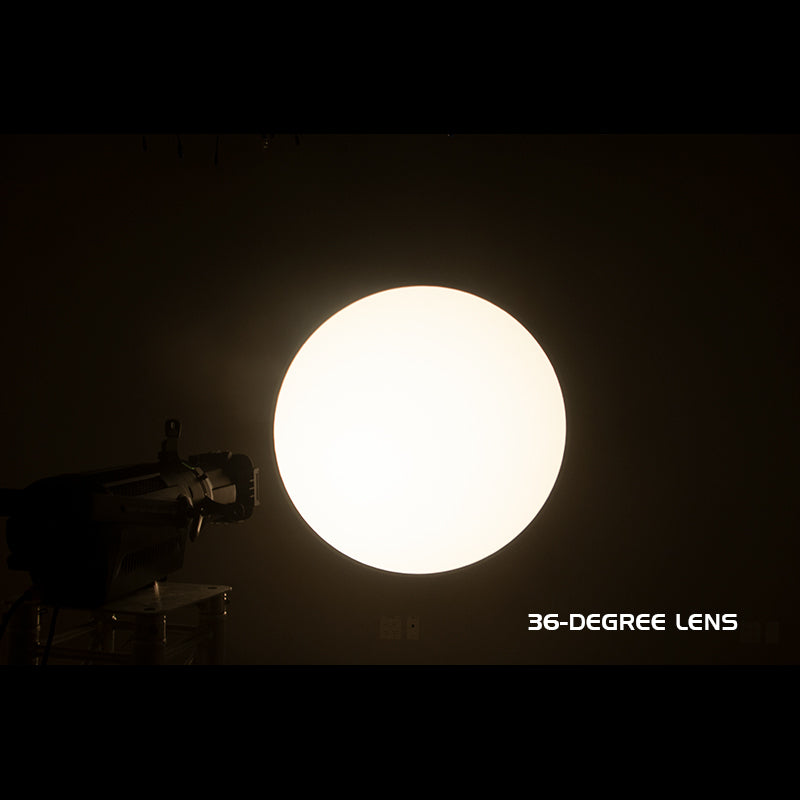

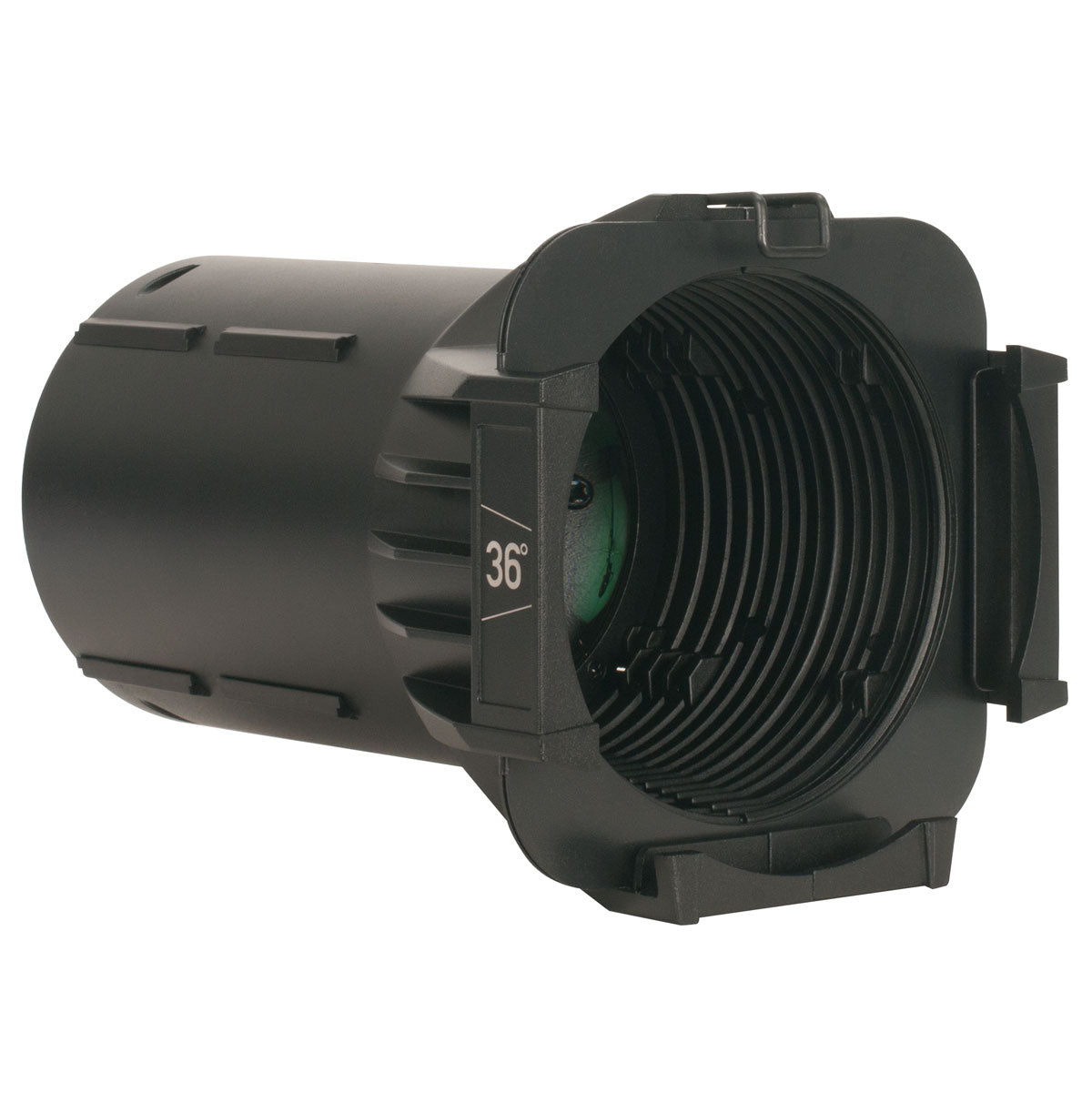

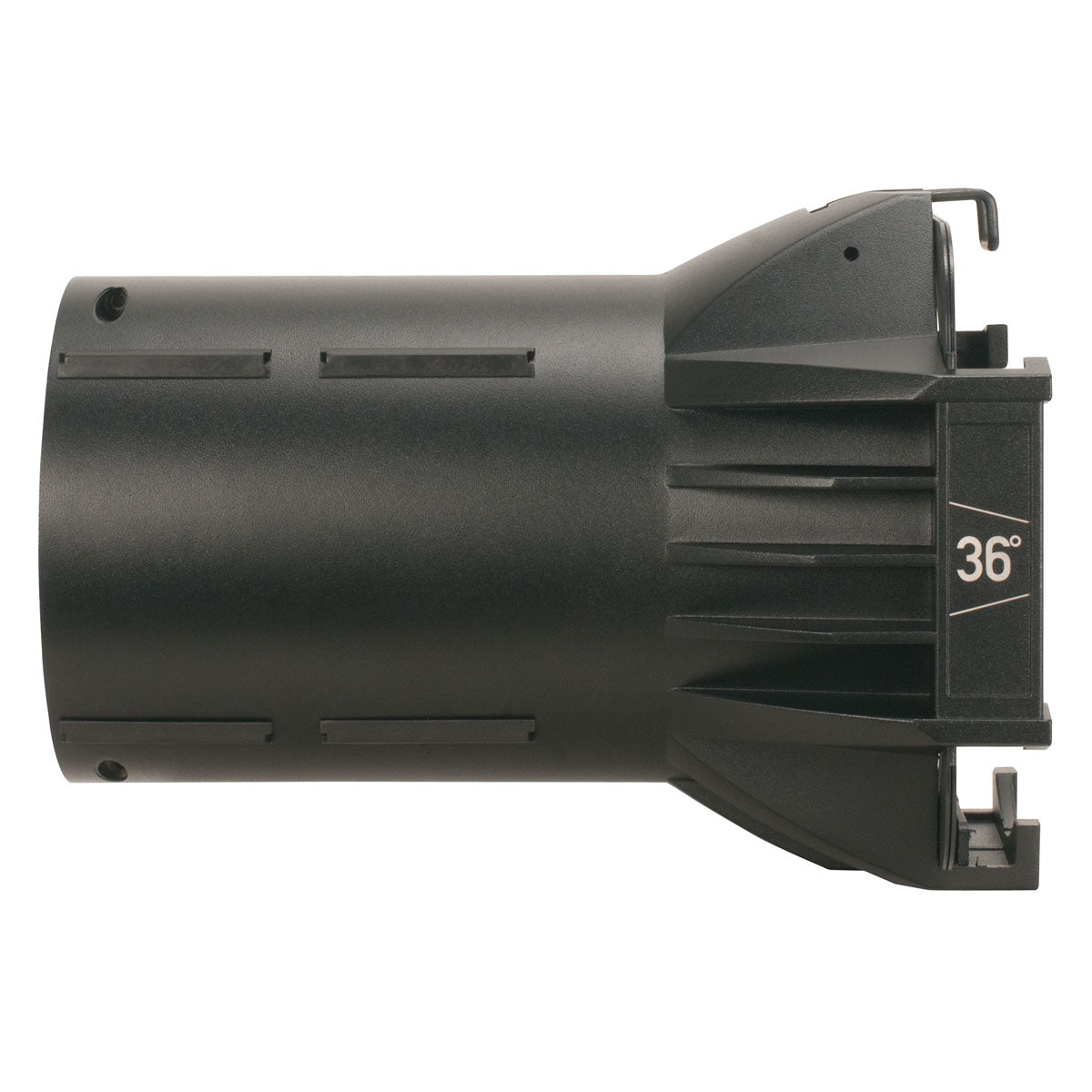

EP Lens 36 (36° High Definition Lens)
EP Lens 50 (50° High Definition Lens)
EP Lens 15-30Z (15° to 00° High Definition, Manual Zoom Lens)
EP Lens 25-50Z (25° to 50° High Definition, Manual Zoom Lens)
SIP064: 1.64ft. IP65 male to female twist lock power link cable
SIP113: 3ft. IP65 male to female twist lock power link cable
SIP126: 5ft. IP65 male to female twist lock power link cable
SIP139: 10ft. IP65 male to female twist lock power link cable
SIP152: 16ft. IP65 male to female twist lock power link cable
SIP165: 25ft. IP65 male to female twist lock power link cable
SIP178: 50ft. IP65 male to female twist lock power link cable
SIP191: 100ft. IP65 male to female twist lock power link cable

Specifications and documentation subject to change without notice.

Videos

Downloads

The following downloads are available for this product:

Title Description
Encore Profile Pro WW Full On 19 Degree Photometrics Test Report Photometrics Test Report Download
Encore Profile Pro WW Full On 36 Degree Photometrics Test Report Photometrics Test Report Download
Encore Profile Pro WW Cut Sheet PDF file Download
Encore Profile PRO WW DMX Traits DMX Traits Download
Encore Profile Pro WW - Photometrics IES Files - Full On 26Deg Photometrics IES Files Download
Encore Profile Pro WW - Photometrics IES Files - Full On 50Deg Photometrics IES Files Download
Encore Profile Pro WW - Photometrics IES Files - Full On 14Deg Photometrics Text Report Download
Encore Profile Pro WW Vectorworks Symbol Vectorworks Symbol Download
Encore Profile Pro WW 3D CAD Drawing CAD Drawing Download
Gobo Holder, Gobo Dimensions Gobo Holder, Gobo Dimensions Download
Encore Profile Pro WW - User Manual User Manual Download
Available now from ADJ USA

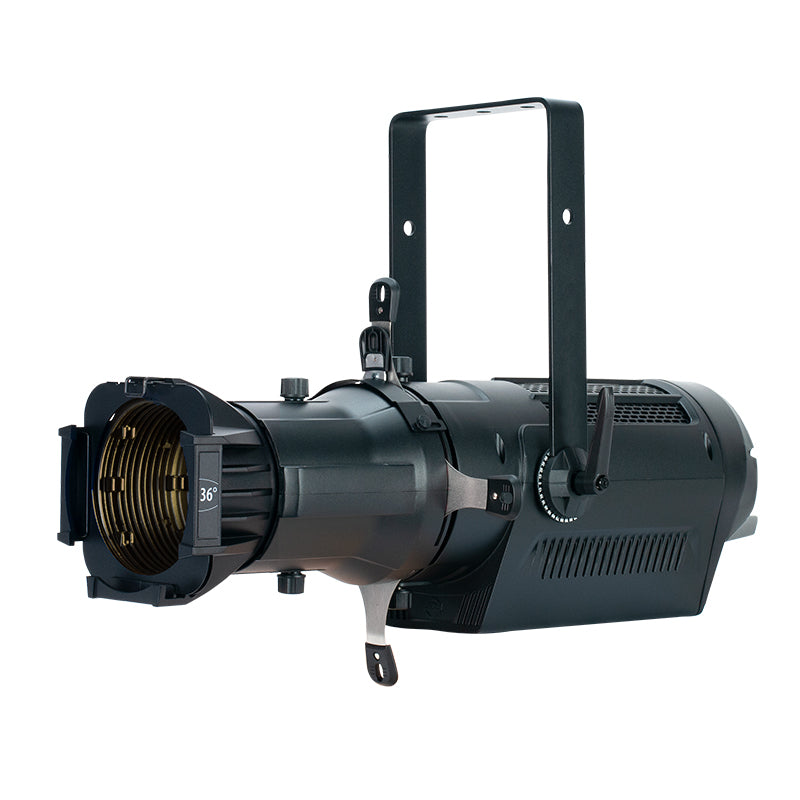

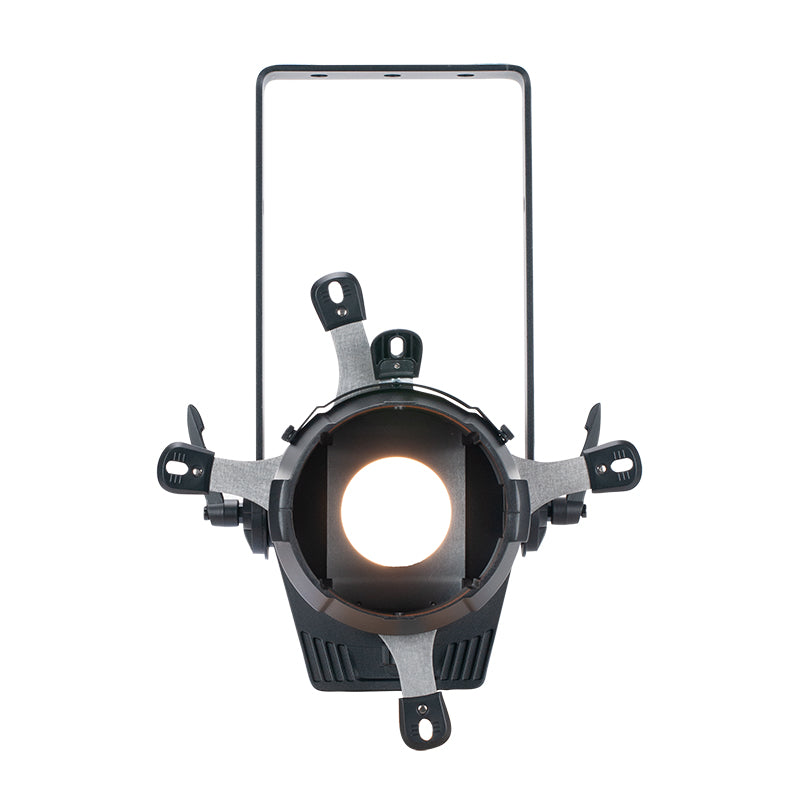

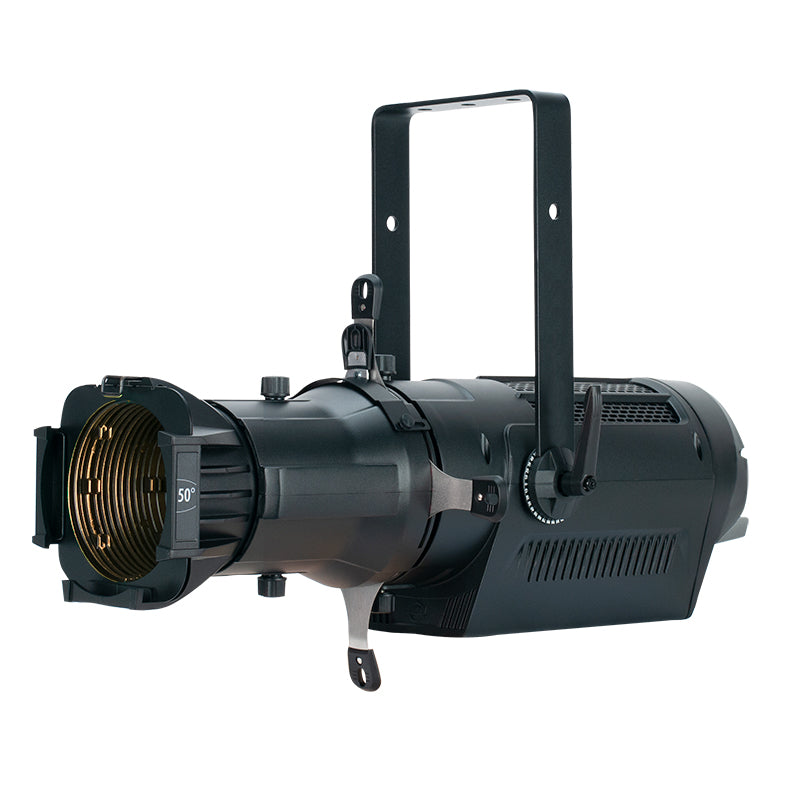

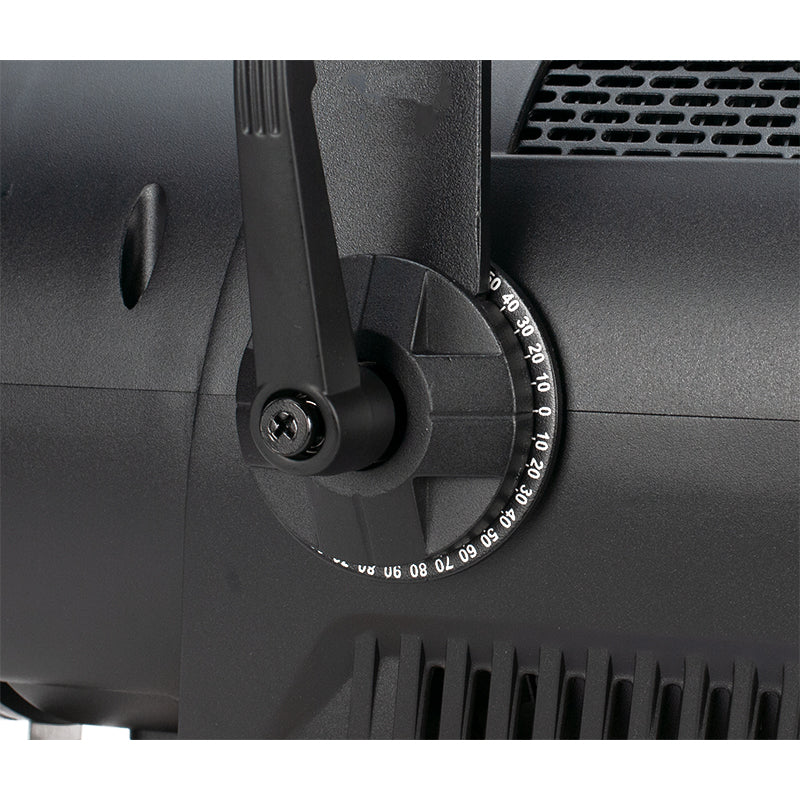

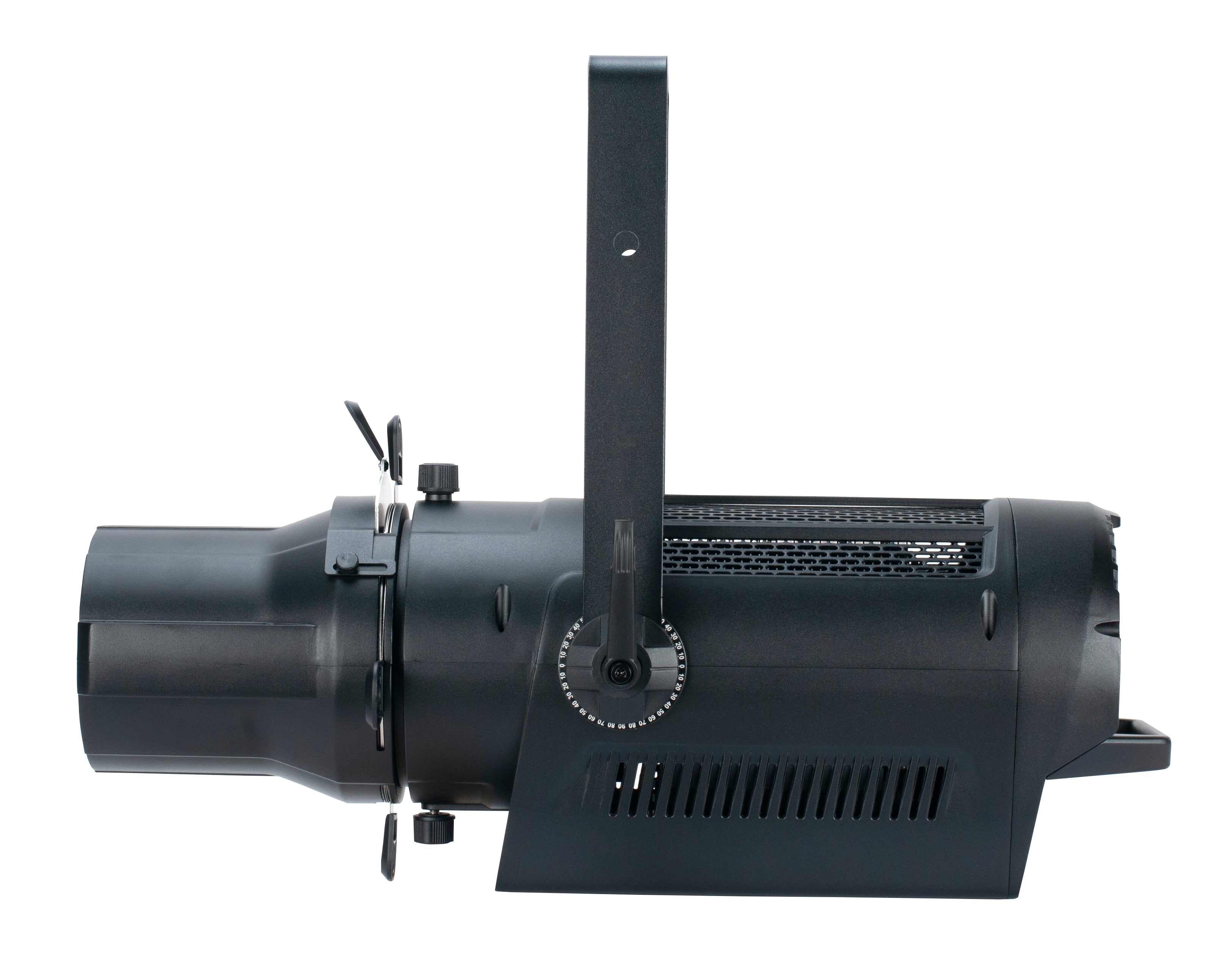

The Encore Profile Pro WW™ ellipsoidal features a high powered 260W Warm White >97CRI 3,200K LED engine producing 10,000+ total lumens, 14°, 19°, 26°, 36°, and 50° interchangeable high definition lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curves and dimming modes, adjustable refresh frequency for flicker free operation for TV and FILM, locking 5-pin XLR In/Out and Locking Power In/Out, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).
