Encore Burst 200

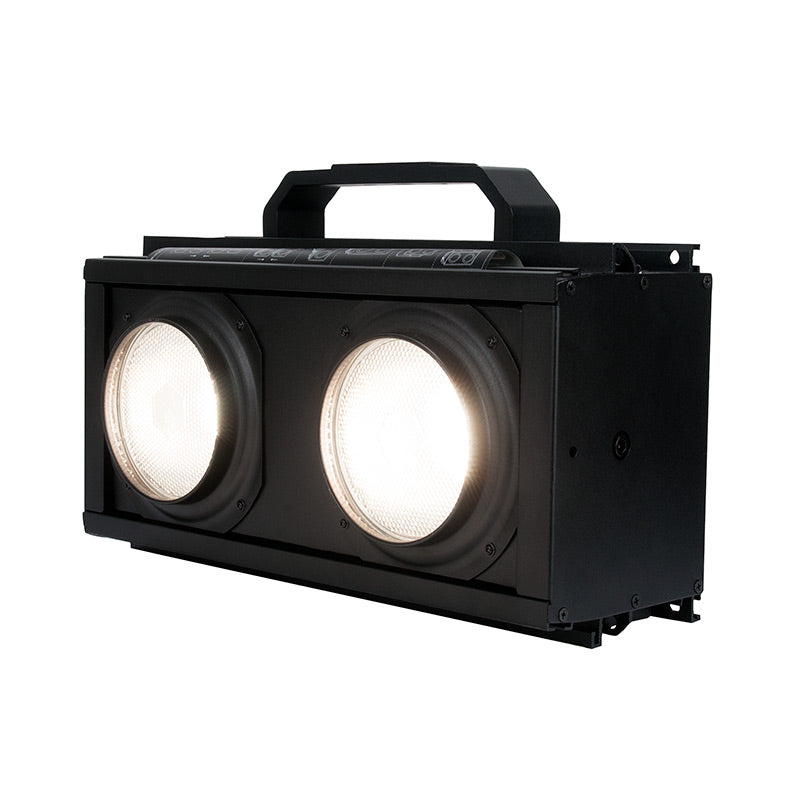

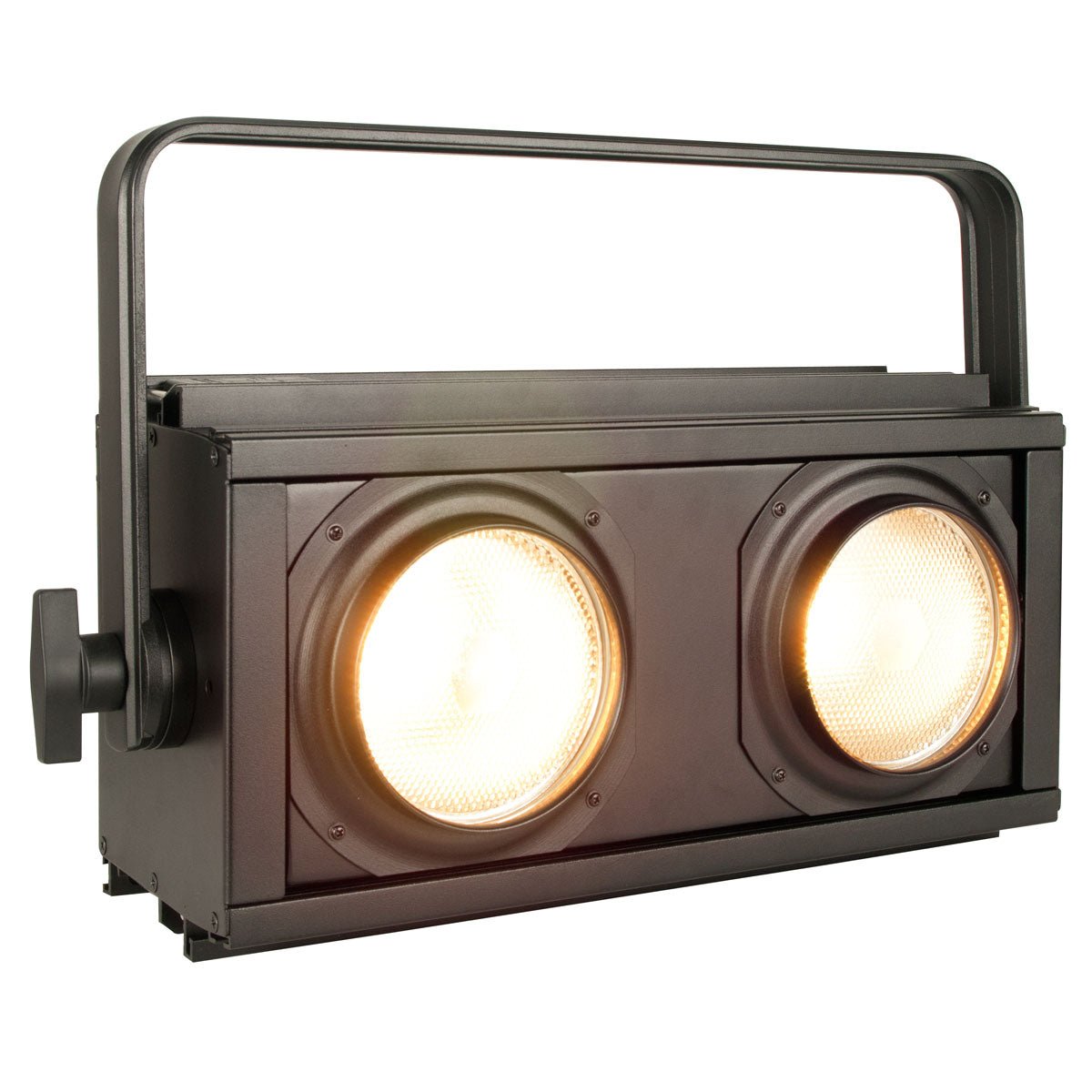

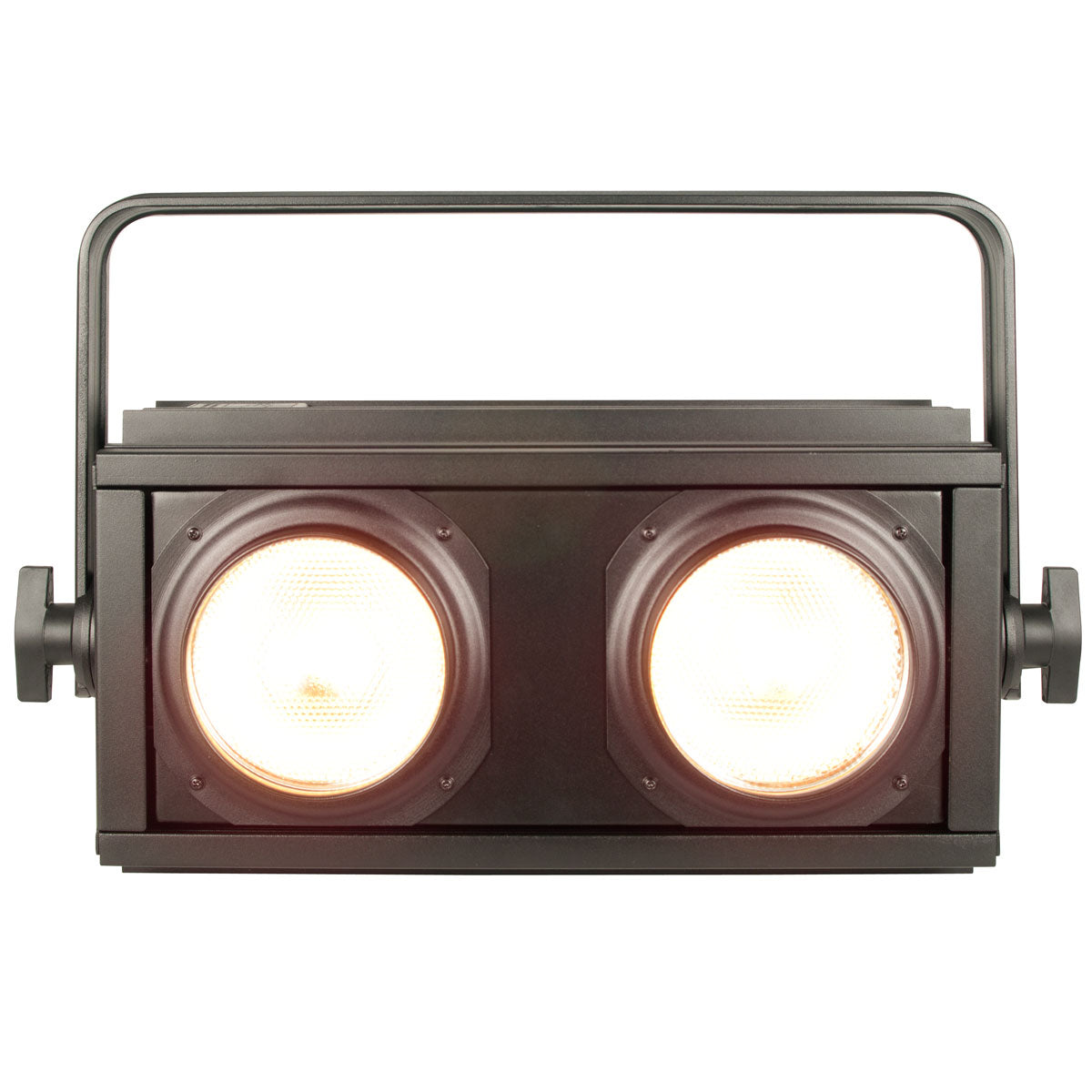

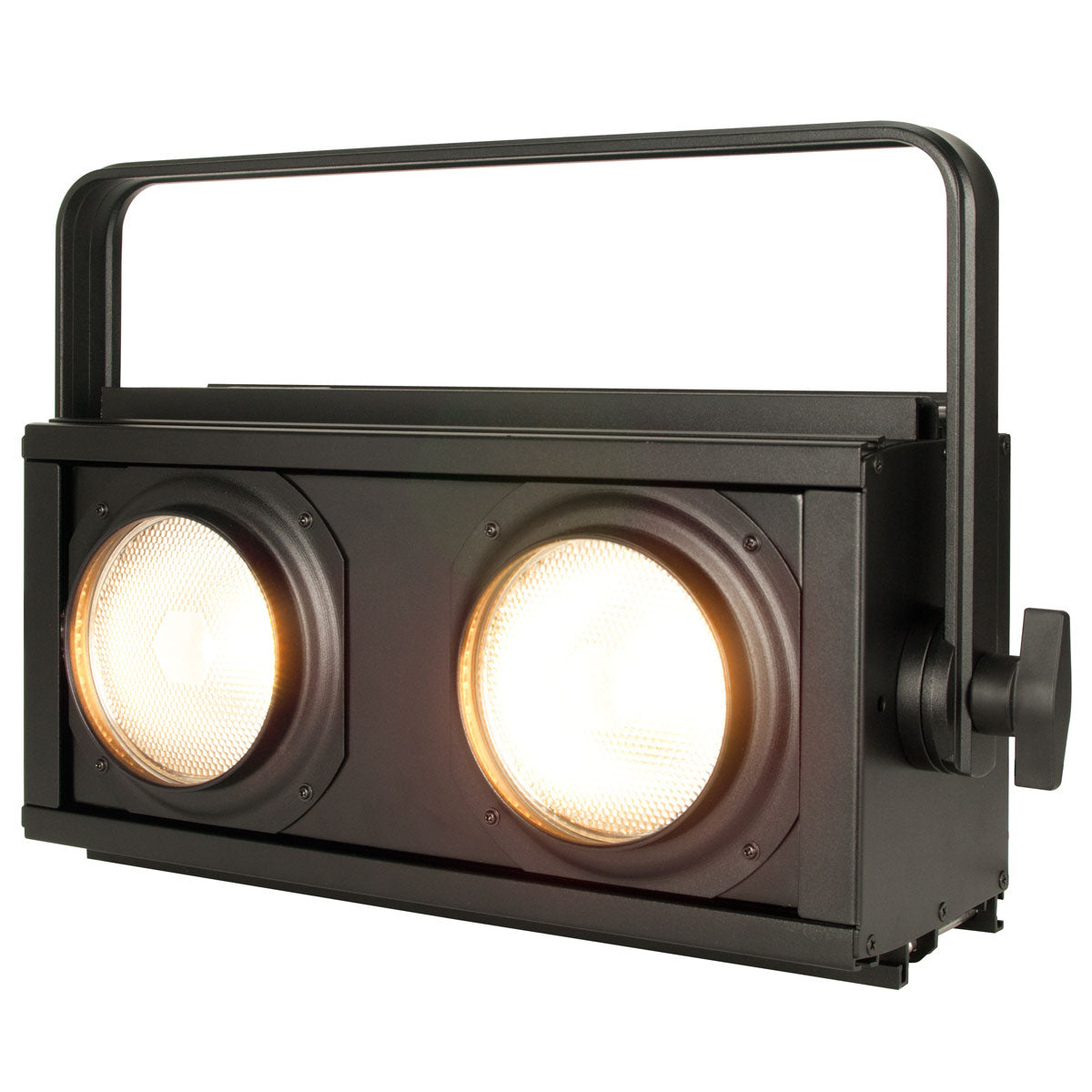

The Encore Burst 200 is an IPX4 rated, high intensity dual lens audience blinder/strobe. It’s powered by two 110W warm white (2700K) CREE COB LEDs. The fixture is constructed with a rugged metal housing and an aluminum extrusion rails system to connect multiple fixtures to create a larger cluster of fixtures in a vertical or horizontal array. The fixture features a Tungsten Mode effect that replicates a halogen-like dimming profile.
Specifications
Light Source:
2x 110W Warm White CREE COB (Chip On Board) LEDs
2,700K Color Temperature (1,200K Tungsten Mode)
50-degree Beam Angle
CRI: 81
12249 LUX @ 1M; 490 LUX @ 5M
50,000 Hour Average LED Life
Features:

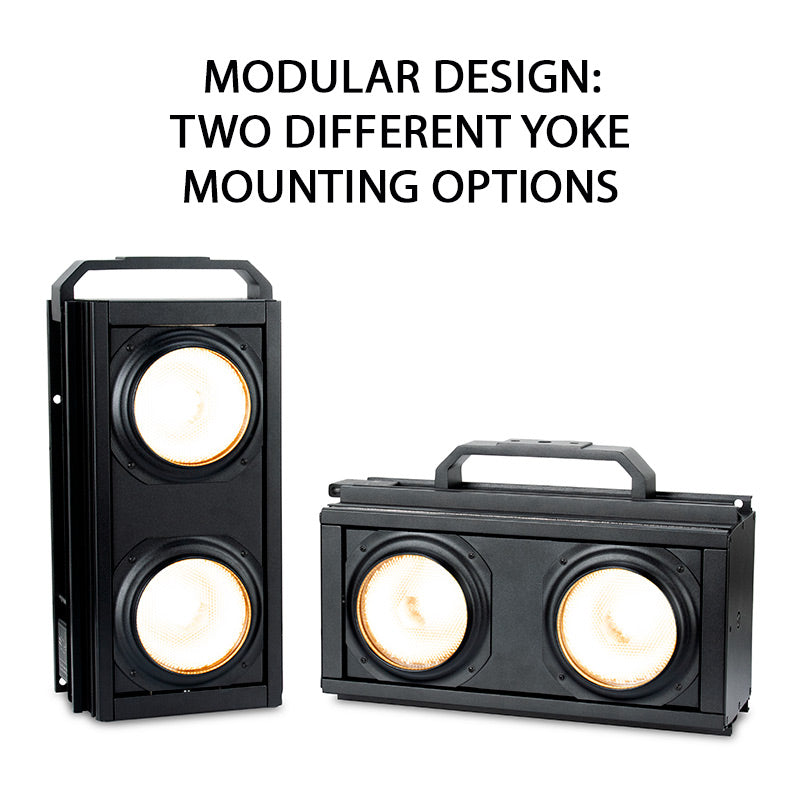

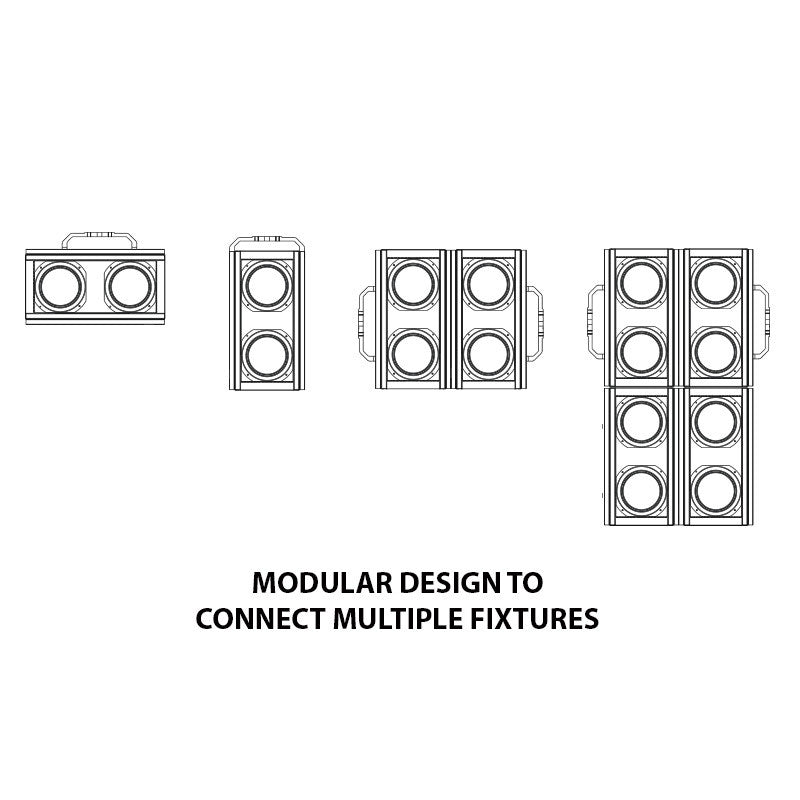

Modular design to connect multiple fixtures together in a vertical or horizontal tray from a built-in rail system on the fixtures
DMX Modes: 6
Dimming Curve Modes: 6
Dimming: 0 - 100% each module
Pixel Control
Strobe Effect
Adjustable LED Refresh Rate (900-25,000Hz)
Adjustable Gamma Brightness (2.0-2.8)
With Wired Digital Communication Network
Connections:
Data Input: 5pin DMX In/Out

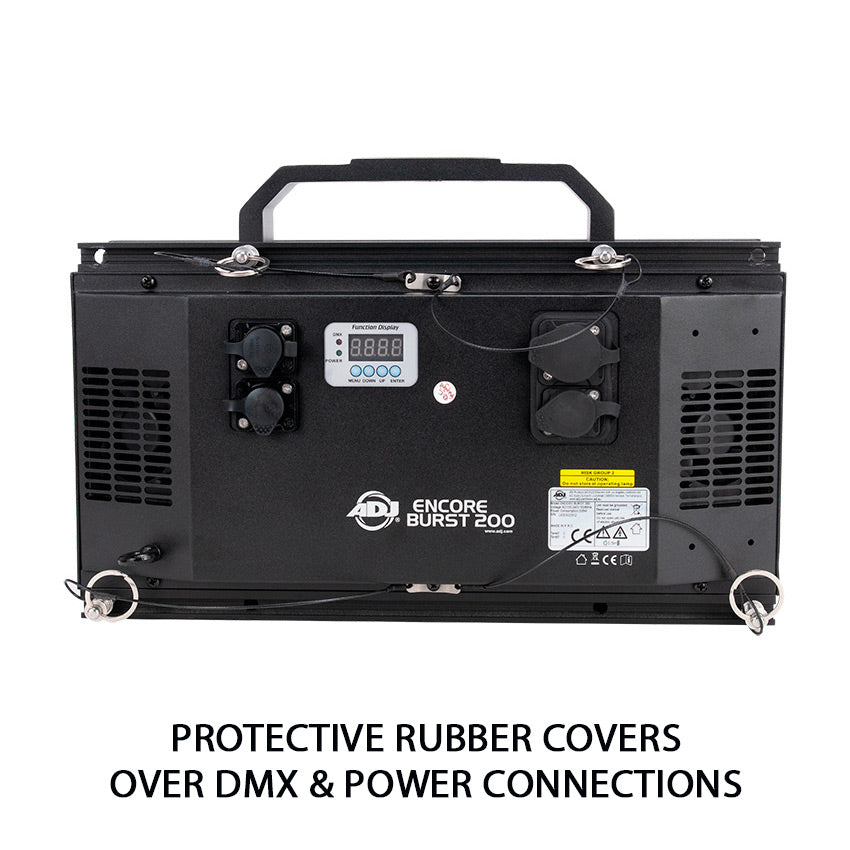

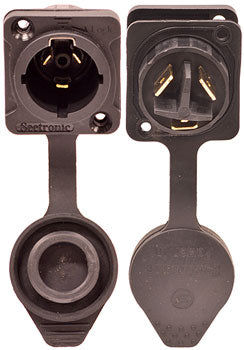

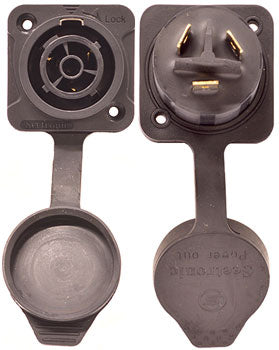

Power Input: Locking Power Cable In/Out (with protective rubber caps)
Safety Cable Loop
Control:
RDM (Remote Device Management)
Electrical:
100-240V 50Hz/60Hz (Auto Sensing)
Power Linking: 4 Fixtures @120V | 8 Fixtures @240V
Max Power Consumption: 235W
IPX4 Rated:
X (Protection against Dust) Fixture is not tested for dust ingress. 4 (Protection against Water) Fixture offers protection from a splash of water in any direction
Dimensions / Weight:
Length: 7.9” (200.5mm)
Width: 15.7” (400mm)
Height: 8.5” (215.5mm)
Weight: 15 lbs. (6.8kg)
Approvals / Ratings:
CE Certified
Downloads
Cad drawing
- Encore Burst 200 2D Cad Drawing
- Encore Burst 200 2D Cad Drawing with Yoke
- Encore Burst 200 2D Cad Drawing with Yoke Bracket
Cut sheet
Dimensional drawings
- Encore Burst 200 Dimensional Drawing
- Encore Burst 200 Dimensional Drawing with Yoke
- Encore Burst 200 Dimensional Drawing - Yoke Bracket
Ies files
Photometrics
User manual

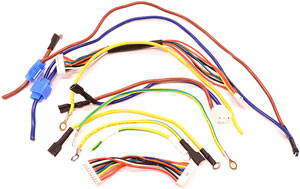

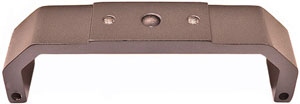

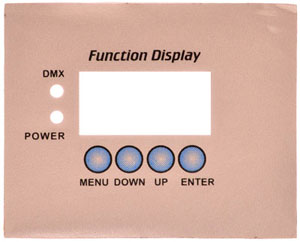

Encore Burst 200 Parts & Service
