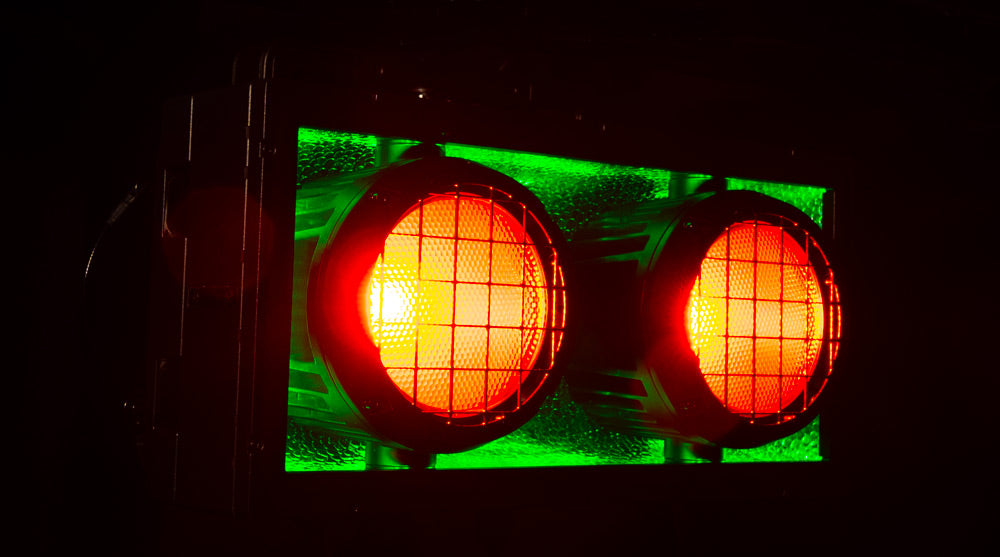

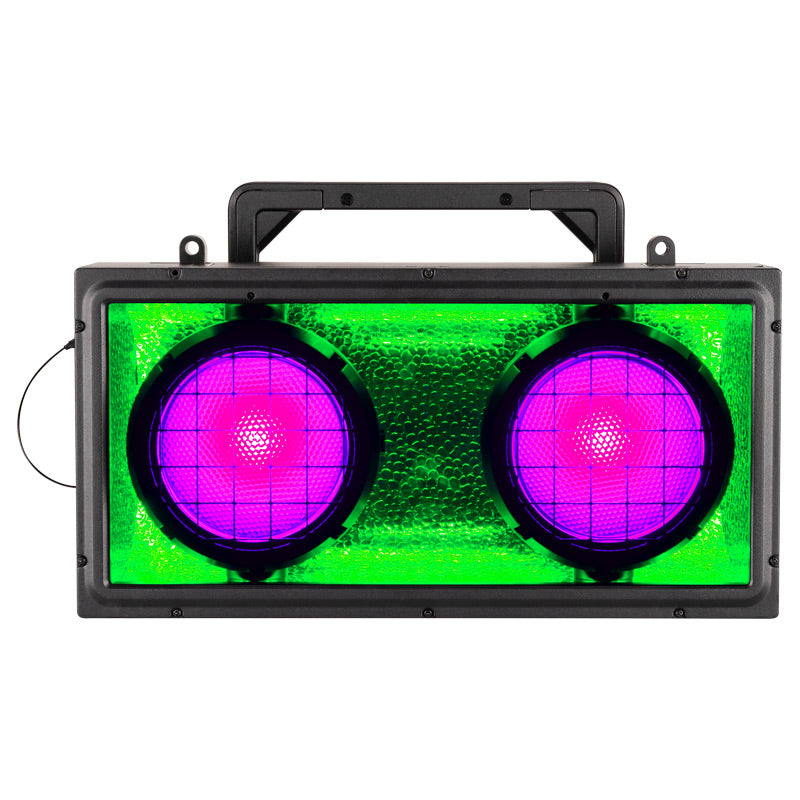

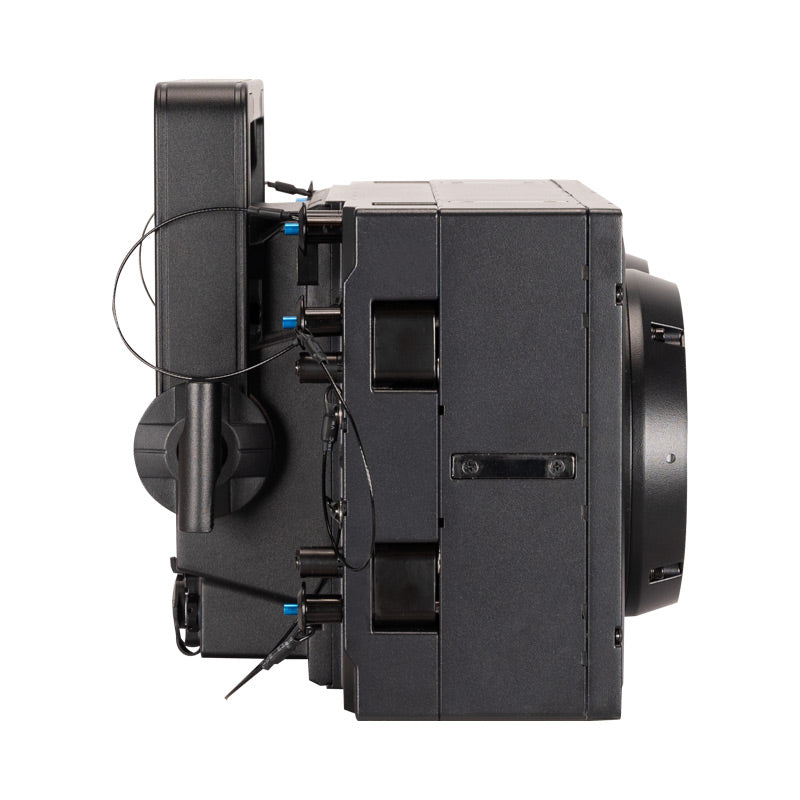

Encore DBX

2 Cell, Five Color (RGBAW) LED Blinder

Background RGB LEDs

Individually Controllable Cells

Built-In Cell Programs

Built-In Background LED Programs

Tungsten Control Mode

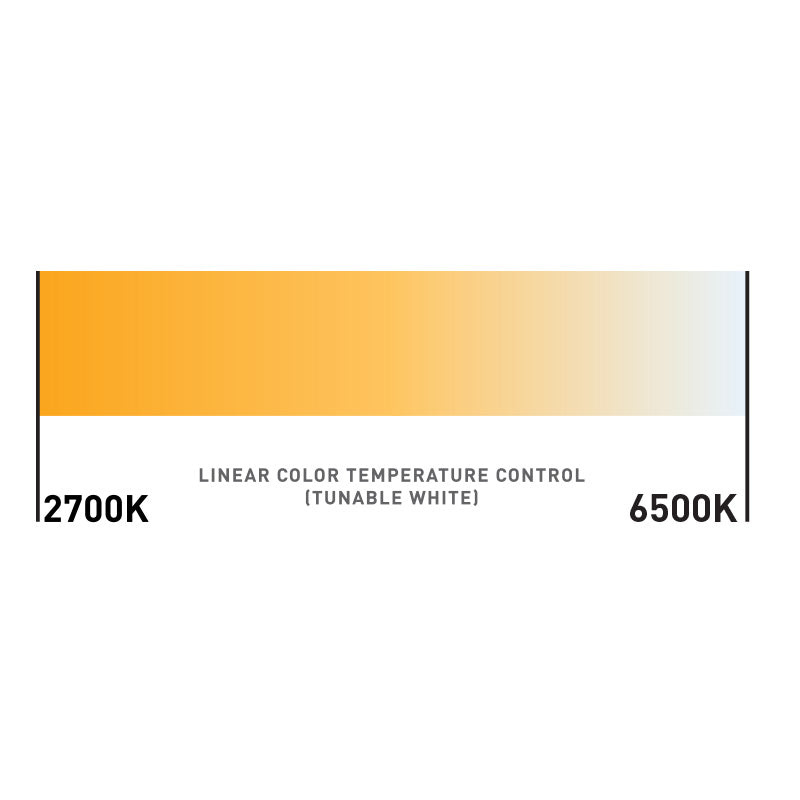

Variable White Color Temperature Control (2,700K ~ 6,500K)

User Selectable LED Refresh Rates (900Hz ~ 25K)

6 User Selectable Dim Modes

4 User Selectable Dim Curves

Electronic Strobe (1 ~ 20Hz)

Electronic Dimming

Aria X2 Wireless Management System

Source:

2x 150W RGBAW LED's

RGB Background LED's

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometrics:

Total Lumen Output: 11,465

CRI: 89

Optical:

Beam Angle: TBA

Field Angle: TBA

Effects:

Variable Strobe Rate: 1- 20Hz

Variable 16-bit Dimming Modes and Curves

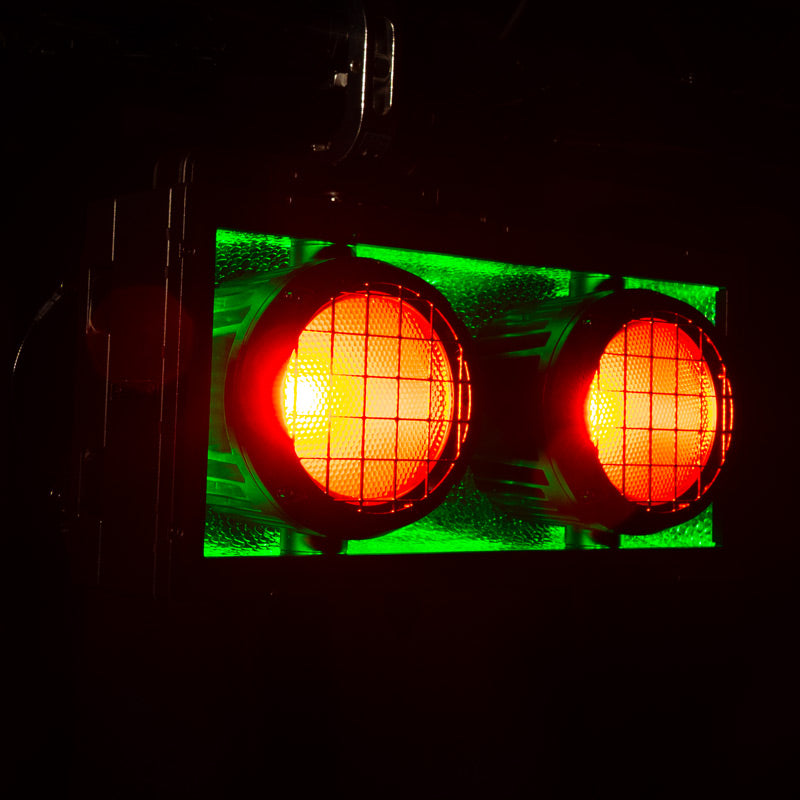

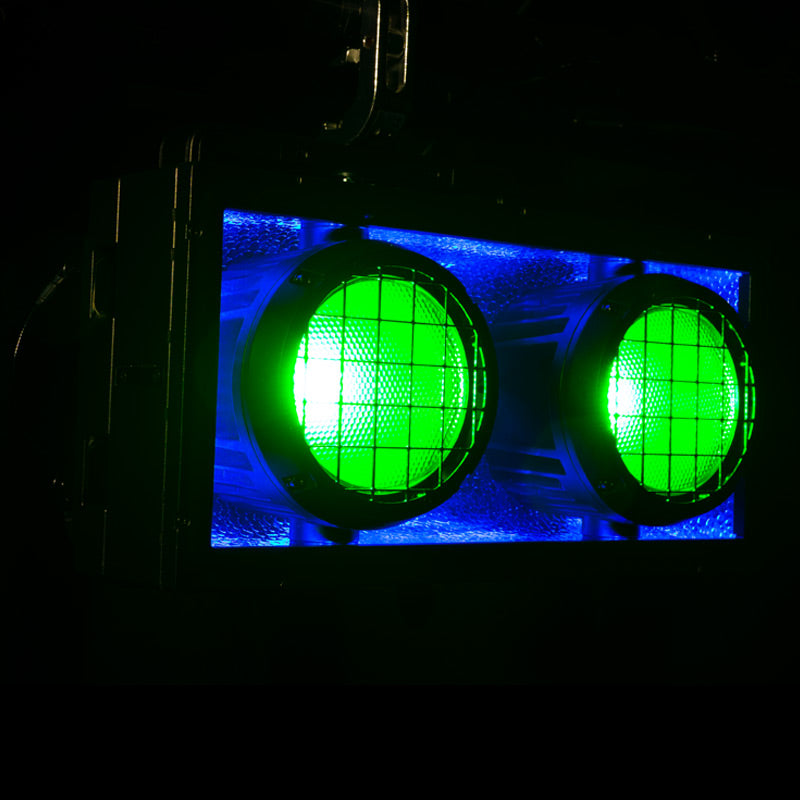

RGB Background Reflector Effect

Color:

RGBAW Color Array

RGB Background

Variable CCT 2700K - 6500K + five presets

Physical:

IP65 Housing

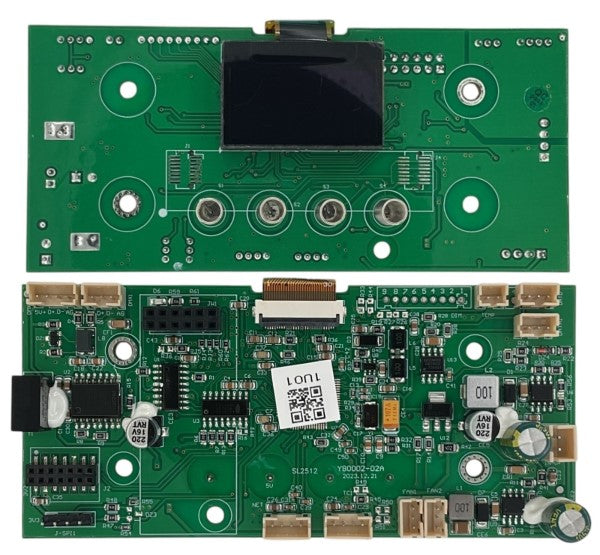

OLED Digital display

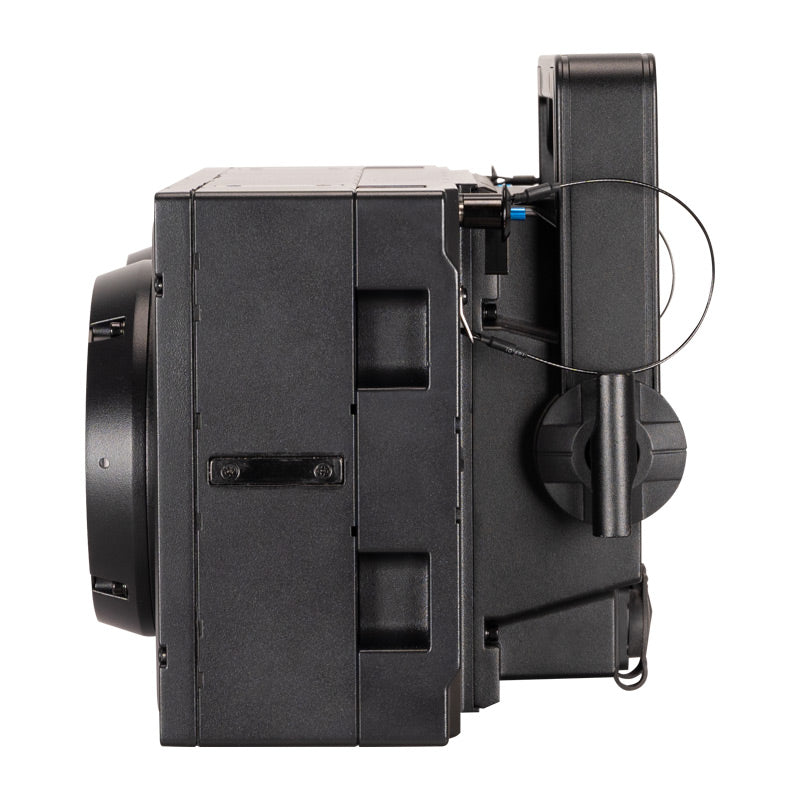

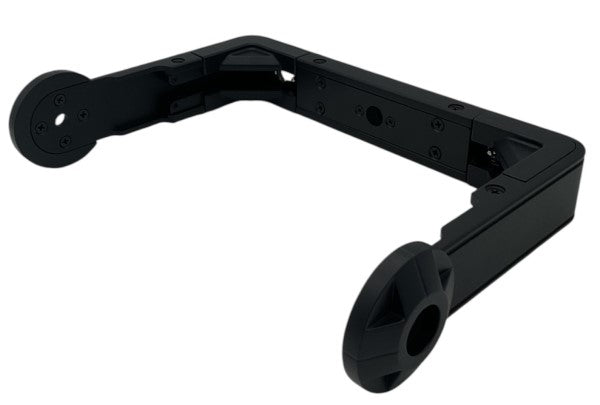

Adjustable Mounting Yoke with Omega Receivers

Second Set of Omega Receivers on Rear

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM (Remote Device Management)

(21) DMX Channel Modes (1CH/ 2CH-A / 2CH-B / 4 CH / 5CH / 8CH / 10CH / 11CH / 12CH-A / 12CH-B / 16CH / 18CH / 19CH / 21CH / 22CH / 25CH / 26CH / 29CH / 31CH / 35CH / 41CH modes)

On-board Manual Control Mode

Primary / Secondary Mode

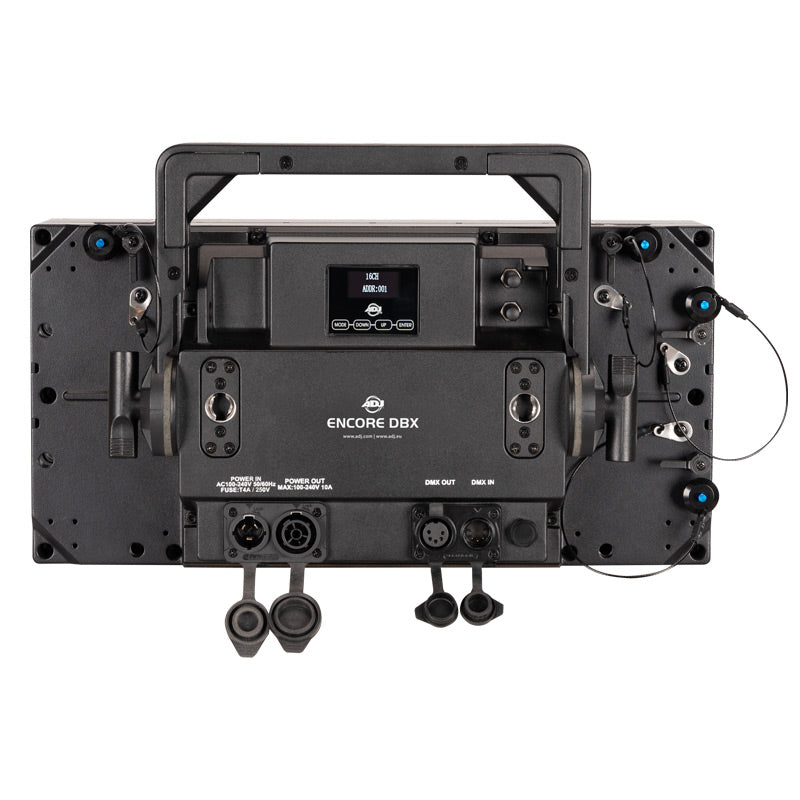

Connections:

5pin XLR IP65 DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

IP65 Locking Power Sockets

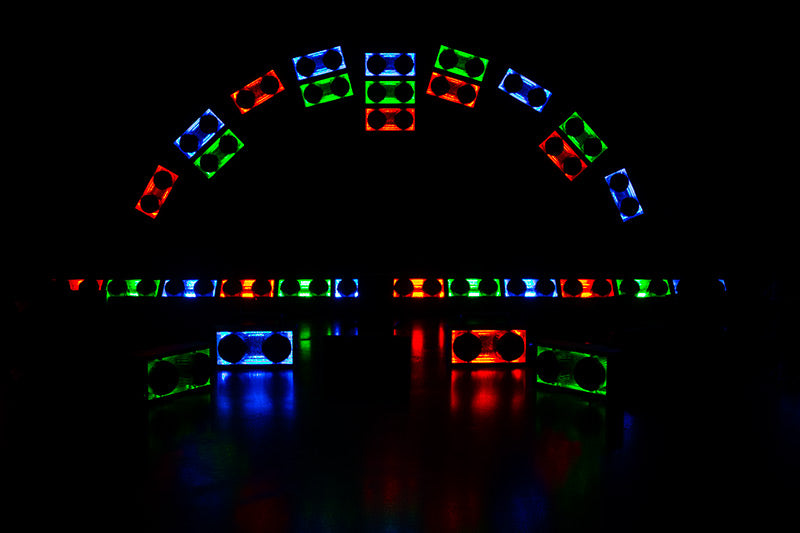

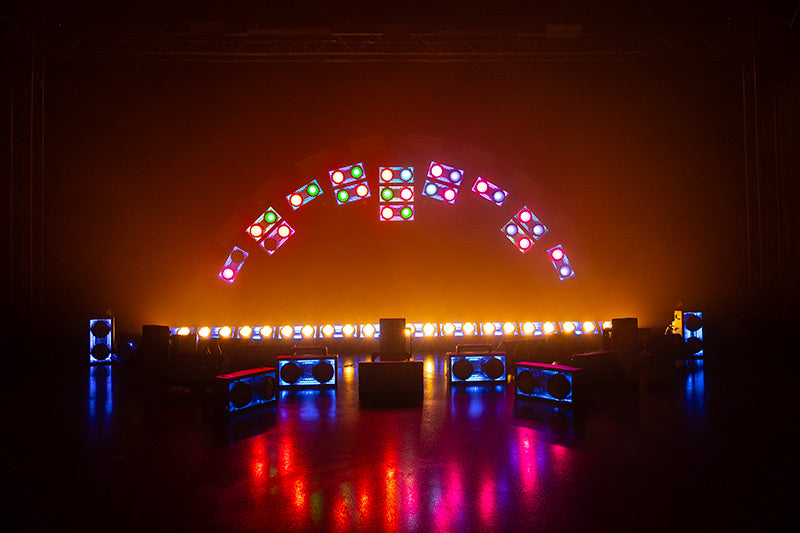

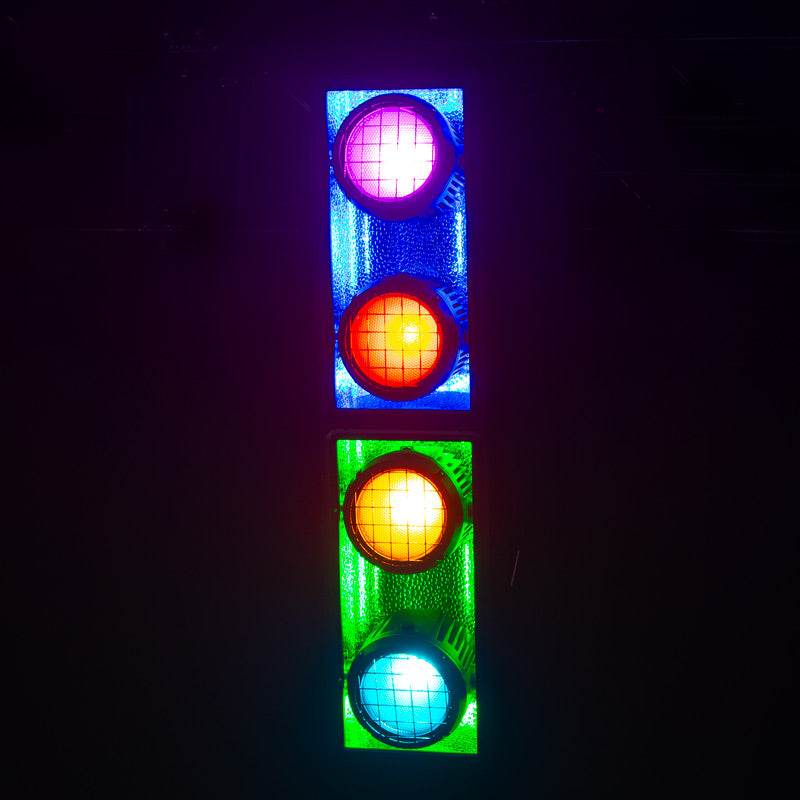

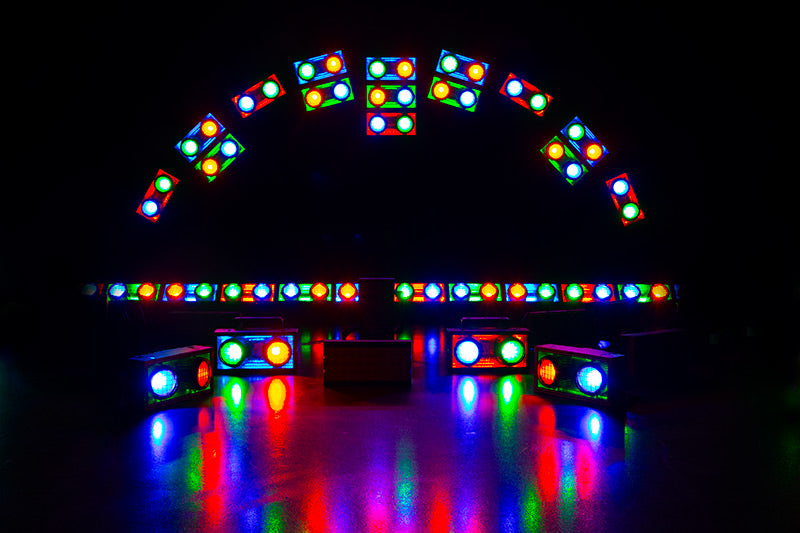

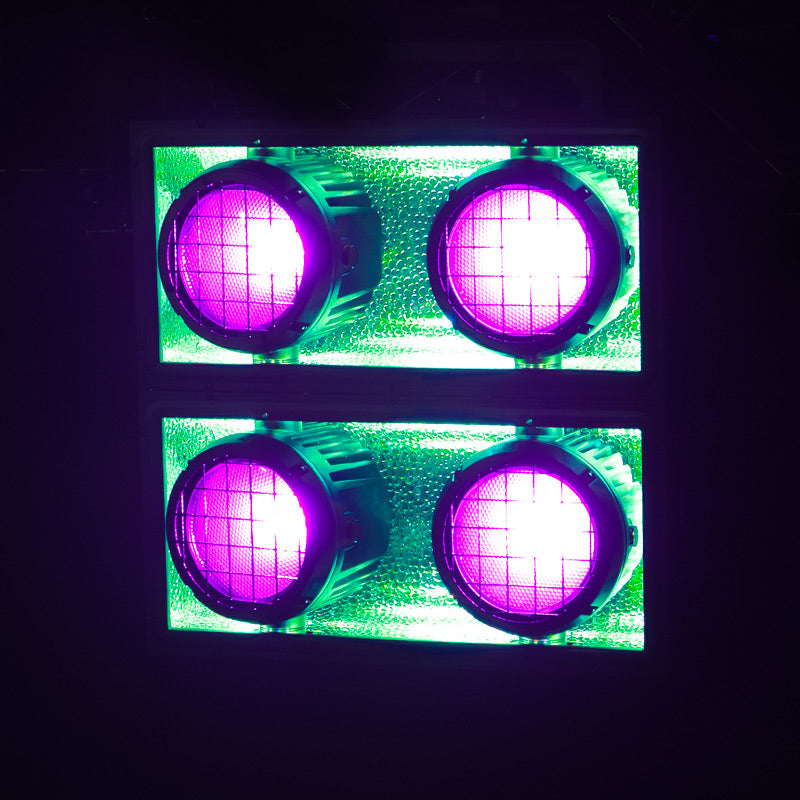

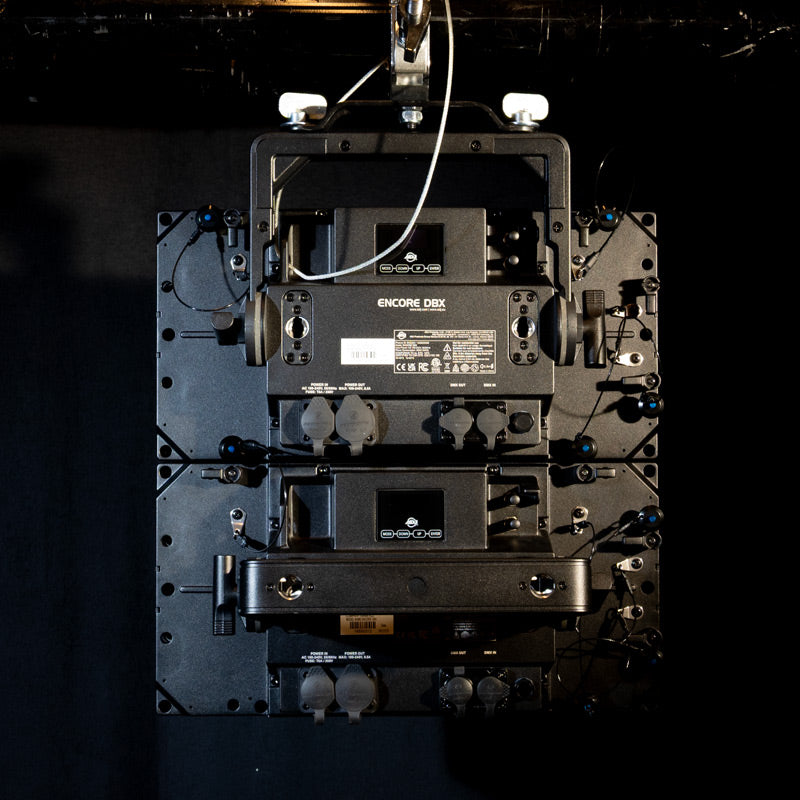

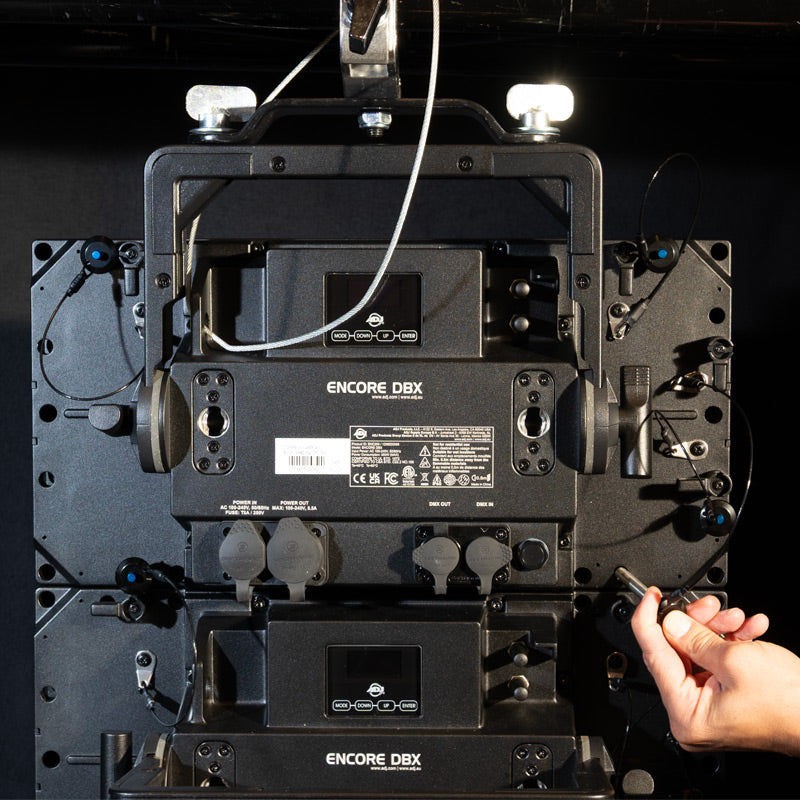

Locking Pin System to connect fixtures in an array pattern vertically or horizontally (Hang up to 8 fixtures maximum vertically)

Dimensions & Weight:

Length: 16.54” (420mm) Width: 10.28” (261mm) Height: 9.11” (231.3mm)

Weight: 26.1 lbs. (11.85 kg)

Power:

AC100-240V/50Hz-60Hz Input

347W Power Consumption

Link 2 pieces @120VAC or 6 pieces @ 230VAC

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE

cETLus (Pending)

FCC

IP65

Included Accessories:

(1) Outdoor Locking Power Cable

(1) Safety Cable

Specifications and documentation subject to change without notice.
