Element Hex

SKU: ELE001 | UPC: 818651020496
The Element Series is a battery powered, WiFLY wireless DMX LED Par Series from ADJ. The Element Hex features four 10W RGBAW+UV (6-IN-1) LEDs and is intended for indoor use.
Advantage Points: 290

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $289.99

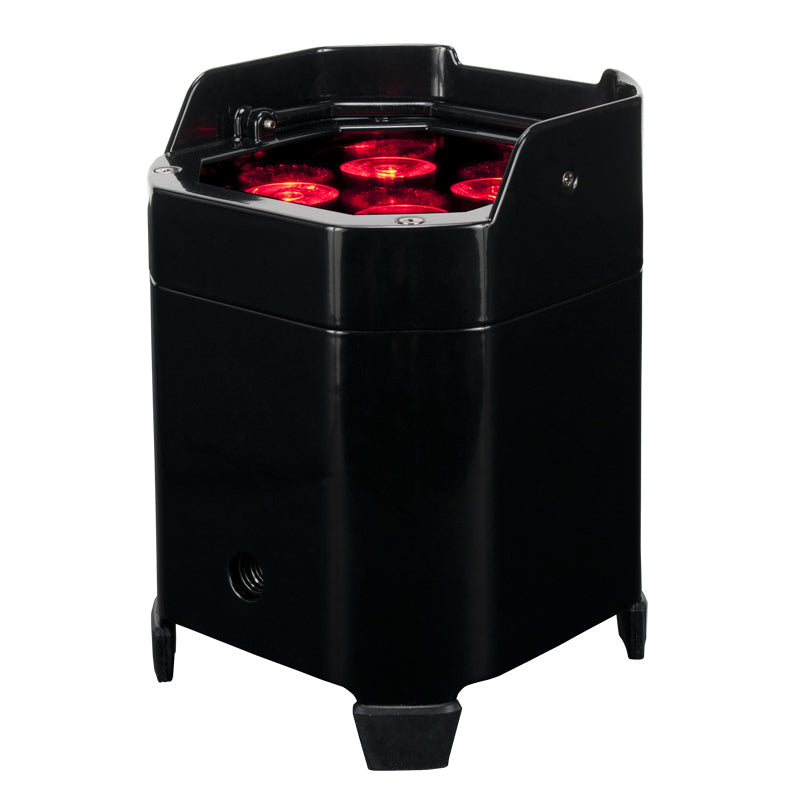

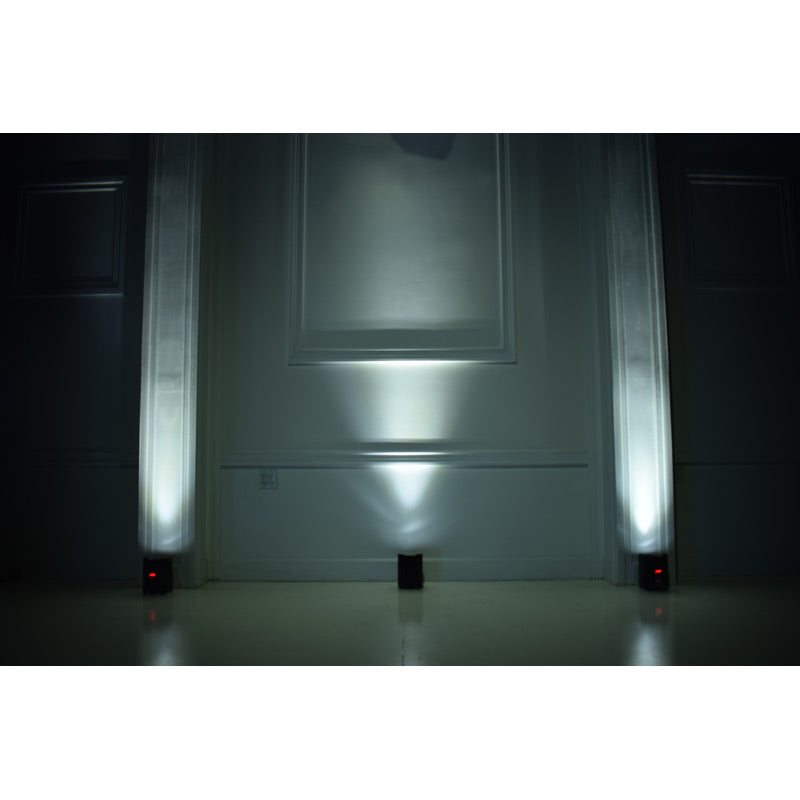

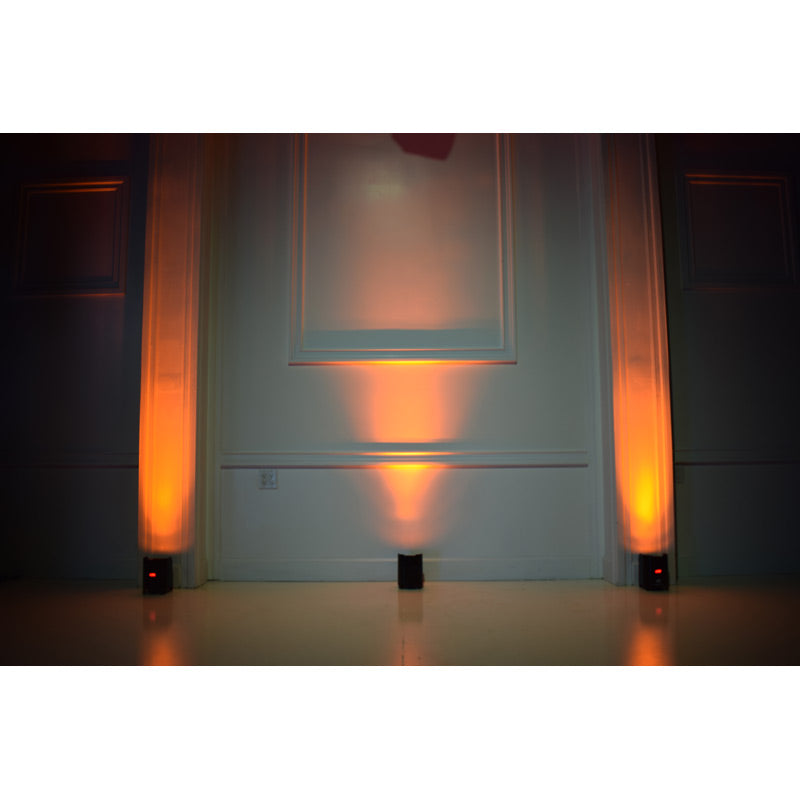

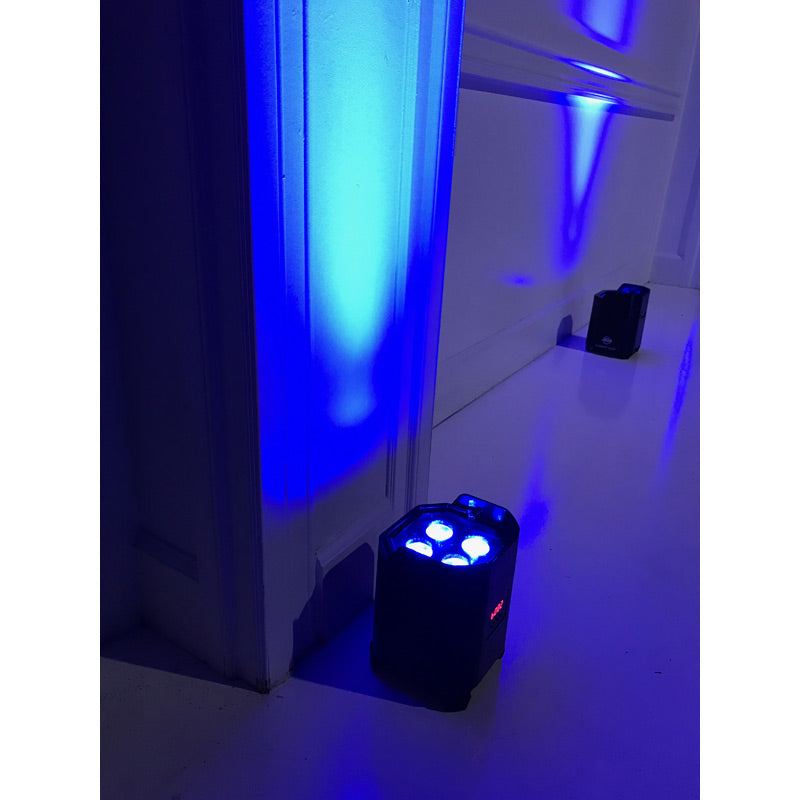

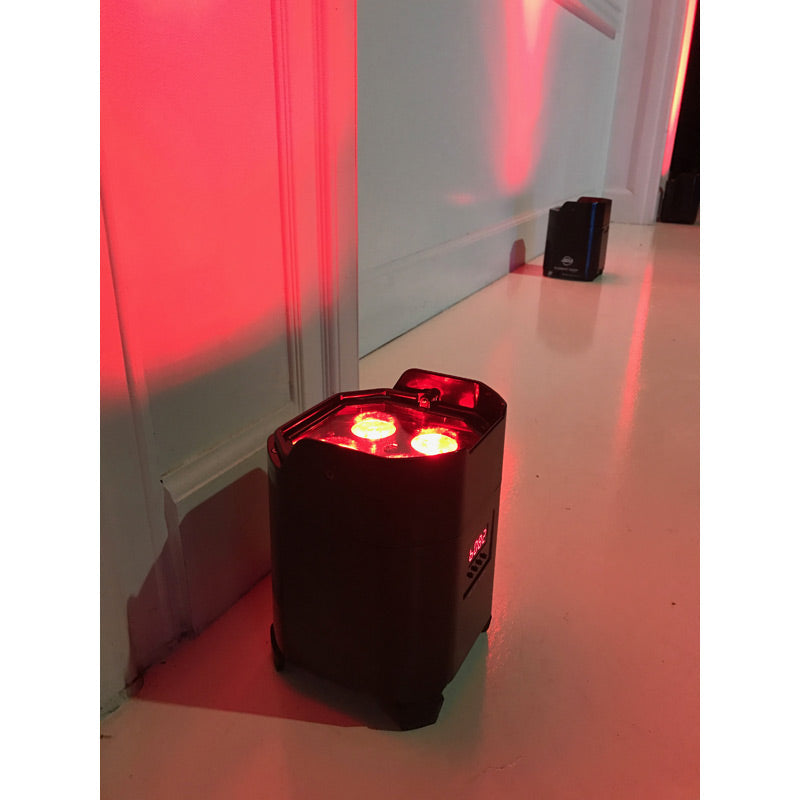

From the Element Par Series, the Element HEX is a battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor use. It’s powered by four 10W RGBAW+UV (6-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

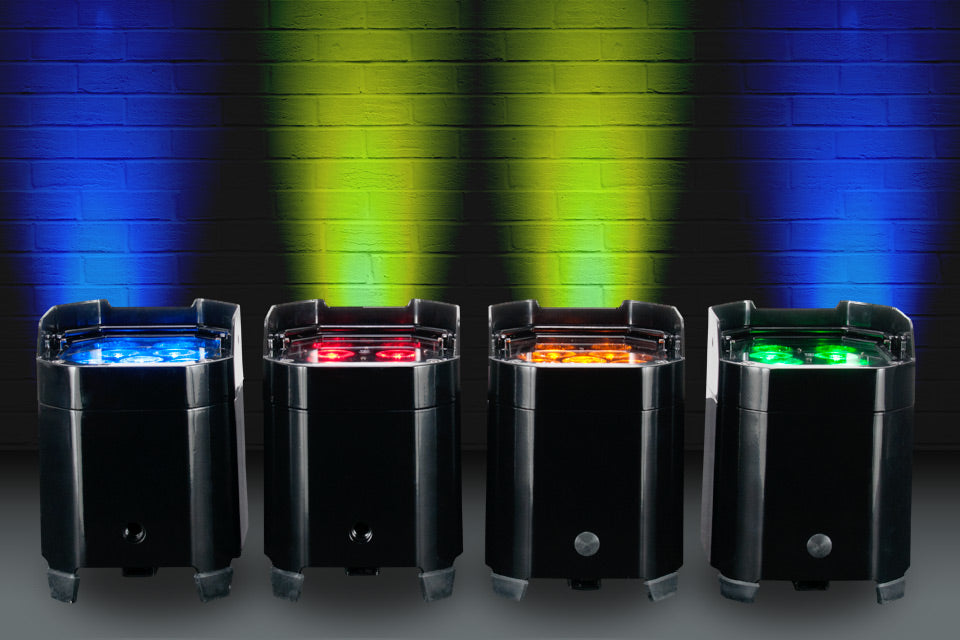

Learn more about the Element Series from this product spotlight article: http://tinyurl.com/y7mdo69e

Read the press release here: http://tinyurl.com/y9mhvp9e



Specifications

Specifications

Optical:
• 4 x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 684@ 2M; 171 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz

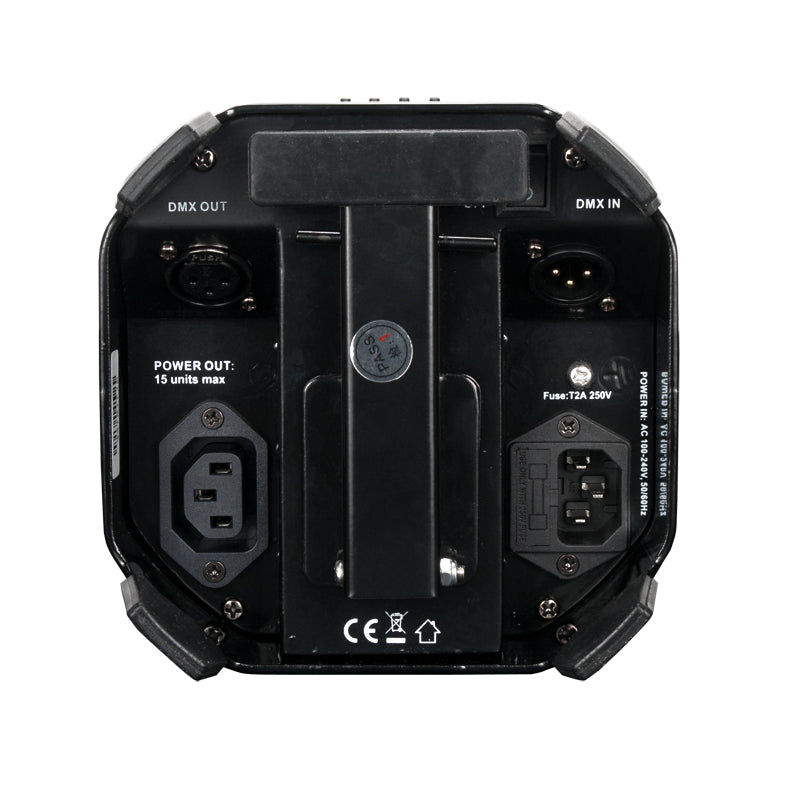

Connection:
• DMX: 3-pin DMX In/Out
• IEC In/Out to power battery or daisy chain fixture

Control:
• Control protocol: WiFLY EXR DMX, 3-pin DMX
• 5 DMX Channel modes: 6, 7, 8, 11 & 12
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR

• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

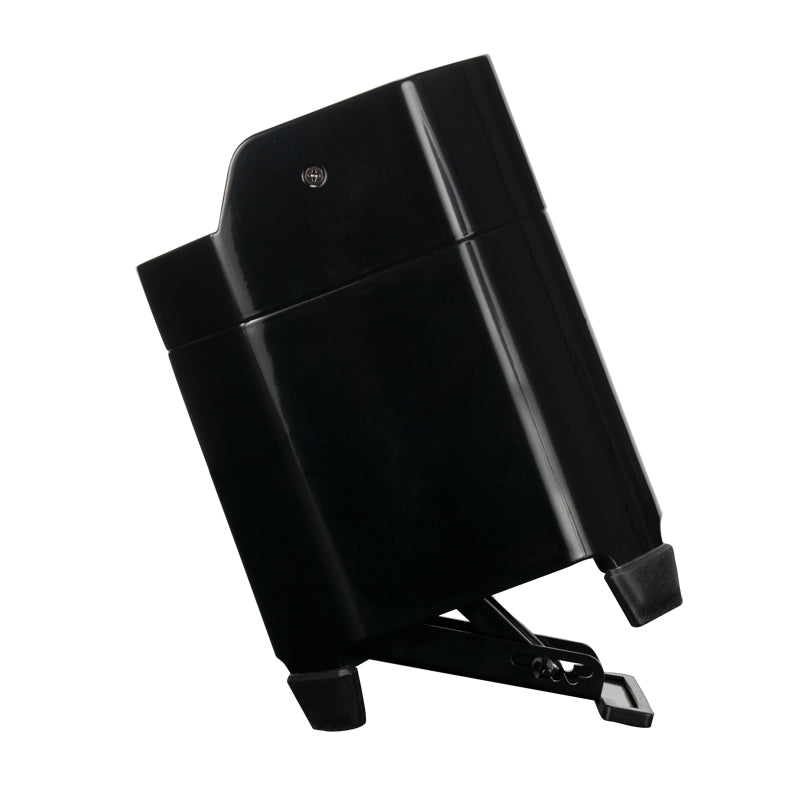

• Built-in kickstand to angle figure while it’s on the floor

• 4-button DMX menu display on rear panel
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 64 built-in Color Macros

• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!

• LED pulse and strobe effect (0.2Hz-11Hz)

• Flicker Free Operation

• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle

• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery

• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper

• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.

Certifications:
• ETL Approved
• CE Approved
• IP20 Indoor rated

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Element Hex User Manual Download
Element Hex Photometric Test Reports Photometric Test Reports Download
Element Hex Photometric IES Files Photometric IES Files Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Element Hex
