12PX HEX

New Product
The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).  The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).  The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).  The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).  The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).  The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).
SKU: HEX410 | UPC: 818651025224
The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs. Now with powerCON In/Out, plus 3-pin and 5-pin DMX In/Out. The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (sold separately).
Advantage Points: 320

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $319.99


The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs made from all metal construction. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue, or used as a stage wash.



12PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Users may choice 3-pin or 5-pin DMX connectors



The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs.


Learn more about the 12PX HEX in this product spotlight article: CLICK HERE

Also available: 12PX HEX Pearl in white exterior finish.

Specifications

Specifications

FEATURES:

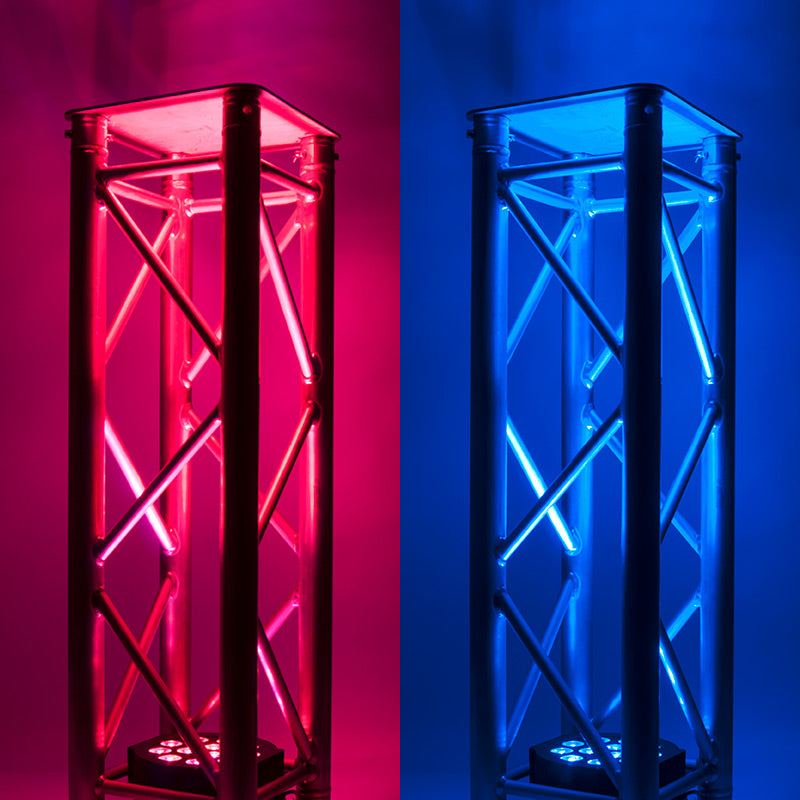

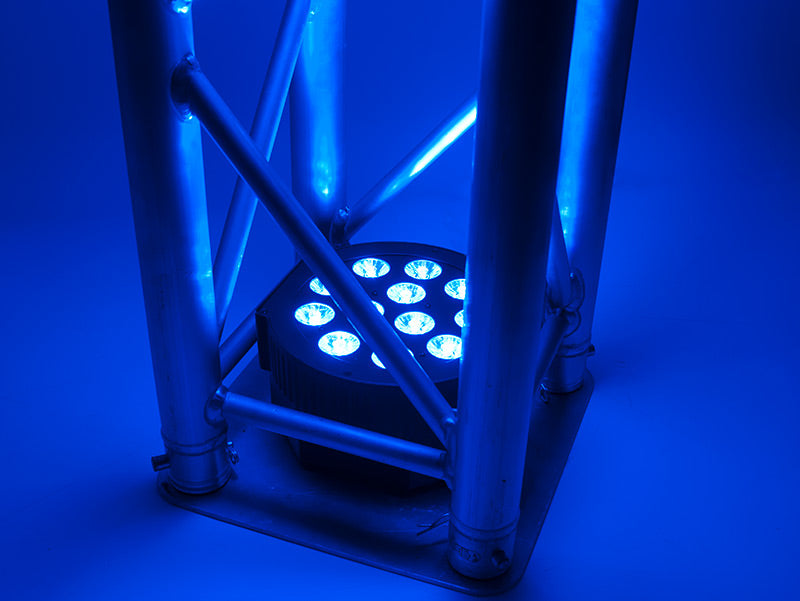

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers

• Scissor yoke + rubber feet allows fixture to be hung or set on the ground

• Flicker Free operation (No flickering on camera)

• Smooth RGBAW + UV color mixing

• All metal black exterior housing


OPTICAL:

• Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)

• LED life rated at approximately 50,000 hrs.

• Beam angle: 30-degree


CONTROL:

• 4-button, DMX digital display on rear panel

• Compatible with Dotz Par RF wireless remote control (sold separately)

• 7 Built-In Programs

• 63 built-in Color Macros

• 4 DMX Modes: 6, 7, 8, & 12 channel

• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled

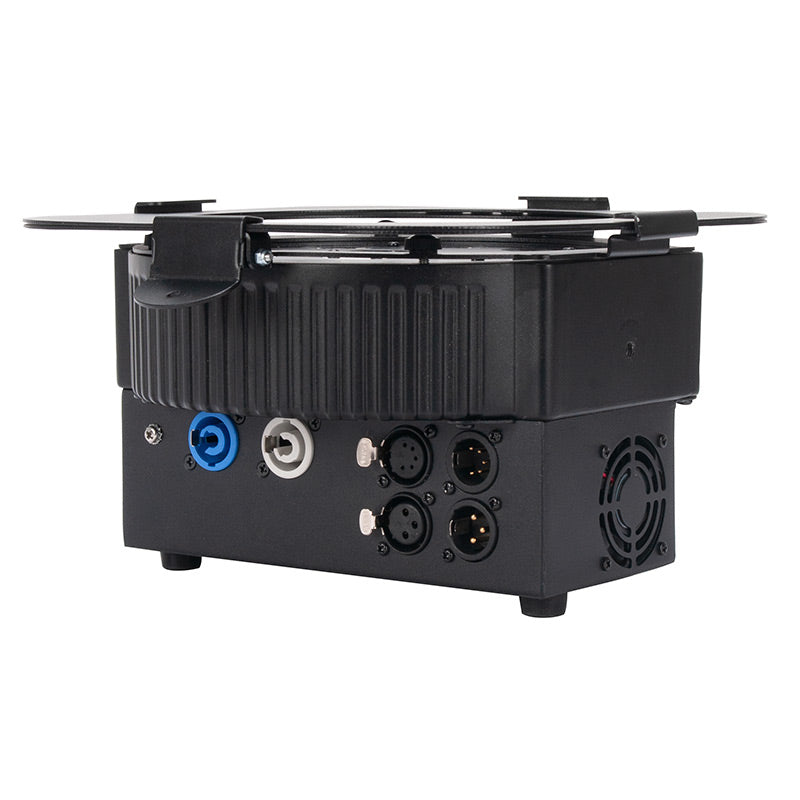

CONNECTIONS:

• Data linkable via 3-pin or 5-pin DMX connections

• Daisy chain power from powerCON In/Out connection

• With Wired Digital Communication Network


ELECTRICAL:

• Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON power In/Out)


DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 5.34” x 9.8” x 11.7”/ 136 x 249 x 297.5mm

• Weight: 8.7 lbs. / 4 kgs


WHAT’S IN THE BOX:

• powerCON power cable

• Scissor yoke

• Gel frame to use with diffusion filters (Diffusion filters sold separately)


APPROVALS:

• ETL Approved

• CE Approved

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
12PX Hex Cut Sheet Download
ADJ 12PX Hex User Manual User Manual Download
