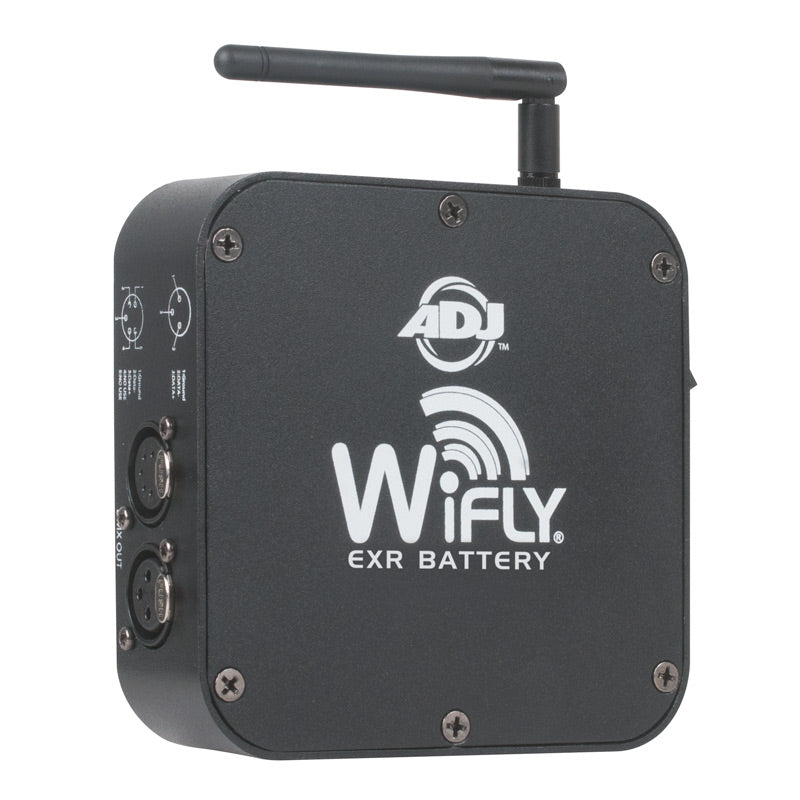

WiFLY EXR Battery

The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products. The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products. The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products. The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products. The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products. The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products.
SKU: WIF013 | UPC: 819730016614
The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products.
Advantage Points: 180

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

A true wireless solution! The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY “EXR” products. After connecting the WiFLY EXR Battery transceiver to a DMX Controller users can send a constant and reliable wireless DMX signal up to 2500 feet to other ADJ WiFLY “EXR” products. This transceiver is backwards compatible with ADJ WiFLY products, however, it will only transmit up to 2500 feet with other “EXR” Extend Range products.

The WiFLY EXR Battery has a battery life of up to 20 hours. There are digital battery life and WiFLY wireless signal strength indicators on the side of the unit. Plus, a magnetic bottom plate allows for temporary, quick and easy mounting of the WiFLY EXR Battery transceiver onto a metal lighting fixture or object. The wireless frequency is 2.4 GHz and will coexist in busy RF environments alongside technologies like Bluetooth and Wi-Fi.

The ADJ WiFLY EXR Battery transceiver is the ideal solution for event productions, nightclubs, DJs, or for any event where you do not want data cables to be seen, and when it is not easy to run power and data cables to your fixtures location.


Specifications

Specifications

• Battery powered wireless DMX transceiver (transmitter/receiver in one)

• Battery Life: Up to 20 hours

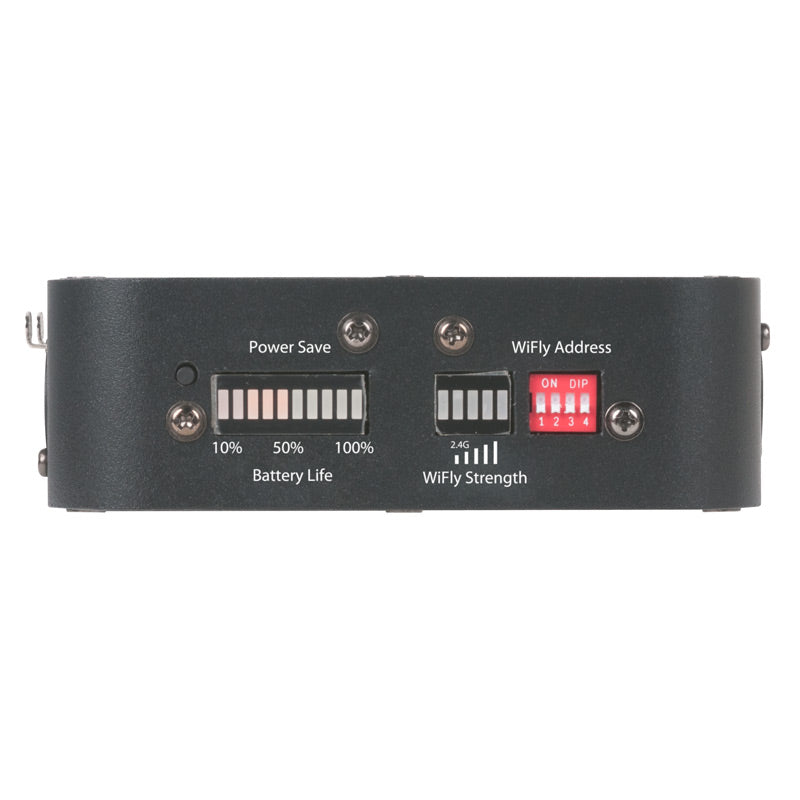

• Battery life and WIFLY wireless signal strength indicators on side panel

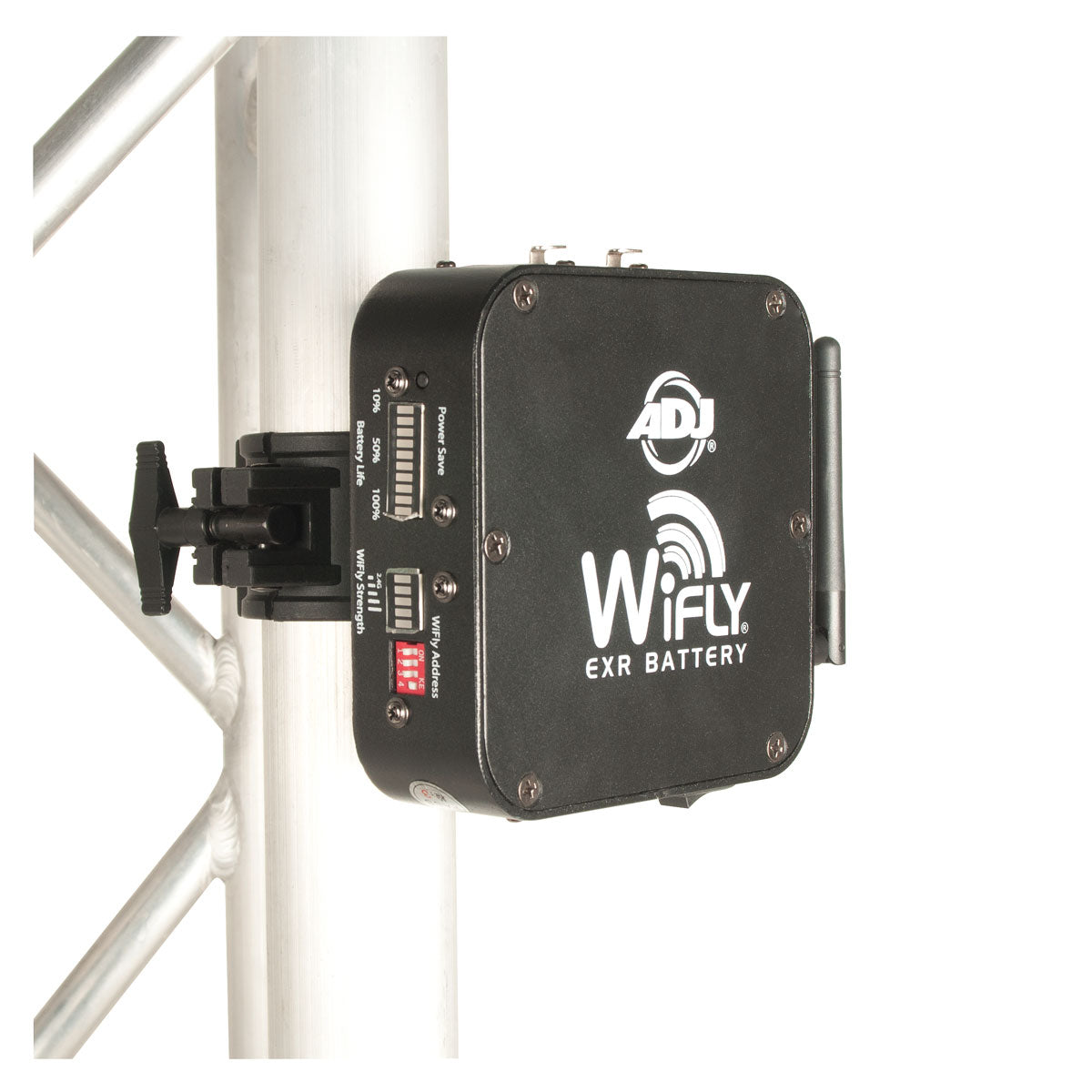

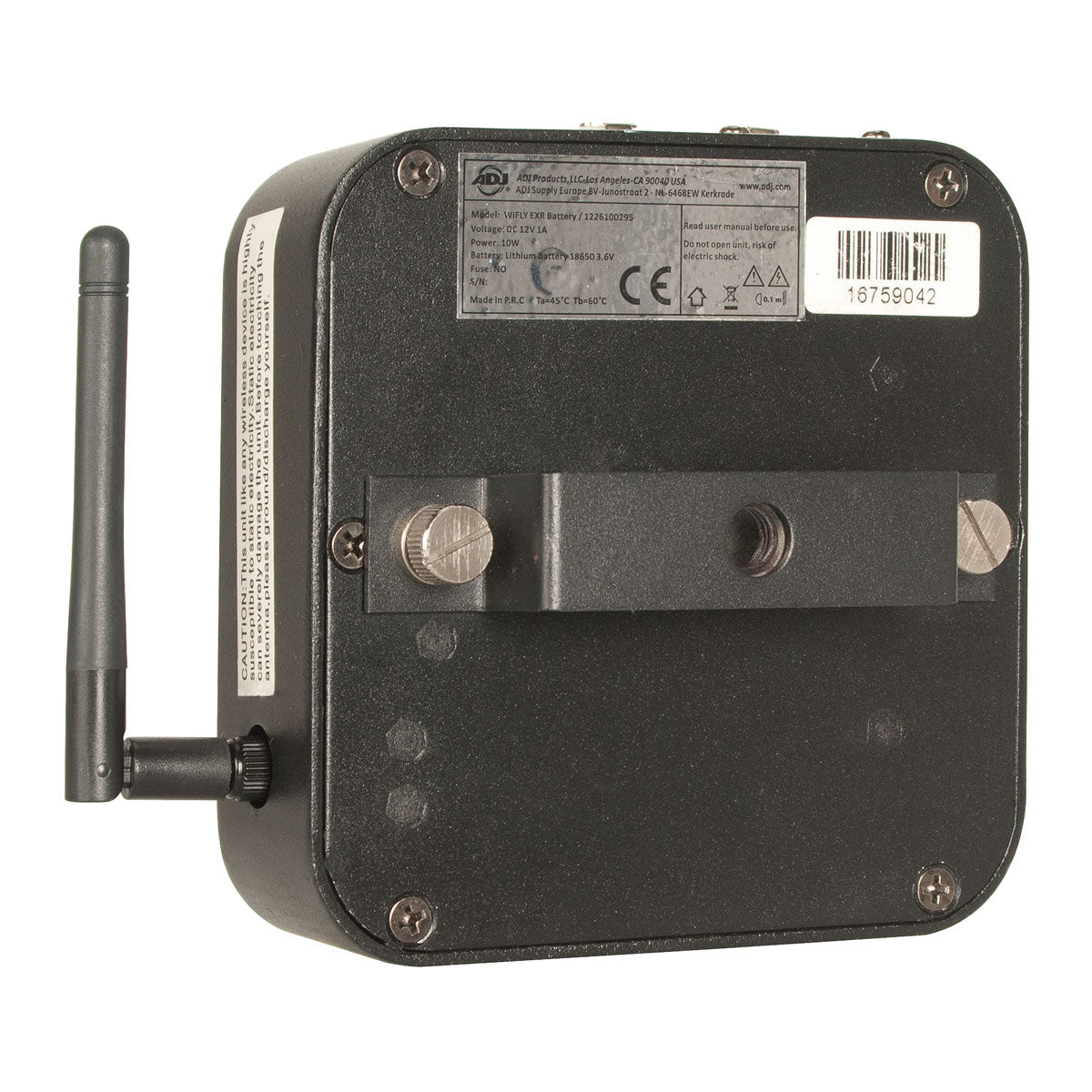

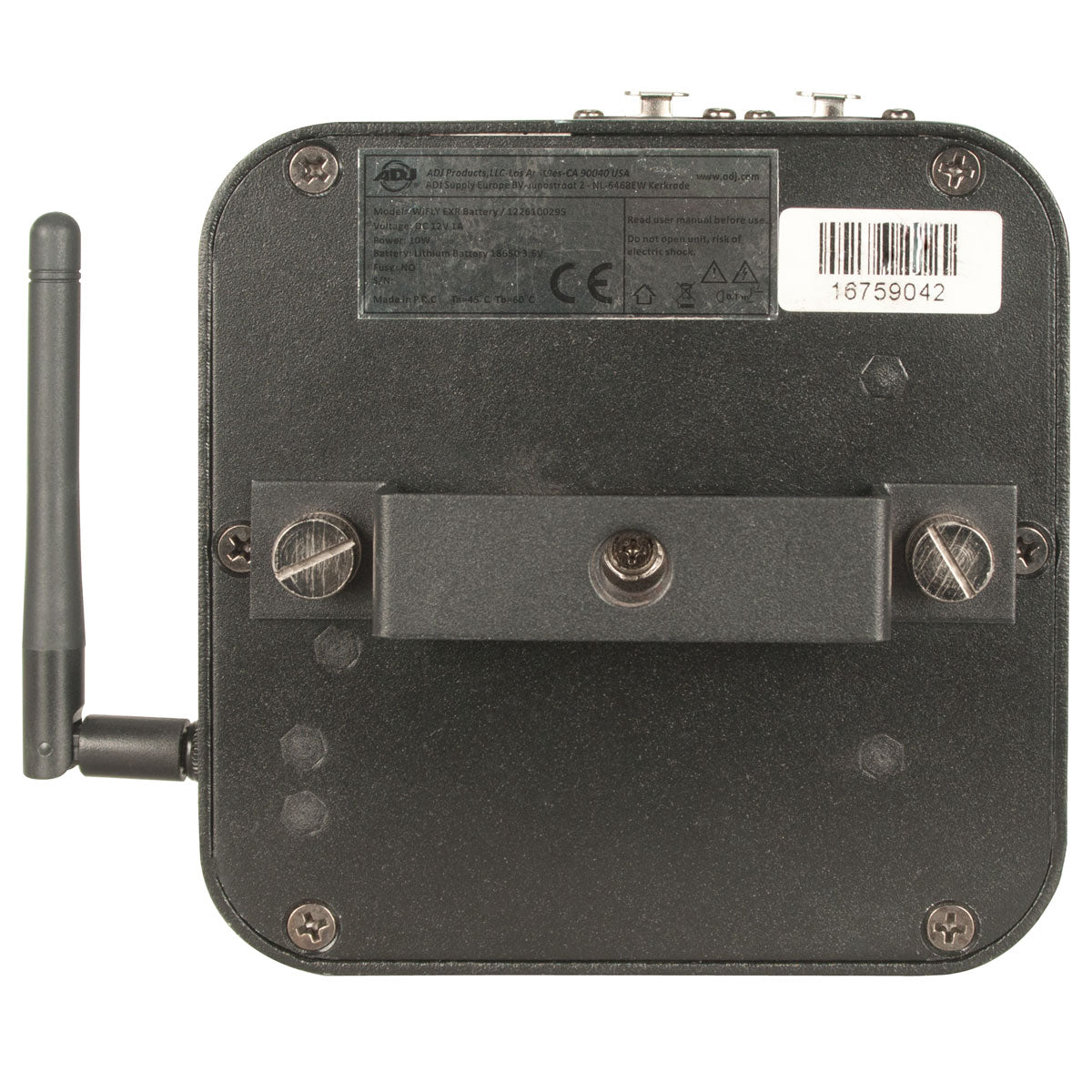

• Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects

• Compatible with all ADJ WiFLY products
• Up to 2500 wireless feet (open line of sight) with only other “EXR Extended Range” WiFLY products
• Compatible with all ADJ WiFLY products

• One transmitter can send to many receivers using the same radio channel

• Receivers automatically listen for transmitters (no pairing required)

• Supports up to 16 DMX-512 universes

• Dip Switches to select from 16 different radio channels (one DMX universe per channel)

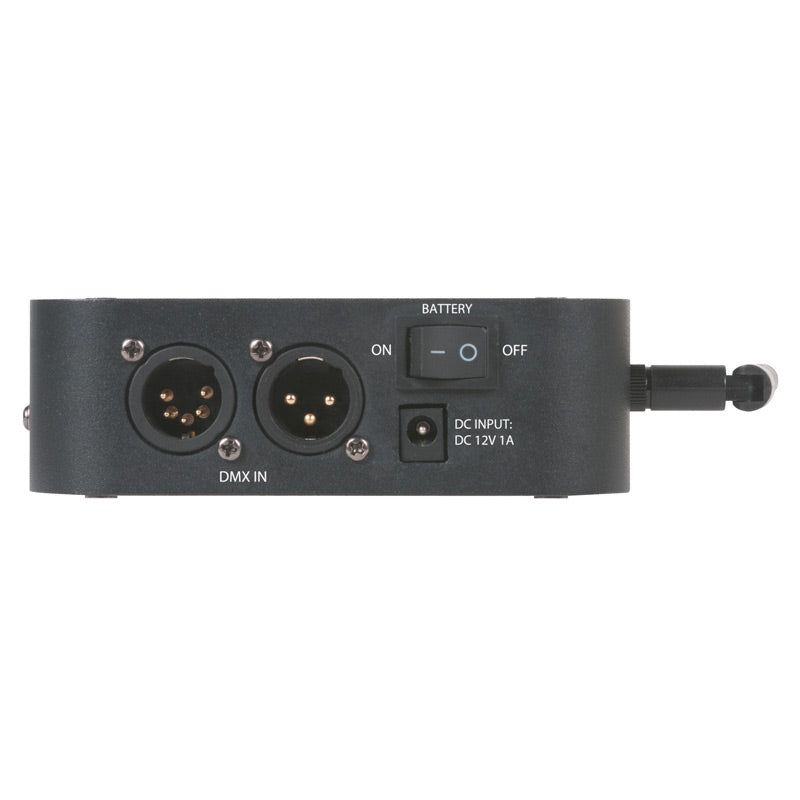

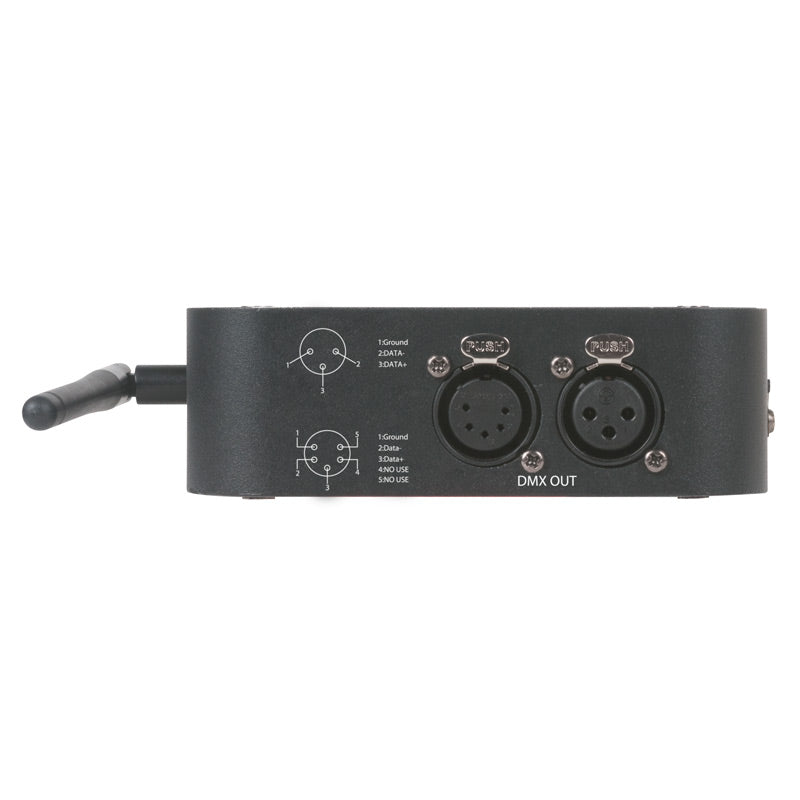

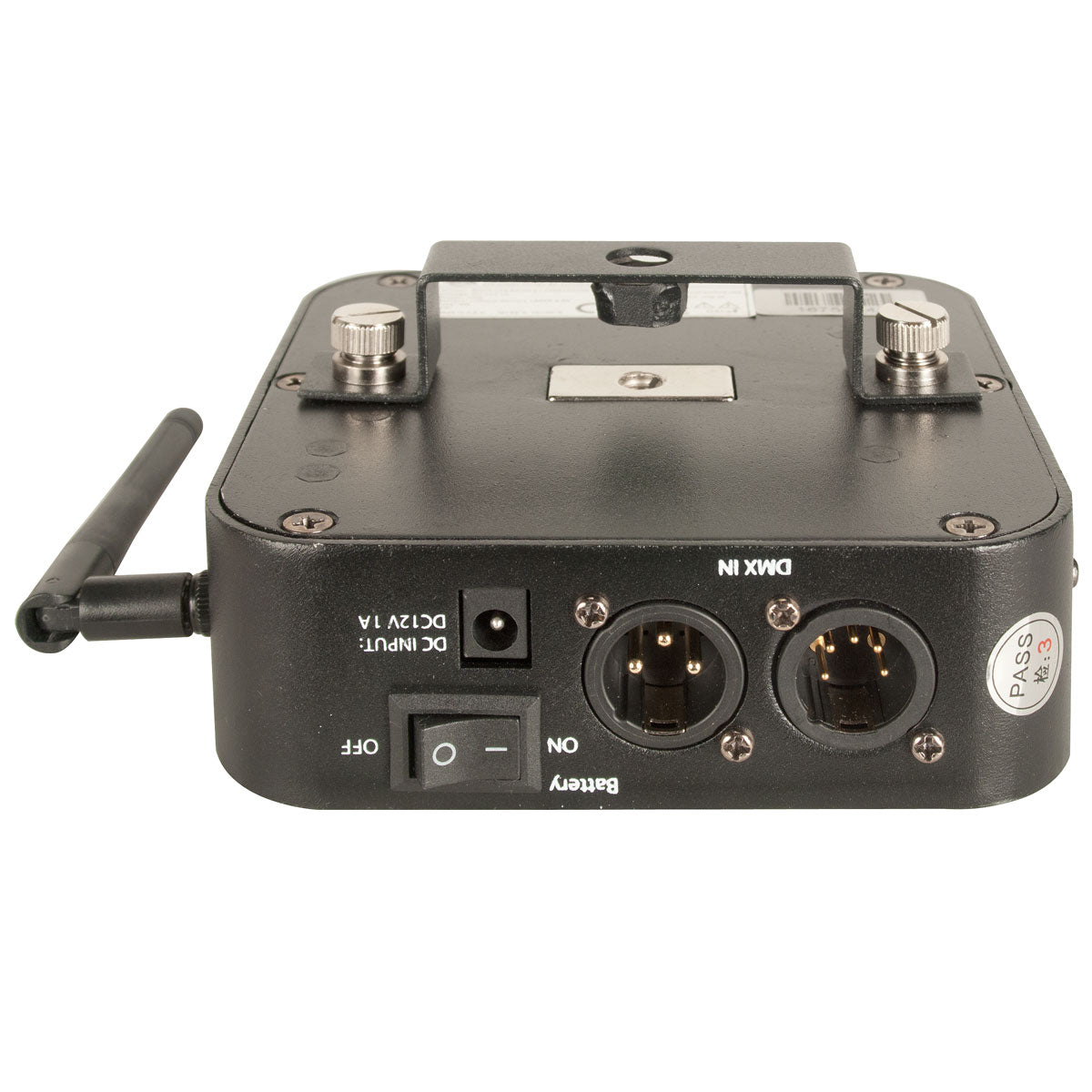

• 3-pin & 5-pin DMX In/Out

• Wireless Frequency: 2.4 GHz DSSS

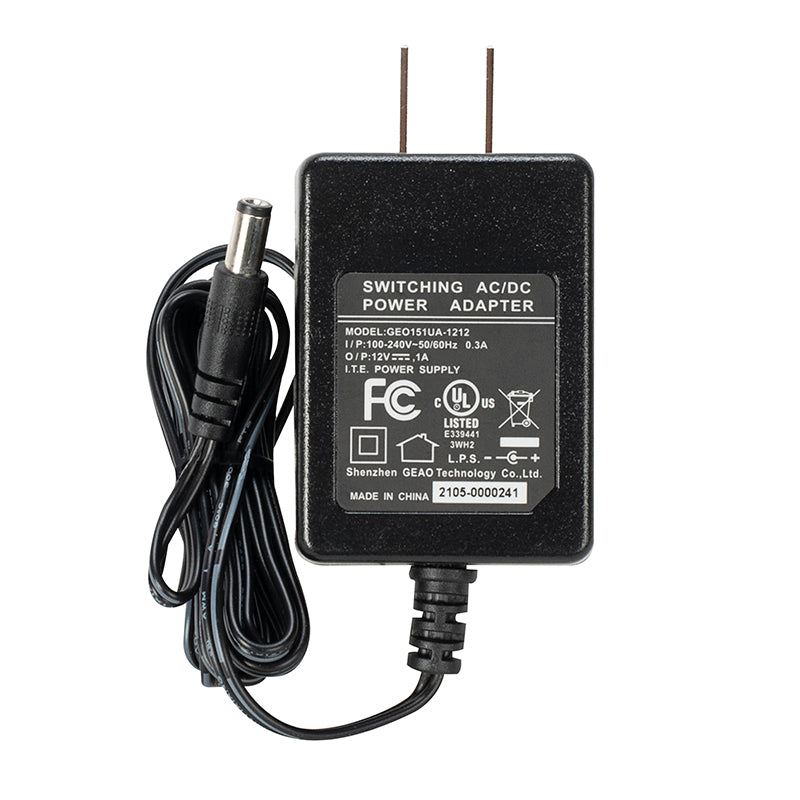

• Power Supply: DC 9-12V (AC or DC powered)

• Dimensions (LxWxH): 6” x 5.5” x 2.5” / 148 x 135 x 62mm

• Weight: 2 lbs. / 0.75 kg.

Videos

Videos

There are currently no videos available for this product.

Downloads

Downloads

The following downloads are available for this product:

Title Description
WiFly EXR Battery User Manual Download
