Vizi Q Wash7

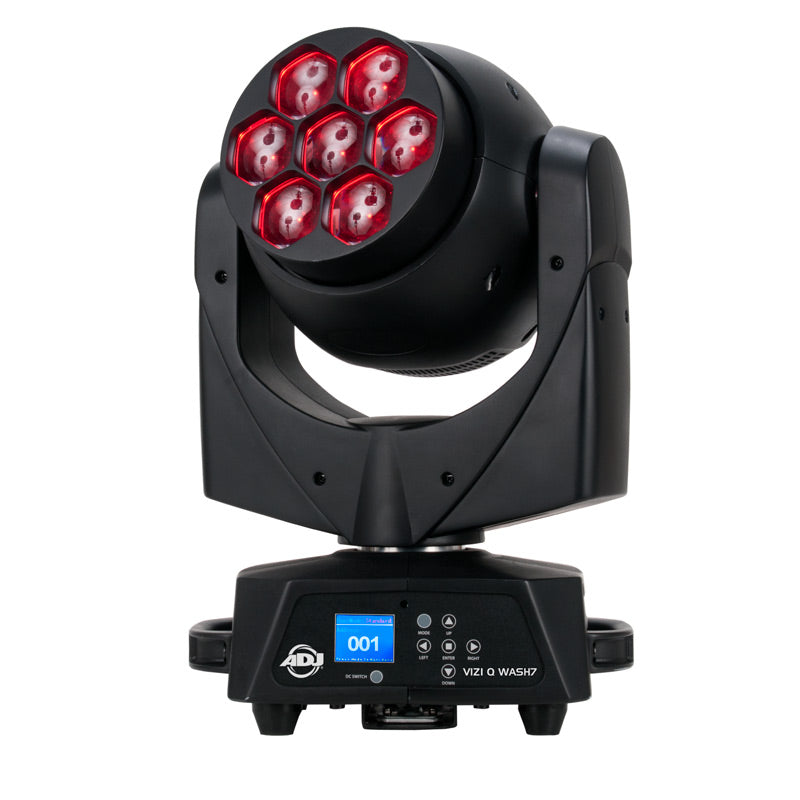

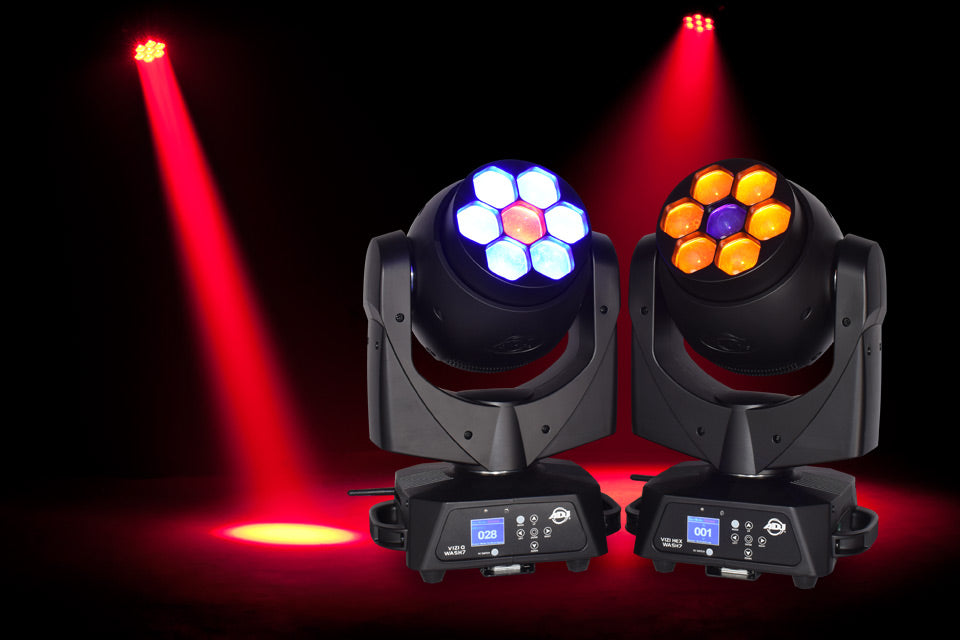

The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 40W Quad (RGBW) LEDs. At 280W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-bo The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 40W Quad (RGBW) LEDs. At 280W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-bo The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 40W Quad (RGBW) LEDs. At 280W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-bo The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 40W Quad (RGBW) LEDs. At 280W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-bo The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 40W Quad (RGBW) LEDs. At 280W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-bo
SKU: VIZ525 | UPC: 819730019752
The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 40W Quad (RGBW) LEDs. At 280W, this fixture offers very powerful 5-degree beams or brilliant 55-degree washes of color. WiFLY wireless DMX on-board.
Advantage Points: 1300

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $1299.99

The Vizi Q Wash7 is a 280W professional moving head wash fixture with variable zoom (5 ~ 55-degrees) and seven 40W Quad (RGBW) LEDs. It features 64 built-in Color Macros, super fast pan/tilt movement, electronic dimming with 5 dimming curves and a pan/tilt inversion mode or contrasting movement when fixtures are linked together.



The Vizi Q Wash7 has 3 DMX channel modes, 3-pin or 5-pin DMX connections and powerCON In/Out power linking.  Plus, this fixture is equipped with ADJ's WiFLY wireless DMX. This fixture is ideal for stages, theaters, churches, nightclubs, concert venues and event productions.


Learn more about the Vizi Q Wash7 from this product spotlight article: http://tinyurl.com/zkdbjsa


Specifications

Specifications

Optical

• Light Source: 7 (40) Watt quad RGBW LED

• Life Expectancy: 50,000 hrs LED

• Beam Angle: 5~55-degree

• Refresh Rate: 1.2KHz

Specifications

• Pan & Tilt Range:630 ~degree/Tilt 270-degree

• Colors: 64 built in color macros

• Dimming: Electronic

• Shutter: Electronic

• Zoom:Motorized 5° - 55°

• Operational Modes: 2 modes Program / DMX

• Flicker Free: Yes

• Wifly EXR Wireless DMX Range: 2,500 feet (line of site)

• Wifly On/Off

• Dimensions (LxWxH): 11.75” x 8 x15.75”/300x200x400mm

• Weight: 19 lbs/8.5 kgs.

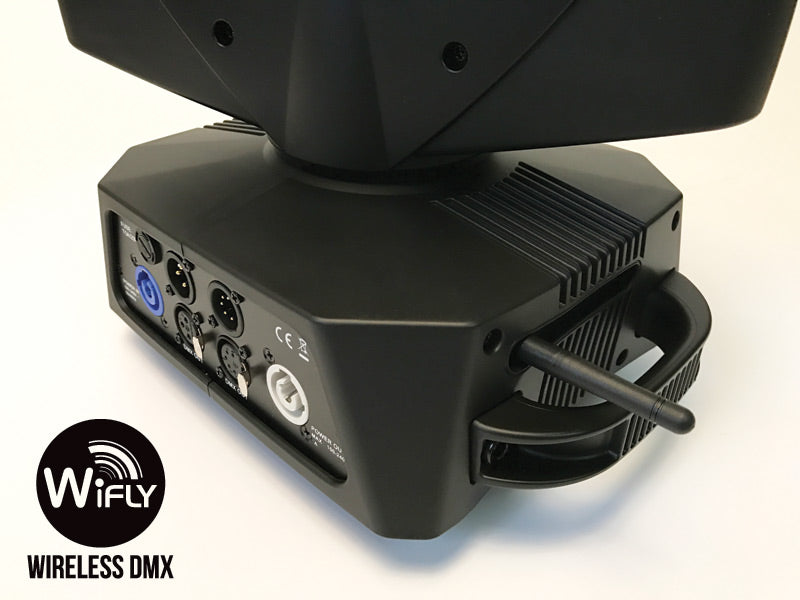

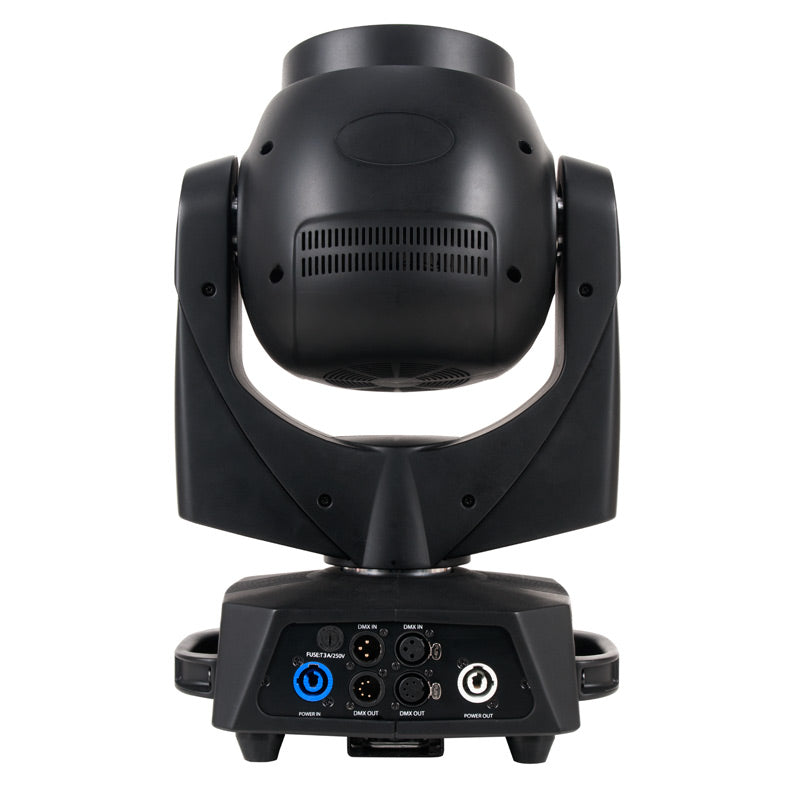

Connections

• Power Input: powerCON

• Power Pass through: powerCON In/Out

• Data: 3 & 5-pin In/Out DMX

Control

• Control Protocol: DMX

• DMX Modes: 2

• On Board: LCD menu with 180 inverse

• 16 Selectable WiFLY Address Channels



Electrical

• Input Voltage: 305W V.50Hz/60Hz

• Power draw @120V: 2.54 amp

• Power draw @ 220V: 1.39 amp

Certifications

• Certifications: ETL Approved

• IP Rating: IP20, dry place, no liquids

Whats Included

• Omega bracket

• powerCON Cable

• Manual



Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi Q Wash7 Photometrics 1 Download
Vizi Q Wash7 Photometrics 2 Download
Vizi Q Wash7 CAD Drawing Download
Vizi Q Wash7 User Manual Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Vizi Q Wash7
