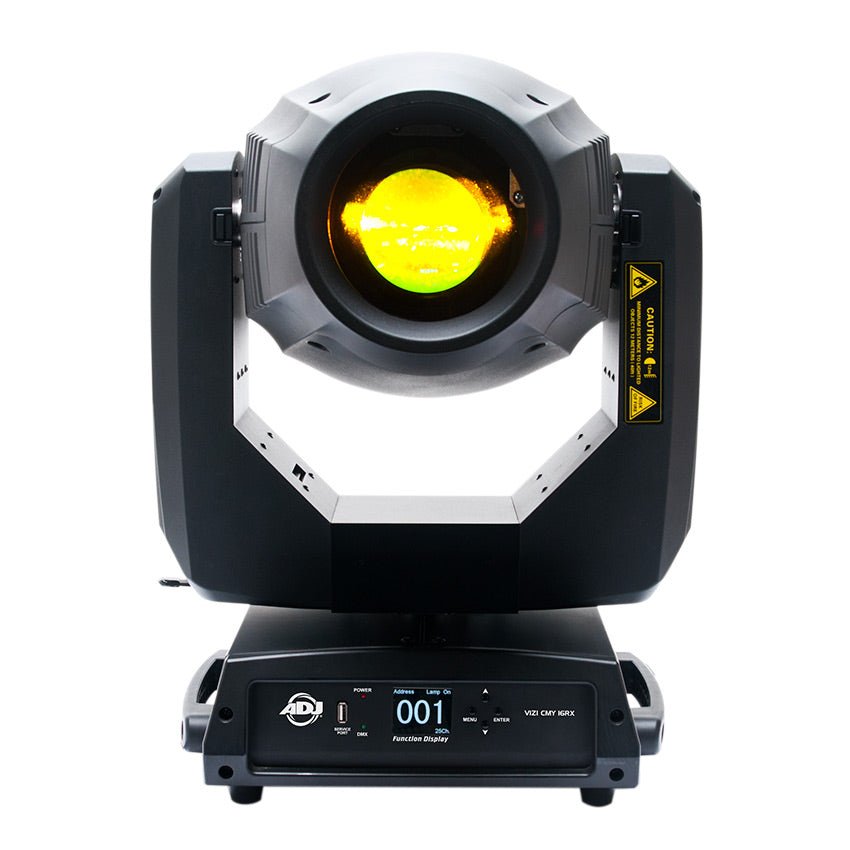

Vizi CMY 16RX

New Product
The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system. The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system.
SKU: VIZ160 | UPC: 818651025552
The Vizi CMY 16RX, part of the ADJ Vizi Series moving heads, is a hybrid (Beam/Spot/Wash) fixture with a 330W Philips Platinum 16R MSD discharge lamp and a CMY color mixing system.
Advantage Points: 3000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $2,999.99


A true Spot/Beam/Wash hybrid Moving Head fixture, the ADJ Vizi CMY 16RX features dual Prism Layering, GOBO Morphing of dual gobo wheels, motorized zoom and motorized focus. Other professional features include: Frost filter to turn the hard edge beam to a wash, 5 & 16-facet rotating prisms, stepper motors for quick, precise movement. the Vizi CMY 16RX offers a CMY color mixing so designers can custom make colors to create a one-of-a-kind lightshow. There is also a color wheel with 9 colors plus white.



The Vizi CMY 16RX moving head fixture is powered by the revolutionary Philips® Platinum 16R MSD discharge lamp technology (8000˚K, 1,500 hr). This lamp allows the unit to be very punchy, versatile fixture capable of wide washes of color, mid-air beam effects and break-up textures. It has two GOBO wheels. Wheel 1 has 15 static GOBOs plus spot. GOBO wheel 2 has 9 replaceable rotating GOBOs. The fixture has a zoom range of 6 ~ 22-degrees. There is an on-board 4-button LCD display, plus 3 and 5-pin DMX in/out connections.



The Vizi CMY 16RX will be the workhorse of any event, truly making it an all-encompassing lighting fixture for live events, stages, nightclub and churches.


Learn more about the the Vizi CMY 16RX from this product spotlight article: CLICK HERE


Check out the Vizi CMY 16RX press release: CLICK HERE

Specifications

Specifications

Optical:

• Light Source: 330W Philips Platinum 16R MSD
• Color Temperature: 8000 K
• Life Expectancy: 1,500 Hrs.

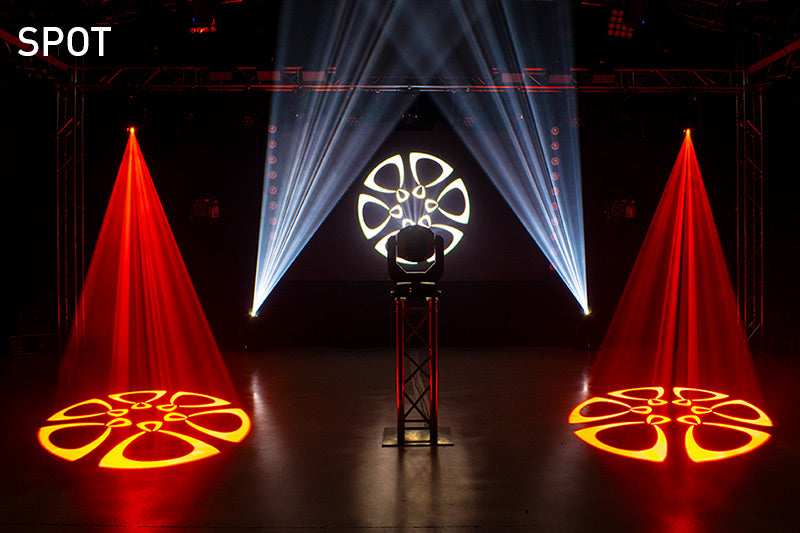

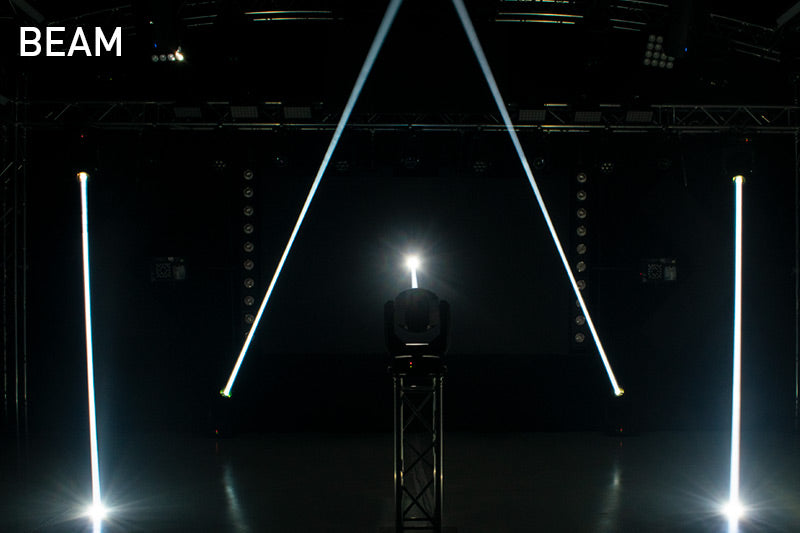

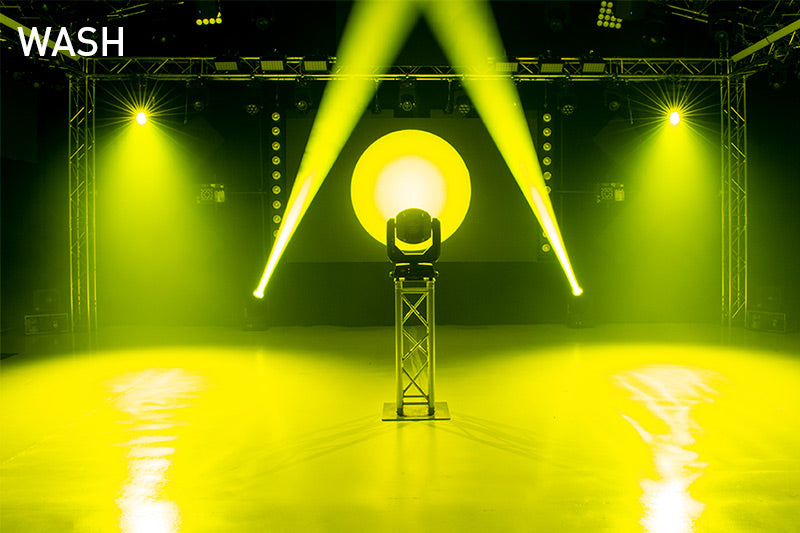

• Beam Angle: 2.3 ~ 10-degrees (Beam mode); 5 ~ 22-degrees (Spot mode); 22 ~ 63-degrees (Wash mode)

• Zoom Range: 6 ~ 22-degrees

Specifications:

• Colors: 9 colors plus white

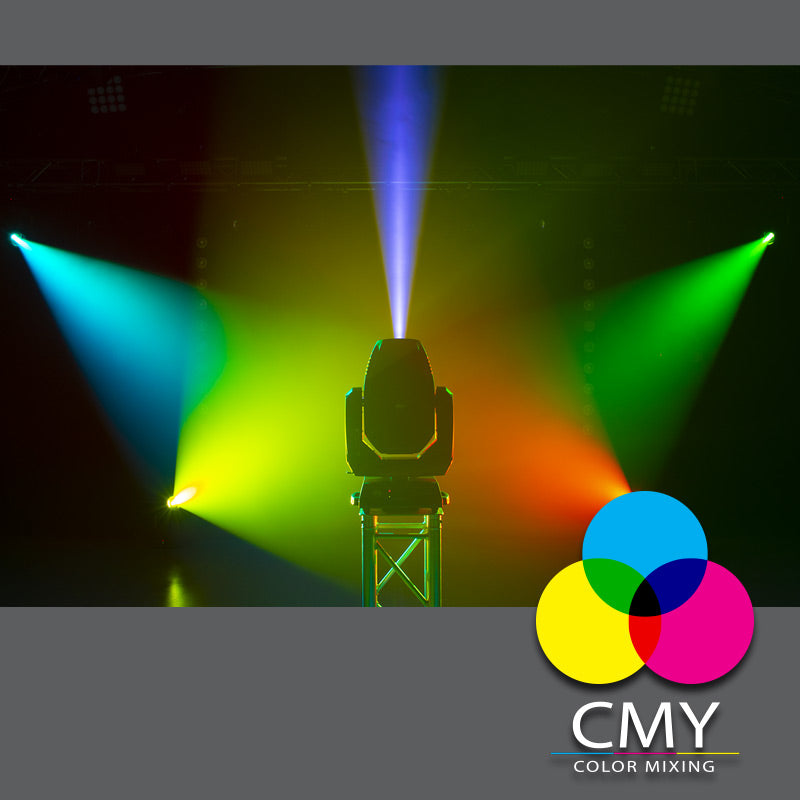

• Full CMY Color Mixing
• Gobos: 2 separate wheels - Wheel 1: 15 static GOBOs plus spot, Wheel 2:  9 replaceable GOBOs
• Dimming: electronic 0%- 100%
• Shutter: motorized

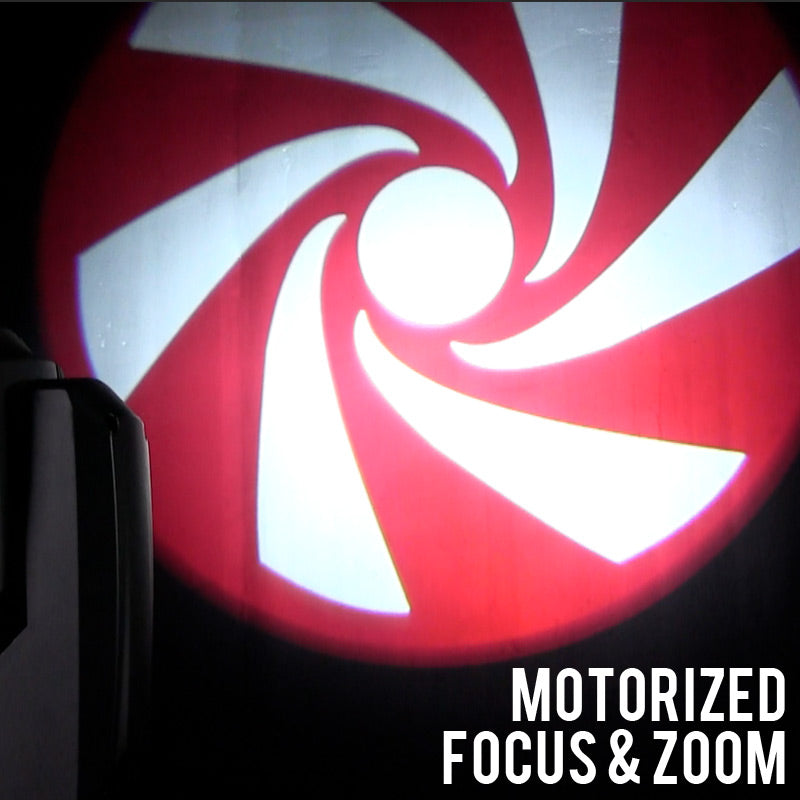

• Zoom: motorized
• Focus: motorized
• Frost: frost filter + wash effect

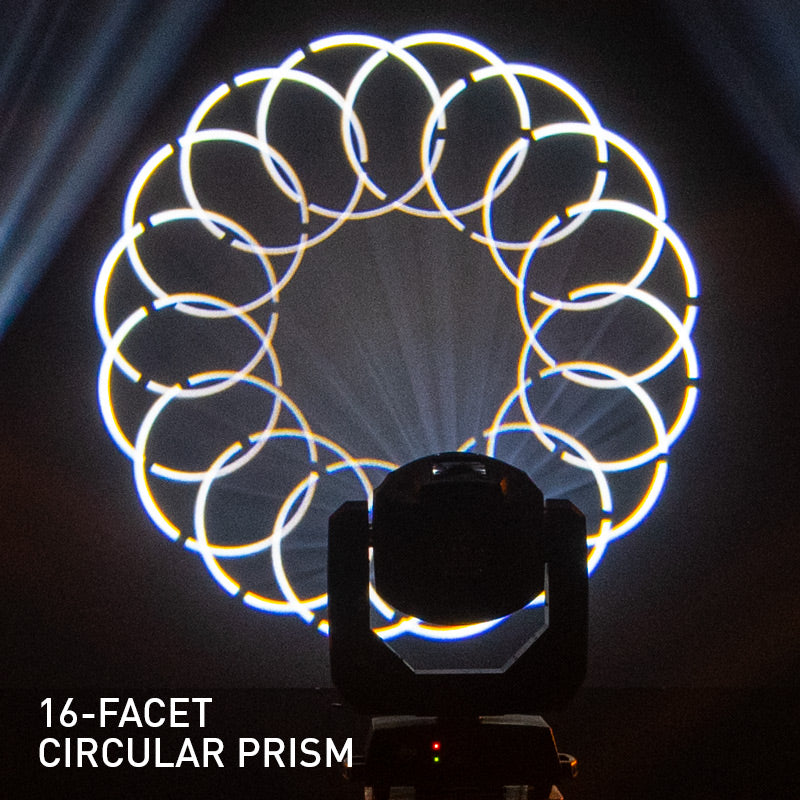

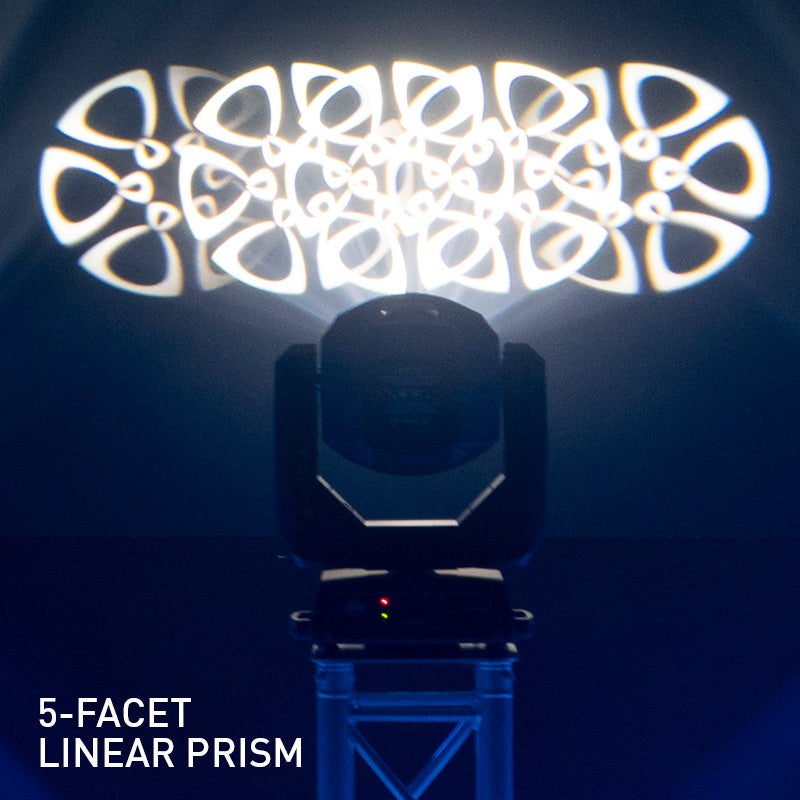

• Prism: 5-facet linear & 16-facet circular w/ macros, rotating & morphing
• Strobe: electronic
• Strobe Rate: 0.3-7HZ
• dB Rating @ 1Meter: Front: 54; Back: 54.7; Left: 53; Right: 53; Top: 55.2

Connections:

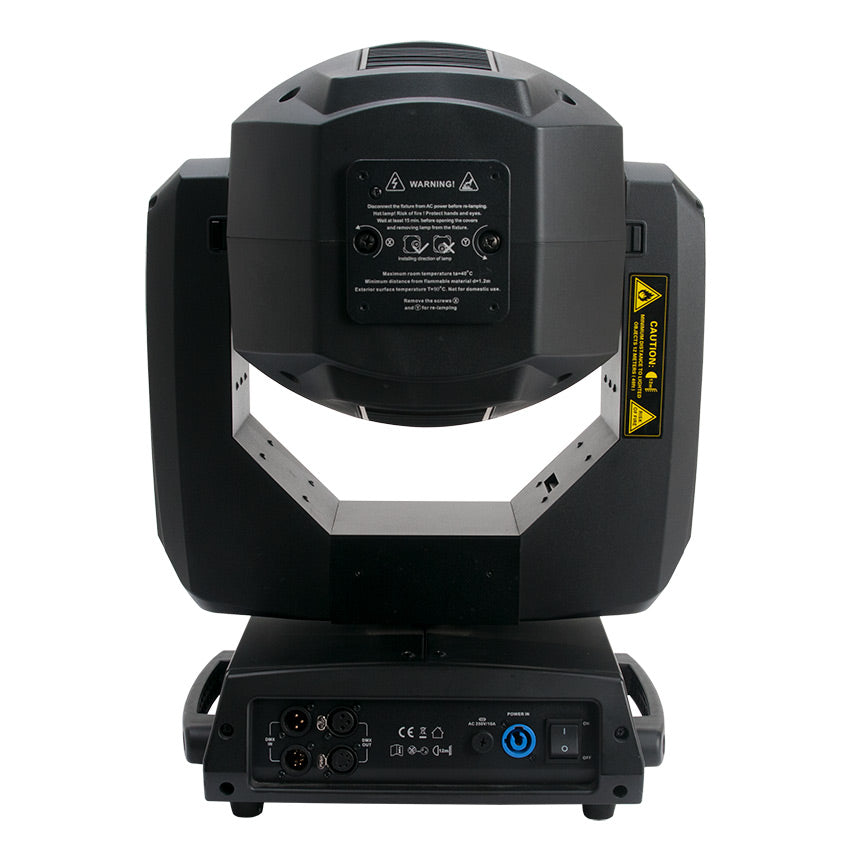

• Power Input: powerCON
• Data: 3 & 5-pin DMX In/Out

Control:

• Control Protocol: DMX 512
• 2 DMX Channel Modes: 22 or 24 channels
• DMX Modes:  1 mode

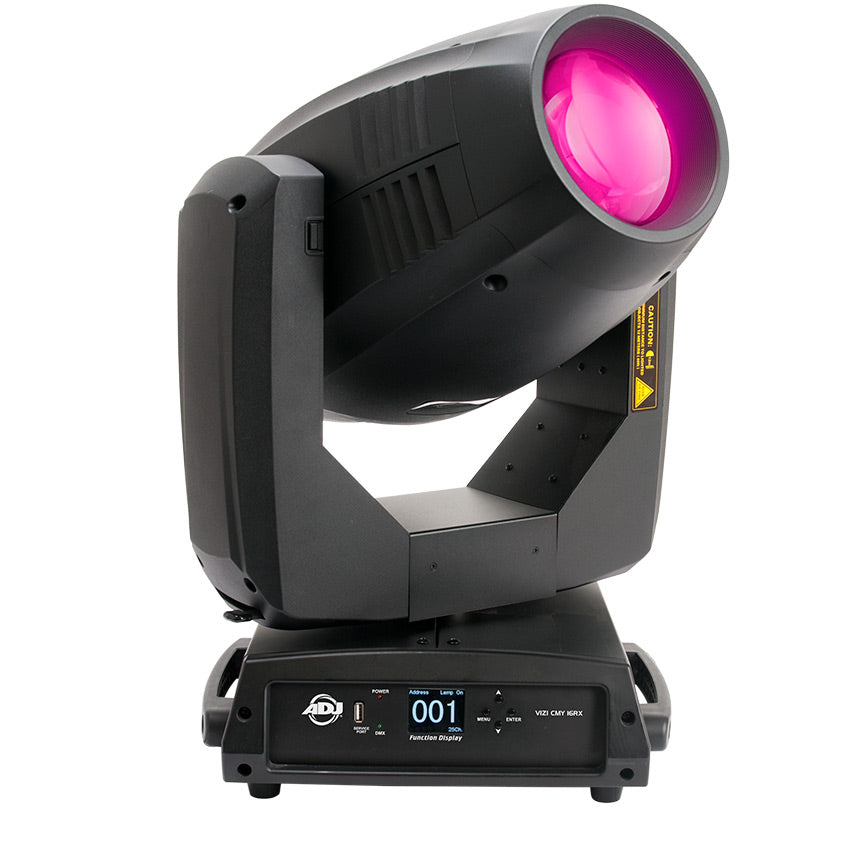

• On board 4-Button LCD DMX display

Electrical:

• Power Consumption: 515W
• Power draw @120V: 5.2 amps
• Power draw @ 220V: 2.44 amps

• Multi-voltage: 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 25” x16.25” x 13” / 639x413x326mm
• Weight: 52 lbs. / 23.2 kg.

Certifications:

• ETL Pending
• IP Rating:  IP20: Dry area, No liquids

Whats Included:

• (2) omega clamps
• (1) powerCON to Edison
• Safety Cable
• Manual

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi CMY 16RX User Manual User Manual Download
Vizi CMY 16RX Photometric IES Files Photometric IES Files Download
Vizi CMY 16RX Photometric Test Reports Photometric Test Reports Download

FAQs

Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

There are no FAQ's for Vizi CMY 16RX
