Vizi BSW 300
Available now from ADJ USA The Vizi BSW 300 uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. What’s more, is it comes in a smaller footprint than most other movers in its class.

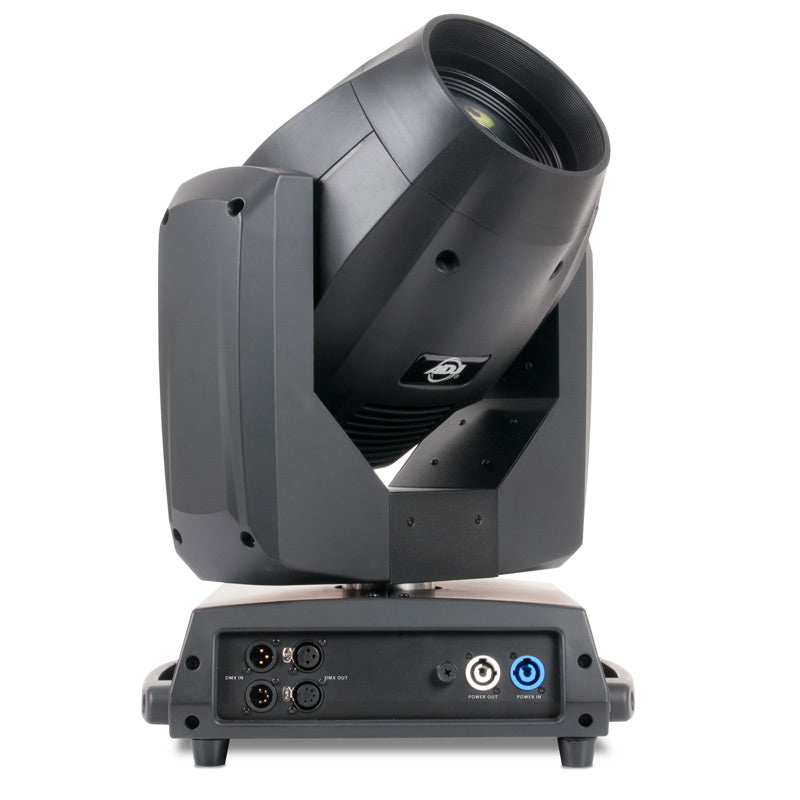

The Vizi BSW 300 offers motorized focus, two 6-facet rotating prisms (one linear & one circular), 2 separate color wheels, 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a LCD function display on the front panel, with the rear panel offering power locking In/Out and 3-pin & 5-pin DMX connections.
The Vizi BSW 300 fits into the ADJ DRC MHX road case.Protect the Vizi BSW 300 during storage and transport with the ADJ DRCVIZI Road Case.Learn more about the Vizi BSW 300 in this product spotlight blog: http://tinyurl.com/j6cxch5
Specifications
Optical
• Light Source: 300W White LED
• Beam Angle: 8° to 17° ( Spot Mode)
• Beam Angle: 1° to 7° (Beam Mode)
• Beam Angle: 18° to 26° (Wash Mode) Frost Filter
Specifications
• Pan / Tilt Range: 540° / 240°
• Color Wheel 1: 7 + Open
• Color Wheel 2: 7+ Open (CTO 3200k), CTC (5600k), UV

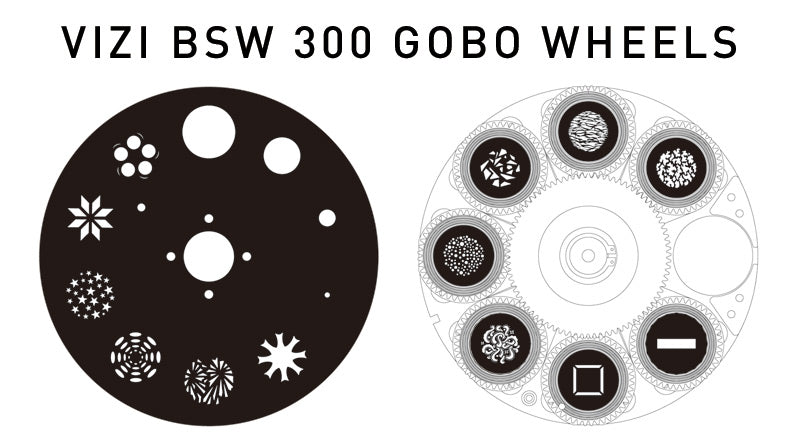

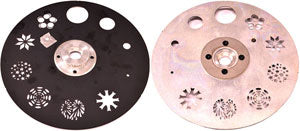

• GOBO Wheel 1: 6 Fixed + Open (3 Beam Reducers Beam Mode)
• GOBO Wheel 2: 7 Rotating/Replaceable + Open (3 Glass, 4 Metal)
• Dimming: Electronic
• Shutter: Electronic
• Focus: Motorized

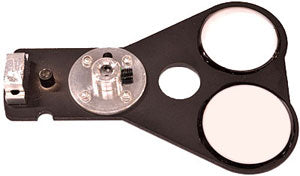

• Frost: 26° (Wash)

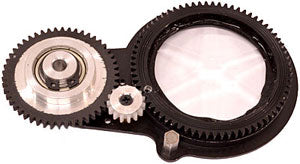

• Prism 1: Rotating 6-facet Circular

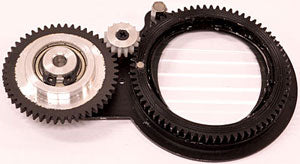

• Prism 2: Rotating 6-facet Linear Rotating
• PWM (Pulse Width Modulation): 1.2K
• Strobe Rate: 0.3-20HZ
• DB Rating @ 1Meter: Front: 50; Back: 50; Left: 53; Right: 54; Top:49
• Dimensions (LxWxH): 14.75” x 12.75” x 21.5” / 376 x 325 x 545mm
• Weight: 49 lbs. / 22 kg.
Connections
• Power Input: Power Connector
• Power Pass through: Locking Power Cable @120V or 220V
Control
• Control Channels: 17 or 20
• DMX Modes: 2
• Control: 3-pin and 5-pin DMX
• With Wired Digital Communication Network
• Pan / Tilt Correction: Automatic
• RDM (Remote Device Management)
Electrical
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 345W, 2.88 Amps
• Power draw 220V 50Hz: 345W, 1.57 Amps
Certifications
• ETL Approved
• CE
• IP 20: Dry area, No liquids
What's Included

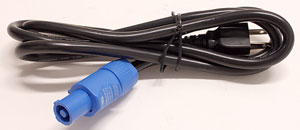

• Locking Power Cable- 6’
to Edison
• Qty: 2 Omega Clamps
• Safety Cable
• Manual
Optional Accessories
• DRC 16 Road Case (Fits 2)
Downloads
Cad drawing
Cut sheet
Ies files
Photometrics
User manual
