Vizi BSW 300

ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid bean/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions
SKU: VIZ300 | UPC: 819730019776
ADJ's new flagship LED moving head, the Vizi BSW 300, is a hybrid beam/spot/wash fixture that is powered by a specially designed 300W LED engine. The Vizi BSW 300 is packed with professional features designed for use in larger venues and event productions.
Advantage Points: 2000

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available now from ADJ USA • $1,999.99

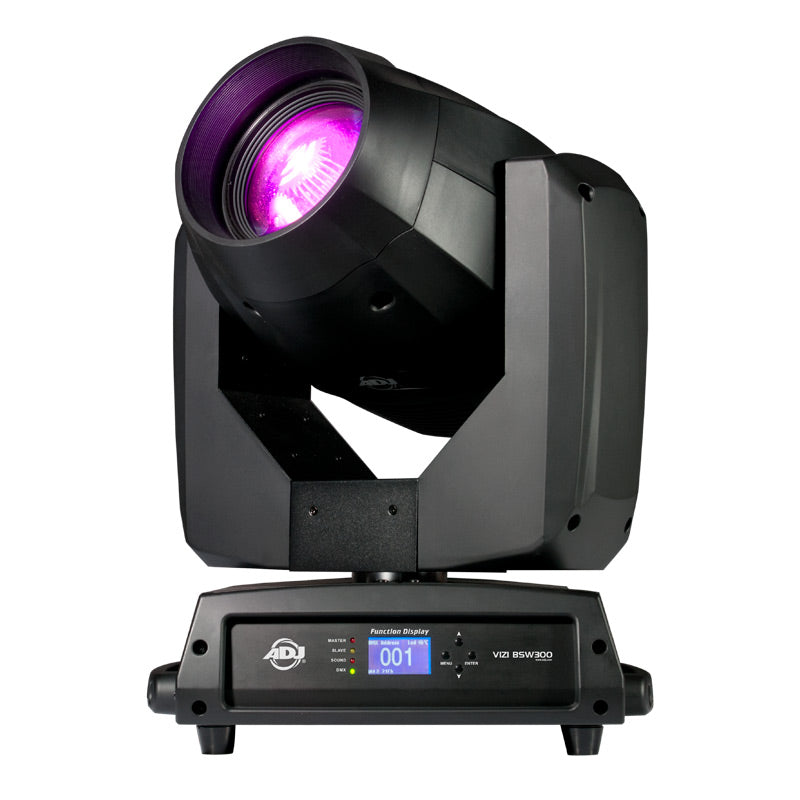

The Vizi BSW 300 is ADJ’s most powerful LED Moving Head to date. It uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all in one fixture. What’s more, is it comes in a smaller footprint than most other movers in its class.

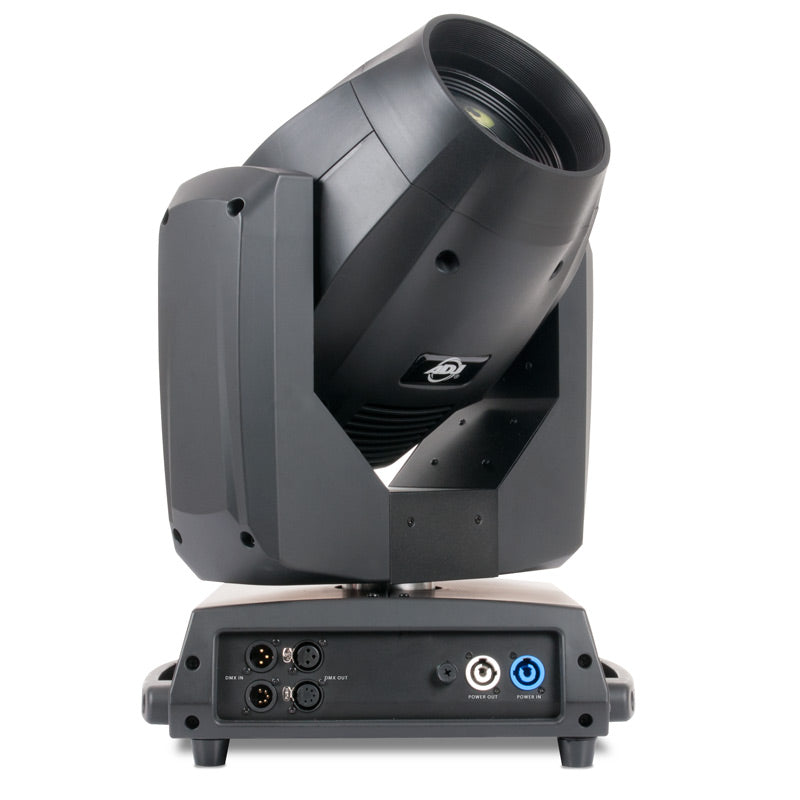

The Vizi BSW 300 offers motorized focus, two 6-facet rotating prisms (one linear & one circular), 2 separate color wheels, 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a LCD function display on the front panel, with the rear panel offering powerCON In/Out and 3-pin & 5-pin DMX connections.

Protect the Vizi BSW 300 during storage and transport with the ADJ DRCVIZI Road Case.

Learn more about the Vizi BSW 300 in this product spotlight blog: http://tinyurl.com/j6cxch5

Specifications

Specifications

Optical

• Light Source: 300W White LED

• Beam Angle: 8° to 17° ( Spot Mode)

• Beam Angle: 1° to 7°  (Beam Mode)

• Beam Angle: 18° to 26° (Wash Mode) Frost Filter


Specifications

• Pan / Tilt Range: 540° / 240°

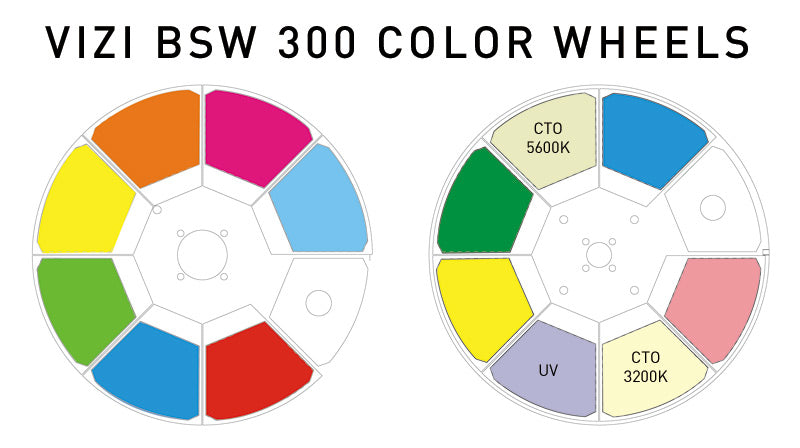

• Color Wheel 1: 7 + Open

• Color Wheel 2: 7+ Open (CTO 3200k), CTC (5600k), UV

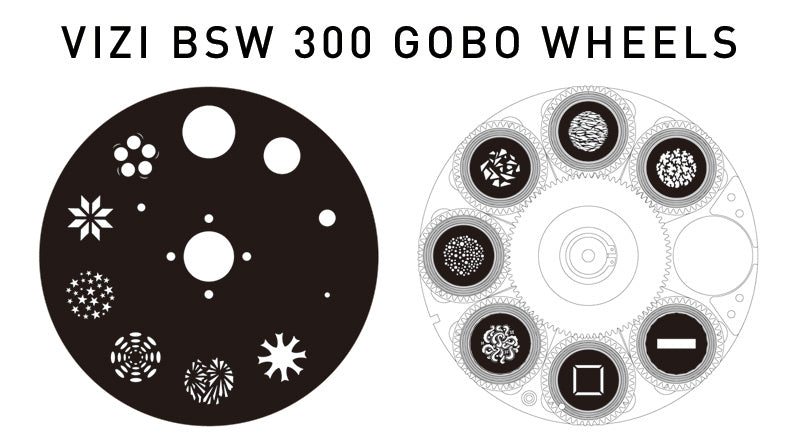

• GOBO Wheel 1: 6 Fixed + Open (3 Beam Reducers Beam Mode)

• GOBO Wheel 2: 7 Rotating/Replaceable + Open (3 Glass, 4 Metal)

• Dimming: Electronic

• Shutter:  Electronic

• Focus: Motorized

• Frost: 26° (Wash)

• Prism 1: Rotating 6-facet Circular

• Prism 2: Rotating 6-facet Linear Rotating
• PWM (Pulse Width Modulation): 1.2K
• Strobe Rate: 0.3-20HZ
• DB Rating @ 1Meter: Front: 50; Back: 50; Left: 53; Right: 54; Top:49

• Dimensions (LxWxH): 14.75” x 12.75” x 21.5” / 376 x 325 x 545mm

• Weight:  49 lbs. / 22 kg.


Connections

• Power Input: powerCON

• Power Pass through: powerCON @120V or 220V


Control

• Control Channels: 17 or 20

• DMX Modes: 2

• Control: 3-pin and 5-pin DMX
• With Wired Digital Communication Network

• Pan / Tilt Correction: Automatic


Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Power draw 120V 60Hz: 345W, 2.88 Amps

• Power draw 220V 50Hz: 345W, 1.57 Amps


Certifications

• ETL Approved
• CE

• IP 20: Dry area, No liquids


What's Included

• Power Cable- 6’ powerCON

   to Edison

• Qty: 2 Omega Clamps

• Safety Cable

• Manual


Optional Accessories

• DRC 16 Road Case (Fits 2)
