Vizi Beam 12RX

New Product

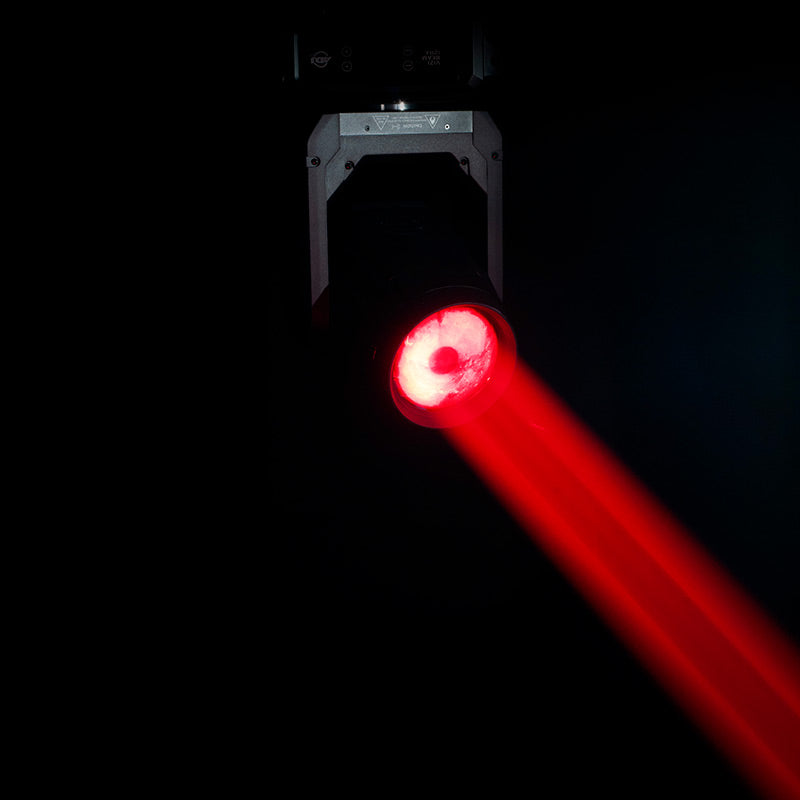

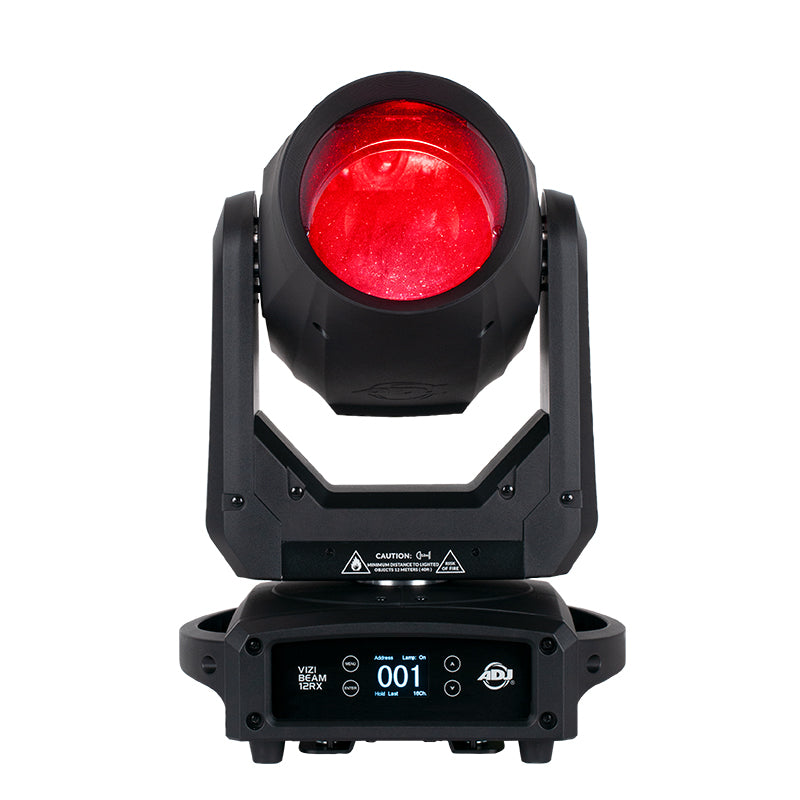

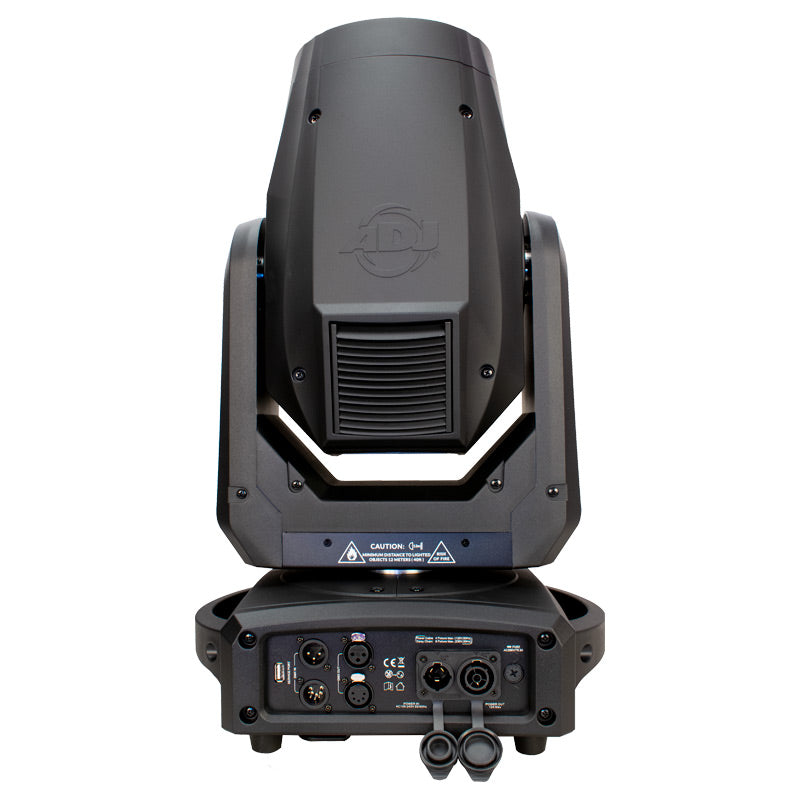

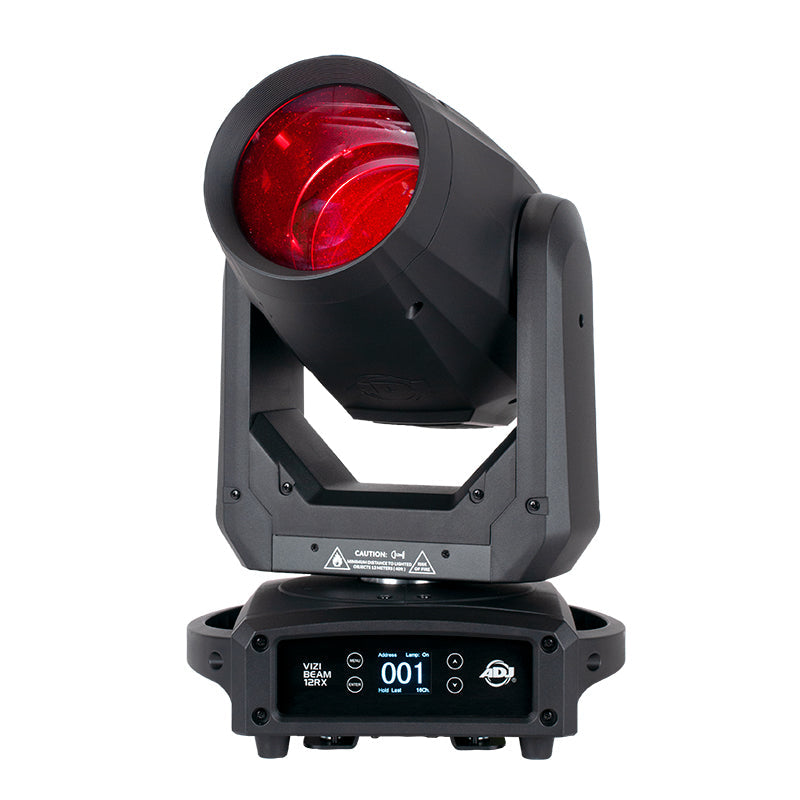

ADJ Vizi Beam 12RX front unit photo ADJ Vizi Beam 12RX rear unit photo ADJ Vizi Beam 12RX effects photo ADJ Vizi Beam 12RX effects photo ADJ Vizi Beam 12RX effects photo ADJ Vizi Beam 12RX color wheel ADJ Vizi Beam 12RX Gobo wheel photo ADJ Vizi Beam 12RX Lamp Photo ADJ Vizi Beam 12RX Rear Panel Upclose ADJ Vizi Beam 12RX Circular Prism photo ADJ Vizi Beam 12RX Linear Prism photo ADJ Vizi Beam 12RX Frost Filter photo
SKU: VIZ120 | UPC: 818651028218

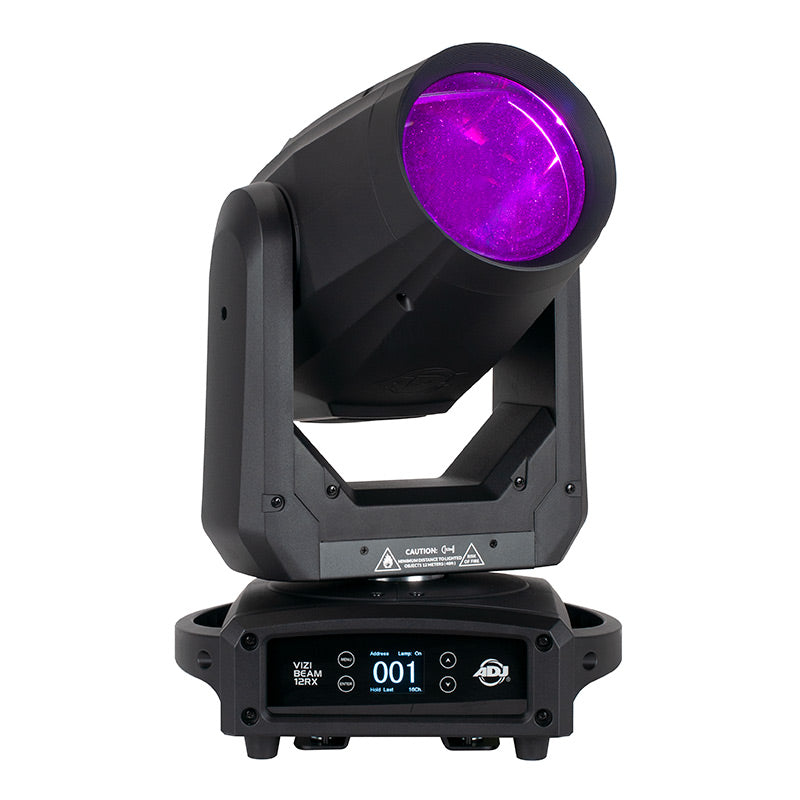

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). Includes: 2 Prism FX, Frost Filter, Motorized Focus, 14 dichroic colors + white, 16 static GOBOs + open and a razor sharp 2-degree beam angle.
Advantage Points: 1400

Where to Buy

Enter your zip code below to find this product at a retailer near you!

Product Description

Details

Available End of March 2020

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 2-degree beam of light. It comes with 14 colors + open (with color indexing), 16 GOBOs + open (with GOBO indexing), two rotating prisms and a frost filter for wash effects.

The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and PowerLock In/Out connection to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system, plus a USB service port to conveniently update the fixture’s firmware.

Specifications

Specifications

Light Source:

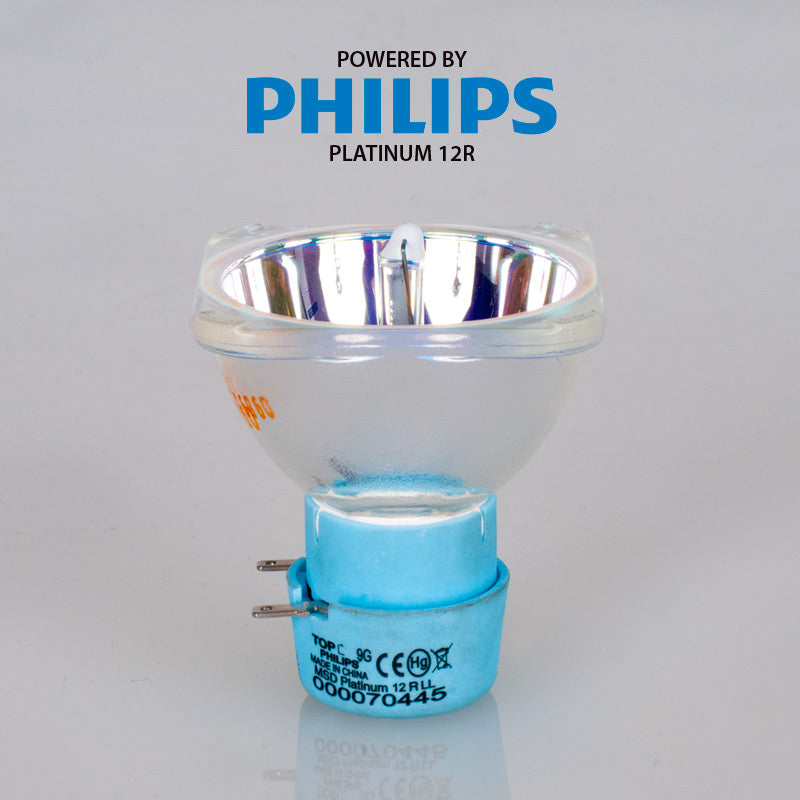

• 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
• Color temperature: 7800K

Features:
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan cooled

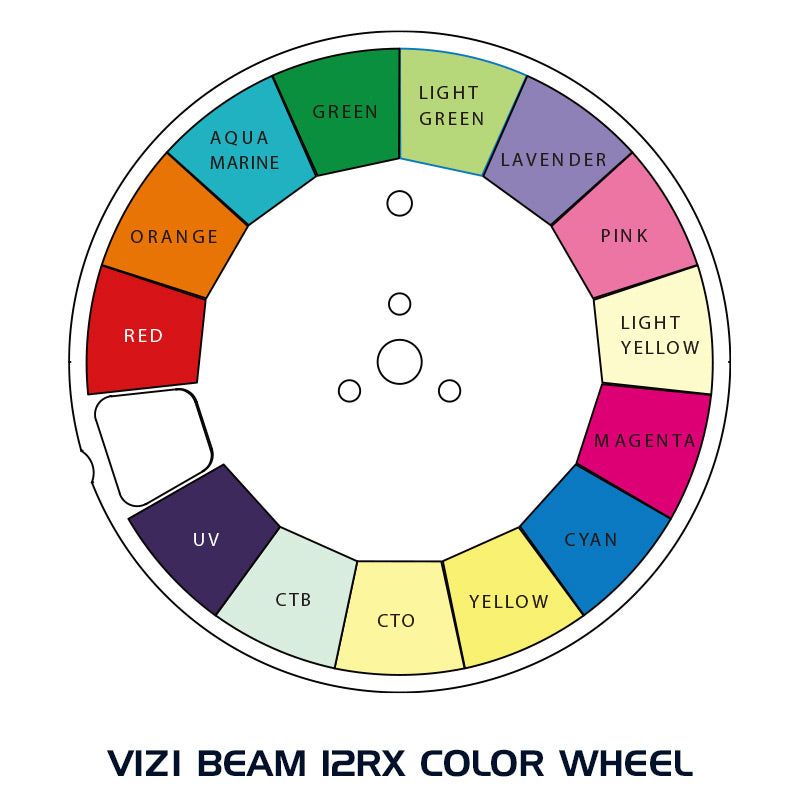

Color Wheel:
• 14 dichroic colors + white (Includes CTO, CTB & UV)
• Indexable color wheel for split colors

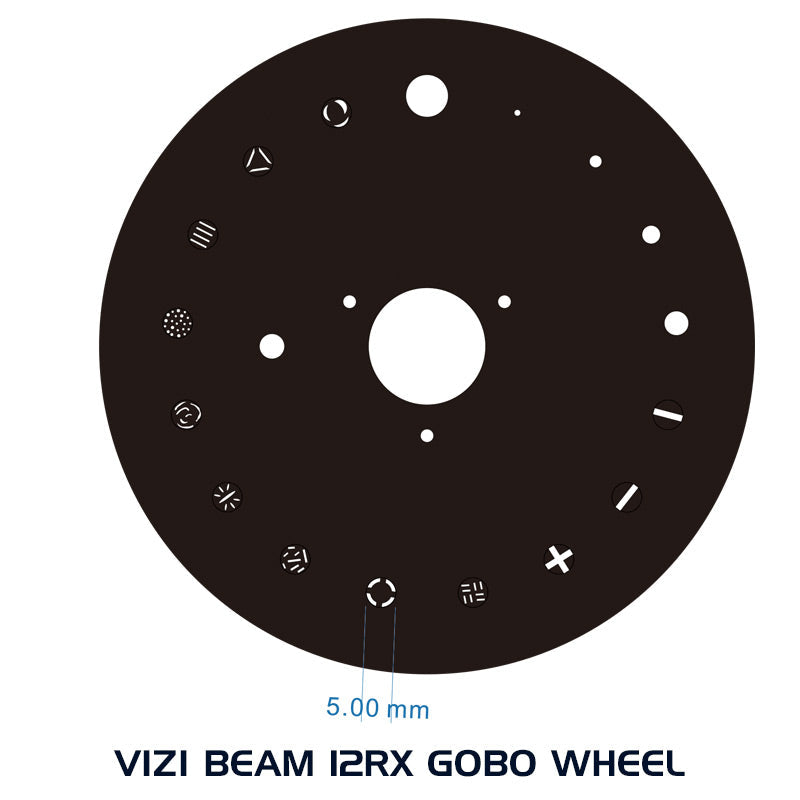

GOBO Wheel:
• 16 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect

Prism Wheel:
• Rotating, 6-facet linear and 24-facet circular

Control:
• 2 DMX Channel Modes: 14/16 Channels
• Color LCD display with 4-button function menu
• Control Mode: DMX512, RDM or internal programs
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network

Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)

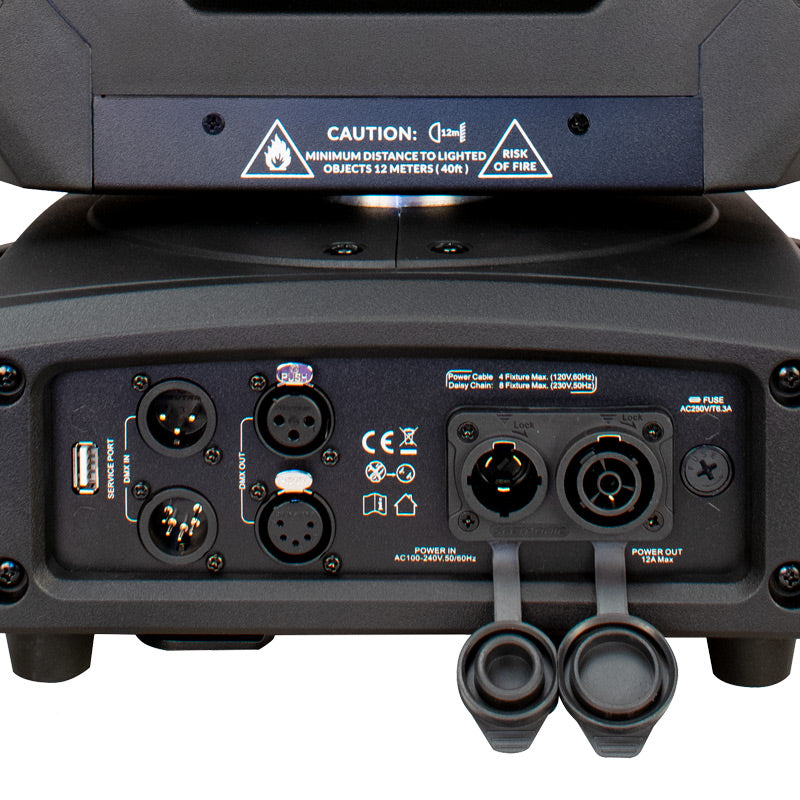

Connections:
• DMX Connections: 3-pin & 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: PowerLock In/Out to daisy chain power

Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 384W (@120V), 371W (@230V)

Dimensions & Weight:
• Dimension: 13.77” (L) x 13.52” (W) x 22.25” (H) / 350 x 343.5 x 565mm
• Weight: 39.7 lbs. / 18 kg.

What’s Included:
• Omega Brackets
• 1.83M locking power cable

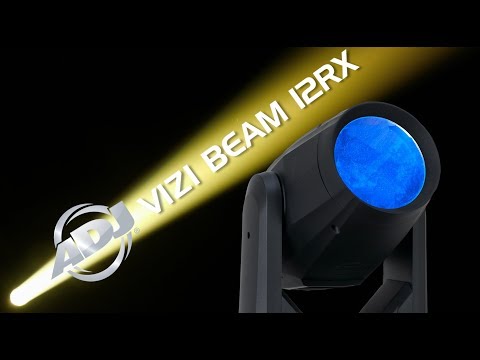

Videos

Videos

Downloads

Downloads

The following downloads are available for this product:

Title Description
Vizi Beam 12RX Photometrics Test Report Photometrics Test Report Download
Vizi Beam 12RX 3D CAD Drawing 3D CAD Drawing Download
