Vizi Beam 12RX

This product has been discontinued. Click here to see the current model: https://www.adj.com/vizi-beam-cmy

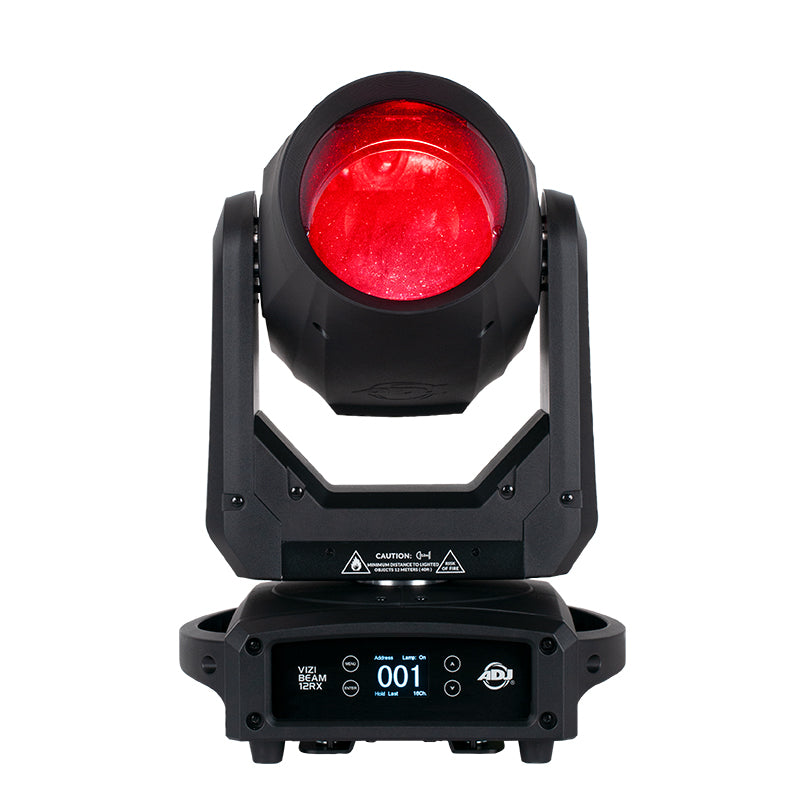

The Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 2-degree beam of light with motorized focus. It comes with 14 colors + open (with color indexing), 16 GOBOs + open (Including UV, CTO & CTB) with GOBO indexing, two rotating prisms and a frost filter for wash effects. To create breathtaking aerial effects, the Vizi Beam 12RX is fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism.
The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and IP65 power locking In/Out connection to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system, plus a USB service port to conveniently update the fixture’s firmware.

Specifications

Light Source:

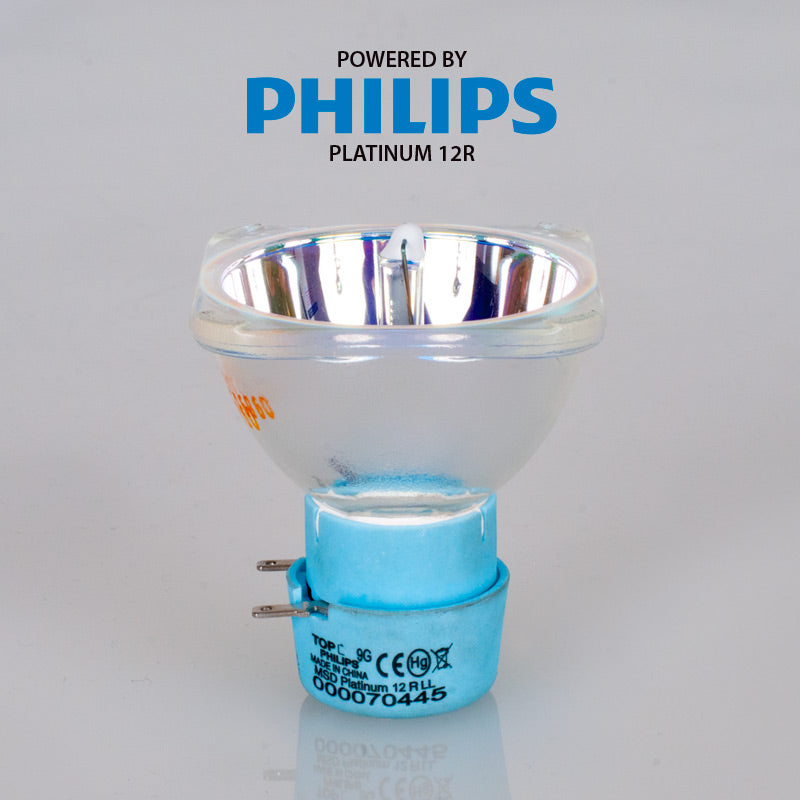

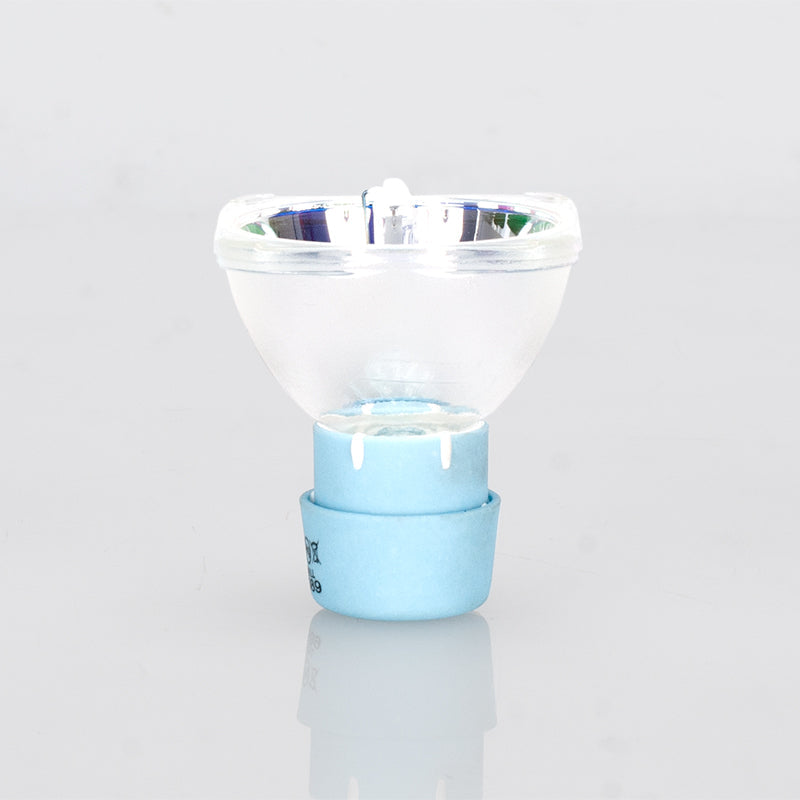

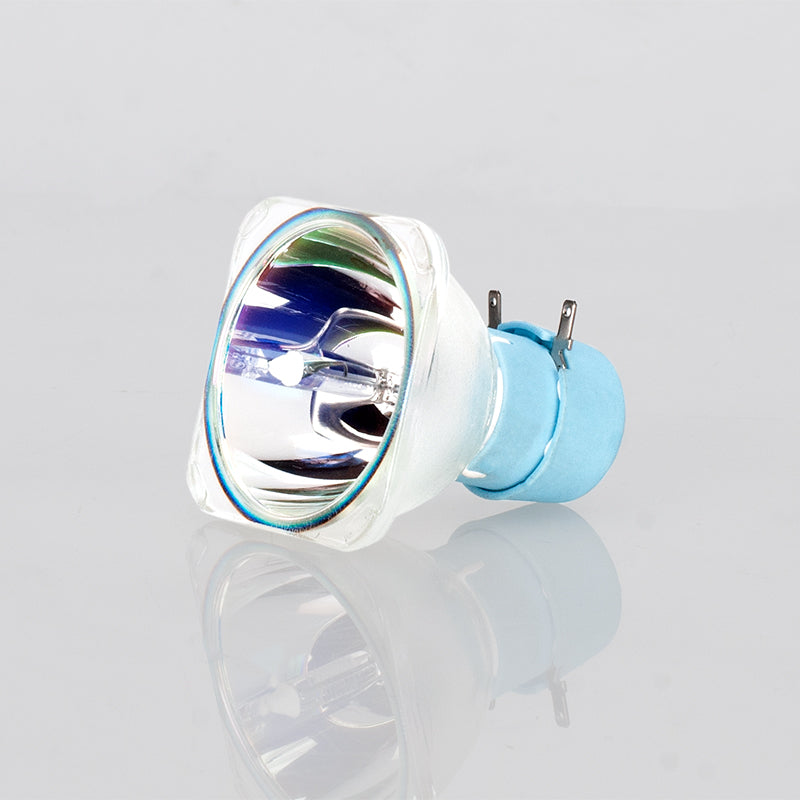

• 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
• Color temperature: 7800K

Features:
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• Fan cooled

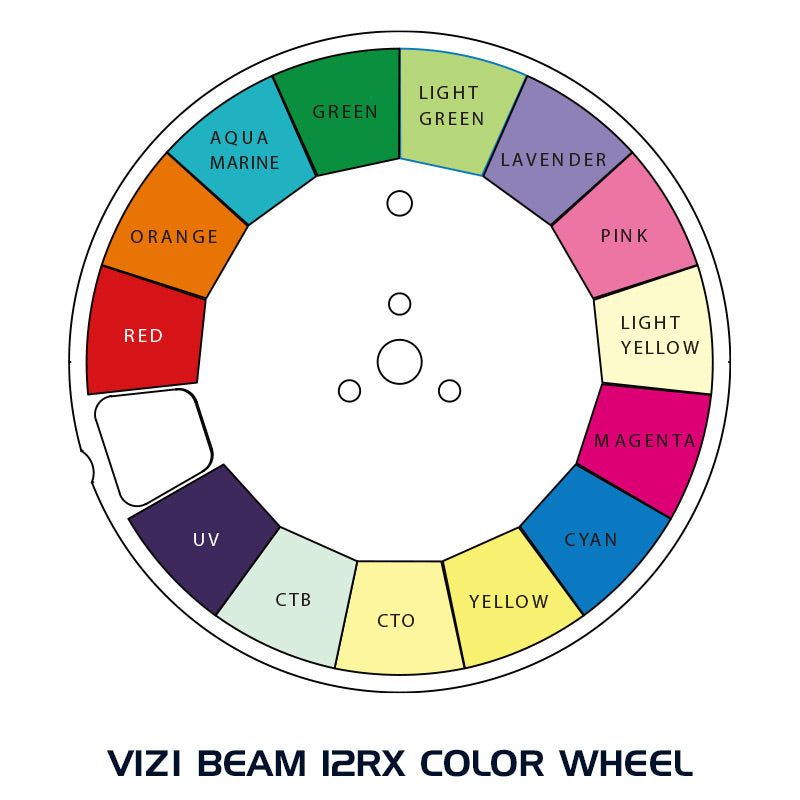

Color Wheel:
• 14 dichroic colors + white (Includes CTO, CTB UV)
• Indexable color wheel for split colors

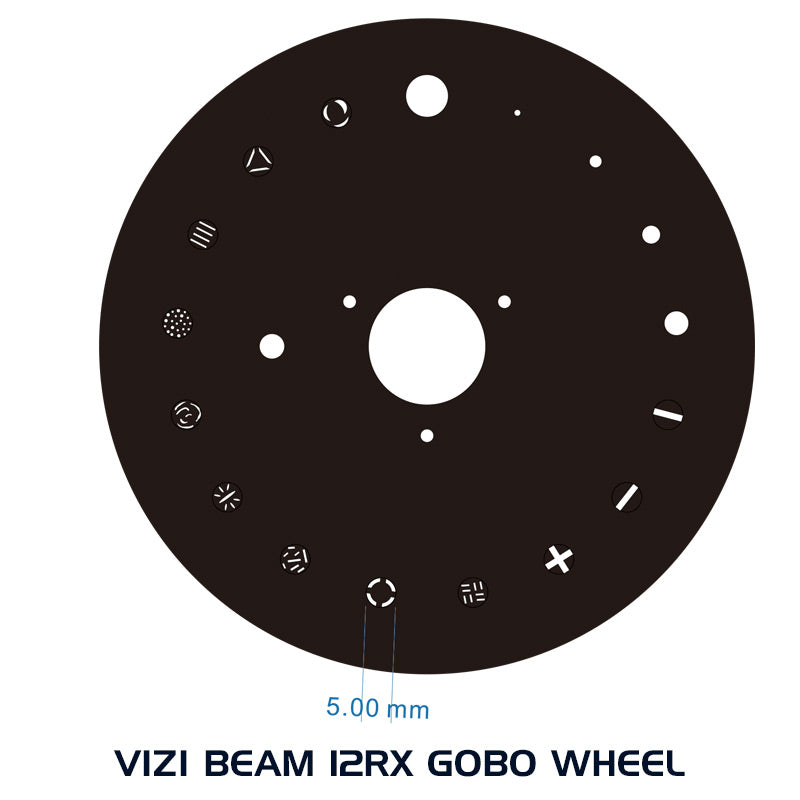

GOBO Wheel:
• 16 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect

Prism Wheel:
• Rotating, 6-facet linear and 24-facet circular

Control:
• 2 DMX Channel Modes: 14/16 Channels

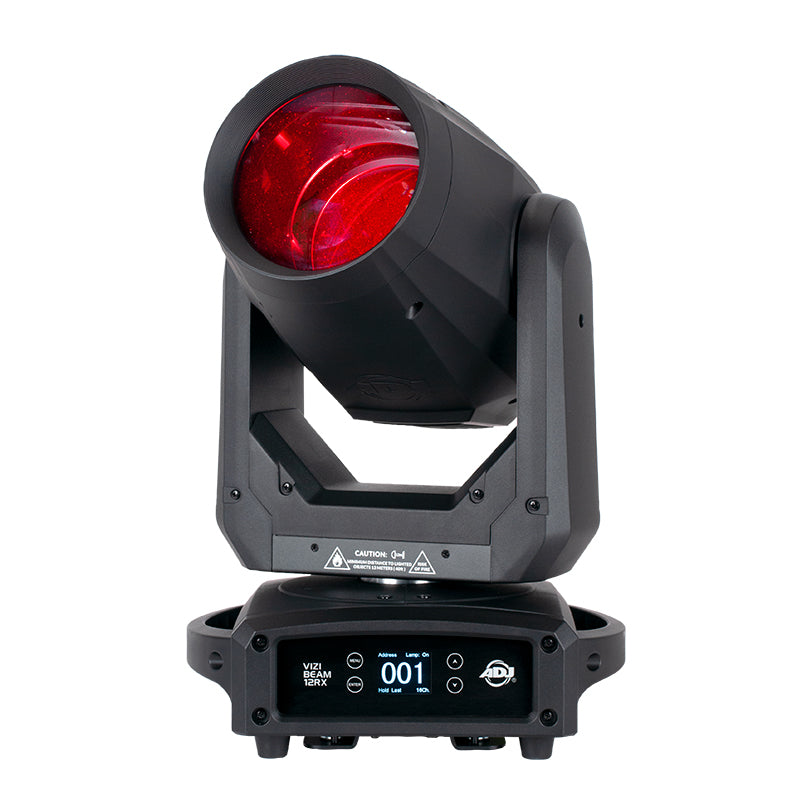

• Color LCD display with 4-button function menu
• Control Mode: DMX512, RDM control options
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network

Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)

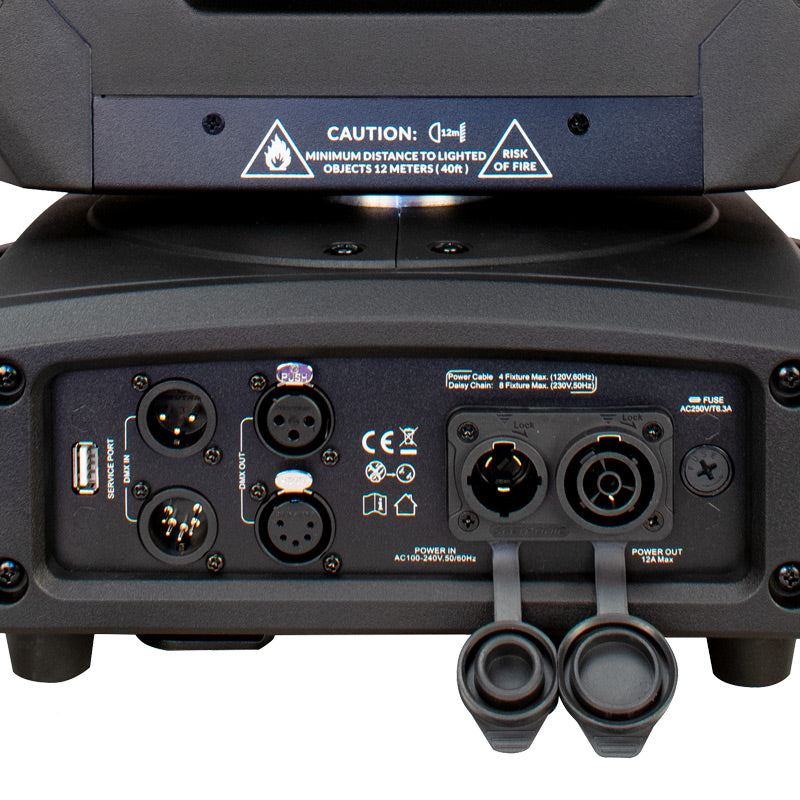

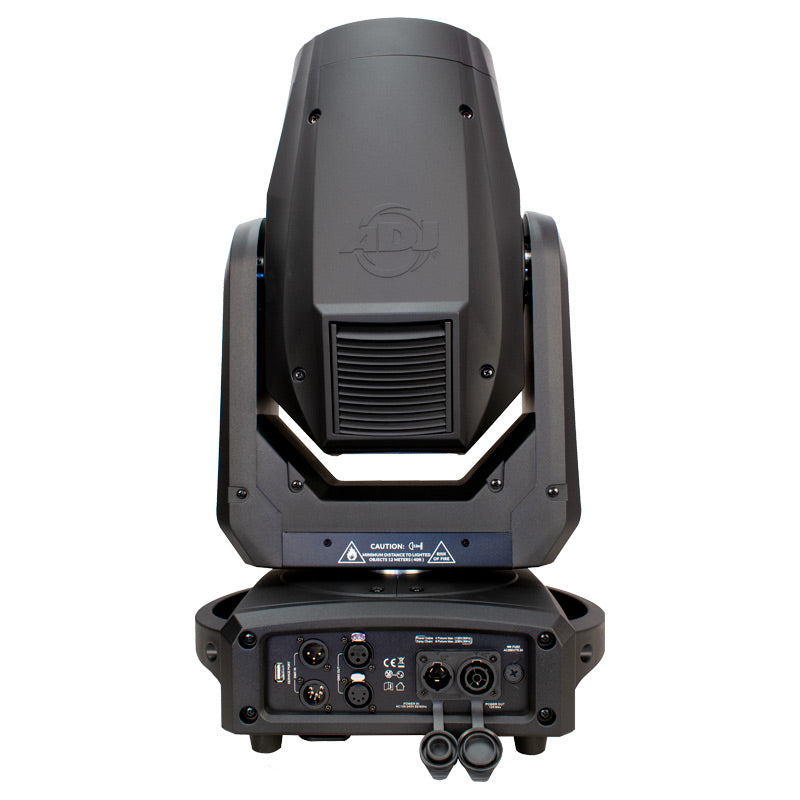

Connections:
• DMX Connections: 3-pin 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: IP65 rated power locking In/Out connections to daisy chain power

Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 384W (@120V), 371W (@230V)

Dimensions Weight:
• Dimension: 13.8” (L) x 13.5” (W) x 22.25” (H) / 350 x 343.5 x 565mm
• Weight: 39.7 lbs. / 18 kg.

What’s Included:
• Omega Brackets
• 1.83M locking power cable

Approvals / Ratings
• cETLus Approved (Control #4000358)
• CE Certified

Road Case:
• Two (2) Vizi Beam 12RX fit in the ADJ DRC MHX road case
