UV Flood 36

SKU: UVF021 | UPC: 819730015587

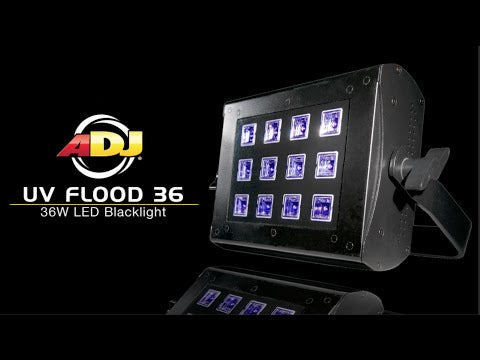

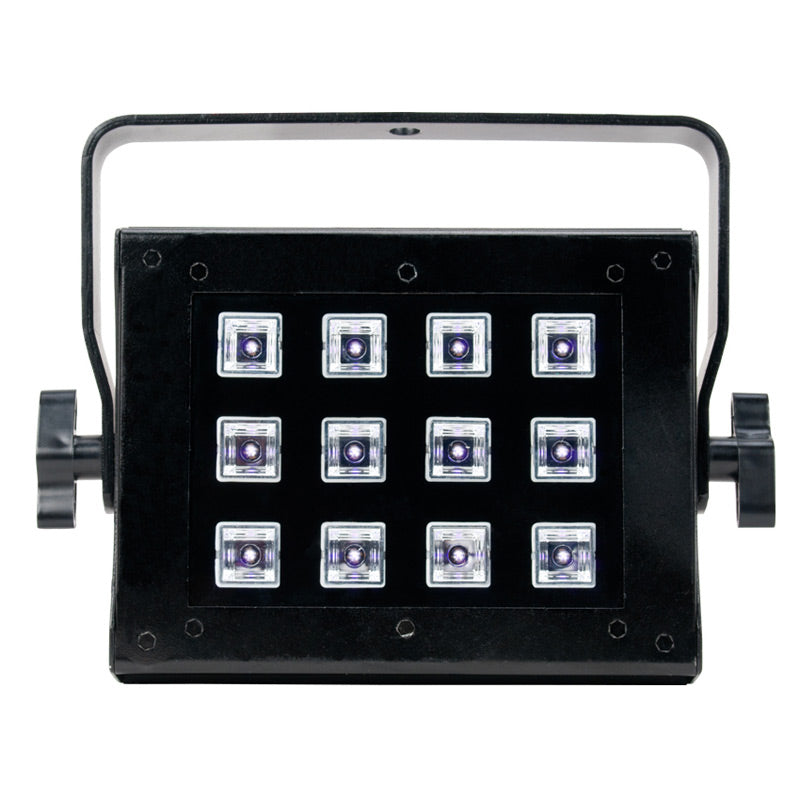

The ADJ UV Flood 36 is a compact 36W LED Blacklight for permanent or portable applications. Offering a wide coverage, DMX connectivity and optional Dotz Par RF wireless remote (sold separately), the UV Flood 36 creates ultraviolet rays of pure lighting excitement.
Advantage Points: 200

Where to Buy

Enter your zip code below to find this product at a retailer near you!



• 12 x 3W UV LEDs (Rated at approximately 50,000 hours)

• 3 Operational Modes: Sound Active, Dimmer Mode, and DMX Controlled

• Beam Angle: 57-Degrees

• Fuse: 1Amp

• Wavelength: 395-400nm

• 3 DMX Modes: 1/2/3

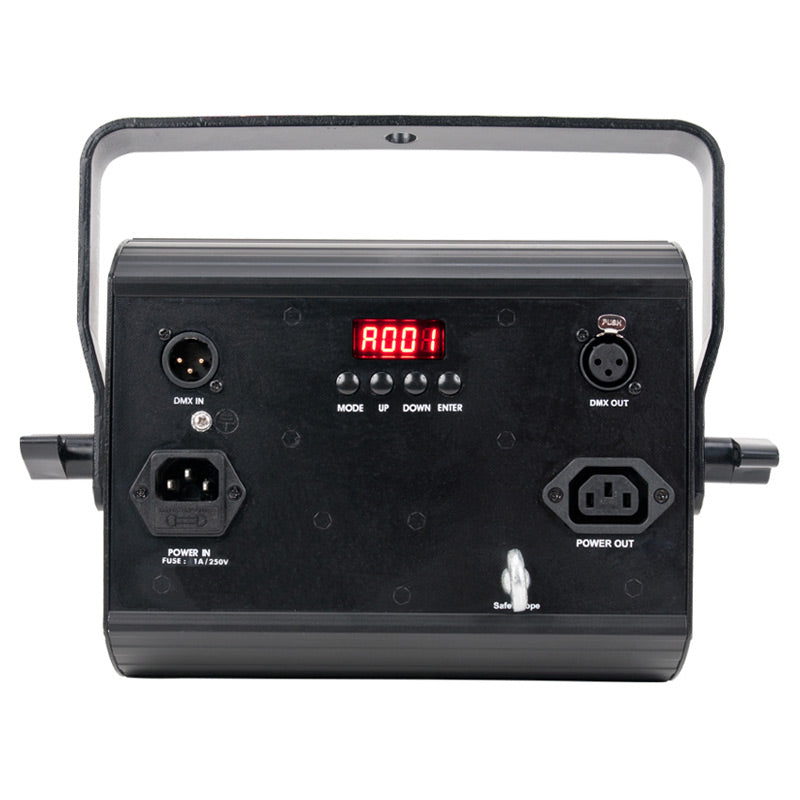

• 3-Pin DMX In / Out DMX Connections
• With Wired Digital Communication Network

• Electronic Dimming 0-100%

• Strobe Effect

• Strobe Rate: Adjustable

• Sound Active: Yes

• Compatible with the Dotz Par RF remote (sold separately)

• Power Connection: IEC AC In/Out

• Input Voltage: AC 100V-240V 50/60Hz

• Power Consumption: 35W (Full on)

• Power Link: 26 @ 120V / 57 @ 240V

• Dimensions (LxWxH): 11.75” x 9.25” x 4.5” / 300 x 235 x 115mm

• Weight: 5 lbs. / 2.2 kgs





The following downloads are available for this product:

Title Description
UV Flood 36 Photometric Test Report Photometric Test Report Download
UV Flood 36 Photometric IES File Photometric IES File Download
UV Flood 36 User Manual User Manual Download


Frequently Asked Questions

Please see our frequently asked questions below. Please feel free to send us your questions by clicking here.

How large of a room would 1 uv flood 36 light cover? Would it be good for a 16x14 foot room?

Well the coverage is about 4 lux at 16 feet in distance and 16' in width. You may find that the UV PANEL HP will have more output at 160W of Black light as opposed to 36W of output in the UV FLOOD 36. The UV PANEL HP will cover a 25x25 foot floor from 15 feet in the air.

using power cord daisy chains, will one remote control all units in that chain?

No. The power cords do not transfer data. You'll need to set these fixtures in master slave mode and daisy chain them using 3-pin DMX cables.
