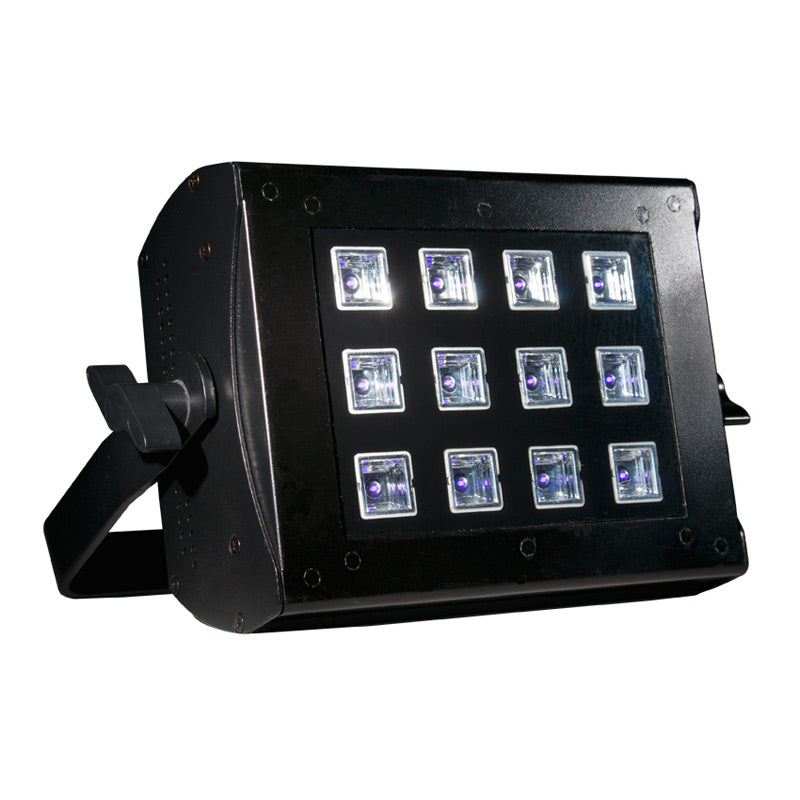

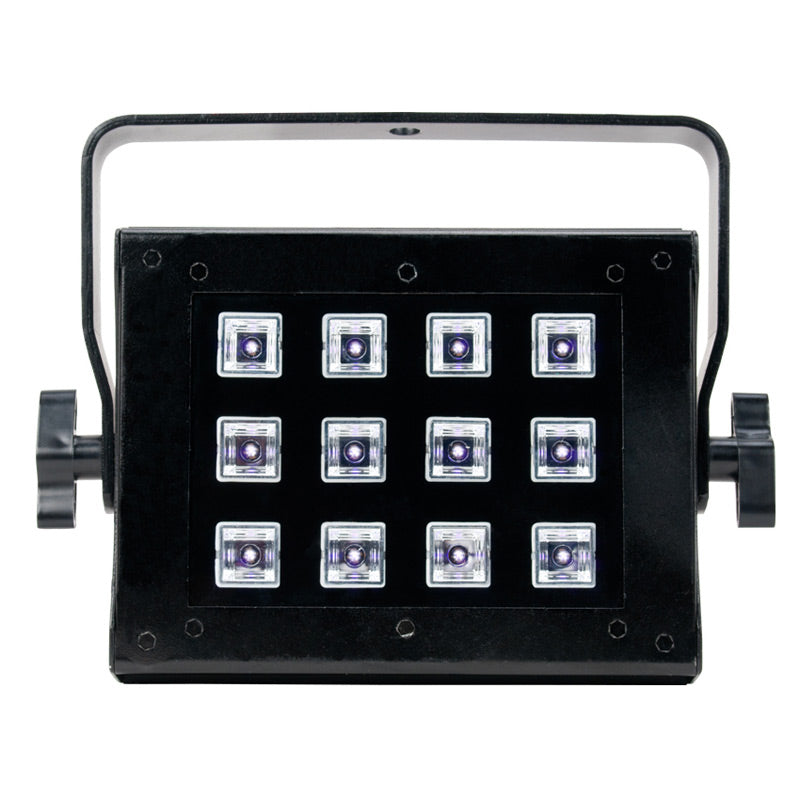

UV Flood 36
Specifications
• 12 x 3W UV LEDs (Rated at approximately 50,000 hours)
• 3 Operational Modes: Sound Active, Dimmer Mode, and DMX Controlled
• Beam Angle: 87-degrees
• Fuse: 1Amp
• Wavelength: 395-400nm
• 3 DMX Modes: 1/2/3

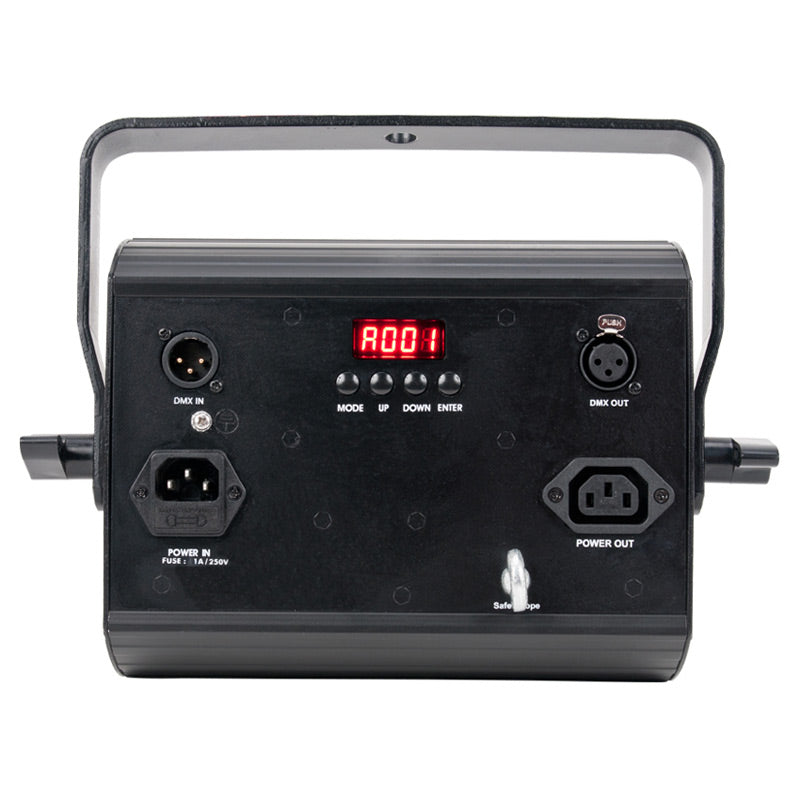

• 3-Pin DMX In / Out DMX Connections
• With Wired Digital Communication Network
• Electronic Dimming 0-100%
• Strobe Effect
• Strobe Rate: Adjustable
• Sound Active: Yes
• Compatible with the Dotz Par RF remote (sold separately)
• Power Connection:IEC AC In/Out
• Input Voltage: AC 100V-240V 50/60Hz
• Power Consumption: 35W (Full on)
• Power Link: 26 @ 120V / 57 @ 240V
• Dimensions (LxWxH): 11.75” x 9.25” x 4.5” / 300 x 235 x 115mm
• Weight: 5 lbs. / 2.2 kgs
Downloads
Photometrics
User manual

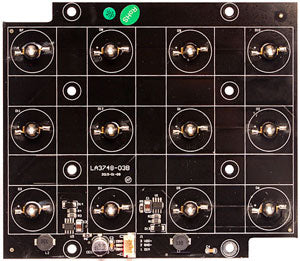

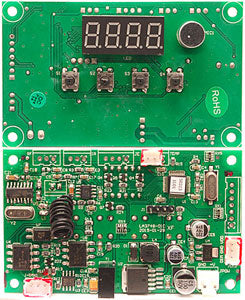

UV Flood 36 Parts & Service
Our UV Flood 36 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your UV Flood 36. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
