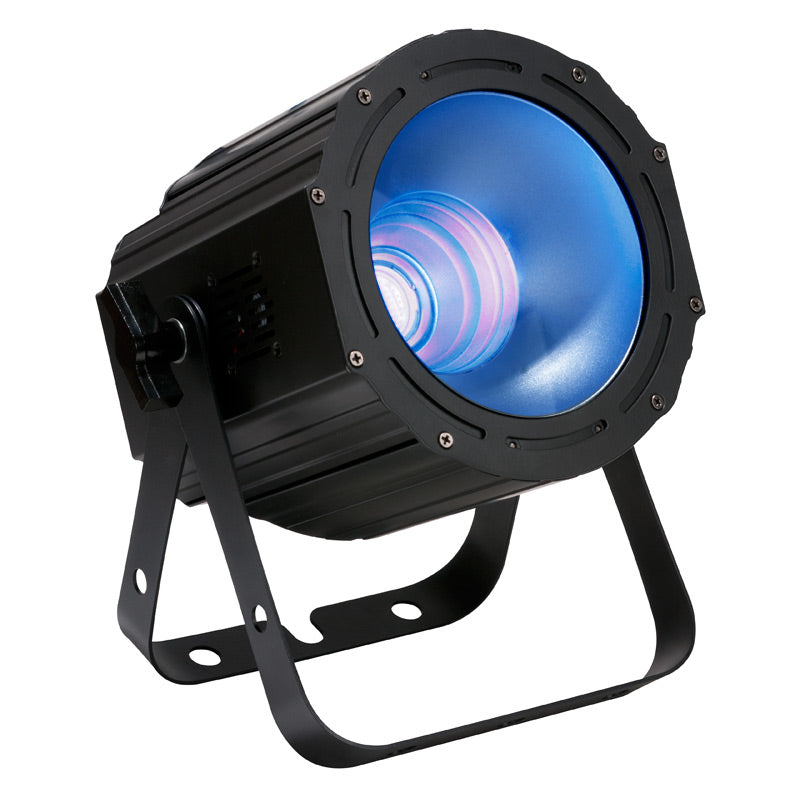

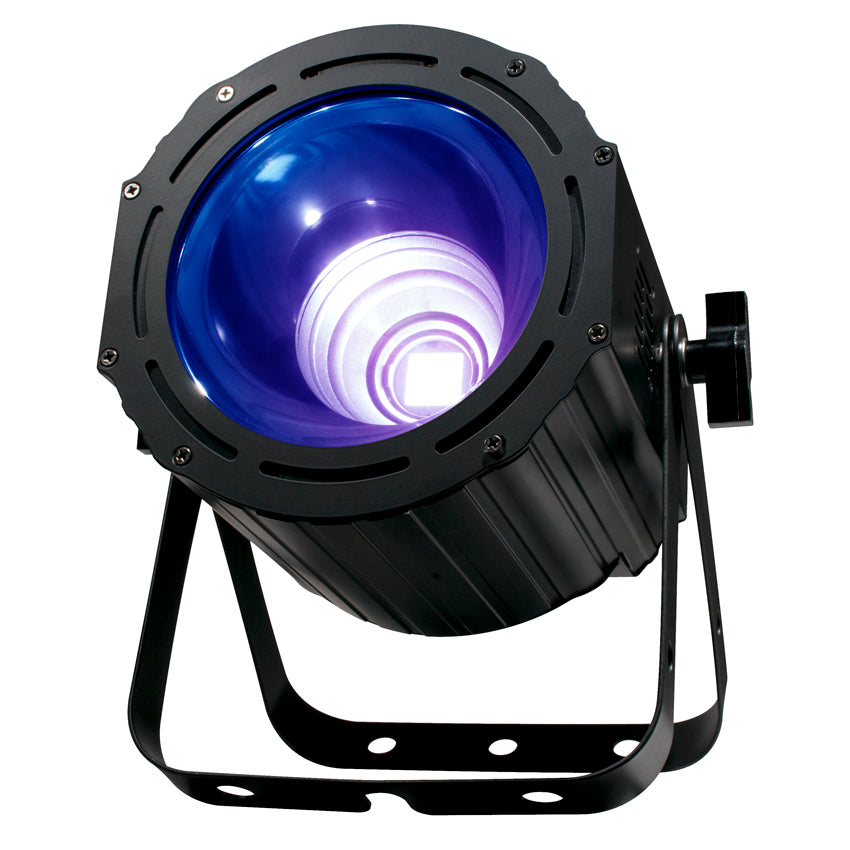

UV COB Cannon
Specifications
- Super high output UV light cannon
- Great for performance stages, theatrical productions and special effects productions
- Requires almost no maintenance – low heat, low power consumption
- Advanced COB Technology (Chip On Board) produces powerful, smooth UV color
- 3 Operation modes: Sound Active, Manual, DMX
- 3 DMX Channel modes: 1, 2 or 3 channel

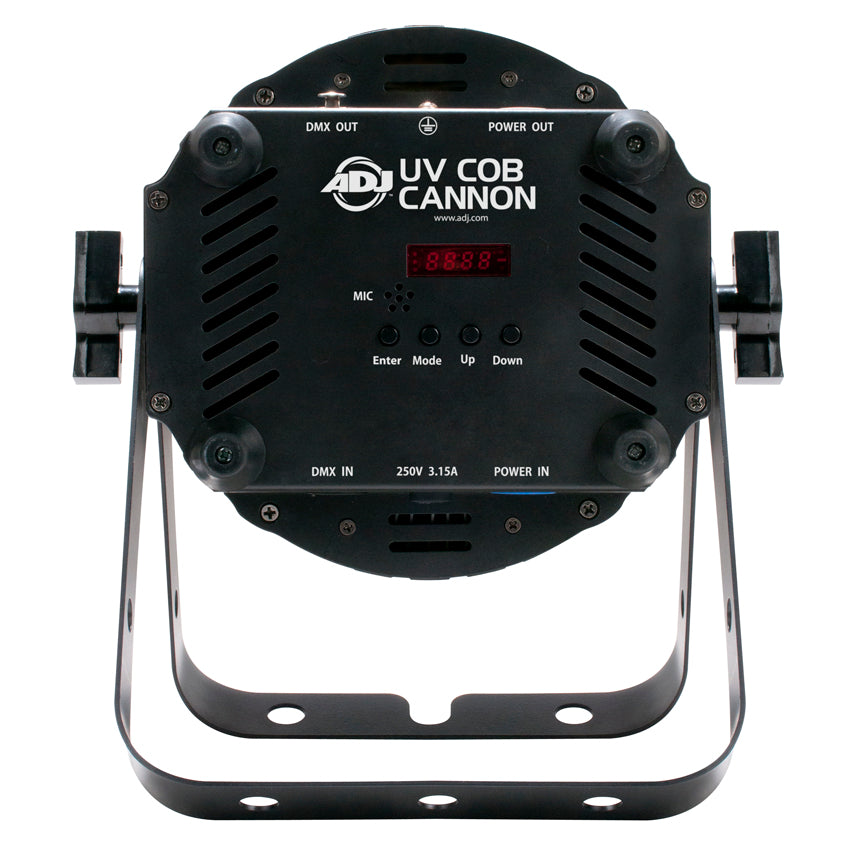

- 4-button digital DMX display
- Flicker Free operation (No flickering on camera)
- Refresh Rate: 1KHz
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural Theatre)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- Beam angle: 56-degrees
- Dual yoke allows fixture to be hung or set on the ground

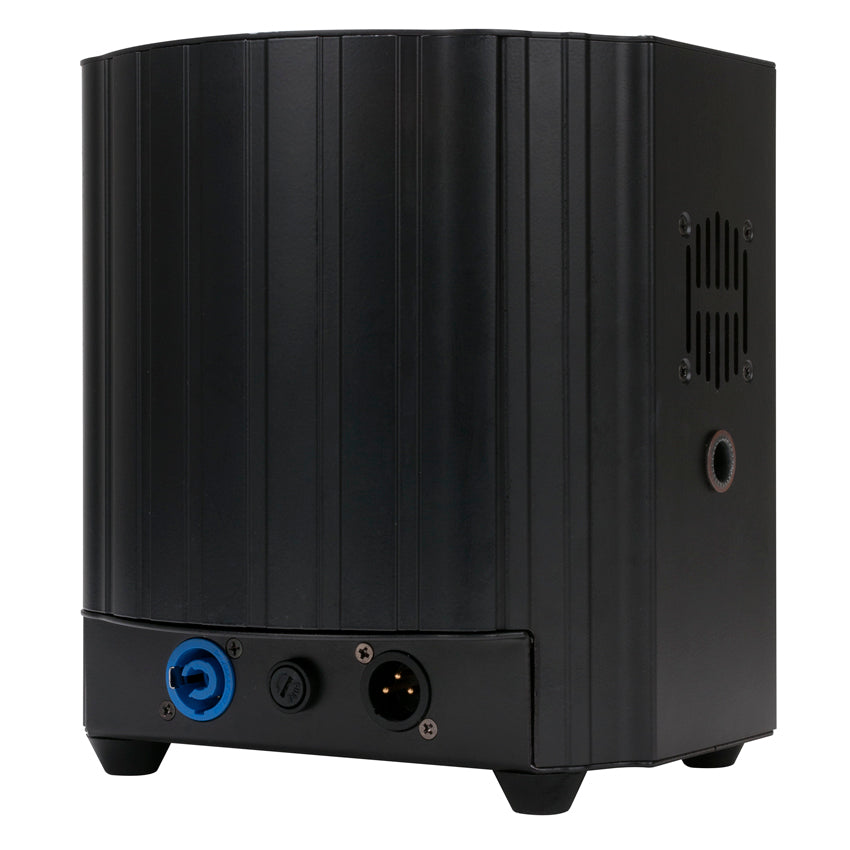

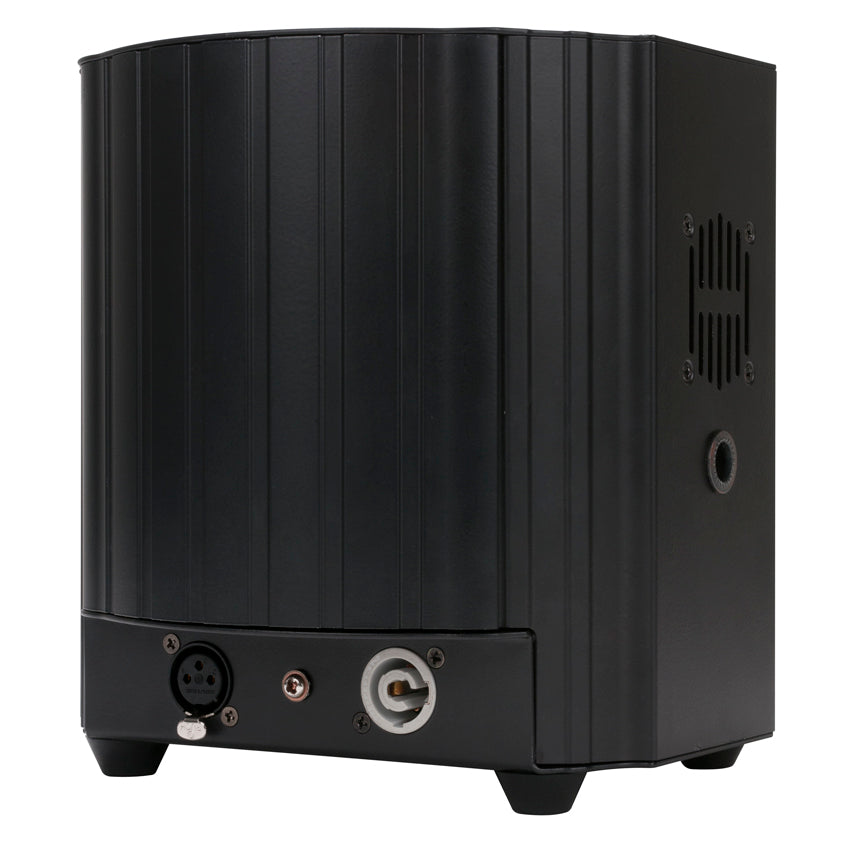

- DMX Linkable: 3-pin XLR data connectors
- Power Linkable: Locking Power Connection
- (Up to 3 UV COB Cannon’s @ 120V, 5 UV COB Cannon’s @ 220V fixtures)
- With Wired Digital Communication Network
- Long Life LEDs (Rated at approximately 25,000 hrs.)
- Power Draw: 120W total (All LED's @ Full)
- Light Source: 100W COB (Chip On Board) UV LED engine
- Multi-voltage Operation: Auto switching, AC 100V - 240V/50Hz -60Hz
- Dimensions (LxWxH): 12.75” x 11” x 8”/ 320 x 278 x 200mm
- Weight: 11 lbs. / 4.98kgs
- Wavelength: 395-405nm
- ETL Approved
Downloads
Cad drawing
Cut sheet
Photometrics
User manual

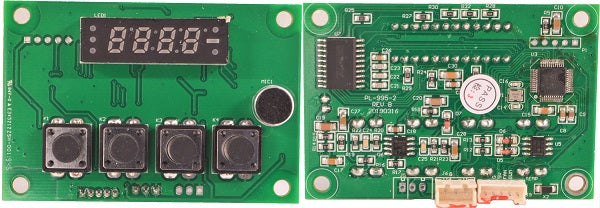

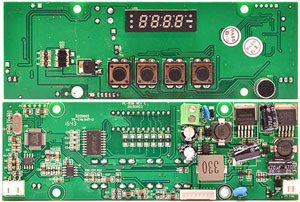

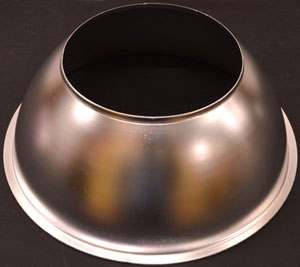

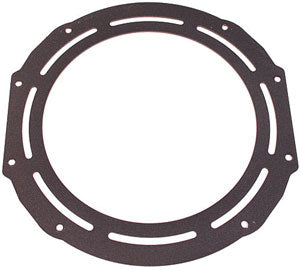

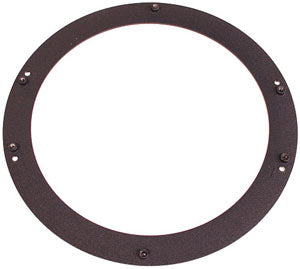

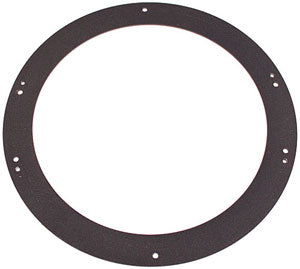

UV COB Cannon Parts & Service
Our UV COB Cannon Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your UV COB Cannon. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
UV COB Cannon Parts & Service
