UV COB Cannon
Specifications
Product Specifications
Light Source
- 100W COB (Chip-On-Board) UV LED engine
- UV Wavelength: 395–405nm
- LED Life Expectancy: Approximately 25,000 hours
Optical
- Beam Angle: 33°
Control
- DMX Channels: 1, 2, or 3-channel modes

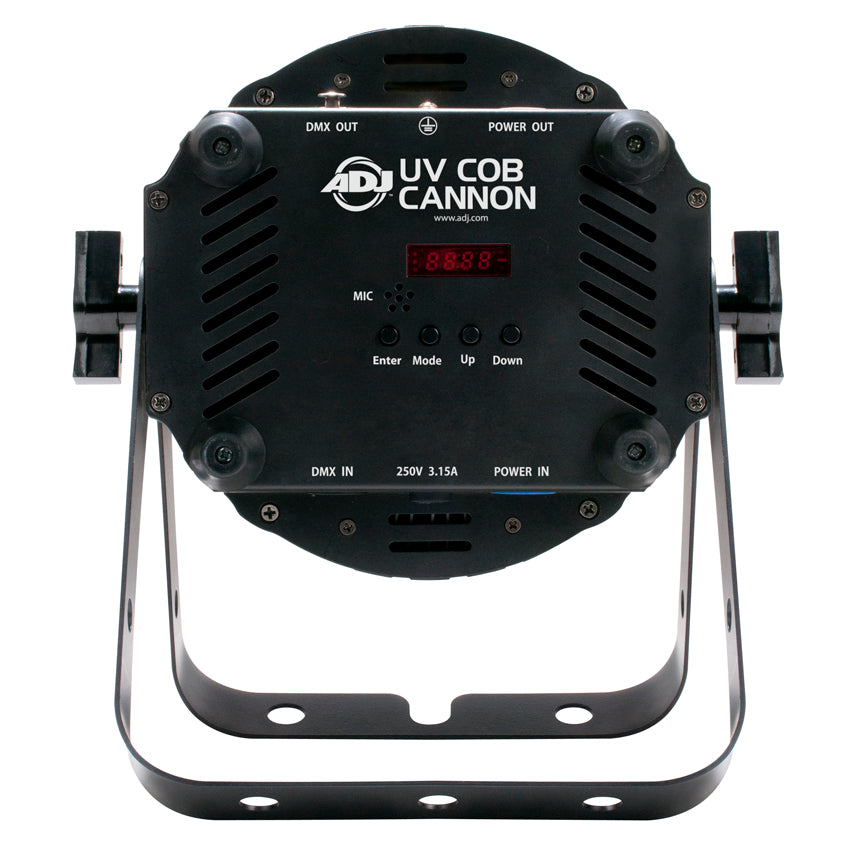

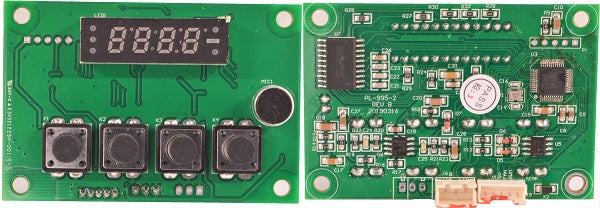

- 4-button digital DMX display
- LED Refresh Rate: 1kHz
- 5 selectable dimming curves: Standard, Stage, TV, Architectural, and Theatre
- Wired digital communication network
Connections
- DMX Data In/Out: 3-pin XLR

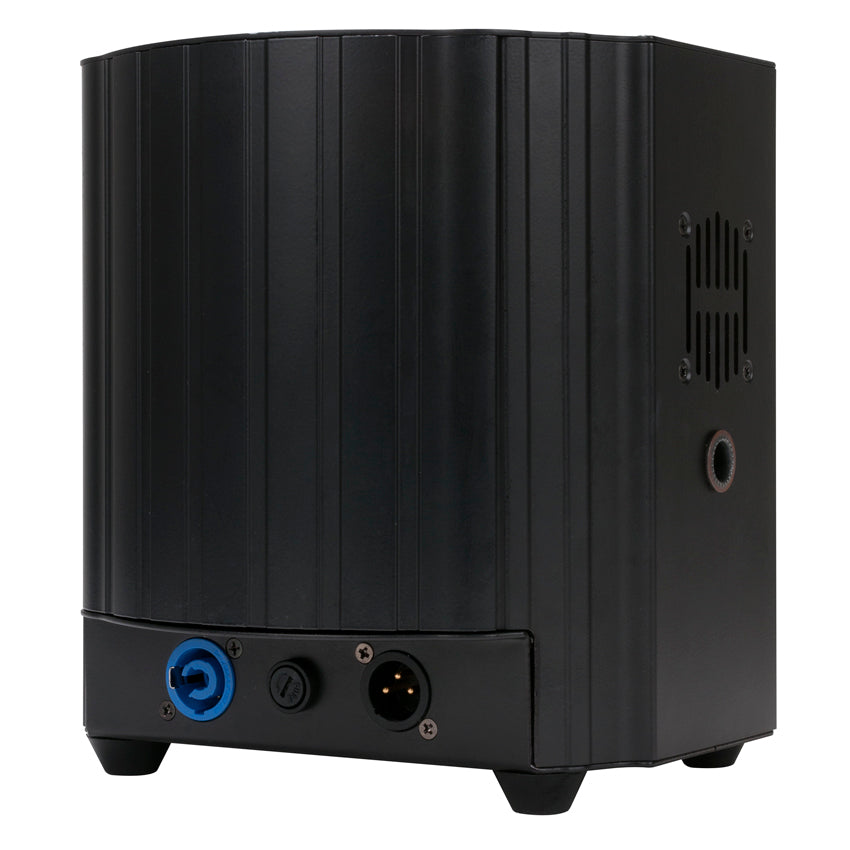

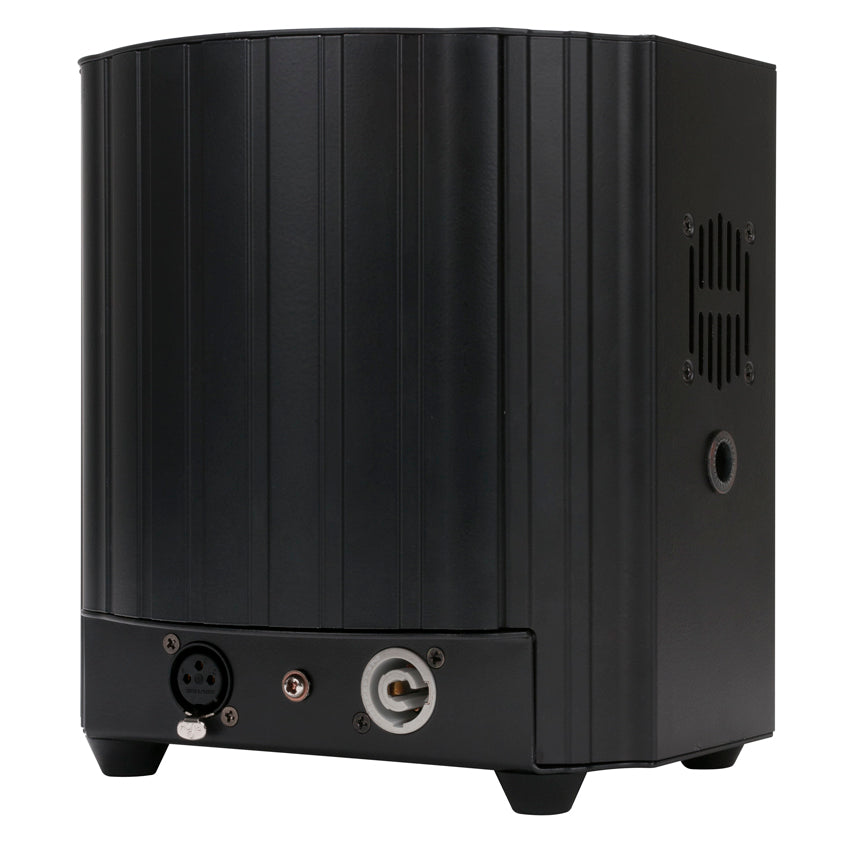

- Locking power input/output connections
- Power linkable
Electrical
- Power Consumption: 120W maximum
- Multi-voltage operation: AC 100–240V, 50/60Hz
- Power Linking:
- Up to 3 fixtures at 120V
- Up to 5 fixtures at 220V
Thermal
- Maximum External Surface Temperature: 140°F (60°C)
Dimensions / Weight
- Dimensions (L × W × H): 12.75" × 11" × 8" / 320 x 278 x 200mm
- Weight: 11lbs. / 4.98kg
Approvals / Ratings
- CE, UKCA, ETL Approved, FCC
Specifications are subject to change without notice.
Downloads
Cad drawing
Cut sheet
Dmx traits
Photometrics
User manual

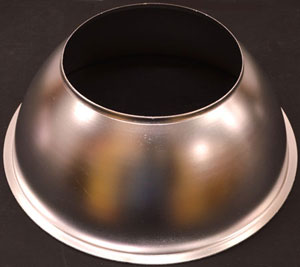

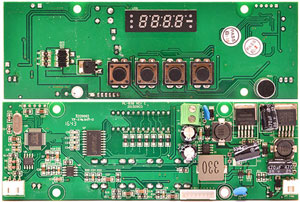

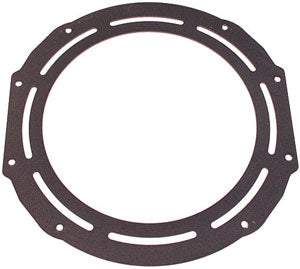

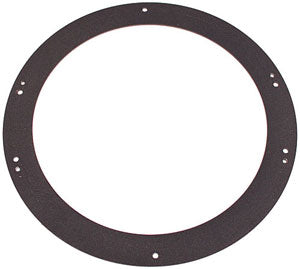

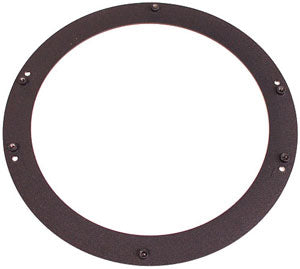

UV COB Cannon Parts & Service
Our UV COB Cannon Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your UV COB Cannon. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
UV COB Cannon Parts & Service
