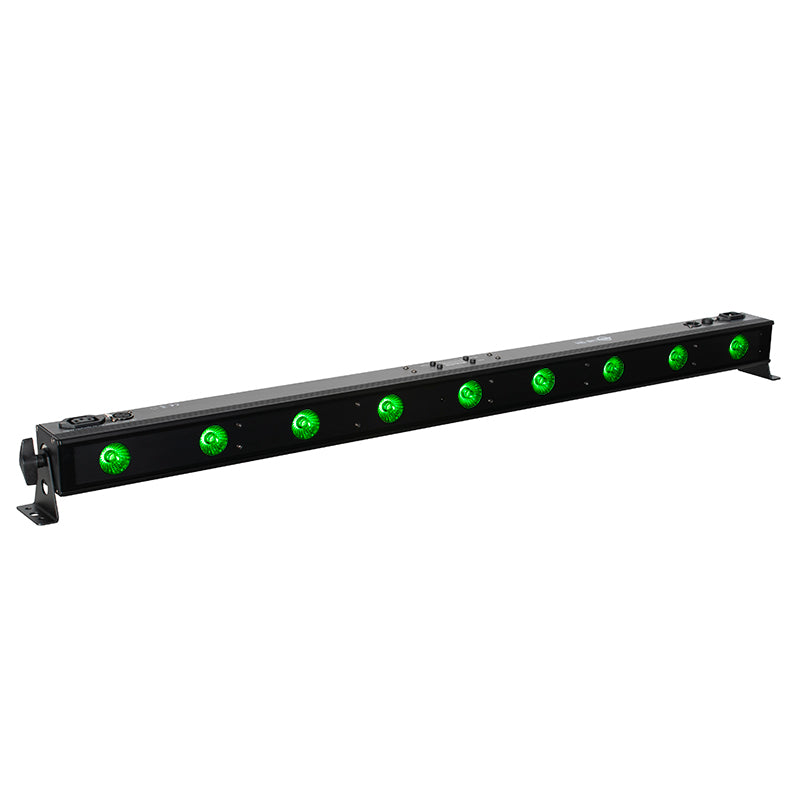

UB 9H
• 41.75-inch (1 meter) indoor Linear Bar with 9 x 6W Ultra bright HEX LEDs
• Variable RGBWA+UV color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing!
• 4 DMX Channel Modes: 6, 10, 12 or 18 channels
• 5 operational modes: Auto (Program Run), Sound Active, RGB Dimmer, Static Color and DMX-512 Mode
• 3-Section Pixel control

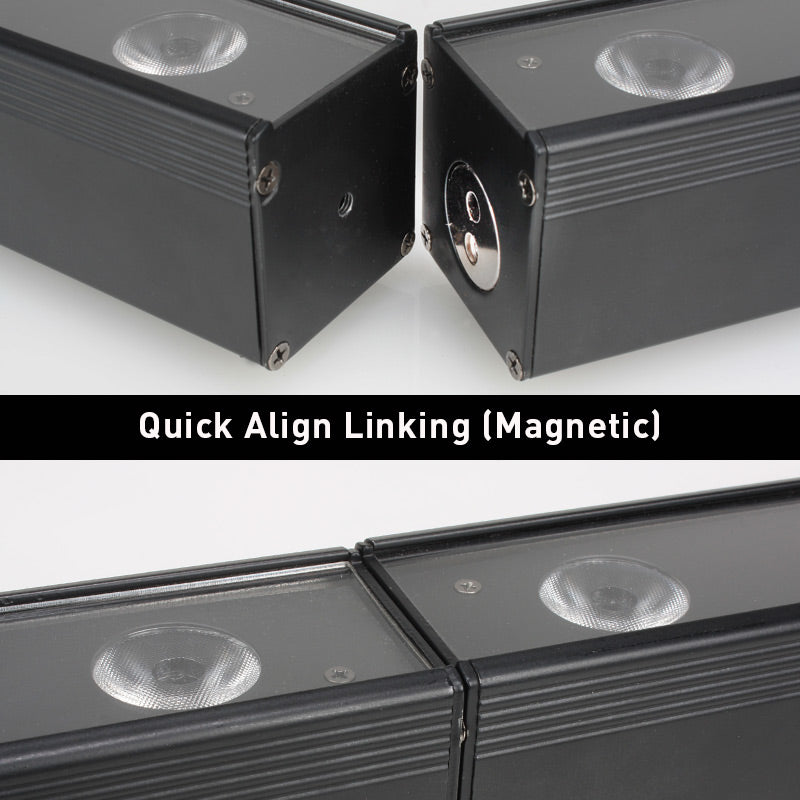

• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free

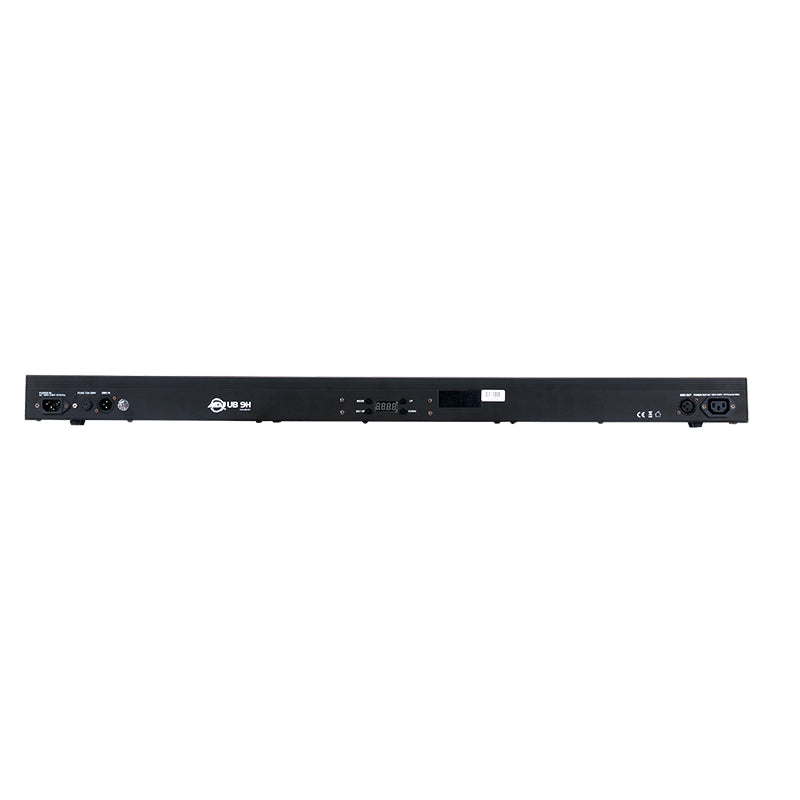

• 4-Button DMX LED Display
• 35 built-in Color Macros
• LED pulse & strobe effect
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall or set on the ground

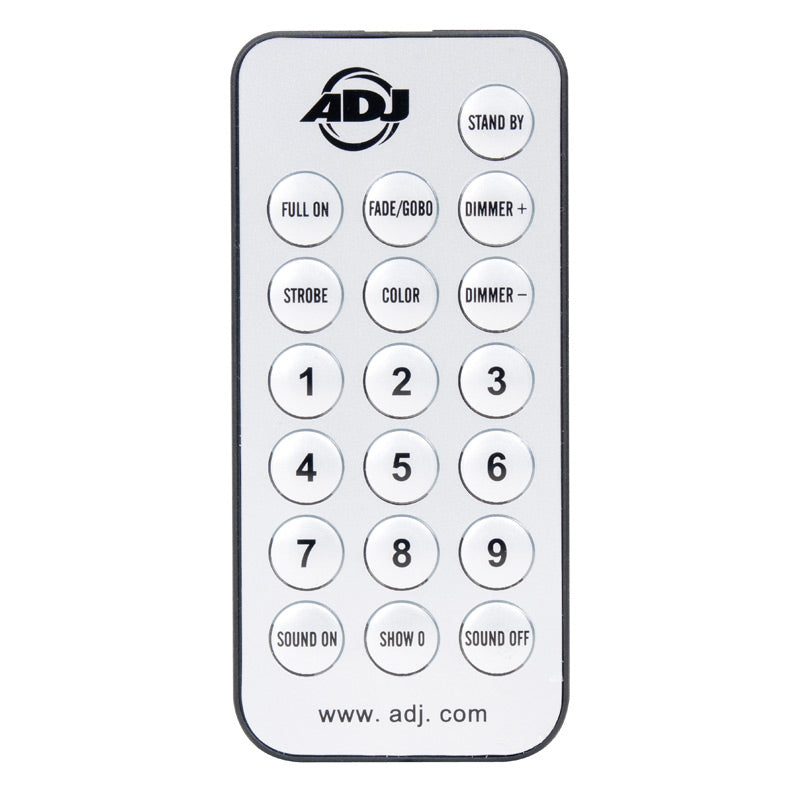

• Compatible with the remote with UC IR (Included) and the Airstream IR APP
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Power Draw: 65W @ 120V.
• Linkable: DMX via 3-pin XLR cable; Power via IEC. Daisy-chain power (Up to 10 UB 9H fixtures max., @ 120V can be power linked)
• With Wired Digital Communication Network
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 41.75” x 2.5” x 3.5”/ 1060 x 63 x 90mm
• Weight: 6 lbs./ 2.6 kg.
• cETLus Approved (Control #4002034)
Videos
Downloads
The following downloads are available for this product:
| Title | Description | |
|---|---|---|
| UB 9H Cut Sheet | PDF Cut Sheet (Revised July 2022) | Download |
| UB 9H User Manual | User Manual | Download |
| UB 9H Photometric Test Reports | Photometric Test Reports | Download |
| UB 9H Photometric IES Files | Photometric IES Files | Download |
Available now from ADJ USA

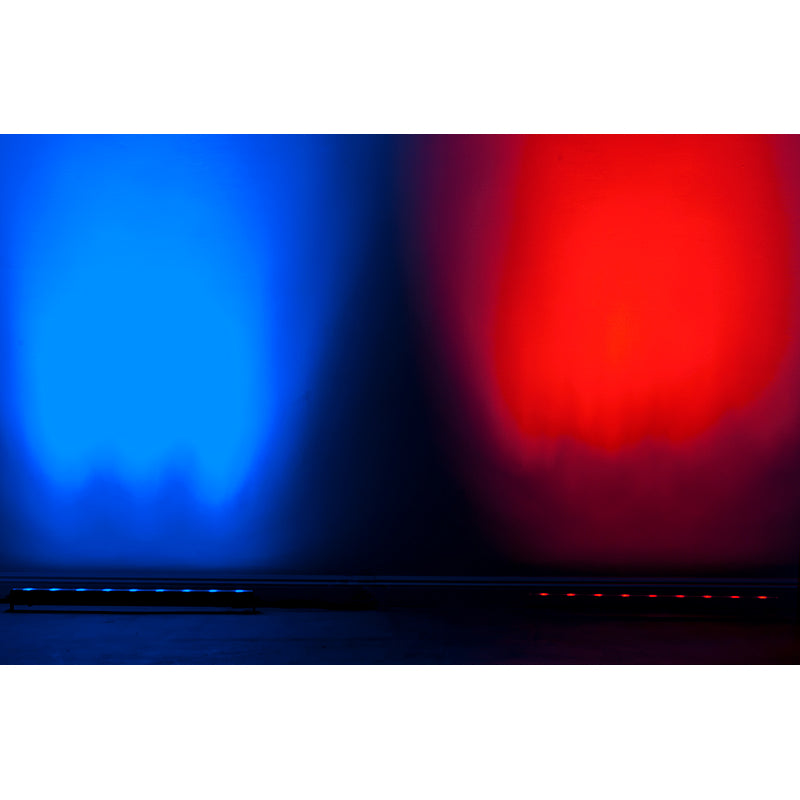

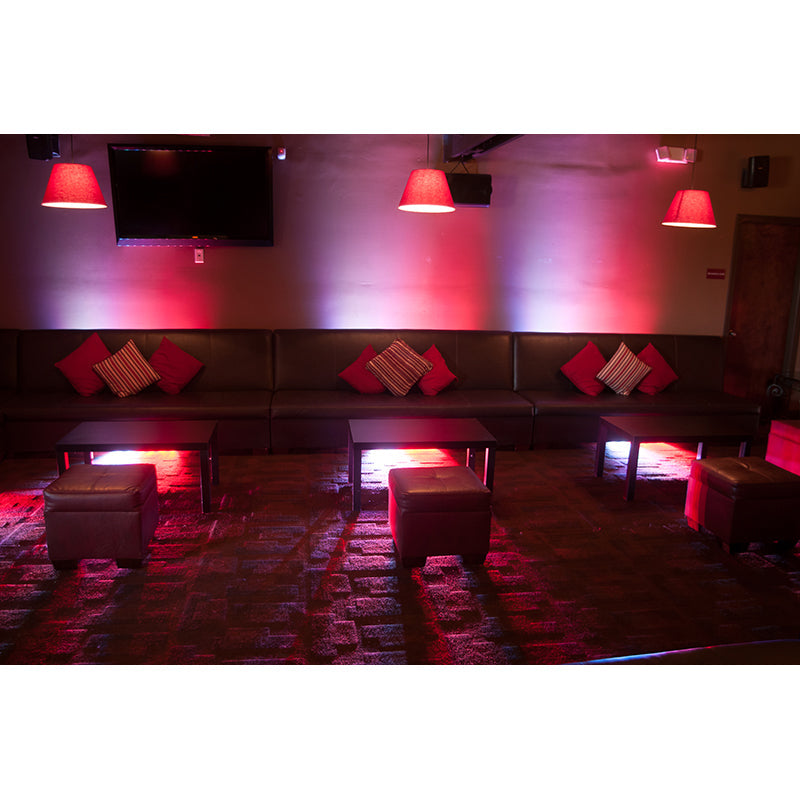

The ADJ UB 9H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by nine 6-Watt HEX LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.
UB 9H features built-in Color Macros (built-in colors), 4 DMX Channel Modes, 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote that is included inside the box.
To learn more about the UB 9H, check out this product spotlight article: CLICK HERE
